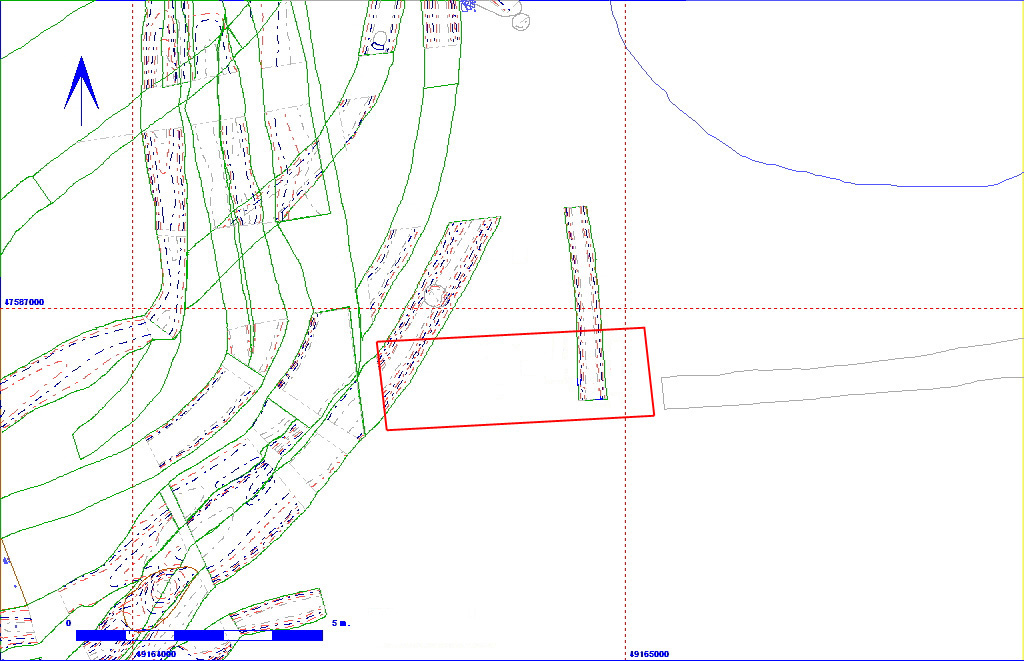

Shows location of layer 11AD64 in relation to the rest of Site 11

011AD00072    Layer



Layer Details
Length 750 Width 200 Depth 0
Area  15 sq. m Volume
Material Culture Number of Objects 0 Number of Animal Bones 0

Stratigraphic Matrix Diagram

                       011AD00029

  011AD00068           011AD00045    =  011AD00037 = 011AD00046

  011AD00075          011AD00054    =    011AD00053

  011AD00077            011AD00057  =  011AD00055

  011AD00085

  011AD00084
             011AD00047  =  011AD00048               011AD00036

             011AD00059  =    011AD00058          011AD00040    011AD00039

            011AD00061    =    011AD00060          011AD00041

              011AD00063    =    011AD00062        011AD00087


              011AD00064    =     011AD00065

            011AD00072         011AD00070

The matrix diagram above shows an extract of the spits and layers from this section of Area 11AD indicating their relationships to each other. Click on the spit number which you wish to see in more detail. The bold, flashing (Netscape browser only) context indicates the current catalogue entry. The numbers enclosed in grey include all of the spits from the waterlogged area around the spring, although they are dealt with as individual entries. If you wish to see the full spit matrix for areas 11AD (1990), 11BD (1991) and 11CD (1992), then click here.

Discussion

This was a gravelly chalk layer (Munsell colour 10YR 8/1), sealed by 011AD00065, in one of the four sections excavated to the south-west of the spring pool.  It remained unexcavated during the 1990 season. This layer probably equals layers 011AD00070, 011AD00084 and 011AD00087, all found in the bases of the other three sections. There were no finds.


Context Details

KEY_ID TYPE SHAPE L B D PROFILE NOTES
011AD00072 LAYER RECTANGULAR
750
200
0
 FLAT GRAVEL LAYER AT BASE OF 2ND QUAD LOCATED IN E. AD W. OF BAULK NOT EXCAVATED DURING 1990 SESSION.
