012AB07199

Ditch



Ditch Details
Length   1675 Maximum Width   100 Maximum Depth   35 Profile U shaped
Material Culture  Number of Objects  35 Number of Animal Bones  41
Environmental

Phasing

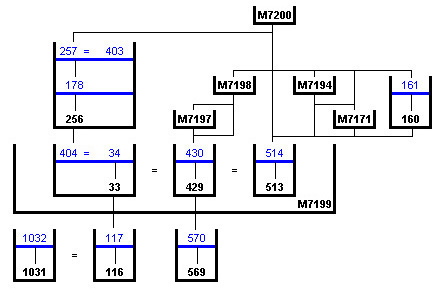

Stratigraphic Matrix Diagram



Discussion

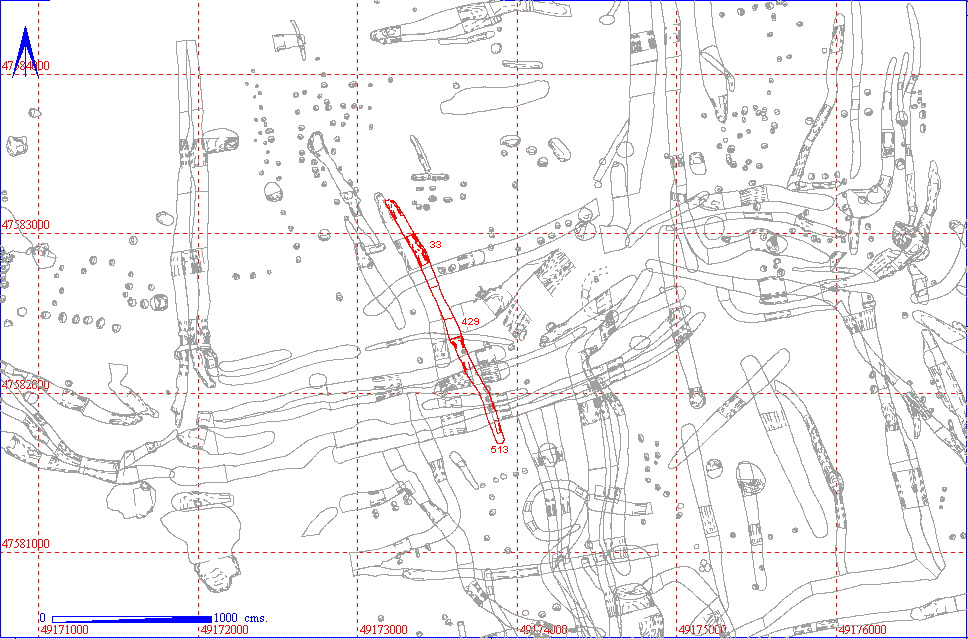

 A NW/SE aligned ditch in the west of area 12AB. The ditch is the most easterly of several similarly aligned ditches in the vicinity. The west side is cut by one of these ditches (012AB00256). The south terminus is cut by five east/west aligned ditches (012AB00160, 012AB07171, 012AB07194, 012AB07197 and 012AB07198) and two post holes (part of master 012AB07200). The ditch cuts through a curvilinear ditch (012AB01031) and a small east/west aligned slot (012AB00569). No relationship was established with broad east/west ditch 012AB00302.

All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME  OBJECTS AN BONE  DENSITY
 012AB07199
012AB00033
012AB00034
   28 30

012AB00404
   5 2

012AB00429
012AB00430
   2 9

012AB00513
012AB00514


Object Totals by Material

012AB00034 Object Totals by Material

KEY_ID PERIOD MATERIAL No
012AB00034 Unassigned CHARCOAL
5
  ROMAN DAUB
16
  Unassigned FLINT
1
  Unassigned GLASS
1
  MEDIEVAL POTTERY
1
  Unassigned POTTERY
1
  Unassigned STONE
3

012AB00404 Object Totals by Material

KEY_ID PERIOD MATERIAL No
012AB00404 Unassigned CHARCOAL
4
  Unassigned STONE
1

012AB00430 Object Totals by Material

KEY_ID PERIOD MATERIAL No
012AB00430 ROMAN DAUB
1
  ANGLIAN? POTTERY
1

Animal Bone Totals by Species

012AB00034 Animal Bone Totals by Species

KEY_ID SPECIES No
012AB00034 Cattle 12
  Pig 2
  Sheep 8
  Sheep/Goat 8

012AB00404 Animal Bone Totals by Species

KEY_ID SPECIES No
012AB00404 Cattle 1
  Domestic fowl 1

012AB00430 Animal Bone Totals by Species

KEY_ID SPECIES No
012AB00430 Cattle 1
  Sheep 3
  Sheep/Goat 5

Context Details

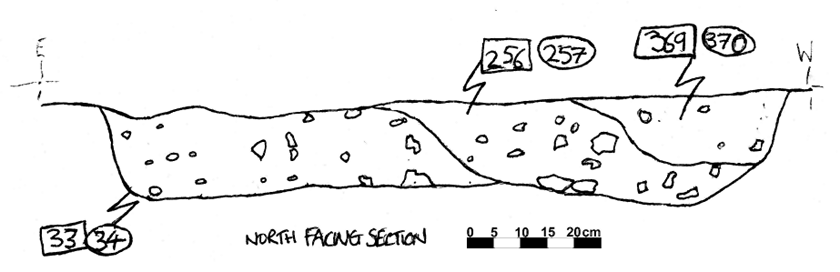

012AB00033 Section and Notes



 KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
012AB00033 DITCH CUT LINEAR
1110
65
35
 U-SHAPED RECUT OF DITCH 256 UNTIL THEY DIVERGE AFTER 10M TO BECOME 177 AND 429 CUTS 65 AND 117
012AB00034 DITCH FILL LINEAR
1110
65
35
 U-SHAPED TOP FILL OF DITCH 33 IN ONE DITCH SECTION TOP FILL OF 256 ABOVE 403WAS EXCAVATED AS 34 BUT LATER RENUMBERED 403 AND 404
012AB00404 DITCH FILL SEG LINEAR SEG.
190
45
20
 U-SHAPED FILL OF DITCH 33 UNDER 34 IN ONE SEGMENT WHERE IT BECAME DISTINCT FROM REST OF FILL 403 IN SLOT 256

012AB00429 Section and Notes

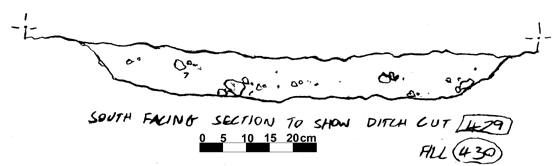

012AB00429 South Facing Section

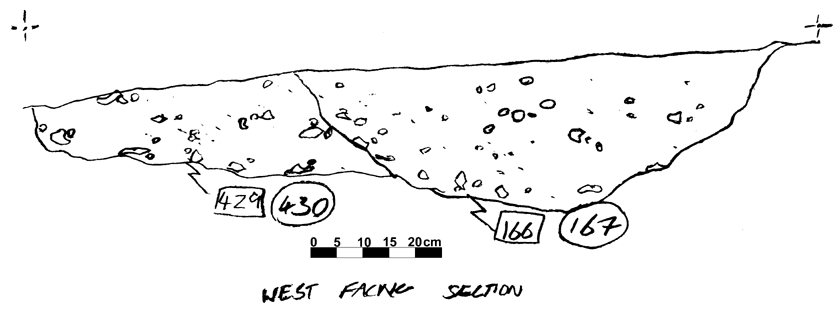

012AB00429 West Facing Section



 KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
012AB00429 DITCH CUT SEG LINEAR
215
75
12
 WIDE U CUT OF DITCH SEG=33+513 CUT AWAY BY ALL ABOVE STRAT
012AB00430 DITCH FILL SEG LINEAR
215
75
12
 WIDE U FILL OF DITCH CUT SEGMENT 430 CUT INTO BY ABOVE STRAT INCLUSIONS OF DAUB AND CHALK<3CM 10%

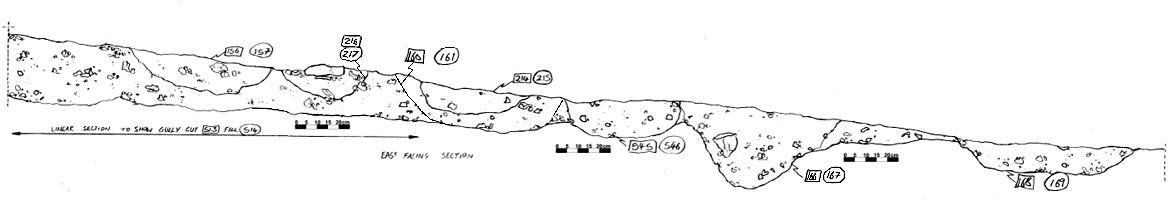

012AB00513 Section and Notes



 KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
012AB00513 DITCH CUT SEG LINEAR SEG.
900
80
28
 U-SHAPED DITCH CUT RUNS SE+BUTTS=429+33 CUTBY214+156+166+158 CUTS168+160
012AB00514 DITCH FILL SEG LINEAR SEG.
900
80
28
 U-SHAPED FILL OF DITCH INCLUSIONS OF CHALK <3CM 10% CUT BY 214+156+166+158

Objects By Context

KEY_ID OB PERIOD MATERIAL TYPE SUB_TYPE CLASS No
012AB00034 AO Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00034 AP Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00034 AQ Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00034 AR Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00034 AZ Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00034 AA ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AB ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AC ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AD ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AE ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AH ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AI ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AJ ROMAN DAUB DAUB FRAGMENTS


3
012AB00034 AK ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AL ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AM ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AN ROMAN DAUB DAUB FRAGMENT


1
012AB00034 AS ROMAN DAUB DAUB


1
012AB00034 AT ROMAN DAUB DAUB


1
012AB00034 AU ROMAN DAUB DAUB


2
012AB00034 AV ROMAN DAUB DAUB


1
012AB00034 AW Unassigned FLINT FLINT CHIP NATURAL

1
012AB00034 AG Unassigned GLASS SHERD


1
012AB00034 AF MEDIEVAL POTTERY SHERD BROWN GLAZED

1
012AB00034 AX Unassigned POTTERY SHERD


1
012AB00034 AY Unassigned STONE PEBBLE

 QUARTZITE
1
012AB00034 BA Unassigned STONE PEBBLE


1
012AB00034 BB Unassigned STONE STONE


1
012AB00404 AB Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00404 AC Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00404 AD Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00404 AE Unassigned CHARCOAL CHARCOAL SAMPLE


1
012AB00404 AA Unassigned STONE STONE

 RED CHALK
1
012AB00430 AA ROMAN DAUB DAUB


1
012AB00430 AB ANGLIAN? POTTERY SHERD

 ANGLIAN III?
1

Animal Bone by Context

KEY_ID  SPECIES ELEMENT  QUANT CHEW  BURN BUTCH  FBRK
012AB00034 Cattle Calcaneum 1 0 0 1 0
012AB00034 Cattle Humerus D 1 1 0 1 0
012AB00034 Cattle LM3 1 0 0 0 0
012AB00034 Cattle Mandible 1 0 0 0 0
012AB00034 Cattle N.Cuboid 1 0 0 0 0
012AB00034 Cattle Phalanx 2 1 0 0 0 0
012AB00034 Cattle Phalanx 3 1 0 0 0 0
012AB00034 Cattle Phalanx 3 1 0 0 0 0
012AB00034 Cattle Scapula 1 0 0 0 1
012AB00034 Cattle Scapula 1 0 0 0 1
012AB00034 Cattle Skull fr 1 0 0 0 0
012AB00034 Cattle Tibia D 1 0 0 0 0
012AB00034 Pig Calcaneum 1 0 0 0 0
012AB00034 Pig Phalanx 3 1 0 0 0 0
012AB00034 Sheep Calcaneum 1 0 0 0 0
012AB00034 Sheep Calcaneum 1 0 0 1 0
012AB00034 Sheep M/C D 1 0 0 0 0
012AB00034 Sheep Phalanx 1 2 0 0 0 0
012AB00034 Sheep Phalanx 1 1 0 0 0 0
012AB00034 Sheep Phalanx 1 2 0 0 0 0
012AB00034 Sheep Phalanx 3 1 0 0 0 0
012AB00034 Sheep Radius P 1 0 0 0 0
012AB00034 Sheep/Goat Astragalus 1 0 0 0 1
012AB00034 Sheep/Goat Calcaneum 1 0 0 0 1
012AB00034 Sheep/Goat Femur P 1 0 0 0 0
012AB00034 Sheep/Goat Hyoid 1 0 0 0 0
012AB00034 Sheep/Goat Mand fr 1 0 0 0 0
012AB00034 Sheep/Goat Pelvis 1 0 0 0 1
012AB00034 Sheep/Goat Radius D 1 0 0 0 0
012AB00034 Sheep/Goat Skull fr 1 0 0 0 0
012AB00404 Cattle Humerus P 1 1 0 0 0
012AB00404 Domestic fowl Tibia C 1 0 0 0 0
012AB00430 Cattle Phalanx 1 1 0 0 0 0
012AB00430 Sheep M/T C 1 0 0 0 0
012AB00430 Sheep Phalanx 1 1 0 0 0 0
012AB00430 Sheep Tibia D 1 0 0 0 0
012AB00430 Sheep/Goat Mand fr 1 0 0 0 1
012AB00430 Sheep/Goat Mand fr 1 0 0 0 0
012AB00430 Sheep/Goat Mandible 1 0 0 0 0
012AB00430 Sheep/Goat Mandible 1 0 0 0 0
012AB00430 Sheep/Goat Ulna 1 0 0 0 0
