002CC01900

Post Hole Structure

Post-Hole Structure Details
Length 580 Width 320
Area  18.56 sq. m Ratio 1.8:1
Number of Posts 19 Deepest 22  002CC00080 Shallowest 8 (x2) 002CC00052 and 002CC00084
Average Depth
 12
North Wall 7 Posts Average Depth 11
East Wall 2 Posts Average Depth 13.5
South Wall 7 Posts Average Depth 13
West Wall 4 Posts Average Depth 12.5
Interior Divisions: No
Highest Elevation Value  5438 002CC00104
Lowest Elevation Value 5389 002CC01638
Bearing  75 degrees
Plank\Post Post
Doorways 2 doorways centrally located in the long walls.
Repairs: No repairs noted
Structural Class
Material Culture Number of Objects 3  Number of Animal Bones 0
Environmental

Phasing


Discussion

A small, rectangular structure aligned NE/SW that over-laps the north-west corner of 002CC00019. Sixteen post-holes have been attributed to this structure averaging 0.30m to 0.50m in diameter. It appears to have one entrance in the south-east long wall, a typical feature of the smaller buildings. Many of the post holes were initially recorded as part of master 002CC00019: the master number for this structure was issued at a later date.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
002CC0001900 002CC00036 002CC00037
002CC00052 002CC00053
002CC00054 002CC00055
002CC00064 002CC00065
002CC00080 002CC00081
002CC00082 002CC00083 3
002CC00084 002CC00085
002CC00088 002CC00089
002CC00090 002CC00091
002CC00100 002CC00101
002CC00102 002CC00103
002CC00104 002CC00105
002CC00503 002CC00504
002CC00505 002CC00506
002CC00507 002CC00508
002CC00509 002CC00510
002CC01582 002CC01583
002CC01584 002CC01585
002CC01638 002CC01639

Structural Details

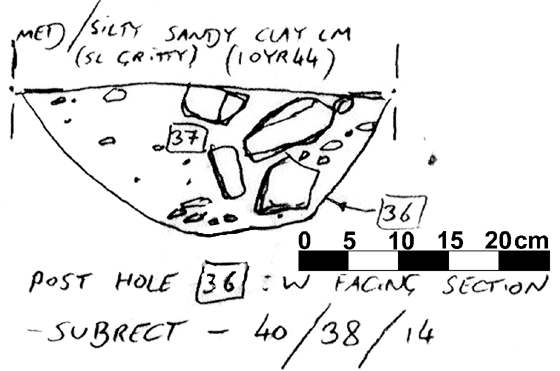

002CC00036 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00036 POST HOLE CUT OVATE  40 38  14 USHAPED  P.H. N. SIDE M. 19. SMOOTH SIDES-SLIGHTLY STEEPER AT S. THAN N. FLATTISH BASE. TRUNCATED ABOVE.
002CC00037 POST HOLE FILL OVATE  40 38  14 USHAPED  MOD LARGE CHALK < 9 CM CONCENTRATED ON S. SIDE. TRUNCATED ABOVE. N. WALL M 19.

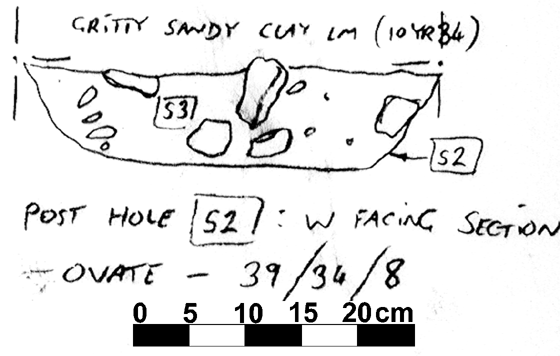

002CC00052 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00052 POST HOLE CUT OVATE  39 34  8 FLAT BASED V  P.H. N. SIDE BLDG M. 19. HEAVILLY TRUNCATED ABOVE.
002CC00053 POST HOLE FILL OVATE  39 34  8 FLAT BASED V  MOD CHALK < 6 CM. THROUGHOUT FILL. V. SHALLOW-TRUNCATED ABOVE. N. SIDE BLDG M 19.

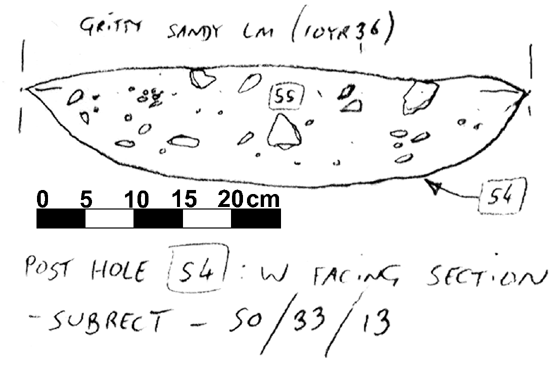

002CC00054 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00054 POST HOLE CUT SUB-RECTANGULAR  50 33 13  CONCAVE INTERNAL P.H. IN M. 19. TRUNCATED ABOVE. GENTLY SLOPING EDGES : CONCAVE BASE.
002CC00055 POST HOLE FILL SUB-RECTANGULAR  50 33 13  CONCAVE MOD SMALL CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE. INTERNAL P.H. IN M. 19.

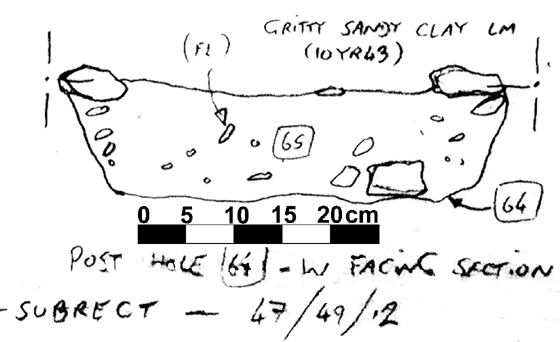

002CC00064 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00064 POST HOLE CUT SUB-RECTANGULAR  49 47 12  VERT.SIDE F.BASE P.H. W. SIDE BLDG M. 19. REGULAR SIDES & BASE. TRUNCATED ABOVE.
002CC00065 POST HOLE FILL SUB-RECTANGULAR  49 47 12  VERT.SIDE F.BASE OCCA-MOD CHALK < 7 CM. THROUGHOUT FILL. TRUNCATED ABOVE. ON W. SIDE BLDG M. 19.

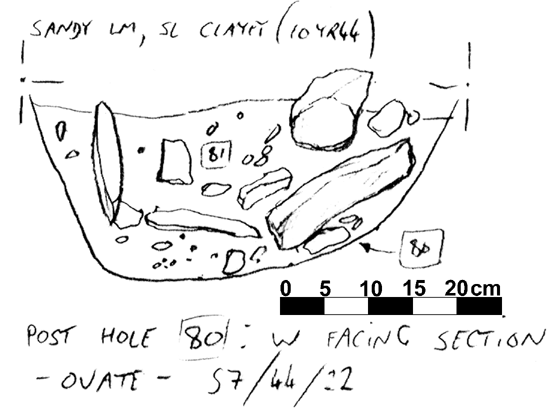

002CC00080 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00080 POST HOLE CUT OVATE  57 44  22 USHAPED  P.H. OF BLDG M. 19. BASE DIPS SLIGHTLY S. DOWN TO N. SIDES STEEP. TRUNCATED ABOVE.
002CC00081 POST HOLE FILL OVATE  57 44  22 WIDE U  FREQ CHALK < 18 CM. BUT MOSTLY SMALLER. THROUGHOUT FILL. TRUNCATED ABOVE.

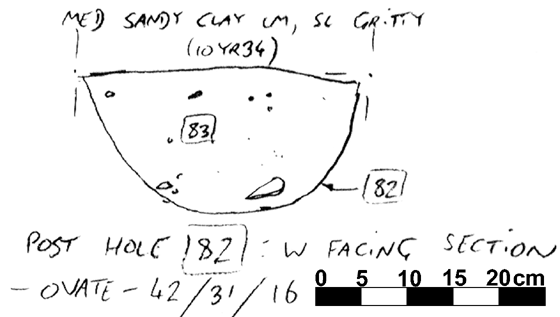

002CC00082 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00082 POST HOLE CUT OVATE 42 31  16 USHAPED P.H. OF M. 19. TRUNCATED ABOVE. SMOOTH REGULAR SIDES & BASE.
002CC00083 POST HOLE FILL OVATE  42 31  16 USHAPED  HARDLY ANY INCLUSIONS- A FEW SMALL CHALK FRAGS < 3 CM. TRUNCATED ABOVE.

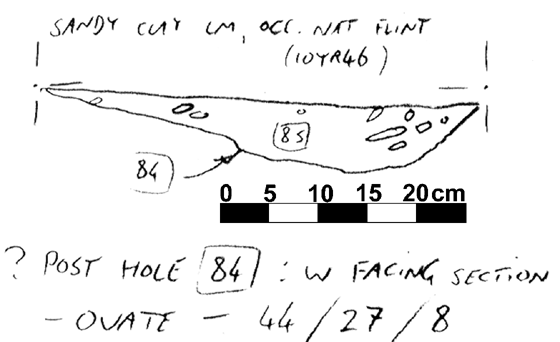

002CC00084 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00084 POST HOLE CUT OVATE  44 27  8 CONCAVE P.H. OF BLDG M. 19. V. SHALLOW & TRUNCATED: DIPS FROM N. DOWN TO S.
002CC00085 POST HOLE FILL OVATE  44 27  8 CONCAVE OCCA CHALK < 3 CM. V. THIN-HEAVILLY TRUNCATED.

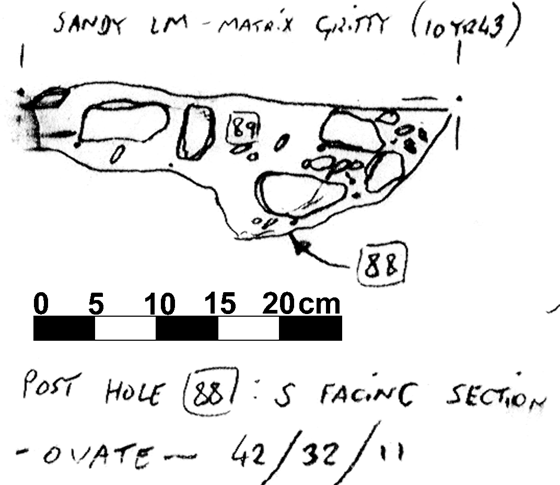

002CC00088 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00088 POST HOLE CUT OVATE  42 32  11 UNDULATING  P.H. OF BLDG M.19. UNUSUAL STEPPED PROFILE: SIDES STEEPISH. TRUNCATED ABOVE.
002CC00089 POST HOLE FILL OVATE  42 32  11 UNDULATING  FREQ CHALK BLOCKS < 7 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

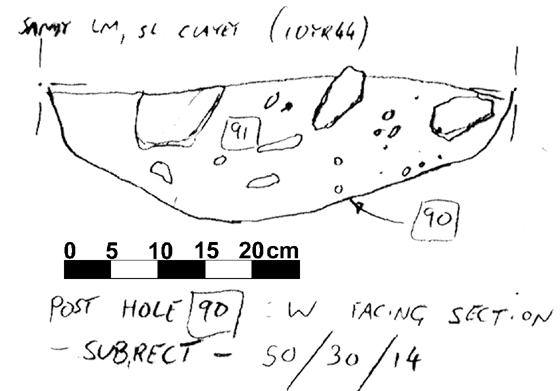

002CC00090 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00090 POST HOLE CUT OVATE  30 30  14 WIDE U  P.H. OF BLDG M. 19. TRUNCATED ABOVE. SIDES REGULAR: BASE CONCAVE.
002CC00091 POST HOLE FILL OVATE  50 30  14 WIDE U  MOD CHALK < 8 CM. THROUGHOUT FILL. TRUNCATED ABOVE. SLIGHTLY CLAYEY.

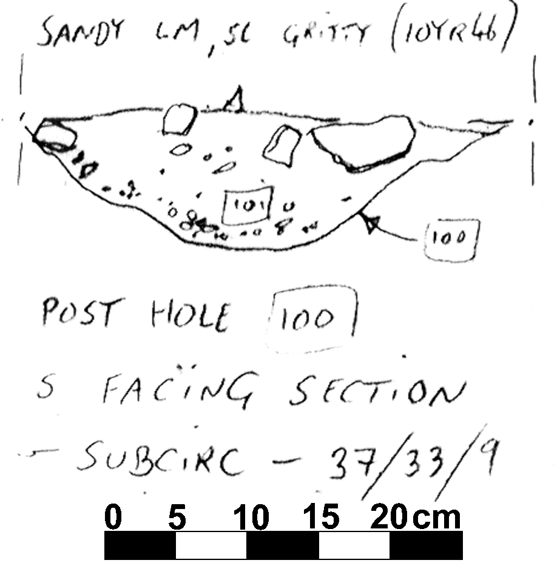

002CC00100 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00100 POST HOLE CUT SUB-CIRCULAR  37 33 11  BOWL SHAPED P.H. OF BLDG M.19. GENTLE SLOPE TO EDGES---TRUNCATED ABOVE.
002CC00101 POST HOLE FILL SUB-CIRCULAR  37 33 11  BOWL SHAPED MOD CHALK < 6 CM: FINER CHALK LOWER IN FILL. TRUNCATED ABOVE.

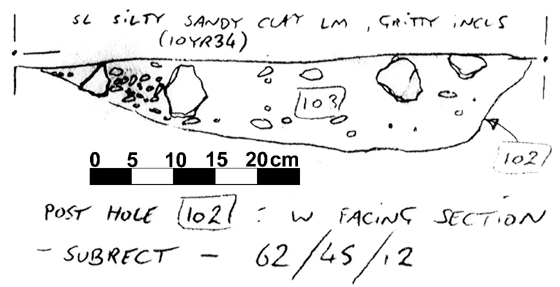

002CC00102 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00102 POST HOLE CUT SUB-RECTANGULAR  62 45 12  CONCAVE P.H. OF BLDG M.19. EDGE GENTLE AT N. STEEP AT S. TRUNCATED ABOVE.
002CC00103 POST HOLE FILL SUB-RECTANGULAR  62 45 12  CONCAVE MOD CHALK < 6 CM. THROUGHOUT FILL. SOME GRITTY INCLUSIONS. TRUNCATED ABOVE.

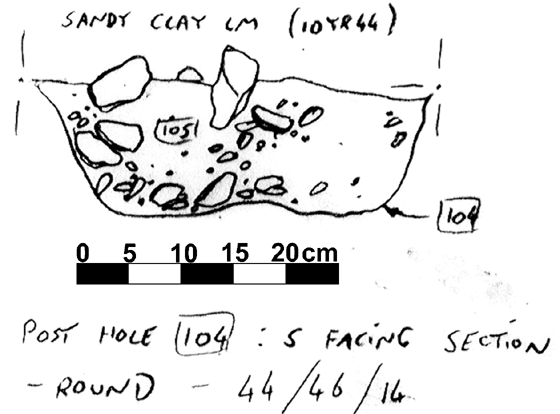

002CC00104 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00104 POST HOLE CUT ROUND  46 44  14 FLAT BASED U  P.H. OF BLDG M.19. REGULAR: TRUNCATED ABOVE.
002CC00105 POST HOLE FILL ROUND  46 44  14 FLAT BASED U  MOD CHALK < 6 CM. ---BUT LITTLE IN E. OR CENTRE.(POSS P. PIPE & PACKING). TRUNCATED ABOVE.

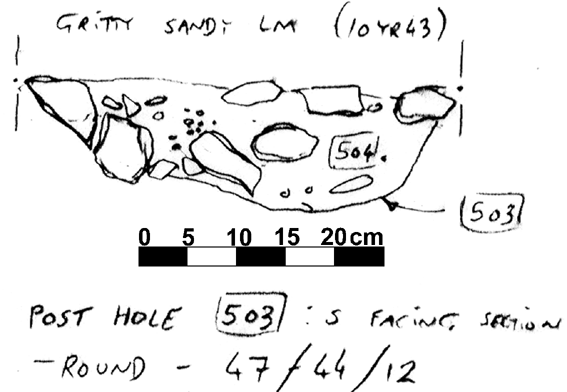

002CC00503 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00503 POST HOLE CUT ROUND 47 44 12 WIDE U PH ON W SIDE OF BLDG M19. TRUNCATED ABOVE. REGULAR SIDE AND BASE.
002CC00504 POST HOLE FILL  ROUND 47 44  12 WIDE U FREQ. CHALK THROUGHOUT FILL <8CM. TRUNCATED ABOVE.

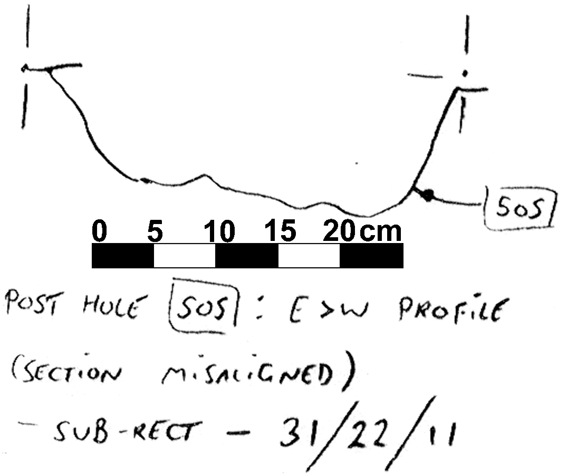

002CC00505 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00505 POST HOLE CUT SUB-RECTANGULAR 31 22  11 FLAT BASED U PH ON W SIDE OF BLDG M19. TRUNCATED ABOVE. UNEVEN EDGES AND BASE.
002CC00506 POST HOLE FILL  SUB-RECTANGULAR 31 22  11 FLAT BASED U FILL REMOVED PRIOR TO RECORDING.


002CC00507 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00507 SOLUTION HOLE CUT No Entry 0  0 0 No Entry DUD........ONCE THOUGHT TO BE A POST HOLE.
002CC00508 SOLUTION HOLE FILL  No Entry 0  0 0 No Entry DUD.......ONCE THOUGHT TO BE A POST HOLE.

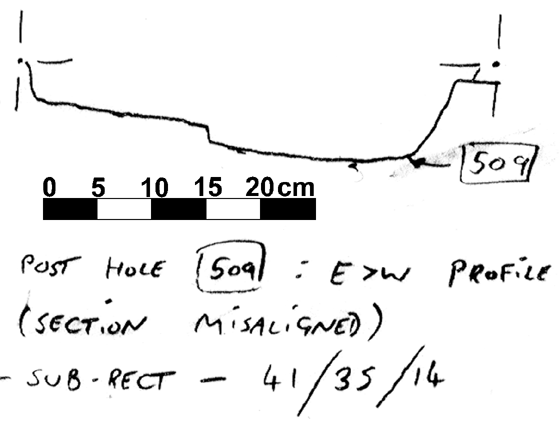

002CC00509 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00509 POST HOLE CUT SUB-RECTANGULAR  41 35 14  IRREGULAR P.H. W. SIDE BLDG M.19. TRUNCATED ABOVE. V. SHALLOW: BASE STEPPED & SLOPING.
002CC00510 POST HOLE FILL SUB-RECTANGULAR  41 35 14  IRREGULAR EXCAVATED PRIOR TO RECORDING.

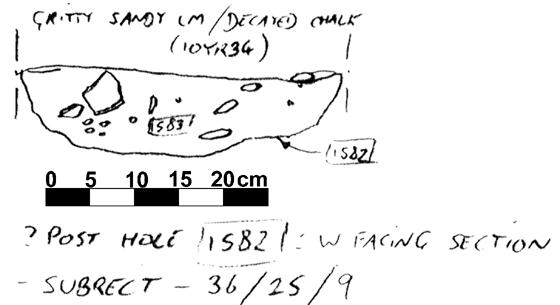

002CC01582 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01582 POST HOLE CUT SUB-RECTANGULAR  36 25 9  USHAPED P.H. OF BLDG M.16. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01583 POST HOLE FILL SUB-RECTANGULAR  36 25 9  USHAPED MOD CHALK < 6 CM (SOME DECAYED) THROUGHOUT FILL. SHALLOW: TRUNCATED ABOVE.

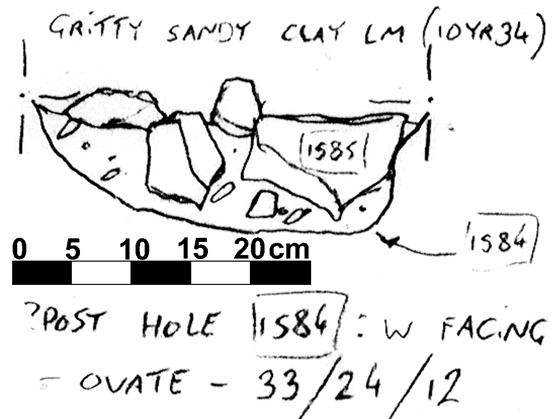

002CC01584 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01584 POST HOLE CUT OVATE  33 24  12 FLAT BASED U  POSS P.H. : OF BLDG M16. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01585 POST HOLE FILL OVATE  33 24  12 FLAT BASED U  POSS P.H. FREQ LARGE CHALK < 12 CM: TIGHTLY COMPACTED THROUGHOUT FILL. TRUNCATED ABOVE.

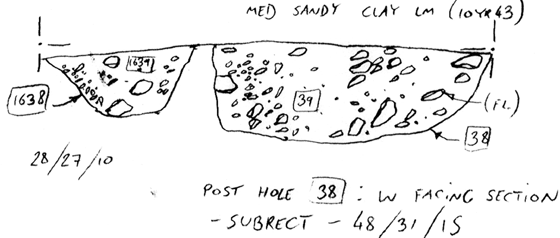

002CC01638 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01638 POST HOLE CUT No entry  28 27  10 FLAT BASED V  P.H. N. SIDE OF BLDG M.16. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CC01639 POST HOLE FILL No entry  28 27  10 FLAT BASED V  FREQ CHALK < 4 CM THROUGHOUT FILL. NO FURTHER DETAILS.



Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CC00083 AA Early Saxon  POTTERY SHERD ANGLIAN IV 1
002CC00083 AB No Entry  POTTERY SHERD 1
002CC00083 AC No Entry  STONE STONE SANDSTONE 1

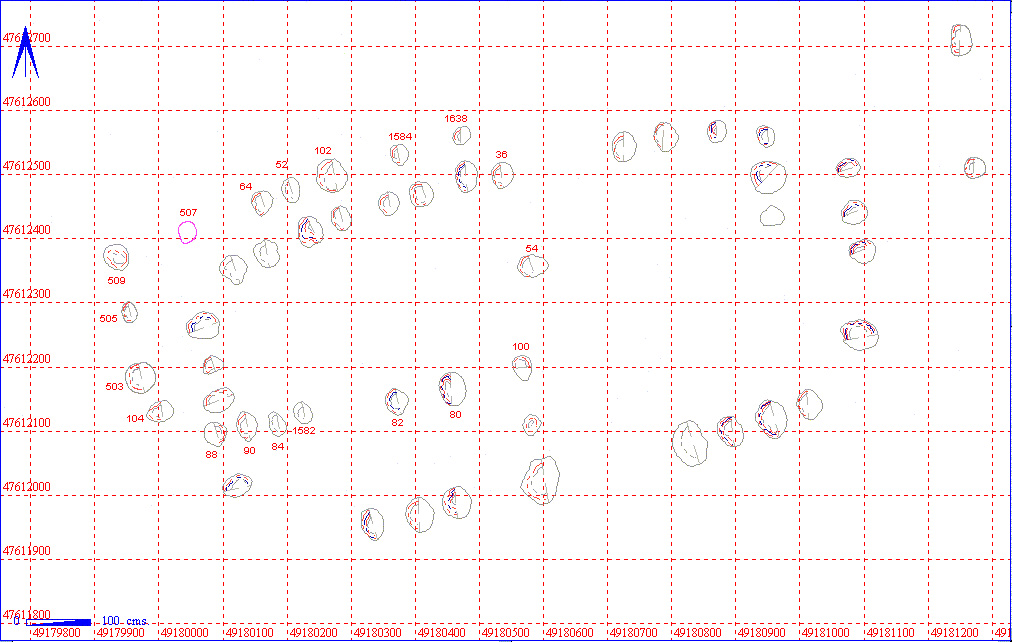

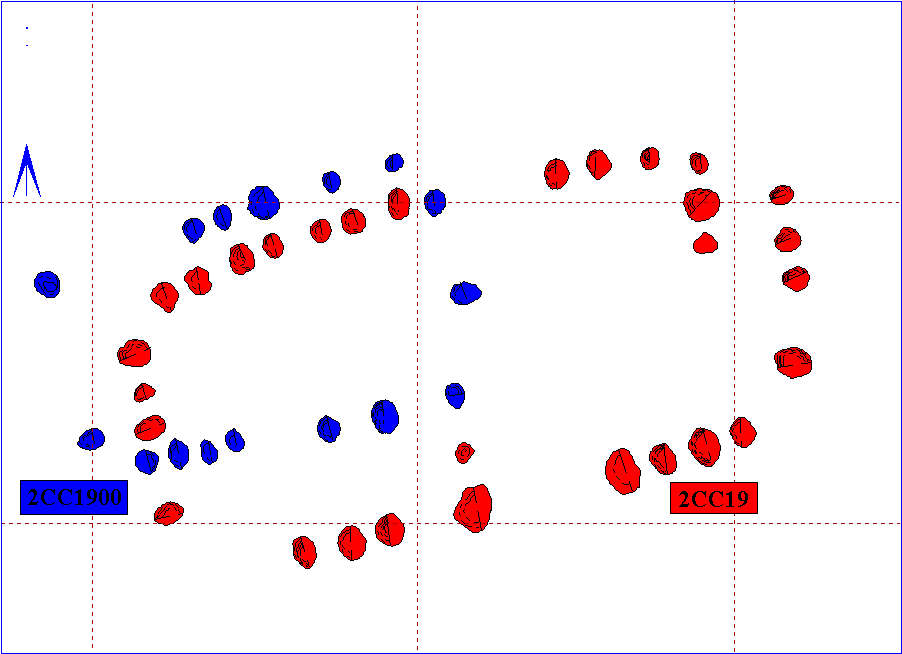

Plan showing separate post holes of structure 2CC19 and 2CC1900
