002CC00019

Post Hole Structure



Post-Hole Structure Details
Length 990 Width 400
Area  39.96 sq. m Ratio 2.4:1
Number of Posts 30 Deepest 23 (x2)  002CC00046 and 002CC00074 Shallowest 6 002CC00048
Average Depth
 16
North Wall 11 Posts Average Depth 13
East Wall 4 Post Average Depth 20.5
South Wall 9 Posts Average Depth 15
West Wall 4 Posts Average Depth 15
Interior Divisions: 3 internal posts, 1 situated near southern entrance and 2 may indicate eastern division.
Highest Elevation Value  5437 002CC00086
Lowest Elevation Value 5373 002CC00026
Bearing  70 degrees
Plank\Post Post
Doorways 2 doorways centrally located in the long walls.
Repairs: No repairs noted
Structural Class
Material Culture Number of Objects 6  Number of Animal Bones 2
Environmental

Phasing

Discussion

A large structure with 27 external and 3 internal post-holes measuring from 0.30m to 0.60m in diameter. All the post holes were truncated by ploughing, some heavily The orientation of the structure is ENE/WSW and it appears to have had one partition wall at the eastern side measuring 1.00m in width. The structure overlaps with another, smaller structure ( 002CC1900 ) with A similar ENE-WSW orientation. The stratigraphic relationship between them is indeterminable as there are no intercutting post holes. The building has two entrances, centrally opposed in the long walls, possibly with one internally hung door in the south-east long wall. Many of the post-holes in the long walls are paired across the structure. As is usual, there appear to be no corner posts.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
002CC00019 002CC00020 002CC00021
002CC00022 002CC00023
002CC00024 002CC00025
002CC00026 002CC00027
002CC00028 002CC00029 1
002CC00030 002CC00031
002CC00032 002CC00033
002CC00034 002CC00035
002CC00038 002CC00039 1
002CC00040 002CC00041
002CC00042 002CC00043
002CC00044 002CC00045
002CC00046 002CC00047
002CC00048 002CC00049 1
002CC00050 002CC00051
002CC00056 002CC00057 2
002CC00058 002CC00059
002CC00060 002CC00061
002CC00062 002CC00063 1
002CC00066 002CC00067
002CC00068 002CC00069
002CC00070 002CC00071
002CC00072 002CC00073
002CC00074 002CC00075 1
002CC00076 002CC00077
002CC00078 002CC00079 1
002CC00086 002CC00087
002CC00092 002CC00093
002CC00096 002CC00097
002CC00098 002CC00099
002CC00481 002CC00482

Structural Details

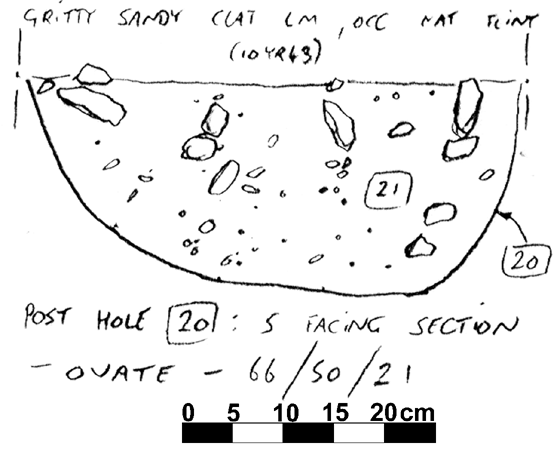

002CC00020 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00020 POST HOLE CUT OVATE  66 50  21 USHAPED  P.H. E. SIDE OF BLDG. REGULAR SIDES: FLATTISH BASE. TRUNCATED ABOVE.
002CC00021 POST HOLE FILL OVATE  66 50  21 USHAPED  MOD CHALK < 6 CM. OCCA NAT FLINT. TRUNCATED ABOVE. E. SIDE OF BLDG.

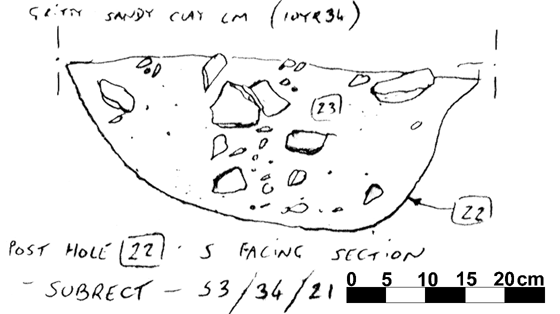

002CC00022 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00022 POST HOLE CUT SUB-RECTANGULAR  53 34 21  USHAPED P.H. E. SIDE OF BLDG M 19. FLATTISH BASE : SIDE RISES LESS STEEPLY AT W. THAN AT E. TRUNCATED ABOVE.
002CC00023 POST HOLE FILL SUB-RECTANGULAR  53 34 21  USHAPED MOD CHALK INCLS < 8 CM. MAINLY IN CENTRAL AREA OF FILL. TRUNCATED ABOVE. E. SIDE OF BLDG M 19.

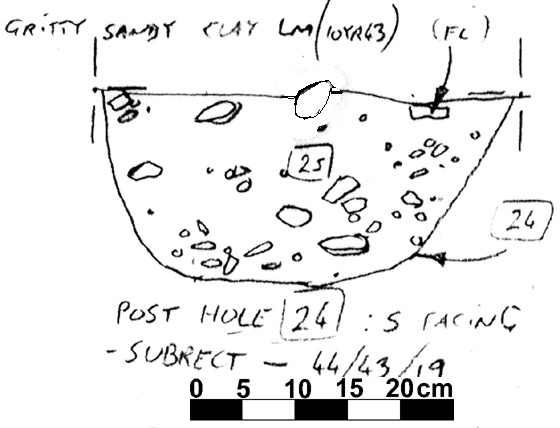

002CC00024 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00024 POST HOLE CUT SUB-RECTANGULAR  44 43 19  FLAT BASED U FLATTISH BASE: EDGE RISES LESS STEEPLY TO E. THAN TO W. TRUNCATED ABOVE. E. SIDE OF BLDG.
002CC00025 POST HOLE FILL SUB-RECTANGULAR  44 43 19  FLAT BASED U MOD CHALK SCATTERED THROUGHOUT FILL < 5 CM. BUT MOSTLY FINER. TRUNCATED ABOVE.

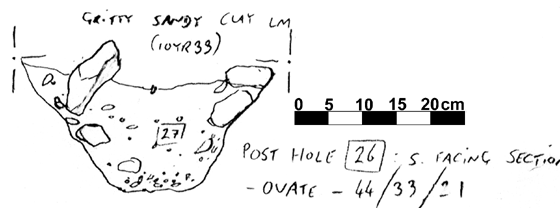

002CC00026 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00026 POST HOLE CUT OVATE  44 33  21 FLAT BASED V  P.H. E. SIDE M 19. TRUNCATED ABOVE. STEEP ANGLED SIDES TAPERING TO A FLAT BASE.
002CC00027 POST HOLE FILL OVATE  44 33  21 FLAT BASED V  MOD CHALK < 12 CM. esp NR EDGES. CHALK IS FINER TOWARDS BASE. TRUNCATED ABOVE. ON E. SIDE M 19.

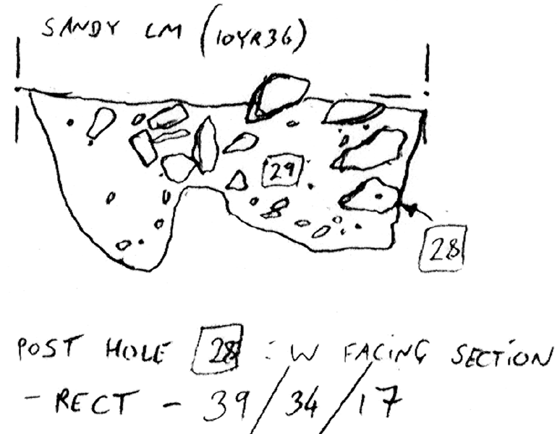

002CC00028 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00028 POST HOLE CUT RECTANGULAR  39 34 17  WSHAPED P.H. N. SIDE BLDG M 19. UNUSUAL PROFILE-HAS A CENTRAL RIDGE. TRUNCATED ABOVE.
002CC00029 POST HOLE FILL RECTANGULAR  39 34 17  WSHAPED MOD-FREQ CHALK < 6CM. THROUGHOUT FILL BUT MOSTLY TO S. UNUSUAL PROFILE. TRUNCATED ABOVE.

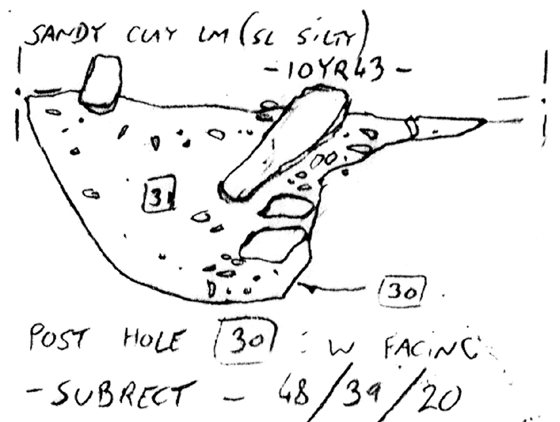

002CC00030 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00030 POST HOLE CUT SUB-RECTANGULAR  48 39 20  STEPPED U P.H. N. SIDE BLDG M 19. CONCAVE BASE : STEEPISH SIDES WITH STEP Nr TOP AT S. SIDE. TRUNCATED ABOVE.
002CC00031 POST HOLE FILL SUB-RECTANGULAR  48 39 20  STEPPED U MOD CHALK < 15 CM-MOSTLY MUCH SMALLER.-CONCENTRATED MAINLY IN W. AREA OF FILL. TRUNCATED ABOVE. N. SIDE BLDG M 19.

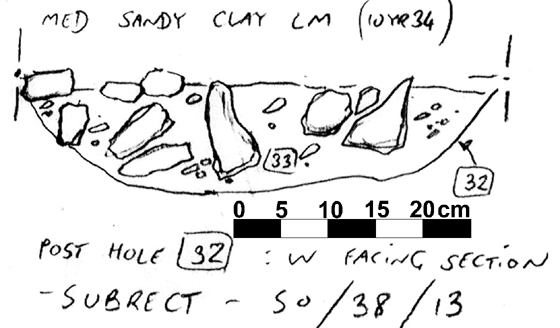

002CC00032 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00032 POST HOLE CUT SUB-RECTANGULAR  50 38 13  FLAT BASED U P.H. N. WALL M 19. TRUNCATED ABOVE. REGULAR GENTLY SLOPING EDGES WITH SLIGHTLY UNDULATING BASE. V. SHALLOW.
002CC00033 POST HOLE FILL SUB-RECTANGULAR  50 38 13  FLAT BASED U FREQ LARGE CHALK < 10 CM SCATTERED THROUGHOUT FILL. SHALLOW PROB SEVERLY TRUNCATED ABOVE.

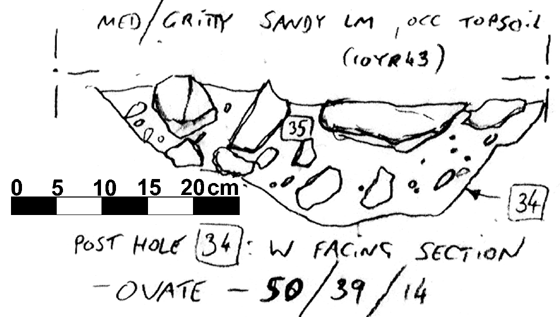

002CC00034 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00034 POST HOLE CUT OVATE  50 39  14 UNDULATING  P.H. N. WALL M. 19. :V: SHAPE SIDES-UNDULATING BASE. DEEPER AT S. THAN AT N. TRUNCATED ABOVE.
002CC00035 POST HOLE FILL OVATE  50 39  14 UNDULATING  FREQ LARGE CHALK < 15 CM THROUGHOUT FILL. SOME TOPSOIL Nr SURFACE. TRUNCATED ABOVE. N.WALL M 19.

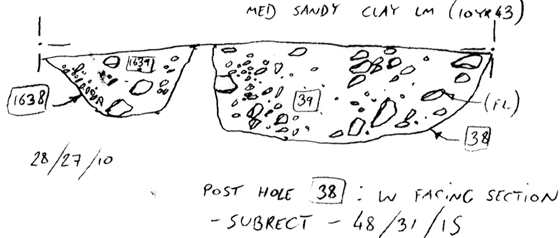

002CC00038 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00038 POST HOLE CUT SUB-RECTANGULAR  48 31 15  VERT.SIDE F.BASE P.H. N SIDE M 19. EDGE LESS STEEP AT S. THAN AT N. TRUNCATED ABOVE.
002CC00039 POST HOLE FILL SUB-RECTANGULAR  48 31  15 VERT.SIDE F.BASE FREQ CHALK < 5 CM. THROUGHOUT FILL. TRUNCATED ABOVE. N. WALL M 19.

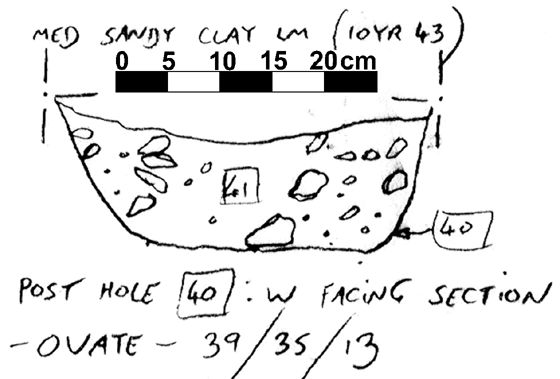

002CC00040 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00040 POST HOLE CUT OVATE  39 35  13 FLAT BASED U  P.H. N SIDE M 19. REGULAR SIDES: FLAT BASE. TRUNCATED ABOVE.
002CC00041 POST HOLE FILL OVATE  39 35  13 FLAT BASED U  MOD CHALK < 4 CM THROUGHOUT FILL-BUT LESS FREQUENT IN CENTRAL AREA. TRUNCATED ABOVE. ON N. WALL M 19.

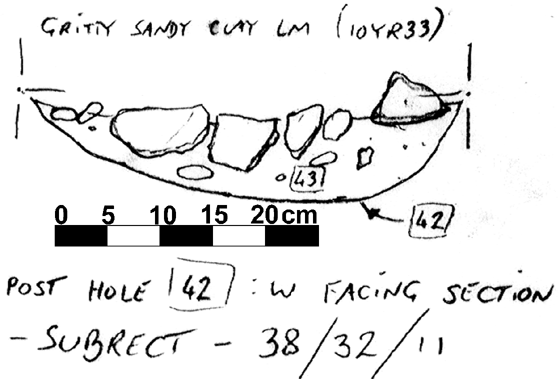

002CC00042 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00042 POST HOLE CUT SUB-RECTANGULAR  38 32 11  CONCAVE P.H. N. SIDE BLDG M 19. V. SHALLOW-PROB HEAVILLY TRUNCATED ABOVE.
002CC00043 POST HOLE FILL SUB-RECTANGULAR  38 32 11  CONCAVE FREQ LARGE CHALK < 9 CM. THROUGHOUT FILL. TRUNCATED ABOVE. N. SIDE BLDG M 19.

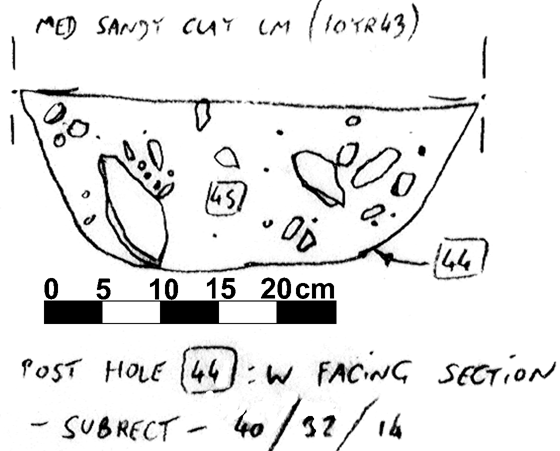

002CC00044 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00044 POST HOLE CUT SUB-RECTANGULAR  40 32 14  FLAT BASED V P.H. N WALL M. 19. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00045 POST HOLE FILL SUB-RECTANGULAR  40 32 14  FLAT BASED V MOD CHALK < 11 CM-MOSTLY MUCH SMALLER: THROUGHOUT FILL BUT LESS SO IN CENTRAL AREA. TRUNCATED ABOVE: N. WALL M 19.

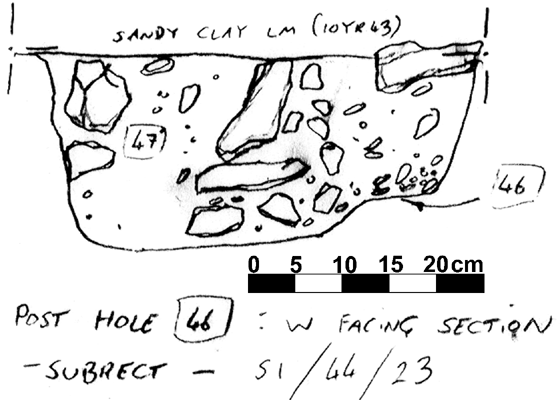

002CC00046 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00046 POST HOLE CUT SUB-RECTANGULAR  51 44 23  STEPPED U P.H. N. WALL M. 19. TRUNCATED ABOVE. HAS A SMALL STEP Nr BASE AT S. EDGE.
002CC00047 POST HOLE FILL SUB-RECTANGULAR  51 44 23  STEPPED U FREQ CHALK < 12 CM THROUGHOUT FILL BUT ABSENT Nr N. SIDE (POSS P.PIPE WITH PACKING). TRUNCATED ABOVE. N. SIDE M 19.

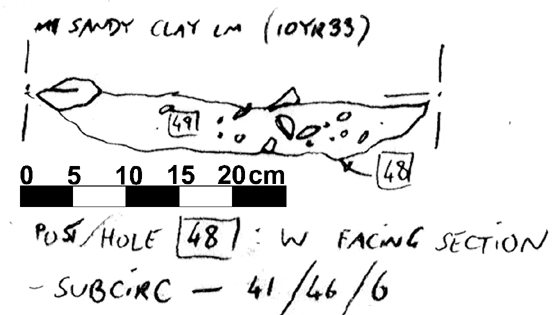

002CC00048 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00048 POST HOLE CUT SUB-CIRCULAR  46 41 6  CONCAVE P.H. N. SIDE BLDG M 19. V. SEVERLY TRUNCATED.
002CC00049 POST HOLE FILL SUB-CIRCULAR  46 44 6  CONCAVE OCCA CHALK < 5 CM: MOSTLY SMALLER. HEAVILLY TRUNCATED ABOVE. N. SIDE BLDG M 19.

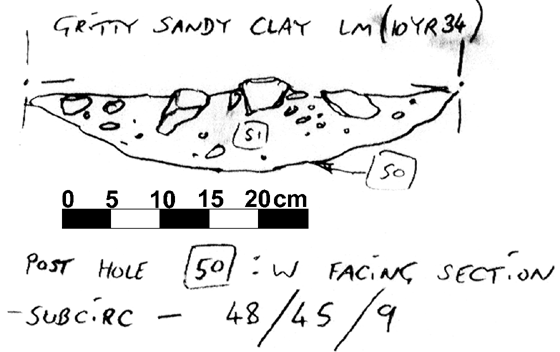

002CC00050 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00050 POST HOLE CUT SUB-CIRCULAR  48 45 9  CONCAVE P.H. N SIDE BLDG M 19. V. BADLY TRUNCATED.
002CC00051 POST HOLE FILL SUB-CIRCULAR  48 45 9  CONCAVE MOD CHALK < 5 CM. THROUGHOUT FILL. V. SHALLOW-TRUNCATED ABOVE. N. SIDE BLDG M 19.

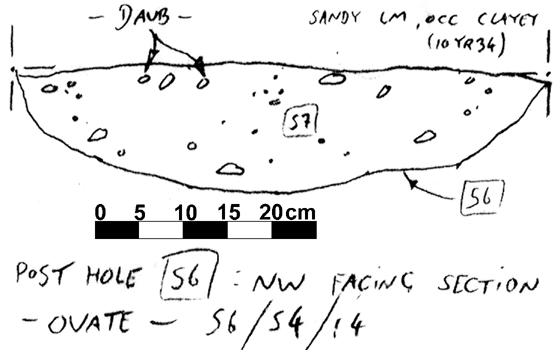

002CC00056 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00056 POST HOLE CUT OVATE  55 53  15 CONCAVE  P.H. W. SIDE OF BLDG M19. TRUNCATED ABOVE. REGULAR PROFILE.
002CC00057 POST HOLE FILL OVATE  55 53  13 CONCAVE  OCCA CHALK < 3 CM. THROUGHOUT FILL. A SMALL CLAY CONTENT. A FEW FRAGS OF DAUB. TRUNCATED ABOVE. INTERNAL P.H. IN M. 19.

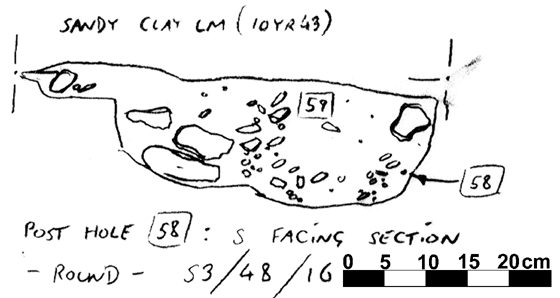

002CC00058 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00058 POST HOLE CUT ROUND  53 58  16 STEPPED U  P.H. W. SIDE BLDG M.19. SLIGHT STEP Nr TOP AT W. EDGE. BASE UNDULATES SLIGHTLY. TRUNCATED ABOVE.
002CC00059 POST HOLE FILL ROUND  53 48  16 STEPPED U  MOD CHALK < 9 CM.(MOSTLY SMALLER): THROUGHOUT FILL. W. SIDE BLDG M. 19. TRUNCATED ABOVE.

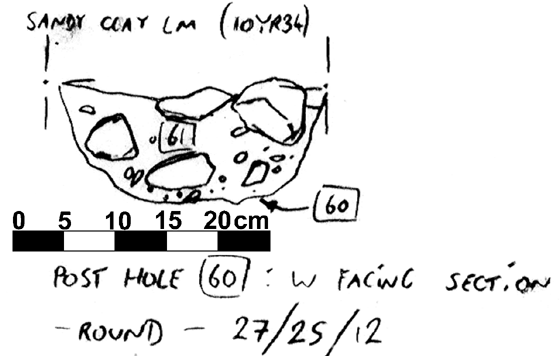

002CC00060 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00060 POST HOLE CUT ROUND  27 25  12 USHAPED  P.H. W. SIDE BLDG M. 19. REGULAR SIDES & BASE. TRUNCATED ABOVE.
002CC00061 POST HOLE FILL ROUND  27 25  12 USHAPED  FREQ CHALK BLOCKS < 8 CM. THROUGHOUT FILL. TRUNCATED ABOVE. ON W. SIDE BLDG M. 19.

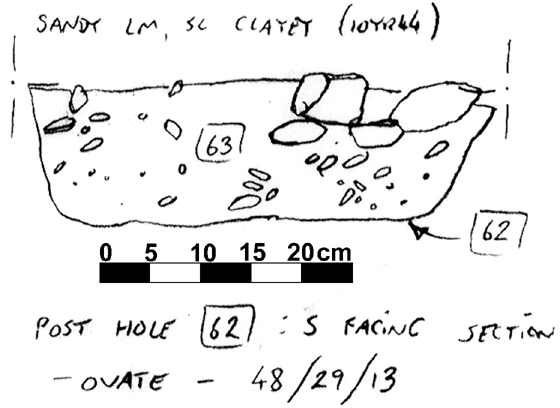

002CC00062 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00062 POST HOLE CUT OVATE  48 29  13 VERT.SIDE F.BASE  P.H. W. SIDE M. 19. REGULAR SIDES & BASE: TRUNCATED ABOVE.
002CC00063 POST HOLE FILL OVATE  48 29  13 VERT.SIDE F.BASE  MOD CHALK < 8 CM. CONCENTRATED MOSTLY IN E. OF FILL. TRUNCATED ABOVE. ON W. SIDE BLDG M. 19.

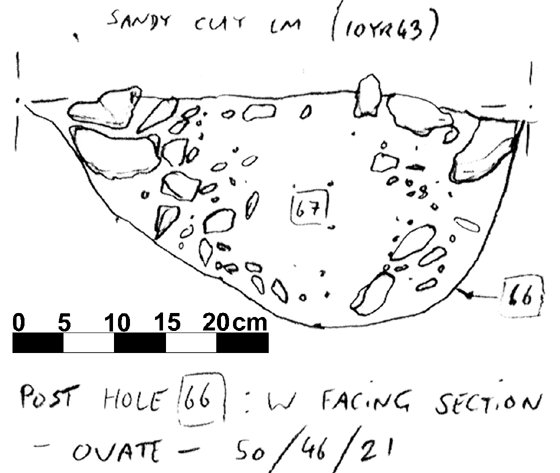

002CC00066 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00066 POST HOLE CUT OVATE  50 46  21 USHAPED  P.H. W. SIDE BLDG M. 19. N. EDGE SLOPES MORE GENTLY THAN S. TRUNCATED ABOVE.
002CC00067 POST HOLE FILL OVATE  50 46  21 USHAPED  MOD-FREQ CHALK < 8 CM. CONCENTRATED MAINLY AROUND EDGES OF CUT. TRUNCATED ABOVE. ON W. SIDE M. 19.

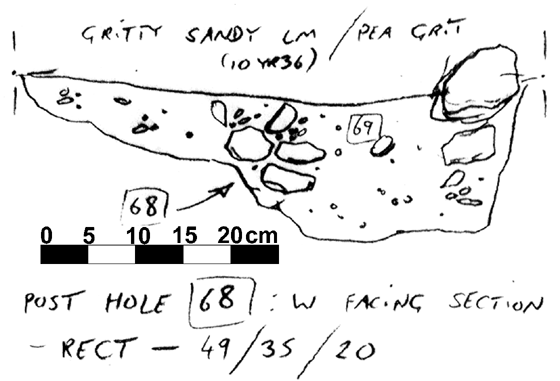

002CC00068 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00068 POST HOLE CUT RECTANGULAR  49 35 20  IRREGULAR P.H. W. SIDE BLDG M.19. PROFILE UNUSUAL: STEPS UP AT N. SIDE. TRUNCATED ABOVE.
002CC00069 POST HOLE FILL RECTANGULAR  49 35 20  IRREGULAR MOD CHALK < 9 CM. BUT NOT IN CENTRE ( POSS P. PIPE & PACKING ). W. SIDE BLDG M. 19. TRUNCATED ABOVE.

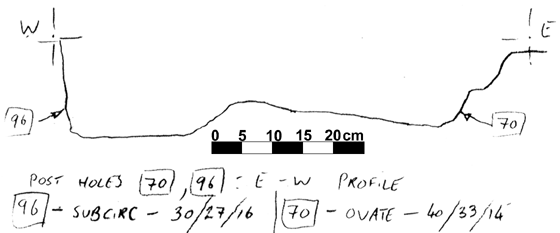

002CC00070 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00070 POST HOLE CUT OVATE  40 33  14 IRREGULAR P.H. W. SIDE BLDG M. 19. TRUNCATED ABOVE. RELATIONSHIP WITH P.H. CUT 96 UNKNOWN.
002CC00071 POST HOLE FILL OVATE  40 33  14 IRREGULAR EXCAVATED PRIOR TO RECORDING !!!!!!!!!! NO FURTHER DETAILS.

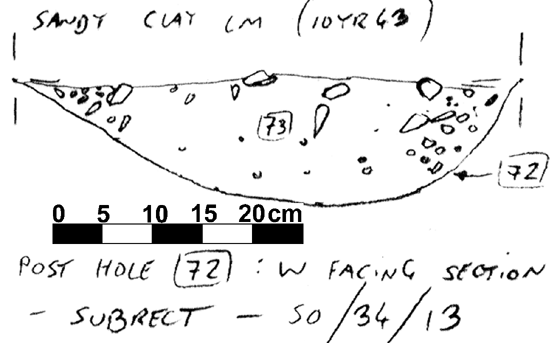

002CC00072 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00072 POST HOLE CUT SUB-RECTANGULAR  50 34 13  BOWL SHAPED P.H. W. SIDE BLDG M. 19. SIDES GENTLE: BASE CONCAVE: N. SIDE MORE GENTLE THAN S. TRUNCATED ABOVE.
002CC00073 POST HOLE FILL SUB-RECTANGULAR  50 34 13  BOWL SHAPED OCCA-MOD CHALK < 3 CM. THROUGHOUT FILL -esp Nr EDGES. SHALLOW: TRUNCATED ABOVE. ON W. SIDE BLDG M. 19.

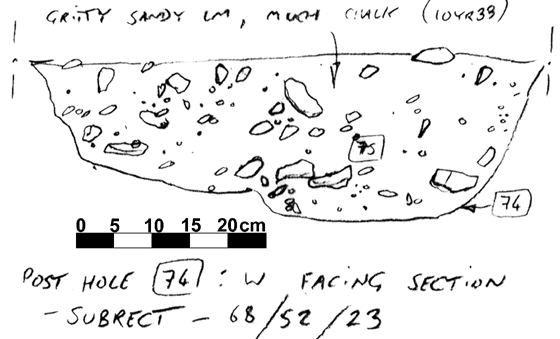

002CC00074 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00074 POST HOLE CUT SUB-RECTANGULAR  68 52 23  IRREGULAR P.H. W. SIDE BLDG M. 19. SIDES STEEPISH: BASE STEPS UP TO N. TRUNCATED ABOVE.
002CC00075 POST HOLE FILL SUB-RECTANGULAR  68 52 23  IRREGULAR MOD-FREQ CHALK < 6 CM. THROUGHOUT FILL. TRUNCATED ABOVE. ON W. SIDE BLDG M. 19.

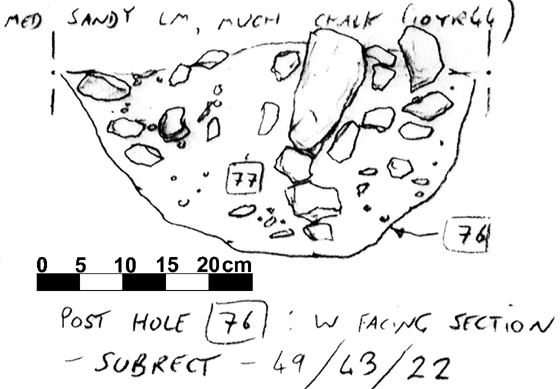

002CC00076 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00076 POST HOLE CUT SUB-RECTANGULAR  49 43 22  USHAPED P.H. OF BLDG M. 19. TRUNCATED ABOVE. V. REGULAR EDGES & BASE.
002CC00077 POST HOLE FILL SUB-RECTANGULAR  49 43 22  USHAPED FREQ CHALK < 14 CM--MOSTLY FINER: THROUGHOUT FILL. TRUNCATED ABOVE.

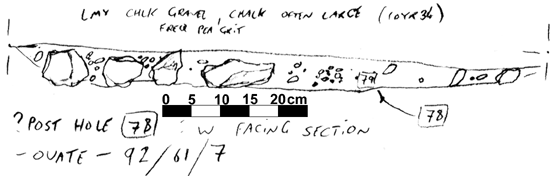

002CC00078 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00078 POST HOLE CUT OVATE  92 61  7 CONCAVE  POSS P.H. OF BLDG M. 19. HEAVILLY TRUNCATED-------BARELY EXISTS.
002CC00079 POST HOLE FILL OVATE  92 61  7 CONCAVE  ALMOST ALL CHALK BLOCKS MIXED WITH GRAVEL: PEA GRIT & SOME LOAM. TRUNCATED ABOVE: POSS NOT A P.H. OR EVEN A FEATURE ?

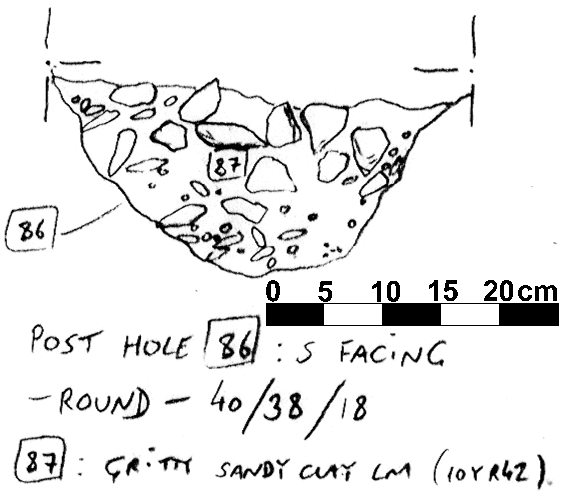

002CC00086 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00086 POST HOLE CUT ROUND  40 38  18 USHAPED  P.H. OF BLDG M. 19. TRUNCATED ABOVE. W. EDGE LESS STEEP THAN E.
002CC00087 POST HOLE FILL ROUND  40 38  18 USHAPED  FREQ CHALK < 6 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

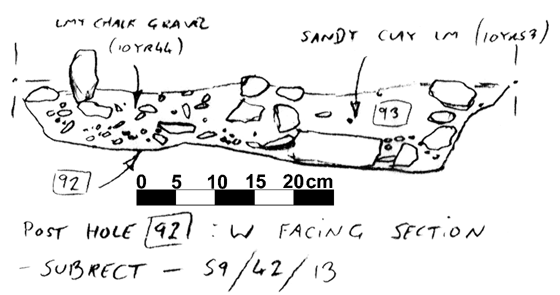

002CC00092 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00092 POST HOLE CUT SUB-RECTANGULAR  59 42 13  IRREGULAR P.H. OF M.19. V. SHALLOW PROB HEAVILLY TRUNCATED ABOVE. BASE FLATTISH: EDGES QUITE STEEP.
002CC00093 POST HOLE FILL SUB-RECTANGULAR  59 42 13  IRREGULAR FREQ CHALK < 10 CM. BUT MOSTLY SMALLER. SOME VARIATION WITHIN CONTEXT. TRUNCATED ABOVE.


002CC00096 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00096 POST HOLE CUT SUB-CIRCULAR  30 27 16  FLAT BASED U P.H. OF BLDG M.19. REGULAR EDGES & BASE : TRUNCATED ABOVE.
002CC00097 POST HOLE FILL SUB-CIRCULAR  30 27 16  FLAT BASED U FILL OF P.H.-------REMOVED BEFORE RECORDED.

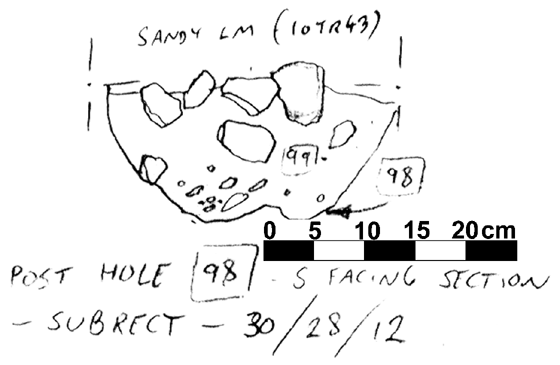

002CC00098 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00098 POST HOLE CUT SUB-RECTANGULAR  30 28 12  USHAPED P.H. OF BLDG M. 19. REGULAR :U: SHAPE BUT WITH SLIGHT RIDGE AT CENTRE BASE. TRUNCATED ABOVE.
002CC00099 POST HOLE FILL SUB-RECTANGULAR  30 28 12  USHAPED MOD-FREQ CHALK < 5 CM. THROUGHOUT FILL. TRUNCATED ABOVE.


002CC00481 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00481 POST HOLE CUT No entry  0 0  0 No entry  P.H. INTERNAL--E. PART OF BLDG M.19. NO FURTHER DETAILS AVAILABLE.
002CC00482 POST HOLE FILL No entry  0 0  0 No entry  NO FURTHER DETAILS AVAILABLE.



Objects by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CC00029 AA No Entry  POTTERY SHERD 1
002CC00039 AA Early Saxon  GLASS BEAD BEAD BLUE SQUARE  GLASS BEAD 1
002CC00057 AA No Entry  STONE NATURAL RED CHALK 1
002CC00057 AB No Entry  STONE NATURAL PEBBLE 1
002CC00075 AA Roman  POTTERY SHERD R-B 1
002CC00078 AA No Entry  CHARCOAL CHARCOAL SAMPLE 1

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CC00049 Sheep/Goat Phalanx 1  1 0  0 0  1
002CC00063 Pig L. Canine  1 0  0 0  0

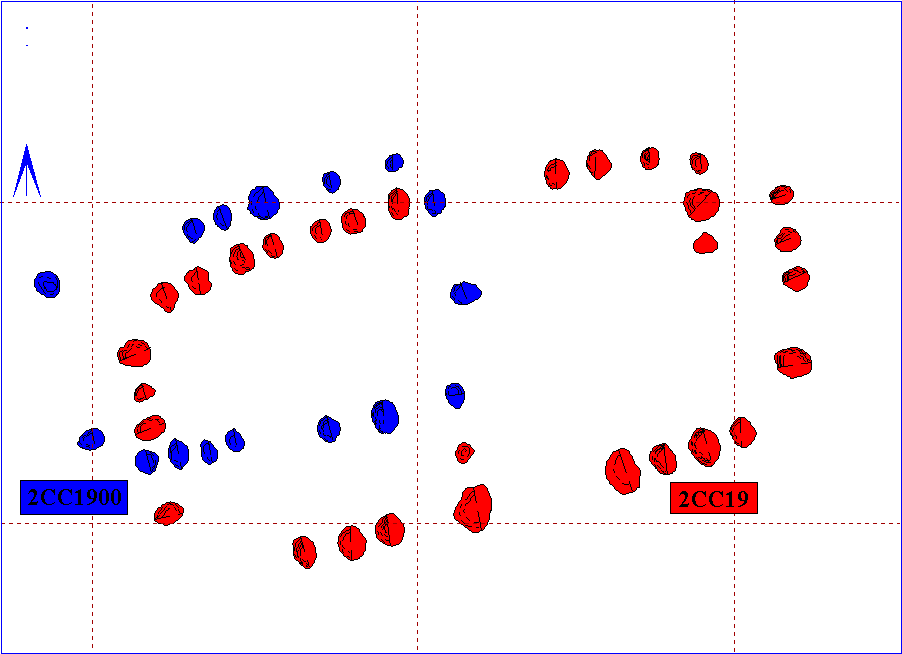

Plan showing separate post holes of structure 2CC19 and 2CC1900
