West Heslerton: Anglian Settlement Structural Catalogue

011CD07113

Enclosure Ditch

Ditch Details
Length	3320	Maximum Width	83	Maximum Depth	29	Profile	U shaped
Material Culture	Number of Objects	73	Number of Animal Bones			66
Environmental

Phasing

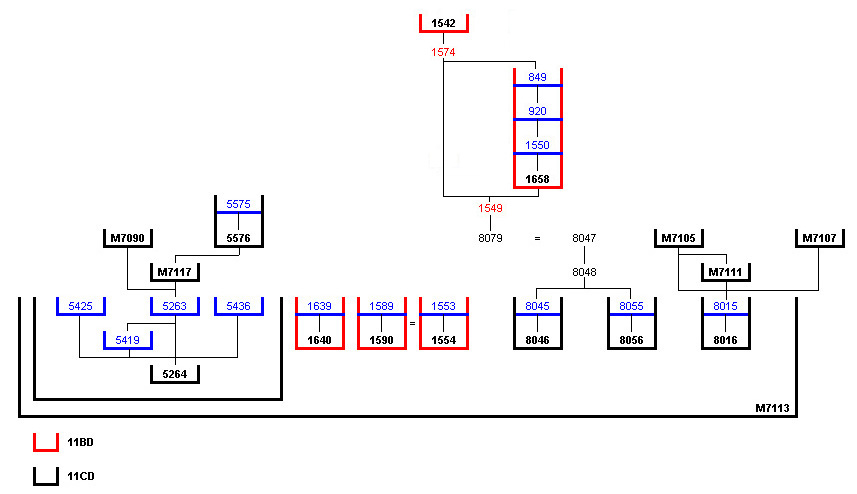

Stratigraphic Matrix Diagram

Discussion

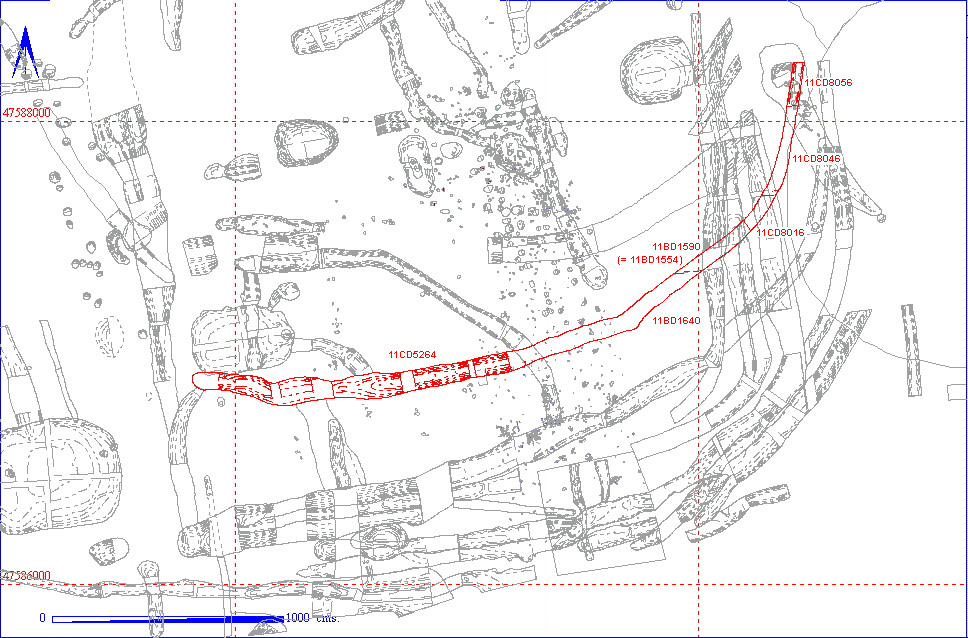

A curvilinear ditch in the south/east of area 11BD/CD. This is one of several similarly aligned ditches in the vicinity (see the stratigraphic matrix and further discussion for the enclosure ditches

). This ditch would appear to be one of the earliest in the area, under-lying four ditches (011CD07090, 011CD07105, 011CD07107 and 011CD07111), two slots (011CD05576 and 011CD07117), a sheep burial (011BD01658) and a stone setting (011BD01542). The relationship with Grubenhaus 011CD20016 was not established although the ditch is likely to be earlier.

All Contexts and Associated Finds Totals

MASTER	CUT	FILL	VOLUME	OBJECTS	AN BONE	DENSITY
011CD07113	011BD01554	011BD01553		4
	011BD01590	011BD01589		3	1
	011BD01640	011BD01639		14	1
	011CD05264	011CD05263		35	23 + 2
		011CD05419		5	4
		011CD05425			35
		011CD05436		12
	011CD08016	011CD08015
	011CD08046	011CD08045
	011CD08056	011CD08055

Object Totals by Material

011BD01553 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011BD01553	ANGLIAN	POTTERY	1
	PREHISTORIC	FLINT	1
	ROMAN	POTTERY	1
	Unassigned	STONE	1

011BD01589 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011BD01589	ROMAN	POTTERY	3

011BD01639 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011BD01639	PREHISTORIC	FLINT	1
	ROMAN	POTTERY	6
	Unassigned	FLINT	2
	Unassigned	POTTERY	1
	Unassigned	SNAIL	2
	Unassigned	STONE	2

011CD05263 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011CD05263	ANGLIAN	DAUB	1
	ANGLIAN	SLAG	4
	ROMAN	POTTERY	14
	Unassigned	CHARCOAL	3
	Unassigned	FLINT	1
	Unassigned	IRON	1
	Unassigned	POTTERY	3
	Unassigned	STONE	8

011CD05419 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011CD05419	ROMAN	POTTERY	2
	Unassigned	POTTERY	3

011CD05436 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011CD05436	PREHISTORIC	FLINT	8
	Unassigned	CHARCOAL	1
	Unassigned	POTTERY	2
	Unassigned	STONE	1

Animal Bone Totals by Species

011BD01589 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BD01589	CATTLE	1

011BD01639 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BD01639	SHEEP/GOAT	1

011CD05263 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011CD05263	BIRD	1
	CATTLE	9
	HORSE	1
	PIG	2
	SHEEP/GOAT	10

011CD05264 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011CD05264	BIRD	1
	SHEEP	1

011CD05419 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011CD05419	BADGER	1
	SHEEP/GOAT	3

011CD05425 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011CD05425	AMPHIBIANS	1
	BIRD	5
	CATTLE	8
	PIG	1
	SHEEP/GOAT	20

Structural Details

011BD01554 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BD01553	DITCH FILL	No entry	0	0	0	No entry	NOT YET DUG.
011BD01554	DITCH CUT	No entry	0	0	0	No entry	NOT YET DUG.

011BD01590 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BD01589	DITCH FILL	No entry	0	0	0	No entry	NOT YET DUG.
011BD01590	DITCH CUT	No entry	0	0	0	No entry	NOT YET DUG.

011BD01640 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BD01639	DITCH FILL	LINEAR	826	74	13	U-SHAPED	CONTAINED POTTERY: BONE AND BURNT BONE.
011BD01640	DITCH CUT	LINEAR	826	74	13	U-SHAPED	CUT INTO BURIED SOIL AND COLLUVIAL HILL WASH.

011CD05264 Section and Notes

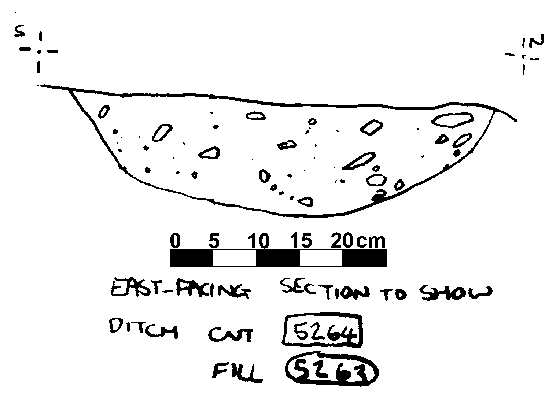

011CD05264 East Facing Section

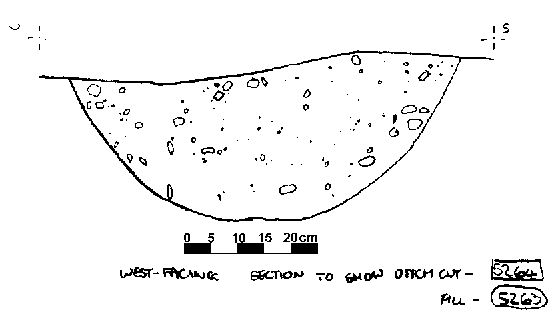

011CD05264 West Facing Section

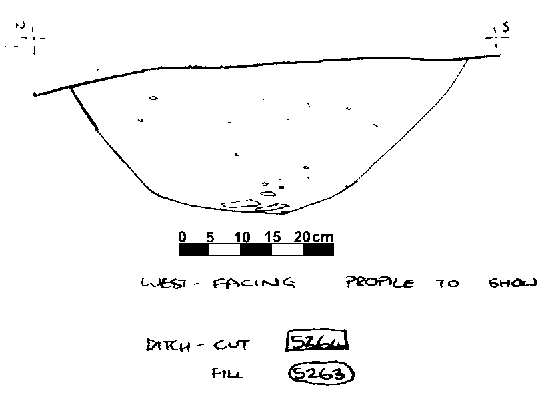

011CD05264 West Facing Section

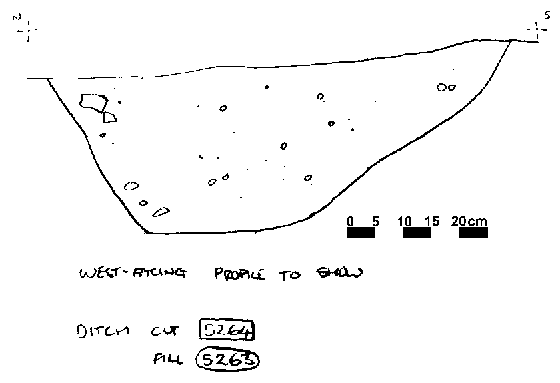

011CD05264 West Facing Section

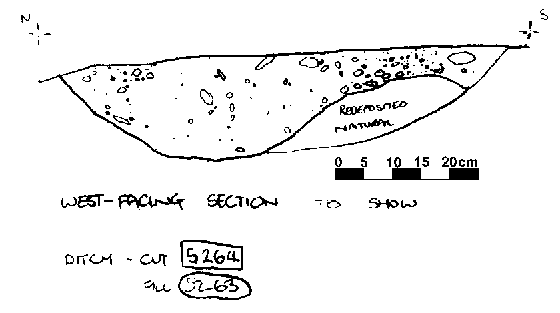

011CD05264 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011CD05263	DITCH FILL	LINEAR	2263	83	29	U-SHAPED	LONG DITCH WITH E/W ORIENTATION LEADING INTO THE WATERLOGGED AREA. SOME SEGMENTS TROWELLED AND SOME WET SIEVED.
011CD05264	DITCH CUT	LINEAR	2263	83	29	V-SHAPED	CUT INTO HILL WASH. THE CUT WAS MEASURED ALONG THE ENTIRE LENGTH OF THE DITCH EVEN THOUGH SOME SEGMENTS WERE WET SIEVED.
011CD05419	DITCH FILL	LINEAR	229	55	14	V-SHAPED	VERY SANDY LOAM SEALED BY FILL 5263. ONLY ANIMAL BONES. THIS FILL OCCURRED ONLY IN THIS SEGMENT OF THE DITCH.
011CD05425	DITCH FILL	LINEAR SEG.	300	79	29	V-SHAPED	SEGMENT OF DITCH WET SIEVED. MEASUREMENTS TAKEN TO SECTIONS. ANIMAL BONE AND POTTERY NOTICED DURING EXCAVATION.
011CD05436	DITCH FILL	LINEAR SEG.	150	84	28	V-SHAPED	WET SIEVED SECTION OF DITCH 5263. THIS WAS OVERCUT AND THE BLACK BURIED SOIL WAS FOUND. CORRECT MEASUREMENTS TAKEN FROM SECTION.

011CD08016 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011CD08015	DITCH FILL	LINEAR	0	0	0	No entry	NO FURTHER RECORDING.
011CD08016	DITCH CUT	LINEAR	0	0	0	No entry	NO FURTHER RECORDING.

011CD08046 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011CD08045	DITCH FILL	LINEAR	153	26	0	FLAT BASED U	UNEXCAVATED DITCH NR. SPRING. NO FINDS ON SURFACE. CONTINUES TO THE SOUTH AS 8055 IN A N/E S/W ORIENTATION.
011CD08046	DITCH CUT	LINEAR	153	26	0	FLAT BASED U	CUT OF UNEXCAVATED DITCH. NO OBVIOUS RELATIONSHIPS. EQUALS DITCH 8055/8066. CUT INTO THE NATURAL CHALK AND CLAY NEAR THE SPRING IN THE WATERLOGGED AREA.

011CD08056 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011CD08055	DITCH FILL	LINEAR	143	18	12	FLAT BASED V	DITCH FILL NO FINDS. VISIBLE IN BASE OF CUT OF LAYER 8047. POSSIBLE NORTHERN CONTINUATION OF 8045.
011CD08056	DITCH CUT	LINEAR	143	18	12	FLAT BASED V	POSSIBLE NORTHERN CONTINUATION OF 8046. REVEALED IN CUT OF 8047. CUT INTO NATURAL GREEN CLAY AND CHALK.

Objects By Context

KEY_ID	OB	PERIOD	MATERIAL	TYPE	SUB_TYPE	CLASS	No
011BD01553	AC	PREHISTORIC	FLINT	FLAKE			1
011BD01553	AA	ANGLIAN	POTTERY	SHERD		ANGLIAN III?	1
011BD01553	AD	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011BD01553	AB	Unassigned	STONE	STONE		RED CHALK	1
011BD01589	AA	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011BD01589	AB	ROMAN	POTTERY	SHERD		GREY WARE	1
011BD01589	AC	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011BD01639	AH	PREHISTORIC	FLINT	FLAKE			1
011BD01639	AJ	Unassigned	FLINT	BURNT FLINT			1
011BD01639	AL	Unassigned	FLINT	NAT FLAKE			1
011BD01639	AC	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011BD01639	AD	ROMAN	POTTERY	SHERD		GREY WARE	1
011BD01639	AE	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011BD01639	AG	ROMAN	POTTERY	SHERD		GREY WARE	1
011BD01639	AK	ROMAN	POTTERY	SHERD		ROMAN	1
011BD01639	AM	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011BD01639	AB	Unassigned	POTTERY	SHERD			1
011BD01639	AA	Unassigned	SNAIL	SNAIL SAMPLE			1
011BD01639	AF	Unassigned	SNAIL	SNAIL SAMPLE			1
011BD01639	AI	Unassigned	STONE	STONE		CHALK	1
011BD01639	AN	Unassigned	STONE	STONE			1
011CD05263	AN	Unassigned	CHARCOAL	CHARCOAL SAMPLE			1
011CD05263	AU	Unassigned	CHARCOAL	CHARCOAL SAMPLE			1
011CD05263	AV	Unassigned	CHARCOAL	CHARCOAL SAMPLE			1
011CD05263	AR	ANGLIAN	DAUB	DAUB			1
011CD05263	AM	Unassigned	FLINT	NAT FLAKE			1
011CD05263	AW	Unassigned	IRON	IRON OBJECT			1
011CD05263	AD	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AF	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AH	ROMAN	POTTERY	SHERD		ROMAN	1
011CD05263	AI	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AJ	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AO	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AP	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AQ	ROMAN	POTTERY	SHERD		ROMAN	1
011CD05263	AS	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AZ	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	BA	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	BD	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	BE	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	BG	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05263	AC	Unassigned	POTTERY	SHERD			1
011CD05263	AE	Unassigned	POTTERY	SHERD			1
011CD05263	AT	Unassigned	POTTERY	SHERD			1
011CD05263	AL	ANGLIAN	SLAG	SLAG			3
011CD05263	AX	ANGLIAN	SLAG	SLAG			1
011CD05263	AY	ANGLIAN	SLAG	SLAG			1
011CD05263	BB	ANGLIAN	SLAG	SLAG			1
011CD05263	AA	Unassigned	STONE	STONE			1
011CD05263	AB	Unassigned	STONE	STONE			1
011CD05263	AG	Unassigned	STONE	STONE			1
011CD05263	AK	Unassigned	STONE	STONE			1
011CD05263	BC	Unassigned	STONE	STONE			1
011CD05263	BF	Unassigned	STONE	STONE		SANDSTONE	1
011CD05263	BH	Unassigned	STONE	STONE			1
011CD05263	BI	Unassigned	STONE	STONE			1
011CD05419	AA	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05419	AB	ROMAN	POTTERY	SHERD		ROMANO-BRITISH	1
011CD05419	AC	Unassigned	POTTERY	SHERD			1
011CD05419	AD	Unassigned	POTTERY	SHERD			1
011CD05419	AE	Unassigned	POTTERY	SHERD			1
011CD05436	AD	Unassigned	CHARCOAL	CHARCOAL SAMPLE			1
011CD05436	AB	PREHISTORIC	FLINT	FLAKE			1
011CD05436	AC	PREHISTORIC	FLINT	FLAKE			1
011CD05436	AE	PREHISTORIC	FLINT	FLAKE			1
011CD05436	AF	PREHISTORIC	FLINT	FLAKE			1
011CD05436	AH	PREHISTORIC	FLINT	BLADE			1
011CD05436	AI	PREHISTORIC	FLINT	BLADE			1
011CD05436	AK	PREHISTORIC	FLINT	FLAKE	CORE PREP		1
011CD05436	AL	PREHISTORIC	FLINT	FLAKE			1
011CD05436	AG	Unassigned	POTTERY	SHERD			1
011CD05436	AJ	Unassigned	POTTERY	SHERD			1
011CD05436	AA	Unassigned	STONE	STONE			2

Animal Bone by Context

KEY_ID	SPECIES	ELEMENT	QUANT	CHEW	BURN	BUTCH	FBRK
011BD01589	CATTLE	Radius D	1	0	0	0	0
011BD01639	SHEEP/GOAT	Axis	1	0	0	0	1
011CD05263	BIRD	Fircula	1	0	0	0	0
011CD05263	CATTLE	Atlas	1	0	0	2	0
011CD05263	CATTLE	Femur P	1	0	0	0	0
011CD05263	CATTLE	Humerus D	1	0	0	0	0
011CD05263	CATTLE	Mand fr	1	0	0	1	0
011CD05263	CATTLE	N.Cuboid	1	0	0	0	0
011CD05263	CATTLE	Pelvis	1	0	0	0	0
011CD05263	CATTLE	Phalanx 1	1	0	0	0	0
011CD05263	CATTLE	Radius br	1	1	0	0	0
011CD05263	CATTLE	Scapula	1	0	0	0	1
011CD05263	HORSE	M/podial	1	1	0	0	0
011CD05263	PIG	M/C C	1	0	0	0	0
011CD05263	PIG	M/C C	1	0	0	0	0
011CD05263	SHEEP/GOAT	Humerus br	1	1	0	0	0
011CD05263	SHEEP/GOAT	Humerus br	1	0	0	0	1
011CD05263	SHEEP/GOAT	Humerus D	1	0	0	0	0
011CD05263	SHEEP/GOAT	Humerus D	1	0	0	0	1
011CD05263	SHEEP/GOAT	M/C D	1	0	0	0	0
011CD05263	SHEEP/GOAT	Occiput	1	1	0	0	0
011CD05263	SHEEP/GOAT	Patella	1	0	0	0	0
011CD05263	SHEEP/GOAT	Phalanx 1	1	0	0	0	1
011CD05263	SHEEP/GOAT	Scapula	1	0	0	0	0
011CD05263	SHEEP/GOAT	Ulna	1	0	0	0	0
011CD05264	BIRD	Tibiotar's	1	0	0	0	0
011CD05264	SHEEP	Horncore	1	0	0	1	0
011CD05419	BADGER	M/T C	1	0	0	0	0
011CD05419	SHEEP/GOAT	Axis	1	0	0	0	1
011CD05419	SHEEP/GOAT	Humerus P	1	1	0	1	0
011CD05419	SHEEP/GOAT	Ld4	1	0	0	0	0
011CD05425	AMPHIBIANS	Other	2	0	0	0	0
011CD05425	BIRD	Coracoid	1	0	0	0	1
011CD05425	BIRD	Fircula	2	0	0	0	2
011CD05425	BIRD	Mandible	1	0	0	0	0
011CD05425	BIRD	Mandible	1	0	0	0	0
011CD05425	BIRD	Ulna	1	0	0	0	0
011CD05425	CATTLE	Astragalus	1	0	0	0	0
011CD05425	CATTLE	Calcaneum	1	0	0	0	1
011CD05425	CATTLE	Femur P	1	0	0	0	1
011CD05425	CATTLE	N.Cuboid	1	0	0	0	1
011CD05425	CATTLE	Patella	1	0	0	0	0
011CD05425	CATTLE	Phalanx 2	1	0	0	0	0
011CD05425	CATTLE	Phalanx 3	1	0	0	0	0
011CD05425	CATTLE	Skull fr	1	0	0	0	1
011CD05425	PIG	Phalanx 2	1	0	0	0	0
011CD05425	SHEEP/GOAT	Astragalus	1	0	0	0	0
011CD05425	SHEEP/GOAT	Femur P	1	0	0	0	0
011CD05425	SHEEP/GOAT	Humerus P	1	0	0	0	0
011CD05425	SHEEP/GOAT	Hyoid	1	0	0	0	1
011CD05425	SHEEP/GOAT	Ld4	1	0	0	0	0
011CD05425	SHEEP/GOAT	M/C br	1	0	0	0	1
011CD05425	SHEEP/GOAT	M/podial	1	0	0	0	0
011CD05425	SHEEP/GOAT	Mand fr	1	0	0	0	0
011CD05425	SHEEP/GOAT	Mandible	1	0	0	0	1
011CD05425	SHEEP/GOAT	Pelvis	1	0	0	2	0
011CD05425	SHEEP/GOAT	Pelvis	1	0	0	1	1
011CD05425	SHEEP/GOAT	Phalanx 1	1	0	0	0	0
011CD05425	SHEEP/GOAT	Phalanx 3	1	0	0	0	0
011CD05425	SHEEP/GOAT	Phalanx 3	1	0	0	0	0
011CD05425	SHEEP/GOAT	Scapula	1	0	0	0	1
011CD05425	SHEEP/GOAT	Scapula	1	0	0	0	1
011CD05425	SHEEP/GOAT	Scapula	1	0	0	0	1
011CD05425	SHEEP/GOAT	Skull fr	1	0	0	0	1
011CD05425	SHEEP/GOAT	Skull fr	1	0	0	0	0
011CD05425	SHEEP/GOAT	Tibia D	1	0	0	0	1
