011CD20016

Grubenhaus



Grubenhaus Details
Length 445 Width 280 Depth 23 Ratio  1.6:1
Area   10.91 sq. m Volume
Number of Posts  1
Highest Elevation Value   6236
Lowest Elevation Value  6213
Bearing    82 degrees
Structural Class
Material Culture  Number of Objects 29 Number of Animal Bones 100
Environmental

Phasing

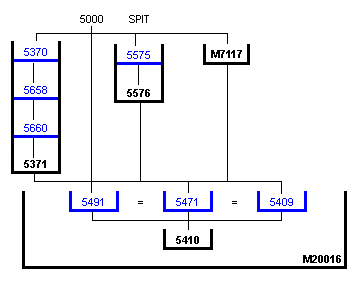

Stratigraphic Matrix Diagram



Discussion

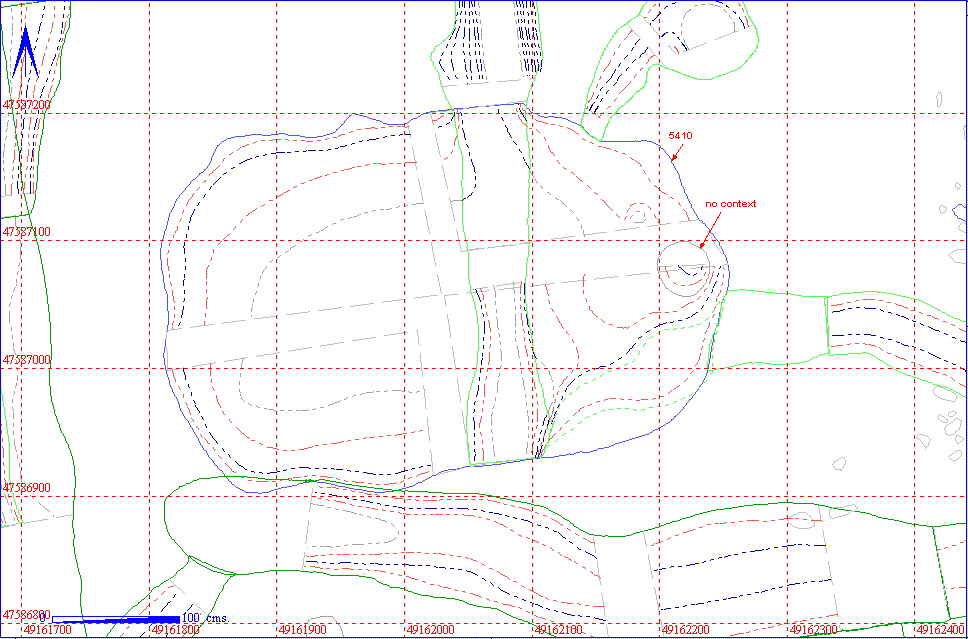

A shallow, irregular Grubenhaus in area 11CD. The structure was cut by three slots, 011CD05371,  011CD05576 and 011CD07117. One shallow post hole was recovered from the east side but was not issued with separate context numbers. A west side post hole is likely to have been present under the baulk.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
011CD20016
011CD05410
011CD05409
   20  37

011CD05471
   1  15

011CD05491
   8  48

Object Totals by Material

011CD05409 Object Totals by Material

011CD05409 Charcoal 4
  Daub 3
  Iron 1
  Pottery 3 of which No Entry 2 Roman 1
  Stone 3
  Unfired Clay 5
  Worked Bone 1

011CD05471 Object Totals by Material

011CD05471 Pottery 1 Roman

011CD05491 Object Totals by Material

011CD05491 Charcoal 1
  Flint 1
  Pottery 1 Roman
  Shell 1
  Stone 2
  Unfired Clay 2


Animal Bone Totals by Species

011CD05409 Animal Bone Totals by Species

KEY_ID SPECIES No
011CD05409 Cattle
4
Domestic goose
2
Pig
1
Sheep/Goat
28
Wild/domestic goose
2


011CD05471 Animal Bone Totals by Species

KEY_ID SPECIES No
011CD05471 Cattle
3
Domestic fowl
1
Pig
1
Sheep/Goat
10


011CD05491 Animal Bone Totals by Species

KEY_ID SPECIES No
011CD05491 Cattle
6
Domestic fowl
2
Horse
1
Pig
5
Sheep/Goat
34


Structural Details

011CD05410 Section and Notes

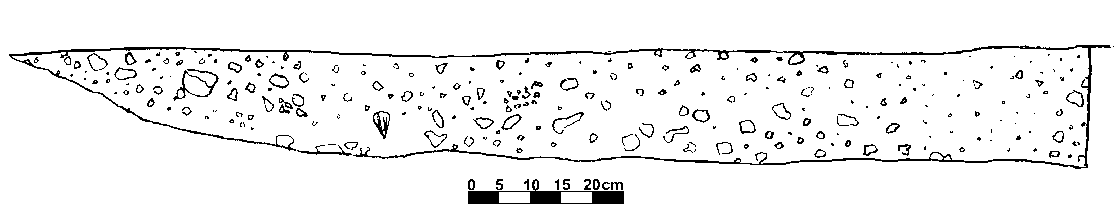

011CD05410 North Facing Section

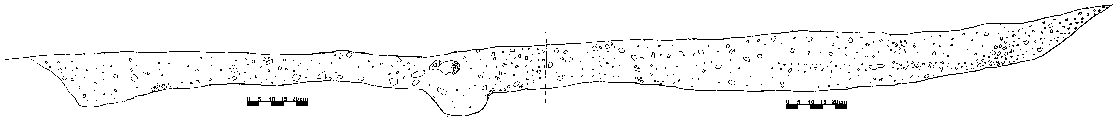

011CD05410 North Facing Section

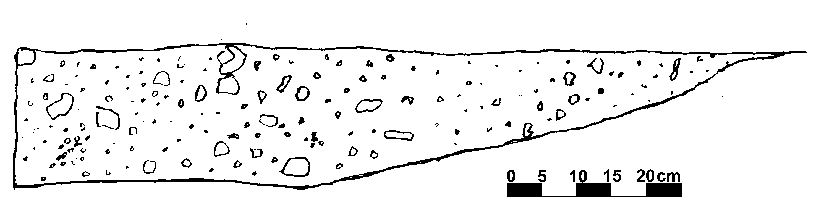

011CD05410 East Facing Section

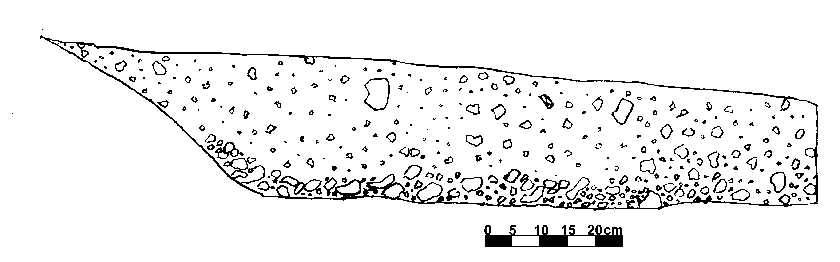

011CD05410 East Facing Section

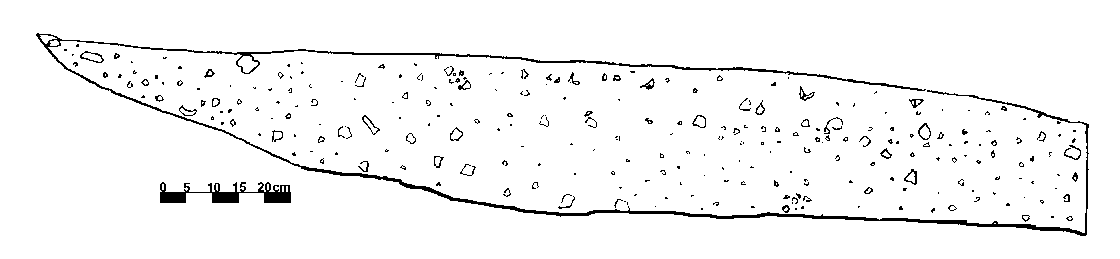

011CD05410 South Facing Section

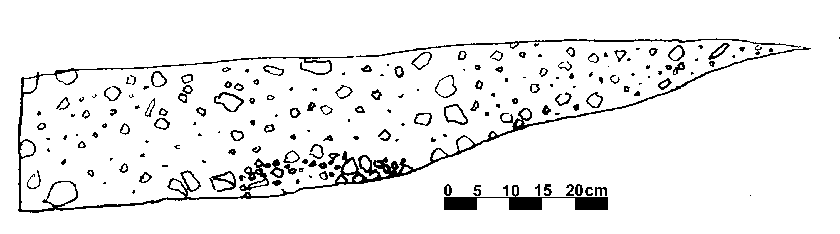

011CD05410 West Facing Section

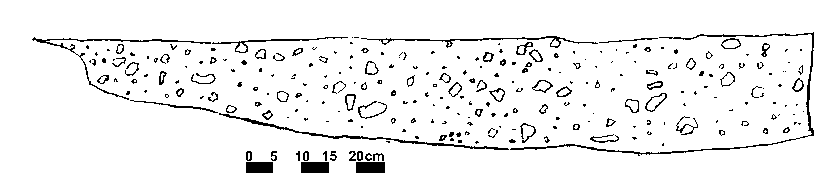

011CD05410 West Facing Section

KEY_ID TYPE SHAPE L B D  PROFILE NOTES
011CD05409 GRUB FILL SUB-RECTANGULAR
418
242
23
 USHAPED GRUB ORIGINALLY BELIEVED TO BE PART OF DITCH. THE EASTERN HALF WAS TROWELLED UNDER THIS NUMBER THE WESTERN HALF WAS WET SIEVED (5471 AND 5491).
011CD05410 GRUB CUT SUB-RECTANGULAR
418
242
23
 USHAPED CUT INTO NATURAL CHALK. PROBABLE POST HOLE IN EASTERN SIDE EXCAVATED AT SAME TIME AS GRUB.
011CD05471 GRUB FILL SUB-RECTANGULAR
187
119
22
 USHAPED SW QUADRANT OF GRUB SHOVELLED OUT FOR WET SIEVING. CUT BY SLOT 5028/5029.
011CD05491 GRUB FILL SUB-RECTANGULAR
216
135
23
 USHAPED NW QUADRANT OF GRUB SHOVELLED OUT FOR WET SIEVING. SEE 5409 FOR MATRIX.

Objects by Context

KEY_ID  OBJ PERIOD  MATERIAL TYPE  SUB_TYPE CLASS  No
011CD05409 AD No Entry CHARCOAL CHARCOAL SAMPLE


1
011CD05409 AG No Entry CHARCOAL CHARCOAL SAMPLE


1
011CD05409 AP No Entry CHARCOAL CHARCOAL SAMPLE


1
011CD05409 AT No Entry CHARCOAL CHARCOAL SAMPLE


1
011CD05409 AB EARLY SAXON DAUB DAUB


1
011CD05409 AN EARLY SAXON DAUB DAUB


1
011CD05409 AQ EARLY SAXON DAUB DAUB


1
011CD05409 AK No Entry IRON IRON OBJECT ?KNIFE BLADE

1
011CD05409 AH No Entry POTTERY SHERD


1
011CD05409 AL No Entry POTTERY SHERD


1
011CD05409 AO ROMAN POTTERY SHERD

 R-B
1
011CD05409 AA No Entry STONE STONE


3
011CD05409 AI No Entry STONE STONE


1
011CD05409 AM No Entry STONE STONE


1
011CD05409 AC EARLY SAXON UNFIRED CLAY UNFIRED CLAY


1
011CD05409 AF EARLY SAXON UNFIRED CLAY UNFIRED CLAY


1
011CD05409 AJ EARLY SAXON UNFIRED CLAY UNFIRED CLAY


1
011CD05409 AR EARLY SAXON UNFIRED CLAY UNFIRED CLAY


1
011CD05409 AS EARLY SAXON UNFIRED CLAY UNFIRED CLAY


1
011CD05409 AE EARLY SAXON WORKED BONE COMB FRAGMENT DOUBLE SIDED COMPOSITE COMB
1
011CD05471 AA ROMAN POTTERY SHERDS

 R-B
2
011CD05491 AA No Entry CHARCOAL CHARCOAL SAMPLE


1
011CD05491 AC PREHISTORIC FLINT BLADE


1
011CD05491 AD ROMAN POTTERY SHERD

 R-B
1
011CD05491 AB No Entry SHELL SHELL

 WHELK
1
011CD05491 AE No Entry STONE STONE


3
011CD05491 AF No Entry STONE STONE


1
011CD05491 AG EARLY SAXON UNFIRED CLAY UNFIRED CLAY


1
011CD05491 AH EARLY SAXON UNFIRED CLAY UNFIRED CLAY


1


Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
011CD05409 Cattle Phalanx 1 1
0
 0 0 0
011CD05409 Cattle Phalanx 2 1
0
 0 0 0
011CD05409 Cattle Skull fr 1
0
 0 0 1
011CD05409 Cattle Tibia D 1
0
 0 0 0
011CD05409 Domestic goose Radius C 1
0
 0 0 0
011CD05409 Domestic goose Scapula 1
0
 0 0 0
011CD05409 Pig M/C C 1
0
 0 0 0
011CD05409 Sheep/Goat Atlas 1
0
 0 0 1
011CD05409 Sheep/Goat Axis 1
0
 0 0 0
011CD05409 Sheep/Goat Calcaneum 1
0
 0 0 0
011CD05409 Sheep/Goat Femur D 1
0
 0 0 1
011CD05409 Sheep/Goat Humerus C 1
0
 0 0 1
011CD05409 Sheep/Goat M/C br 1
1
 0 0 0
011CD05409 Sheep/Goat M/C C 1
0
 0 0 0
011CD05409 Sheep/Goat M/C P 1
0
 0 0 0
011CD05409 Sheep/Goat M/T C 1
0
 0 0 0
011CD05409 Sheep/Goat Mand fr 1
0
 0 0 0
011CD05409 Sheep/Goat Mandible 1
0
 0 0 1
011CD05409 Sheep/Goat Mandible 1
0
 0 0 1
011CD05409 Sheep/Goat Mandible 1
0
 0 0 1
011CD05409 Sheep/Goat Patella 1
0
 0 0 0
011CD05409 Sheep/Goat Pelvis 1
0
 0 0 0
011CD05409 Sheep/Goat Pelvis 1
1
 0 0 0
011CD05409 Sheep/Goat Pelvis 1
0
 0 1 0
011CD05409 Sheep/Goat Phalanx 1 1
0
 0 0 0
011CD05409 Sheep/Goat Phalanx 1 1
1
 0 0 0
011CD05409 Sheep/Goat Phalanx 1 1
0
 0 0 0
011CD05409 Sheep/Goat Phalanx 2 1
0
 0 0 0
011CD05409 Sheep/Goat Radius br 1
0
 0 0 0
011CD05409 Sheep/Goat Radius P 1
0
 0 0 1
011CD05409 Sheep/Goat Radius P 1
0
 0 0 0
011CD05409 Sheep/Goat Sacrum 1
0
 0 1 0
011CD05409 Sheep/Goat Tibia br 1
0
 0 0 0
011CD05409 Sheep/Goat Tibia C 1
1
 0 0 0
011CD05409 Sheep/Goat Tibia D 1
0
 0 0 0
011CD05409 Wild/domestic goose Carpom/c 1
0
 0 0 0
011CD05409 Wild/domestic goose Humerus P 1
0
 0 0 0
011CD05471 Cattle Horncore 1
0
 0 0 1
011CD05471 Cattle M/C C 1
0
 0 0 0
011CD05471 Cattle Phalanx 1 1
0
 0 0 0
011CD05471 Domestic fowl Tarsom/t 1
0
 0 0 0
011CD05471 Pig Tibia D 1
0
 0 0 0
011CD05471 Sheep/Goat Astragalus 1
0
 0 0 0
011CD05471 Sheep/Goat Calcaneum 1
0
 0 0 0
011CD05471 Sheep/Goat Calcaneum 1
0
 0 0 0
011CD05471 Sheep/Goat Femur br 1
0
 0 0 1
011CD05471 Sheep/Goat Horncore 1
0
 0 1 0
011CD05471 Sheep/Goat Radius C 1
0
 0 0 0
011CD05471 Sheep/Goat Radius D 1
0
 0 0 0
011CD05471 Sheep/Goat Tibia D 1
0
 0 0 0
011CD05471 Sheep/Goat Tibia D 2
0
 0 0 0
011CD05471 Sheep/Goat Tibia D 1
0
 0 0 0
011CD05491 Cattle Calcaneum 1
0
 0 0 0
011CD05491 Cattle Humerus D 1
0
 0 0 0
011CD05491 Cattle Phalanx 1 1
0
 0 0 0
011CD05491 Cattle Radius D 1
0
 0 0 0
011CD05491 Cattle Radius D 1
0
 0 0 0
011CD05491 Cattle Skull fr 1
0
 0 0 1
011CD05491 Domestic fowl Femur C 1
0
 0 0 0
011CD05491 Domestic fowl Ulna 1
0
 0 0 0
011CD05491 Horse Ulna 1
1
 0 0 1
011CD05491 Pig Ld4 1
0
 0 0 0
011CD05491 Pig M/T C 1
0
 0 0 0
011CD05491 Pig Mand fr 1
0
 0 0 0
011CD05491 Pig Phalanx 1 1
0
 0 0 1
011CD05491 Pig Tibia D 1
0
 0 0 0
011CD05491 Sheep/Goat Atlas 1
0
 0 0 0
011CD05491 Sheep/Goat Axis 1
0
 0 0 0
011CD05491 Sheep/Goat Axis 1
0
 0 0 0
011CD05491 Sheep/Goat Axis 1
0
 0 1 0
011CD05491 Sheep/Goat Calcaneum 1
0
 0 0 0
011CD05491 Sheep/Goat Calcaneum 1
0
 0 0 0
011CD05491 Sheep/Goat Femur P 1
0
 0 0 0
011CD05491 Sheep/Goat Femur P 1
0
 0 0 0
011CD05491 Sheep/Goat Humerus D 1
0
 0 0 0
011CD05491 Sheep/Goat Humerus D 1
0
 0 1 0
011CD05491 Sheep/Goat Ld4 1
0
 0 0 0
011CD05491 Sheep/Goat LM3 1
0
 0 0 0
011CD05491 Sheep/Goat M/C P 1
0
 0 1 0
011CD05491 Sheep/Goat M/T br 1
0
 0 0 0
011CD05491 Sheep/Goat M/T C 1
0
 0 0 1
011CD05491 Sheep/Goat Mand fr 1
0
 0 0 0
011CD05491 Sheep/Goat Mand fr 1
0
 0 0 1
011CD05491 Sheep/Goat Mand fr 1
0
 0 0 0
011CD05491 Sheep/Goat Mandible 1
0
 0 0 1
011CD05491 Sheep/Goat Occiput 1
0
 0 0 1
011CD05491 Sheep/Goat Pelvis 1
0
 0 0 0
011CD05491 Sheep/Goat Pelvis 1
0
 0 1 1
011CD05491 Sheep/Goat Phalanx 1 1
0
 0 0 1
011CD05491 Sheep/Goat Phalanx 1 1
0
 0 0 0
011CD05491 Sheep/Goat Phalanx 1 2
0
 0 0 0
011CD05491 Sheep/Goat Phalanx 3 2
0
 0 0 0
011CD05491 Sheep/Goat Radius D 1
0
 0 0 0
011CD05491 Sheep/Goat Radius D 1
0
 0 0 0
011CD05491 Sheep/Goat Radius P 1
0
 0 0 1
011CD05491 Sheep/Goat Skull fr 1
0
 0 0 0
011CD05491 Sheep/Goat Tibia br 1
0
 0 0 0
011CD05491 Sheep/Goat Tibia D 1
0
 0 0 0
011CD05491 Sheep/Goat Tibia D 1
0
 0 0 0
011CD05491 Sheep/Goat Tibia P 1
0
 0 0 0
