West Heslerton: Anglian Settlement Structural Catalogue

011BA07130

Enclosure Ditch

Ditch Details
Length	15200	Maximum Width	207	Maximum Depth	47	Profile	U shaped
Material Culture	Number of Objects	166	Number of Animal Bones			443
Environmental

Phasing

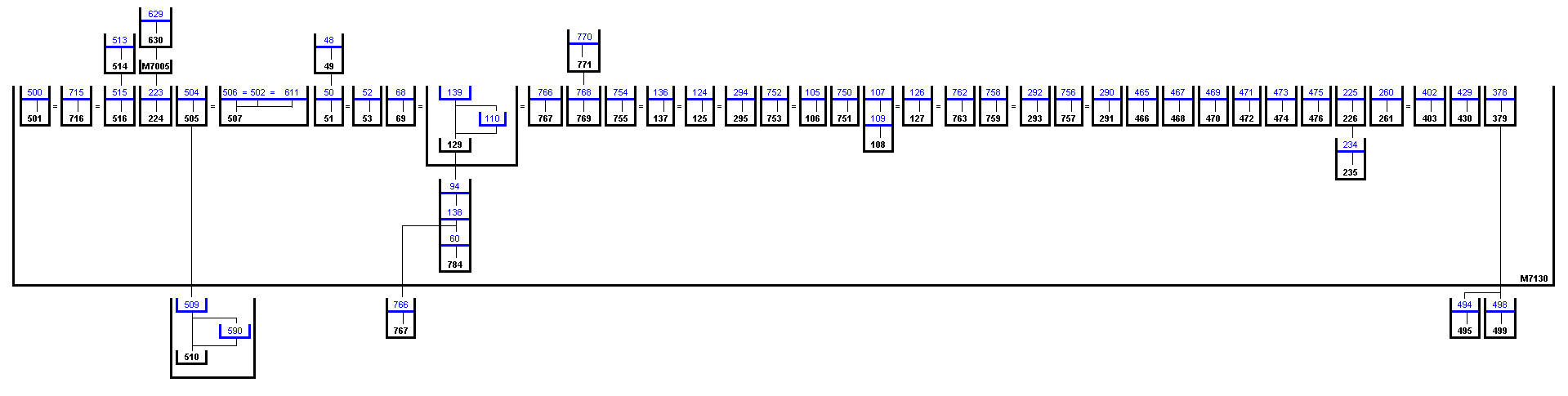

Stratigraphic Matrix Diagram

Discussion

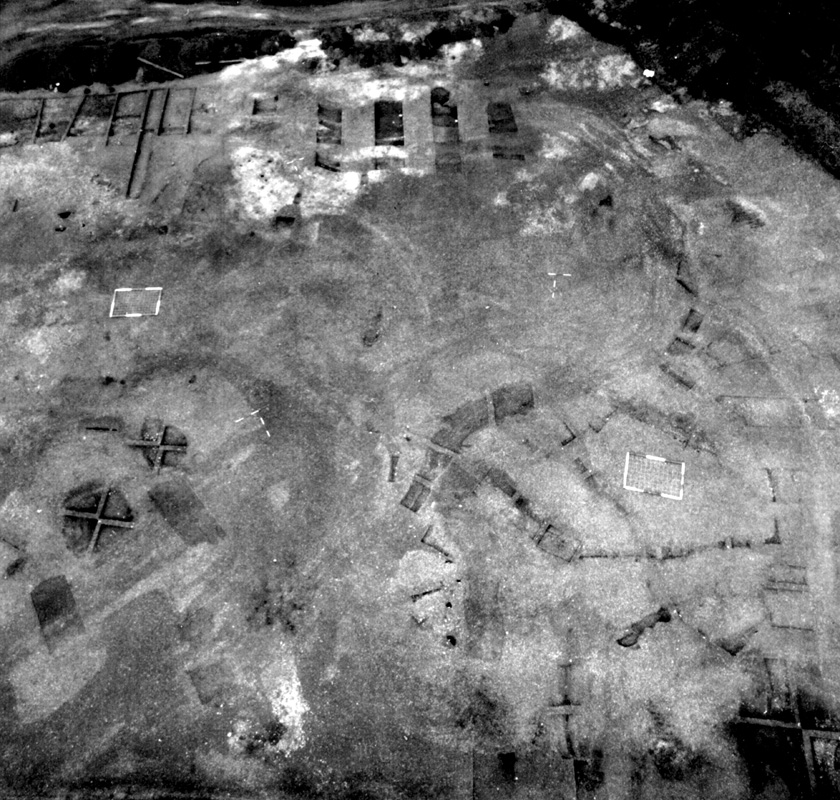

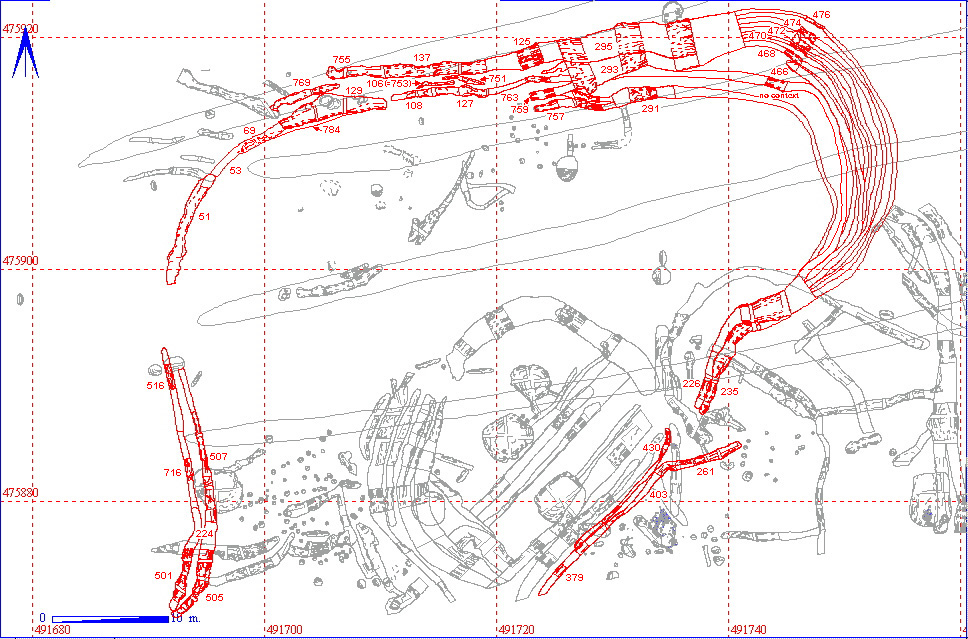

A large curvilinear enclosure in area 11BA. The area of the enclosure was approximately1985 square metres with a smaller enclosure (011BA07129) within. The enclosure was probably in use for a long period of time but it is unclear whether the smaller enclosure (011BA07129) was in use throughout that time span. The division of the south/east ditches between this document and the document for the smaller enclosure is largely arbitrary as they are likely to have formed both the back of the smaller enclosure and the south/east side of the larger enclosure. A second sub-division of the enclosure may have been present in the north/west side (011BA07131) but it as not clear whether it was contemporary. Two north/south aligned ditches (011BA00185 and 011BA00189) in the east of the area were not visible beyond the eastern edge of the enclosure ditches and they may have joined the boundary to form another contemporaneous enclosure. The position of the enclosure entrances is unclear; a break in the ditches in the south/east side is probably an entrance with another possible in the west side (unclear through plough damage).

Unfortunately, few relationships were established during excavation. The ditches cut through a ditch (011BA00510), a slot (011BA00495) and two pits (011BA00499 and 011BA00767) and were cut by a Grubenhaus (011BA07005), two slots (011BA00049 and 011BA00771) and a pit (011BA00514). No other relationships were established. The relationships between the ditches were also, for the most part, not established. A north side ditch (011BA00129) appears to cut through an earlier phase (011BA00784), and the south/east ditch 011BA00226 was believed to be a re-cut of 011BA00235. Seven ditches were recovered from the section in the north/east corner of the enclosure with a probable eighth further to the south. The southern ditch of this section was excavated under the context 011BA00291 although the continuation of 011BA00291 was probably further south and not excavated (see photograph ). The west side was badly truncated by plough damage and it is possible that more phases were present.

A Middle Saxon dome-headed pin was recovered from context 011BA00502 but this was the only find specifically dated to the Middle Saxon period. The rest of the finds from the fills of the ditches vary in age from prehistoric to medieval (due to the presence of rig and furrow), with a total of 79 datable finds (15% Prehistoric, 42% Roman, 38% Anglian and 5% Medieval). The complex may have been established in the Roman period and continued through the following centuries, or the presence of Roman material throughout the area may be residual (from the increase in Roman activity to the south). The ditches certainly have a strong Anglian element that probably extended into the Middle Saxon period (burnt daub, usually an indicator of middle Saxon activity, was recovered from fills 011BA00225, 011BA00500, 011BA00504 and 011BA00515). Grubenhaus 011BA07005 contained burnt daub in the fill and is likely to be of Middle Saxon date. The structure cut through the inner enclosure ditch, indicating that the enclosure was either redundant by this period or that the structure was placed directly to the east of the outer enclosure ditch 011BA00716.

All Contexts and Associated Finds Totals

MASTER	CUT	FILL	VOLUME	OBJECTS	AN BONE	DENSITY
011BA07130	011BA00051	011BA00050		7	10
	011BA00053	011BA00052			2
	011BA00069	011BA00068		6	23
	011BA00106	011BA00105			3
	011BA00108	011BA00107		7	1 + 1
		011BA00109		14	24
	011BA00125	011BA00124		6	10 + 1
	011BA00127	011BA00126		5	6
	011BA00129	011BA00110
		011BA00139		2	4
	011BA00137	011BA00136		5	14
	011BA00224	011BA00223		8	21
	011BA00226	011BA00225		14	45
	011BA00235	011BA00234		5	1
	011BA00261	011BA00260		1	2
	011BA00291	011BA00290		6	4
	011BA00293	011BA00292		1 + 1	17 + 1
	011BA00295	011BA00294		18	56
	011BA00379	011BA00378		6 + 1	23
	011BA00466	011BA00465
	011BA00468	011BA00467
	011BA00470	011BA00469
	011BA00472	011BA00471			1
	011BA00474	011BA00473			1
	011BA00476	011BA00475
	011BA00403	011BA00402			5
	011BA00430	011BA00429		2	1
	011BA00501	011BA00500		4	29
	011BA00505	011BA00502		8 + 2	17 + 4
		011BA00504		7	29
		011BA00611
	011BA00507	011BA00506		3	12
	011BA00516	011BA00515		9	13
	011BA00716	011BA00715
	011BA00751	011BA00750		1
	011BA00753	011BA00752
	011BA00755	011BA00754		6	16
	011BA00757	011BA00756		2	8
	011BA00759	011BA00758		1	3
	011BA00763	011BA00762		1	2
	011BA00769	011BA00768			2
	011BA00784	011BA00060		2
		011BA00094		1	6
		011BA00138		3	19

Structural Details

011BA00051 Section and Notes

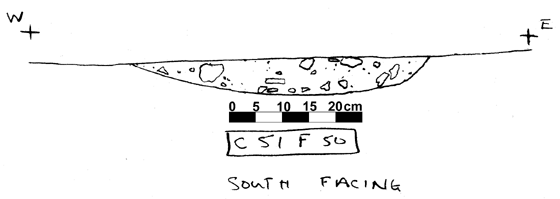

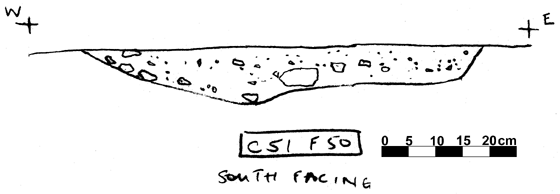

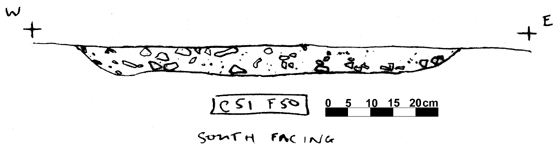

011BA00051 South Facing Section

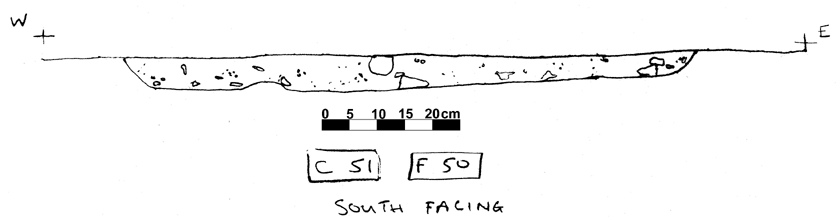

011BA00051 South Facing Section

011BA00051 South Facing Section

011BA00051 South Facing Section

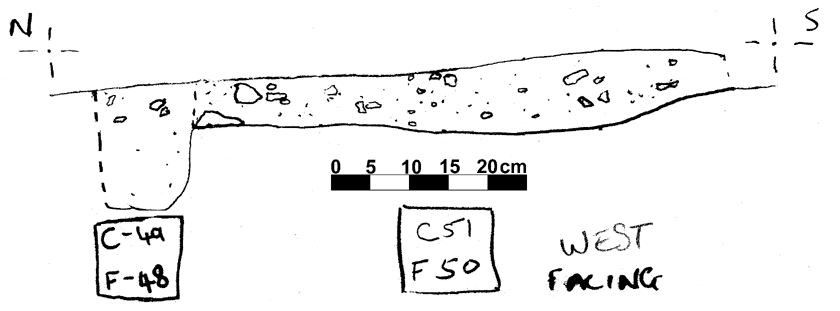

011BA00051 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00050	DITCH FILL	LINEAR	1042	101	8	VERT.SIDE F.BASE	FILL CONTAINED ONLY ANIMAL BONE AND WAS THE START OF THE SOUTHERN SIDE OF THE ENCLOSURE.
011BA00051	DITCH CUT	LINEAR	1042	101	8	VERT.SIDE F.BASE	THIS WAS CUT INTO THE RED CHALK NATURAL AND APPEARED TO BE CUT BY DITCH CUT 49.

011BA00053 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00052	DITCH FILL	LINEAR	159	49	10	U-SHAPED	THIS WAS THE BEGINNING OF THE SOUTHERN SECTION OF THE ENCLOSURE AND IS = TO CONTEXT 139.
011BA00053	DITCH CUT	LINEAR	159	49	10	U-SHAPED	THIS WAS CUT INTO THE NATURAL CHALK AND IS THE SAME AS CUT NUMBER 129.

011BA00069 Section and Notes

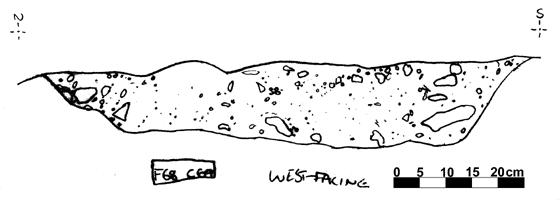

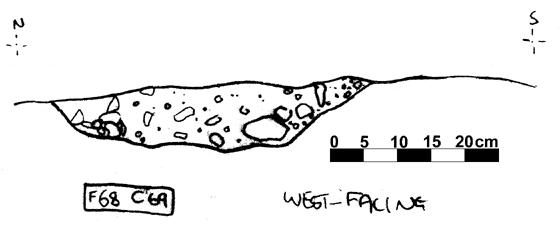

011BA00069 West Facing Section

011BA00069 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00068	DITCH FILL	LINEAR	139	100	17	U-SHAPED	THIS FILL CONTAINED ANIMAL BONE AND APPEARS TO OVERLIE CONTEXT 60.
011BA00069	DITCH CUT	LINEAR	139	100	17	U-SHAPED	APPEARS TO BE CUT INTO AN EARLIER COLLAPSED-IN FILL AS WELL AS CUTTING INTO THE NATURAL CHALK.

011BA00106 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00105	SLOT FILL	LINEAR	245	25	9	U-SHAPED	THIS FILL CONTAINED 2 ANIMAL BONES (1 FROM SMALL ANIMAL) AND WAS THE SAME CONTEXT AS 752.
011BA00106	SLOT CUT	LINEAR	245	25	9	U-SHAPED	CUT INTO THE NATURAL SAND.

011BA00108 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00107	DITCH FILL	LINEAR	108	49	23	U-SHAPED	THIS FILL CONTAINED IRON AND SLAG AS WELL AS ANIMAL BONE. THIS IS THE SAME DITCH FILL AS 126.
011BA00108	DITCH CUT	LINEAR	108	49	23	U-SHAPED	THIS CUT LIES BENEATH 107 AND 109 AND IS THE SAME AS CUT 127.
011BA00109	DITCH FILL	LINEAR	50	23	9	COMPLEX	THIS FILL WAS SEALED BY FILL 107 AND CONTAINED 2 PIECES OF IRON: A PIECE OF SLAG AND A PIECE OF BRONZE.

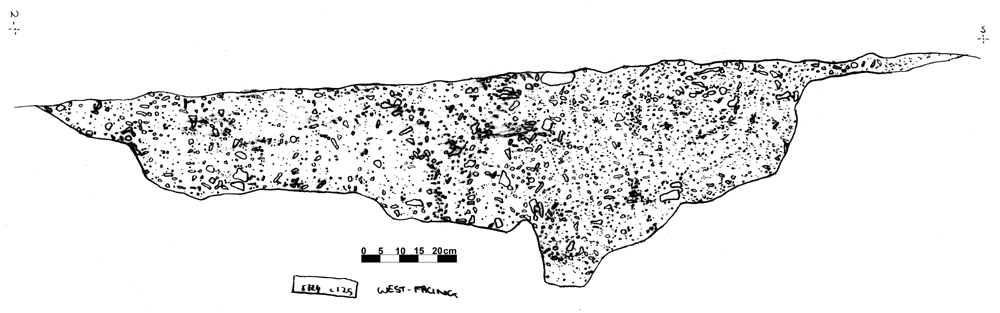

011BA00125 Section and Notes

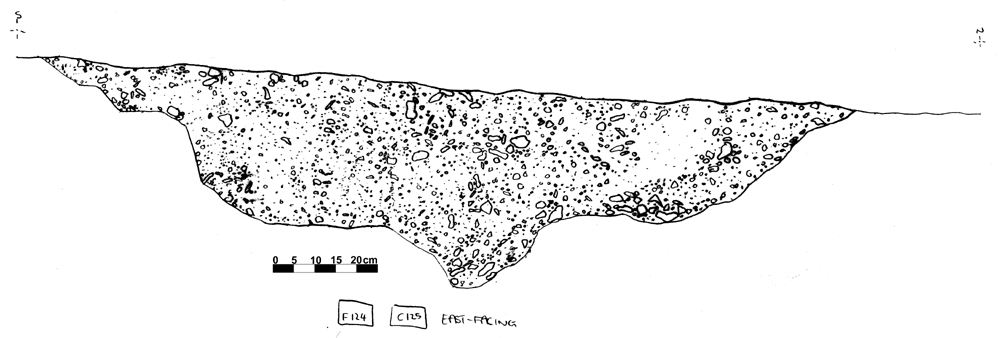

011BA00125 East Facing Section

011BA00125 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00124	DITCH FILL	LINEAR	203	193	47	U-SHAPED	THIS FILL CONTAINED IRON AND ANIMAL BONE AND IS A CONTINUATION OF 136 AND 754.
011BA00125	DITCH CUT	LINEAR	203	193	47	U-SHAPED	THE CUT HAD ANOTHER U-SHAPED FEATURE IN THE BASE EXCAVATED UNDER 124. SEE CONTEXT BOOK FOR SKETCH.

011BA00127 Section and Notes

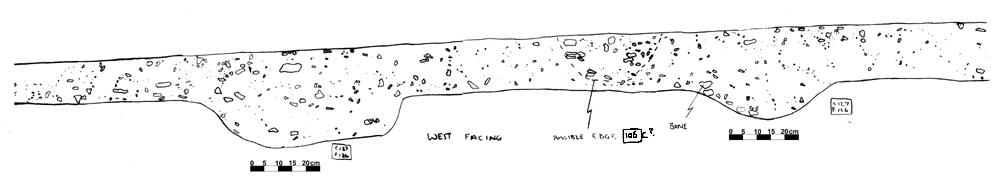

011BA00127 West Facing Section

011BA00127 West Facing Section

011BA00127 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00126	DITCH FILL	LINEAR	524	69	17	U-SHAPED	CONTAINED ONLY ANIMAL BONES. ALTHOUGH SHAPE GIVEN AS LINEAR: THE DITCH BEGINS TO TURN TO THE SOUTH NEAR THE SECTION.
011BA00127	DITCH CUT	LINEAR	524	69	17	U-SHAPED	CUT INTO THE NATURAL SAND: THIS CUT IS EQUAL TO 108.

011BA00129 Section and Notes

011BA00129 East Facing Section

011BA00129 West Facing Section

011BA00129 West Facing Section

011BA00129 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00110	LAYER	SUB-RECTANGULAR	57	13	4	FLAT BASED U	THIS WAS A CHARCOAL LAYER TOTALLY SEALED BY FILL 82. IT WAS IN THE DITCH OF THE ENCLOSURE.
011BA00129	DITCH CUT	LINEAR	724	130	29	U-SHAPED	CUT APPEARS TO CUT THROUGH TWO LAYERS 138 AND 60.
011BA00139	DITCH FILL	LINEAR	724	130	29	U-SHAPED	THIS DITCH FILL CONTAINED ONLY ANIMAL BONE. THE TERMINUS OF THE DITCH WAS DIFFICULT TO ESTABLISH DUE TO MULTIPLICITY OF CUTS.

011BA00137 Section and Notes

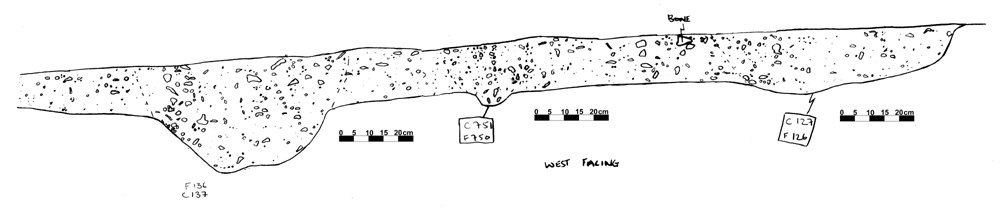

011BA00137 West Facing Section

011BA00137 West Facing Section

011BA00137 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00136	DITCH FILL	LINEAR	668	95	41	U-SHAPED	CONTAINED ANIMAL BONE INCLUDING RAT'S TALON.
011BA00137	DITCH CUT	LINEAR	668	95	41	U-SHAPED	CUT INTO THE NATURAL CHALK GRAVEL. IN PLACES IT APPEARS TO HAVE LEDGES CUT INTO THE SIDE ABOUT 5CM FROM THE BASE.

011BA00224 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00223	DITCH FILL	CURVILINEAR	0	207	12	CONCAVE	SURFACE FILL 30% STONE.DITCH TERMINATES BEFORE REACHING ROAD.ONCE SURFACE FILL REMOVED IT REVEALED TWO DITCHES:NEW CONTEXT(501:504).
011BA00224	DITCH CUT	CURVILINEAR	0	207	12	CONCAVE	BASE OF SURFACE FILL SEE NEW CUT No502 &505. LENGTH- CUT BY GRUB.221.THEN CONTINUES N.

011BA00226 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00225	DITCH FILL	LINEAR	0	80	12	CONCAVE	PRIMARY FILL 20%CHALKY GRAVEL .RUNS PARALEL WITH 234 BEFORE SWEEPING AROUND FIELD AS PART OF ENCLOSURE DITCHES.
011BA00226	DITCH CUT	LINEAR	0	80	12	CONCAVE	MAY BE A RECUT OF 234 AS E. EDGE IS LOWER & MERGES WITH PARALLEL DITCH.

011BA00235 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00234	DITCH FILL	LINEAR	1000	60	29	FLAT BASED U	PRIMARY FILL 40% STONE.ORIGINALY THOUGHT TO BE PART OF STRUCTURE DUE TO CLOSENESS OF HEARTH NOW CONTIUATION OF DITCHES .
011BA00235	DITCH CUT	LINEAR	1000	60	29	FLAT BASED U	LENGTH- JOINS 225 WHITCH SWEEPS AROUND FIELD.ALSO RUNS AJACENT TO HEARTH.236 & WAS THOUGHT TO BE STRUCTURAL.

011BA00261 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00260	DITCH FILL	LINEAR	730	88	20	V-SHAPED	DITCH TURNS FROM EAST/WEST ORIENTATION TO NE/SW ORIENTATION UNDER NUMBER 403. NO FURTHER RECORD IN CONTEXT BOOK.
011BA00261	DITCH CUT	LINEAR	730	88	20	V-SHAPED	DITCH TURNS FROM EAST/WEST ORIENTATION TO NE/SW ORIENTATION UNDER NUMBER 403. NO FURTHER RECORD IN CONTEXT BOOK.

011BA00291 Section and Notes

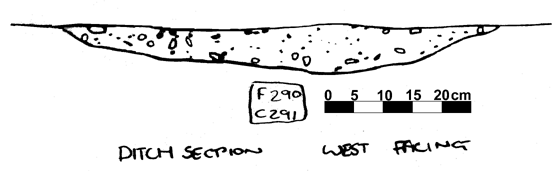

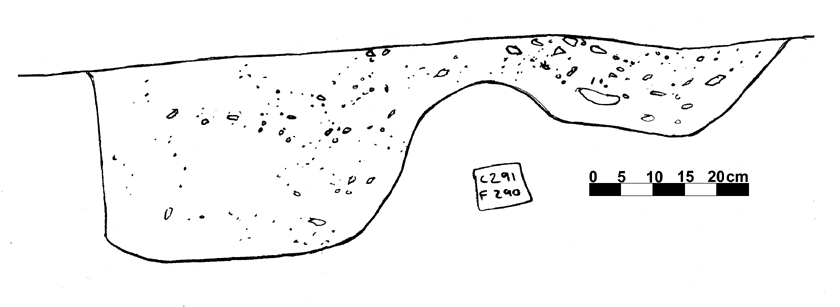

011BA00291 West Facing Section

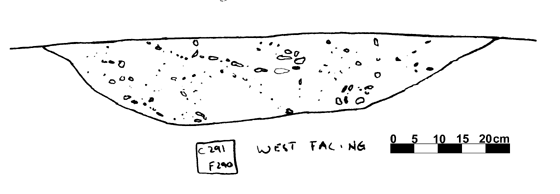

011BA00291 West Facing Section

011BA00291 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00290	DITCH FILL	CURVILINEAR	0	120	25	COMPLEX	PRIMARY FILL60% CHALKY GRAVEL.SECTIONS OF DITCH RE-CUT OF TWO EARLYER DITCHES:SHOWN BY GRAVEL RIDGE.RUNNING PARALLEL TO 292&294.
011BA00291	DITCH CUT	CURVILINEAR	0	120	25	COMPLEX	DITCH CUT IN AREA OF COMPLEX RECUTTING.IN PLACES IT APPEARS AS RE-CUT OF TWO EARLYER DITCHES.RUNS PARALLEL WITH DITCHES 292&294:FORMING:BOUNDARY

011BA00293 Section and Notes

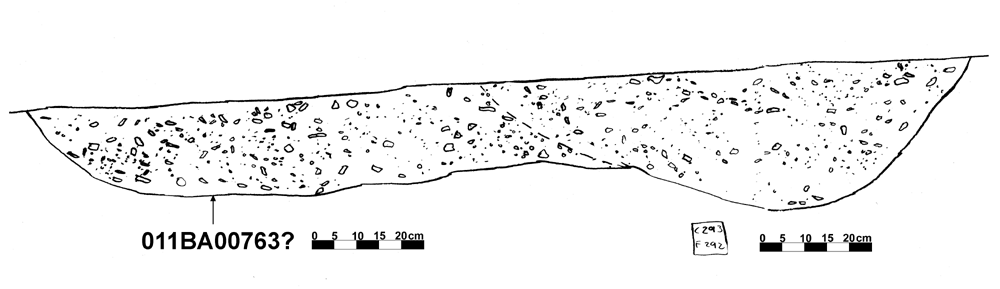

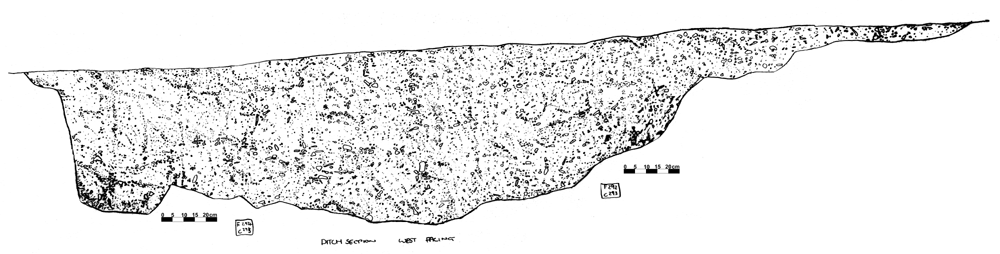

011BA00293 West Facing Section

011BA00293 West Facing Section

011BA00293 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00292	DITCH FILL	CURVILINEAR	0	0	0	COMPLEX	PRIMARY FILL 60% STONE.IN PLACES IT APEARS AS ONE DITCH BUT IT IS RE-CUT OF MANY EARLIER DITCHES & SEPERATES INTO c:7 DITCHES TO THE W.
011BA00293	DITCH CUT	CURVILINEAR	0	0	0	COMPLEX	ONE OF A COMPLEX OF RE-CUT DITCHES 290&294.WIDTH&DEPTH CONSTANTLY CHANGING.EACH DITCH IS THE PRODUCT OF SEVERAL MERGING DITCHES.

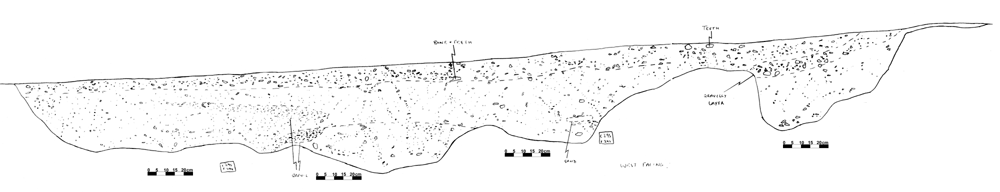

011BA00295 Section and Notes

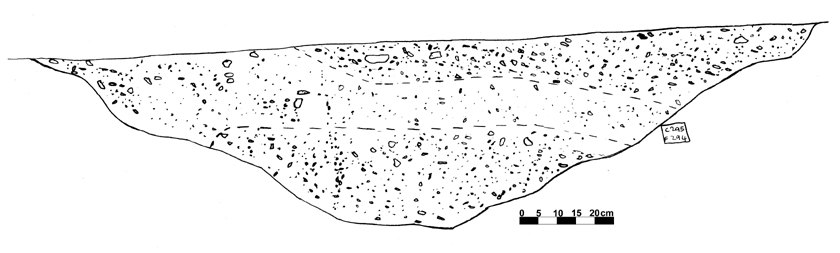

011BA00295 West Facing Section

011BA00295 West Facing Section

011BA00295 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00294	DITCH FILL	CURVILINEAR	0	0	0	COMPLEX	PRIMARY FILL60% STONE.ONE OF A SERIES OF:BOUNDRY:DITCHES:WHITCH MERGES WITH 292 FURTHER E.TO FORM ONE DITCH.
011BA00295	DITCH CUT	CURVILINEAR	0	0	0	COMPLEX	CONSTANTLY CHANGING WIDTH & DEPTH DUE TO RE-CUTTING.ONE OF A SERIES OF :BOUNDRY:DITCHES WHITCH RUN E.W.THEN TURN S.BEFORE SWEEPING ACROSS :ENCLOSURE:

011BA00379 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00378	DITCH FILL	LINEAR	0	57	16	BOWL SHAPED	PRIMARY FILL 45% CHALKY GRAVEL. DITCH RUNS PARALLEL TO SIMILAR FEATURES BETWEEN GRUBS APPEARING TO FORM TRACKWAY.
011BA00379	DITCH CUT	LINEAR	0	57	16	BOWL SHAPED	A DITCH ADJACENT TO SIMMILAR BUT SHALLOWER FEATURES WHITCH RESEMBLE A TRACK WAY:RUNNING BETWEEN GRUB.S.

011BA00403 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00402	DITCH FILL	LINEAR	0	75	18	FLAT BASED V	PRIMARY FILL 40% STONE WITH FLECKS OF CHARCOAL & DAUB.ONE OF SERIES OF POSS. TRACKWAYS.
011BA00403	DITCH CUT	LINEAR	0	75	18	FLAT BASED V	POSS. A CONTINUATION OF DICH WHICH RUNS FROM BENEATH BAULK &TERMINATES AT JUNCTION WITH DITCH 374.

011BA00430 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00429	DITCH FILL	No entry	0	0	0	No entry	DITCH FILL
011BA00430	DITCH CUT	No entry	0	0	0	No entry	DITCH CUT

011BA00466 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00465	DITCH FILL	LINEAR	200	64	13	U-SHAPED	DITCH FILL. HIGH CHALK INCLUSIONS. NO FINDS AND NO CHARCOAL FLECKING.
011BA00466	DITCH CUT	LINEAR	200	64	13	U-SHAPED	ONE OF A SERIES OF DITCHES SWEEPING ACROSS THE AREA.

011BA00468 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00467	DITCH FILL	CURVILINEAR	200	52	29	U-SHAPED	DITCH FILL CONTAINED POTTERY AND BONE. CHALK INCLUSIONS 45% 0.5-3CM IN DIAMETER.
011BA00468	DITCH CUT	CURVILINEAR	200	52	29	U-SHAPED	DITCH CUT INTO NATURAL CHALK GRAVEL. REGULAR BASE AND SIDES. ONE OF A NUMBER OF CURVILINEAR DITCHES SWEEPING ACROSS THE AREA.

011BA00470 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00469	DITCH FILL	CURVILINEAR	200	30	18	U-SHAPED	DITCH FILL CONTAINED ANIMAL BONE AND SMALL TRACES OF CHARCOAL. MAY PROVE TO BE FINAL STAGE OF MULTIPLE RECUTS OF DITCHES.
011BA00470	DITCH CUT	CURVILINEAR	200	30	18	U-SHAPED	DITCH CUT INTO NATURAL CHALK GRAVEL. APPEARS TO BE CUT INTO REDEPOSITED NATURAL AND MAY WELL PROVE TO BE THE FINAL STAGE IN THIS AREA OF MULTIPLE RECUTS.

011BA00472 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00471	DITCH FILL	CURVILINEAR	200	47	24	U-SHAPED	DITCH FILL CONTAINED ANIMAL BONE ONE POTSHERD AND A GLASS FRAGMENT. CHALK INCLUSIONS 20% 0.5-3CM IN DIAMETER.
011BA00472	DITCH CUT	CURVILINEAR	200	47	24	U-SHAPED	DITCH CUT. PROBABLY ONE OF THE FINAL STAGES OF THE MULTIPLE RECUTS IN THIS AREA.

011BA00474 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00473	DITCH FILL	CURVILINEAR	200	57	30	U-SHAPED	DITCH FILL CONTAINED ANIMAL BONE POTTERY AND TRACES OF CHARCOAL. CHALK INCLUSIONS 5% 0.5-1.5CM IN DIAMETER.
011BA00474	DITCH CUT	CURVILINEAR	200	57	30	U-SHAPED	DITCH CUT INTO NATURAL CHALK GRAVEL AND REDEPOSITED NATURAL. RATHER UNEVEN EDGES AND IRREGULAR BASE.

011BA00476 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00475	DITCH FILL	CURVILINEAR	200	22	7	U-SHAPED	DITCH FILL CONTAINED ANIMAL BONE ONLY. CHALK INCLUSIONS 10% 0.5-2CM IN DIAMETER.
011BA00476	DITCH CUT	CURVILINEAR	200	22	7	U-SHAPED	DITCH CUT INTO NATURAL CHALK GRAVEL AND REDEPOSITED NATURAL. IRREGULAR SIDES AND BASE.

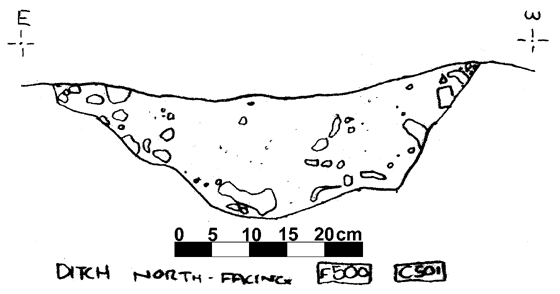

011BA00501 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00500	DITCH FILL	CURVILINEAR	1038	100	34	WIDE V	THIS GULLY/DITCH RUNS PARALLEL TO 505 AND IT CUTS THROUGH 510.AT THE WEST END OF BA.
011BA00501	DITCH CUT	CURVILINEAR	1038	100	34	WIDE V	THIS GULLY/DITCH ALSO DISPLAYS CUTTING RELATIONSHIPS WITH GRUB 222 AND POSSIBLY WITH DITCH 553.

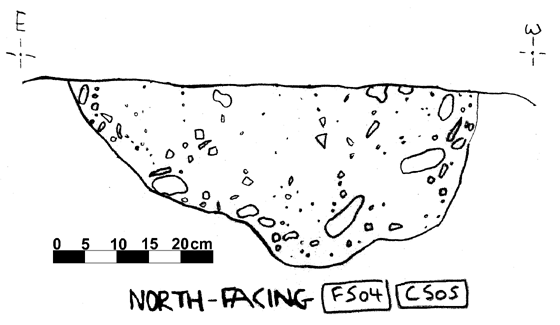

011BA00505 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00502	DITCH FILL	No Entry	0	0	0		ORIGINALLY THOUGHT TO BE GRUB FILL THIS WAS PART OF DITCH 504/505.
011BA00504	DITCH FILL	CURVILINEAR	1038	100	36	V-SHAPED	RUNS PARALLEL TO 501 &CUTS THROUGH 510 & IT TERMINATES BEFORE IT REACHES THE HEDGE ALONG WITH 501 .HIGH STONE CONTENT CHALK CLASTS < 15.
011BA00505	DITCH CUT	CURVILINEAR	1038	100	36	V-SHAPED	THERE MAY BE A CONTINUATION OF THIS DITCH AFTER GRUB 222 .WHICH HAS BEEN GIVEN No 507. ALSO CUTS DITCH 510.
011BA00611	DITCH FILL	No Entry	0	0	22	VERT.SIDE F.BASE	SECOND REMOVAL OF NUMBER ORIGINALLY BELIEVED TO BE GRUB (SEE502/503). PROBABLY JUST PART OF DITCH 504/505. SMALL AMOUNT OF ANIMAL BONE FINDS.

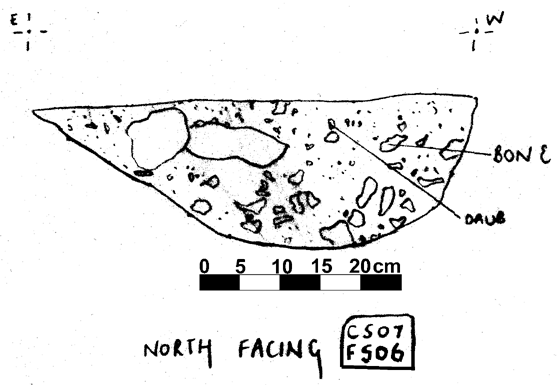

011BA00507 Section and Notes

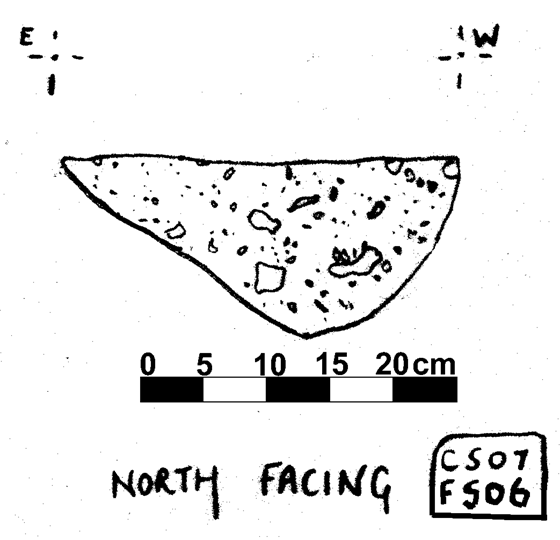

011BA00507 North Facing Section

011BA00507 North Facing Section

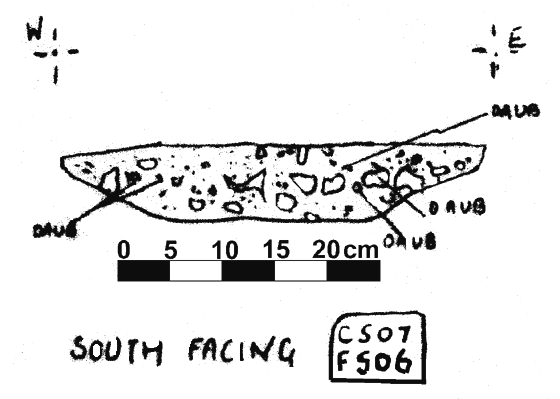

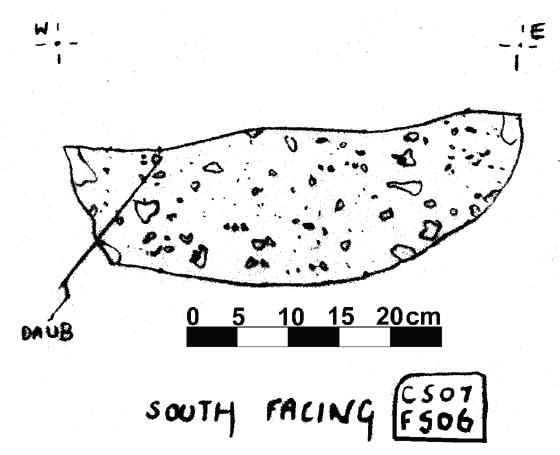

011BA00507 South Facing Section

011BA00507 South Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00506	DITCH FILL	LINEAR	1008	40	18	FLAT BASED U	THE STONE CONT WAS FAIRLY HIGH :& THE FILL CHANGED AS ONE MOVED N.ALONG THE DITCH TO A CLAY LOAM AT ITS NORTHERN END WHERE IT IS TERMINATED BTY 514.
011BA00507	DITCH CUT	LINEAR	1008	40	18	FLAT BASED U	THIS GULLY/DITCH HAS SOME CUTTING RELATIONSHIP WITH GRUB 222 &IT IS POSS THAT IT =505.MAY FORM PART OF AN ENCLOSURE.

011BA00516 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00515	DITCH FILL	LINEAR	314	54	16	FLAT	FILL OF SHALLOW DITCH RUNNING N-S TO W OF 507: CUTTING RED CHALK: PERHAPS RELATED TO ENCLOSURE ENTRANCE.
011BA00516	DITCH CUT	LINEAR	314	54	16	WIDE V	THIS DITCH RUN PARALLEL TO 716 &IT HAS SOME SORT OF CUTTING RELATION SHIP WITH PIT 514:IT MAY BE RELATED TO AN ENCLOSURE ENTRANCE AT W.END OF BA.

011BA00716 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00715	DITCH FILL	LINEAR	549	66	12	FLAT BASED V	THIS DITCH RUNS PARALLEL TO GULLY 507 IT SEEMS TO RUN JUST TO THE W.OF GRUB 222:& IT MAY BE A CONTINUATION 0F 501.
011BA00716	DITCH CUT	LINEAR	549	66	12	FLAT BASED V	DITCH RUNS PARALLEL TO 507:IT MAY POSS BE A CONTINUATION OF 501: & IT SEEMS TO BE FORMING PART OF AN ENCLOSURE AT W. END OF BA.

011BA00751 Section and Notes

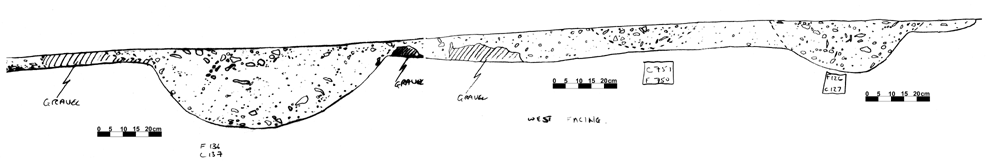

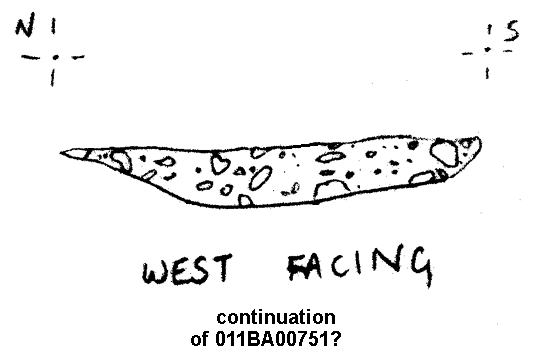

011BA00751 West Facing Section

011BA00751 West Facing Section

011BA00751 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00750	SLOT FILL	LINEAR SEG.	340	47	11	U-SHAPED	CONTAINED ONE ANIMAL BONE AND A FLINT SCRAPER. VERY STONY FILL.
011BA00751	SLOT CUT	LINEAR SEG.	340	47	11	U-SHAPED	CUT INTO NATURAL SAND.

011BA00753 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00752	PIT FILL	OVATE	65	38	10	WIDE U	VERY STONY FILL: NO FINDS.
011BA00753	PIT CUT	OVATE	65	38	10	WIDE U	CUT INTO NATURAL CHALK.

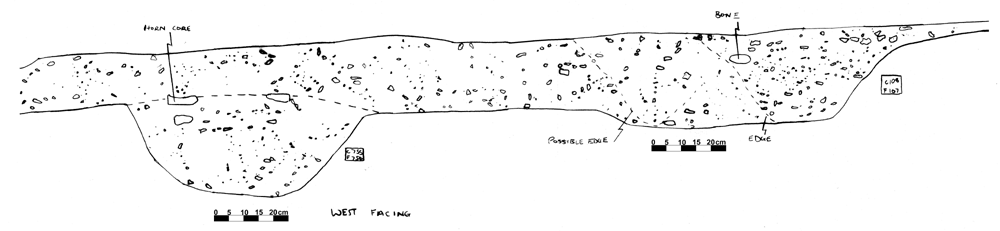

011BA00755 Section and Notes

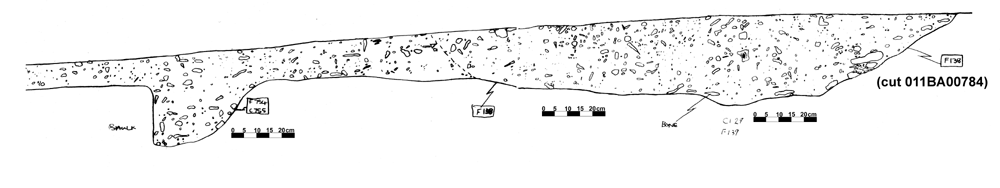

011BA00755 West Facing Section

011BA00755 West Facing Section

011BA00755 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00754	DITCH FILL	LINEAR	710	101	34	U-SHAPED	THIS SECTION OF THE DITCH CONTAINED ONLY ANIMAL BONES.
011BA00755	DITCH CUT	LINEAR	710	101	36	U-SHAPED	THIS WAS CUT INTO NATURAL CHALK AND SAND.

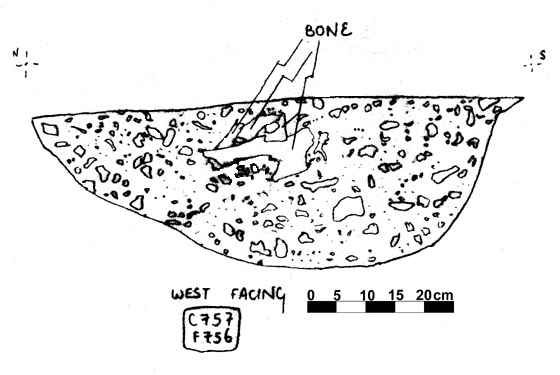

011BA00757 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00756	DITCH FILL	LINEAR	358	82	31	U-SHAPED	CONTAINED ANIMAL BONE ONLY.
011BA00757	DITCH CUT	LINEAR	358	82	31	U-SHAPED	CUT INTO THE NATURAL CHALK GRAVEL.

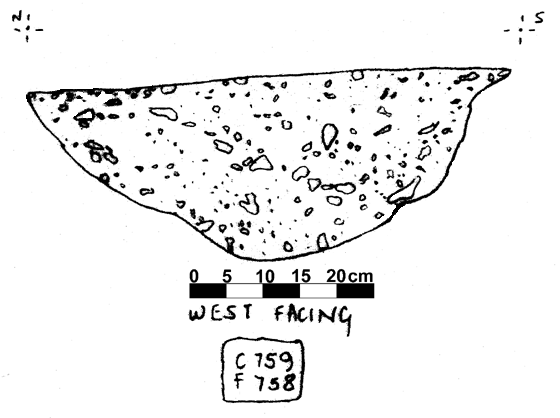

011BA00759 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00758	DITCH FILL	LINEAR	360	74	26	U-SHAPED	CONTAINED ANIMAL BONE: ONE PIECE OF POTTERY AND A SMALL PIECE OF WORKED FLINT.
011BA00759	DITCH CUT	LINEAR	360	74	26	U-SHAPED	CUTS INTO THE NATURAL CHALK GRAVEL.

011BA00763 Section and Notes

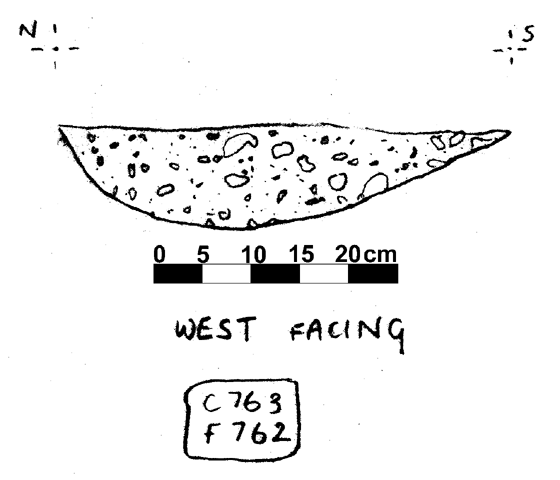

011BA00763 West Facing Section

011BA00763 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00762	DITCH FILL	LINEAR	207	44	11	V-SHAPED	THIS DITCH FILL CONTAINED ANIMAL BONES ONLY.
011BA00763	DITCH CUT	LINEAR	207	44	11	V-SHAPED	CUT INTO THE CHALK GRAVEL.

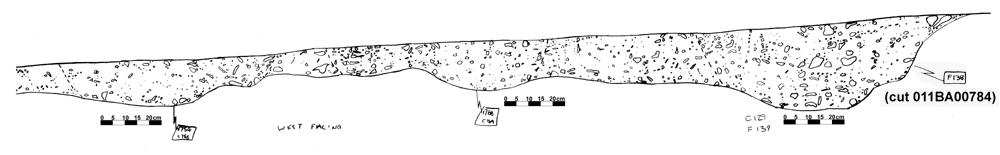

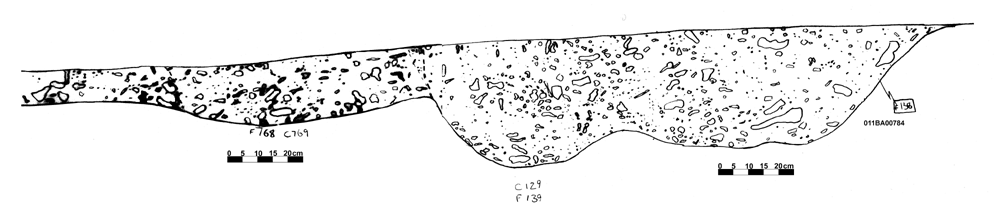

011BA00769 Section and Notes

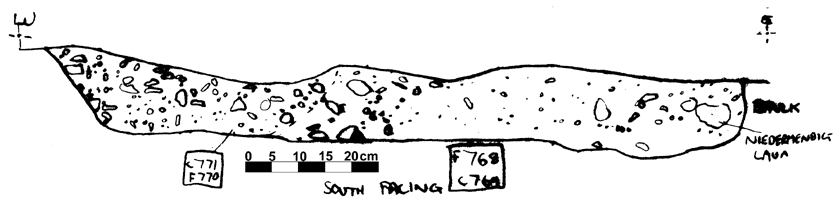

011BA00769 South Facing Section

011BA00769 West Facing Section

011BA00769 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00768	DITCH FILL	LINEAR	680	82	11	WIDE V	HAS RELATIONSHIP WITH DITCH 764 BUT DIFFICULT TO ESTABLISH.
011BA00769	DITCH CUT	LINEAR	680	82	11	WIDE V	CUT INTO THE NATURAL CHALK GRAVEL. HAS REL. WITH DITCH 765 AND 771 BUT DIFFICULT TO ESTABLISH CHRONOLOGY.

011BA00784 Section and Notes

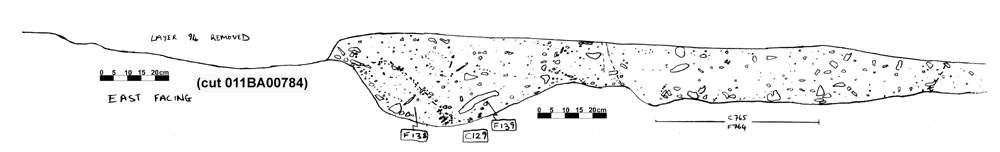

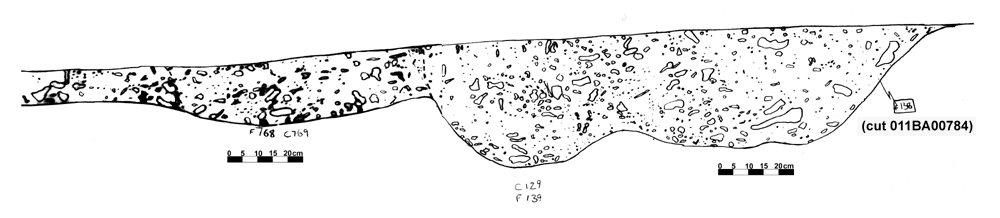

011BA00784 East Facing Section

011BA00784 West Facing Section

011BA00784 West Facing Section

011BA00784 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00060	DITCH FILL	LINEAR	381	62	16	No entry	PROBABLY THE COLLAPSED SIDE OF PREVIOUS DITCH. TIGHTLY PACKED CHALK FILL APPEARS TO EXTEND UNDER 139. NO CUT NO. ISSUED - NOT EXCAVATED.
011BA00094	DITCH FILL	LINEAR	986	116	8	COMPLEX	THIS APPEARED TO BE THE SLUMPED-IN SIDE OF AN EARLIER DITCH: THUS THE PROFILE WAS GIVEN AS COMPLEX. 139 IS CUT INTO 138.
011BA00138	DITCH FILL	LINEAR	758	67	27	COMPLEX	THIS MAY HAVE BEEN THE SLUMPED-IN SIDE OF A DITCH AND WAS GIVEN A COMPLEX PROFILE. CUT BY DITCH 129 (FILL 139).
011BA00784	DITCH CUT	LINEAR	986	116	30	COMPLEX	CUT OF DITCH ISSUED IN POST-EXC. ONE OF SERIES OF DITCHES FORMING LARGE ENCLOSURE IN 11BA. CUT BY DITCH 129. FILLS: 94 138 AND 60.
