002DB00387

Pit Alignment

Pit Alignment Details
Length of Alignment 2780 Maximum Width 108 Maximum Depth 0 Unexcavated
Number of Pits 12
Average Length 94 Average Width 82 Average Depth 0  Unexcavated
Highest Elevation Value  5423 002DB00389
Lowest Elevation Value 5391 002DB00398 002DB00399 002DB00400
Bearing  93 degrees
Structural Class
Material Culture Number of Objects 0 Number of Animal Bones 0
Environmental

Phasing

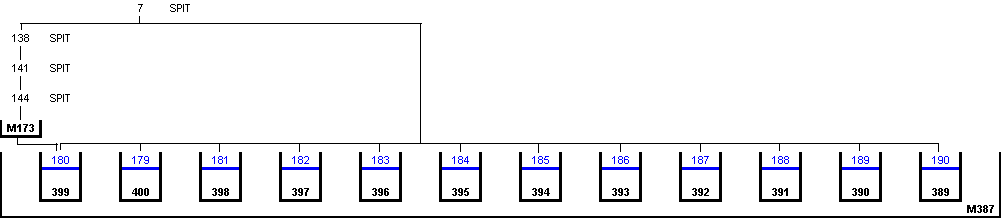

Stratigraphic Matrix Diagram

Discussion

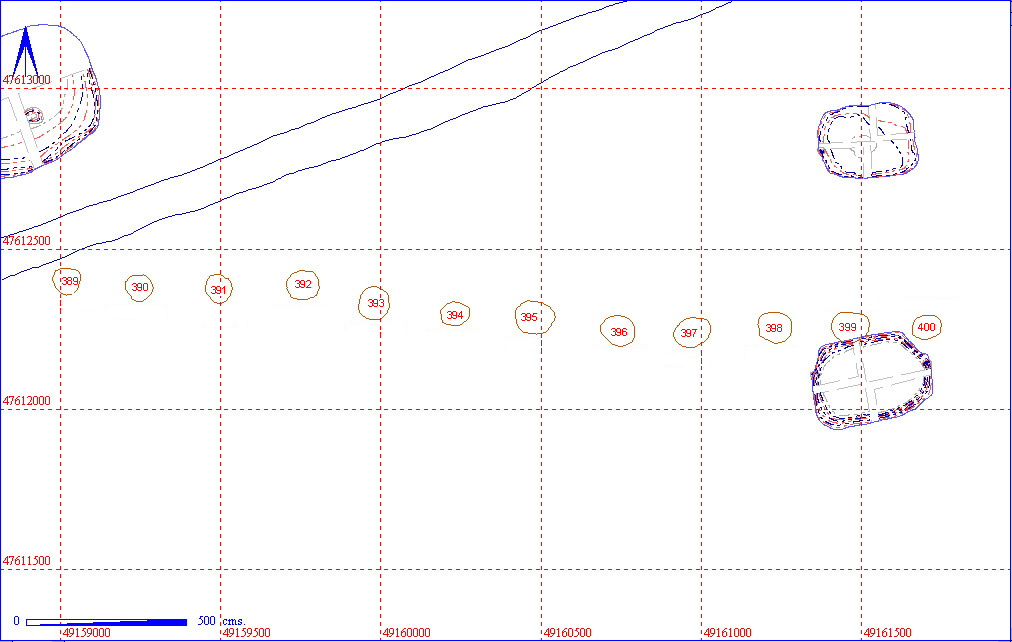

A pit alignment in the north of area 2DB. This section of the alignment comprises of twelve pits, none of which were excavated. The alignment continues to the west as master 002DA00010 and to the east as master 002CA00165. Pit 002DB00399 is cut by Grubenhaus master 002DB00173.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002DB00387 002DB00389 002DB00190
002DB00390 002DB00189
002DB00391 002DB00188
002DB00392 002DB00187
002DB00393 002DB00186
002DB00394 002DB00185
002DB00395 002DB00184
002DB00396 002DB00183
002DB00397 002DB00182
002DB00398 002DB00181
002DB00399 002DB00180
002DB00400 002DB00179

Structural Details

MASTER 002DB00387

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00387 MASTER LINEAR  0 0  0 No entry  MASTER NUMBER OF PIT ALIGNMENT IN DB. CONTINUATION OF PIT ALIGNMENT IN 2DA (MASTER NO. 10) AND 2CA.

002DB00389 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00190 PIT FILL SUB-CIRCULAR  85 82  0 FLAT  PIT OF E-W. RUNNING PIT ALIGNMENT. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00389 PIT CUT SUB-CIRCULAR  85 82  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.

002DB00390 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00189 PIT FILL SUB-CIRCULAR  89 83  0 FLAT  PIT OF E-W. RUNNING PIT ALIGNMENT. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00390 PIT CUT SUB-CIRCULAR  89 83  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.

002DB00391 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00188 PIT FILL SUB-CIRCULAR  90 80  0 FLAT  PIT OF E-W. RUNNING PIT ALIGNMENT. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00391 PIT CUT SUB-CIRCULAR  90 80  0 No entry  CUT OF UNEXCAVATED PIT OF ALIGNMENT.

002DB00392 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00187 PIT FILL SUB-CIRCULAR  102 92  0 FLAT  PIT OF E-W. RUNNING PIT ALIGNMENT. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00392 PIT CUT SUB-CIRCULAR  102 92  0 No entry  CUT OF UNEXCAVATED PIT OF ALIGNMENT.

002DB00393 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00186 PIT FILL SUB-CIRCULAR  103 97  0 FLAT  PIT OF PIT ALIGNMENT RUNNING APPROX E-W. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00393 PIT CUT SUB-CIRCULAR  103 97  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.

002DB00394 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00185 PIT FILL SUB-CIRCULAR  90 78  0 FLAT  PIT OF E-W. RUNNING PIT ALIGNMENT. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00394 PIT CUT SUB-CIRCULAR  90 78  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.

002DB00395 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00184 PIT FILL SUB-CIRCULAR  120 108  0 FLAT  PIT OF E-W. RUNNING PIT ALIGNMENT. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUACH CLEANING. TRUNCATED ABOVE.
002DB00395 PIT CUT SUB-CIRCULAR  120 108  0 No entry  CUT OF UNEXCAVATED PIT OF ALIGNMENT.

002DB00396 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00183 PIT FILL OVATE  107 92  0 FLAT  PIT OF E-W. RUNNING PIT ALIGNMENT. PLANNED: NOT EXCAVATED. DEFINED ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00396 PIT CUT SUB-CIRCULAR  107 92  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.

002DB00397 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00182 PIT FILL OVATE  115 90  0 FLAT  PIT OF APPROX E-W. RUNNING PIT ALIGNMENT. NOT EXCAVATED. PLANNED. SEEN ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00397 PIT CUT SUB-CIRCULAR  115 90  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.

002DB00398 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00181 PIT FILL SUB-CIRCULAR  105 95  0 FLAT  PIT OF APPROX E-W. RUNNING PIT ALIGNMENT. NOT EXCAVATED-PLANNED. SEEN ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00398 PIT CUT SUB-CIRCULAR  105 95  0 No entry  CUT OF UNEXCAVATED PIT OFPIT ALIGNMENT.

002DB00399 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00180 PIT FILL SUB-CIRCULAR  118 98  0 FLAT  PIT OF APPROX E-W. ALIGNMENT IN N.E. 2DB. NOT EXCAVATED-PLANNED. SEEN ONLY AFTER MUCH CLEANING. TRUNCATED ABOVE.
002DB00399 PIT CUT SUB-CIRCULAR  118 98  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.

002DB00400 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00179 PIT FILL SUB-CIRCULAR  92 78  0 FLAT  SMALLISH PIT IN PIT ALIGNMENT IN 2DB. NOT EXCAVATED. REVEALED AFTER MUCH CLEANING.
002DB00400 PIT CUT SUB-CIRCULAR  92 78  0 No entry  CUT OF UNEXCAVATED PIT OF PIT ALIGNMENT.
