002CB07038

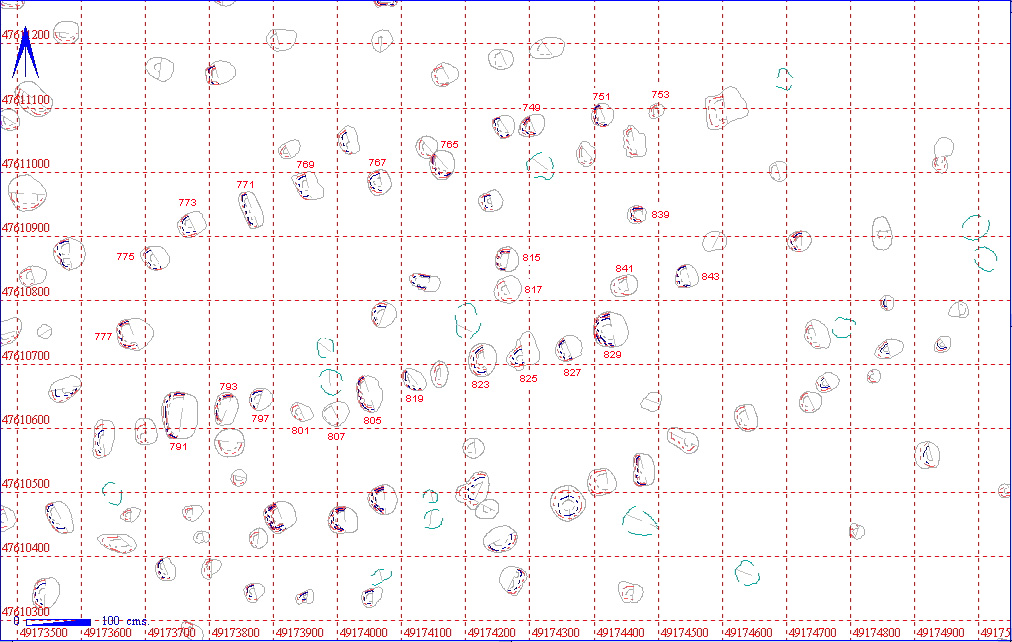

Post Hole Structure



Post-Hole Structure Details
Length  762 Width 280
Area  21.3 sq. m Ratio 2.7:1
Number of Posts  26 Deepest 24  002CB00749 Shallowest  9 002CB00807
Average Depth
 18.5
North Wall  8 Posts Average Depth  18
East Wall  2 Posts Average Depth  20.5
South Wall  11 Posts Average Depth  18
West Wall  2 Posts Average Depth  18.5
Interior Divisions:  One partition on the east side approx. 170cm in width. Possibly another on west side (if structure extended to west to be a max. of 905cm in length) approx. 100cm in width.
Highest Elevation Value  5454 002CB00841
Lowest Elevation Value  5403 002CB00777
Bearing  77 degrees
Plank\Post  Post
Doorways Two centrally opposing in the long walls.
Repairs:
Structural Class
Material Culture  Number of Objects 3  Number of Animal Bones 2
Environmental

Phasing

Discussion

An interpretation of a group of post holes in the south of area 2CB. It is possible the structure extends a further metre to the west and has another internal partition, but the shorter length is more likely considering the position of the doors and the unusual ratio of 3.2:1 of the larger structure. It is possible that this structure has some kind of annex (200 x 145cm) on the west side of the south wall although this is by no means certain and has not been included in the catalogue. This structure is likely to be contemporary with north/south structure 002CB07037 as they are on the same alignment. It overlaps with structure 002CB07039, aligned at 66 degrees. There is no evidence to suggest which structure was earliest.


All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CB07038 002CB00749  002CB00750
002CB00751  002CB00752
002CB00753  002CB00754
002CB00765  002CB00766
002CB00767  002CB00768
002CB00769  002CB00770
002CB00771  002CB00772
002CB00773  002CB00774
002CB00775  002CB00776
002CB00777  002CB00778
002CB00791  002CB00792
002CB00793  002CB00794 1
002CB00797  002CB00798
002CB00801  002CB00802
002CB00805  002CB00806
002CB00807  002CB00808
002CB00815  002CB00816
002CB00817  002CB00818 1  1
002CB00819  002CB00820
002CB00823  002CB00824
002CB00825  002CB00826
002CB00827  002CB00828
002CB00829  002CB00830 1
002CB00839  002CB00840 1
002CB00841  002CB00842
002CB00843  002CB00844

Structural Details

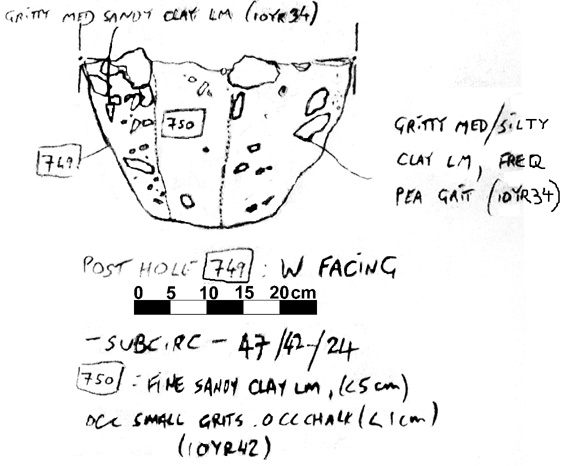

002CB00749 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00749  POST HOLE CUT SUB-CIRCULAR  47 42  24 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. CONTAINS A P. PIPE. TRUNCATED ABOVE. REGULAR SIDES: FLATTISH/CONCAVE BASE.
002CB00750  POST HOLE FILL SUB-CIRCULAR  47 42  24 USHAPED  FREQ PEA GRIT & CHALK < 6 CM WITH SOME SAND AROUND EDGES. CENTRE OF FILL = POST PIPE (FINE SANDY CLAY LOAM: FEW INCLS: 10YR42) TRUNCATED ABOVE.

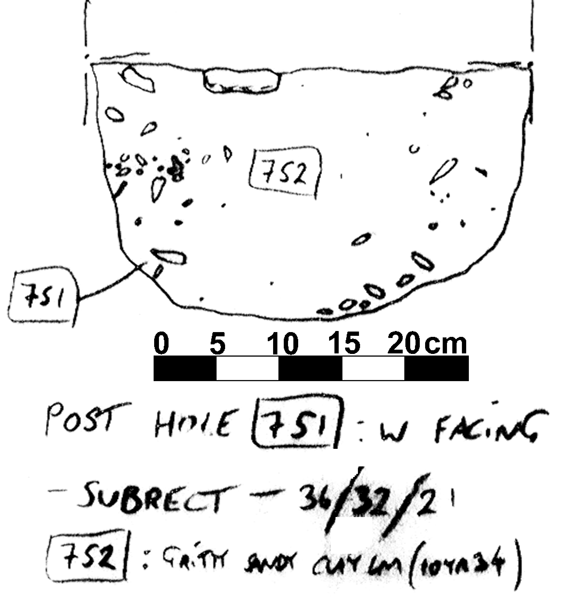

002CB00751 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00751  POST HOLE CUT SUB-RECTANGULAR  36 32  21 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. V. REGULAR PROFILE. PLAN SHAPE ALMOST SQUARE WITH ROUNDED CORNERS.
002CB00752  POST HOLE FILL SUB-RECTANGULAR  36 32  21 USHAPED  MOD CHALK < 5 CM (MOSSTLY FINER) THROUGHOUT FILL BUT CONCENTRATING IN CLUSTERS. TRUNCATED ABOVE.

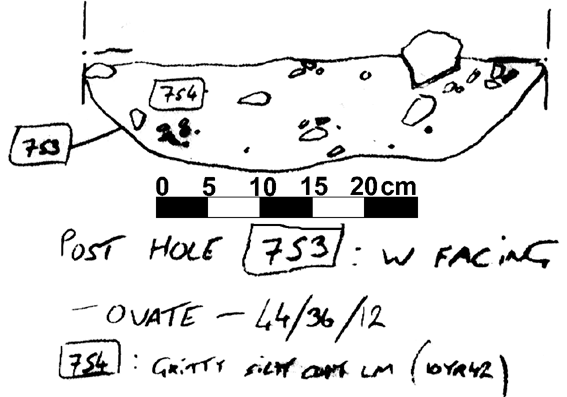

002CB00753 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00753  POST HOLE CUT OVATE  44 36  12 FLAT BASED U  TRUNCATED ABOVE. REGULAR SIDES & BASE. LAYS IMM TO W. OF SPOIL HEAP.
002CB00754  POST HOLE FILL OVATE  44 36  12 FLAT BASED U  MOD/FREQ CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE. REGULAR SIDES & BASE.

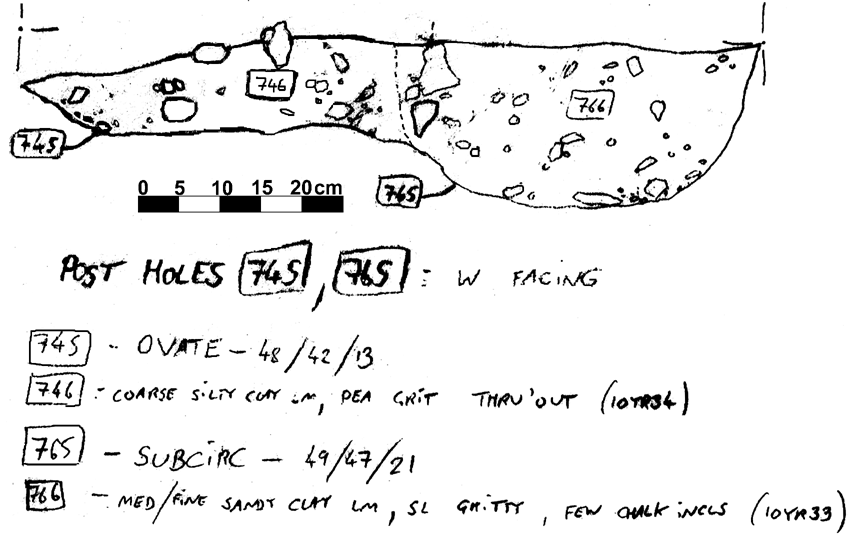

002CB00765 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00765  POST HOLE CUT SUB-CIRCULAR  49 47  21 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. CUTS THROUGH AN EARLIER P.H. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00766  POST HOLE FILL SUB-CIRCULAR  49 47  21 USHAPED  FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

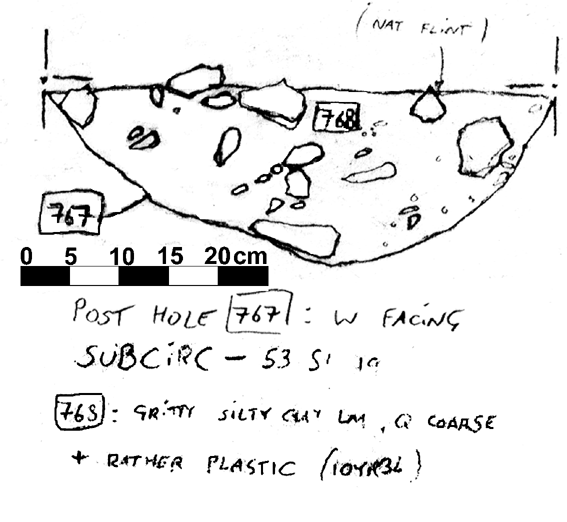

002CB00767 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00767  POST HOLE CUT SUB-CIRCULAR  53 51  19 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE: V. GENTLE SIDES MERGING INTO BASE.
002CB00768  POST HOLE FILL SUB-CIRCULAR  53 51  19 USHAPED  RATHER PLASTIC. FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE.

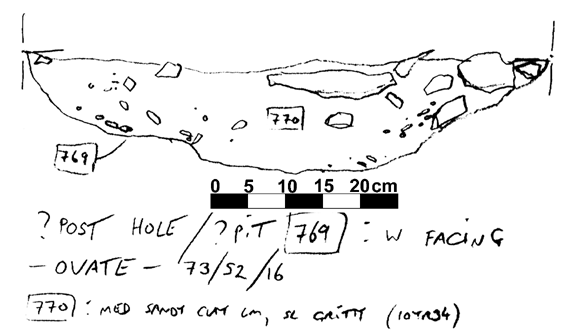

002CB00769 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00769  POST HOLE CUT OVATE  73 52  16 WIDE U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. UNDULATING BASE: V. GENTLE EDGES.
002CB00770  POST HOLE FILL OVATE  73 52  16 WIDE U  FREQ CHALK < 5 CM (A FEW LARGER) THROUGHOUT FILL. TRUNCATED ABOVE.

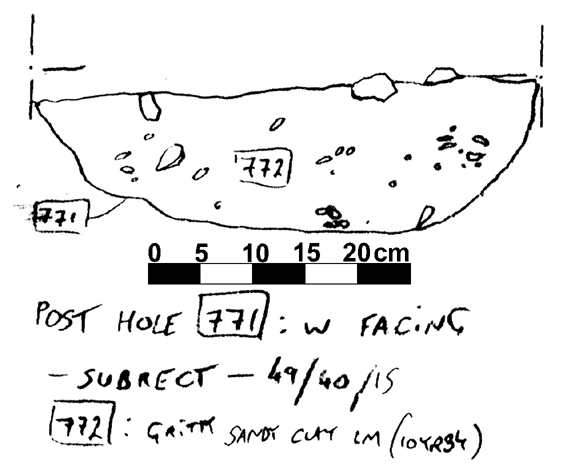

002CB00771 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00771  POST HOLE CUT SUB-RECTANGULAR  49 40  15 FLAT BASED U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CB00772  POST HOLE FILL SUB-RECTANGULAR  49 40  15 FLAT BASED U  MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

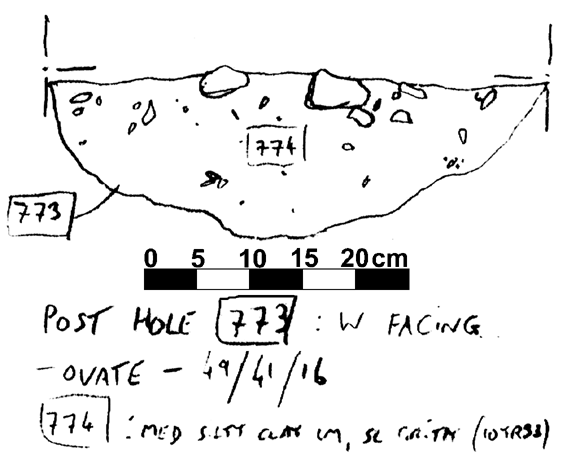

002CB00773 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00773  POST HOLE CUT OVATE  49 41  16 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE: REGULAR BASE: LITTLE OF EDEGS REMAINING.
002CB00774  POST HOLE FILL OVATE  49 41  16 USHAPED  MOD/FREQ CHALK < 5 CM CONCENTRATED MAINLY IN UPPER PART OF FILL. TRUNCATED ABOVE.

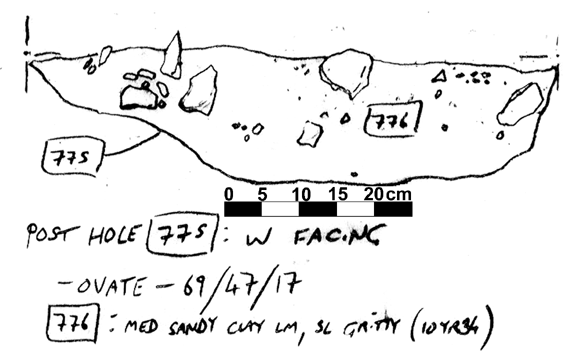

002CB00775 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00775  POST HOLE CUT OVATE  69 47  17 STEPPED U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. SL STEP FROM BASE TO N. EDGE.
002CB00776  POST HOLE FILL OVATE  69 47  17 STEPPED U  FREQ CHALK < 8 CM THROUGHOUT FILL--CONCENTRATING IN UPPER PART OF FILL. TRUNCATED ABOVE.

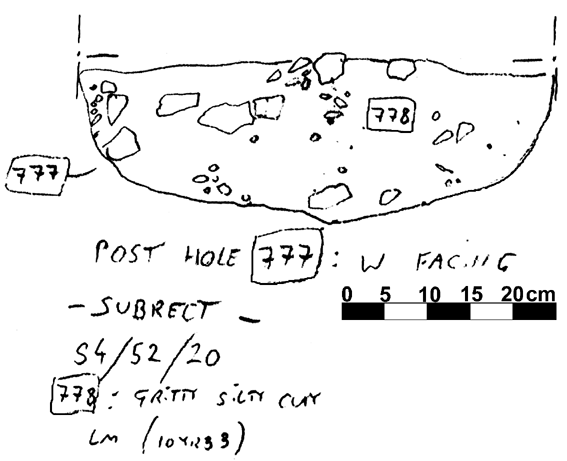

002CB00777 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00777  POST HOLE CUT SUB-RECTANGULAR  54 52  20 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR SIDES & BASE. ALMOST SQUARE IN PLAN.
002CB00778  POST HOLE FILL SUB-RECTANGULAR  54 52  20 USHAPED  FREQ CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

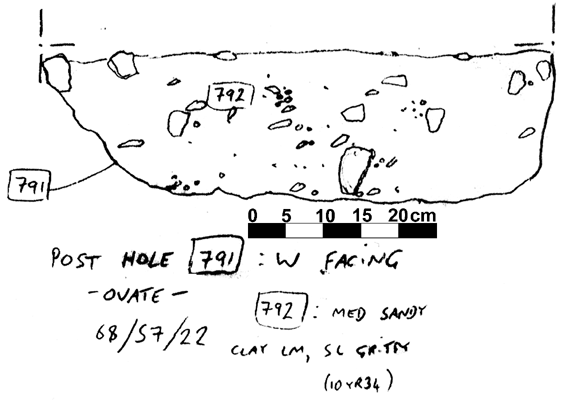

002CB00791 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00791  POST HOLE CUT OVATE  68 57  22 FLAT BASED U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR BASE: S. EDGE STEEPER THAN N.
002CB00792  POST HOLE FILL OVATE  68 57  22 FLAT BASED U  FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

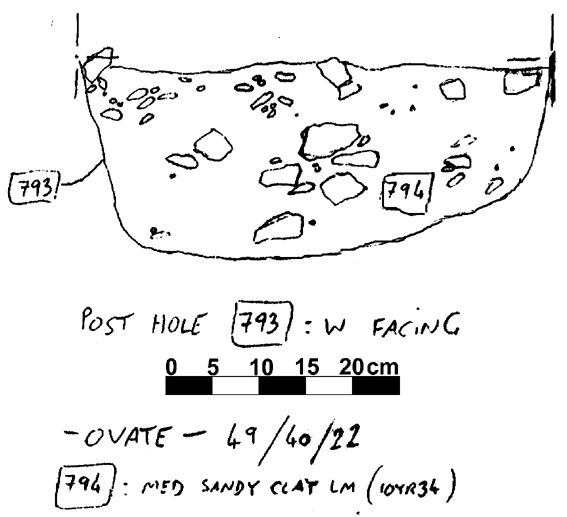

002CB00793 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00793  POST HOLE CUT OVATE  49 40  22 FLAT BASED U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR EDGES: BASE SL CONCAVE.
002CB00794  POST HOLE FILL OVATE  49 40  22 FLAT BASED U  FREQ CHALK < 6 CM THROUGHOUT FILL--MOSTLY IN UPPER PART. TRUNCATED ABOVE.

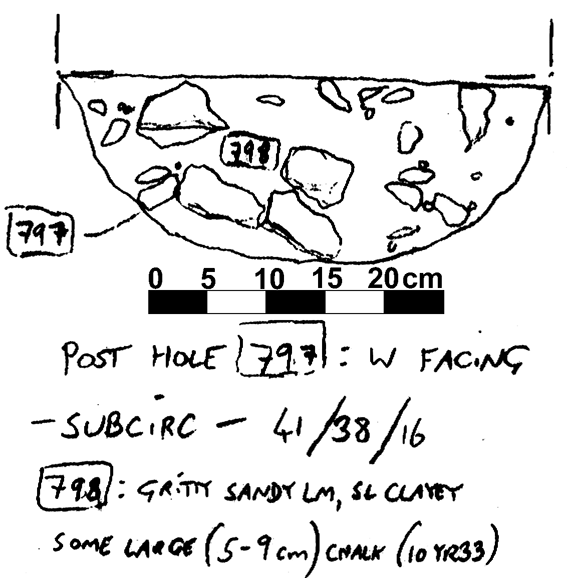

002CB00797 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00797  POST HOLE CUT SUB-CIRCULAR  41 38  16 USHAPED  P.H. IN AREA OF SPOIL HEAP IMM TOW. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00798  POST HOLE FILL SUB-CIRCULAR  41 38  16 USHAPED  FREQ CHALK < 9 CM THROUGHOUT FILL. TRUNCATED ABOVE.

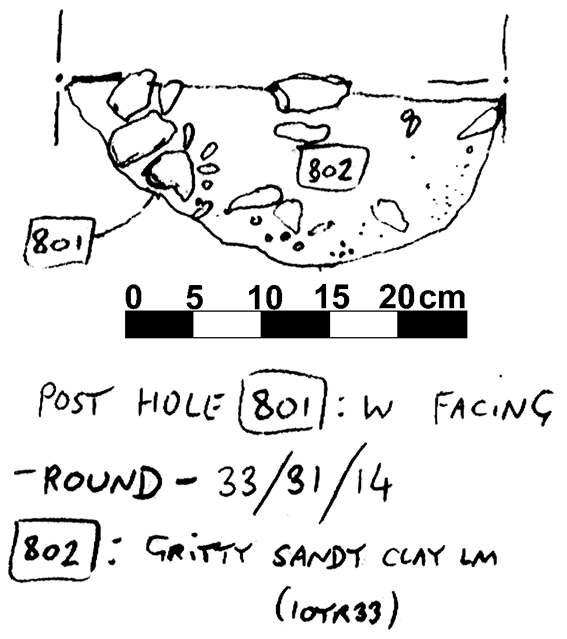

002CB00801 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00801  POST HOLE CUT ROUND  33 31  14 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00802  POST HOLE FILL ROUND  33 31  14 USHAPED  FREQ CHALK < 6 CM-CONCENTRATED MOSTLY AROUND EDGES & BASE. TRUNCATED ABOVE.

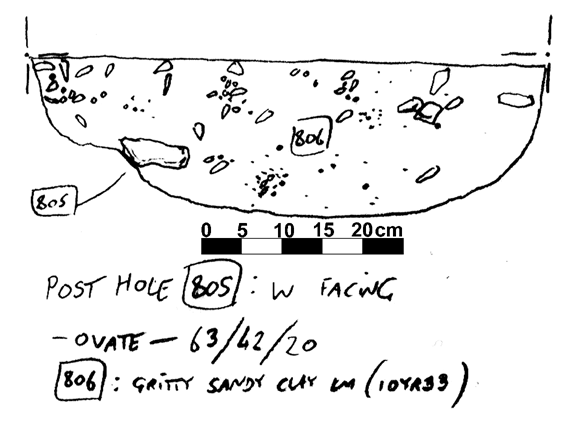

002CB00805 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00805  POST HOLE CUT OVATE  63 42  20 WIDE U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE EXCEPT FOR SMALL STEP AT N. EDGE.
002CB00806  POST HOLE FILL OVATE  63 42  20 WIDE U  FREQ CHALK < 4 CM (OCCA LARGER) THROUGHOUT FILL IN CLUSTERS. TRUNCATED ABOVE.

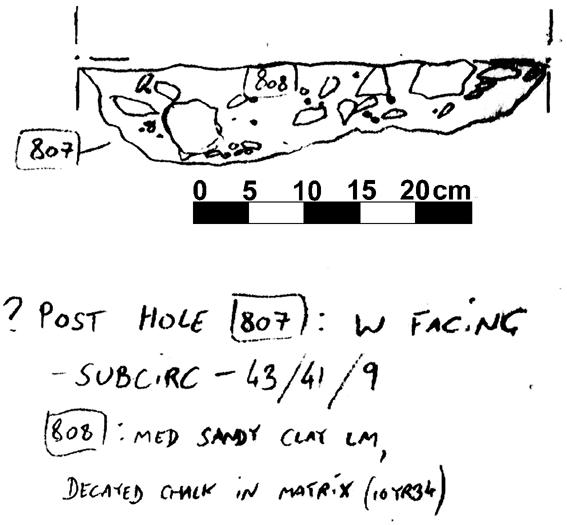

002CB00807 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00807  POST HOLE CUT SUB-CIRCULAR  43 41  9 FLAT BASED U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. SL UNDULATING BASE--LITTLE OF EDGES SURVIVING.
002CB00808  POST HOLE FILL SUB-CIRCULAR  43 41  9 FLAT BASED U  FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

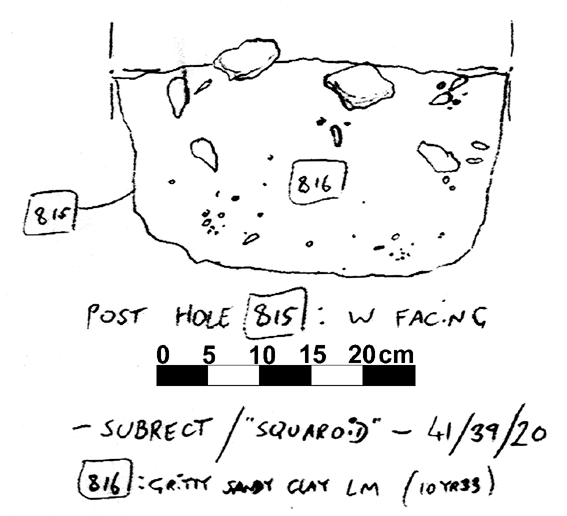

002CB00815 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00815  POST HOLE CUT SUB-RECTANGULAR  41 39  20 FLAT BASED U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00816  POST HOLE FILL SUB-RECTANGULAR  41 39  20 FLAT BASED U  MOD CHALK < 5 CM THROUGHOUT FILL. LARGEST TENDING TOWARDS UPPER PART OF FILL. TRUNCATED ABOVE.

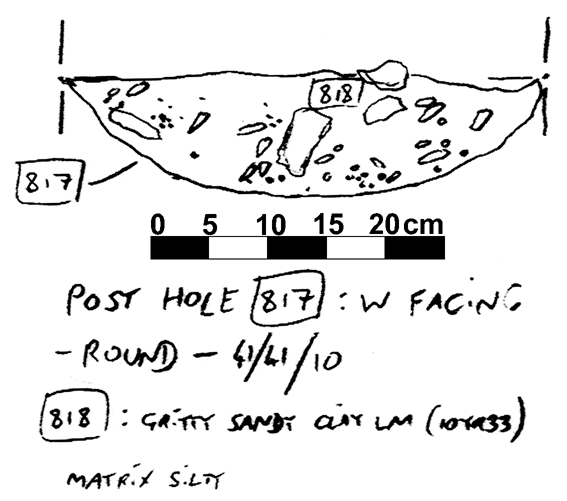

002CB00817 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00817  POST HOLE CUT ROUND  41 41  10 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CB00818  POST HOLE FILL ROUND  41 41  10 USHAPED  FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE. MATRIX SILTY.

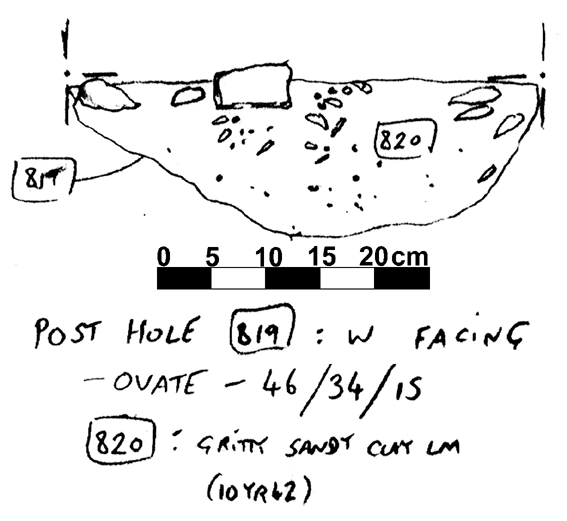

002CB00819 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00819  POST HOLE CUT OVATE  46 34  15 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR BASE: S. EDGE STEEPER THAN N.
002CB00820  POST HOLE FILL OVATE  46 34  15 USHAPED  MOD/FREQ CHALK < 6 CM THROUGHOUT FILL--LARGEST TENDING TOWARDS UPPER PART. TRUNCATED ABOVE.

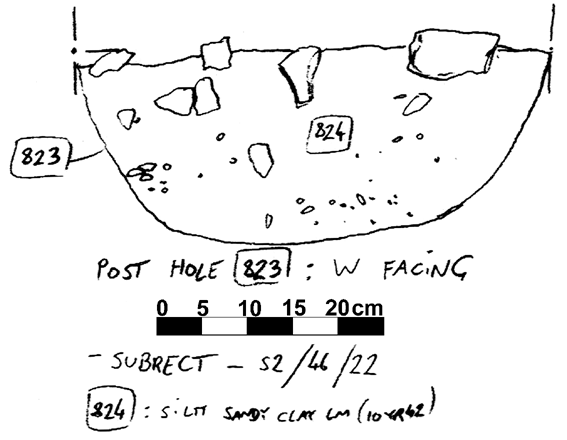

002CB00823 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00823  POST HOLE CUT SUB-RECTANGULAR  52 46  22 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00824  POST HOLE FILL SUB-RECTANGULAR  52 46  22 USHAPED  MOD/FREQ CHALK < 8 CM THROUGHOUT FILL: LARGEST TENDING TOWARDS UPPER PART OF FILL. TRUNCATED ABOVE.

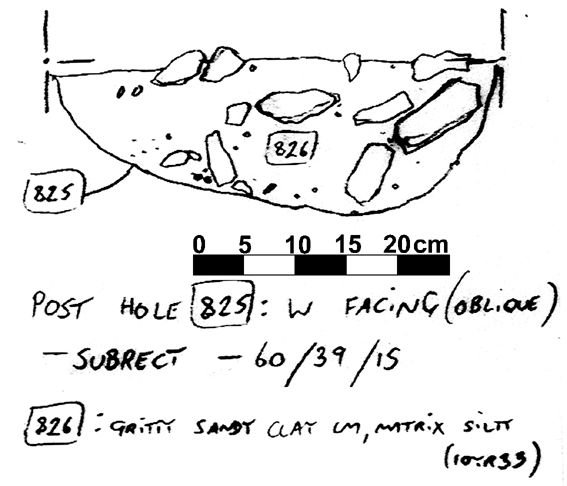

002CB00825 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00825  POST HOLE CUT SUB-RECTANGULAR  60 39  15 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP TRUNCATED ABOVE.
002CB00826  POST HOLE FILL SUB-RECTANGULAR  60 39  15 USHAPED  FREQ CHALK < 11 CM THROUGHOUT FILL. SL SILTY. TRUNCATED ABOVE.

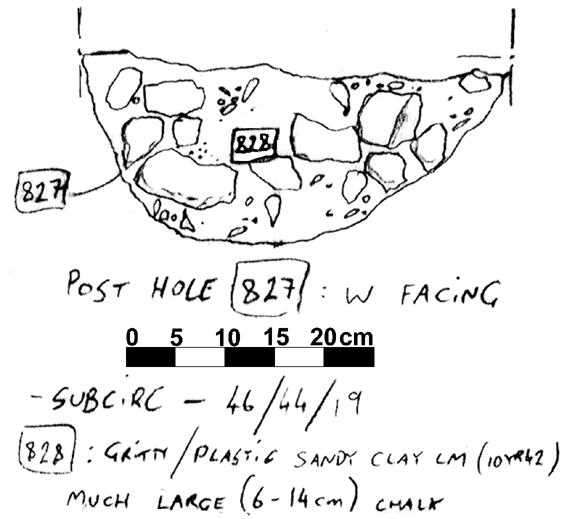

002CB00827 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00827  POST HOLE CUT SUB-CIRCULAR  46 44  19 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00828  POST HOLE FILL SUB-CIRCULAR  46 44  19 USHAPED  SL GRITTY. FREQ COMPACTED CHALK < 12 CM THROUGHOUT FILL. TRUNCATED ABOVE.

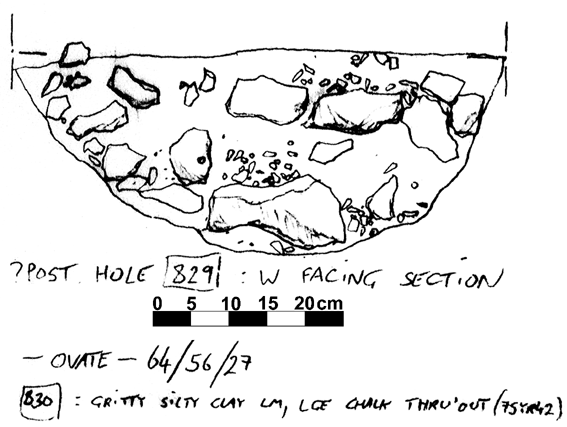

002CB00829 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00829  POST HOLE CUT OVATE  64 56  27 USHAPED  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00830  POST HOLE FILL OVATE  64 56  27 USHAPED  LARGE COMPACTED CHALK < 14 CM THROUGHOUT FILL. TRUNCATED ABOVE.

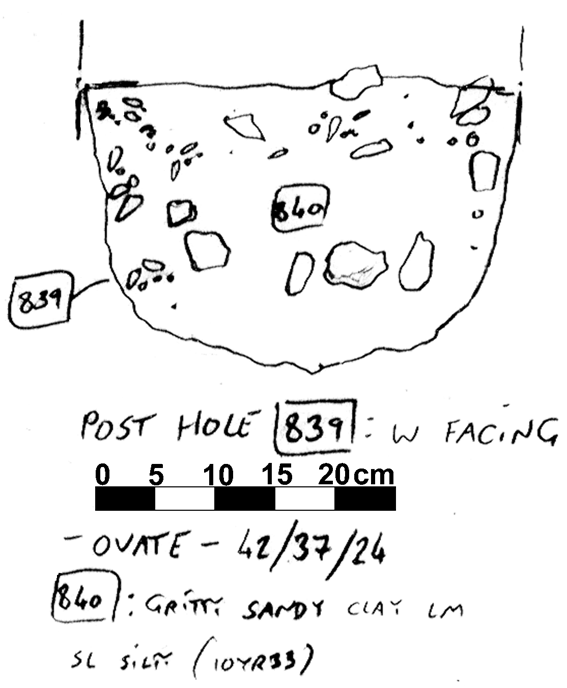

002CB00839 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00839  POST HOLE CUT OVATE  42 37  24 USHAPED  P.H. IN AREA TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00840  POST HOLE FILL OVATE  42 37  24 USHAPED  SL SILTY. FREQ CHALK < 4 CM THROUGHOUT FILL BUT CONCENTRATING MOSTLY IN UPPER PART OF FILL. TRUNCATED ABOVE.

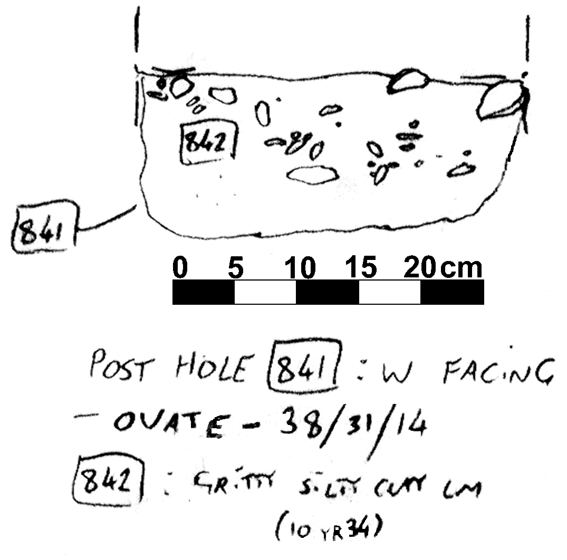

002CB00841 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00841  POST HOLE CUT OVATE  38 31  14 VERT.SIDE F.BASE  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00842  POST HOLE FILL OVATE  38 31  14 VERT.SIDE F.BASE  MOD/FREQ CHALK < 3 CM THROUGHOUT FILL-BUT MOSTLY IN UPPER PART. TRUNCATED ABOVE.

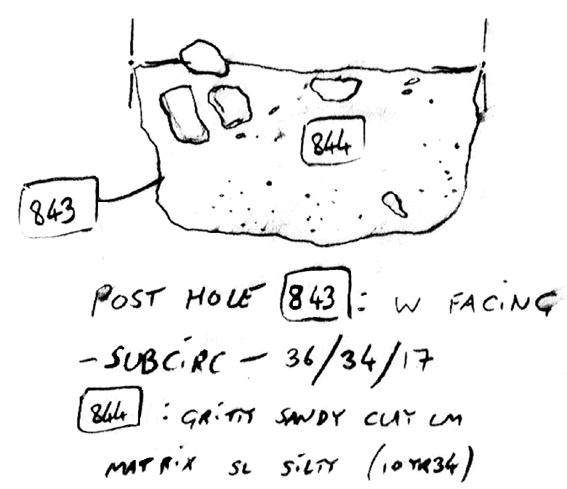

002CB00843 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00843  POST HOLE CUT SUB-CIRCULAR  36 34  17 VERT.SIDE F.BASE  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.
002CB00844  POST HOLE FILL SUB-CIRCULAR  36 34  17 VERT.SIDE F.BASE  MATRIX SL SILTY. MOD CHALK < 6 CM - MOSTLY IN UPPER PART OF FILL. TRUNCATED ABOVE.

Objects by Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CB00794 AA No Entry  STONE STONE NATURAL IRON 1
002CB00817 AA No Entry  POTTERY SHERD 1
002CB00840 AA IRON AGE  POTTERY SHERD FTW 1

Animal Bone by Context

KEY_ID  SPECIES ELEMENT  QUANT CHEW  BURN BUTCH  FBRK
002CB00817 Cattle Calcaneum  1 1 0 0
002CB00840 Horse Tibia D  1 0 0 0 1

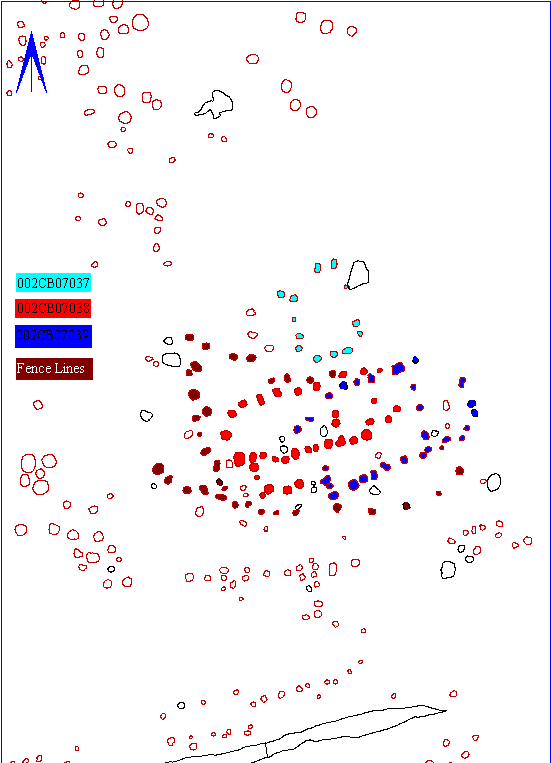

Interpretation of structures in the south of area 2CB
