002CB07037

Post Hole Structure



Post-Hole Structure Details
Length  422 Width 267
Area  11.8 sq. m Ratio 1.6:1
Number of Posts  12 Deepest 20  002CB00713 and 002CB00723 Shallowest  8 002CB00715
Average Depth
 15
North Wall  2 Posts Average Depth  13.5
East Wall  3 Posts Average Depth  19
South Wall  3 Posts Average Depth  10
West Wall  4 Posts Average Depth  15.5
Interior Divisions:
Highest Elevation Value  5429 002CB00715 and 002CB00719
Lowest Elevation Value  5387 002CB02245 and 002CB02247
Bearing  160 degrees
Plank\Post  Post
Doorways A probable one central in the east long wall.
Repairs:
Structural Class
Material Culture  Number of Objects 0  Number of Animal Bones 0
Environmental

Phasing

Discussion

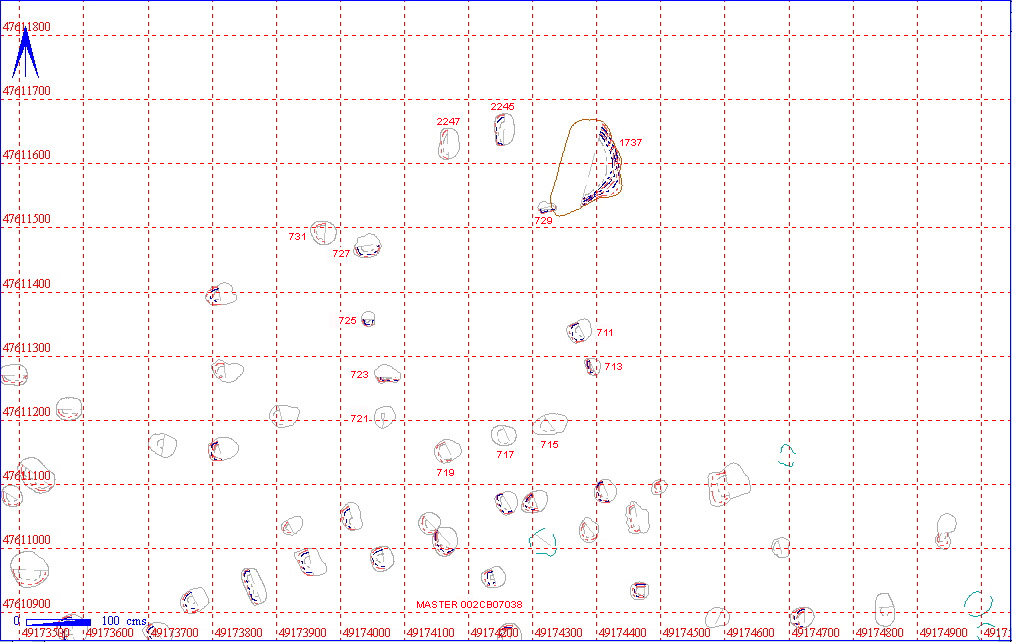

A small, NNW/SSE aligned post hole structure to the north of a large group of post holes in area 2CB. A machine track cuts post holes in the north side-002CB02245 and 002CB02247 and possibly destroyed further evidence. Post hole 002CB00729 appears to cut pit 002CB01737 on the east side although this relationship was not fully established in the field. None of the post holes making up this structure contained any finds.


All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CB07037 002CB00711  002CB00712
002CB00713  002CB00714
002CB00715  002CB00716
002CB00717  002CB00718
002CB00719  002CB00720
002CB00721  002CB00722
002CB00723  002CB00724
002CB00725  002CB00726
002CB00727  002CB00728
002CB00729  002CB00730
002CB00731  002CB00732
002CB02245  002CB02246
002CB02247  002CB02248

Structural Details

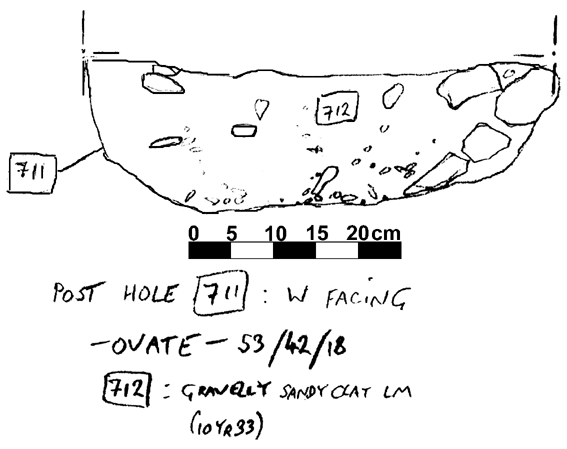

002CB00711 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00711  POST HOLE CUT OVATE  53 42  18 FLAT BASED U  P.H. ON CHALK IN AREA TO IMM W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00712  POST HOLE FILL OVATE  53 42  18 FLAT BASED U  MOD/FREQ CHALK < 8 CM THROUGHOUT FILL-LARGEST CONCENTRATED AGAINST S. EDGE. TRUNCATED ABOVE.

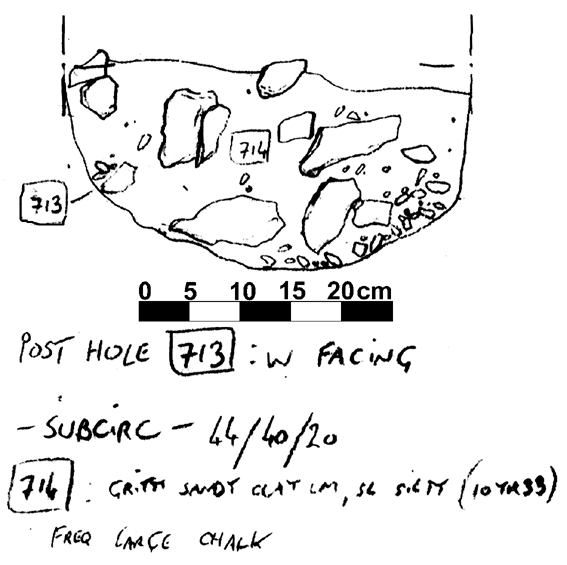

002CB00713 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00713  POST HOLE CUT SUB-CIRCULAR  44 40  20 USHAPED  P.H. ON CHALK IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR BASE: Nr VERTICAL SIDES.
002CB00714  POST HOLE FILL SUB-CIRCULAR  44 40  20 USHAPED  SL SILTY: FREQ CHALK < 9 CM THROUGHOUT FILL. TRUNCATED ABOVE.

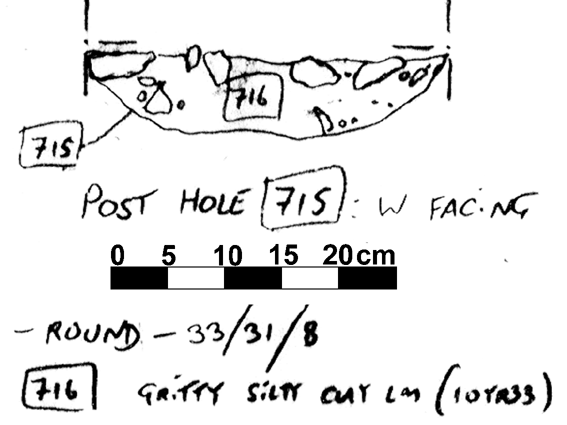

002CB00715 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00715  POST HOLE CUT ROUND  33 31  8 USHAPED  P.H. ON CHALK IN AREA TO IMM W. OF SPOIL HEAP. TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CB00716  POST HOLE FILL ROUND  33 31  8 USHAPED  FREQ CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

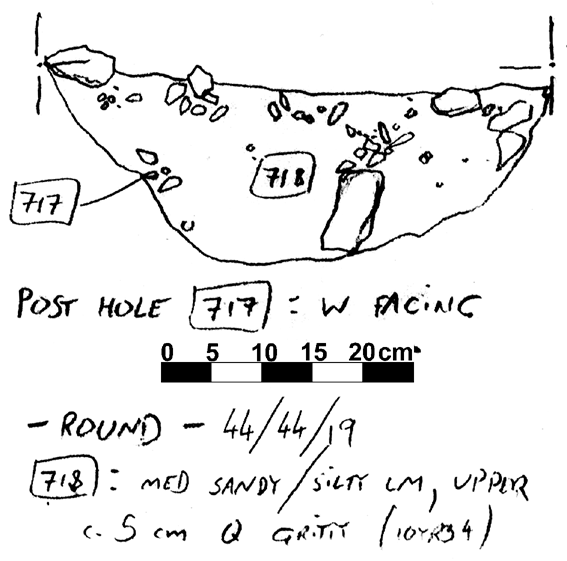

002CB00717 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00717  POST HOLE CUT ROUND  44 44  9 USHAPED  P.H. ON CHALK IN AREA TO IMM W. OF SPOIL HEAP. TRUNCATED ABOVE. UNEVEN BUT REGULAR SIDES & BASE.
002CB00718  POST HOLE FILL ROUND  44 44  9 USHAPED  FREQ CHALK < 9 CM (MOSTLY SMALLER) THROUGHT FILL--BUT CONCENTRATING IN UPPER PART OF FILL. GRITTY. TRUNCATED ABOVE.

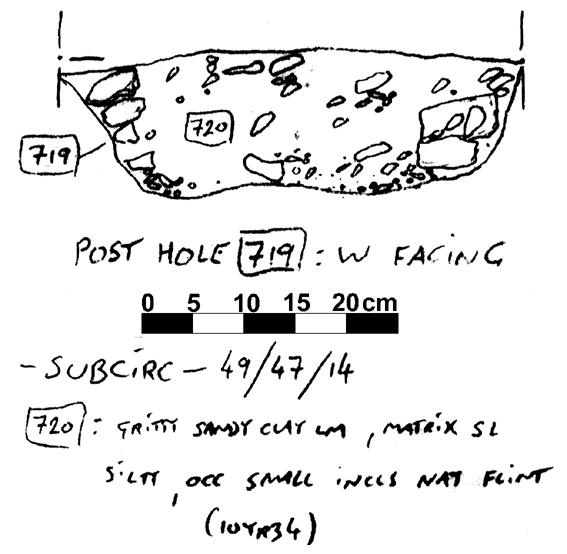

002CB00719 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00719  POST HOLE CUT SUB-CIRCULAR  49 47  14 FLAT BASED U  P.H. IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR SIDES: SL UNDULATING BASE.
002CB00720  POST HOLE FILL SUB-CIRCULAR  49 47  14 FLAT BASED U  SL SILTY: FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

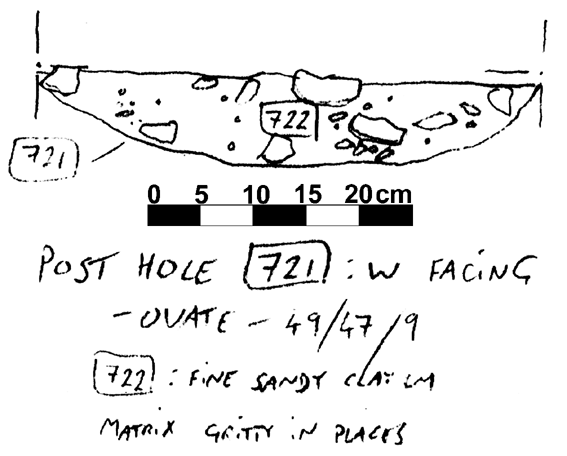

002CB00721 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00721  POST HOLE CUT OVATE  49 47  9 CONCAVE  P.H. ON CHALK IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CB00722  POST HOLE FILL OVATE  49 47  9 CONCAVE  FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE-SHALLOW. GRITTY IN PLACES.

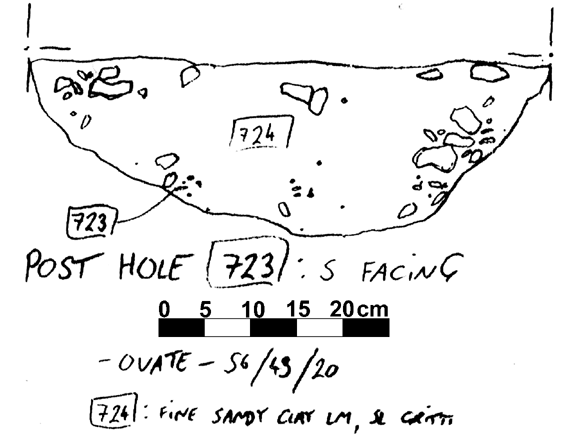

002CB00723 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00723  POST HOLE CUT OVATE  56 43  20 USHAPED  P.H. ON CHALK IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. GENTLE EDGES MERGE INTO BASE.
002CB00724  POST HOLE FILL OVATE  56 43  20 USHAPED  FREQ CHALK < 4 CM THROUGHOUT FILL. SL GRITTY. TRUNCATED ABOVE.

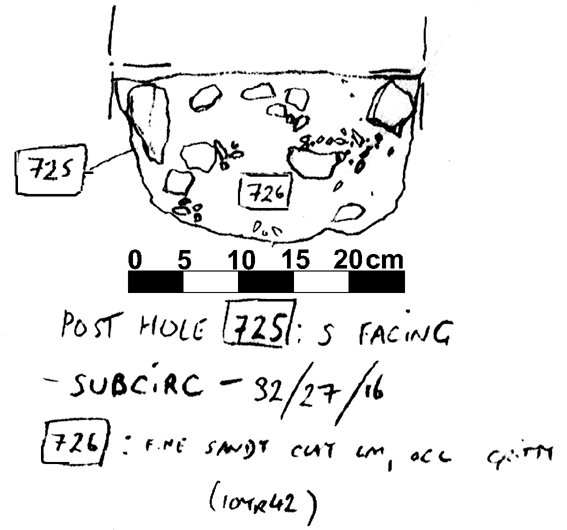

002CB00725 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00725  POST HOLE CUT SUB-CIRCULAR  32 27  16 USHAPED  P.H. ON CHALK IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE-THOUGH SIDES Nr VERTICAL.
002CB00726  POST HOLE FILL SUB-CIRCULAR  32 27  16 USHAPED  OCCA GRIT. FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE.

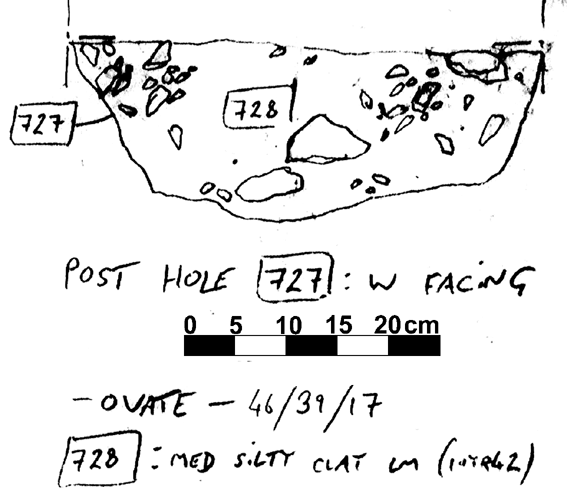

002CB00727 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00727  POST HOLE CUT OVATE  46 39  17 FLAT BASED U  P.H. ON CHALK IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR SIDES: SL UNDULATING BASE.
002CB00728  POST HOLE FILL OVATE  46 39  17 FLAT BASED U  FREQ CHALK < 7 CM THROUGHOUT FILL-BUT MOSTLY IN UPPER PART. TRUNCATED ABOVE.

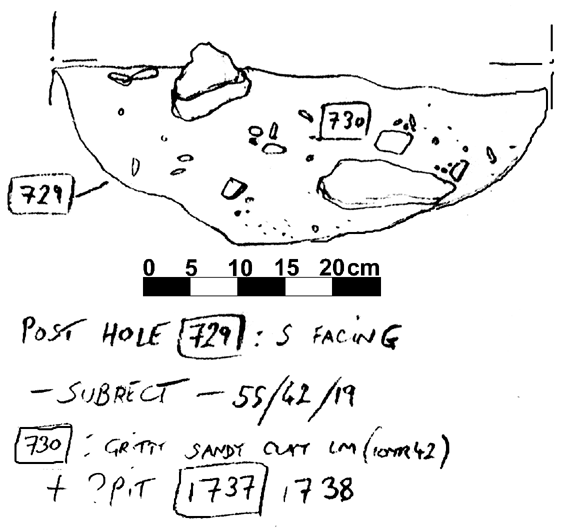

002CB00729 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00729  POST HOLE CUT SUB-RECTANGULAR  55 42  19 USHAPED  P.H.? ON CHALK IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE. BASE & SIDES APPEAR REGULAR. POSS A PIT?
002CB00730  POST HOLE FILL SUB-RECTANGULAR  55 42  19 USHAPED  FREQ CHALK < 3 CM (A FEW LARGER) THROUGHOUT FILL. TRUNCATED ABOVE.

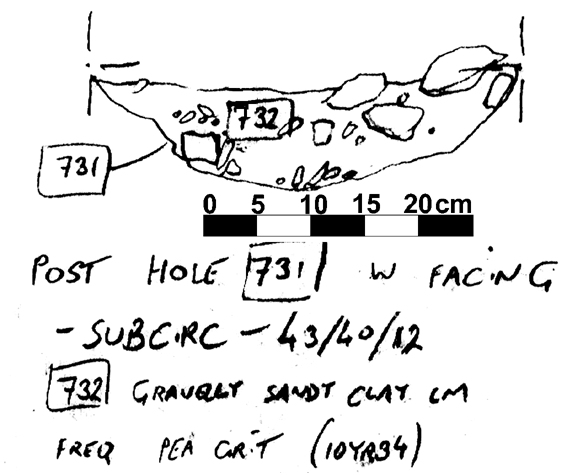

002CB00731 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00731  POST HOLE CUT SUB-CIRCULAR  43 40  12 CONCAVE  P.H. ON CHALK IN AREA IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CB00732  POST HOLE FILL SUB-CIRCULAR  43 40  12 CONCAVE  FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE. FREQ PEA GRIT.

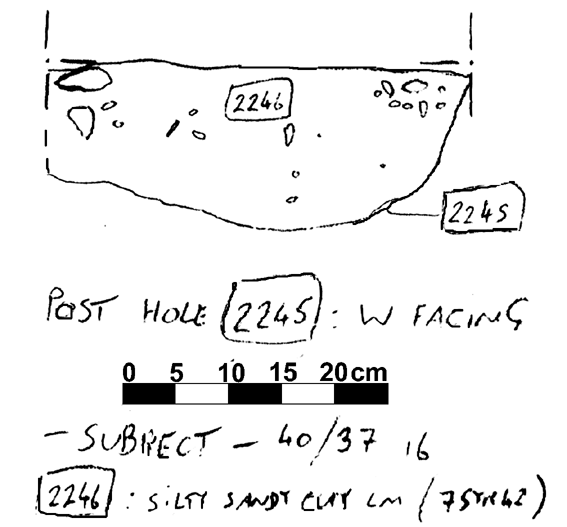

002CB02245 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02245  POST HOLE CUT SUB-RECTANGULAR  40 37  16 FLAT BASED U  P.H. OF SML STRUCTURE IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE & NOT EXCAV TO N. PROFILE/PLAN APPEARS REGULAR.
002CB02246  POST HOLE FILL SUB-RECTANGULAR  40 37  16 FLAT BASED U  MOD CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE & NOT EXCAV TO N. DUE TO MACHINE TRACK.

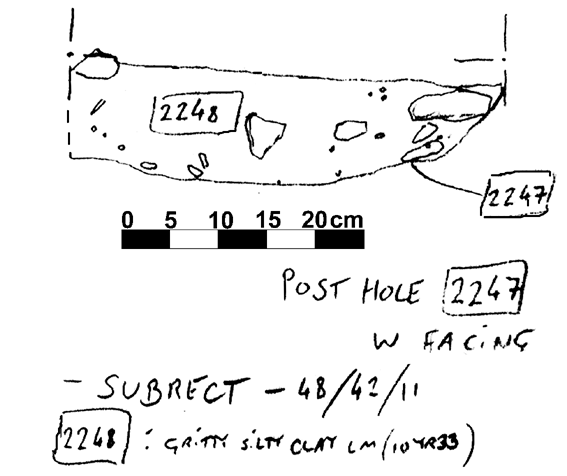

002CB02247 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02247  POST HOLE CUT SUB-RECTANGULAR  48 42  11 FLAT BASED U  P.H. OF SML STRUCTURE IMM TO W. OF SPOIL HEAP. TRUNCATED ABOVE & NOT EXCAV TO N. PROFILE/PLAN APPEAR REGULAR.
002CB02248  POST HOLE FILL SUB-RECTANGULAR  48 42  11 FLAT BASED U  MOD CHALK < 8 CM THROUGHOUT FILL. TRUNCATED ABOVE. NOT EXCAV AT N. EDGE.
