002DD00027

Grubenhaus

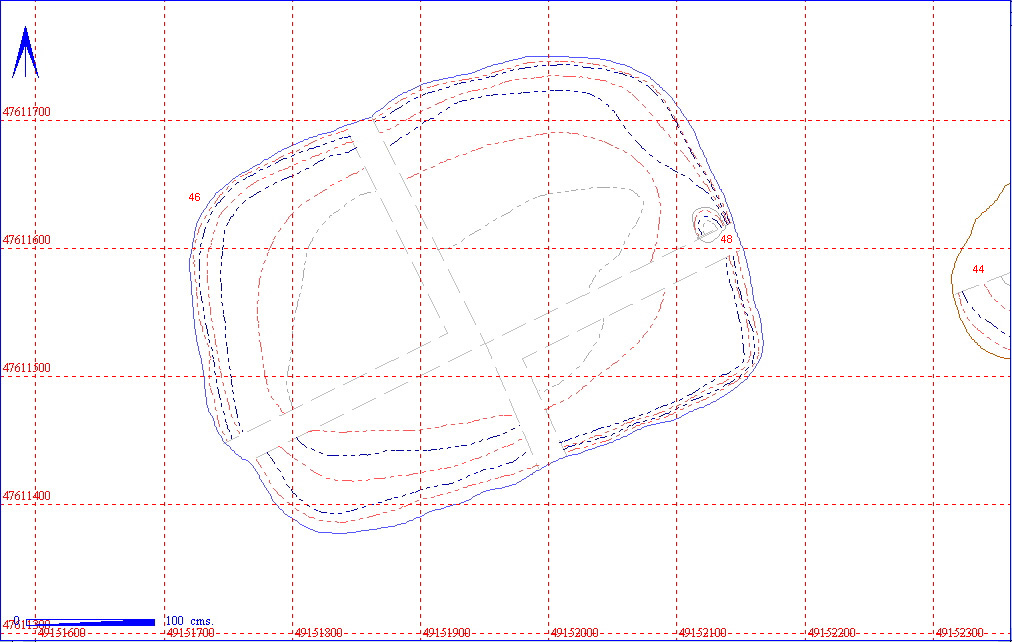

Grubenhaus Details
Length 435 Width 309  Depth 30 Ratio 1.4:1
Area  12.1 sq. metres Volume
Number of Posts 1
Highest Elevation Value  5391
Lowest Elevation Value 5361
Bearing  65 degrees
Structural Class
Material Culture Number of Objects 93 Number of Animal Bones 152
Environmental

Phasing

Stratigraphic Matrix Diagram

Discussion

A NE/SW aligned Grubenhaus in the south of area 2DD, one of only two Grubenhauser in this area. The structure is immediately to the west of ovate pit 002DD00044. A moderate amount of finds were recovered from the single fill, excavated under four quadrant numbers. One post hole, in the north/east side, was visible.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002DD00027 15 32
002DD00046 002DD00029  13 18
002DD00030  15 29
002DD00031  39 64
002DD00032  11 9
POST HOLE 002DD00048 002DD00047

Object Totals by Material

002DD00027 Object Totals by Material

002DD00027 Daub  2
Flint 1
Glass 1
Pottery 4  of which Early Saxon 2  Late Neo/E.B.A. 1 No Entry  1
Stone 4
Unfired Clay 3

002DD00029 Object Totals by Material

002DD00029 Pottery  4  of which Early Saxon  1  Medieval 1  No Entry  1 Roman  1
Stone 7
Unfired Clay 2

002DD00030 Object Totals by Material

002DD00030 Coprolite  1
Pottery 7  of which Early Saxon 3  Roman 4
Stone 6
Unfired Clay 1

002DD00031 Object Totals by Material

002DD00031 Charcoal  1
Coprolite 1
Daub 1
Iron 1
Pottery 19  of which Early Saxon 11  Iron Age 1 Medieval  1 No Entry  5  Roman 1
Shale 1
Stone 10
Unfired Clay 4
Worked Bone 1

002DD00032 Object Totals by Material

002DD00032 Burnt Clay  1
Daub 2
Flint 1
Pottery 5  of which Early Saxon 4  No Entry  1
Slag 1
Stone 1

Animal Bone Totals by Species

002DD00027 Animal Bone Totals by Species

002DD00027 Cattle 13
Horse 1
Pig 3
Sheep/goat 15

002DD00029 Animal Bone Totals by Species

002DD00029 Cattle 10
Pig 2
Red Deer 1
Sheep/goat 5

002DD00030 Animal Bone Totals by Species

002DD00030 Cattle 17
Sheep/goat 12

002DD00031 Animal Bone Totals by Species

002DD00031 Cattle 21
Pig 4
Sheep/goat 39

002DD00032 Animal Bone Totals by Species

002DD00032 Sheep/goat 9

Structural Details

002DD00046 Section and Notes

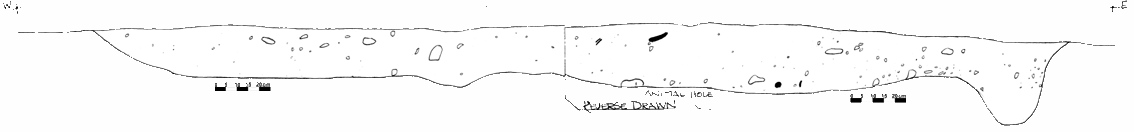

002DD00046 South Facing Section

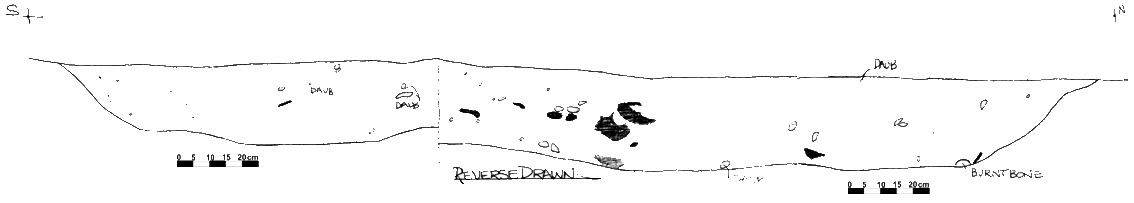

002DD00046 West Facing Section

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DD00029 GRUB FILL TRIANGULAR  214 113  28 FLAT  PRIMARY FILL OF SW QUADRANT M27. FIL HAS COMPARATIVLY FEW INCLUSIONS-SMALL AMOUNTS OF CHALK DISPERSED THROUGHOUT FILL. BURROWED.
002DD00030 GRUB FILL TRIANGULAR  194 185  26 FLAT  PRIMARY FILL OF NW QUADRANT M27. EXCAVATED BY CONTEXT ONLY. APPEARS TO HAVE WINDBLOWN SAND ELEMENT (AS IN OTHER QUADS). SMALL AMOUNTS STONE.
002DD00031 GRUB FILL TRIANGULAR  212 214  30 FLAT  FILL OF NE QUADRANT OF M27;CONTAINED SOME ARTICULATED VERTEBRAE. EXCAVATED BYCONTEXT ONLY. SMALL AMOUNTS OF CHALK INCLUSIONS.
002DD00032 GRUB FILL TRIANGULAR  194 88  30 FLAT  FILL OF SE QUADRANT OF GRUB M27. DUG BY CONTEXT ONLY. SMALL AMOUNTS OF CHALK INCLS-BUT NOT IN CONCENTRATIONS. ROOT AND BURROW DISTURBED.
002DD00046 GRUB CUT SUB-RECTANGULAR  420 322  30 WIDE U  CUT OF GRUB M27 IN SW 2DD. QUITE STEEP SIDED IN MOST PLACES-LESS SO IN CORNERS. FLATTISH BASE WITH A FEW UNDULATIONS DUE TO BURROWING.

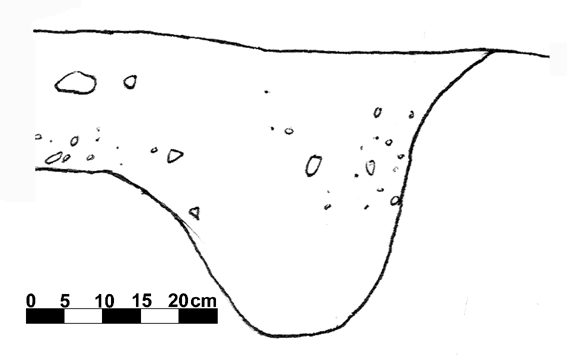

002DD00048 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DD00047 POST HOLE FILL SUB-RECTANGULAR  20 20  22 FLAT  FILL OF POSTHOLE AT EAST END OF GRUB M27. QUITE SMALL AND SHALLOW FOR A GRUB OF THIS SIZE. FILL CLEAN WITH V. FEW INCLS.-RATHER SIMILAR TO GRUB FILL.
002DD00048 POST HOLE CUT OVATE  22 20  20 USHAPED  CUT OF SMALL P.H. AT EAST END OF GRUB M27 IN S. PART 2DD. UNUSUALLY SMALL & SHALLOW FOR A GRUB THIS SIZE. STEEP SIDED:CONCAVE/ROUNDED BASE.

Objects by Context

KEY_ID OB PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002DD00027 AF EARLY SAXON  DAUB ?DAUB FRAGMENTS  2
002DD00027 AM EARLY SAXON  DAUB DAUB  4
002DD00027 AP PREHISTORIC  FLINT FLAKE  1
002DD00027 AC MODERN  GLASS GLASS FRAGMENT  1
002DD00027 AB EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002DD00027 AO EARLY SAXON  POTTERY SHERD  STAMPED ANGLIAN IV  1
002DD00027 AH LATE NEO/E.B.A.  POTTERY SHERD  NEO/EBA  1
002DD00027 AE No Entry  POTTERY SHERD  1
002DD00027 AA No Entry  STONE STONE  1
002DD00027 AD No Entry  STONE STONE  1
002DD00027 AI No Entry  STONE STONE  LIMESTONE  1
002DD00027 AJ No Entry  STONE STONE  SANDSTONE  1
002DD00027 AG EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  3
002DD00027 AK EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  3
002DD00027 AN EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002DD00029 AL EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002DD00029 AC MEDIEVAL  POTTERY SHERD  MED  1
002DD00029 AG No Entry  POTTERY SHERD  1
002DD00029 AJ ROMAN  POTTERY SHERD  R-B/ANGLIAN III  1
002DD00029 AA No Entry  STONE STONE  RED CHALK  6
002DD00029 AD No Entry  STONE STONE  1
002DD00029 AE No Entry  STONE STONE  1
002DD00029 AF No Entry  STONE STONE  ?SANDSTONE  1
002DD00029 AI No Entry  STONE STONE  1
002DD00029 AK No Entry  STONE STONE  RED CHALK  4
002DD00029 AM No Entry  STONE STONE  SANDSTONE  3
002DD00029 AB EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  8
002DD00029 AH EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002DD00030 AL EARLY SAXON  COPROLITE COPROLITE  1
002DD00030 AD EARLY SAXON  POTTERY SHERDS  ANGLIAN II  2
002DD00030 AH EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002DD00030 AM EARLY SAXON  POTTERY SHERDS  ANGLIAN I  4
002DD00030 AE ROMAN  POTTERY SHERD  GREY WARE  1
002DD00030 AF ROMAN  POTTERY SHERD  R-B  1
002DD00030 AG ROMAN  POTTERY SHERD  GREY WARE  1
002DD00030 AN ROMAN  POTTERY SHERD  R-B  1
002DD00030 AC EARLY SAXON  STONE STONE  BURNT 15
002DD00030 AA No Entry  STONE STONE  SANDSTONE  7
002DD00030 AI No Entry  STONE STONE  RED CHALK  20
002DD00030 AJ No Entry  STONE ?STONE  3
002DD00030 AK No Entry  STONE STONE  CHALK  1
002DD00030 AO No Entry  STONE STONE  SANDSTONE  1
002DD00030 AB EARLY SAXON  UNFIRED CLAY LOOMWEIGHT  UNFIRED CLAY 8
002DD00031 BM No Entry  CHARCOAL CHARCOAL SAMPLE  1
002DD00031 BL EARLY SAXON  COPROLITE COPROLITE  1
002DD00031 AN EARLY SAXON  DAUB ?DAUB  12
002DD00031 BJ No Entry  IRON IRON FRAGMENT  1
002DD00031 AC EARLY SAXON  POTTERY SHERDS  ANGLIAN III  4
002DD00031 AD EARLY SAXON  POTTERY SHERDS  ?ANGLIAN III  2
002DD00031 AE EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002DD00031 AP EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002DD00031 AQ EARLY SAXON  POTTERY SHERD  +ORGANIC ANGLIAN III  1
002DD00031 AS EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002DD00031 AT EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002DD00031 AW EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002DD00031 AY EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002DD00031 BG EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002DD00031 BH EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002DD00031 AK IRON AGE  POTTERY SHERD  IA  1
002DD00031 BA MEDIEVAL  POTTERY SHERD  MED  1
002DD00031 AF No Entry  POTTERY SHERD  1
002DD00031 AG No Entry  POTTERY SHERD  1
002DD00031 AH No Entry  POTTERY SHERD  1
002DD00031 AI No Entry  POTTERY SHERD  1
002DD00031 BI No Entry  POTTERY SHERD  1
002DD00031 AR ROMAN  POTTERY SHERD  GREY WARE  1
002DD00031 BF No Entry  SHALE BANGLE FRAGMENT  SHALE 1
002DD00031 AJ No Entry  STONE STONE  RED CHALK  3
002DD00031 AL No Entry STONE STONE  1
002DD00031 AM No Entry  STONE STONE  SANDSTONE  1
002DD00031 AU No Entry  STONE STONE  LIMESTONE  1
002DD00031 AV No Entry  STONE STONE  SANDSTONE  1
002DD00031 AX No Entry  STONE STONE  SANDSTONE  1
002DD00031 AZ No Entry  STONE STONE  SANDSTONE  1
002DD00031 BB No Entry  STONE STONE  3
002DD00031 BD No Entry  STONE STONE  1
002DD00031 BK No Entry  STONE STONE  1
002DD00031 AA EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  3
002DD00031 AO EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002DD00031 BC EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  12
002DD00031 BE EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  2
002DD00031 AB EARLY SAXON  WORKED BONE SPINDLE WHORL  ANTLER 1
002DD00032 AI No Entry  BURNT CLAY BURNT CLAY  1
002DD00032 AH EARLY SAXON  DAUB BURNT DAUB  2
002DD00032 AJ EARLY SAXON  DAUB BURNT DAUB  2
002DD00032 AG PREHISTORIC  FLINT FLAKE  CORE PREP 1
002DD00032 AA EARLY SAXON  POTTERY SHERD  ?ANGLIAN I  1
002DD00032 AC EARLY SAXON  POTTERY SHERD  ?ANGLIAN I  1
002DD00032 AD EARLY SAXON  POTTERY SHERDS  ANGLIAN III  1
002DD00032 AF EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002DD00032 AE No Entry  POTTERY SHERDS  ?ANGLIAN III  2
002DD00032 AB No Entry  SLAG SLAG FRAGMENT  1
002DD00032 AK No Entry  STONE STONE  SANDSTONE  1

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002DD00027 Cattle Atlas  1 0  0 0  0
002DD00027 Cattle Femur br  1 1  0 0  0
002DD00027 Cattle Horncore  1 0  0 0  0
002DD00027 Cattle Humerus br  1 1  0 0  0
002DD00027 Cattle Occiput  1 0  0 0  0
002DD00027 Cattle Pelvis  1 0  0 0  1
002DD00027 Cattle Pelvis  1 0  0 0  1
002DD00027 Cattle Phalanx 1  1 0  0 0  0
002DD00027 Cattle Radius D  1 0  0 0  1
002DD00027 Cattle Sacrum  1 0  0 0  1
002DD00027 Cattle Skull fr  1 0  0 0  0
002DD00027 Cattle Skull fr  1 0  0 0  0
002DD00027 Cattle Tibia br  1 0  0 0  1
002DD00027 Horse Pelvis  1 0  0 1  0
002DD00027 Pig Phalanx 2  1 0  0 0  0
002DD00027 Pig Sacrum  1 1  0 0  1
002DD00027 Pig Sacrum  1 0  0 0  0
002DD00027 Sheep/goat Femur br  1 0  0 1  0
002DD00027 Sheep/goat Femur br  1 0  0 1  0
002DD00027 Sheep/goat Humerus br  1 0  0 0  0
002DD00027 Sheep/goat M/C C  1 0  0 0  0
002DD00027 Sheep/goat M/C D  1 0  0 0  0
002DD00027 Sheep/goat M/T P  1 0  0 0  0
002DD00027 Sheep/goat Mandible  1 0  0 0  0
002DD00027 Sheep/goat Mandible  1 0  0 0  0
002DD00027 Sheep/goat Mandible  1 0  0 0  0
002DD00027 Sheep/goat Mandible  1 0  0 0  0
002DD00027 Sheep/goat Phalanx 1  1 0  0 0  0
002DD00027 Sheep/goat Radius br  1 1  0 0  0
002DD00027 Sheep/goat Sacrum  1 0  0 0  0
002DD00027 Sheep/goat Skull fr  1 0  0 0  0
002DD00027 Sheep/goat Tibia br  1 1  0 0  0
002DD00029 Cattle Mand fr  1 0  0 0  0
002DD00029 Cattle Mandible  1 0  0 0  0
002DD00029 Cattle Mandible  1 0  0 0  0
002DD00029 Cattle Phalanx 1  1 0  0 0  0
002DD00029 Cattle Phalanx 3  1 0  0 0  0
002DD00029 Cattle Phalanx 3  1 0  0 0  0
002DD00029 Cattle Radius D  1 0  1 0  1
002DD00029 Cattle Radius P  1 0  0 0  0
002DD00029 Cattle Scapula  1 0  0 0  1
002DD00029 Cattle Skull fr  1 0  0 0  0
002DD00029 Pig L Canine  1 0  0 0  0
002DD00029 Pig M/C C  1 0  0 0  0
002DD00029 Red deer Femur P  1 1  0 0  0
002DD00029 Sheep/goat Astragalus  1 0  0 1  0
002DD00029 Sheep/goat Mand fr  1 1  0 0  0
002DD00029 Sheep/goat Mandible  1 0  0 0  0
002DD00029 Sheep/goat Phalanx 2  1 0  0 0  0
002DD00029 Sheep/goat Radius br  1 0  0 0  0
002DD00030 Cattle Atlas  1 0  0 0  1
002DD00030 Cattle Axis  1 0  0 0  1
002DD00030 Cattle Humerus br  1 0  0 0  0
002DD00030 Cattle Humerus C  1 0  0 0  1
002DD00030 Cattle LM3  1 0  0 0  0
002DD00030 Cattle M/C br  1 0  0 0  0
002DD00030 Cattle M/C C  1 1  0 0  1
002DD00030 Cattle M/T D  1 0  0 0  1
002DD00030 Cattle M/T P  1 0  0 0  0
002DD00030 Cattle Mandible  1 0  0 0  0
002DD00030 Cattle Phalanx 1  1 0  0 0  0
002DD00030 Cattle Phalanx 2  1 1  0 0  0
002DD00030 Cattle Radius P  1 1  0 0  0
002DD00030 Cattle Scapula  1 0  0 0  0
002DD00030 Cattle Scapula  1 0  0 0  0
002DD00030 Cattle Skull fr  1 0  0 0  0
002DD00030 Cattle Tibia D  1 0  0 0  1
002DD00030 Sheep/goat Femur br  1 0  0 1  0
002DD00030 Sheep/goat Femur br  1 0  0 1  0
002DD00030 Sheep/goat Hyoid  1 0  0 0  0
002DD00030 Sheep/goat M/T P  1 0  0 0  0
002DD00030 Sheep/goat Mandible  3 1  0 0  0
002DD00030 Sheep/goat Radius D  1 0  0 0  0
002DD00030 Sheep/goat Skull fr  1 0  0 0  0
002DD00030 Sheep/goat Tibia br  1 1  0 0  0
002DD00030 Sheep/goat Tibia D  3 3  0 0  2
002DD00030 Sheep/goat Tibia D  1 0  0 0  1
002DD00030 Sheep/goat Tibia D  1 1  0 0  0
002DD00030 Sheep/goat Ulna  1 0  0 0  0
002DD00031 Cattle Astragalus  1 0  0 0  0
002DD00031 Cattle Calcaneum  1 0  1 0  0
002DD00031 Cattle Femur D  1 1  0 0  1
002DD00031 Cattle Horncore  1 0  0 1  0
002DD00031 Cattle Horncore  1 0  0 1  0
002DD00031 Cattle Humerus br  1 0  0 1  0
002DD00031 Cattle Humerus D  1 0  0 1  0
002DD00031 Cattle Mand fr  1 0  0 0  1
002DD00031 Cattle N.Cuboid  1 0  0 1  0
002DD00031 Cattle Phalanx 1  2 0  0 0  0
002DD00031 Cattle Phalanx 1  1 0  0 0  0
002DD00031 Cattle Phalanx 1  1 0  0 0  0
002DD00031 Cattle Phalanx 2  1 0  0 0  0
002DD00031 Cattle Phalanx 3  1 0  0 0  0
002DD00031 Cattle Radius D  1 0  0 0  0
002DD00031 Cattle Radius P  1 0  0 0  0
002DD00031 Cattle Scapula  1 0  0 0  0
002DD00031 Cattle Skull fr  1 0  0 0  1
002DD00031 Cattle Skull fr  1 0  0 1  0
002DD00031 Cattle Tibia D  1 0  0 0  0
002DD00031 Cattle Tibia D  1 0  0 0  0
002DD00031 Pig Humerus D  1 0  0 0  0
002DD00031 Pig Mand fr  1 0  0 0  0
002DD00031 Pig Phalanx 1  1 0  0 0  0
002DD00031 Pig Phalanx 1  1 0  0 0  0
002DD00031 Sheep/goat Calcaneum  1 0  0 0  0
002DD00031 Sheep/goat Calcaneum  1 0 0 0  0
002DD00031 Sheep/goat Humerus br  1 0  0 0  1
002DD00031 Sheep/goat Humerus D  1 1  0 0  0
002DD00031 Sheep/goat Humerus D  1 0  0 0  0
002DD00031 Sheep/goat Humerus D  1 0  0 0  0
002DD00031 Sheep/goat Ld4  1 0  0 0  0
002DD00031 Sheep/goat M/C D  1 0  0 0  0
002DD00031 Sheep/goat M/C P  1 0 0 0  0
002DD00031 Sheep/goat M/T br  1 0  0 0  0
002DD00031 Sheep/goat M/T C  3 0  0 0  0
002DD00031 Sheep/goat M/T P  1 1  0 0  0
002DD00031 Sheep/goat Mand fr  1 0  0 0  0
002DD00031 Sheep/goat Mandible  2 0  0 0  0
002DD00031 Sheep/goat Mandible  2 0  0 0  0
002DD00031 Sheep/goat Mandible  1 0  0 0  0
002DD00031 Sheep/goat Mandible  1 0  0 0  0
002DD00031 Sheep/goat Mandible  1 0  0 0  1
002DD00031 Sheep/goat Mandible  1 0  0 0  0
002DD00031 Sheep/goat N.Cuboid  1 0  0 0  0
002DD00031 Sheep/goat N.Cuboid  1 1  0 0  0
002DD00031 Sheep/goat Occiput  1 0  0 1  0
002DD00031 Sheep/goat Pelvis  1 0  0 0  0
002DD00031 Sheep/goat Pelvis  1 0  0 1  0
002DD00031 Sheep/goat Pelvis  1 0  0 0  0
002DD00031 Sheep/goat Pelvis  1 0  0 0  0
002DD00031 Sheep/goat Pelvis  1 0  0 0  0
002DD00031 Sheep/goat Phalanx 1  2 0  0 0  0
002DD00031 Sheep/goat Phalanx 1  1 0  0 0  0
002DD00031 Sheep/goat Phalanx 2  1 0  0 0  0
002DD00031 Sheep/goat Phalanx 3  1 0  0 0  0
002DD00031 Sheep/goat Radius br  1 1  0 0  0
002DD00031 Sheep/goat Radius br  1 1  0 0  0
002DD00031 Sheep/goat Radius P  1 0  0 0  0
002DD00031 Sheep/goat Radius P  1 0  0 0  0
002DD00031 Sheep/goat Skull fr  1 0  0 0  0
002DD00031 Sheep/goat Tibia D  1 0  0 0  0
002DD00031 Sheep/goat Tibia D  1 0  0 0  0
002DD00031 Sheep/goat Ulna  1 0  0 0  1
002DD00032 Sheep/goat Calcaneum  1 0  0 0  0
002DD00032 Sheep/goat M/C C  1 0  0 0  0
002DD00032 Sheep/goat M/C P  1 0  0 0  0
002DD00032 Sheep/goat M/T C  1 1  0 0  0
002DD00032 Sheep/goat Mand fr  1 0  0 0  0
002DD00032 Sheep/goat Mandible  1 0  0 0  0
002DD00032 Sheep/goat Radius C  1 0  0 0  0
002DD00032 Sheep/goat Skull fr  1 0  0 0  0
002DD00032 Sheep/goat Tibia P  1 0  0 0  0
