002CB00469

Grubenhaus

Grubenhaus Details
Length 396 Width 228  Depth 22  Ratio 1.7:1
Area  8.031 sq m Volume
Number of Posts 2
Highest Elevation Value  5072
Lowest Elevation Value 5050
Bearing  89.11
Structural Class
Material Culture Number of Objects 108 Number of Animal Bones 41
Environmental

Phasing

Stratigraphic Matrix Diagram

Discussion

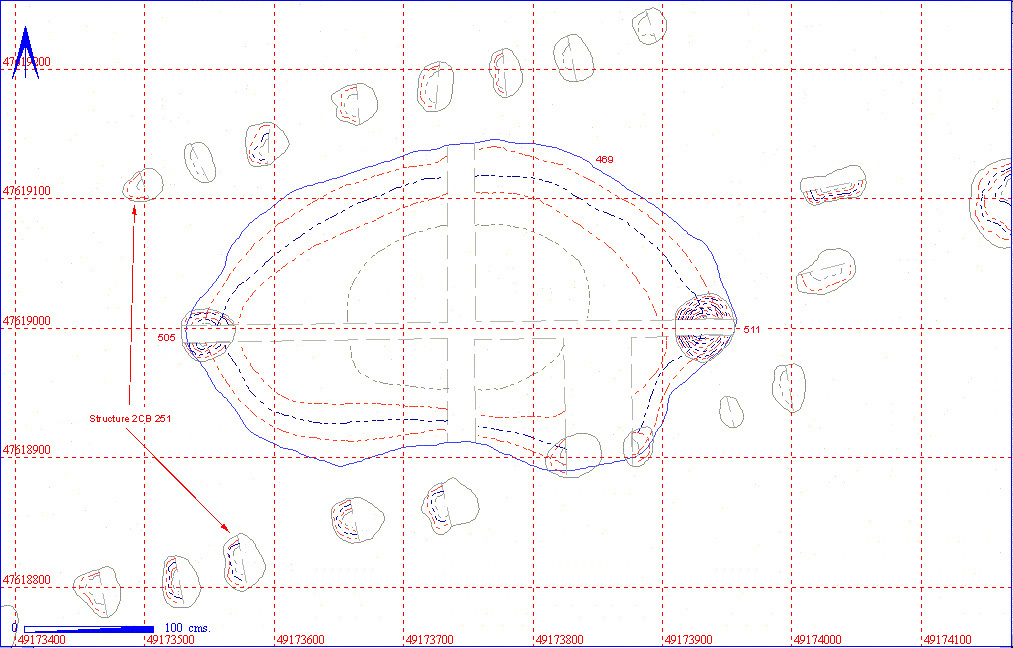

An unusually shaped Grubenhaus, with two very substantial posts in the east and west. This structure is notable for its relationship with a post hole structure (002CB00251), one of only a few cases of this occurence in the settlement, as well as for its proximity to another Grubenhaus (002M 00501) which also has a relationship with a post hole structure (002M 00500). The small number of finds discovered by the intial cleaning of the Grubenhaus were lifted under the number 002CB00248, although strictly speaking these finds are from fill 002CB00450.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002CB00469 002CB00449 002CB00450 98 32
002CB00248 8 7
POST HOLE 002CB00505 002CB00506 0  0
POST HOLE 002CB00511 002CB00512 2 0

Objects Totals by Material

002CB00450 Objects Totals by Material

002CB00450 Charcoal  11
Daub 2
Fired Clay  4
Flint  4
Pottery  50 of which Saxon  26 Roman 9 Prehistoric 2 Medieval 2 Not Assigned  11
Slag  1
Stone  19
Worked Bone  3

Animal Bone by Species

002CB00450 Animal Bone by Species

002CB00450  Cattle 12
Horse 2
Pig 3
Sheep 2
Sheep/Goat 13

Structural Details

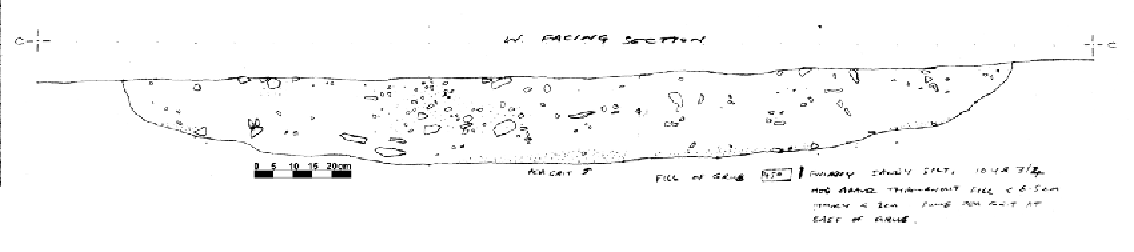

002CB00469 West Facing Section


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB00449 GRUB CUT SUB-RECTANGULAR  396 228 22  CONCAVE CUT FOR GRUB: NOT TRULY SUB RECT IN SHAPE: SIDES V. CURVED/BOWED. RELATIVELY SHALLOW-PROBABLY TRUNCATED. CUTS INTO NATURAL GRAVEL.
002CB00450 GRUB FILL SUB-RECTANGULAR  396 228 22  CONCAVE FILL OF GRUB: WITHIN FRAMED BUILDING M.251. ONLY FILL OBSERVED IN GRUB. MOD GRAVEL THROUGHOUT FILL <6.5cm-MOSTLY<2cm. SOME PEA GRIT AT BASE.

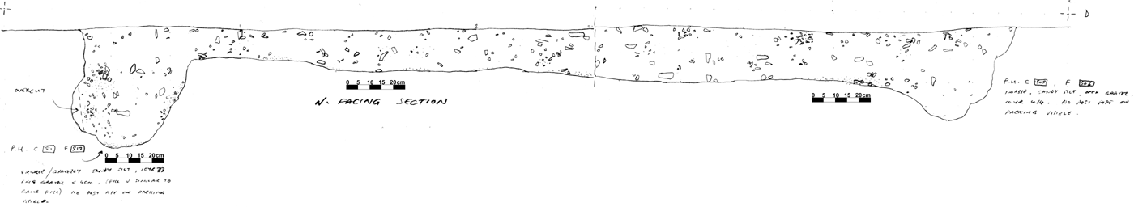

2CB469 North facing Section

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB00505 POST HOLE CUT OVATE  37 36  28 BOWL SHAPED  P.H. W. END OF GRUB: CUT IS V. SHALLOW & SOMEWHAT IRREGULAR/UNEVEN.
002CB00506 POST HOLE FILL OVATE  37 36  28 BOWL SHAPED  FILL OF P.H. W. END OF GRUB: V. SHALLOW - MORE OF A SCOOP. OCCA GRAVEL. NO POST PIPE VISIBLE.
002CB00511 POST HOLE CUT SUB-CIRCULAR  44 39  50 ROUND BASED  P.H. E. END OF GRUB: CUT INTO NATURAL GRAVEL. PROBABLY SLIGHTLY OVERCUT AT E. END.
002CB00512 POST HOLE FILL SUB-CIRCULAR  44 39  50 ROUND BASED  FILL OF P.H. AT E. END OF GRUB. FREQ GRAVEL < 4cm - SIMILAR TO GRUB FILL: NO POST PIPE VISIBLE.

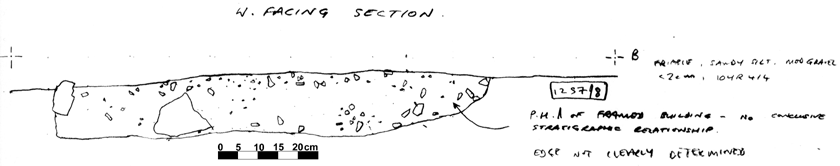

2CB1257 West Facing Section

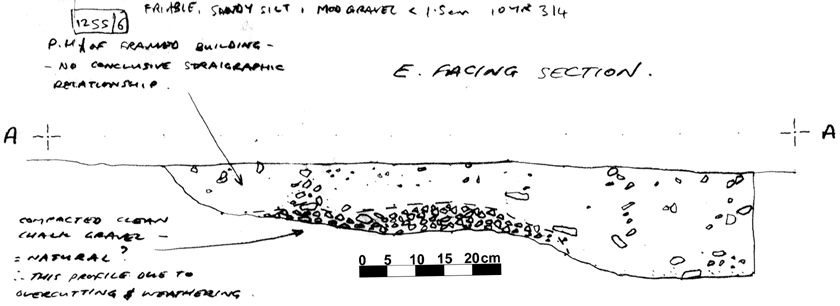

2CB1255 East Facing Section

Objects by Context

002CB00450 Objects

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CB00450 BQ No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 CA No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 CB No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 CO No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 CU No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 CV No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 CW No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 CX No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 DB No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 DD No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 DJ No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00450 DG EARLY SAXON  DAUB ?DAUB  2
002CB00450 DH EARLY SAXON  DAUB BURNT DAUB  4
002CB00450 CD No Entry  FIRED CLAY ?FIRED CLAY  1
002CB00450 CG No Entry  FIRED CLAY FIRED CLAY  3
002CB00450 CJ No Entry  FIRED CLAY FIRED CLAY  1
002CB00450 CP No Entry  FIRED CLAY FIRED CLAY  2
002CB00450 AA PREHISTORIC  FLINT FLAKE  1
002CB00450 BN PREHISTORIC  FLINT FLAKE  1
002CB00450 CF PREHISTORIC  FLINT FLAKE  1
002CB00450 CR PREHISTORIC  FLINT FLAKE  CORE PREP 1
002CB00450 AC EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00450 AD EARLY SAXON  POTTERY SHERD  ?ANGLIAN I  1
002CB00450 AE EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 AF EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 AG ROMAN  POTTERY SHERD  ?R-B  1
002CB00450 AH EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 AK ROMAN  POTTERY SHERD  GREY WARE  1
002CB00450 AM No Entry  POTTERY SHERD  1
002CB00450 AO EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00450 AP ROMAN  POTTERY SHERD  GREY WARE  1
002CB00450 AQ No Entry  POTTERY SHERD  1
002CB00450 AR EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB00450 AS ROMAN  POTTERY SHERD  R-B  1
002CB00450 AU ROMAN  POTTERY SHERD  ?R-B  1
002CB00450 AV EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002CB00450 AW EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00450 AX ROMAN  POTTERY SHERD  R-B  1
002CB00450 AZ EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00450 BA EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB00450 BB EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 BD EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 BE EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB00450 BG MEDIEVAL  POTTERY SHERD  ?MED  1
002CB00450 BH No Entry  POTTERY SHERD  1
002CB00450 BK EARLY SAXON  POTTERY SHERD  ?ANGLIAN I  1
002CB00450 BL ROMAN  POTTERY SHERD  R-B  1
002CB00450 BM IRON AGE  POTTERY SHERD  IA  1
002CB00450 BO No Entry  POTTERY SHERD  1
002CB00450 BP ROMAN  POTTERY SHERD  R-B  1
002CB00450 BS No Entry  POTTERY SHERD  1
002CB00450 BT EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB00450 BV MEDIEVAL  POTTERY SHERD  MED  1
002CB00450 CC EARLY SAXON  POTTERY SHERDS  ANGLIAN II  6
002CB00450 CE No Entry  POTTERY SHERD  1
002CB00450 CH EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00450 CM EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB00450 CN EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 CQ EARLY SAXON  POTTERY SHERD  ?ANGLIAN  1
002CB00450 CS No Entry  POTTERY SHERD  1
002CB00450 CZ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 DE EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002CB00450 DF No Entry  POTTERY SHERDS  2
002CB00450 DI EARLY SAXON  POTTERY SHERDS  ANGLIAN I  4
002CB00450 DL ROMAN  POTTERY SHERD  R-B  1
002CB00450 DM BRONZE AGE  POTTERY SHERD  BEAKER  1
002CB00450 DN No Entry  POTTERY SHERD  1
002CB00450 DO No Entry  POTTERY SHERD  1
002CB00450 DP No Entry  POTTERY SHERD  1
002CB00450 DQ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00450 DR EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002CB00450 CK No Entry  SLAG SLAG FRAGMENT  IRON SLAG  1
002CB00450 AB No Entry  STONE STONE  1
002CB00450 AI No Entry  STONE STONE  1
002CB00450 AJ No Entry  STONE STONE  1
002CB00450 AL No Entry  STONE ?STONE  ?SANDSTONE  1
002CB00450 AN No Entry  STONE STONE  1
002CB00450 AT No Entry  STONE STONE  1
002CB00450 AY No Entry  STONE STONE  1
002CB00450 BC No Entry  STONE COKE FRAGMENT  1
002CB00450 BI No Entry  STONE STONE  1
002CB00450 BJ No Entry  STONE STONE  RED CHALK  6
002CB00450 BU No Entry  STONE STONE  RED CHALK  2
002CB00450 BW No Entry  STONE STONE  RED CHALK  1
002CB00450 BX No Entry  STONE STONE  SANDSTONE  1
002CB00450 BY No Entry  STONE STONE  1
002CB00450 BZ No Entry  STONE STONE  RED CHALK  1
002CB00450 CI No Entry  STONE STONE  1
002CB00450 CL No Entry  STONE STONE  CHALK  1
002CB00450 DC No Entry  STONE STONE  2
002CB00452 AA No Entry  STONE STONE  1
002CB00450 BR EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002CB00450 CT EARLY SAXON  UNFIRED CLAY ?UNFIRED CLAY  2
002CB00450 DA EARLY SAXON  UNFIRED CLAY LOOMWEIGHT  UNFIRED CLAY 1
002CB00450 DK EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002CB00450 BF EARLY SAXON  WORKED BONE COMB TEETH  COMP BONE COMB  1
002CB00450 CY EARLY SAXON  WORKED BONE COMB FRAGMENTS  DOUBLE SIDED COMPOSITE COMB  2
002CB00450 CY EARLY SAXON  WORKED BONE COMPOSITE COMB  DOUBLE SIDED COMP.BONE COMB  1

002CB00512 Objects

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CB00512 AA No Entry  STONE STONE RED CHALK 1
002CB00512 AB ROMAN  POTTERY SHERD  GREY WARE  1

002CB00248 Objects


KEY_ID OB PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CB00248 AA ROMAN POTTERY SHERD   ROMANO-BRITISH 1
002CB00248 AB ANGLIAN POTTERY SHERD   ANGLIAN II 1
002CB00248 AD Unassigned STONE STONE     2
002CB00248 AE Unassigned POTTERY SHERD     1
002CB00248 AF Unassigned STONE STONE   CHALK 6
002CB00248 AG ANGLIAN POTTERY SHERD   ANGLIAN III 1
002CB00248 AH Unassigned STONE STONE     2

Animal Bone by Context

002CB00450 Animal Bones

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CB00450 Cattle Skull fr  1 0  0 0  1
002CB00450 Cattle Radius P  1 0  0 1  0
002CB00450 Cattle Phalanx 3  1 0  0 0  0
002CB00450 Cattle Ld4  1 0  0 0  0
002CB00450 Cattle Tibia br  1 1 0 1  0
002CB00450 Cattle Mandible  1 0  0 0  0
002CB00450 Cattle M/T P  1 1  0 0  1
002CB00450 Cattle Radius P  1 1  0 1  0
002CB00450 Cattle Horncore  1 0  0 0  0
002CB00450 Cattle Pelvis  1 1  0 1  0
002CB00450 Cattle M/podial  1 0  0 0  1
002CB00450 Cattle Horncore  1 0  0 2  1
002CB00450 Horse Tibia P  1 1  0 0  1
002CB00450 Horse M/T D  1 1  0 0  0
002CB00450 Pig Pelvis  1 0  0 0  1
002CB00450 Pig Humerus br  1 0  0 1  1
002CB00450 Pig Radius P  1 1  0 0  0
002CB00450 Sheep Horncore  1 0  0 0  1
002CB00450 Sheep Horncore  1 0  0 0  1
002CB00450 Sheep/goat Mand fr  1 1  0 1  0
002CB00450 Sheep/goat Tibia br  1 1  0 0  0
002CB00450 Sheep/goat Hyoid  1 0  0 1  0
002CB00450 Sheep/goat Tibia D  1 1  0 1  1
002CB00450 Sheep/goat Astragalus  1 0  0 0  0
002CB00450 Sheep/goat Mandible  1 0  0 0  1
002CB00450 Sheep/goat LM3  1 0  0 0  0
002CB00450 Sheep/goat Tibia br  1 1  0 0  0
002CB00450 Sheep/goat Femur br  1 0  0 2  0
002CB00450 Sheep/goat Atlas  1 0  0 0  1
002CB00450 Sheep/goat Mand fr  1 0  0 0  1
002CB00450 Sheep/goat Mand fr  1 0  0 0  1
002CB00450 Sheep/goat Ld4  1 0  0 0  1

002CB00248 Animal Bones

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CB00248 Cattle Calcaneum 1 1 0 0 1
002CB00248 Cattle Phalanx 3 1 1 0 0 0
002CB00248 Cattle Radius P 1 1 0 1 1
002CB00248 Cattle Tibia D 1 0 0 0 0
002CB00248 Pig Radius P 1 0 0 0 0
002CB00248 Sheep/Goat M/C br 1 1 0 0 1
002CB00248 Sheep/Goat M/T br 1 1 0 0 1
002CB00248 Sheep/Goat M/T br 1 1 0 0 0
