002M 00501

Grubenhaus

Grubenhaus Details
Length 309 Width 217  Depth 63 Ratio 1.42:1
Area  5.93 sq. m Volume
Number of Posts 0
Highest Elevation Value  5060
Lowest Elevation Value 4997
Bearing  56.14 degrees
Structural Class
Material Culture Number of Objects 11 Number of Animal Bones 10
Environmental

Phasing

Stratigraphic Matrix Diagram

Discussion

Originally discovered by a trial trench (2M) in 1982. This is one of the few Grubenhauser to have a direct statigraphic link with a post hole structure (002M 00500). Although not observed during the excavation phase, it is believed that the post hole structure replaces the grubenhaus, perhaps maintaining the function of the structure over time. It is also of note that one of the few other instances of a presumed direct replacement occurs just to the north-east of this structure, involving grubenhaus 002CC00469 and post hole structure 002CC00251.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002M 00501 002M 00025 002CB00026 11 10

Object Totals by Material

002M 00026 Object Totals by Material

002M 00026 Charcoal 2
Burnt Clay  2
Flint  1
Iron  2
Pottery  4

Structural Details

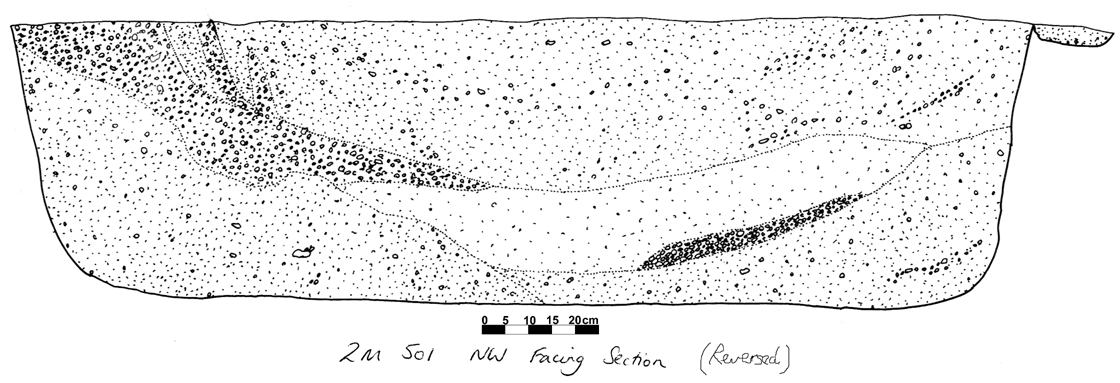

002M 00501 North-West Facing Section

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00025 GRUB CUT  SUB-RECTANGULAR 309 217  63 VERT.SIDE F.BASE GRUBENHAUS PARTLY EXCAVATED PRIOR TO EXTENDING TR. APPEARED TO CUT A NUMBER OF PH.s ON THE N.SIDE THOUGH THESE WERE NOT OBSERVED UNTIL AFTER THE GRUB WAS EXCAVATED
002M 00026 GRUB FILL  SUB-RECTANGULAR 0 0  0 No entry SILTY MATRIX W MUCH CHARCOAL AND PATCHES OF REDDISH BURNT MATERIAL ESPECIALLY IN SOUTHERN PART. LOC. AGAINST SOUTH SIDE + WESTERN EDGE OF GRUB 2M501

Object and Animal Bones by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002M 00026 AU No Entry  BURNT CLAY DAUB?  7
002M 00026 AV No Entry  BURNT CLAY CLAY/DAUB  3
002M 00026 AW No Entry  CHARCOAL CHARCOAL SAMPLE  1
002M 00026 AX No Entry  CHARCOAL CHARCOAL SAMPLE  1
002M 00026 AY No Entry  FLINT FLINT-NODULE  1
002M 00026 AS No Entry  IRON 1
002M 00026 AT No Entry  IRON NAIL  1
002M 00026 AA No Entry  POTTERY SHERD  A  2
002M 00026 AB No Entry  POTTERY SHERDS  5
002M 00026 AC No Entry  POTTERY SHERDS  A  4
002M 00026 AD No Entry  POTTERY SHERD  A  1
002M 00026 AE No Entry  ANIMAL BONE FEMUR-HIP-JOINT  1
002M 00026 AF No Entry  ANIMAL BONE BONE  5
002M 00026 AG No Entry  ANIMAL BONE BONE  1
002M 00026 AH No Entry  ANIMAL BONE BONE  2
002M 00026 AK No Entry  ANIMAL BONE BONE  2
002M 00026 AL No Entry  ANIMAL BONE BONE  1
002M 00026 AM No Entry  ANIMAL BONE BONE  1
002M 00026 AN No Entry  ANIMAL BONE RIB  1
002M 00026 AP No Entry  ANIMAL BONE BONE  1
002M 00026 AR No Entry  ANIMAL BONE BONE  1
