002CB02447

Grubenhaus

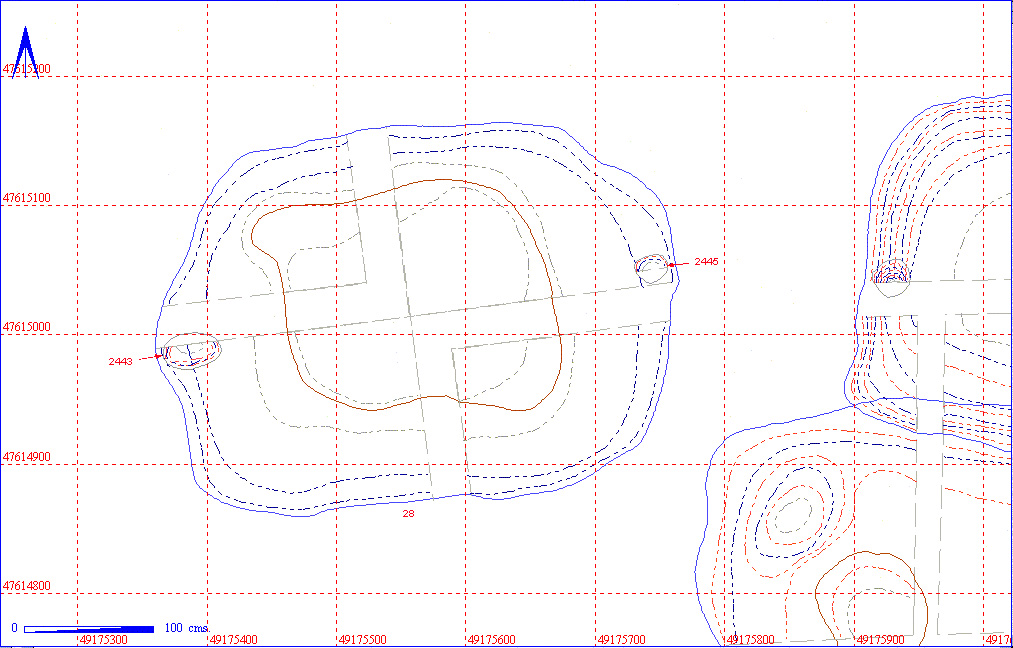

Grubenhaus Details
Length 409 Width 297  Depth 61 Ratio 1.38:1
Area  10.09 sq. m Volume
Number of Posts 2
Highest Elevation Value  5266
Lowest Elevation Value 5201
Bearing  82.62 degrees
Structural Class
Material Culture Number of Objects 107 Number of Animal Bones 179
Environmental

Phasing

Stratigraphic Matrix Diagram

    002CB00029

    002CB02444    002CB02446

    002CB02443    002CB02445

      002CB00028
            002CB02447

      002CB02398

      002CB02399

      002CB02482


Discussion

The two-post Grubenhaus had a relationship with a pit (002CB02482) that was not observed during the excavation phase. However, from the section it appears obvious that the Grubenhaus cuts the pit. Also of note is fill 002CC00029, which contained a large number of both objects and animal bones.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002CB002447 002CB00028 002CB00029 95 + 5 168 + 3
POST HOLE 002CB02443 002CB02444 0  0
POST HOLE 002CB02445 002CB02446 0  0

Object Totals by Material

002CB00029 Object Totals by Material

002CB00029 Bronze 2
Charcoal  7
Coprolite 1
Daub  1
Iron  4
Pottery  44 of which Saxon  36 Roman 3  Unassigned 5
Shell  1
Slag  2
Snail  2
Stone  26
Unfired Clay 2
Worked Bone 3

002CB02447 Object Totals by Material (Objects lifted under Master Number only)

002CB02447 Amber 2
Bronze 1
Pottery 1  of which Saxon 1
Stone 1

Animal Bone Totals by Species

002CB00029 Animal Bone Totals by Species

002CB00029 Cattle  66
Horse 3
Pig 6
Sheep 16
Sheep/Goat 77

002CB02447 Animal Bone Totals by Species (Bones lifted under Master Number only)

002CB02447 Sheep 1
Sheep/Goat 2

Structural Details

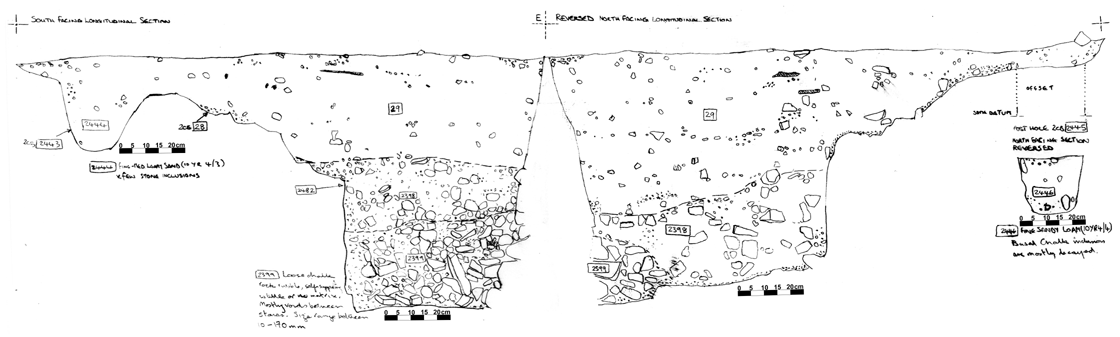

002CB002447 North Facing Section


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB00028 GRUB CUT  SUB-RECTANGULAR 409 297  61 CONCAVE CUT FOR GRUB. EDGES NOT STEEP BUT SLOPE DOES NOT FLATTEN OFF AWAY FROM EDGES. SEQUENTIAL RELATIONSHIP TO CAVITY UNDERNEATH NOT CLEAR.
002CB00029 GRUB FILL  SUB-RECTANGULAR 409 297  61 CONCAVE V. DARK UPPER FILL OF GRUB.CHALK FRAGS <10CM OCCURING IN LENSES: OCCA FLECKS CHARCOAL. PROBABLY TRUNCATED FROM ABOVE.
002CB02443 POST HOLE CUT  OVATE 31 28  26 USHAPED CUT FOR P.H. AT WEST END OF GRUB: LAYS CENTRAL AT W. EDGE WHICH DIMPLES OUT TO ACCOMODATE IT.
002CB02444 POST HOLE FILL  OVATE 31 28 26 USHAPED  FILL OF P.H. W.END OF GRUB. CLEAN BUT WITH A FEW SMALL CHALK INCLUSIONS.

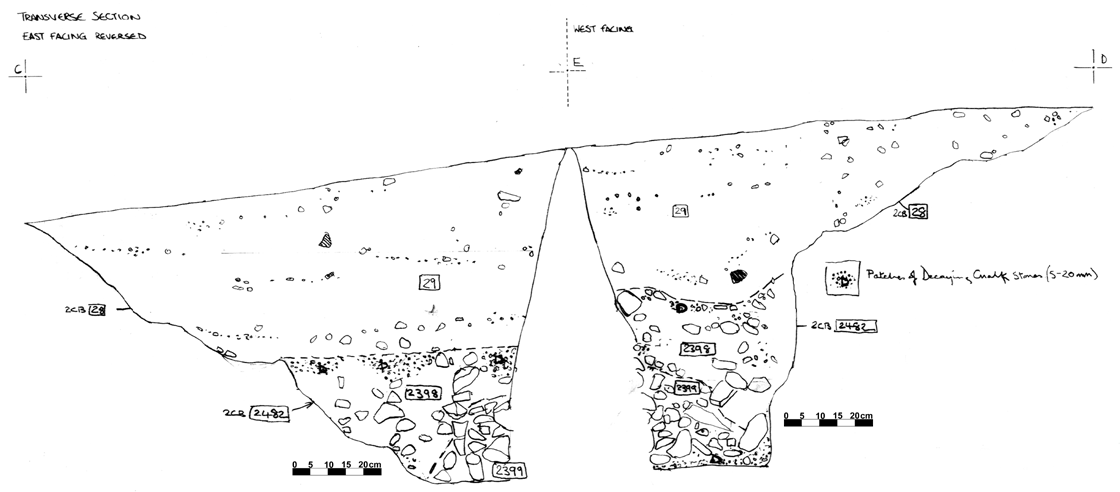

002CB002447 West Facing Section

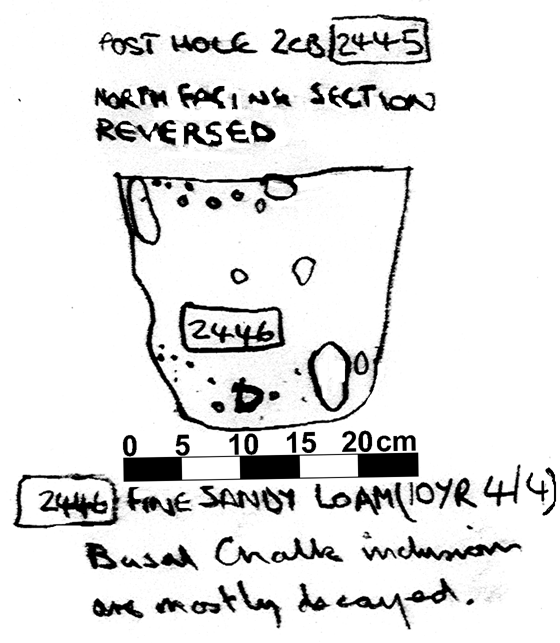

002CB02445 North Facing Section

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB02445 POST HOLE CUT  OVATE 24 23  21 FLAT BASED U CUT FOR P.H. E. END OF GRUB. SMALLER THAN THAT AT W. END. LAYS V. CLOSE TO E. EDGE SLIGHTLY N. OF CENTRE.
002CB02446 POST HOLE FILL  OVATE 24 23  21 FLAT BASED U FILL OF P.H. AT E. END OF GRUB. OCCA CHALK FRAGS < 6CM- THOSE NEAR BASE TEND TO BE DECAYED.

Objects by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CB00029 CP EARLY SAXON  BRONZE C/A SHEET FRAG  FOLDED ?SCRAP  1
002CB00029 DH No Entry  BRONZE C/A FRAGMENT  1
002CB00029 AO No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00029 BM No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00029 BS No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00029 CK No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00029 CL No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00029 CU No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00029 DO No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB00029 DD EARLY SAXON  COPROLITE COPROLITE  1
002CB00029 DL EARLY SAXON  DAUB BURNT DAUB  1
002CB00029 AK No Entry  IRON IRON FRAGMENT  ?KNIFE  1
002CB00029 AN No Entry  IRON IRON NAIL  1
002CB00029 BG No Entry  IRON IRON NAIL  1
002CB00029 CI EARLY SAXON  IRON IRON ?KEY  V.LARGE 1
002CB00029 AB No Entry  POTTERY SHERDS  6
002CB00029 AC No Entry  POTTERY SHERD  1
002CB00029 AD No Entry  POTTERY SHERD  1
002CB00029 AE EARLY SAXON  POTTERY SHERDS  ANGLIAN III  3
002CB00029 AG EARLY SAXON  POTTERY SHERDS  ANGLIAN III  2
002CB00029 AJ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 AQ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 AR EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 AS EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 AT EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 AV ROMAN  POTTERY SHERD  R-B  1
002CB00029 AZ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 BA EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 BB EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB00029 BE ROMAN  POTTERY SHERD  GREY WARE  1
002CB00029 BF EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00029 BH EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00029 BI EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00029 BK EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00029 BN EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 BQ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 BV EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 BW ROMAN  POTTERY SHERD  R-B  1
002CB00029 BX EARLY SAXON  POTTERY SHERDS  ANGLIAN II  2
002CB00029 CA EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 CD EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00029 CE EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00029 CH EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00029 CJ EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00029 CM EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB00029 CR EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00029 CT EARLY SAXON  POTTERY SHERD  ANGLIAN  1
002CB00029 CV EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB00029 CW EARLY SAXON  POTTERY SHERDS  ANGLIAN II  3
002CB00029 CX EARLY SAXON  POTTERY SHERDS  ANGLIAN III  2
002CB00029 DA EARLY SAXON  POTTERY SHERD  ?ANGLIAN II  1
002CB00029 DB EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 DC No Entry  POTTERY SHERD  1
002CB00029 DE No Entry  POTTERY SHERD  1
002CB00029 DF EARLY SAXON  POTTERY SHERD  ANGLIAN  1
002CB00029 DG EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB00029 DI EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 DM EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB00029 DP EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB00029 AP No Entry  SHELL SHELL  LIMPET  1
002CB00029 AA No Entry  SLAG SLAG FRAGMENTS  IRON SLAG  3
002CB00029 AU No Entry  SLAG SLAG FRAGMENT  IRON SLAG  1
002CB00029 BR No Entry  SNAIL SNAIL SAMPLE  1
002CB00029 DQ No Entry  SNAIL SNAIL SAMPLE  1
002CB00029 AF No Entry  STONE STONE  1
002CB00029 AH No Entry  STONE STONE  1
002CB00029 AI No Entry  STONE COKE FRAGMENT  1
002CB00029 AL No Entry  STONE STONE  SANDSTONE  1
002CB00029 AM No Entry  STONE STONE  2
002CB00029 AW No Entry  STONE STONE  1
002CB00029 AX No Entry  STONE STONE  1
002CB00029 AY No Entry  STONE STONE  1
002CB00029 BC No Entry  STONE STONE  SANDSTONE  1
002CB00029 BD No Entry  STONE STONE  SANDSTONE  1
002CB00029 BJ No Entry  STONE COKE FRAGMENT  1
002CB00029 BL No Entry  STONE STONE  3
002CB00029 BO No Entry  STONE STONE  SANDSTONE  1
002CB00029 BP No Entry  STONE STONE  SANDSTONE  3
002CB00029 BT No Entry  STONE STONE  FOSSILIFEROUS LIMESTONE  1
002CB00029 BU No Entry  STONE STONE  SANDSTONE  1
002CB00029 BY No Entry  STONE STONE  SANDSTONE  1
002CB00029 CB No Entry  STONE STONE  1
002CB00029 CC No Entry  STONE STONE  SANDSTONE  1
002CB00029 CF No Entry  STONE STONE  1
002CB00029 CQ No Entry  STONE STONE  1
002CB00029 CS No Entry  STONE STONE  1
002CB00029 CY No Entry  STONE STONE  1
002CB00029 CZ No Entry  STONE STONE  SANDSTONE  1
002CB00029 DK No Entry  STONE STONE  1
002CB00029 DN No Entry  STONE STONE  SANDSTONE  1
002CB00029 BZ EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  6
002CB00029 DJ EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  2
002CB00029 CG EARLY SAXON  WORKED BONE BONE COMB  DOUBLE SIDED COMPOSITE COMB  1
002CB00029 CN EARLY SAXON  WORKED BONE COMB TEETH  DOUBLE SIDED COMPOSITE COMB  1
002CB00029 CO EARLY SAXON  WORKED BONE COMB FRAGMENT  COMPOSITE COMB  1
002CB02447 AB EARLY SAXON  AMBER AMBER BEAD FRAG  D3  1
002CB02447 AD EARLY SAXON  AMBER AMBER BEAD  D3  1
002CB02447 AA EARLY SAXON  BRONZE C/A SHEET  1
002CB02447 AC EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB02447 AE No Entry  STONE STONE  1

Animal Bone By Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CB00029 Cattle Atlas  1 1  0 1  1
002CB00029 Cattle Axis  1 0  0 0  1
002CB00029 Cattle Calcaneum  1 1  0 0  0
002CB00029 Cattle Calcaneum  1 0  0 1  0
002CB00029 Cattle Calcaneum  1 0  0 1  0
002CB00029 Cattle Femur C  1 0  0 0  0
002CB00029 Cattle Femur D  1 0  0 1  0
002CB00029 Cattle Horncore  1 0  0 0  1
002CB00029 Cattle Horncore  1 0  0 2  1
002CB00029 Cattle Humerus br  1 0  0 0  0
002CB00029 Cattle Humerus br  1 1  0 0  0
002CB00029 Cattle Humerus br  1 1  0 0  1
002CB00029 Cattle Humerus C  1 0  0 0  1
002CB00029 Cattle Humerus D  1 1  0 0  1
002CB00029 Cattle Humerus fr  1 0  0 0  1
002CB00029 Cattle Ld4  1 0  0 0  1
002CB00029 Cattle LM3  1 0  0 0  1
002CB00029 Cattle LM3  1 0  0 0  0
002CB00029 Cattle LM3  1 0  0 0  0
002CB00029 Cattle LM3  1 0  0 0  0
002CB00029 Cattle M/C D  1 0  1 0  1
002CB00029 Cattle M/C D  1 0  0 1  1
002CB00029 Cattle M/C P  1 0  0 0  1
002CB00029 Cattle M/C P  1 0  0 0  0
002CB00029 Cattle M/C P  1 0  0 0  1
002CB00029 Cattle M/C P  1 0  0 0  0
002CB00029 Cattle M/C P  1 1  0 0  1
002CB00029 Cattle M/podial  1 0  0 1  0
002CB00029 Cattle M/T C  1 1  0 0  1
002CB00029 Cattle M/T D  1 0  0 0  1
002CB00029 Cattle M/T P  1 0  0 0  1
002CB00029 Cattle Mand fr  1 0  0 0  1
002CB00029 Cattle Mand fr  1 1  0 0  0
002CB00029 Cattle Mand fr  1 0  0 1  1
002CB00029 Cattle Mandible  1 0  0 0  1
002CB00029 Cattle Mandible  1 1  0 0  0
002CB00029 Cattle Mandible  1 0  0 0  0
002CB00029 Cattle Mandible  1 1  0 0  1
002CB00029 Cattle N.Cuboid  1 0  0 1  0
002CB00029 Cattle N.Cuboid  1 0  0 0  0
002CB00029 Cattle N.Cuboid  1 1  0 0  0
002CB00029 Cattle Occiput  1 0  0 1  1
002CB00029 Cattle Pelvis  1 1  0 0  1
002CB00029 Cattle Pelvis  1 1  0 1  1
002CB00029 Cattle Pelvis  1 1  0 1  1
002CB00029 Cattle Phalanx 1  1 0  0 0  0
002CB00029 Cattle Phalanx 1  1 1  0 0  1
002CB00029 Cattle Phalanx 1  1 1  0 0  1
002CB00029 Cattle Phalanx 1  1 0  0 0  0
002CB00029 Cattle Phalanx 1  1 0  0 0  1
002CB00029 Cattle Phalanx 1  1 0  0 0  0
002CB00029 Cattle Phalanx 2  1 0  0 0  0
002CB00029 Cattle Phalanx 2  1 0  0 1  0
002CB00029 Cattle Phalanx 2  1 1  1 0  0
002CB00029 Cattle Phalanx 2  1 0  0 0  1
002CB00029 Cattle Phalanx 3  1 0  0 0  1
002CB00029 Cattle Phalanx 3  1 0  0 0  1
002CB00029 Cattle Phalanx 3  1 0  0 0  0
002CB00029 Cattle Radius br  1 0  0 0  0
002CB00029 Cattle Radius D  1 1  0 0  1
002CB00029 Cattle Radius D  1 0  0 1  0
002CB00029 Cattle Radius P  1 0  0 0  1
002CB00029 Cattle Radius P  1 1  0 0  0
002CB00029 Cattle Scapula  1 0  0 0  0
002CB00029 Cattle Scapula  1 1  0 1  1
002CB00029 Cattle Scapula  1 0  0 0  1
002CB00029 Horse Phalanx 1  1 1  0 0  0
002CB00029 Horse Radius D  1 1  0 0  1
002CB00029 Horse Tibia C  1 0  0 0  1
002CB00029 Pig Femur br  1 1  0 0  0
002CB00029 Pig Fibula  1 0  0 0  1
002CB00029 Pig Humerus D  1 0  0 0  0
002CB00029 Pig Scapula  1 1  0 0  1
002CB00029 Pig Skull fr  1 0  0 0  1
002CB00029 Pig Ulna  1 1  0 0  0
002CB00029 Sheep Atlas  1 1  0 0  1
002CB00029 Sheep Calcaneum  1 0  0 0  1
002CB00029 Sheep Horncore  1 0  0 0 0
002CB00029 Sheep Horncore  1 0  0 0  1
002CB00029 Sheep Horncore  1 0  0 0  1
002CB00029 Sheep Humerus D  1 0  0 0  1
002CB00029 Sheep Humerus D  1 1  0 0  0
002CB00029 Sheep Humerus D  1 0  0 0  1
002CB00029 Sheep Phalanx 1  1 0  0 0  0
002CB00029 Sheep Phalanx 1  1 0  0 0  1
002CB00029 Sheep Phalanx 2  1 0  0 0  0
002CB00029 Sheep Radius C  1 0  0 0  0
002CB00029 Sheep Radius P  1 1  0 0  1
002CB00029 Sheep Radius P  1 0  0 0  1
002CB00029 Sheep Scapula  1 0  0 0  1
002CB00029 Sheep Scapula  1 0  0 0  1
002CB00029 Sheep/goat Astragalus  1 0  0 0  0
002CB00029 Sheep/goat Astragalus  1 0  0 0  0
002CB00029 Sheep/goat Astragalus  1 1  0 0  0
002CB00029 Sheep/goat Astragalus  1 0  0 1  0
002CB00029 Sheep/goat Femur C  1 0  0 0  1
002CB00029 Sheep/goat Femur D  1 0  0 0  1
002CB00029 Sheep/goat Femur fr  1 0  0 0  1
002CB00029 Sheep/goat Humerus br  1 0  0 0  1
002CB00029 Sheep/goat Ld4  1 0  0 0  1
002CB00029 Sheep/goat Ld4  1 0  0 0  1
002CB00029 Sheep/goat LM3  1 0  0 0  0
002CB00029 Sheep/goat LM3  1 0  0 0  1
002CB00029 Sheep/goat M/C C  1 1  0 0  0
002CB00029 Sheep/goat M/C C  1 0  0 0  1
002CB00029 Sheep/goat M/C C  1 1  0 1  0
002CB00029 Sheep/goat M/C C  1 0  0 0  1
002CB00029 Sheep/goat M/C C  1 0  0 0  0
002CB00029 Sheep/goat M/C D  1 0  0 0  1
002CB00029 Sheep/goat M/C D  1 1  0 1  0
002CB00029 Sheep/goat M/C P  1 1  0 0  1
002CB00029 Sheep/goat M/C P  1 1  0 0  0
002CB00029 Sheep/goat M/T C  1 1  0 0  1
002CB00029 Sheep/goat M/T C  1 0  0 0  0
002CB00029 Sheep/goat M/T C  1 0  0 0  1
002CB00029 Sheep/goat M/T C  1 0  0 0  1
002CB00029 Sheep/goat M/T C  1 0  0 0  1
002CB00029 Sheep/goat M/T C  1 0  0 0  0
002CB00029 Sheep/goat M/T C  1 1  0 0  0
002CB00029 Sheep/goat M/T D  1 0  0 0  1
002CB00029 Sheep/goat M/T D  1 0  0 0  1
002CB00029 Sheep/goat M/T P  1 0  1 0  0
002CB00029 Sheep/goat M/T P  1 1  0 0  1
002CB00029 Sheep/goat M/T P  1 0  0 0  1
002CB00029 Sheep/goat M/T P  1 0  0 0  1
002CB00029 Sheep/goat M/T P  1 1  0 0  1
002CB00029 Sheep/goat M/T P  1 1  0 0  1
002CB00029 Sheep/goat M/T P  1 0  0 0  1
002CB00029 Sheep/goat Mand fr  1 0  0 0  1
002CB00029 Sheep/goat Mand fr  1 0  0 0  1
002CB00029 Sheep/goat Mand fr  1 0  0 0  1
002CB00029 Sheep/goat Mand fr  1 0  0 0  1
002CB00029 Sheep/goat Mand fr  1 0  0 0  0
002CB00029 Sheep/goat Mand fr  1 0  0 0  1
002CB00029 Sheep/goat Mandible  1 0  0 0  1
002CB00029 Sheep/goat Mandible  1 0 0 0  0
002CB00029 Sheep/goat Mandible  1 0  0 0  1
002CB00029 Sheep/goat Mandible  1 0  0 0  1
002CB00029 Sheep/goat Mandible  1 0  0 1  1
002CB00029 Sheep/goat Mandible  1 0  0 0  1
002CB00029 Sheep/goat Mandible  1 1  0 0  0
002CB00029 Sheep/goat Mandible  1 1  0 0  1
002CB00029 Sheep/goat Mandible  1 0  0 0  1
002CB00029 Sheep/goat Mandible  1 0  0 0  1
002CB00029 Sheep/goat N.Cuboid  1 1  0 0  0
002CB00029 Sheep/goat Pelvis  1 0  0 0  0
002CB00029 Sheep/goat Pelvis  1 1  0 1  1
002CB00029 Sheep/goat Pelvis  1 1  0 1  1
002CB00029 Sheep/goat Phalanx 1  1 1  0 0  0
002CB00029 Sheep/goat Phalanx 2  1 0  0 0  0
002CB00029 Sheep/goat Radius br  1 0  0 0  0
002CB00029 Sheep/goat Radius br  1 1  0 0  1
002CB00029 Sheep/goat Radius C  1 1  0 0  1
002CB00029 Sheep/goat Radius D  1 1  0 0  1
002CB00029 Sheep/goat Radius D  1 0  0 1  1
002CB00029 Sheep/goat Scapula  1 1  0 1  1
002CB00029 Sheep/goat Tibia br  1 1  0 0  0
002CB00029 Sheep/goat Tibia br  1 0  0 0  1
002CB00029 Sheep/goat Tibia br  1 1  0 0  1
002CB00029 Sheep/goat Tibia C  1 0  0 0  1
002CB00029 Sheep/goat Tibia D  1 0  0 0  1
002CB00029 Sheep/goat Tibia D  1 0  0 0  1
002CB00029 Sheep/goat Tibia D  1 1  0 0  0
002CB00029 Sheep/goat Tibia D  1 0  0 0  0
002CB00029 Sheep/goat Tibia D  1 1  0 0  1
002CB00029 Sheep/goat Tibia D  1 0  0 1  1
002CB00029 Sheep/goat Tibia P  1 0  0 0  1
002CB00029 Sheep/goat Ulna  1 0  0 0  1
002CB02447 Sheep Mandible  1 0  0 0  1
002CB02447 Sheep/goat Mandible  1 0  0 0  0
002CB02447 Sheep/goat Tibia D  1 0  0 0  0
