012AD08208

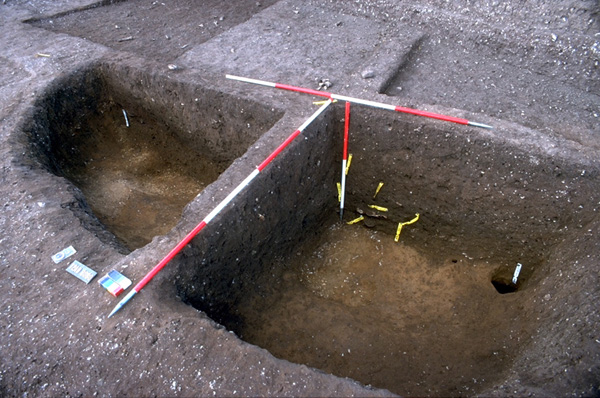

Grubenhaus Half-sectioned Grubenhaus 12AD8208 from the south-east

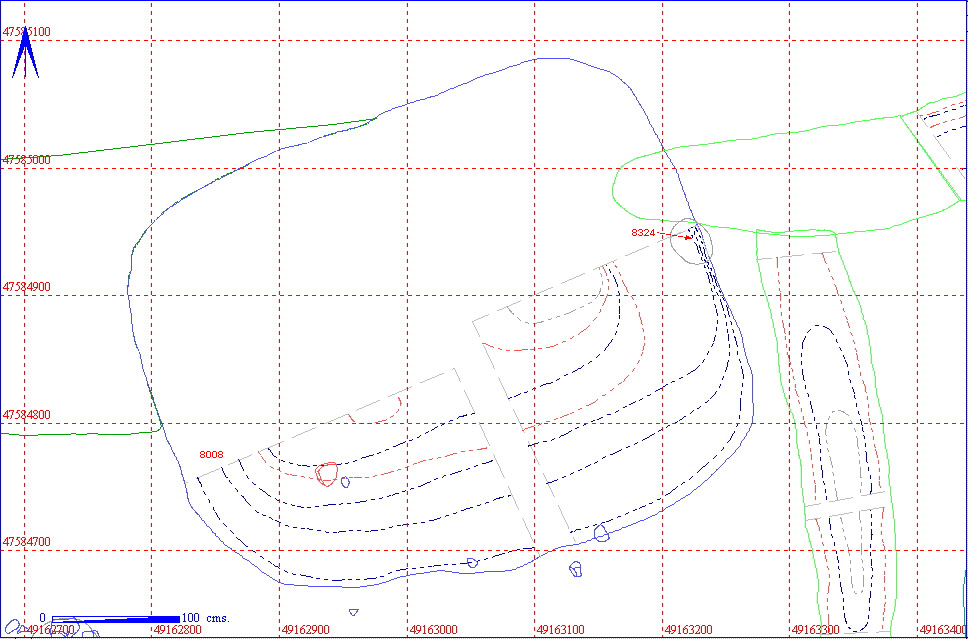

Grubenhaus Details
Length 450 Width 365 Depth 109 Ratio 1.2:1
Area  15.02 sq. m Volume
Number of Posts 1
Highest Elevation Value  6440
Lowest Elevation Value 6331
Bearing   67 degrees
Structural Class
Material Culture Number of Objects 38 Number of Animal Bones 202
Environmental

Phasing

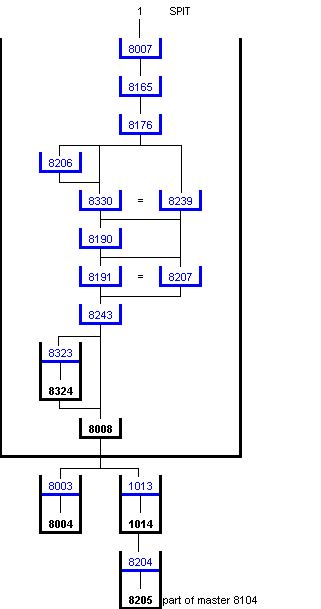

Stratigraphic Matrix Diagram

Discussion

A very deep Grubenhaus located in the central north part of area 12AD. At 109cm deep, this Grubenhaus is the second deepest structure excavated in the settlement (the deepest was Grubenhaus 012AD08030 at 119cm). The structure cut through a layer of material to the west (012AD08004) and slot 012AD01014 to the east. Eight fills were identified during excavation. A small, deep post hole in the east side of the building was recovered (012AD08324). A west side post hole is probable in the unexcavated quadrant. The northern part of the structure remained unexcavated as it was partially located under the current trackway to Rectory Farm. Well over half of all the finds and animal bones recovered came from the final infilling of the feature (012AD08007).

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
012AD08208
012AD08008
012AD08007
   17 115

012AD08165
   13

012AD08176
   12 23

012AD08190


012AD08191


012AD08206


012AD08207
   3 24

012AD08239
     1

012AD08243
   4 16

012AD08330
   1 8

012AD08324
012AD08323
   1

012AD08007 Object Totals by Period

KEY_ID PERIOD MATERIAL No
012AD08007 4TH CENTURY POTTERY
8
ROMAN DAUB
1
ROMAN POTTERY
2
ROMAN WORKED STONE
1
ROMAN? POTTERY
1
Unassigned CHARCOAL
1
Unassigned STONE
3

012AD08176 Object Totals by Period

KEY_ID PERIOD MATERIAL No
012AD08176 4TH CENTURY POTTERY
2
ROMAN DAUB
1
ROMAN POTTERY
2
Unassigned STONE
7

012AD08207 Object Totals by Period

KEY_ID PERIOD MATERIAL No
012AD08207 ANGLIAN WORKED BONE
1
ROMAN DAUB
1
Unassigned IRON
1

012AD08243 Object Totals by Period

KEY_ID PERIOD MATERIAL No
012AD08243 4TH CENTURY POTTERY
1
ANGLIAN POTTERY
1
ANGLIAN WORKED STONE
1
Unassigned STONE
1

012AD08323 Object Totals by Period

KEY_ID PERIOD MATERIAL No
012AD08323 Unassigned STONE
1

012AD08330 Object Totals by Period

KEY_ID PERIOD MATERIAL No
012AD08330 4TH CENTURY POTTERY
1

012AD08007 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD08007 Cattle
40
  Dog
1
  Domestic fowl
10
  Domestic goose
2
  Hare spp.
2
  Horse
2
  Pig
4
  Sheep
22
  Sheep/Goat
32

012AD08165 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD08165 Cattle
4
  Domestic goose
1
  Pig
1
  Sheep
2
  Sheep/Goat
5

012AD08176 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD08176 Cattle
6
  Deer spp.
1
  Domestic fowl
1
  Domestic goose
2
  Horse
1
  Sheep
4
  Sheep/Goat
7
  Wild/domestic goose
1

012AD08207 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD08207 Cattle
3
  Domestic goose
6
  Sheep
5
  Sheep/Goat
10
  Wild/domestic goose
1

012AD08239 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD08239 Cattle
1

012AD08243 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD08243 Cattle
4
  Domestic fowl
1
  Domestic goose
1
  Sheep
3
  Sheep/Goat
4
  Wild/domestic goose
3

012AD08330 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD08330 Cattle
4
  Sheep
3
  Sheep/Goat
1

Structural Details

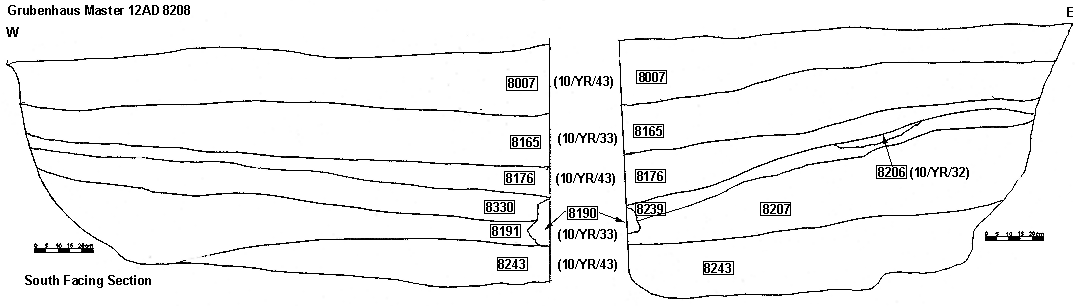

012AD08008 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD08007 GRUB FILL SUB-RECTANGULAR
455
380
39
 STEPPED U GRUB FILL SHOWED AS STRONG SIGNAL IN GPHIZ DUE TO HIGH ASH COMPONENT. FINAL FILL OF GRUB. CONTAINED AN OS/BURNT RED SANDSTONE/QUERN FRAGS AND POTTERY.
012AD08008 GRUB CUT SUB-RECTANGULAR
455
380
109
 STEPPED U CUT INTO HILLWASH AND SAND AND GRAVEL. APPARENTLY HAD DEEPER CUT IN THE CENTRE. ONLY 2 QUADRANTS EXCAVATED. 2ND DEEPEST GRUB EXCAVATED IN 1995 SEASON.
012AD08165 GRUB FILL SUB-RECTANGULAR
443
331
22
 U-SHAPED RED DAUB RICH LAYER IN GRUB M8208. CONTAINED ANIMAL BONE AND DAUB. OCCASIONAL CHARCOAL FLECKING.
012AD08176 GRUB FILL AMORPHOUS
326
280
12
 WIDE U CHARCOAL RICH FILL IN GRUB M8208. CONTAINED ANIMAL BONE. NO DAUB FLECKING.
012AD08190 GRUB FILL AMORPHOUS
70
51
20
 WIDE U GRUB FILL LIMITED TO CENTRE OF GRUB. GREEN-PROB. CESS MATERIAL PRESENT. NO FINDS. NO DAUB OR CHARCOAL FLECKING. NOTE MUNSELL OF 2.5YR33.
012AD08191 GRUB FILL AMORPHOUS
291
250
7
 WIDE U GRUB FILL OF CHARCOAL RICH MATERIAL. EQUAL TO 8207.
012AD08206 GRUB FILL OVATE
57
40
1.5
 FLAT GRUB FILL. LAYER OF GRAY ASHY MATERIAL 1-2CM THICK. CONTAINED AN. BONE ONLY.
012AD08207 GRUB FILL AMORPHOUS
291
250
7
 WIDE U GRUB FILL. CONTAINED AN. BONE AND PART OF ANTLER COMB. CHARCOAL FLECKING. NO DAUB. HIGHER % CHALK INCLUSIONS THAN 8239. EQUAL TO 8191.
012AD08208 STRUCTURE SUB-RECTANGULAR
455
350
109
 FLAT BASED U MASTER OF GRUB AT N CENTRE OF 12AD. CUT NO. 8008. GRUB EXTENDS UNDER TRACK TO RECTORY FARM.
012AD08239 GRUB FILL AMORPHOUS
301
270
9
 IRREGULAR GRUB FILL. DARK ASH AND CLAY DEPOSIT BENEATH 8176. EQUAL TO 8330.
012AD08243 GRUB FILL SUB-RECTANGULAR
271
236
20
 WIDE U GRUB FILL. SECOND ASHY LAYER THAT TOGETHER WITH 8239 SANDWICHES SANDY LOAM LAYER 8207. CONTAINED AN BONE. ALSO CLAY CHALK SPINDLE WHORL AND FE NAIL.
012AD08330 GRUB FILL AMORPHOUS
301
270
9
   VERY SANDY GRUB FILL EQUAL TO 8239. THIS NO. GIVEN TO 8239 IN SW QUADRANT. CONTAINED FEW AN. BONES.

012AD08324 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD08323 POST HOLE FILL ROUND
29
30
74
 U-SHAPED CONTAINED ONE STONE PEBBLE. NO DAUB OR CHARCOAL FLECKING. NO PACKING VISIBLE.
012AD08324 POST HOLE CUT ROUND
29
30
74
 U-SHAPED CUT INTO SAND. ROUND WITH EXCEPTIONALLY DEEP U SHAPED PROFILE. POST HOLE IN SE QUADRANT OF GRUB M8208.

Objects by Context

KEY_ID OBCODE PERIOD MATERIAL TYPE SUB_TYPE CLASS No
012AD08007 AA Unassigned STONE STONE   RED CHALK 1
012AD08007 AA Unassigned STONE STONE     5
012AD08007 AB Unassigned DAUB DAUB     1
012AD08007 AD 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08007 AE ROMAN POTTERY SHERD   R-B/ANGLIAN I 1
012AD08007 AF 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08007 AG 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08007 AH 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08007 AI 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08007 AJ 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08007 AK 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08007 AL 4TH CENTURY POTTERY SHERDS   ROMANO-BRITISH 2
012AD08007 AM ROMAN POTTERY SHERD     1
012AD08007 AN ROMAN? POTTERY SHERD     1
012AD08007 AO Unassigned CHARCOAL CHARCOAL SAMPLE     1
012AD08007 AP Unassigned STONE STONE   RED CHALK 20
012AD08007 AQ ROMAN WORKED STONE TUYERE FRAG? RED SANDSTONE   1
012AD08176 AA 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08176 AB 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08176 AC Unassigned STONE STONE   SANDSTONE 1
012AD08176 AD Unassigned STONE PEBBLES     4
012AD08176 AE Unassigned STONE STONE     1
012AD08176 AF Unassigned STONE STONE     6
012AD08176 AG Unassigned DAUB DAUB     1
012AD08176 AH Unassigned STONE STONE     6
012AD08176 AI Unassigned STONE STONE     1
012AD08176 AJ Unassigned STONE STONE     1
012AD08176 AK ROMAN POTTERY SHERD     1
012AD08176 AL ROMAN POTTERY SHERD     1
012AD08207 AA Unassigned DAUB DAUB     1
012AD08207 AB ANGLIAN WORKED BONE COMB FRAGMENTS   SS COMP COMB 1
012AD08207 AC Unassigned IRON IRON OBJECT     1
012AD08243 AA ANGLIAN POTTERY SHERD     1
012AD08243 AB 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH 1
012AD08243 AC ANGLIAN WORKED STONE SPINDLE WHORL WHITE CHALK   1
012AD08243 AD Unassigned STONE STONE   RED CHALK 1
012AD08323 AA Unassigned STONE PEBBLE     1
012AD08330 AA 4TH CENTURY POTTERY SHERDS   ROMANO-BRITISH 4

Animal Bones by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
012AD08007 Cattle Astragalus 1 1 0 0 1
012AD08007 Cattle Astragalus 3 1 0 1 0
012AD08007 Cattle Calcaneum 1 0 0 0 1
012AD08007 Cattle Horncore 2 0 0 0 0
012AD08007 Cattle Horncore 1 0 0 0 0
012AD08007 Cattle Horncore 1 0 0 0 0
012AD08007 Cattle LM3 1 0 0 0 0
012AD08007 Cattle M/C C 1 0 0 1 1
012AD08007 Cattle M/C C 1 0 0 1 0
012AD08007 Cattle M/C D 1 0 0 0 1
012AD08007 Cattle M/C P 1 0 0 0 1
012AD08007 Cattle M/C P 1 0 0 0 1
012AD08007 Cattle M/T C 1 0 0 1 1
012AD08007 Cattle M/T D 1 0 0 0 0
012AD08007 Cattle M/T D 1 0 0 0 1
012AD08007 Cattle M/T P 1 1 0 0 1
012AD08007 Cattle M/T P 1 0 0 0 1
012AD08007 Cattle M/T P 1 0 0 0 1
012AD08007 Cattle Mand fr 1 0 0 0 0
012AD08007 Cattle Mand fr 1 0 0 0 0
012AD08007 Cattle Mand fr 1 0 0 0 1
012AD08007 Cattle Mandible 1 0 0 0 0
012AD08007 Cattle Mandible 1 0 0 0 0
012AD08007 Cattle Occiput 1 0 0 0 1
012AD08007 Cattle Occiput 1 0 0 1 0
012AD08007 Cattle Phalanx 1 1 1 0 0 0
012AD08007 Cattle Phalanx 1 1 0 0 0 0
012AD08007 Cattle Phalanx 1 2 0 0 0 0
012AD08007 Cattle Phalanx 1 3 0 0 2 0
012AD08007 Cattle Phalanx 2 1 0 0 0 0
012AD08007 Cattle Phalanx 2 1 0 0 0 0
012AD08007 Cattle Phalanx 3 1 0 0 0 0
012AD08007 Cattle Radius D 1 0 1 0 0
012AD08007 Cattle Radius P 1 0 0 1 0
012AD08007 Cattle Skull fr 1 0 0 0 0
012AD08007 Cattle Tibia D 1 0 0 0 1
012AD08007 Cattle Tibia P 2 0 0 1 0
012AD08007 Cattle Ulna 1 0 0 0 0
012AD08007 Cattle Ulna 1 0 0 0 0
012AD08007 Cattle Ulna 1 0 0 0 0
012AD08007 Dog Tibia D 1 0 0 0 1
012AD08007 Domestic fowl Carpom/c 1 0 0 0 0
012AD08007 Domestic fowl Femur C 1 0 0 1 0
012AD08007 Domestic fowl Femur C 1 0 0 1 0
012AD08007 Domestic fowl Femur D 1 1 0 0 0
012AD08007 Domestic fowl Humerus C 1 0 0 0 0
012AD08007 Domestic fowl Radius C 1 0 0 0 0
012AD08007 Domestic fowl Tarsom/t 1 0 0 0 0
012AD08007 Domestic fowl Tibia C 1 0 0 0 0
012AD08007 Domestic fowl Ulna 1 0 0 0 0
012AD08007 Domestic fowl Ulna 1 0 0 0 0
012AD08007 Domestic goose Femur C 1 0 0 1 0
012AD08007 Domestic goose Ulna 1 0 0 0 0
012AD08007 Hare spp. Humerus D 1 0 0 0 0
012AD08007 Hare spp. Radius P 1 0 0 0 1
012AD08007 Horse Patella 1 1 0 0 0
012AD08007 Horse Phalanx 1 1 0 0 0 0
012AD08007 Pig Mandible 1 0 0 0 0
012AD08007 Pig Pelvis 1 0 0 1 1
012AD08007 Pig Pelvis fr 1 0 0 0 0
012AD08007 Pig Tibia br 1 0 0 0 0
012AD08007 Sheep Astragalus 1 0 0 0 0
012AD08007 Sheep Calcaneum 2 0 0 0 0
012AD08007 Sheep Humerus D 1 0 0 1 0
012AD08007 Sheep Humerus D 1 0 0 0 0
012AD08007 Sheep Humerus D 1 0 0 1 0
012AD08007 Sheep M/C C 1 0 0 0 0
012AD08007 Sheep M/C D 1 0 0 0 0
012AD08007 Sheep M/C P 1 0 0 0 0
012AD08007 Sheep M/C P 1 0 0 0 1
012AD08007 Sheep M/C P 2 0 0 0 0
012AD08007 Sheep M/C P 1 0 0 0 0
012AD08007 Sheep M/T br 1 0 0 0 0
012AD08007 Sheep M/T C 2 0 0 0 1
012AD08007 Sheep M/T D 1 0 0 0 1
012AD08007 Sheep M/T D 1 0 0 0 0
012AD08007 Sheep M/T P 1 0 0 0 0
012AD08007 Sheep M/T P 1 0 0 0 0
012AD08007 Sheep Mandible 2 0 0 0 2
012AD08007 Sheep Mandible 1 0 0 0 1
012AD08007 Sheep Mandible 1 0 0 0 0
012AD08007 Sheep Mandible 1 0 0 0 0
012AD08007 Sheep Tibia D 1 0 0 0 0
012AD08007 Sheep/Goat Astragalus 1 0 0 1 0
012AD08007 Sheep/Goat Femur C 1 0 0 0 1
012AD08007 Sheep/Goat Femur D 2 0 0 0 0
012AD08007 Sheep/Goat Humerus D 1 0 0 0 0
012AD08007 Sheep/Goat Humerus D 1 0 0 0 0
012AD08007 Sheep/Goat Humerus D 2 0 1 0 0
012AD08007 Sheep/Goat Humerus P 1 0 0 0 1
012AD08007 Sheep/Goat Hyoid 1 0 0 0 0
012AD08007 Sheep/Goat M/C D 1 0 0 0 0
012AD08007 Sheep/Goat Mand fr 1 0 0 0 0
012AD08007 Sheep/Goat Mandible 1 0 0 0 0
012AD08007 Sheep/Goat Mandible 2 1 0 0 0
012AD08007 Sheep/Goat Mandible 1 0 0 0 0
012AD08007 Sheep/Goat Pelvis 1 0 0 0 0
012AD08007 Sheep/Goat Pelvis 1 0 0 0 1
012AD08007 Sheep/Goat Pelvis fr 1 0 0 0 1
012AD08007 Sheep/Goat Pelvis fr 1 0 0 1 0
012AD08007 Sheep/Goat Pelvis fr 1 0 0 1 0
012AD08007 Sheep/Goat Phalanx 1 1 0 0 0 0
012AD08007 Sheep/Goat Radius D 1 0 0 0 0
012AD08007 Sheep/Goat Radius D 1 1 0 0 0
012AD08007 Sheep/Goat Radius P 1 0 0 0 1
012AD08007 Sheep/Goat Sacrum 1 0 0 0 0
012AD08007 Sheep/Goat Scapula 1 1 0 0 0
012AD08007 Sheep/Goat Scapula 1 0 0 0 1
012AD08007 Sheep/Goat Scapula 1 0 0 0 1
012AD08007 Sheep/Goat Scapula 1 0 0 0 0
012AD08007 Sheep/Goat Tibia C 1 0 0 0 0
012AD08007 Sheep/Goat Tibia D 1 0 0 0 0
012AD08007 Sheep/Goat Tibia D 1 0 0 0 0
012AD08007 Sheep/Goat Tibia P 1 0 0 0 0
012AD08007 Sheep/Goat Ulna 1 0 0 0 0
012AD08165 Cattle M/T C 1 0 0 0 0
012AD08165 Cattle Phalanx 1 1 0 0 0 0
012AD08165 Cattle Skull fr 2 0 0 0 0
012AD08165 Cattle Ulna 1 0 0 0 0
012AD08165 Domestic goose Femur C 1 0 0 0 0
012AD08165 Pig Tibia D 1 0 0 0 0
012AD08165 Sheep M/T D 1 0 0 0 0
012AD08165 Sheep M/T P 1 0 0 0 0
012AD08165 Sheep/Goat Femur P 1 0 0 0 0
012AD08165 Sheep/Goat M/T C 1 0 0 0 0
012AD08165 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD08165 Sheep/Goat Scapula 1 0 0 0 0
012AD08165 Sheep/Goat Ulna 1 0 0 0 1
012AD08176 Cattle Astragalus 1 0 0 0 0
012AD08176 Cattle Calcaneum 1 0 1 0 0
012AD08176 Cattle M/C C 1 0 0 0 0
012AD08176 Cattle Phalanx 1 1 1 0 0 0
012AD08176 Cattle Scapula 1 0 0 1 0
012AD08176 Cattle Scapula 1 0 0 0 0
012AD08176 Deer spp. Antler 1 0 0 1 0
012AD08176 Domestic fowl Carpom/c 1 0 0 0 0
012AD08176 Domestic goose Femur C 1 0 0 0 0
012AD08176 Domestic goose Femur C 1 0 0 0 0
012AD08176 Horse Phalanx 2 1 0 0 0 0
012AD08176 Sheep Horncore 1 0 0 0 0
012AD08176 Sheep M/C P 1 0 0 0 0
012AD08176 Sheep Mandible 1 0 0 0 0
012AD08176 Sheep Mandible 2 0 0 0 0
012AD08176 Sheep/Goat Femur D 1 0 0 0 0
012AD08176 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD08176 Sheep/Goat Pelvis fr 2 0 0 1 0
012AD08176 Sheep/Goat Radius D 1 0 0 0 0
012AD08176 Sheep/Goat Radius P 1 0 0 0 0
012AD08176 Sheep/Goat Scapula 1 0 0 0 0
012AD08176 Sheep/Goat Ulna 1 0 0 0 0
012AD08176 Wild/domestic goose Tibia D 1 0 0 0 0
012AD08207 Cattle Calcaneum 1 0 0 0 1
012AD08207 Cattle Scapula 1 0 0 1 0
012AD08207 Cattle Skull fr 1 0 0 0 0
012AD08207 Domestic goose Coracoid 1 0 0 0 0
012AD08207 Domestic goose Femur C 1 0 0 0 0
012AD08207 Domestic goose Radius C 1 0 0 0 0
012AD08207 Domestic goose Tarsom/t 1 0 0 0 0
012AD08207 Domestic goose Ulna 1 0 0 0 0
012AD08207 Domestic goose Ulna 1 0 0 0 0
012AD08207 Sheep Calcaneum 1 0 0 0 0
012AD08207 Sheep Calcaneum 1 0 0 0 0
012AD08207 Sheep Horncore 1 0 0 1 0
012AD08207 Sheep Humerus C 1 0 0 0 0
012AD08207 Sheep M/T D 2 0 0 0 0
012AD08207 Sheep/Goat Atlas 1 0 0 0 0
012AD08207 Sheep/Goat Femur P 1 0 0 0 0
012AD08207 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD08207 Sheep/Goat Radius C 1 0 0 0 0
012AD08207 Sheep/Goat Scapula 1 0 0 0 1
012AD08207 Sheep/Goat Scapula 1 0 0 0 1
012AD08207 Sheep/Goat Tibia br 1 0 0 0 0
012AD08207 Sheep/Goat Tibia D 1 0 0 1 0
012AD08207 Sheep/Goat Tibia D 1 0 0 0 0
012AD08207 Sheep/Goat Tibia P 1 0 0 0 0
012AD08207 Wild/domestic goose Tibia D 1 0 0 0 0
012AD08239 Cattle Humerus br 1 1 0 0 1
012AD08243 Cattle M/C D 1 0 0 0 0
012AD08243 Cattle Mand fr 1 0 0 0 0
012AD08243 Cattle Pelvis fr 1 0 0 0 0
012AD08243 Cattle Skull fr 1 0 0 0 0
012AD08243 Domestic fowl Radius C 1 0 0 0 0
012AD08243 Domestic goose Coracoid 1 0 0 0 0
012AD08243 Sheep Humerus D 1 0 0 0 0
012AD08243 Sheep Mandible 1 0 0 0 0
012AD08243 Sheep Tibia D 1 0 0 0 0
012AD08243 Sheep/Goat Pelvis 1 0 0 1 0
012AD08243 Sheep/Goat Radius P 1 1 0 0 0
012AD08243 Sheep/Goat Tibia br 1 0 0 0 0
012AD08243 Sheep/Goat Ulna 1 0 0 0 0
012AD08243 Wild/domestic goose Humerus P 1 0 0 0 0
012AD08243 Wild/domestic goose Scapula 1 0 0 0 0
012AD08243 Wild/domestic goose Tibia C 1 0 0 0 0
012AD08330 Cattle Calcaneum 2 0 0 0 0
012AD08330 Cattle Femur D 1 0 0 0 0
012AD08330 Cattle Phalanx 1 1 0 0 0 0
012AD08330 Cattle Scapula 1 0 0 0 0
012AD08330 Sheep M/T br 1 0 0 0 0
012AD08330 Sheep Mandible 1 0 0 0 1
012AD08330 Sheep Mandible 1 0 0 0 0
012AD08330 Sheep/Goat Femur P 1 0 0 0 0
