012AD01002

Grubenhaus

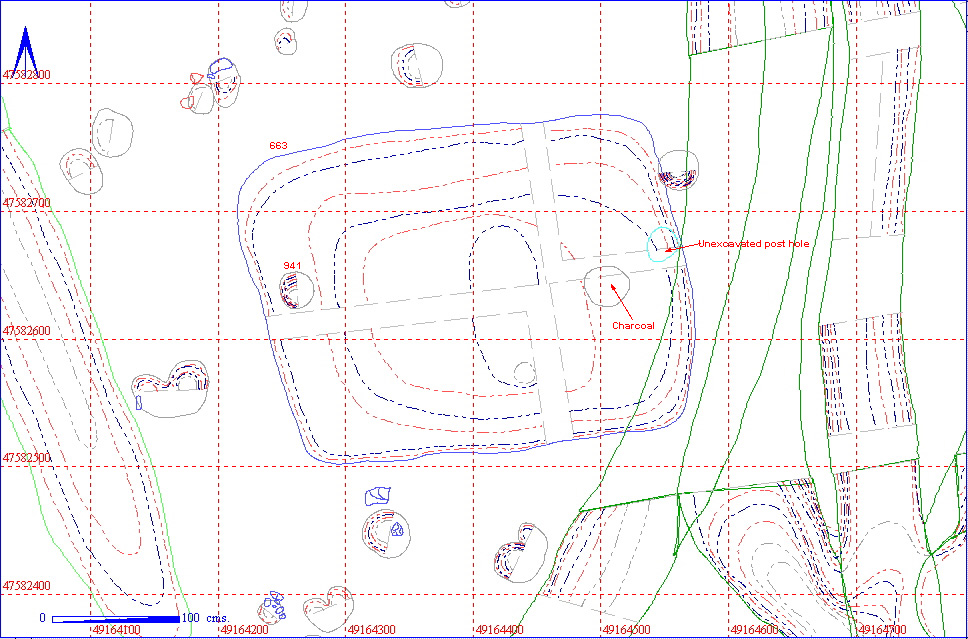

Grubenhaus Details
Length 335 Width 255 Depth 30 Ratio 1.3:1
Area  8.13 sq. m Volume
Number of Posts 1 (+ 1 unexcavated)
Highest Elevation Value  6600
Lowest Elevation Value 6570
Bearing   82 degrees
Structural Class
Material Culture Number of Objects 33 Number of Animal Bones 206
Environmental

Phasing

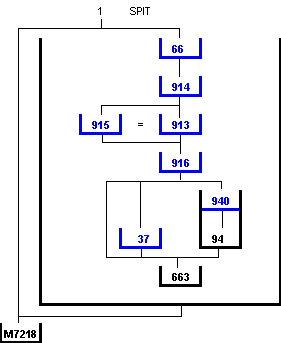

Stratigraphic Matrix Diagram

Discussion

 A small, east/west aligned Grubenhaus in central 12AD. The east side of the structure cut through enclosure ditch 012AD07218. The structure is surrounded by post holes forming post hole structure 012AD01001. The relationship between the two structures was not established although it is likely the post hole structure replaced the Grubenhaus (based on known relationships between structures). Five fills were distinguishable during excavation. The west side post hole (012AD00941) was recovered, the east side post hole was not excavated. Approximately 20 unfired clay loom-weights were recovered from the base of the structure, all within the north/west quadrant.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
 012AD01002
012AD00663
012AD00662
    3 48

012AD00913
    5 16

012AD00914
    11 67

012AD00915
     5

012AD00916
    13 70

012AD00937


012AD00941
012AD00940
    1

Object Totals by Material

012AD00662 Object Totals by Material

012AD00662 Pottery  3 4th Century

012AD00913 Object Totals by Material

012AD00913 Charcoal 1
  Daub  2
  Flint  1
  Pottery  1 Roman

012AD00914 Object Totals by Material

012AD00914 Flint  2
  Pottery  7 of which 4th Century 6 Roman 1
  Unfired Clay 1
  Worked Stone 1

012AD00916 Object Totals by Material

012AD00916 Charcoal  1
  Fired Clay  1
  Iron  3
  Pottery  8 of which 4th Century 6 Roman 2

012AD00940 Object Totals by Material

012AD00940 Pottery  1 4th Century

012AD00662 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD00662 Cattle
21
  Pig
6
  Sheep
5
  Sheep/Goat
12
  Wild/domestic goose
4

012AD00913 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD00913 Cattle
3
012AD00913 Domestic fowl/Pheasant
1
012AD00913 Pig
1
012AD00913 Sheep
4
012AD00913 Sheep/Goat
7

012AD00914 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD00914 Cat
1
012AD00914 Cattle
14
012AD00914 Domestic fowl
4
012AD00914 Domestic fowl/Pheasant
1
012AD00914 Horse
2
012AD00914 Pig
3
012AD00914 Sheep
12
012AD00914 Sheep/Goat
30

012AD00915 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD00915 Cattle
1
012AD00915 Domestic goose
1
012AD00915 Sheep
1
012AD00915 Sheep/Goat
1
012AD00915 Wild/domestic goose
1

012AD00916 Animal Bone Totals by Species

KEY_ID SPECIES No
012AD00916 Cat
1
012AD00916 Cattle
14
012AD00916 Domestic fowl
5
012AD00916 Domestic goose
1
012AD00916 Pig
7
012AD00916 Sheep
15
012AD00916 Sheep/Goat
26
012AD00916 Wild/domestic goose
1

Structural Details

012AD00663 Section and Notes

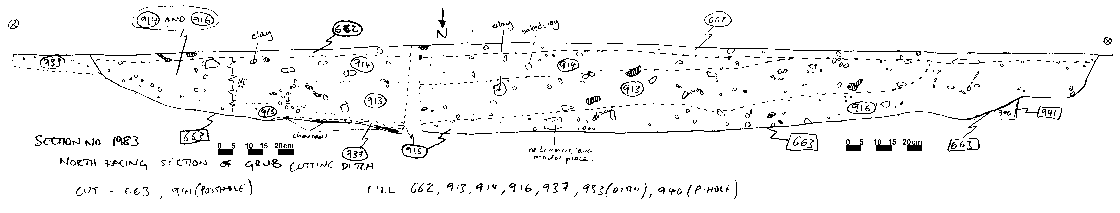

012AD00663 North Facing Section

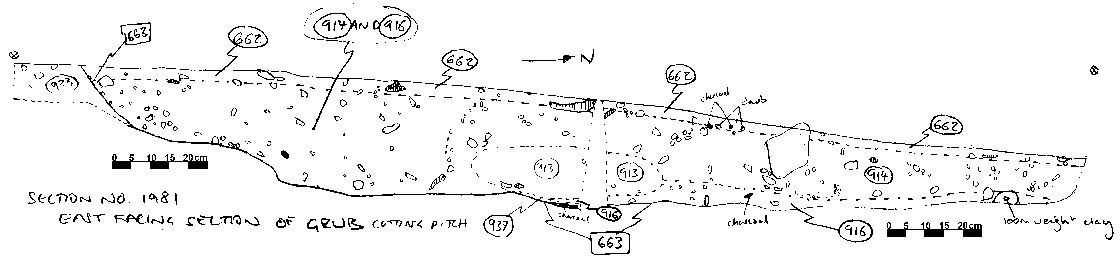

012AD00663 East Facing Section



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00662 GRUB FILL SUB-RECTANGULAR
403
259
8
 WIDE U GRUB FILL. DAUB AND CHARCOAL FLECKING. SOME POTTERY FOUN. BULK SAMPLED BONE. < 5% CHALK INCLUSION < 5CMS. LIES ABOVE FILLS 913/4/5/6.
012AD00663 GRUB CUT SUB-RECTANGULAR
403
259
30
 WIDE U GRUB CUT. CUT INTO HILLWASHOF 20% CHALK INCLUSIONS. CUTS DITCH 776/7/965. POSTHOLE 940/1 CUT INTO W END. A LOT OF LOOMWEIGHTS SIT ON BASE AT W END.
012AD00913 GRUB FILL OVATE
156
929
14
 IRREGULAR GRUB FILL. DAUBY LAYERIN GRUB 662/3. CHARCOAL AND DAUB FLECKING. BONE AND POT FOUND. BONE BULK AMPLED. 10% CHALK INCLUSIONS < 15CMS. = 915 DAUBY LAYER
012AD00914 GRUB FILL SUB-RECTANGULAR
325
261
14
 IRREGULAR GRUB FILL. BROWNER SOIL ABOVE DAUBY 913. BONE BULK SAMPLED. SOME POTTERY FOUND. DAUB AND CHARCOAL FLECKING. 5% CHALK INCLUSIONS < 5CMS.
012AD00915 GRUB FILL COMPLEX
55
36
6
 IRREGULAR GRUB FILL. LENS OF DAUBY FILL IN SW QUADRANT. = 913 DAUBY FILL IN NW QUAD. BONE BULK SAMPLED. POTTERY FOUND. CHALK INCLUSIONS < 5CMS.
012AD00916 GRUB FILL SUB-RECTANGULAR
325
261
8
 IRREGULAR GRUB FILL. BROWNER SOIL BENEATH DAUBY 913. IRON BLADE POTTERY.BONE BULK SAMP.UNFIRED CLAY LOOMWEIGHTS LIE ON BASE IN 916.DAUB/C14 FLECKS.5% CHALK <5CM
012AD00937 GRUB FILL COMPLEX
58
31
2
 FLAT GRUB FILL. CHARCOAL AND ASH LENS ON THE BASE OF GRUB 663. FOUND ONLY IN THE SE QUADRANT. DAUB FLECKING. 5% CHALK INCLUSIONS < 5CMS. 1 PIECE OF BONE.

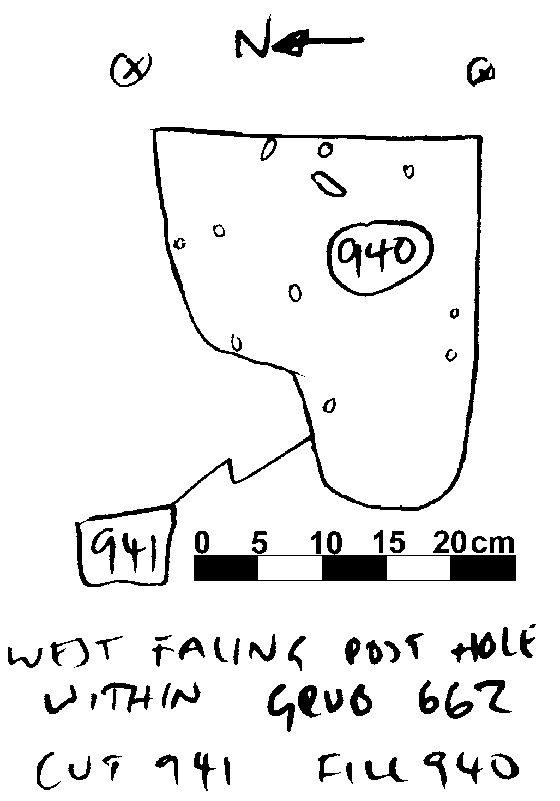

012AD00941 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00940 POST HOLE FILL OVATE
32
26
29
 STEPPED U POSTHOLE IN GRUB 662/3. BONE AND POTTERY FOUND. 5% CHALK INCLUSIONS < 5CMS. CHARCOAL AND DAUB FLECKING. MAY BE POSTPIPE AND POSTHOLE BUT SAME FILL.
012AD00941 POST HOLE CUT OVATE
32
26
29
 STEPPED U POSTHOLE CUT IN GRUB 662/3. CUT INTO HILLWASH OF 20% CHALK INCLUSIONS. SITS COMPLETELY IN NW QUADRANT WITH MANY LOOMWEIGHTS AROUND IT.

 Objects by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
012AD00662 AA 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00662 AB 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00662 AC 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00913 AB   CHARCOAL CHARCOAL SAMPLE
1
012AD00913 AC ROMAN/ANGLIAN DAUB DAUB
1
012AD00913 AE ROMAN/ANGLIAN DAUB DAUB
1
012AD00913 AD   FLINT FLINT FRAGMENT NATURAL
1
012AD00913 AA ROMAN POTTERY SHERD
1
012AD00914 AE   FLINT FLINT FRAGMENT NATURAL
1
012AD00914 AF   FLINT FLINT FRAGMENT NATURAL
1
012AD00914 AA 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00914 AB 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00914 AH 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00914 AI 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00914 AJ 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00914 AK 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00914 AC ROMAN POTTERY SHERD
1
012AD00914 AG   UNFIRED CLAY UNFIRED CLAY ?LOOMWEIGHT FRAG
1
012AD00914 AD   WORKED STONE ?WHETSTONE
1
012AD00916 AA   CHARCOAL CHARCOAL SAMPLE
1
012AD00916 AJ ?ANGLIAN FIRED CLAY LOOMWEIGHT FRAG
1
012AD00916 AC ROMAN/ANGLIAN IRON IRON KNIFE
1
012AD00916 AD ROMAN/ANGLIAN IRON IRON KNIFE
1
012AD00916 AB   IRON IRON OBJECT
1
012AD00916 AE 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00916 AF 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00916 AG 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00916 AH 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00916 AK 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00916 AL 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1
012AD00916 AI ROMAN POTTERY SHERD
1
012AD00916 AM ROMAN POTTERY SHERD
1
012AD00940 AA 4TH CENTURY POTTERY SHERD   ROMANO-BRITISH
1

Animal Bones by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
012AD00662 Cattle Astragalus 1 1 0 0 0
012AD00662 Cattle Astragalus 1 0 0 0 0
012AD00662 Cattle Axis 1 0 0 0 0
012AD00662 Cattle Calcaneum 1 0 0 0 0
012AD00662 Cattle Calcaneum 1 0 0 0 1
012AD00662 Cattle Femur D 1 1 0 0 1
012AD00662 Cattle Mand fr 1 0 0 0 0
012AD00662 Cattle Mand fr 1 0 0 0 0
012AD00662 Cattle Mand fr 1 0 0 0 1
012AD00662 Cattle Mand fr 1 0 0 0 0
012AD00662 Cattle Occiput 1 1 0 0 0
012AD00662 Cattle Phalanx 1 3 0 0 0 0
012AD00662 Cattle Phalanx 2 2 0 0 0 0
012AD00662 Cattle Phalanx 2 1 0 0 0 0
012AD00662 Cattle Phalanx 3 1 0 0 0 0
012AD00662 Cattle Radius D 1 1 0 0 0
012AD00662 Cattle Radius P 1 0 0 0 0
012AD00662 Cattle Radius P 1 1 0 0 0
012AD00662 Cattle Tibia br 1 0 1 0 0
012AD00662 Cattle Tibia D 1 0 0 0 0
012AD00662 Cattle Ulna 1 0 0 0 1
012AD00662 Pig Astragalus 1 0 0 0 0
012AD00662 Pig Femur D 1 0 0 0 0
012AD00662 Pig M/C P 1 0 0 0 0
012AD00662 Pig Pelvis 1 0 0 0 0
012AD00662 Pig Tibia br 1 0 0 0 0
012AD00662 Pig Tibia D 1 0 0 0 1
012AD00662 Sheep Calcaneum 3 0 0 0 0
012AD00662 Sheep Humerus D 1 0 0 1 0
012AD00662 Sheep M/C D 1 0 0 0 0
012AD00662 Sheep Mandible 1 0 0 0 0
012AD00662 Sheep Radius P 1 1 0 0 0
012AD00662 Sheep/Goat Femur D 2 0 0 0 0
012AD00662 Sheep/Goat Femur D 1 0 0 0 0
012AD00662 Sheep/Goat Humerus P 1 0 0 0 0
012AD00662 Sheep/Goat Hyoid 1 0 0 0 0
012AD00662 Sheep/Goat LM3 1 0 0 0 0
012AD00662 Sheep/Goat LM3 1 0 0 0 0
012AD00662 Sheep/Goat M/T P 1 1 0 0 0
012AD00662 Sheep/Goat Mandible 1 0 0 0 0
012AD00662 Sheep/Goat N.Cuboid 1 0 0 0 0
012AD00662 Sheep/Goat Skull fr 2 0 0 0 0
012AD00662 Sheep/Goat Tibia P 1 0 0 0 0
012AD00662 Sheep/Goat Ulna 1 0 0 0 0
012AD00662 Wild/domestic goose Radius P 1 0 0 0 0
012AD00662 Wild/domestic goose Tibia D 1 0 0 0 0
012AD00662 Wild/domestic goose Tibia D 1 0 0 0 0
012AD00662 Wild/domestic goose Ulna 1 0 0 0 0
012AD00913 Cattle Calcaneum 1 0 0 0 0
012AD00913 Cattle Phalanx 1 1 0 0 0 0
012AD00913 Cattle Phalanx 3 1 0 0 0 0
012AD00913 Domestic fowl/Pheasant Tibia C 1 0 0 0 0
012AD00913 Pig Phalanx 1 1 0 0 0 0
012AD00913 Sheep Horncore 1 0 0 0 0
012AD00913 Sheep M/T D 1 0 0 0 0
012AD00913 Sheep M/T D 1 0 0 0 0
012AD00913 Sheep Phalanx 2 1 0 0 0 0
012AD00913 Sheep/Goat Hyoid 1 0 0 0 0
012AD00913 Sheep/Goat Pelvis 1 0 0 1 0
012AD00913 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD00913 Sheep/Goat Phalanx 1 1 0 0 0 0
012AD00913 Sheep/Goat Scapula 1 0 0 0 1
012AD00913 Sheep/Goat Skull fr 1 0 0 0 0
012AD00913 Sheep/Goat Skull fr 1 0 0 0 0
012AD00914 Cat Femur P 1 0 0 0 1
012AD00914 Cattle Astragalus 1 0 0 0 0
012AD00914 Cattle Atlas 1 0 0 1 0
012AD00914 Cattle Femur P 1 0 0 0 1
012AD00914 Cattle Horncore 1 0 0 0 0
012AD00914 Cattle Humerus D 1 0 0 0 1
012AD00914 Cattle N.Cuboid 1 0 0 1 0
012AD00914 Cattle Pelvis 1 0 0 1 0
012AD00914 Cattle Pelvis fr 1 0 0 0 0
012AD00914 Cattle Phalanx 1 1 0 0 0 0
012AD00914 Cattle Phalanx 1 1 0 0 0 0
012AD00914 Cattle Phalanx 1 1 0 0 0 0
012AD00914 Cattle Phalanx 2 1 0 0 0 0
012AD00914 Cattle Phalanx 2 1 0 0 0 0
012AD00914 Cattle Phalanx 3 1 0 0 0 0
012AD00914 Domestic fowl Femur C 1 0 0 0 0
012AD00914 Domestic fowl Humerus C 1 0 0 0 0
012AD00914 Domestic fowl Humerus C 1 1 0 0 0
012AD00914 Domestic fowl Tarsom/t 2 0 0 0 0
012AD00914 Domestic fowl/Pheasant Femur D 1 0 0 0 0
012AD00914 Horse Humerus D 1 0 0 0 0
012AD00914 Horse Skull fr 1 0 0 0 0
012AD00914 Pig Calcaneum 1 0 0 0 0
012AD00914 Pig Humerus D 1 1 0 0 0
012AD00914 Pig Radius P 1 1 0 0 1
012AD00914 Sheep Calcaneum 1 0 0 0 0
012AD00914 Sheep M/C P 1 0 0 0 0
012AD00914 Sheep M/T br 1 1 0 0 0
012AD00914 Sheep M/T D 1 0 0 0 0
012AD00914 Sheep M/T P 1 0 0 0 0
012AD00914 Sheep M/T P 1 0 0 0 0
012AD00914 Sheep Phalanx 1 1 0 0 0 0
012AD00914 Sheep Phalanx 1 5 0 0 1 0
012AD00914 Sheep Radius D 1 0 0 0 0
012AD00914 Sheep Radius P 1 0 0 0 0
012AD00914 Sheep Tibia D 1 0 0 0 0
012AD00914 Sheep Tibia D 1 0 0 0 0
012AD00914 Sheep/Goat Atlas 1 0 0 0 0
012AD00914 Sheep/Goat Axis 1 0 0 0 1
012AD00914 Sheep/Goat Femur br 1 0 0 0 0
012AD00914 Sheep/Goat Femur D 1 0 0 0 0
012AD00914 Sheep/Goat Humerus C 1 0 0 0 0
012AD00914 Sheep/Goat Humerus D 1 0 0 0 0
012AD00914 Sheep/Goat Humerus P 1 0 0 0 1
012AD00914 Sheep/Goat LM3 5 0 0 0 0
012AD00914 Sheep/Goat M/C D 1 0 0 0 0
012AD00914 Sheep/Goat M/C D 1 0 0 0 0
012AD00914 Sheep/Goat M/T P 1 0 0 0 0
012AD00914 Sheep/Goat Mand fr 1 0 0 0 1
012AD00914 Sheep/Goat Mand fr 1 0 0 0 1
012AD00914 Sheep/Goat Mand fr 1 0 0 0 0
012AD00914 Sheep/Goat Mandible 1 0 0 0 0
012AD00914 Sheep/Goat Mandible 1 0 0 0 1
012AD00914 Sheep/Goat Mandible 1 0 0 0 0
012AD00914 Sheep/Goat Pelvis 1 0 0 1 0
012AD00914 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD00914 Sheep/Goat Pelvis fr 1 0 0 0 1
012AD00914 Sheep/Goat Pelvis fr 1 1 0 0 0
012AD00914 Sheep/Goat Phalanx 1 1 0 0 0 0
012AD00914 Sheep/Goat Radius br 3 2 0 0 1
012AD00914 Sheep/Goat Scapula 1 0 0 0 0
012AD00914 Sheep/Goat Tibia D 1 0 0 0 1
012AD00914 Sheep/Goat Tibia P 1 1 0 0 0
012AD00914 Sheep/Goat Tibia P 1 0 0 0 0
012AD00914 Sheep/Goat Ulna 1 1 0 0 0
012AD00914 Sheep/Goat Ulna 1 0 0 0 0
012AD00914 Sheep/Goat Ulna 1 0 0 0 0
012AD00915 Cattle Tibia D 1 0 0 0 0
012AD00915 Domestic goose Ulna 1 0 0 0 0
012AD00915 Sheep Phalanx 1 1 0 0 0 0
012AD00915 Sheep/Goat Astragalus 1 0 1 0 0
012AD00915 Wild/domestic goose Radius C 1 0 0 0 0
012AD00916 Cat Mandible 1 0 0 0 0
012AD00916 Cattle Ld4 1 0 0 0 0
012AD00916 Cattle M/C D 1 1 0 0 1
012AD00916 Cattle M/C P 1 0 0 0 0
012AD00916 Cattle M/C P 1 0 0 0 1
012AD00916 Cattle Pelvis fr 1 0 0 1 0
012AD00916 Cattle Pelvis fr 1 0 0 0 0
012AD00916 Cattle Phalanx 1 2 2 0 0 0
012AD00916 Cattle Phalanx 3 2 0 0 0 0
012AD00916 Cattle Phalanx 3 2 0 0 0 0
012AD00916 Cattle Radius br 1 1 0 0 1
012AD00916 Cattle Radius D 1 1 0 0 0
012AD00916 Cattle Radius fr 1 0 0 0 0
012AD00916 Cattle Radius P 1 0 0 0 0
012AD00916 Cattle Ulna 1 0 0 0 0
012AD00916 Domestic fowl Carpom/c 1 0 0 0 0
012AD00916 Domestic fowl Radius C 1 0 0 0 0
012AD00916 Domestic fowl Tarsom/t 1 0 0 0 0
012AD00916 Domestic fowl Tarsom/t 1 0 0 0 0
012AD00916 Domestic fowl Tibia D 1 0 0 0 0
012AD00916 Domestic goose Radius P 1 0 0 0 0
012AD00916 Pig Femur D 1 0 0 0 0
012AD00916 Pig Humerus P 1 0 0 0 0
012AD00916 Pig Pelvis 1 1 0 0 0
012AD00916 Pig Pelvis 1 1 0 1 0
012AD00916 Pig Scapula 1 0 0 0 1
012AD00916 Pig Scapula 1 0 0 0 0
012AD00916 Pig U Canine 1 0 0 0 0
012AD00916 Sheep Astragalus 2 0 0 2 0
012AD00916 Sheep Horncore 1 0 0 0 0
012AD00916 Sheep Ld4 1 0 0 0 0
012AD00916 Sheep M/C D 1 0 0 0 0
012AD00916 Sheep M/T D 1 1 0 0 1
012AD00916 Sheep M/T D 1 0 0 0 0
012AD00916 Sheep M/T P 1 1 0 0 0
012AD00916 Sheep Mandible 1 0 0 0 1
012AD00916 Sheep Mandible 1 0 0 0 0
012AD00916 Sheep Mandible 1 0 0 0 0
012AD00916 Sheep Phalanx 1 2 0 0 0 0
012AD00916 Sheep Phalanx 1 1 0 0 0 0
012AD00916 Sheep Phalanx 2 1 0 1 0 0
012AD00916 Sheep Phalanx 3 1 0 0 0 0
012AD00916 Sheep Radius D 1 0 0 0 0
012AD00916 Sheep/Goat Astragalus 1 0 0 0 0
012AD00916 Sheep/Goat Astragalus 1 0 0 0 0
012AD00916 Sheep/Goat Calcaneum 1 0 0 0 0
012AD00916 Sheep/Goat Femur D 1 0 0 1 0
012AD00916 Sheep/Goat Femur P 1 0 0 1 0
012AD00916 Sheep/Goat Humerus br 1 0 0 1 0
012AD00916 Sheep/Goat Humerus D 1 0 0 1 0
012AD00916 Sheep/Goat Humerus P 1 0 0 0 0
012AD00916 Sheep/Goat LM3 1 0 0 0 0
012AD00916 Sheep/Goat LM3 1 0 0 0 0
012AD00916 Sheep/Goat Mand fr 1 0 0 0 0
012AD00916 Sheep/Goat Mand fr 1 0 0 0 0
012AD00916 Sheep/Goat Mand fr 1 0 0 0 1
012AD00916 Sheep/Goat Mandible 1 0 0 0 0
012AD00916 Sheep/Goat Mandible 1 0 0 0 1
012AD00916 Sheep/Goat N.Cuboid 1 0 0 1 0
012AD00916 Sheep/Goat Patella 1 0 0 0 0
012AD00916 Sheep/Goat Pelvis 1 0 0 0 0
012AD00916 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD00916 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD00916 Sheep/Goat Phalanx 2 1 0 0 0 0
012AD00916 Sheep/Goat Scapula 2 0 0 0 1
012AD00916 Sheep/Goat Scapula 1 0 0 0 1
012AD00916 Sheep/Goat Skull fr 1 0 0 0 0
012AD00916 Sheep/Goat Tibia D 1 0 0 0 0
012AD00916 Sheep/Goat Tibia D 1 0 0 0 0
012AD00916 Wild/domestic goose Humerus D 1 0 0 0 0
