ad1001d

012AD01001

Post Hole Structure

Post-Hole Structure Details

Length

800

Width

375

Area

30.00 sq. m

Ratio

2.1:1

Number of Posts

Deepest

012AD00939

Shallowest

012AD08545

Average Depth

North Wall

11 Posts

Average Depth

East Wall

1 Post

Average Depth

South Wall

6 Posts

Average Depth

16.5

West Wall

3 Posts

Average Depth

Interior Divisions:

Large double post hole in centre may form partition wall.

Highest Elevation Value

6620

012AD00990

Lowest Elevation Value

6555

012AD00939

Bearing

65 degrees

Plank\Post

Post

Doorways

Two centrally opposing in the long walls.

Repairs:

Structural Class

Material Culture

Number of Objects

Number of Animal Bones

Environmental

Phasing
Discussion

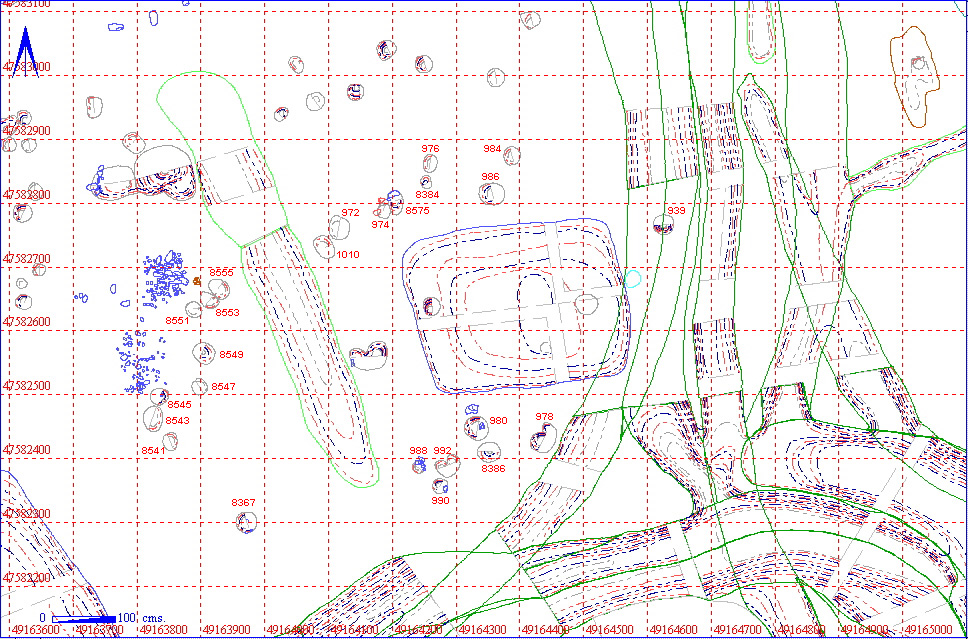

A NE/SW aligned post hole structure in central 12AD. The east end post holes of this structure surround east/west aligned Grubenhaus 012AD01002. The relationship between the two structures was not established although it is likely the post hole structure replaced the Grubenhaus (based on known relationships between structures elsewhere on site). A single post hole (012AD00939) was visible in the east side and this cut through the north/south enclosure ditch 012AD07070. Stone setting 012AD08083 appears to respect the north/west corner of the structure and is probably contemporary. A large, double post hole in the centre of the structure (012AD00982) could be structural and/or indicate the position of an internal partition. The doors appear to be centrally located in the long walls with post hole 012AD00980 in the south wall probably functioning as an internal door post.

All Contexts and Associated Finds Totals

MASTER	CUT	FILL	VOLUME	OBJECTS	AN BONE	DENSITY
012AD01001	012AD00939	012AD00938		3
	012AD00972	012AD00971
	012AD00974	012AD00973
	012AD00976	012AD00975		1
	012AD00978	012AD00977
	012AD00980	012AD00979
	012AD00982	012AD00981		3
	012AD00984	012AD00983		3
	012AD00986	012AD00985		2
	012AD00988	012AD00987		1
	012AD00990	012AD00989		1
	012AD00992	012AD00991
	012AD01010	012AD01009
	012AD08367	012AD08366		3
	012AD08384	012AD08383
	012AD08386	012AD08385
	012AD08541	012AD08540
	012AD08543	012AD08542
	012AD08545	012AD08544		1
	012AD08547	012AD08546
	012AD08549	012AD08548
	012AD08551	012AD08550
	012AD08553	012AD08552
	012AD08555	012AD08554
	012AD08575	012AD08574

Object Totals by Material

012AD00938 Object Totals by Material

012AD00938	Charcoal	1
	Unfired Clay	1

012AD00975 Object Totals by Material

012AD00975

Daub

012AD00981 Object Totals by Material

012AD00981	Daub	2
	Stone	1

012AD00983 Object Totals by Material

012AD00983

Pottery

of which

4^th Century

Roman

012AD00985 Object Totals by Material

012AD00985

Pottery

4^th Century

012AD00987 Object Totals by Material

012AD00987

Pottery

Roman

012AD00989 Object Totals by Material

012AD00989

Daub

012AD08366 Object Totals by Material

012AD08366

Pottery

Roman

012AD08544 Object Totals by Material

012AD08544

Pottery

Roman

Structural Details

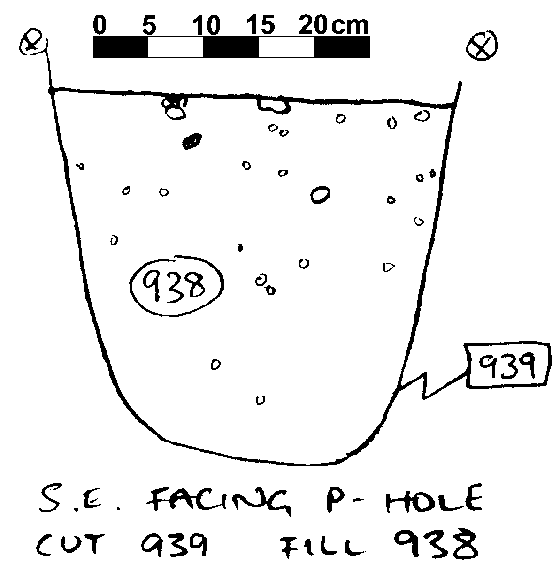

012AD00939 Section and Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00938	POST HOLE FILL	OVATE	44	36	29	U-SHAPED	POSTHOLE FILL. CHARCOAL AND BONE FOUND. HIGH CHARCOAL CONTENT BUT NO DAUB FLECKING. < 3% CHALK INCLUSIONS. CUT INTO DITCH 776.
012AD00939	POST HOLE CUT	OVATE	44	36	29	U-SHAPED	POSTHOLE CUT. CUT INTO DITCH 776. QUITE HARD TO FIND EDGES ALTHOUGH DID HAVE HIGH CHARCOAL CONTENT. MAY BE RELATED TO OTHER POSTHOLES AROUND GRUB 663.

012AD00972 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00971	POST HOLE FILL	OVATE	55	29	20	STEPPED U	POSTHOLE. FILL. A LOT OF DAUB AND CHARCOAL FLECKING. <5% CHALK INCLUSIONS. NO FINDS.
012AD00972	POST HOLE CUT	OVATE	55	29	20	STEPPED U	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. OVATE SHAPE WITH U SHAPED PROFILE. ONE OF SEVERAL POSTHOLES AROUND 662/3.

012AD00974 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00973	POST HOLE FILL	FIGURE 8	51	30	17	UNDULATING	POSTHOLE FILL. DOUBLE POSTHOLE. MORE CHARCOAL IN S PH. DAUB AND CHARCOAL FLECKING IN BOTH. POSTPACKING IN BOTH. <5% CHALK INCLUSIONS <2CMS. NO FINDS.
012AD00974	POST HOLE CUT	FIGURE 8	51	30	17	UNDULATING	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. DOUBLE POSTHOLE S PH DEEPER THAN N. U SHAPED PROFILES.

012AD00976 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00975	POST HOLE FILL	FIGURE 8	55	28	19	UNDULATING	POSTHOLE FILL. DOUBLE POSTHOLE. BONE DAUB CHARCOAL IN N PH. MORE CHARCOAL IN S FILL. BOTH DAUB AND CHARCOAL FLECKING. <5% CHALK INCLUSIONS < 2CMS.
012AD00976	POST HOLE CUT	FIGURE 8	55	28	19	UNDULATING	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. DOUBLE POSTHOLE BOTH WITH U SHAPE PROFILES. S PH STEEP S EDGE. N PH MORE WIDE U SHAPED PROFILE

012AD00978 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00977	POST HOLE FILL	FIGURE 8	53	29	27	UNDULATING	POSTHOLE FILL. 2 PIECES OF BONE. DAUB AND CHARCOAL FLECKING. <2% CHALK INCLUSIONS <1CM.
012AD00978	POST HOLE CUT	FIGURE 8	53	29	27	UNDULATING	POSTHOLE CUT. CUT INTO HILLWASH OF 15% CHALK INCLUSIONS. DOUBLE POSTHOLE WITH DEEPER S PH THAN N. ONE OF SEVERAL POSTHOLES SITUATED AROUND GRUB 662/3.

012AD00980 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00979	POST HOLE FILL	ROUND	38	35	24	U-SHAPED	POSTHOLE FILL. DAUB AND CHARCOAL FLECKING. <2% CHALK INCLUSIONS < 2CMS. 2 LARGER STONES OF CHALK AND FLINT POSTPACKING. NO FINDS.
012AD00980	POST HOLE CUT	ROUND	38	35	24	U-SHAPED	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. U SHAPED PROFILE. ONE OF SEVERAL POSTHOLES SURROUNDING GRUB 662/3.

012AD00982 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00981	POST HOLE FILL	FIGURE 8	62	38	27	UNDULATING	POSTHOLE FILL. DOUBLE POSTHOLE WITH DAUB + CHARCOAL FLECKING BUT MORE IN E PH. 5% CHALK INCLUSIONS <2CMS. BONE DAUB LIMESTONE FOUND. POSTPACKING IN W.
012AD00982	POST HOLE CUT	FIGURE 8	62	38	27	UNDULATING	POSTHOLE CUT. DOUBLE POSTHOLE WITH DEEPER E ONE. CUT INTO HILLWASH 10% CHALK INCLUSIONS. ONE OF SEV. SURROUNDING GRUB 662/3. U SHAPED PROFILES.

012AD00984 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00983	POST HOLE FILL	FIGURE 8	49	28	12	UNDULATING	POSTHOLE FILL.DOUBLE POSTHOLE WITH NO DAUB OR CHARCOAL FLECKING. BONE AND POTTERY FOUND. 5% CHALK INCLUSIONS. NOT AS CONVINCING AS OTHERS IN AREA.
012AD00984	POST HOLE CUT	FIGURE 8	49	28	12	UNDULATING	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. ONE OF SEVERAL POSTHOLES SURROUNDING GRUB 662/3. NOT AS CONVINCING AS OTHERS.

012AD00986 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00985	POST HOLE FILL	ROUND	24	22	10	U-SHAPED	POSTHOLE FILL. 5% CHALK INCLUSIONS. NO DAUB OR CHARCOAL FLECKING. NO FINDS.
012AD00986	POST HOLE CUT	ROUND	24	22	10	U-SHAPED	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. CIRCULAR WITH U SHAPED PROFILE. ONE OF SEVERAL POSTHOLES AROUND GRUB 662/3.

012AD00988 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00987	POST HOLE FILL	ROUND	25	24	13	U-SHAPED	POSTHOLE FILL. CHARCOAL BUT NO DAUB FLECKING. <2% CHAK INCLUSIONS EXCEPT FOR POSTPACKING. 5PIECES OF CHALK 1 SANDSTONE AV. 1085. NO FINDS.
012AD00988	POST HOLE CUT	ROUND	25	24	13	U-SHAPED	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. U SHAPED PROFILE. ONE OF SEVERAL POSTHOLES AROUND GRUB 662/3.

012AD00990 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00989	POST HOLE FILL	ROUND	26	23	16	U-SHAPED	POSTHOLE FILL. VERY LITTLE DAUB AND CHARCOAL FLECKING. < 2% CHALK INCLUSIONS. BONE AND DAUB FOUND.
012AD00990	POST HOLE CUT	ROUND	26	23	16	U-SHAPED	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. ONE OF SEVERAL POSTHOLES SURROUNDING GRUB 662/3.

012AD00992 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD00991	POST HOLE FILL	FIGURE 8	35	25	12	UNDULATING	POSTHOLE FILL. DOUBLE POSTHOLE. CHARCOAL AND DAUB FLECKING. IMPORTED STONE FOUND. <2% CHALK INCLUSIONS.
012AD00992	POST HOLE CUT	FIGURE 8	35	25	12	UNDULATING	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. ONE OF SEVERAL POSTHOLES SURROUNDING GRUB 662/3.

012AD01010 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD01009	POST HOLE FILL	OVATE	37	29	17	WIDE U	POSTOLE FILL. NO DAUB OR CHARCOAL FLECKING. 1 PIECE OF BONE FOUND. 5% CHALK INCLUSIONS < 7CMS.
012AD01010	POST HOLE CUT	OVATE	37	29	17	WIDE U	POSTHOLE CUT. CUT INTO HILLWASH OF 10% CHALK INCLUSIONS. OVATE WITH WIDE U PROFILE. ONE OF SEVERAL POSTHOLES AROUND GRUB 662/3.

012AD08367 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08366	POST HOLE FILL	ROUND	34	35	14	U-SHAPED	CONTAINED DAUB AND POTTERY. NO CHARCOAL FLECKING. PACKING INDICATES POST SITUATED IN SOUTH.
012AD08367	POST HOLE CUT	ROUND	34	35	14	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE. APPARENTLY ALONE-NO NEARBY POST HOLES.

012AD08384 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08383	POST HOLE FILL	ROUND	26	26	17	U-SHAPED	CONTAINED NO FINDS. NO DAUB OR CHARCOAL FLECKING. NO PACKING VISIBLE.
012AD08384	POST HOLE CUT	ROUND	26	26	17	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE.

012AD08386 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08385	POST HOLE FILL	ROUND	45	39	17	V-SHAPED	CONTAINED NO FINDS. NO CHARCOAL FLECKING BUT DAUB FLECKS IN SECTION. PACKING INDICATES POST WAS CENTRALLY PLACED.
012AD08386	POST HOLE CUT	ROUND	45	39	17	V-SHAPED	CUT INTO HILLWASH. ROUND WITH V SHAPED PROFILE. IMMEDIATELY TO S OF POST HOLE 979.

012AD08541 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08540	POST HOLE FILL	ROUND	29	28	13	U-SHAPED	CONTAINED ONE AN. BONE ONLY. DAUB AND CHARCOAL FLECKING. NO PACKING VISIBLE.
012AD08541	POST HOLE CUT	ROUND	29	28	13	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE.

012AD08543 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08542	POST HOLE FILL	ROUND	37	40	13	U-SHAPED	CONTAINED AN. BONE AND CHARCOAL. DAUB BUT NO CHARCOAL FLECKING. NO PACKING VISIBLE.
012AD08543	POST HOLE CUT	ROUND	37	40	13	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE. PART OF DOUBLE POST HOLE WITH 8544/8545.

012AD08545 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08544	POST HOLE FILL	ROUND	32	30	8	U-SHAPED	CONTAINED NO FINDS. DAUB AND CHARCOAL FLECKING. PACKING INDICATES POST SITUATED IN S. ALSO CONTAINED TINY SPECK OF UNFIRED CLAY.
012AD08545	POST HOLE CUT	ROUND	32	30	8	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE. PART OF DOUBLE POST HOLE WITH 8542/8543.

012AD08547 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08546	POST HOLE FILL	ROUND	27	27	10	FLAT BASED U	CONTAINED AN. BONE. DAUB AND CHARCOAL FLECKING. NO PACKING VISIBLE.
012AD08547	POST HOLE CUT	ROUND	27	27	10	FLAT BASED U	CUT INTO HILLWASH. ROUND WITH FLAT BASED U PROFILE.

012AD08549 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08548	POST HOLE FILL	ROUND	41	39	13	U-SHAPED	CONTAINED AN. BONE AND SMALL CHARCOAL LUMPS. DAUB AND CHARCOAL FLECKING. NO PACKING VISIBLE.
012AD08549	POST HOLE CUT	ROUND	41	39	13	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE.

012AD08551 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08550	POST HOLE FILL	ROUND	26	25	9	U-SHAPED	CONTAINED ONE AN. BONE. NO DAUB OR CHARCOAL FLECKING. NO PACKING VISIBLE.
012AD08551	POST HOLE CUT	ROUND	26	25	9	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE.

012AD08553 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08552	POST HOLE FILL	ROUND	25	23	13	U-SHAPED	CONTAINED ONE AN. BONE. SLIGHT DAUB BUT NO CHARCOAL FLECKING. PACKING AROUND SE EDGE INDICATES CENTRALLY PLACED POST.
012AD08553	POST HOLE CUT	ROUND	25	23	13	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE. ONE OF DOUBLE POST HOLE WITH 8554/8555. SLIGHTLY SHALLOWER THAN 8555.

012AD08555 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08554	POST HOLE FILL	ROUND	37	32	15	U-SHAPED	CONTAINED AN. BONE AND LUMPS OF DAUB AND CHARCOAL. NO PACKING VISIBLE.
012AD08555	POST HOLE CUT	ROUND	37	32	15	U-SHAPED	CUT INTO HILLWASH. ROUND WITH U SHAPED PROFILE. ONE OF DOUBLE POST HOLE WITH 8552/8553. SLIGHTLY DEEPER THAN 8553.

012AD08575 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
012AD08574	POST HOLE FILL	OVATE	43	27	16	U-SHAPED	CONTAINED NO FINDS. DAUB FLECKING THROUGHOUT. CHARCOAL RICH. LARGE CHALK FRAGMENT IN N INDICATES POST SITUATED IN S.
012AD08575	POST HOLE CUT	OVATE	43	27	16	U-SHAPED	CUT INTO HILLWASH. OVATE WITH U SHAPED PROFILE. TO E OF POST HOLE 973.

Objects By Context

KEY_ID	OBJ	PERIOD 1	PERIOD 2	MATERIAL	TYPE	SUB_TYPE	CLASS	No
012AD00938	AB			CHARCOAL	CHARCOAL SAMPLE			1
012AD00938	AC			CHARCOAL	CHARCOAL SAMPLE			1
012AD00938	AA			UNFIRED CLAY	UNFIRED CLAY			1
012AD00975	AA	ROMAN	ANGLIAN	DAUB	DAUB			1
012AD00981	AB	ROMAN	ANGLIAN	DAUB	DAUB			2
012AD00981	AC	ROMAN	ANGLIAN	DAUB	DAUB			1
012AD00981	AA			STONE	STONE	FOSSILIFEROUS		1
012AD00983	AB	4TH CENTURY		POTTERY	SHERD		ROMANO-BRITISH	1
012AD00983	AA	ROMAN		POTTERY	SHERD			1
012AD00983	AC	ROMAN		POTTERY	SHERD		ROMANO-BRITISH	1
012AD00985	AA	4TH CENTURY		POTTERY	SHERD		ROMANO-BRITISH	1
012AD00985	AB	4TH CENTURY		POTTERY	SHERD		ROMANO-BRITISH	1
012AD00987	AA	ROMAN		POTTERY	SHERD		ROMANO-BRITISH	1
012AD00989	AA	ROMAN	ANGLIAN	DAUB	DAUB			1
012AD08366	AA	ROMAN		POTTERY	SHERD		ROMANO-BRITISH	1
012AD08366	AB	ROMAN		POTTERY	SHERD		ROMANO-BRITISH	1
012AD08366	AC	ROMAN		POTTERY	SHERD		ROMANO-BRITISH	1
012AD08544	AA	ROMAN		POTTERY	SHERD		ROMANO-BRITISH	1
