?Post Hole Structure

Post-Hole Structure Details
Length 970 Width  420
Area  40.74 sq. m Ratio 2.3:1
Number of Posts 23 Deepest 25 012AB00908 Shallowest 3 012AB00224
Average Depth
 11
North Wall  7 Posts Average Depth 10
East Wall  4 Posts Average Depth 14
South Wall  4 Posts Average Depth 12
West Wall  8 Posts Average Depth 5
Interior Divisions:
Highest Elevation Value  6884  012AB00563
Lowest Elevation Value 6798  012AB00920
Bearing   71 degrees
Plank\Post Post
Doorways Unclear.
Repairs:
Structural Class
Material Culture Number of Objects  1 Number of Animal Bones 0
Environmental

Phasing

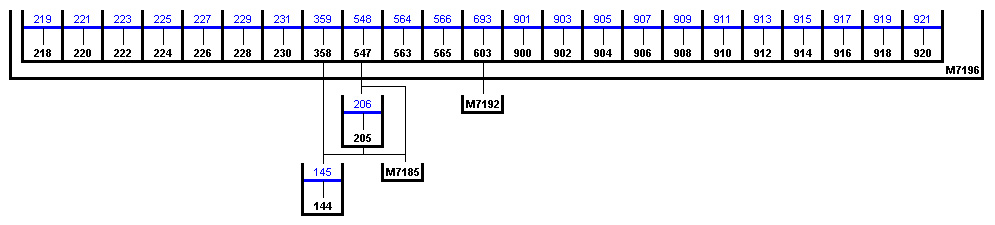

Stratigraphic Matrix Diagram

Discussion

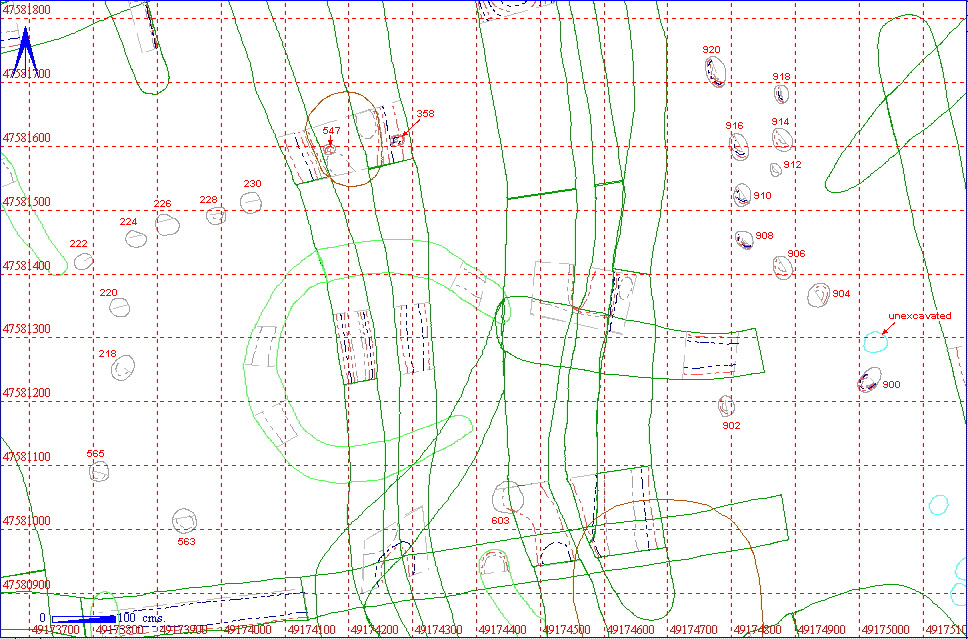

 A possible post hole structure in area 12AB. The complexity of features in the vicinity makes interpretation of the post holes in this area difficult. A structure rather than fence lines has been interpreted as the dimensions and alignment are typical of the majority of post hole buildings on site. The post holes appear to be relatively late in comparison with the ditches in the vicinity. Two of the north wall post holes (012AB00358 and 012AB00547) cut through two phases of north/south aligned ditches (012AB00144 and 012AB07185, respectively). Post hole 012AB00547 also cut through pit 012AB00205. A south wall post hole (012AB00603) cut through ditch 012AB07192. The south end of this ditch cut through Early Saxon Grubenhaus 012AB07004 so the two structures were not contemporary. Several of the post holes in the south/east corner contained evidence of burning.

All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME OBJECTS AN BONE DENSITY
 012AB07196
012AB00218
012AB00219
    1

012AB00220
012AB00221


012AB00222
012AB00223


012AB00224
012AB00225


012AB00226
012AB00227


012AB00228
012AB00229


012AB00230
012AB00231


012AB00358
012AB00359


012AB00547
012AB00548


012AB00563
012AB00564


012AB00565
012AB00566


012AB00603
012AB00693


012AB00900
012AB00901


012AB00902
012AB00903


012AB00904
012AB00905


012AB00906
012AB00907


012AB00908
012AB00909


012AB00910
012AB00911


012AB00912
012AB00913


012AB00914
012AB00915


012AB00916
012AB00917


012AB00918
012AB00919


012AB00920
012AB00921


Object Totals by Material

012AB00218 Object Totals by Material

KEY_ID PERIOD MATERIAL No
 012AA00218 ROMAN  POTTERY  1

Structural Details

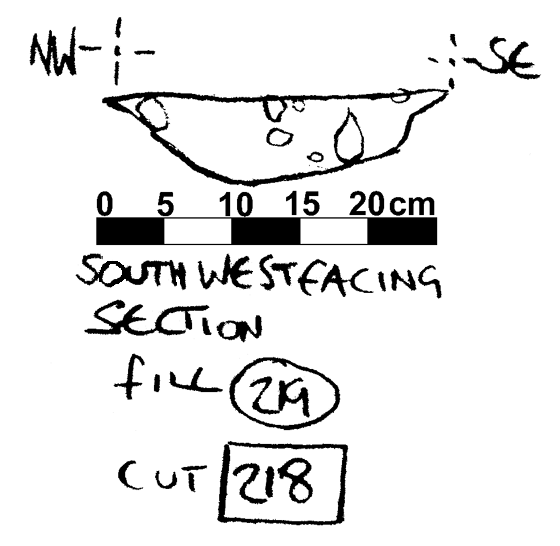

012AB00218 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00218 POST HOLE CUT SUB-CIRCULAR
25
25
5
 U-SHAPED CUT OF TRUNCATED POSTHOLE.
012AB00219 POST HOLE FILL SUB-CIRCULAR
25
25
5
 U-SHAPED FILL OF TRUNCATED POST HOLE INCLUSIONS OF CHALK <2CM 10%.

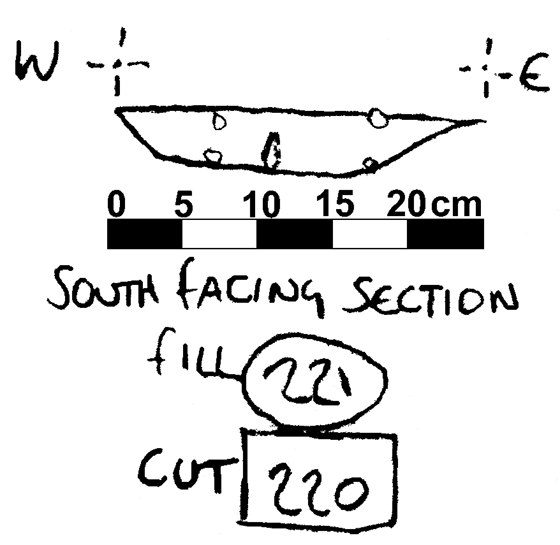

012AB00220 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00220 POST HOLE CUT SUB-CIRCULAR
25
25
4
 U-SHAPED CUT OF TRUNCATED POSTHOLE.
012AB00221 POST HOLE FILL SUB-CIRCULAR
25
25
4
 U-SHAPED FILL OF TRUNCATED POST HOLE INCLUSIONS OF CHALK <2CM 20%.

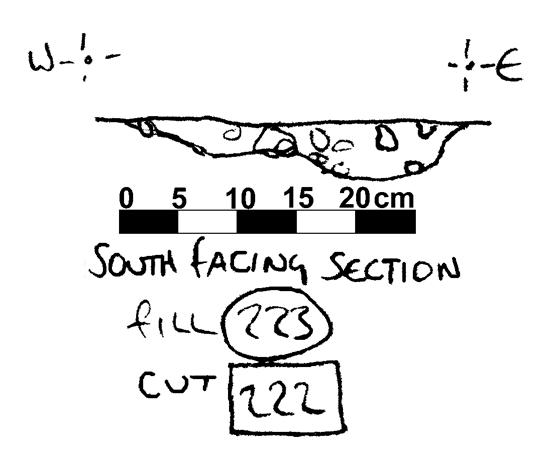

012AB00222 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00222 POST HOLE CUT SUB-CIRCULAR
20
20
4
 U-SHAPED CUT OF POST HOLE TRUNCATED. POSSIBLE ASSOCIATED WITH 228+230 IN A E-W ALIGNMENT.
012AB00223 POST HOLE FILL SUB-CIRCULAR
20
20
4
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<1CM 10%.

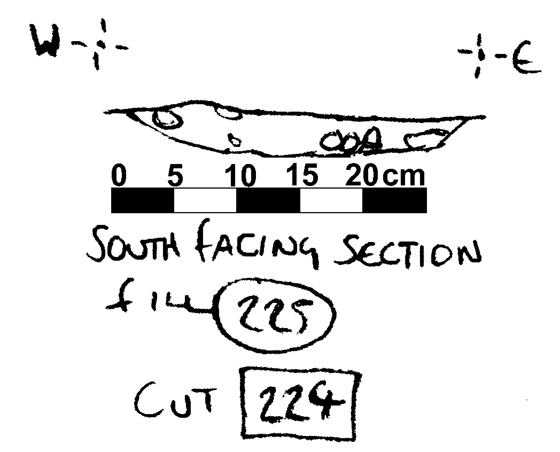

012AB00224 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00224 POST HOLE CUT SUB-CIRCULAR
26
20
3
 U-SHAPED CUT OF POST HOLE POSSIBLE IN E-W ALIGNMENT WITH 222+228+230+226
012AB00225 POST HOLE FILL SUB-CIRCULAR
26
20
30
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<1CM 10%

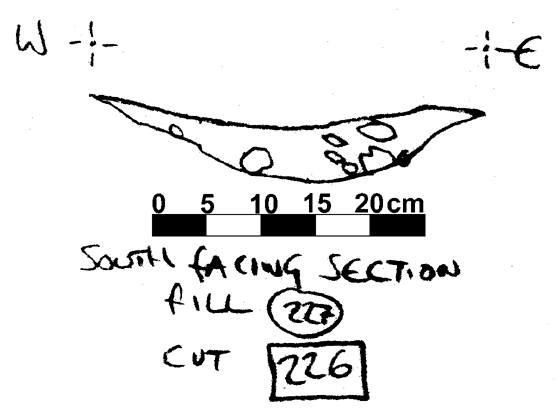

012AB00226 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00226 POST HOLE CUT SUB-CIRCULAR
36
33
4
 U-SHAPED CUT OF TRUNCATED POST HOLE IN AN E-W ALIGNMENT WITH 222+224+228+230
012AB00227 POST HOLE FILL SUB-CIRCULAR
36
33
4
 U-SHAPED TRUNCATED FILL OF POST HOLE INCLUSIONS OF CHALK <2CM 10%

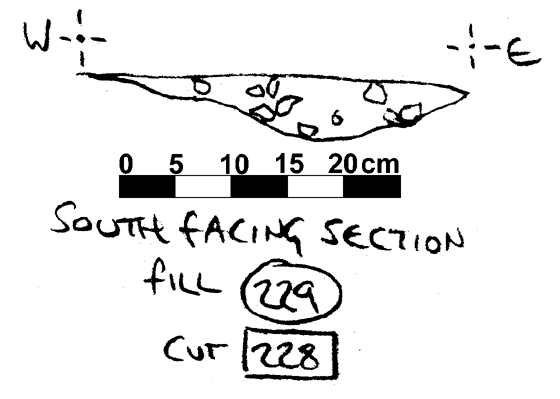

012AB00228 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00228 POST HOLE CUT SUB-CIRCULAR
30
30
7
 U-SHAPED CUT OF TRUNCATED POST HOLE IN POSSIBLE E-W ALIGNMENT WITH 230 226 224 222
012AB00229 POST HOLE FILL SUB-CIRCULAR
30
30
5
 U-SHAPED FILL OF TRUNCATED POST HOLE INCLUSIONS OF CHALK <2CM 10%

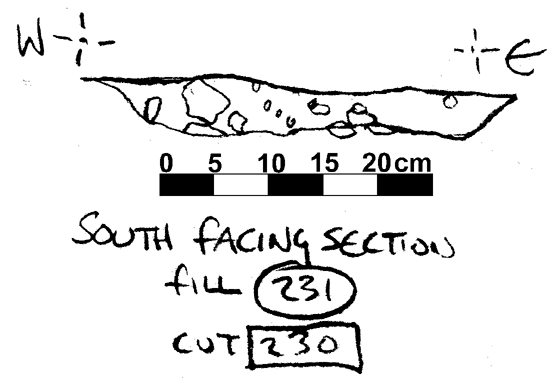

012AB00230 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00230 POST HOLE CUT SUB-CIRCULAR
40
30
4
 U-SHAPED CUT OF TRUNCATED POST HOLE IN E-W ALIGNMENT WITH 228+226+224+222
012AB00231 POST HOLE FILL SUB-CIRCULAR
40
30
3
 U-SHAPED FILL OF TRUNCATED POST HOLE INCLUSIONS OF CHALK<5CM 20%

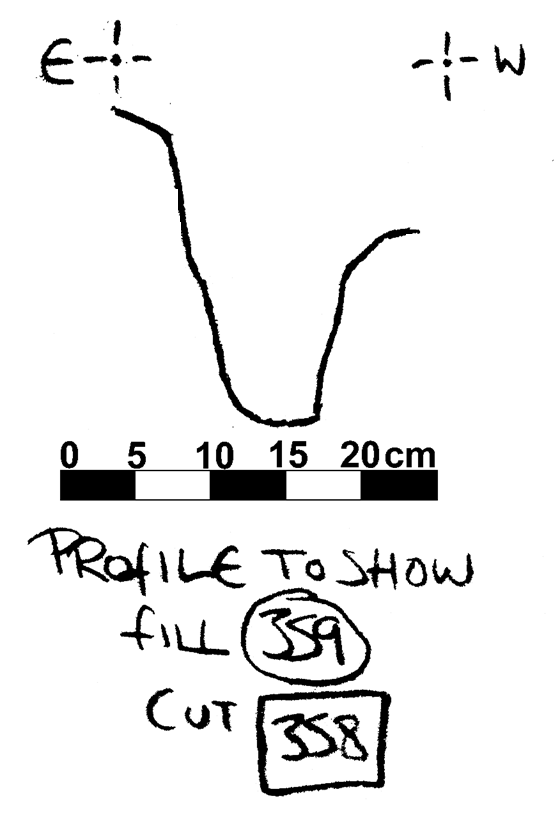

012AB00358 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00358 POST HOLE CUT SUB-CIRCULAR
15
15
18
 U-SHAPED CUT OF POST HOLE CUT INTO DITCH CUT 144 NO EVIDENCE OF IT IN FILL POSSIBLE ASSOCIATED WITH 547.
012AB00359 POST HOLE FILL SUB-CIRCULAR
15
15
18
 U-SHAPED FILL OF POST HOLE CHALK INCLUSIONS 15% <3CM IN DIAMETER.

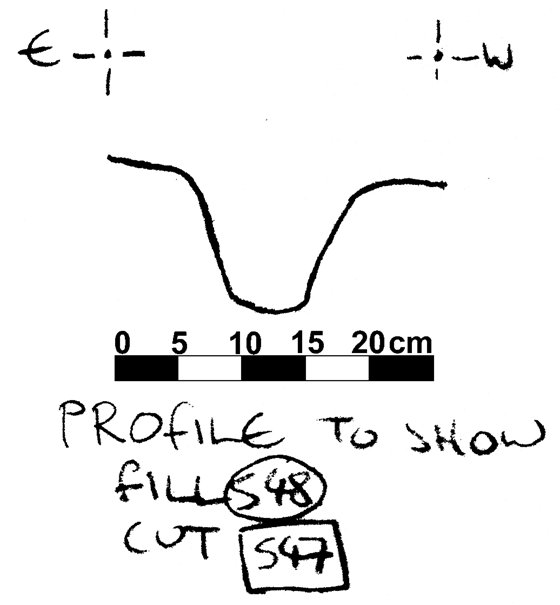

012AB00547 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00547 POST HOLE CUT SUB-CIRCULAR
16
16
12
 U-SHAPED CUT OF POST HOLE CUT INTO DITCH 548 POSSIBLE ASSOCIATED WITH359
012AB00548 POST HOLE FILL SUB-CIRCULAR
16
16
12
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK <2CM 15%

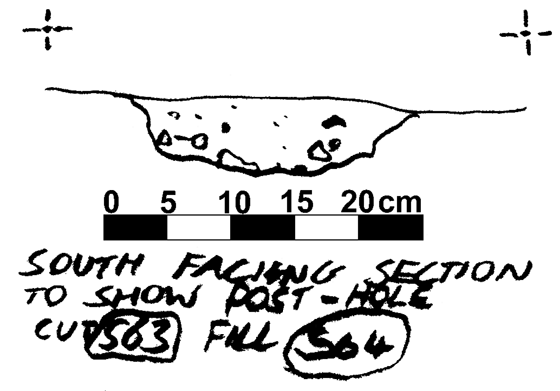

012AB00563 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00563 POST HOLE CUT SUB-CIRCULAR
30
30
6
 U-SHAPED CUT OF TRUNCATED POSTHOLE.
012AB00564 POST HOLE FILL SUB-CIRCULAR
30
30
6
 U-SHAPED FILL OF TRUNCATED POST HOLE INCLUSIONS OF CHALK <2CM 10%

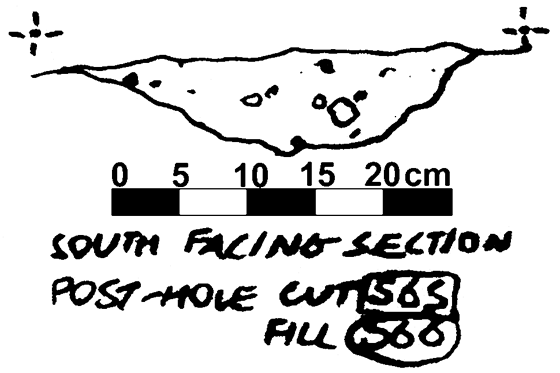

012AB00565 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00565 POST HOLE CUT SUB-CIRCULAR
29
26
7
 U-SHAPED CUT OF TRUNCATED POSTHOLE
012AB00566 POST HOLE FILL SUB-CIRCULAR
29
26
7
 U-SHAPED FILL OF TRUNCATED POST HOLE INCLUSIONS OF CHALK <2CM 5%

012AB00603 Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00603 POST HOLE CUT SUB-CIRCULAR
34
33
8
 U-SHAPED CUT OF TRUNCATED POST HOLE THAT CUTS INTO THE SIDE OF DITCH 210 209
012AB00693 POST HOLE FILL SUB-CIRCULAR
34
33
8
 U-SHAPED POST HOLE FILL OF POST HOLE CUT INTO THE SIDE OF DITCH CUT 209 POST PIPE NOT VISIBLE INCLUSIONS OF CHALK <2CM 10%

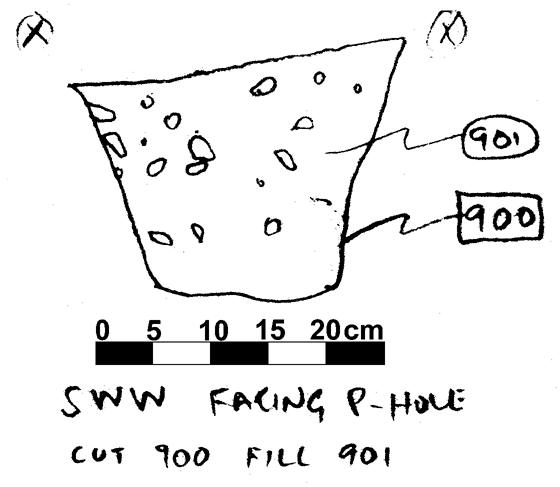

012AB00900 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00900 POST HOLE CUT SUB-CIRCULAR
40
25
20
 U-SHAPED CUT OF POST HOLE MORE SUBSTANTIAL THAN THE FENCELINE TO THE W
012AB00901 POST HOLE FILL SUB-CIRCULAR
40
25
20
 U-SHAPED FILL OF POST HOLE DARKER THAN SURROUNDING FILLS INCLUSIONS OF CHALK<5CM 15% CHARCOAL POSSIBLE INDICATIVE OF IN SITU BURNING OR COULD MERELY RELATE TO PRE-ERECTION CHARRING

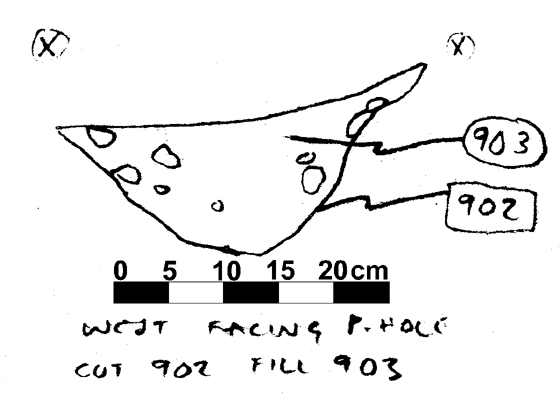

012AB00902 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00902 POST HOLE CUT SUB-CIRCULAR
30
25
15
 U-SHAPED CUT OF POST HOLE THAT FORMS AN E-W FENCELINE OR PART OF ONE.
012AB00903 POST HOLE FILL SUB-CIRCULAR
30
25
15
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<2CM 5% POST PIPE VISIBLE 12CM WIDE CHARCOAL POSSIBLE INDICATIVE OF PRE ERECTION CHARRING

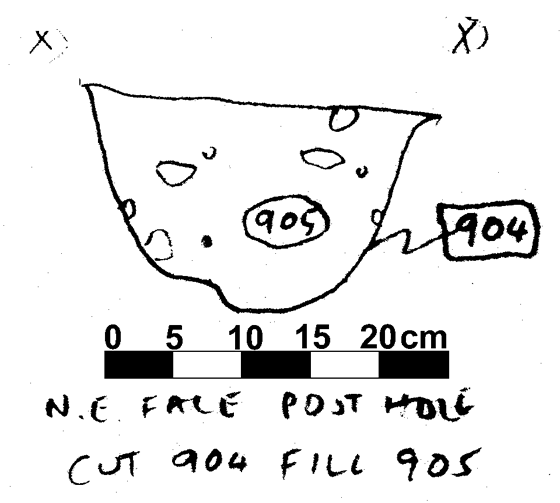

012AB00904 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00904 POST HOLE CUT SUB-CIRCULAR
30
20
10
 U-SHAPED CUT OF POST HOLE FORMS PART OF E-W FENCELINE
012AB00905 POST HOLE FILL SUB-CIRCULAR
30
20
10
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK <3CM 10% POSTPIPE VISIBLE 7CM WIDE CHARCOAL POSSIBLE INDICATIVE OF PRE-ERECTION CHARRING

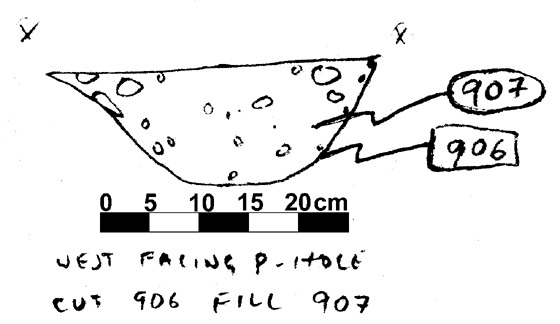

012AB00906 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00906 POST HOLE CUT SUB-CIRCULAR
25
25
10
 U-SHAPED CUT OF POST HOLE THAT FORMS PART OF AN E-W POST HOLE LINE.
012AB00907 POST HOLE FILL SUB-CIRCULAR
25
25
10
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<2CM 15% POSTPIPE VISIBLE 10CM WIDE CHARCOAL POSSIBLE INDICATIVE OF PRE-ERECTION CHARRING

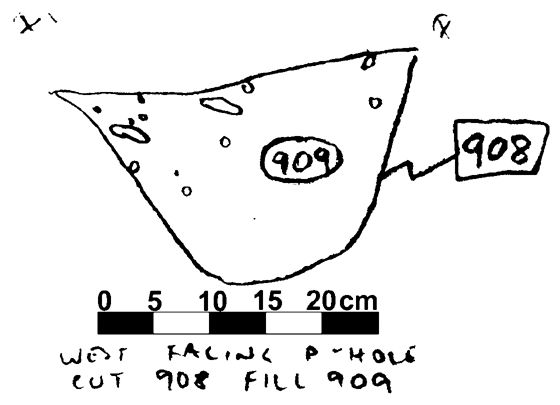

012AB00908 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00908 POST HOLE CUT SUB-CIRCULAR
35
25
25
 U-SHAPED CUT OF POST HOLE THAT FORMS AN E-W FENCELINE
012AB00909 POST HOLE FILL SUB-CIRCULAR
35
25
25
 U-SHAPED FILL OF POSTHOLE. INCLUSIONS OF CHARCOAL POSSIBLE AS A RESULT OF PRE-ERECTION POST CHARRING CHALK<2CM 15% POSTPIPE VISIBLE. 10CM WIDE

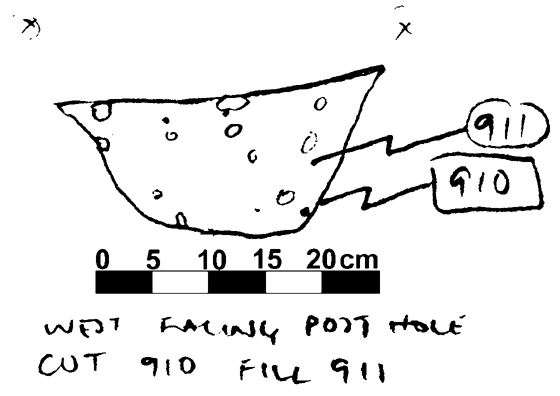

012AB00910 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00910 POST HOLE CUT SUB-CIRCULAR
25
25
20
 U-SHAPED CUT OF POST HOLE THAT FORMS PART OF AN E-W FENCELINE
012AB00911 POST HOLE FILL SUB-CIRCULAR
25
25
20
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<2CM 15%

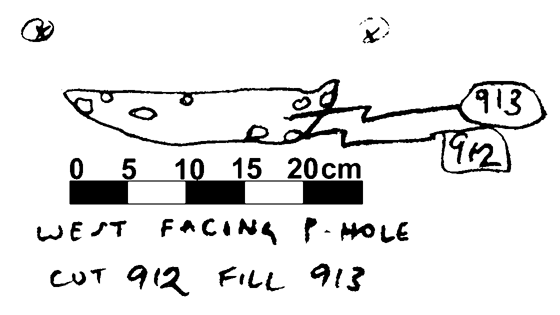

012AB00912 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00912 POST HOLE CUT SUB-CIRCULAR
20
15
5
 U-SHAPED CUT OF POST HOLE FORMING PART OF AN E-W FENCELINE
012AB00913 POST HOLE FILL SUB-CIRCULAR
20
15
5
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<2CM 10%

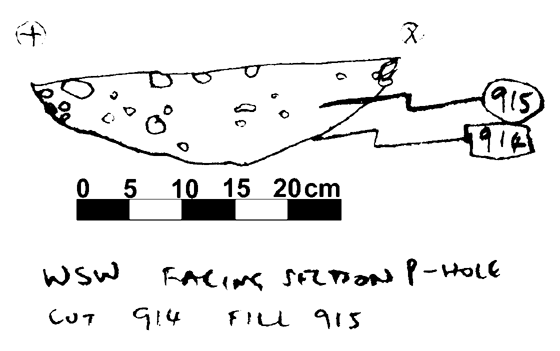

012AB00914 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00914 POST HOLE CUT SUB-CIRCULAR
30
25
10
 U-SHAPED CUT OF POST HOLE FORMING PART OF E-W FENCELINE
012AB00915 POST HOLE FILL SUB-CIRCULAR
30
25
10
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<2CM 20% POSTPIPE VIS12CM WIDE

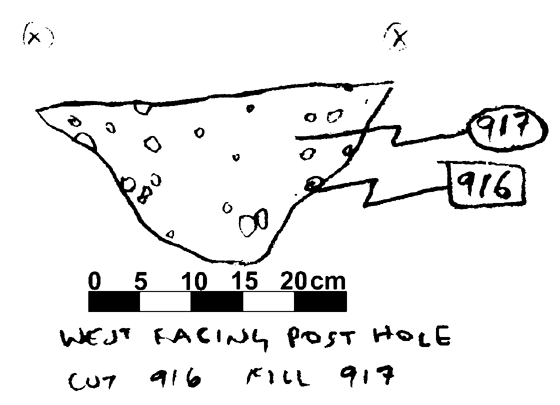

012AB00916 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00916 POST HOLE CUT SUB-CIRCULAR
30
25
20
 U-SHAPED CUT OF POST HOLE FORMING PART OF E-W FENCE LINE
012AB00917 POST HOLE FILL SUB-CIRCULAR
30
25
20
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK<2CM 15%

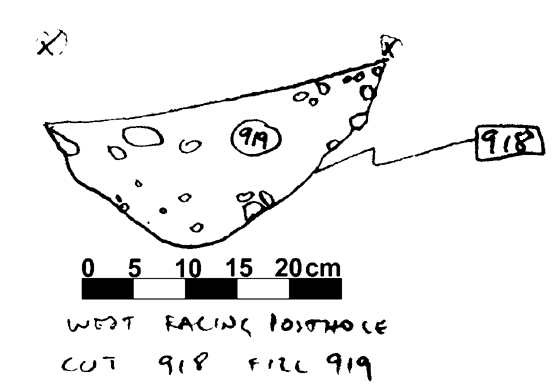

012AB00918 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00918 POST HOLE CUT SUB-CIRCULAR
25
25
15
 U-SHAPED CUT OF POST HOLE FORMING E-W FENCE LINE.
012AB00919 POST HOLE FILL SUB-CIRCULAR
25
25
15
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK <3CM 20%

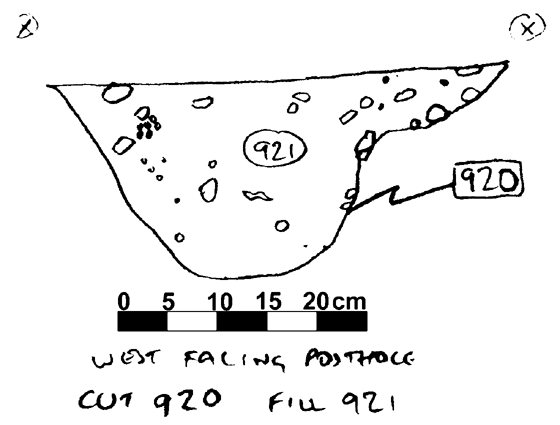

012AB00920 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00920 POST HOLE CUT SUB-CIRCULAR
30
25
20
 U-SHAPED CUT OF POST HOLE PART OF FENCELINE E-W
012AB00921 POST HOLE FILL SUB-CIRCULAR
30
25
20
 U-SHAPED FILL OF POST HOLE INCLUSIONS OF CHALK <2CM 15%

Objects By Context

KEY_ID OB PERIOD MATERIAL TYPE SUB_TYPE CLASS No
012AB00218 AA ROMAN  POTTERY  SHERD      1
