012AB07004

Grubenhaus



Grubenhaus Details
Length 450 Width 280  Depth 60 Ratio 1.6:1
Area  10.85 sq. m Volume
Number of Posts 1
Highest Elevation Value  6914
Lowest Elevation Value 6854
Bearing   166 degrees
Structural Class
Material Culture Number of Objects 32 Number of Animal Bones 69
Environmental

Phasing

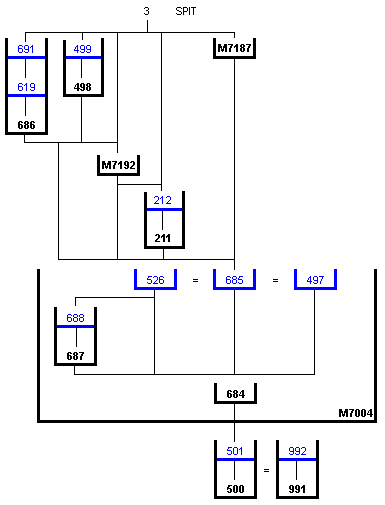

Stratigraphic Matrix Diagram

Discussion

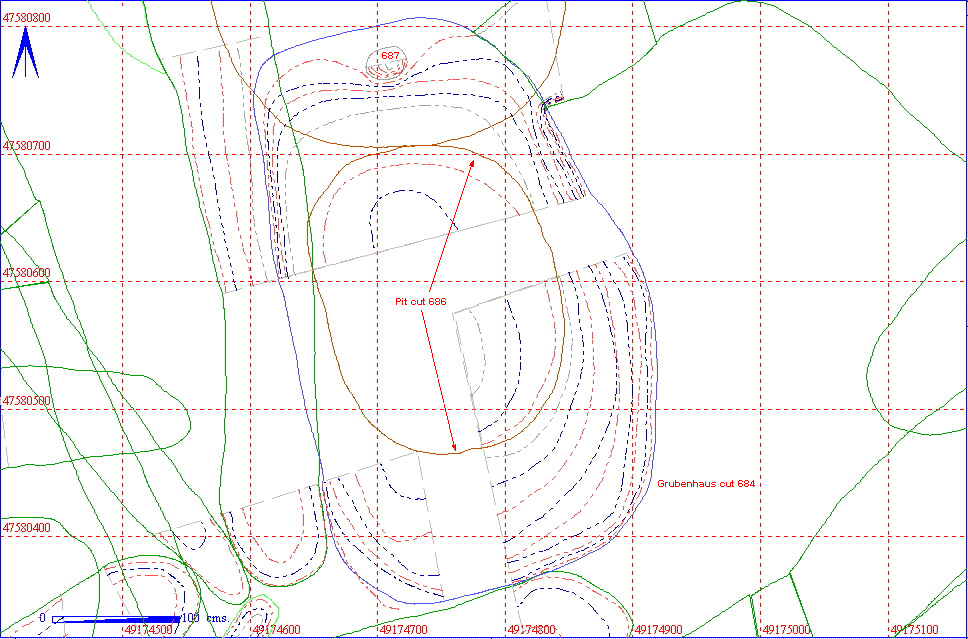

 A north/south aligned Grubenhaus in the south of area 12AB. The structure cut through ditch 012AB00991 and was cut by two ditches (012AB07187 and 012AB07192), a slot (012AB00211) and two pits (012AB00686 and 012AB00498). Pit 012AB00686 was cut through the centre of the structure and pit 012AB00498 cut away the north side. A north side post hole was present but the south side one was probably removed when ditch 012AB07187 was cut.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
012AB07004
012AB00684
012AB00497
   25 39

012AB00526
   6 30

012AB00685
   1

012AB00687
012AB00688


Object Totals by Material

012AB00497 Object Totals by Material

KEY_ID PERIOD MATERIAL No
012AB00497 Unassigned DAUB 4
  Unassigned IRON 1
  Unassigned SHELL 8
  Unassigned STONE 6
  ?ANGLIAN UNFIRED CLAY 5
  Unassigned WORKED STONE 1

012AB00526 Object Totals by Material

KEY_ID PERIOD MATERIAL No
012AB00526 Unassigned CHARCOAL 1
  ANGLIAN POTTERY 2
  ?ROMAN POTTERY 1
  Unassigned STONE 2

012AB00685 Object Totals by Material

KEY_ID PERIOD MATERIAL No
012AB00685 Unassigned SHELL 1

Animal Bone Totals by Species

012AB00497 Animal Bone Totals by Species

KEY_ID SPECIES No
012AB00497 Cattle
6
  Domestic fowl
1
  Domestic fowl/Pheasant
1
  Pig
2
  Sheep
15
  Sheep/Goat
13
  Wild/domestic goose
1

012AB00526 Animal Bone Totals by Species

KEY_ID SPECIES No
012AB00526 Cat
1
  Cattle
8
  Dog
1
  Horse
2
  Sheep
6
  Sheep/Goat
12

Structural Details

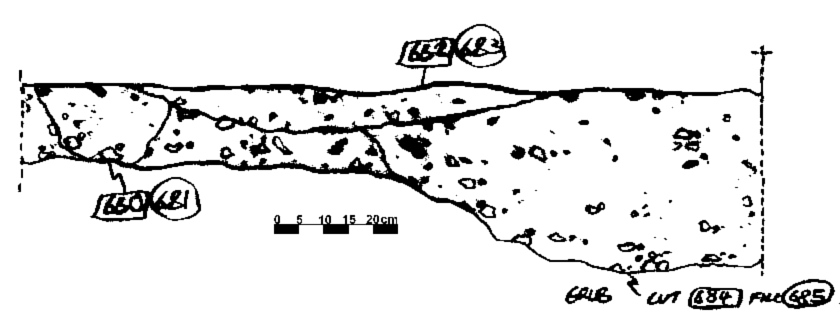

012AB00684 Section and Notes

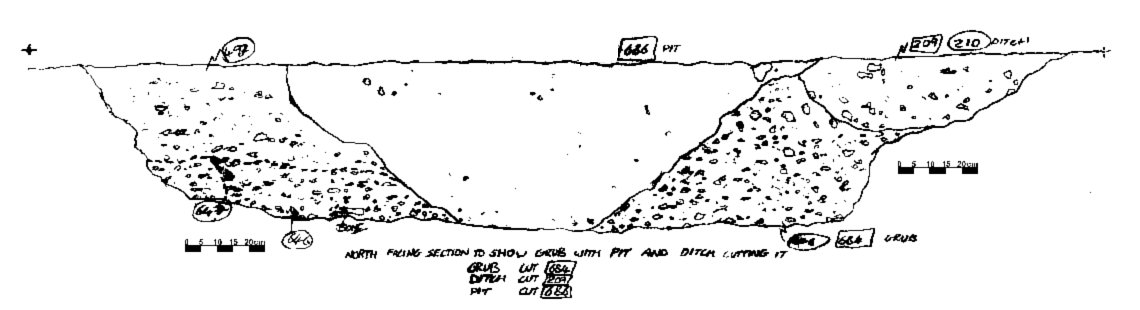

012AB00684 North Facing Section

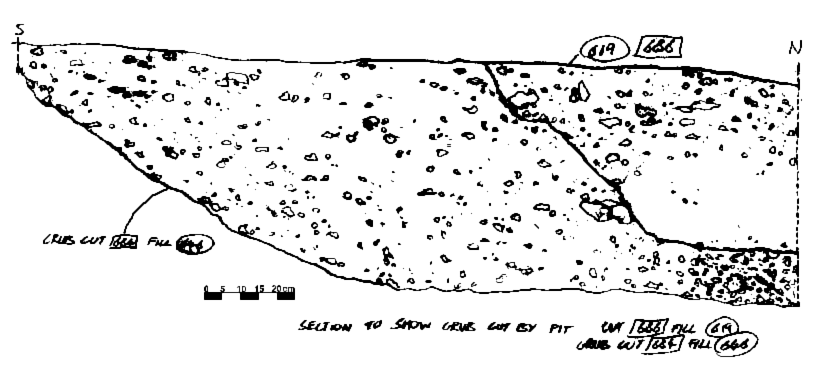

012AB00684 East Facing Section

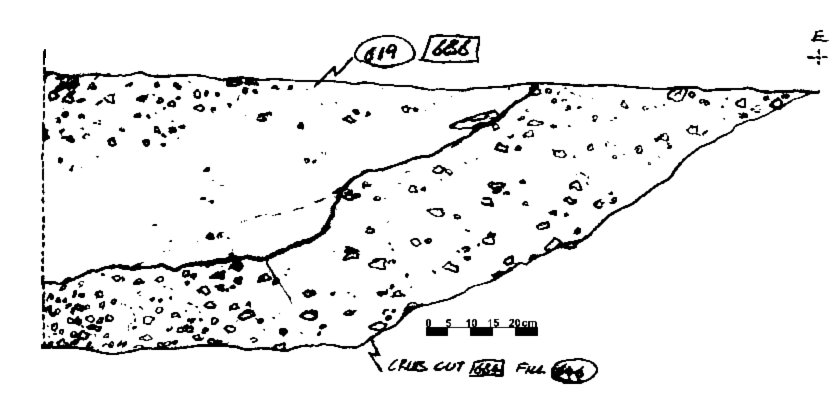

012AB00684 South Facing Section

012AB00684 South Facing Section



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00497 GRUB FILL UNCLEAR
150
100
20
 U-SHAPED TOP FILL OF GRUB IN N SEG ABOVE 496+497 CUT BY PIT 686 INCL=CHLK<1CM 15% INITIALLY NOT DISTINGUISHED FORM OTHER FILLS
012AB00526 GRUB FILL UNCLEAR NA NA NA   BROWN FILL OF GRUB684 SURROUDING BLACKER FILL646 CUT BY PIT 686 =467+685 INCL=CHLK <5CM 20%
012AB00684 GRUB CUT OVATE
550
300
60
 CONCAVE CUT OF GRUB CUTS DITCHES 500+207+77+252 IS CUT BY PITS 686+498+DITCH209+689FILLED BY 497+646+647=685=526 ORIENTED N-S
012AB00685 GRUB FILL CURVILINEAR
120
70
40
 CONCAVE FILL OF GRUB =526=497 BROWN WITH ANG CHLK INCL <3CM 20% CUT BY 689

012AB00687 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AB00687 POST HOLE CUT SUB-CIRCULAR
30
20
20
 U-SHAPED PH CUT INTO THE BOTTOM OF GRUB CUT 684CUT BY PIT 498 AT N END PROB STRUCTURAL
012AB00688 POST HOLE FILL OVATE
30
20
20
 U-SHAPED PH FILL TRUNCATED BY PIT 498 FILL =INCL OF CHLK <3CM 15%

Objects by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
012AB00497 AQ ROMAN/ANGLIAN DAUB DAUB
1
012AB00497 AR ROMAN/ANGLIAN DAUB DAUB
1
012AB00497 AS ROMAN/ANGLIAN DAUB DAUB
1
012AB00497 AT ROMAN/ANGLIAN DAUB DAUB
1
012AB00497 AC   IRON IRON FRAGMENTS
5
012AB00497 AD   SHELL SHELL   LIMPET
1
012AB00497 AJ   SHELL SHELL   COCKLE
1
012AB00497 AK   SHELL SHELL   LIMPET
1
012AB00497 AL   SHELL SHELL   LIMPET
1
012AB00497 AM   SHELL SHELL   LIMPET
1
012AB00497 AN   SHELL SHELL   LIMPET
1
012AB00497 AO   SHELL SHELL   LIMPET
1
012AB00497 AP   SHELL SHELL   LIMPET
1
012AB00497 AA   STONE PEBBLE
1
012AB00497 AB   STONE STONE   RED SANDSTONE
1
012AB00497 AE   STONE STONE   SANDSTONE
1
012AB00497 AG   STONE STONE
1
012AB00497 AI   STONE STONE
1
012AB00497 AU   STONE STONE
1
012AB00497 AF ?ANGLIAN UNFIRED CLAY UNFIRED CLAY
2
012AB00497 AH ?ANGLIAN UNFIRED CLAY UNFIRED CLAY ?LOOMWEIGHT
2
012AB00497 AW ?ANGLIAN UNFIRED CLAY UNFIRED CLAY
1
012AB00497 AX ?ANGLIAN UNFIRED CLAY UNFIRED CLAY
1
012AB00497 AY   UNFIRED CLAY UNFIRED CLAY
3
012AB00497 AV ROMAN/ANGLIAN WORKED STONE WHETSTONE
1
012AB00526 AC   CHARCOAL CHARCOAL SAMPLE
1
012AB00526 AA ANGLIAN POTTERY SHERD   ANGLIAN I
1
012AB00526 AD ANGLIAN POTTERY SHERD   ANGLIAN I
1
012AB00526 AF ?ROMAN POTTERY SHERD
1
012AB00526 AB   STONE STONE   RED CHALK
1
012AB00526 AE   STONE STONE
1
012AB00685 AA   SHELL SHELL   COCKLE
1

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
012AB00497 Cattle Mand fr 1 0 0 0 0
012AB00497 Cattle Phalanx 1 1 0 0 0 0
012AB00497 Cattle Phalanx 1 1 0 0 0 0
012AB00497 Cattle Phalanx 1 1 0 0 0 0
012AB00497 Cattle Phalanx 2 1 0 0 0 0
012AB00497 Cattle Phalanx 2 1 0 0 0 0
012AB00497 Domestic fowl Femur P 1 0 0 0 0
012AB00497 Domestic fowl/Pheasant Tibia D 1 0 0 0 0
012AB00497 Pig Humerus C 1 0 0 0 0
012AB00497 Pig Phalanx 1 1 0 0 0 0
012AB00497 Sheep Calcaneum 1 0 0 0 0
012AB00497 Sheep Horncore 1 0 0 0 1
012AB00497 Sheep Humerus C 1 0 0 0 0
012AB00497 Sheep Humerus D 1 0 0 0 0
012AB00497 Sheep Humerus D 1 0 0 0 0
012AB00497 Sheep Humerus D 1 0 1 0 0
012AB00497 Sheep Humerus D 1 0 0 0 0
012AB00497 Sheep M/C C 1 0 0 0 0
012AB00497 Sheep M/C P 1 0 0 0 1
012AB00497 Sheep M/T C 1 0 0 0 0
012AB00497 Sheep Mandible 1 0 0 0 1
012AB00497 Sheep Phalanx 1 1 0 0 0 0
012AB00497 Sheep Tibia D 1 0 0 0 0
012AB00497 Sheep Tibia D 1 0 0 0 1
012AB00497 Sheep Tibia D 1 0 0 0 0
012AB00497 Sheep/Goat Astragalus 1 0 1 0 0
012AB00497 Sheep/Goat Atlas 1 0 0 0 1
012AB00497 Sheep/Goat Humerus D 1 0 0 0 0
012AB00497 Sheep/Goat Mand fr 1 0 0 0 1
012AB00497 Sheep/Goat Mandible 1 0 0 0 1
012AB00497 Sheep/Goat Mandible 1 0 1 0 0
012AB00497 Sheep/Goat Patella 1 0 0 0 0
012AB00497 Sheep/Goat Pelvis 1 0 0 0 0
012AB00497 Sheep/Goat Pelvis 1 0 0 0 1
012AB00497 Sheep/Goat Pelvis fr 1 0 0 0 1
012AB00497 Sheep/Goat Radius D 1 0 0 0 0
012AB00497 Sheep/Goat Scapula 1 0 0 0 0
012AB00497 Sheep/Goat Tibia D 1 0 0 0 0
012AB00497 Wild/domestic goose Radius P 1 0 0 0 0
012AB00526 Cat M/T P 1 0 0 0 1
012AB00526 Cattle Horncore 1 0 0 0 0
012AB00526 Cattle M/C C 1 0 0 1 0
012AB00526 Cattle M/T D 1 0 0 1 0
012AB00526 Cattle N.Cuboid 1 0 0 1 0
012AB00526 Cattle Phalanx 2 1 0 0 0 0
012AB00526 Cattle Radius D 1 0 0 0 1
012AB00526 Cattle Scapula 1 0 0 0 0
012AB00526 Cattle Tibia D 1 0 0 0 0
012AB00526 Dog Humerus P 1 0 0 0 0
012AB00526 Horse LM3 1 0 0 0 0
012AB00526 Horse Tibia br 1 0 0 1 0
012AB00526 Sheep Horncore 1 0 0 0 0
012AB00526 Sheep Humerus D 1 0 0 0 1
012AB00526 Sheep Humerus D 1 0 0 1 0
012AB00526 Sheep M/T P 1 0 0 0 0
012AB00526 Sheep Mandible 1 0 0 0 1
012AB00526 Sheep Tibia D 1 0 0 0 0
012AB00526 Sheep/Goat Astragalus 1 0 0 0 0
012AB00526 Sheep/Goat Calcaneum 1 0 0 0 0
012AB00526 Sheep/Goat Femur D 1 0 0 0 0
012AB00526 Sheep/Goat LM3 1 0 0 0 0
012AB00526 Sheep/Goat M/C P 1 0 0 0 0
012AB00526 Sheep/Goat Mand fr 1 0 0 0 1
012AB00526 Sheep/Goat Mandible 1 0 0 0 0
012AB00526 Sheep/Goat Mandible 1 0 0 0 0
012AB00526 Sheep/Goat N.Cuboid 1 0 1 0 0
012AB00526 Sheep/Goat Pelvis fr 1 0 0 0 0
012AB00526 Sheep/Goat Radius D 1 0 0 0 1
012AB00526 Sheep/Goat Tibia br 1 0 0 0 0
