011BF10019

?Granary Structure



Post-Hole Structure Details
Length Unknown Width Unknown
Area  Unknown Ratio Unknown
Number of Posts 31 Deepest 69 011BF00507 Shallowest 9 011BF00559
Average Depth
 29
North Wall  Unknown Average Depth 0
East Wall  Unknown Average Depth 0
South Wall  Unknown Average Depth 0
West Wall  Unknown Average Depth 0
Interior Divisions: Unknown
Highest Elevation Value  5670  011BF00555 and 011BF00557
Lowest Elevation Value 5564  011BF00507
Bearing  Unknown
Plank\Post Post/pit
Doorways Unknown
Repairs:
Structural Class
Material Culture Number of Objects  3 Number of Animal Bones  0
Environmental

Phasing

Although only 3 non-diagnostic finds were recovered from this feature, it is interpreted as Middle Saxon in date, typologically similar to 002DA00259.


Discussion

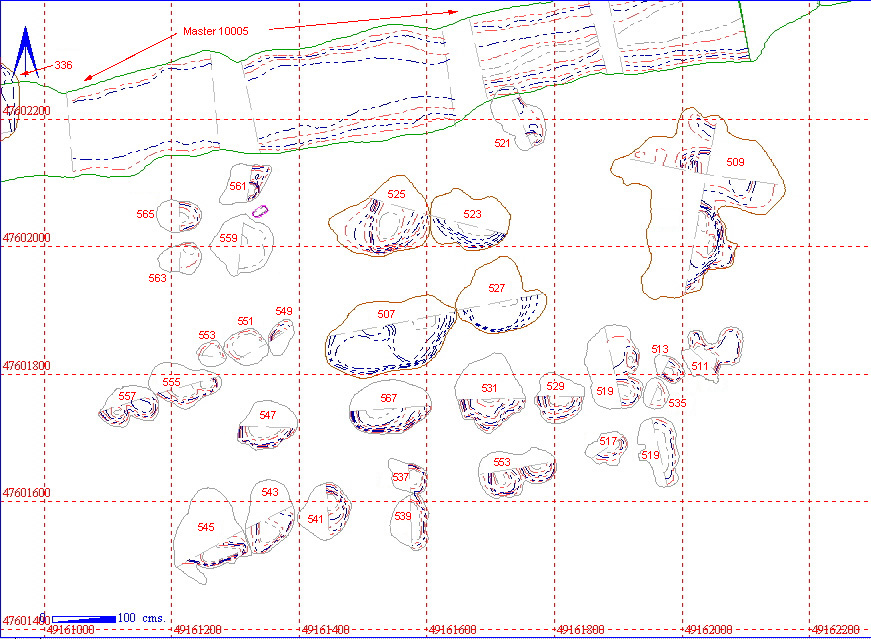

A group of pits or large post holes immediately to the south of the north arm of inner enclosure ditch 011AB10005. These features were excavated under 11BF numbers. This master encompasses what may be several structures; a possible four post structure in the north/west, a possible six post structure formed by the six large pits in the centre, etcetera. Further analysis of the environmental evidence may establish whether these features formed a granary structure.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
011BF10019
011BF00507
011BF00506
   2

011BF00509
011BF00508


011BF00511
011BF00510


011BF00513
011BF00512


011BF00515
011BF00514


011BF00517
011BF00516


011BF00519
011BF00518


011BF00521
011BF00520


011BF00523
011BF00522


011BF00525
011BF00524


011BF00527
011BF00526


011BF00529
011BF00528


011BF00531
011BF00530


011BF00533
011BF00532


011BF00535
011BF00534


011BF00537
011BF00536


011BF00539
011BF00538


011BF00541
011BF00540


011BF00543
011BF00542


011BF00545
011BF00544


011BF00547
011BF00546


011BF00549
011BF00548


011BF00551
011BF00550


011BF00553
011BF00552


011BF00555
011BF00554


011BF00557
011BF00556


011BF00559
011BF00558


011BF00561
011BF00560


011BF00563
011BF00562
   1

011BF00565
011BF00564


011BF00567
011BF00566


Structural Details

011BF00507 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00506 PIT FILL SUB-CIRCULAR
180
150
69
 COMPLEX PIT FILL. 30% CHALK INCLUSIONS. CONTAINED ANIMAL BONE AND POTTERY. NO CHARCOAL PRESENT.
011BF00507 PIT CUT SUB-CIRCULAR
180
150
69
 COMPLEX PIT CUT. CUT INTO SAND AND GRAVEL. LINKED VIA SMALL GULLY TO 526/527-ANIMAL BURROW? IRREGULAR SHAPE AND PROFILE. ONE OF GROUP OF PITS FORMING M10019.

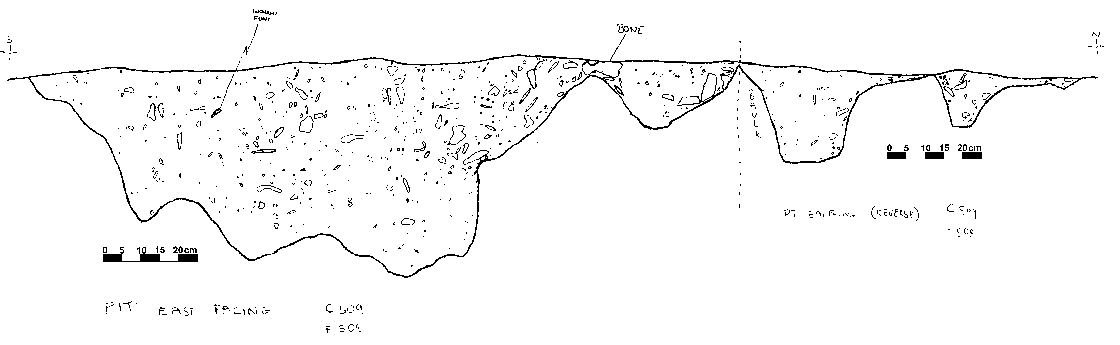

011BF00509 Section and Notes

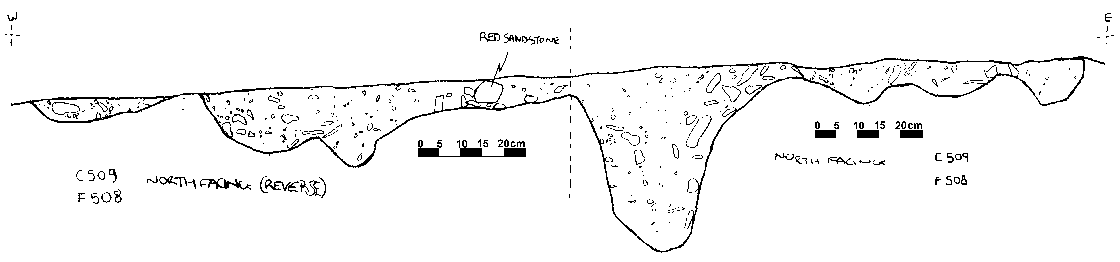

011BF00509 North Facing Section


011BF00509 East Facing Section
 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00508 PIT FILL SUB-CIRCULAR
274
160
53
 FLAT BASED U PIT FILL. 60% CHALK INCLUSIONS. CONTAINED ANIMAL BONE AND FLINT. NO CHARCOAL PRESENT.
011BF00509 PIT CUT SUB-CIRCULAR
274
160
53
 FLAT BASED U PIT CUT. CUT INTO SAND AND GRAVEL. IRREGULAR AND UNEVEN CUT. ONE OF GROUP OF PITS FORMING M10019.

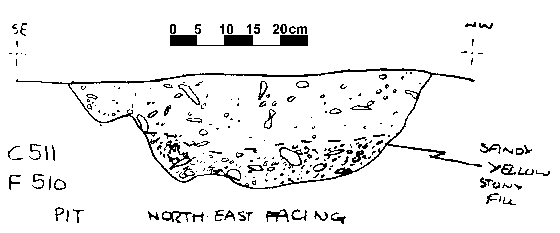

011BF00511 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00510 PIT FILL AMORPHOUS
140
33
21
 U SHAPED PIT FILL. 25% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL. POSSIBLE ANIMAL BURROW.
011BF00511 PIT CUT AMORPHOUS
140
33
21
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. POSSIBLE ANIMAL BURROW. ONE OF GROUP OF PITS FORMING M10019.

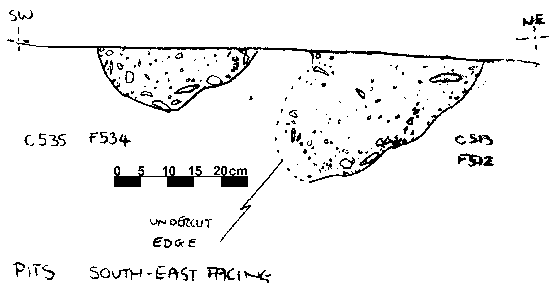

011BF00513 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00512 PIT FILL SUB-CIRCULAR
43
43
21
 U SHAPED PIT FILL. 15% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00513 PIT CUT SUB-CIRCULAR
43
43
21
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. SLIGHT UNDERCUTTING ON S SIDE. ONE OF GROUP OF PITS FORMING M10019.

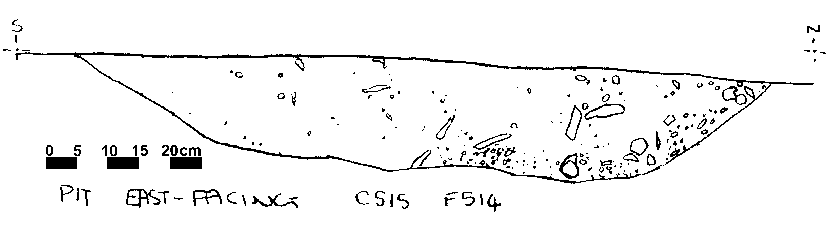

011BF00515 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00514 PIT FILL OVATE
112
63
18
 U SHAPED PIT FILL. 35% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00515 PIT CUT OVATE
112
63
18
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. N END WIDER AND DEEPER. ONE OF GROUP OF PITS FORMING M10019.

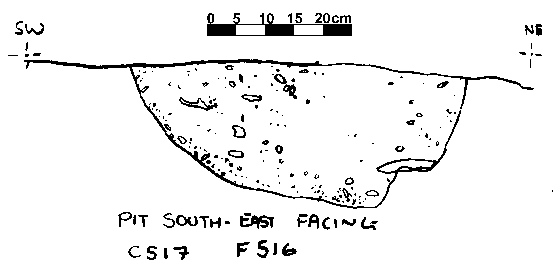

011BF00517 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00516 PIT FILL SUB-CIRCULAR
95
51
26
 U SHAPED PIT FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00517 PIT CUT SUB-CIRCULAR
95
51
26
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. REGULAR SHAPE AND PROFILE. ONE OF GROUP OF PITS FORMING M10019.

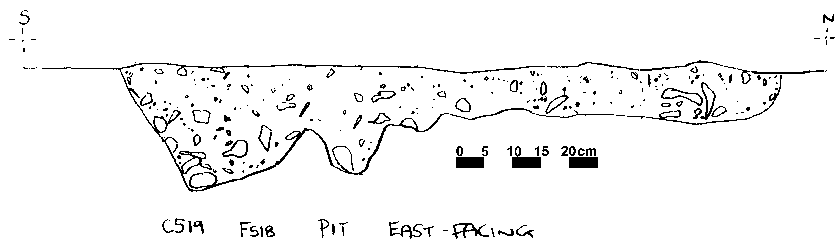

011BF00519 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00518 PIT FILL SUB-CIRCULAR
80
37
20
 W SHAPED PIT FILL. 60% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00519 PIT CUT SUB-CIRCULAR
80
37
20
 W SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. IRREGULAR SHAPE AND PROFILE-POSS. ANIMAL BURROWED. ONE OF GROUP OF PITS FORMING M10019.

011BF00521 Section and Notes

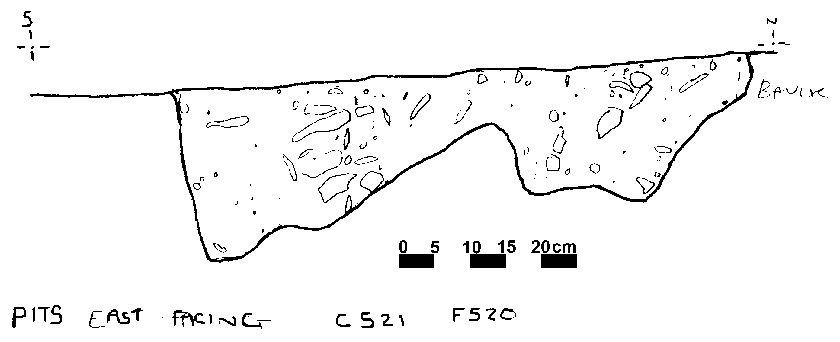

011BF00521 East Facing Section

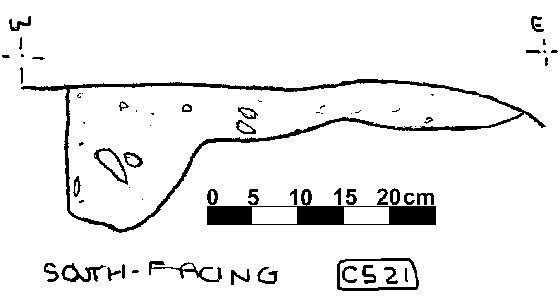

011BF00521 South Facing Section
 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00520 PIT FILL AMORPHOUS
67
26
 COMPLEX PIT FILL. 70% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00521 PIT CUT AMORPHOUS
67
26
 COMPLEX PIT CUT. CUT INTO SAND AND GRAVEL. ANIMAL BURROWED. ONE OF GROUP OF PITS FORMING M10019.

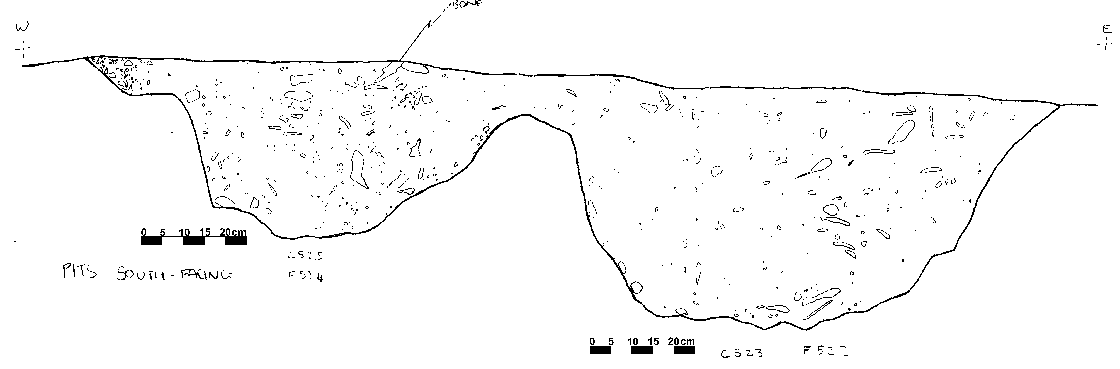

011BF00523 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00522 PIT FILL SUB-CIRCULAR
126
90
57
 U SHAPED PIT FILL. 20% CHALK INCLUSIONS. CONTAINED ANIMAL BONE BUT NO CHARCOAL.
011BF00523 PIT CUT SUB-CIRCULAR
126
90
57
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. LINKED VIA SMALL GULLY TO 524/525-ANIMAL BURROW? ONE OF GROUP OF PITS FORMING M10019.

011BF00525 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00524 PIT FILL SUB-CIRCULAR
156
150
40
 U SHAPED PIT FILL. 40% CHALK INCLUSIONS. CONTAINED ANIMAL BONE BUT NO CHARCOAL.
011BF00525 PIT CUT SUB-CIRCULAR
156
150
40
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. LINKED VIA SMALL GULLY TO 522/523-ANIMAL BURROW? ONE OF GROUP OF PITS FORMING M10019.

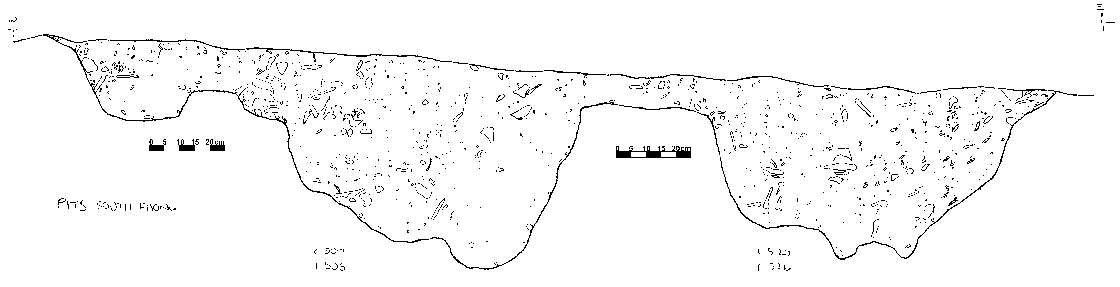

011BF00527 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00526 PIT FILL SUB-CIRCULAR
125
102
59
 U SHAPED PIT FILL. 35% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00527 PIT CUT SUB-CIRCULAR
125
102
59
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. LINKED VIA SMALL GULLY TO 506/507-ANIMAL BURROW? ONE OF GROUP OF PITS FORMING M10019.

011BF00529 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00528 PIT FILL SUB-CIRCULAR
84
832
39
 U SHAPED PIT FILL. 20% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00529 PIT CUT SUB-CIRCULAR
84
832
39
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. FAIRLY EVEN CUT AND PROFILE. ONE OF GROUP OF PITS FORMING M10019.

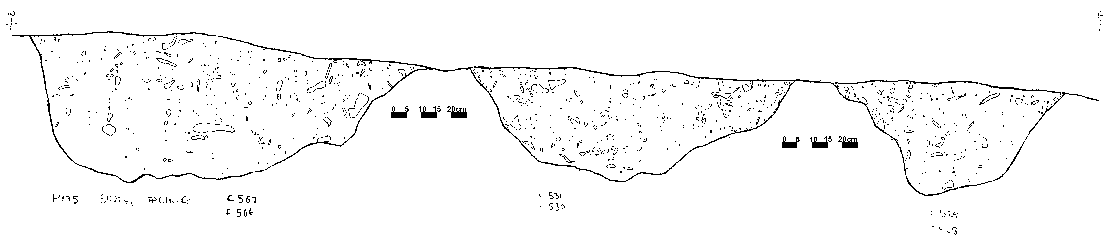

011BF00531 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00530 POST HOLE FILL SUB-CIRCULAR
113
114
39
 VSHAPED FILL CONTAINED NO FINDS AND NO CHARCOAL FLECKS. ONE OF A NUMBER OF SIMILAR PITS IN THIS AREA.
011BF00531 POST HOLE CUT SUB-CIRCULAR
113
114
39
 VSHAPED CUT INTO NATURAL SAND AND CHALKY GRAVEL. ONE OF A NUMBER OF SIMILAR PITS IN THIS AREA. GENERALLY REGULAR CUT APART FROM SMALL NOTCH IN EAST SIDE.

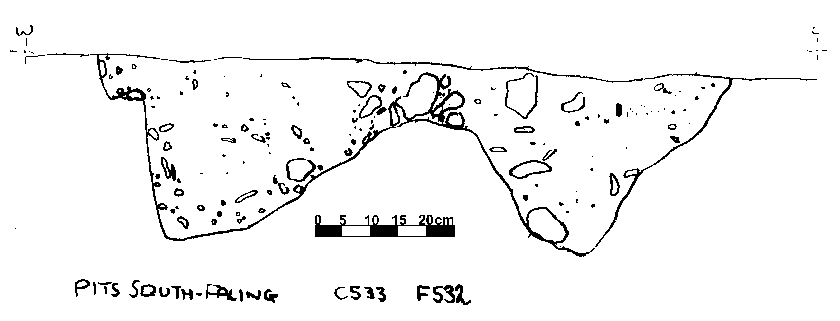

011BF00533 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00532 PIT FILL SUB-CIRCULAR
126
69
33
 W SHAPED PIT FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL. SHAPE INDICATES TWO REGULARLY SHAPED PITS ONLY VISIBLE AS ONE ON SURFACE.
011BF00533 PIT CUT SUB-CIRCULAR
126
69
33
 W SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. SHAPE INDICATES TWO REGULARLY SHAPED PITS ONLY VISIBLE AS ONE ON SURFACE. ONE OF GROUP OF PITS FORMING M10019.

011BF00535 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00534 POST HOLE FILL SUB-CIRCULAR
45
38
13
 U SHAPED POST HOLE FILL. 35% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BF00535 POST HOLE CUT SUB-CIRCULAR
45
38
13
 U SHAPED POST HOLE CUT. CUT INTO SAND AND GRAVEL. STEEP N EDGE. ASSOCIATED WITH GROUP OF PITS M10019.

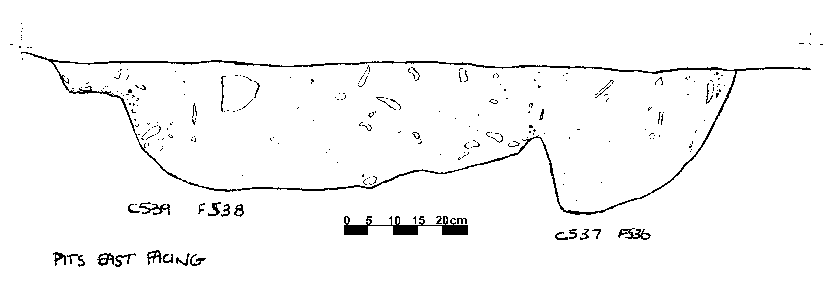

011BF00537 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00536 PIT FILL SUB-CIRCULAR
56
55
28
 U SHAPED PIT FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00537 PIT CUT SUB-CIRCULAR
56
55
28
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. ONE OF GROUP OF PITS FORMING M10019.

011BF00539 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00538 PIT FILL OVATE
90
74
25
 U SHAPED PIT FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00539 PIT CUT OVATE
90
74
25
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. IRREGULAR SHAPE. S EDGE STEPPED. ONE OF GROUP OF PITS FORMING M10019.

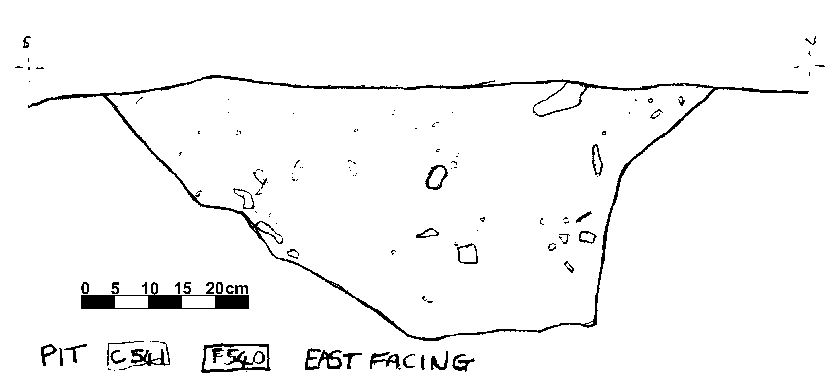

011BF00541 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00540 PIT FILL SUB-CIRCULAR
92
84
36
 FLAT BASED U PIT FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00541 PIT CUT SUB-CIRCULAR
92
84
36
 FLAT BASED U PIT CUT. CUT INTO SAND AND GRAVEL. S EDGE STEPPED. N EDGE STEEP. ONE OF GROUP OF PITS FORMING M10019.

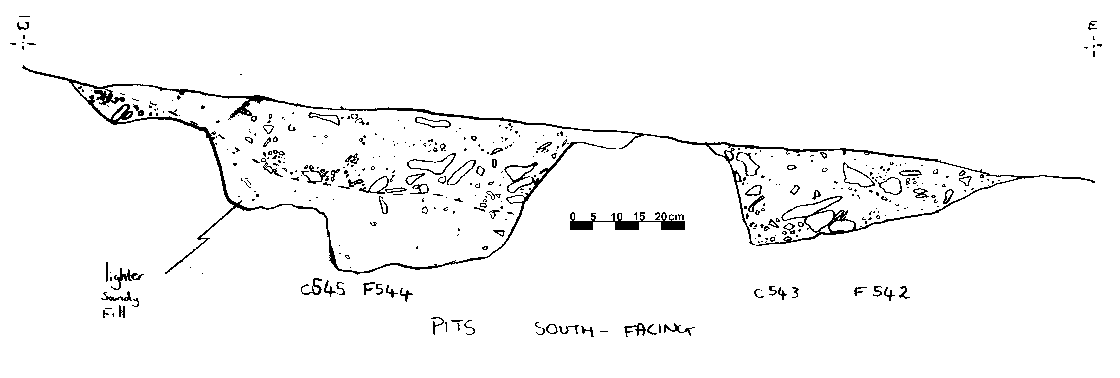

011BF00543 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00542 PIT FILL SUB-CIRCULAR
84
79
18
 FLAT BASED U PIT FILL. 50% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00543 PIT CUT SUB-CIRCULAR
84
79
18
 FLAT BASED U PIT CUT. CUT INTO SAND AND GRAVEL. HALF OF DOUBLE PIT WITH 544/545. ONE OF GROUP OF PITS FORMING M10019.

011BF00545 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00544 PIT FILL SUB-CIRCULAR
130
130
36
 U SHAPED PIT FILL. 35% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00545 PIT CUT SUB-CIRCULAR
130
130
36
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. HALF OF DOUBLE PIT WITH 542/543. ONE OF GROUP OF PITS FORMING M10019.

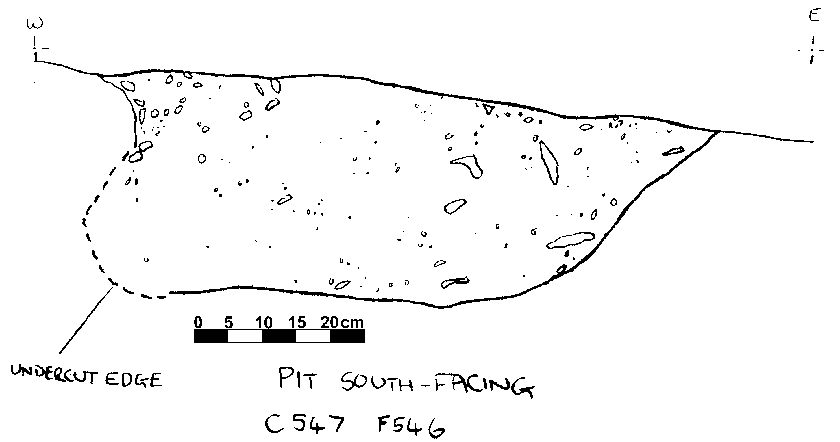

011BF00547 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00546 PIT FILL SUB-CIRCULAR
110
88
30
 U SHAPED PIT FILL. 20% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00547 PIT CUT SUB-CIRCULAR
110
88
30
 U SHAPED PIT CUT. CUT INTO SAND AND GRAVEL. PROBABLY ANIMAL BURROWED TO N. ONE OF GROUP OF PITS FORMING M10019.

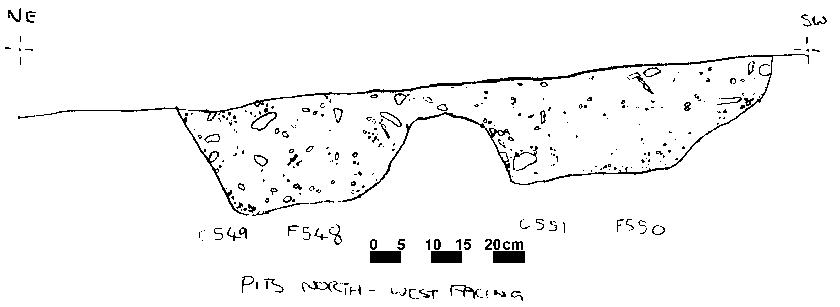

011BF00549 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00548 POST HOLE FILL SUB-CIRCULAR
44
43
19
 U SHAPED POST HOLE FILL. 25% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BF00549 POST HOLE CUT SUB-CIRCULAR
44
43
19
 U SHAPED POST HOLE CUT. CUT INTO SAND AND GRAVEL. ANIMAL BURROWED TO S. JOINED TO 550/551-POSS. ANIMAL BURROW. ASS. WITH GROUP OF PITS FORMING M10019.

011BF00551 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00550 PIT FILL SUB-CIRCULAR
73
66
18
 FLAT BASED U PIT FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00551 PIT CUT SUB-CIRCULAR
73
66
18
 FLAT BASED U PIT CUT. CUT INTO SAND AND GRAVEL. ANIMAL BURROWED TO S. JOINED TO 548/549-POSS. ANIMAL BURROW. ONE OF GROUP OF PITS FORMING M10019.

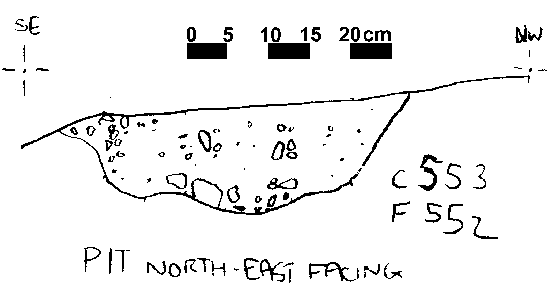

011BF00553 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00552 POST HOLE FILL SUB-CIRCULAR
42
42
13
 U SHAPED POST HOLE FILL. 25% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00553 POST HOLE CUT SUB-CIRCULAR
42
42
13
 U SHAPED POST HOLE CUT. CUT INTO SAND AND GRAVEL. STEEPER ON W SIDE. ASS. WITH GROUP OF PITS FORMING M10019.

011BF00555 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00554 PIT FILL SUB-CIRCULAR
109
81
27
 FLAT BASED U PIT FILL. 25% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00555 PIT CUT SUB-CIRCULAR
109
81
27
 FLAT BASED U PIT CUT. CUT INTO CHALK NATURAL. MERGES WITH 556/557. HEAVILY ANIMAL BURROWED. ONE OF GROUP OF PITS FORMING M10019.

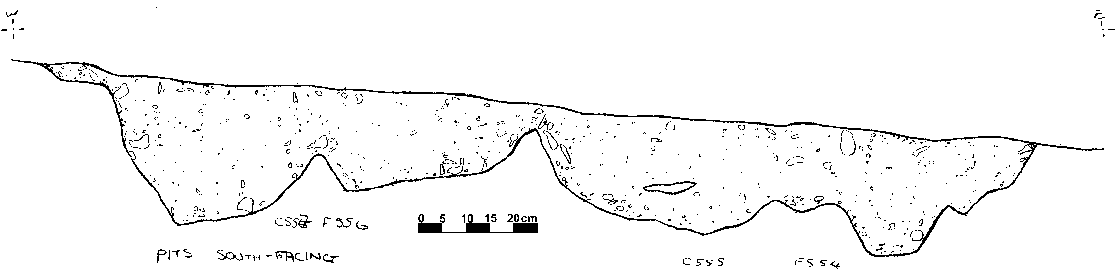

011BF00557 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00556 PIT FILL SUB-CIRCULAR
106
72
29
 W BASED PIT FILL. 5% CHALK INCLUSIONS. CONTAINED ANIMAL BONE BUT NO CHARCOAL.
011BF00557 PIT CUT SUB-CIRCULAR
106
72
29
 W BASED PIT CUT. CUT INTO SAND AND GRAVEL. MERGES WITH 554/555. HEAVILY ANIMAL BURROWED. ONE OF GROUP OF PITS FORMING M10019.

011BF00559 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00558 PIT FILL SUB-CIRCULAR
105
105
9
 FLAT BASED U PIT FILL. 10% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00559 PIT CUT SUB-CIRCULAR
105
105
9
 FLAT BASED U PIT CUT. CUT INTO SAND AND GRAVEL. MERGES WITH 560/561. HEAVILY ANIMAL BURROWED. ONE OF GROUP OF PITS FORMING M10019.

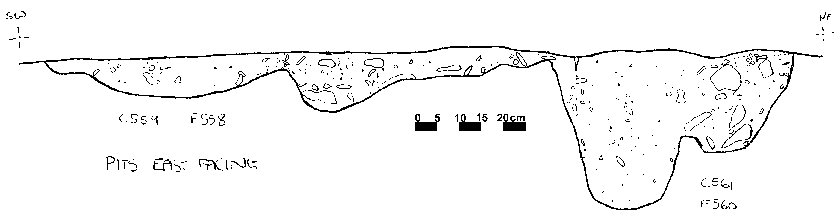

011BF00561 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00560 PIT FILL SUB-CIRCULAR
87
64
35
 FLAT BASED U PIT FILL. 15% CHALK INCLUSIONS. CONTAINED ANIMAL BONE BUT NO CHARCOAL.
011BF00561 PIT CUT SUB-CIRCULAR
87
64
35
 FLAT BASED U PIT CUT. CUT INTO SAND AND GRAVEL. MERGES WITH 558/559. HEAVILY ANIMAL BURROWED. ONE OF GROUP OF PITS FORMING M10019.

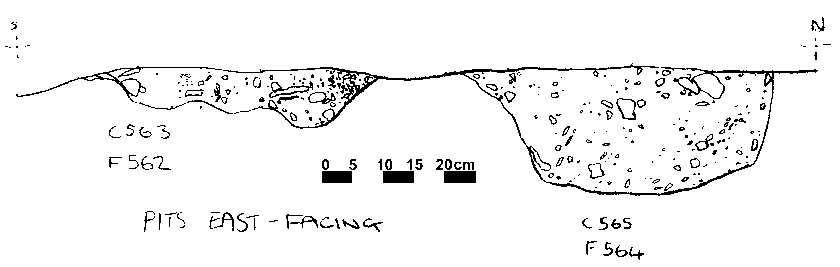

011BF00563 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00562 PIT FILL SUB-CIRCULAR
68
68
12
 SHALLOW V PIT FILL. 45% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL.
011BF00563 PIT CUT SUB-CIRCULAR
68
68
12
 SHALLOW V PIT CUT. CUT INTO CHALK NATURAL. VERY SHALLOW. ONE OF GROUP OF PITS FORMING M10019.

011BF00565 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00564 POST HOLE FILL SUB-CIRCULAR
64
47
21
 FLAT BASED U POST HOLE FILL. 25% CHALK INCLUSIONS. CONTAINED NO FINDS OR CHARCOAL. NO POST PIPE VISIBLE.
011BF00565 POST HOLE CUT SUB-CIRCULAR
64
47
21
 FLAT BASED U POST HOLE CUT. CUT INTO SAND AND GRAVEL. ANIMAL BURROWED ON S SIDE. ASS. WITH GROUP OF PITS FORMING M10019.

011BF00567 Section and Notes

 KEY_ID TYPE SHAPE L B D PROFILE NOTES
011BF00566 PIT FILL SUB-CIRCULAR
134
89
47
 FLAT BASED U PIT FILL. 25% CHALK INCLUSIONS. CONTAINED ANIMAL BONE BUT NO CHARCOAL.
011BF00567 PIT CUT SUB-CIRCULAR
134
89
47
 FLAT BASED U PIT CUT. CUT INTO SAND AND GRAVEL. FAIRLY EVEN PROFILE. ONE OF GROUP OF PITS FORMING M10019.

Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
011BF00506 AA No Entry POTTERY SHERD     1
011BF00506 AB No Entry STONE STONE   RED CHALK 1
011BF00562 AA MEDIEVAL POTTERY SHERD   MEDIEVAL 1
