011BD07023

Grubenhaus



Grubenhaus Details
Length 515 Width 385 Depth 14 Ratio  1.3:1
Area   16.39 sq. m Volume
Number of Posts  0
Highest Elevation Value   6333
Lowest Elevation Value  6319
Bearing   67 degrees
Structural Class
Material Culture  Number of Objects 24 Number of Animal Bones 50
Environmental

Phasing

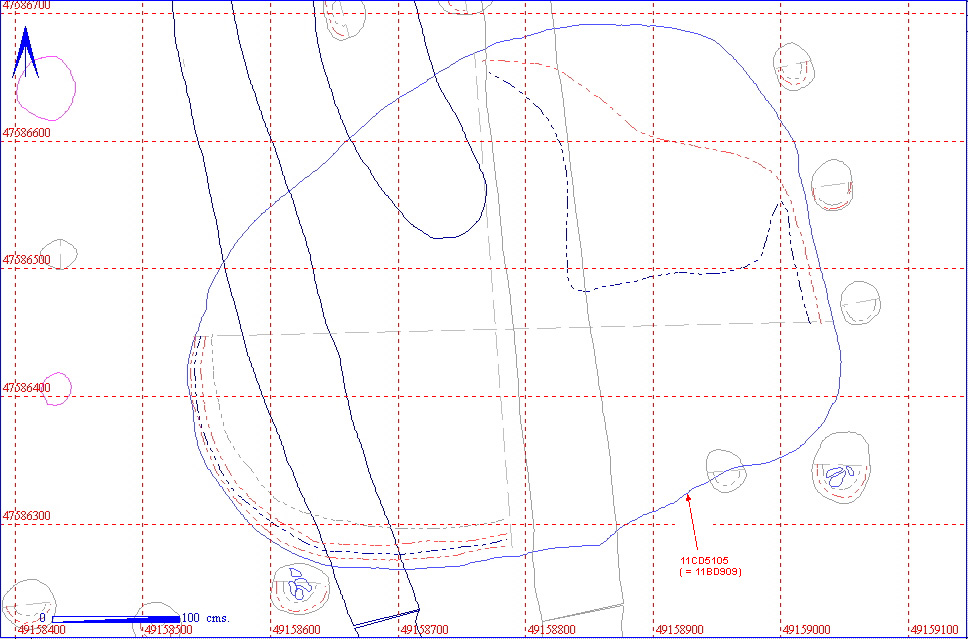

Stratigraphic Matrix Diagram



Discussion

A shallow, NE/SW aligned Grubenhaus in the south of area 11BD. Only a maximum of 14cm deep, this structure was further confused by the amount of converging features and tree root disturbance. A Modern field boundary (011AC10007) and two Medieval plough furrows (part of master 011AC10000) cut through the structure. The Grubenhaus lies in the east end of a post hole structure (011BD07065). A south wall post hole (011BD01187, see structure 011BD07065) cuts through the fill of the Grubenhaus. No sections were drawn.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
011BD07023
011BD01074
011BD01073
   23 + 1 50

Object Totals by Material

011BD01073 Object Totals by Material

011BD01073 Charcoal 3
  Daub 1
  Iron 1
  Pottery 6 of which Early Saxon 3 No Entry 1 Roman 2
  Shell 1
  Snail 1
  Stone 9

011BD01074 Object Totals by Material

011BD01074 Pottery 1 No Entry

Animal Bone Totals by Species

011BD01073 Animal Bone Totals by Species

KEY_ID SPECIES No
011BD01073 Cattle
21
Domestic goose
1
Hedgehog
1
Horse
1
Pig
4
Sheep/Goat
21
Small Mammal (Other)
1

Structural Details

011BD01074 Notes

KEY_ID TYPE SHAPE L B D  PROFILE NOTES
011BD01073 GRUB FILL SUB-RECTANGULAR
498
390
14
 WIDE U PROBABLE REMAINS OF GRUB ALL BUT PLOUGHED AWAY. CONTAINS BONE: IRON: DAUB: CHARCOAL: PIECE OF ROMAN TILE: POTTERY. ROOT DAMAGE
011BD01074 GRUB CUT SUB-RECTANGULAR
498
390
14
 WIDE U PROBABLE REMAINS OF GRUB CUT BY A NUMBER OF LATER FEATURES: DISTURBED BY ROOT ACTION: PLOUGH DAMAGED

Objects by Context

KEY_ID  OBJ PERIOD  MATERIAL TYPE  SUB_TYPE CLASS  No
011BD01073 AB No Entry CHARCOAL CHARCOAL SAMPLE


1
011BD01073 AJ No Entry CHARCOAL CHARCOAL SAMPLE


1
011BD01073 AM No Entry CHARCOAL CHARCOAL SAMPLE


1
011BD01073 AV EARLY SAXON DAUB BURNT DAUB


1
011BD01073 AL EARLY SAXON IRON IRON KNIFE


1
011BD01073 AK EARLY SAXON POTTERY SHERD

 ANGLIAN III
1
011BD01073 AO EARLY SAXON POTTERY SHERD

 ANGLIAN III
1
011BD01073 AU EARLY SAXON POTTERY SHERD

 ANGLIAN III
1
011BD01073 AE No Entry POTTERY SHERD


1
011BD01073 AG ROMAN POTTERY SHERD

 R-B
1
011BD01073 AQ ROMAN POTTERY SHERD

 ROMAN
1
011BD01073 AR No Entry SHELL SHELL

 OYSTER
1
011BD01073 AH No Entry SNAIL SNAIL SAMPLE


1
011BD01073 AT No Entry SNAIL SNAIL SAMPLE


1
011BD01073 AA No Entry STONE STONE

 SANDSTONE
1
011BD01073 AC No Entry STONE STONE


1
011BD01073 AD No Entry STONE STONE


1
011BD01073 AF No Entry STONE STONE


1
011BD01073 AI No Entry STONE STONE


1
011BD01073 AN No Entry STONE CORE


1
011BD01073 AP No Entry STONE STONE

 RED CHALK
1
011BD01073 AS No Entry STONE PEBBLE


1
011BD01073 AW No Entry STONE STONE


1
011BD01074 AA No Entry POTTERY SHERD


1

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
011BD01073 Cattle Atlas 1
0
 0 2 0
011BD01073 Cattle Axis 1
0
 0 0 0
011BD01073 Cattle Horncore 1
0
 0 1 1
011BD01073 Cattle Humerus C 1
0
 0 0 0
011BD01073 Cattle Humerus D 1
0
 0 1 0
011BD01073 Cattle LM3 1
0
 0 0 0
011BD01073 Cattle M/C br 1
0
 0 1 0
011BD01073 Cattle M/C D 1
0
 0 0 0
011BD01073 Cattle M/C P 1
0
 0 0 0
011BD01073 Cattle N.Cuboid 1
0
 0 1 0
011BD01073 Cattle N.Cuboid 1
0
 0 0 0
011BD01073 Cattle Phalanx 1 1
0
 0 0 0
011BD01073 Cattle Phalanx 1 1
0
 0 0 0
011BD01073 Cattle Phalanx 1 1
0
 0 0 0
011BD01073 Cattle Phalanx 2 1
0
 0 0 0
011BD01073 Cattle Phalanx 2 1
0
 0 0 0
011BD01073 Cattle Scapula 1
0
 0 1 1
011BD01073 Cattle Skull fr 1
0
 0 0 1
011BD01073 Cattle Tibia D 1
0
 0 0 0
011BD01073 Cattle Tibia D 1
0
 0 0 0
011BD01073 Cattle Ulna 1
1
 0 1 0
011BD01073 Domestic goose Tibia D 1
0
 0 0 0
011BD01073 Hedgehog Mandible 1
0
 0 0 0
011BD01073 Horse Scapula 1
0
 0 0 0
011BD01073 Pig Phalanx 1 1
0
 0 0 0
011BD01073 Pig Phalanx 2 1
0
 0 0 0
011BD01073 Pig Tibia D 1
0
 0 0 0
011BD01073 Pig Tibia P 1
0
 0 0 0
011BD01073 Sheep/Goat Humerus P 1
0
 0 0 1
011BD01073 Sheep/Goat LM3 1
0
 0 0 0
011BD01073 Sheep/Goat LM3 1
0
 0 0 0
011BD01073 Sheep/Goat M/T P 1
0
 0 0 1
011BD01073 Sheep/Goat Mand fr 1
0
 0 0 1
011BD01073 Sheep/Goat Mand fr 1
0
 0 0 1
011BD01073 Sheep/Goat Mandible 1
0
 0 0 1
011BD01073 Sheep/Goat Mandible 1
0
 0 0 1
011BD01073 Sheep/Goat Mandible 1
0
 0 0 1
011BD01073 Sheep/Goat Mandible 1
0
 0 0 1
011BD01073 Sheep/Goat Occiput 1
0
 0 0 0
011BD01073 Sheep/Goat Pelvis 1
0
 0 1 0
011BD01073 Sheep/Goat Pelvis 1
0
 0 1 0
011BD01073 Sheep/Goat Phalanx 1 1
0
 0 0 0
011BD01073 Sheep/Goat Phalanx 1 1
0
 0 0 0
011BD01073 Sheep/Goat Phalanx 1 1
0
 0 0 1
011BD01073 Sheep/Goat Phalanx 2 1
0
 0 0 0
011BD01073 Sheep/Goat Phalanx 3 1
0
 0 0 0
011BD01073 Sheep/Goat Radius br 1
1
 0 0 0
011BD01073 Sheep/Goat Skull fr 1
0
 0 0 1
011BD01073 Sheep/Goat Tibia P 1
0
 0 0 1
011BD01073 Small Mammal (Other) Other 1
0
 0 0 0
