West Heslerton: Anglian Settlement Structural Catalogue

011BA07132

?Structure

?Post-Hole Structure Details

Length

870

Width

Unknown

Area

Unknown

Ratio

Unknown

Number of Posts

Deepest

011BA00421 and 011BA00423

Shallowest

011BA00451

Average Depth

13.4

North Wall

7 Posts

Average Depth

East Wall

3 Posts

Average Depth

South Wall

Unknown

Average Depth

West Wall

4 Posts

Average Depth

Interior Divisions:

Highest Elevation Value

6423

011BA00438

Lowest Elevation Value

6377

011BA00461

Bearing

80 degrees

Plank\Post

Post and trench

Doorways

Possibly one entrance centrally located in the north long wall.

Repairs:

Structural Class

Material Culture

Number of Objects

Number of Animal Bones

Environmental

Phasing

Discussion

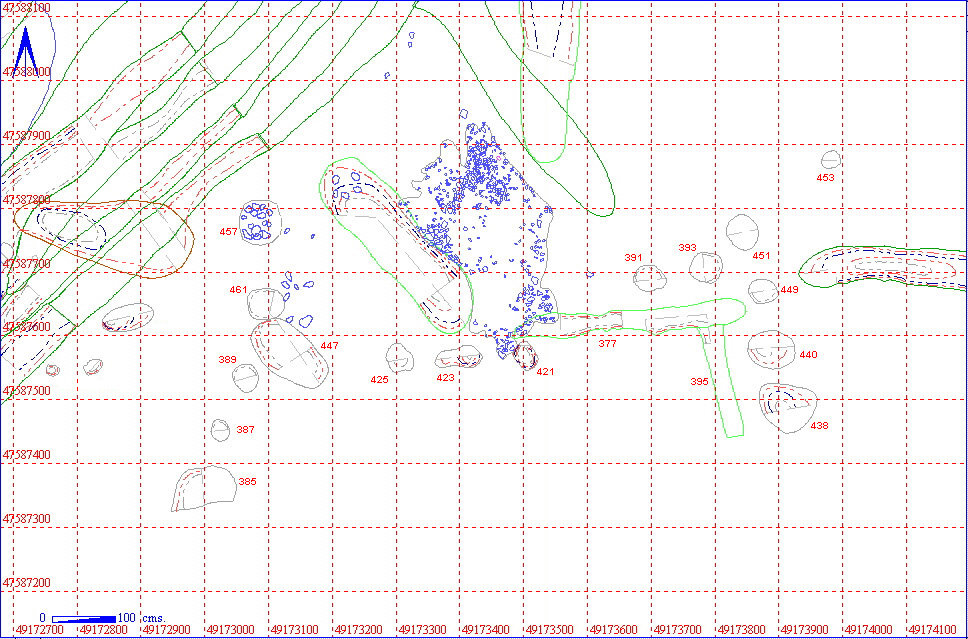

The north side of a potential post hole structure in the south of area 11BA. Two small slots (011BA00377 and 011BA00395) may be associated with the post holes. The south side of the structure may be located underneath the south area baulk, under the present road. A pebble surface (011BA00367) immediately to the north of the possible structure may be contemporary and may indicate the centrally placed position of an entrance. The two post holes flanking the possible entrance are also the deepest recorded from the structure. Two peripheral post holes (011BA00453 and 011BA00457) have also been included in this document although their association with the potential building is unclear and they may be unrelated. Two post holes (011BA00385 and 011BA00457) contained more than one fill. Many of the post holes contained charcoal flecking and daub.

All Contexts and Associated Finds Totals

MASTER	CUT	FILL	VOLUME	OBJECTS	AN BONE	DENSITY
011BA07132	011BA00377	011BA00376		1	1
	011BA00385	011BA00384			1
		011BA00397			4
	011BA00387	011BA00386
	011BA00389	011BA00388			1
	011BA00391	011BA00390
	011BA00393	011BA00392			1
	011BA00395	011BA00394
	011BA00421	011BA00420			1
	011BA00423	011BA00422			1
	011BA00425	011BA00424
	011BA00438	011BA00437
	011BA00440	011BA00439			1
	011BA00447	011BA00446		3	2 + 1
	011BA00449	011BA00448		1	1
	011BA00451	011BA00450
	011BA00453	011BA00452
	011BA00457	011BA00456			3
		011BA00463			1
	011BA00461	011BA00460		1	5 + 1

Object Totals by Material

011BA00376 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011BA00376	Unassigned	FLINT	1

011BA00446 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011BA00446	ROMAN	POTTERY	1
	Unassigned	STONE	2

011BA00448 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011BA00448	Unassigned	STONE	1

011BA00460 Object Totals by Material

KEY_ID	PERIOD	MATERIAL	No
011BA00460	ANGLIAN	FIRED CLAY	1

Animal Bone Totals by Species

011BA00376 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00376	CATTLE	1

011BA00384 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00384	SHEEP/GOAT	1

011BA00388 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00388	SHEEP/GOAT	1

011BA00392 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00392	CATTLE	1

011BA00397 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00397	BIRD	2
	HORSE	2

011BA00420 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00420	CATTLE	1

011BA00422 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00422	SHEEP/GOAT	1

011BA00439 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00439	SHEEP/GOAT	1

011BA00446 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00446	CATTLE	1
	HORSE	1

011BA00447 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00447	SHEEP/GOAT	1

011BA00448 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00448	SMALL MAMMAL	1

011BA00456 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00456	CATTLE	1
	SHEEP/GOAT	2

011BA00460 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00460	CATTLE	1
	SHEEP/GOAT	4

011BA00461 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00461	SHEEP/GOAT	1

011BA00463 Animal Bone Totals by Species

KEY_ID	SPECIES	No
011BA00463	SHEEP/GOAT	1

Structural Details

011BA00377 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00376	DITCH FILL	LINEAR	0	30	10	FLAT BASED V	PRIMARY FILL COMPRISES 20% STONE.DITCH RUNS ALONG SIDE PAVEMENTED AREA.SOIL CONTAINS CHARCOAL FLECKS.
011BA00377	DITCH CUT	LINEAR	360	30	10	FLAT BASED V	DITCH RUNNING PARALLEL TO PAVEMENTED AREA.FEATURE TURNS & AFTER THIS POINT NEW CONTEXT(394).L.MEASURED TO THIS POINT.

011BA00385 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00384	PIT FILL	SUB-CIRCULAR	110	0	23	BOWL SHAPED	SURFACE FILL COMPRISES 10% STONE.FEATURE FORMS LINE WITH P.H.s386&388. OUT SIDE PAVED AREA.
011BA00385	PIT CUT	SUB-CIRCULAR	110	0	23	BOWL SHAPED	WIDTH NOT RECORDED AS EDGE OF PIT OBSCURED BY BULK.SEE FILL.
011BA00397	PIT FILL	SUB-CIRCULAR	95	0	10	BOWL SHAPED	STONE FREE SOIL WITH CHARCOAL FLECKS&CLAY LUMP.

011BA00387 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00386	POST HOLE FILL	SUB-CIRCULAR	31	25	13	U-SHAPED	PRIMARY FILL 30% CHALKY GRAVEL.POWDERY CHARCOAL BLACKENING 80% OF FILL.SITU.IMMIDIATLY OUTSIDE PAVED AREA.
011BA00387	POST HOLE CUT	SUB-CIRCULAR	31	25	13	U-SHAPED	SEE FILL.

011BA00389 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00388	POST HOLE FILL	SUB-CIRCULAR	42	36	8	BOWL SHAPED	PRIMARY FILL 20% CHALKY GRAVEL.POWDERY CHARCOAL DISCOLOURS 50%OF MATRIX.P.H.IS IMMEDIATLY OUT SIDE PAVED AREA.FORMING LINE WITH P.H.s386&384.
011BA00389	POST HOLE CUT	SUB-CIRCULAR	42	36	8	BOWL SHAPED	SEE FILL.

011BA00391 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00390	POST HOLE FILL	ROUND	50	50	8	CONCAVE	PRIMARY FILL.20%STONE.P.H.IS 45CM FROM DITCH376.
011BA00391	POST HOLE CUT	ROUND	50	50	8	CONCAVE	SEE FILL

011BA00393 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00392	POST HOLE FILL	ROUND	46	46	8	CONCAVE	PRIMARY FILL 20% STONE.P.H.IS CLOSE TO DITCH(376).SUGGESTING IT MAY HAVE SUPPORTED A STRUCTURE.
011BA00393	POST HOLE CUT	ROUND	46	46	8	CONCAVE	SEE FILL.

011BA00395 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00394	DITCH FILL	LINEAR	185	32	10	U-SHAPED	PRIMARY FILL 10 % STONE.DITCH JOINS OR IS PART OF 376.FILL CONTAINS FLECKS OF CHARCOAL & DAUB.
011BA00395	POST HOLE CUT	LINEAR	185	32	10	U-SHAPED	SEE FILL.

011BA00421 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00420	POST HOLE FILL	SUB-CIRCULAR	46	36	27	U-SHAPED	PRIMARY FILL20% CHALK STONES.CHARCOAL & DAUB FLECKS.P.H.FORMS LINE WITH OTHER P.H.s(422 & 424).Nr DITCH&PAVED AREA.
011BA00421	POST HOLE CUT	SUB-CIRCULAR	46	36	27	U-SHAPED	SEE FILL

011BA00423 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00422	POST HOLE FILL	SUB-CIRCULAR	33	29	27	V-SHAPED	PRIMARY FILL 20%STONE:CHARCOAL & DAUB.P.H.CLOSE TO DITCH376IN LINE WITH P.H.s (420&424).
011BA00423	POST HOLE CUT	SUB-CIRCULAR	33	29	27	V-SHAPED	SEE FILL.

011BA00425 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00424	POST HOLE FILL	SUB-CIRCULAR	43	37	7	CONCAVE	PRIMARY FILL 50% CHALK.CLOSE TO PAVED AREA367 & P.H.(422&420).
011BA00425	POST HOLE CUT	SUB-CIRCULAR	43	37	7	CONCAVE	SEE FILL

011BA00438 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00437	PIT FILL	SUB-CIRCULAR	90	72	19	CONCAVE	PRIMARY FILL 20% STONE WITH CHARCOAL & DAUB PARTICLES.
011BA00438	PIT CUT	SUB-CIRCULAR	90	72	19	CONCAVE	PARTIALLY OBSCURED BY BAULK.CLOSE TO DITCH 394 & LINE OF P.H.(439:448:450:&452).

011BA00440 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00439	POST HOLE FILL	SUB-CIRCULAR	78	70	12	CONCAVE	FORMS ONE OF LINE OF P.H.(437:448:450:&452).CLOSE TO COBBLED AREA PRIMARY FILL40% STONE &CHARCOAL FLECKS.
011BA00440	POST HOLE CUT	SUB-CIRCULAR	78	70	12	CONCAVE	FORMS LINE WITH OTHER P.H.(437:448:450:452):ALSO CLOSE TO COBBLED AREA.

011BA00447 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00446	POST HOLE FILL	SUB-CIRCULAR	0	0	0	BOWL SHAPED	PRIMARY FILL CONTAINED CHARCOAL FLECKS & DAUB.
011BA00447	POST HOLE FILL	SUB-CIRCULAR	0	0	0	BOWL SHAPED	AFTER FURTHER EX. APPEARED AS SERIES OF PITS/P.H.s.SITU.WITHIN COBBLED AREA.

011BA00449 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00448	POST HOLE FILL	SUB-CIRCULAR	46	40	8	CONCAVE	PRIMARY FILL 30% STONE WITH CHARCOAL& DAUB.FORMS LINE WITH P.H.s 437:439:&450.
011BA00449	POST HOLE CUT	SUB-CIRCULAR	46	40	8	CONCAVE	FORMS LINE WITH P.H.s 437:439:&450.UNIFORM EDGE:NO POST-PIPE.

011BA00451 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00450	POST HOLE FILL	ROUND	437	439	450	CONCAVE	PRIMARY FILL 40% STONE.ONLY A FEW CHARCOAL FLECKS.JUST OFF-SET FROM LINE OF P.H.s 437:439:&449.
011BA00451	POST HOLE CUT	ROUND	50	50	4	CONCAVE	UNIFORM CUT:NO POST PIPE.FORMS LINE WITH 43:439:&449.

011BA00453 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00452	POST HOLE FILL	SUB-CIRCULAR	30	22	7	BOWL SHAPED	PRIMARY FILL 20% STONE.ASSOCIATED WITH LINE OF P.H.s BUT OFFSET FROM MAIN LINE.P.H.s.No.(437:439:450:449).
011BA00453	POST HOLE CUT	SUB-CIRCULAR	30	22	7	BOWL SHAPED	ASSOCIATED WITH BUT OFF-SET FROM LINE OF P.H.s(437:439:450:&449).UNIFORM CUT WITH NO POST-PIPE.

011BA00457 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00456	POST HOLE FILL	SUB-CIRCULAR	0	0	0	No entry	PIT FILL
011BA00457	POST HOLE CUT	SUB-CIRCULAR	0	0	0	No entry	PIT CUT
011BA00463	POST HOLE FILL	ROUND	30	30	12	BOWL SHAPED	FEATURE WITHIN ANOTHER FEATURE.

011BA00461 Notes

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
011BA00460	POST HOLE FILL	OVATE	110	67	22	No entry	POST HOLE FILL
011BA00461	POST HOLE CUT	OVATE	110	67	22	No entry	POST HOLE CUT

Objects By Context

KEY_ID	OB	PERIOD	MATERIAL	TYPE	SUB_TYPE	CLASS	No
011BA00376	AA	Unassigned	FLINT	NAT FLAKE			1
011BA00446	AC	ROMAN	POTTERY	SHERD		GREY WARE	1
011BA00446	AA	Unassigned	STONE	STONE			1
011BA00446	AB	Unassigned	STONE	STONE			1
011BA00448	AD	Unassigned	STONE	STONE			1
011BA00460	AA	ANGLIAN	FIRED CLAY	LOOMWEIGHT?		ANGLIAN III	1

Animal Bone by Context

KEY_ID	SPECIES	ELEMENT	QUANT	CHEW	BURN	BUTCH	FBRK
011BA00376	CATTLE	Skull fr	1	0	0	0	0
011BA00384	SHEEP/GOAT	Axis	1	0	0	1	0
011BA00388	SHEEP/GOAT	Scapula	1	0	0	0	1
011BA00392	CATTLE	Phalanx 3	1	1	0	0	0
011BA00397	BIRD	Occiput	1	0	0	0	0
011BA00397	BIRD	Skull fr	1	0	0	0	0
011BA00397	HORSE	Radius P	1	0	0	0	0
011BA00397	HORSE	Ulna	1	0	0	0	0
011BA00420	CATTLE	Ld4	1	0	0	0	0
011BA00422	SHEEP/GOAT	Tibia D	1	0	0	0	1
011BA00439	SHEEP/GOAT	Mandible	1	0	0	0	1
011BA00446	CATTLE	Mand fr	1	0	0	0	1
011BA00446	HORSE	M/C P	1	0	0	0	0
011BA00447	SHEEP/GOAT	Femur br	1	0	0	0	0
011BA00448	SMALL MAMMAL	Other	1	0	0	0	0
011BA00456	CATTLE	Skull fr	1	0	0	0	0
011BA00456	SHEEP/GOAT	Mandible	1	0	0	0	1
011BA00456	SHEEP/GOAT	Tibia br	1	0	0	0	0
011BA00460	CATTLE	Femur D	1	0	0	1	0
011BA00460	SHEEP/GOAT	Calcaneum	1	0	0	0	0
011BA00460	SHEEP/GOAT	Skull fr	1	0	0	0	0
011BA00460	SHEEP/GOAT	Skull fr	1	0	0	0	0
011BA00460	SHEEP/GOAT	Tibia D	1	1	0	0	0
011BA00461	SHEEP/GOAT	Calcaneum	1	0	0	0	0
011BA00463	SHEEP/GOAT	Radius D	1	0	0	0	0
