002DB00339

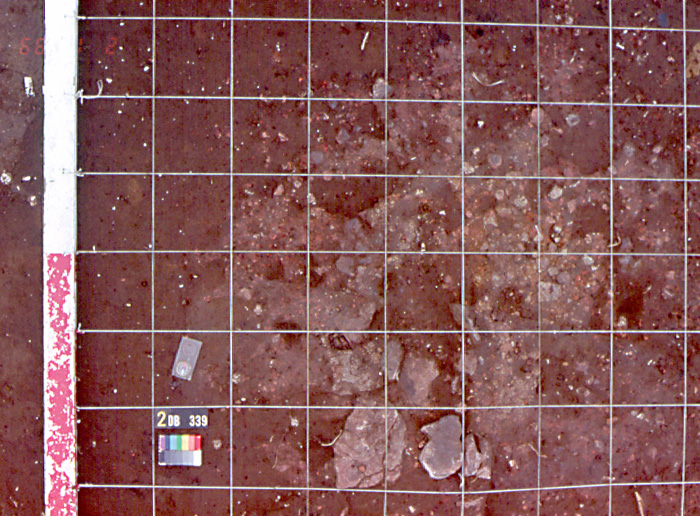

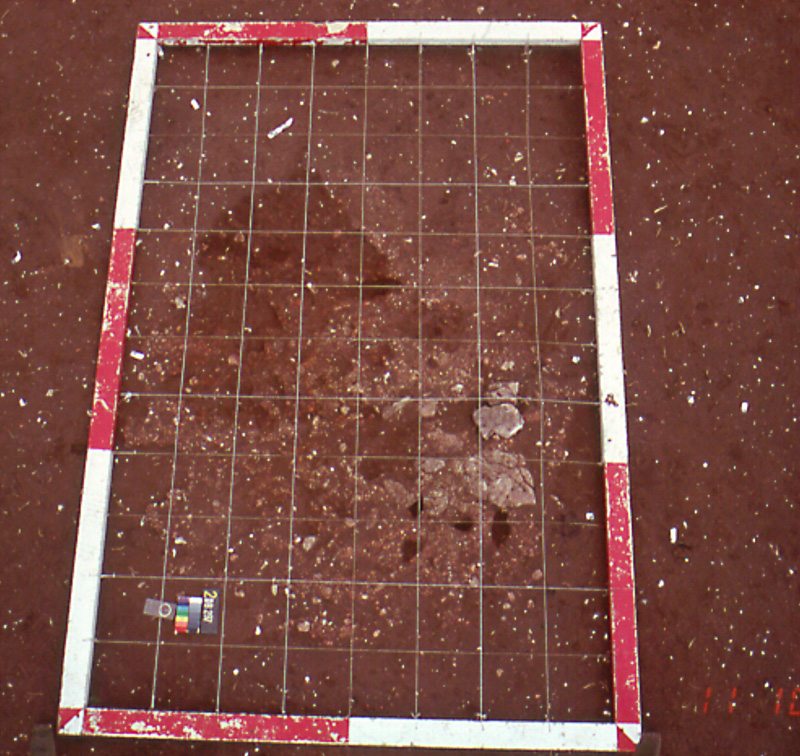

Malt Kiln View of Malt Kiln from the west View of Malt Kiln from above

Phasing

Stratigraphic Matrix Diagram

Discussion

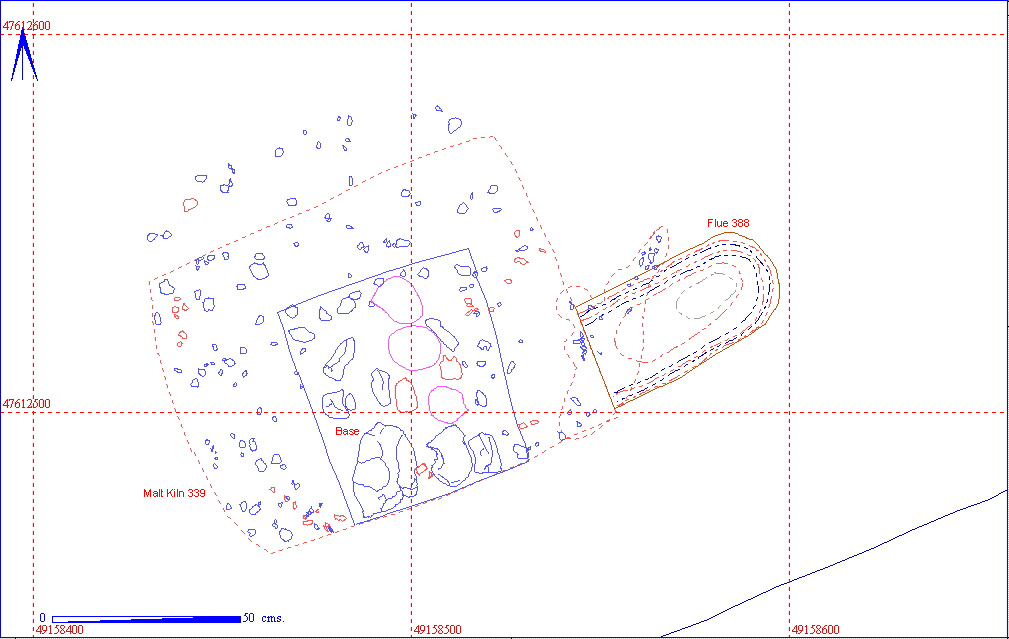

A malt kiln in the north of area 2DB. The data from the structure has been analysed as part of an experimental archaeological project by Patricia Fragola. A spit (002DB00297) covered the area of the kiln. The structure overlay a deep (31cm) buried soil (002DB00375). What was excavated as a small pit-type feature (002DB00388) just to the west of the structure is the flue, which provided the heat under a clay base constructed over a layer of large chalk blocks.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
002DB00339 002DB00388 002DB00297
002DB00307 1

Structural Details

Master  002DB00339

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00339 STRUCTURE OVATE 108 83 18 FLAT MALT KILN IN N.E. AREA 2DB. MOST OF RECORD IS IN PHOTOGRAPHIC & VIDEO FORM. SEE THESE FOR DETAILS.

002DB00388 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DB00297 SPIT SUB-RECTANGULAR 600 500 4 FLAT CLEANING/DEFINING SPIT OVER MALT KILN & IMMEDIATE SURROUNDING BURIED SOIL SEALED BY MED HEADLAND. ALL FINDS EDMd.OCCA CHALK<4CM:MOD SMALL FLECKS CHARC
002DB00307 PIT FILL OVATE 52 29 31 FLAT FILL OF SMALL PIT TYPE FEATURE IMM TO E. OF MALT KILN. TRUE SIZE DIFFICULT TO DETERMINE-SEE PHOTOs/DRAWINGS-DUE TO OVEREXCAVTION.MUCH BURNT MATERIAL.
002DB00388 PIT CUT OVATE 52 29 31 FLAT BASED U IMM. TO E OF MALT KILN 339 BUT EXACT RELATIONSHIP UNKNOWN. CUT INTO BURIED SOIL 375. OVER-EXCAVATION MAKES DETERMINATION DIFFICULT.

Objects by Context


KEY_ID OB PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002DB00307 AA No Entry CHARCOAL CHARCOAL SAMPLE 1
