002DA00130

Grubenhaus

Grubenhaus Details
Length 425 Width 283  Depth 29 Ratio 1.5:1
Area  11.3 sq. metres Volume
Number of Posts 1
Highest Elevation Value  5357
Lowest Elevation Value 5328
Bearing  79 degrees
Structural Class
Material Culture Number of Objects 117 Number of Animal Bones 137
Environmental

Phasing

Stratigraphic Matrix Diagram

Discussion

A large, regular Grubenhaus in the centre of area 2DA. The structure was immediately to the east of ditch, master 002DA00114 (within master 002DA07044) and is cut by medieval furrow 002DA00105 (within master 002DA07046). The fills contained a moderate amount of unfired clay. One post hole, in the west side, was discernible during excavation.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002DA00130 15 22
002DA00132 002DA00131 100 104
002DA00157  2 11
POST HOLE 002DA00302 002DA00301

Object Totals by Material

002DA00130 Object Totals by Material

002DA00130 Charcoal 1
Pottery 5  of which Early Saxon 2  No Entry 2 Roman  1
Stone 2
Unfired Clay 5
Worked Stone 2

002DA00131 Object Totals by Material

002DA00131 Charcoal 4
Daub 2
Flint 4
Glass 2
Iron 4
Pottery 25  of which Early Saxon 4  Iron Age 3 Medieval  3 Neolithic 1  No Entry 10 Prehistoric  2 Roman 2
Stone 35
Unfired Clay 22

Animal Bone Totals by Species

002DA00130 Animal Bone Totals by Species

002DA00130 Cat 1
Cattle 11
Horse 1
Pig 2
Sheep/goat 7

002DA00131 Animal Bone Totals by Species

002DA00131 Cattle 51
Dog 2
Horse 4
Pig 5
Sheep 6
Sheep/goat 36

002DA00157 Animal Bone Totals by Species

002DA00157 Cattle 11

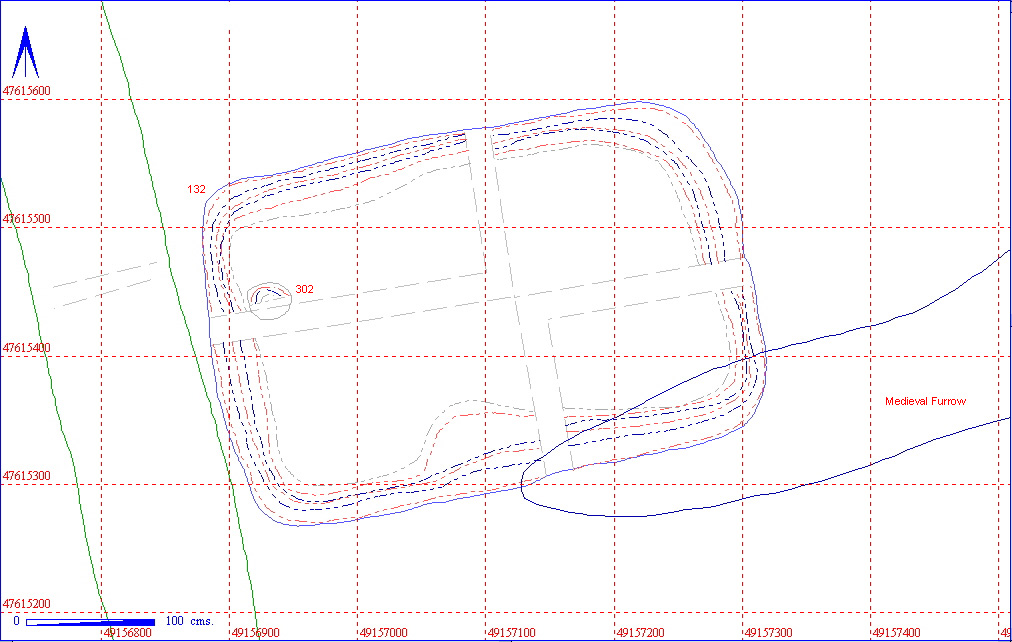

Structural Details

002DA00132 Section and Notes

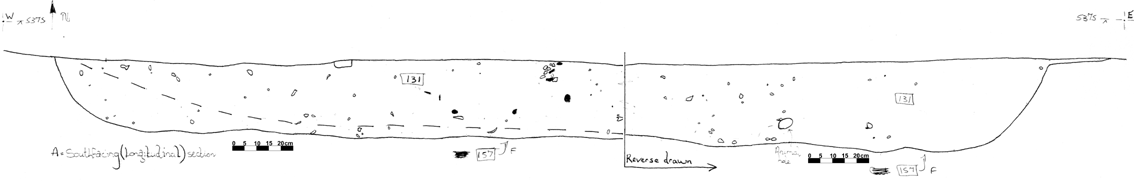

002DA00132 South Facing Section

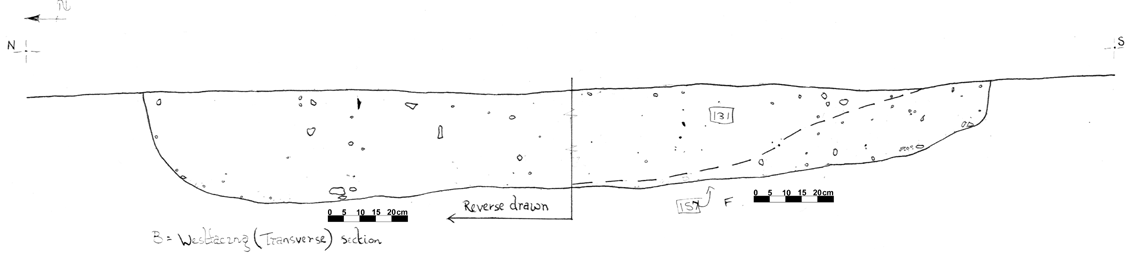

002DA00132 West Facing Section
KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DA00131 GRUB FILL SUB-RECTANGULAR  425 283 29 WIDE U  PRIMARY FILL OF M130.CHALK & FLINT INCLUSIONS <5%:UPTO 2CM IN DIAMETER.OCCA CHARCOAL IN FILL.SOME METALWORKING FINDS INCLUDING IRON & SLAG.
002DA00132 GRUB CUT SUB-RECTANGULAR  425 283  29 WIDE U   ORIGINALLY ISSUED AS CUT FOR M130 BY MRM. ON EXCAVATION OF FEATURE CON 2DA157 WAS ISSUED BY KCG AS A SECOND FILL: THIS TURNED OUT TO BE THE CUT.DUD.
002DA00157 GRUB FILL SUB-RECTANGULAR  221 183  27 COMPLEX  HUMIC FILL OF M130 WITH <15% CHALK & GRAVEL INCLUSIONS:<2CM IN SIZE.FILL HEAVILY ROOTED & BURROWED: OCCA CHARCOAL.FINDS INCLUDE ANIMAL BONE.

002DA00302 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002DA00301 POST HOLE FILL OVATE  32 29  19 FLAT  OCCA ROUNDED CHALK GRAVEL <3CM THROUGHOUT FILL. 1 OR 2 SMALL FLECKS OF CHARCOAL. ROOT & BURROW DISTURBED. LAYS AT WEST END OF GRUB.
002DA00302 POST HOLE CUT OVATE  32 29  19 USHAPED  LOCATED APPROX CENTRALLY JUST AGAINST W. END OF GRUB. E. EDGE SL LESS STEEP THAN W. :U: BASE. SHALLOW IN RELATION TO WIDTH. ROOT & BURROW DISTURBED.

Objects by Context

KEY_ID OB PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002DA00130 AA No Entry  CHARCOAL CHARCOAL SAMPLE  1
002DA00130 AB EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002DA00130 AN EARLY SAXON  POTTERY SHERD  ANGLIAN  1
002DA00130 AF No Entry  POTTERY SHERD  1
002DA00130 AH No Entry  POTTERY SHERD  1
002DA00130 AJ ROMAN  POTTERY SHERD  ROMAN  1
002DA00130 AG No Entry  STONE STONE  SANDSTONE  1
002DA00130 AP No Entry  STONE STONE  SANDSTONE  1
002DA00130 AC EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  3
002DA00130 AE EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  10
002DA00130 AI EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  3
002DA00130 AK EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  5
002DA00130 AM EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  13
002DA00130 AL EARLY SAXON  WORKED STONE LAVA  NIEDERMENDIG 15
002DA00130 AO EARLY SAXON  WORKED STONE LAVA  NIEDERMENDIG 11
002DA00131 AK No Entry  CHARCOAL CHARCOAL SAMPLE  1
002DA00131 AO No Entry  CHARCOAL CHARCOAL SAMPLE  1
002DA00131 AV No Entry  CHARCOAL CHARCOAL SAMPLE  1
002DA00131 BI No Entry  CHARCOAL CHARCOAL SAMPLE  LARGE PIECE 1
002DA00131 AH EARLY SAXON  DAUB BURNT DAUB  1
002DA00131 DN EARLY SAXON  DAUB ?BURNT DAUB  1
002DA00131 AN LATE NEO/E.B.A.  FLINT SCRAPER  1
002DA00131 CD No Entry  FLINT FLAKE  LOCAL FLINT  1
002DA00131 BR PREHISTORIC  FLINT FLAKE  1
002DA00131 DE PREHISTORIC  FLINT BLADE  CORE REJUV 1
002DA00131 DB EARLY SAXON  GLASS BEAD  WHITE ON RED GLASS BEAD  1
002DA00131 DC MODERN  GLASS GLASS FRAGMENT  1
002DA00131 AM No Entry  IRON IRON FRAGMENTS  2
002DA00131 AT No Entry  IRON IRON NAIL  1
002DA00131 BY No Entry  IRON IRON FRAGMENT  1
002DA00131 EM No Entry  IRON IRON OBJECT  ?HANDLE 1
002DA00131 AD EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002DA00131 BQ EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002DA00131 DG EARLY SAXON  POTTERY SHERD  ?ANGLIAN I  1
002DA00131 DI EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002DA00131 AJ IRON AGE  POTTERY SHERD  IA  1
002DA00131 BC IRON AGE  POTTERY SHERD  ?IA  1
002DA00131 BD IRON AGE  POTTERY SHERD  IA  1
002DA00131 AC MEDIEVAL  POTTERY SHERD  GREEN GLAZED MED  1
002DA00131 AY MEDIEVAL  POTTERY SHERD  MED/ROMAN  1
002DA00131 DR MEDIEVAL  POTTERY SHERD  MED  1
002DA00131 DL NEOLITHIC  POTTERY SHERD  NEO  1
002DA00131 AA No Entry  POTTERY SHERD  1
002DA00131 AD No Entry  POTTERY SHERD  1
002DA00131 AF No Entry  POTTERY SHERD  1
002DA00131 AU No Entry  POTTERY SHERD  1
002DA00131 BF No Entry  POTTERY SHERD  1
002DA00131 BJ No Entry  POTTERY SHERD  1
002DA00131 BN No Entry  POTTERY SHERD  1
002DA00131 BO No Entry  POTTERY SHERD  1
002DA00131 BT No Entry  POTTERY SHERD  1
002DA00131 DH No Entry  POTTERY SHERD  1
002DA00131 BH PREHISTORIC  POTTERY SHERD  1
002DA00131 DQ PREHISTORIC  POTTERY SHERD  1
002DA00131 AL ROMAN  POTTERY SHERD  R-B  1
002DA00131 CB ROMAN  POTTERY SHERD  R-B  1
002DA00131 BB EARLY SAXON  STONE LAVA  NIEDERMENDIG 5
002DA00131 BS EARLY SAXON  STONE LAVA  NIEDERMENDIG 9
002DA00131 BU EARLY SAXON  STONE LAVA  NIEDERMENDIG 11
002DA00131 AB No Entry  STONE STONE  1
002DA00131 AE No Entry  STONE STONE  BURNT RED CHALK  1
002DA00131 AG No Entry  STONE STONE  1
002DA00131 AI No Entry STONE STONE  1
002DA00131 AP No Entry  STONE STONE  SANDSTONE  1
002DA00131 AQ No Entry  STONE STONE  RED CHALK  1
002DA00131 AR No Entry  STONE STONE  NAT IRON  1
002DA00131 AS No Entry  STONE STONE  RED CHALK  1
002DA00131 AW No Entry  STONE STONE  1
002DA00131 AX No Entry  STONE STONE  SANDSTONE  1
002DA00131 AZ No Entry  STONE COKE FRAGMENT  1
002DA00131 BA No Entry  STONE STONE  RED CHALK  1
002DA00131 BE No Entry  STONE STONE  1
002DA00131 BG No Entry  STONE STONE  SANDSTONE  1
002DA00131 BK No Entry  STONE STONE  NAT IRON  1
002DA00131 BL No Entry  STONE STONE  RED CHALK  1
002DA00131 BM No Entry  STONE STONE  LIMESTONE  1
002DA00131 BP No Entry  STONE STONE  RED CHALK  1
002DA00131 BV No Entry  STONE STONE  1
002DA00131 BW No Entry  STONE STONE  SANDSTONE  1
002DA00131 BX No Entry  STONE STONE  NAT IRON  1
002DA00131 BZ No Entry  STONE STONE  SANDSTONE  1
002DA00131 CC No Entry  STONE STONE  1
002DA00131 DD No Entry  STONE STONE  1
002DA00131 DF No Entry  STONE STONE  1
002DA00131 DJ No Entry  STONE STONE  1
002DA00131 DK No Entry  STONE STONE  SANDSTONE  1
002DA00131 DM No Entry  STONE STONE  1
002DA00131 DO No Entry  STONE STONE  1
002DA00131 DP No Entry  STONE STONE  LIMESTONE  1
002DA00131 DS No Entry  STONE STONE  2
002DA00131 EK No Entry  STONE STONE  1
002DA00131 CZ EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT  4
002DA00131 DT EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 DU EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 DV EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 DW EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 DX EARLY SAXON  UNFIRED CLAY LOOMWEIGHT  UNFIRED CLAY 1
002DA00131 DY EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 3
002DA00131 DZ EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  3
002DA00131 EA EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EB EARLY SAXON  UNFIRED CLAY ?LOOMWEIGHT  UNFIRED CLAY 1
002DA00131 EC EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  2
002DA00131 ED EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EE EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EF EARLY SAXON  UNFIRED CLAY LOOMWEIGHT  UNFIRED CLAY 1
002DA00131 EG EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EH EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EI EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EJ EARLY SAXON  UNFIRED CLAY LOOMWEIGHT  UNFIRED CLAY 1
002DA00131 EL EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EN EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 EO EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 2
002DA00131 EP EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 1
002DA00131 DA EARLY SAXON  WORKED STONE SPINDLE WHORL  CHALK 1
002DA00131 CA No Entry  WORKED STONE ?WORKED STONE 1
002DA00157 AD No Entry  POTTERY SHERD  1
002DA00157 AC No Entry  STONE STONE  1

Animal Bone By Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002DA00130 Cat Femur br  1 1  0 0  0
002DA00130 Cattle Calcaneum  1 1  0 0  0
002DA00130 Cattle Calcaneum  1 1  0 0  1
002DA00130 Cattle M/podial  1 0  0 0  0
002DA00130 Cattle M/T P  1 0  0 0  1
002DA00130 Cattle Mand fr  1 0  0 0  1
002DA00130 Cattle Occiput  1 1  0 0  1
002DA00130 Cattle Pelvis  1 0  0 0  0
002DA00130 Cattle Pelvis  1 1  0 0  0
002DA00130 Cattle Pelvis  1 1  0 1  1
002DA00130 Cattle Scapula  1 1  0 1  0
002DA00130 Cattle Tibia D  1 0  0 0  1
002DA00130 Horse Phalanx 3  1 0  0 0  1
002DA00130 Pig Fibula  1 0  0 0  0
002DA00130 Pig Phalanx 1  1 1  0 0  0
002DA00130 Sheep/goat Axis  1 0  0 0  1
002DA00130 Sheep/goat M/T P  1 0  0 0  1
002DA00130 Sheep/goat Mandible  1 0  0 0  1
002DA00130 Sheep/goat Mandible  1 0  0 0  1
002DA00130 Sheep/goat Radius C  1 1  0 0  1
002DA00130 Sheep/goat Scapula  1 1  0 1  1
002DA00130 Sheep/goat Ulna  1 0  0 0  0
002DA00131 Cattle Astragalus  1 1  0 1  0
002DA00131 Cattle Astragalus  1 1  0 1  1
002DA00131 Cattle Atlas  1 1  0 0  1
002DA00131 Cattle Atlas  1 1  0 0  0
002DA00131 Cattle Calcaneum  1 1  0 0  0
002DA00131 Cattle Calcaneum  1 1  0 0  0
002DA00131 Cattle Calcaneum  1 0  0 1  1
002DA00131 Cattle Femur br  1 0  0 0  1
002DA00131 Cattle Femur fr  1 0  0 1  0
002DA00131 Cattle Femur P  1 1  0 0  0
002DA00131 Cattle Horncore  1 0  0 0  1
002DA00131 Cattle Horncore  1 0  0 0  1
002DA00131 Cattle Horncore  1 0  0 0  1
002DA00131 Cattle Humerus D  1 0  0 1  1
002DA00131 Cattle Humerus D  1 0  0 0  0
002DA00131 Cattle Humerus D  1 1  0 0  0
002DA00131 Cattle Ld4  1 0  0 0  0
002DA00131 Cattle M/C D  1 0  0 0  1
002DA00131 Cattle M/C D  1 0  0 0  0
002DA00131 Cattle M/C D  1 0  0 0  0
002DA00131 Cattle M/C D  1 0  0 1  0
002DA00131 Cattle M/C P  1 0  0 0  0
002DA00131 Cattle M/T C  1 0  0 0  0
002DA00131 Cattle Mandible  1 0  0 0  0
002DA00131 Cattle Mandible  1 0  0 0  1
002DA00131 Cattle Mandible  1 1  0 0  0
002DA00131 Cattle N.Cuboid  1 1  0 0  1
002DA00131 Cattle N.Cuboid  1 0  0 0  1
002DA00131 Cattle Patella  1 0  0 0  1
002DA00131 Cattle Pelvis  1 0  0 0  1
002DA00131 Cattle Pelvis  1 0  0 10  0
002DA00131 Cattle Pelvis  1 0  0 1  1
002DA00131 Cattle Pelvis  1 1  0 1  0
002DA00131 Cattle Phalanx 1  1 0  0 0  0
002DA00131 Cattle Phalanx 1  1 0  0 0  1
002DA00131 Cattle Phalanx 1  1 1  0 0  1
002DA00131 Cattle Phalanx 1  1 1  0 0  1
002DA00131 Cattle Phalanx 2  1 0  0 0  0
002DA00131 Cattle Phalanx 2  1 1  0 0  0
002DA00131 Cattle Phalanx 2  1 0  0 0  0
002DA00131 Cattle Phalanx 3  1 0  0 0  0
002DA00131 Cattle Phalanx 3  1 0  0 0  0
002DA00131 Cattle Phalanx 3  1 0  0 0  0
002DA00131 Cattle Radius D  1 0  0 0  1
002DA00131 Cattle Sacrum  1 1  0 1  1
002DA00131 Cattle Scapula  1 0  0 0  1
002DA00131 Cattle Scapula  1 0  0 1  1
002DA00131 Cattle Scapula  1 0  0 1  1
002DA00131 Cattle Skull fr  1 1  0 0  1
002DA00131 Cattle Tibia D 1 0  0 0  1
002DA00131 Cattle Tibia D  1 1  0 0  1
002DA00131 Dog M/C C  1 0  0 0  0
002DA00131 Dog M/C C  1 0  0 0  0
002DA00131 Horse M/podial  1 0  0 0  0
002DA00131 Horse M/podial  1 0  0 0  1
002DA00131 Horse Phalanx 2  1 1  0 1  1
002DA00131 Horse Tibia D  1 0  0 0  1
002DA00131 Pig M/T C  1 0  0 0  0
002DA00131 Pig Pelvis  1 0  0 0  1
002DA00131 Pig Phalanx 1  1 1  0 0  0
002DA00131 Pig Radius C  1 0  0 0  0
002DA00131 Pig U Canine  1 0  0 0  0
002DA00131 Sheep Horncore  1 0  0 0  1
002DA00131 Sheep Humerus D  1 1  0 0  1
002DA00131 Sheep M/C C  1 0  0 0  1
002DA00131 Sheep M/T C  1 0  0 0  0
002DA00131 Sheep Radius P  1 0  0 0  1
002DA00131 Sheep Scapula  1 1  0 0  0
002DA00131 Sheep/goat Axis  1 0  0 0  1
002DA00131 Sheep/goat Femur D  1 0  0 0  1
002DA00131 Sheep/goat Humerus br  1 0  0 0  0
002DA00131 Sheep/goat Humerus D  1 0  0 0  1
002DA00131 Sheep/goat Humerus P  1 0  0 0  1
002DA00131 Sheep/goat Hyoid  1 0  0 0  0
002DA00131 Sheep/goat LM3  1 0  0 0  0
002DA00131 Sheep/goat LM3  1 0  0 0  0
002DA00131 Sheep/goat LM3  1 0  0 0  0
002DA00131 Sheep/goat M/C P  1 0  0 0  0
002DA00131 Sheep/goat M/podial  1 0  0 0  0
002DA00131 Sheep/goat M/T br  1 1  0 0  0
002DA00131 Sheep/goat M/T br  1 0  0 0  0
002DA00131 Sheep/goat Mandible  1 0  0 0  1
002DA00131 Sheep/goat Mandible  1 0  0 0  1
002DA00131 Sheep/goat Mandible  1 0  0 0  1
002DA00131 Sheep/goat Mandible  1 0  0 0  1
002DA00131 Sheep/goat Mandible  1 1  0 0  0
002DA00131 Sheep/goat Pelvis  1 0  0 0  0
002DA00131 Sheep/goat Pelvis  1 0  0 0  1
002DA00131 Sheep/goat Phalanx 1  1 0  0 0  0
002DA00131 Sheep/goat Phalanx 2  1 0  0 0  1
002DA00131 Sheep/goat Radius br  1 0  0 0  1
002DA00131 Sheep/goat Radius D  1 0  0 0  0
002DA00131 Sheep/goat Radius P  1 0  0 0  1
002DA00131 Sheep/goat Scapula  1 1  0 1  1
002DA00131 Sheep/goat Scapula  1 0  0 0  1
002DA00131 Sheep/goat Tibia br  1 1  0 0  1
002DA00131 Sheep/goat Tibia br  1 1  0 0  1
002DA00131 Sheep/goat Tibia br  1 1  0 1  1
002DA00131 Sheep/goat Tibia D  1 1  0 0  0
002DA00131 Sheep/goat Tibia D  1 0  0 0  1
002DA00131 Sheep/goat Tibia D  1 0  0 0  1
002DA00131 Sheep/goat Tibia D  1 0  0 0  1
002DA00131 Sheep/goat Tibia D  1 0  0 0  1
002DA00131 Sheep/goat Tibia D  1 0  0 0  1
002DA00157 Cattle Humerus fr  1 1  0 0  1
002DA00157 Cattle M/C P  1 0  0 0  0
002DA00157 Cattle M/podial  1 1  0 0  1
002DA00157 Cattle Phalanx 1  1 1  0 0  0
002DA00157 Cattle Phalanx 3  1 0  0 0  0
002DA00157 Cattle Radius D  1 0  0 0  1
002DA00157 Cattle Radius P  1 1  0 1  1
002DA00157 Cattle Tibia br  1 1  0 0  1
002DA00157 Cattle Ulna  1 0  0 0  0
002DA00157 Sheep Humerus D  1 1  0 0  1
002DA00157 Sheep Radius P  1 0  0 0  0
