002CC00589

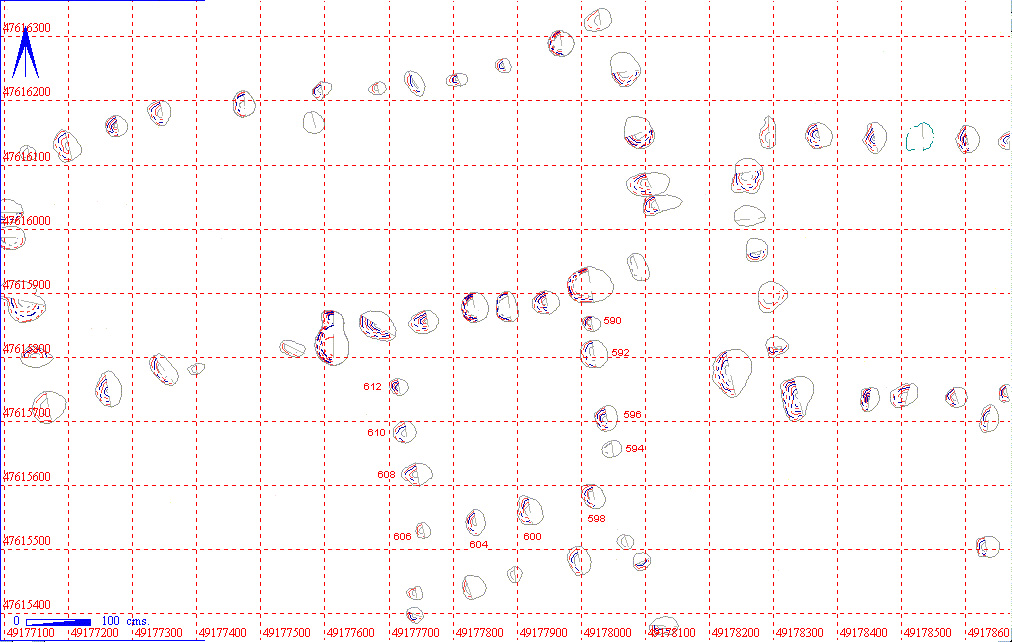

Post Hole Structure


Post-Hole Structure Details
Length  280 Width 280
Area  7.84 sq. m Ratio 1:1
Number of Posts  11 Deepest 26 (x2)  002CC00594 and 002CC00612 Shallowest  9 002CC00596
Average Depth
 19
North Wall  0 Posts Average Depth
East Wall  4 Posts Average Depth  18
South Wall  4 Posts Average Depth  19
West Wall  3 Posts Average Depth  22
Interior Divisions:  No
Highest Elevation Value  5256 002CC00604
Lowest Elevation Value  5208 002CC00590
Bearing  79 degrees
Plank\Post  Post
Doorways Possibly 1 doorway in the eastern wall
Repairs:  No repairs noted
Structural Class
Material Culture  Number of Objects 1  Number of Animal Bones 0
Environmental

Phasing

Discussion

A small, square, ancillary building constructed on the south-eastern wall of structure 002CC00382, probably at the same time as the main building was built as many of the post-holes in the south-east wall of 002CC00589 are perfectly aligned with the post-holes on both sides of 002CC00382, and were constructed with the same size and spacing of posts. Eleven post-holes make up the structure which appears to have a single entrance in the north-east wall and no direct access into 002CC00382, at least none visible at this level of construction.

All Contexts and Associated Finds Totals
MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
002CC00589 002CC00590  002CC00591 1
002CC00592  002CC00593
002CC00594  002CC00595
002CC00596  002CC00597
002CC00598  002CC00599
002CC00600  002CC00601
002CC00604  002CC00605
002CC00606  002CC00607
002CC00608  002CC00609
002CC00610  002CC00611
002CC00612  002CC00613


Structural Details

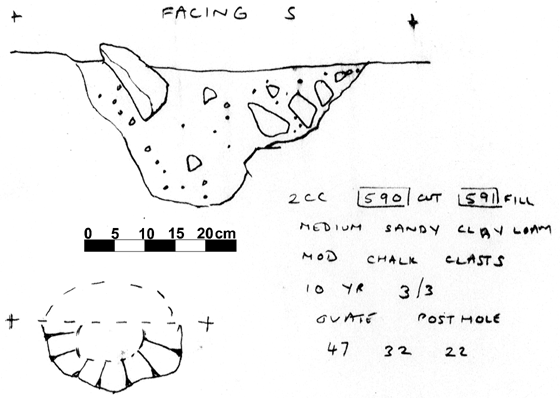

002CC00590 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00590  POST HOLE CUT OVATE  47 32  22 STEPPED U
002CC00591  POST HOLE FILL OVATE  47 32  22 STEPPED U

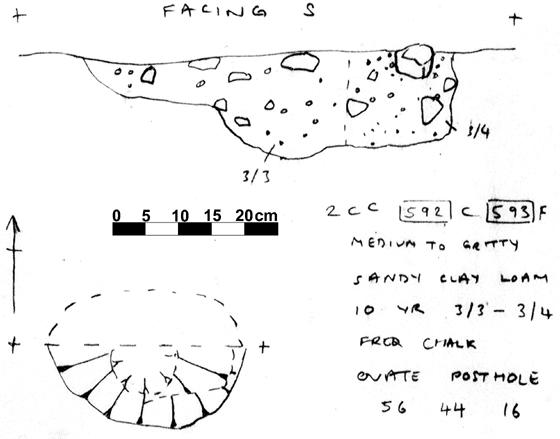

002CC00592 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00592  POST HOLE CUT OVATE  56 44  16 STEPPED U
002CC00593  POST HOLE FILL OVATE  56 44  16 STEPPED U  FREQUENT CHALK INCLUSIONS

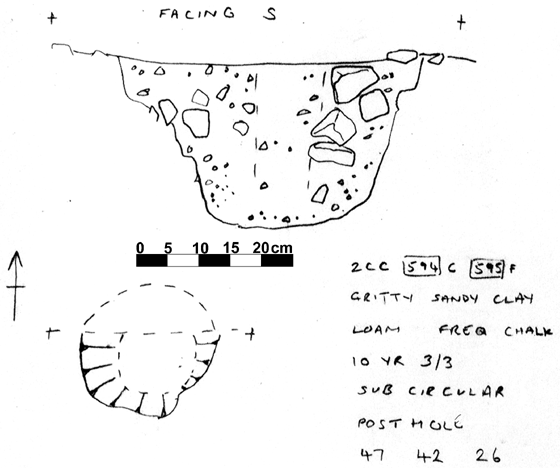

002CC00594 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00594  POST HOLE CUT SUB-CIRCULAR  47 42  26 STEPPED U
002CC00595  POST HOLE FILL SUB-CIRCULAR  47 42  26 STEPPED U  FREQUENT CHALK INCLUSIONS

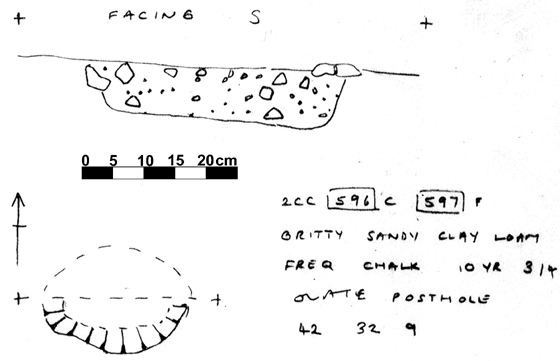

002CC00596 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00596  POST HOLE CUT OVATE  42 32  9 FLAT BASED U
002CC00597  POST HOLE FILL OVATE  42 32  9 FLAT BASED U  FREQUENT CHALK INCLUSIONS

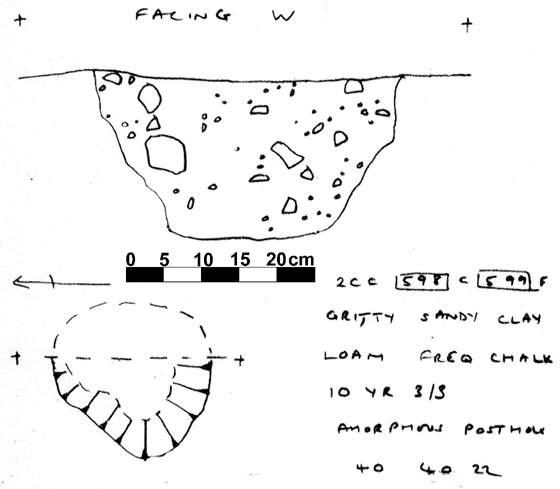

002CC00598 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00598  POST HOLE CUT AMORPHOUS  40 40  22 FLAT BASED U  P.H. FORMING PART OF PORCH LIKE FEATURE OF M.382. REGULAR BASE: EDGES SLIGHTLY STEPPED. BULGES OUT TO W. TRUNCATED ABOVE.
002CC00599  POST HOLE FILL AMORPHOUS  40 40  22 FLAT BASED U  FREQ CHALK < <5CM THROUGHOUT FILL. TRUNCATED ABOVE.

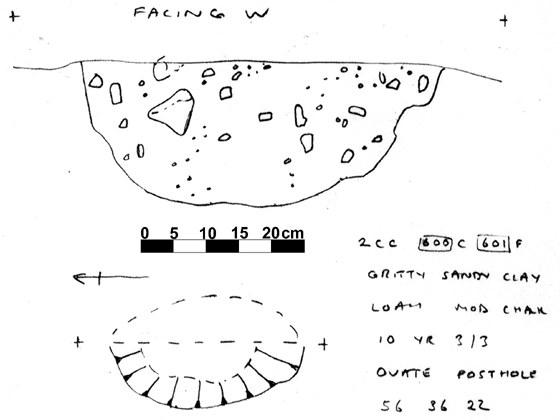

002CC00600 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00600  POST HOLE CUT OVATE  56 36  22 USHAPED  LARGE P.H. FORMING PART OF ANNEX TYPE STRUCTURE OF M.382. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00601  POST HOLE FILL OVATE  56 36  22 USHAPED  MOD CHALK < 7 CM THROUGHOUT FILL BUT CONCENTRATING MAINLY IN UPPER PART OF FILL. TRUNCATED ABOVE.

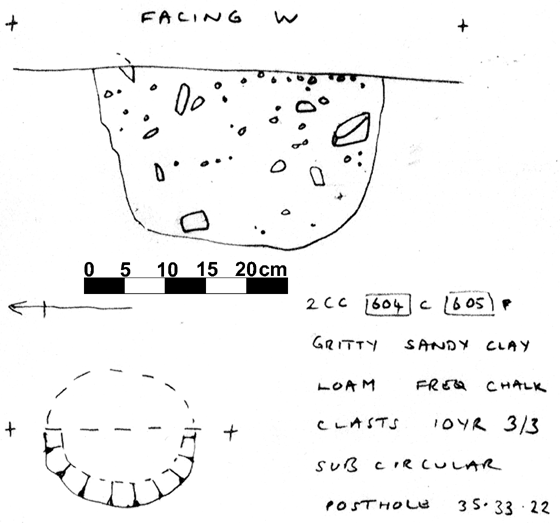

002CC00604 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00604  POST HOLE CUT SUB-CIRCULAR  35 33  22 FLAT BASED U  P.H. FORMING PART OF ANNEXE LIKE STRUCTURE AT S. OF M382. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00605  POST HOLE FILL SUB-CIRCULAR  35 32  22 FLAT BASED U  FREQ CHALK < 4 CM THROUGHOUT FILL BUT CONCENTRATING IN UPPER PART. TRUNCATED ABOVE.

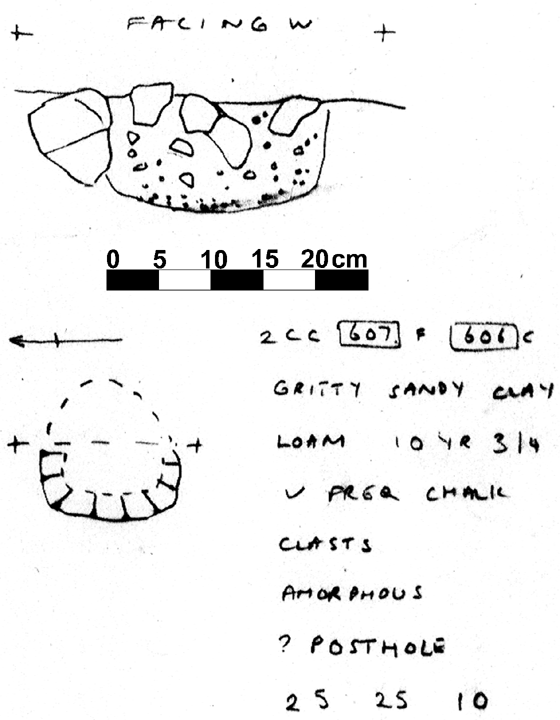

002CC00606 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00606  POST HOLE CUT AMORPHOUS  25 25  10 FLAT BASED U  P.H. FORMING PART OF ANNEXE TYPE STRUCTURE TO S. OF M.382. TRUNCATED ABOVE.SIDES Nr VERTICAL: BASE REGULAR.
002CC00607  POST HOLE FILL AMORPHOUS  25 25  10 FLAT BASED U  FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

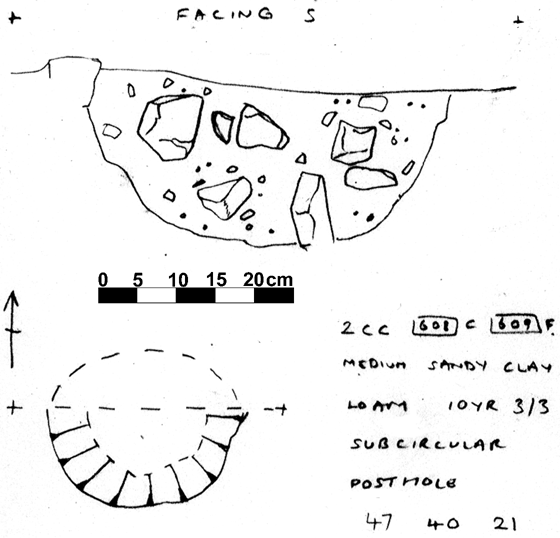

002CC00608 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00608  POST HOLE CUT SUB-CIRCULAR  47 40  21 USHAPED  P.H. FORMING PART OF ANNEXE TYPE STRUCTURE TO S. OF M382. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00609  POST HOLE FILL SUB-CIRCULAR  47 40  21 USHAPED  FREQ CHALK < 10 CM THROUGHOUT FILL. TRUNCATED ABOVE.

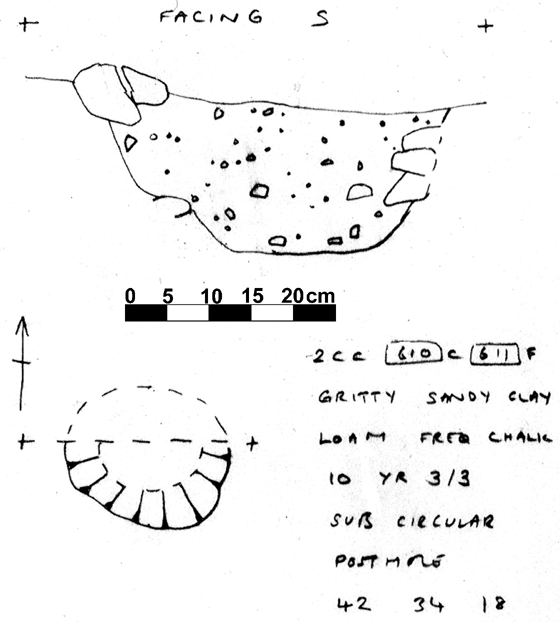

002CC00610 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00610  POST HOLE CUT SUB-CIRCULAR  42 34  18 FLAT BASED U  P.H. FORMING PART OF ANNEXE TYPE STRUCTURE TO S. OF M382. TRUNCATED ABOVE. REGULAR BASE & SIDES THOUGH IS SLIGHT STEP ON W. EDGE.
002CC00611  POST HOLE FILL SUB-CIRCULAR  42 34  18 FLAT BASED U  MOD/FREQ CHALK < 3CM THROUGHOUT FILL. TRUNCATED ABOVE.

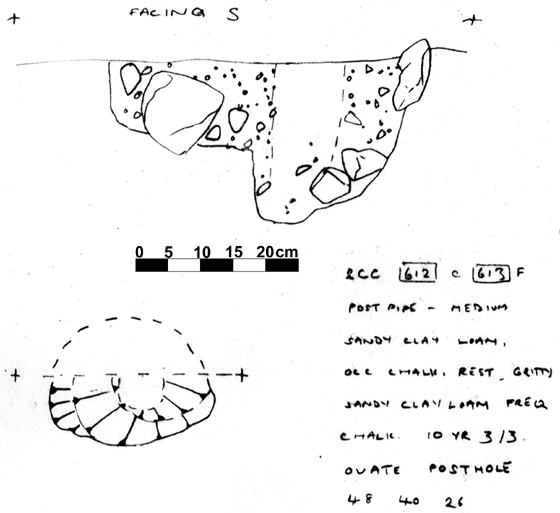

002CC00612 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00612  POST HOLE CUT OVATE  48 40  26 IRREGULAR  P.H. FORMING PART OF ANNEXE LIKE STRUCTURE TO S. OF M382. TRUNCATED ABOVE. STEPS DOWN FROM W. TO E. HAS A P. PIPE.
002CC00613  POST HOLE FILL OVATE  48 40  26 IRREGULAR  FREQ CHALK < 6 CM. HAS A POST PIPE!!!!----=MED SANDY CLAY: OCCA FINE CHALK.TRUNCATED ABOVE.


Objects By Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CC00590 AA Prehistoric  POTTERY SHERD FLINT TEMPERED WARE 1
