002CC01866

Ditch



Phasing

Discussion

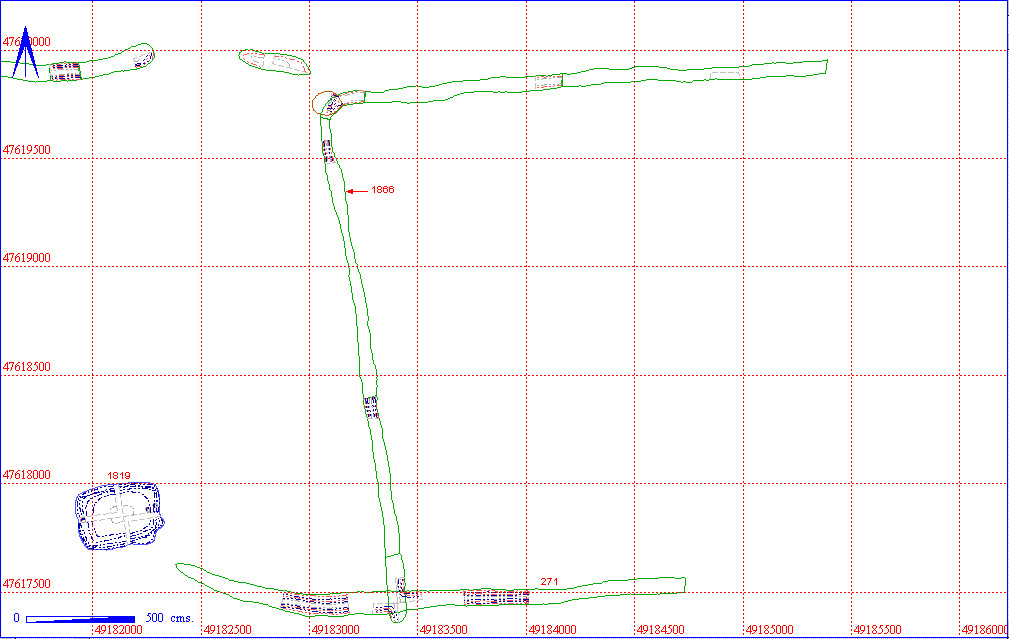

One of four master numbers issued to enclosure ditches in the north of area 2CC. This ditch runs N/S then turns a ninety degree bend to head E. A probable pit (002CC01873) on the bend was excavated as part of the ditch. The intersection between this and E/W ditch 002CC00271 showed that this ditch was a later feature. This is supported by material evidence as 002CC01866 contained Early Saxon pottery and 002CC00271 contained Roman pottery.

All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME  OBJECTS AN BONE  DENSITY
002CC01866 002CC01082  002CC01083 2
002CC01800  002CC01801 6  7
002CC01843  002CC01844
002CC01867  002CC01868
002CC01869  002CC01870
002CC01871  002CC01872 1
002CC01873  002CC01874 1


Structural Details

MASTER 002CC01866

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01866  MASTER LINEAR  0 0  0 No entry  MASTER NUMBER FOR R.B. DITCH. ALLOCATED TO A DITCH THAT TURNS 90 deg & AT N. CUTS E.-W. DITCH M 271. HAS ROUND FEATURE AT ITS TURN(SEE PLAN) TRUNCATED.

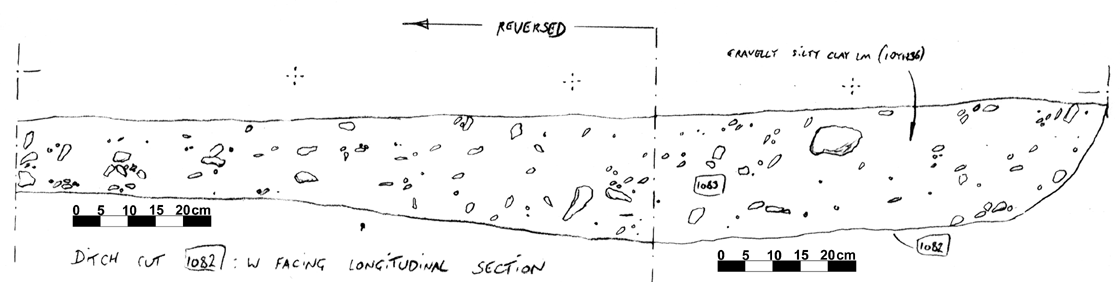

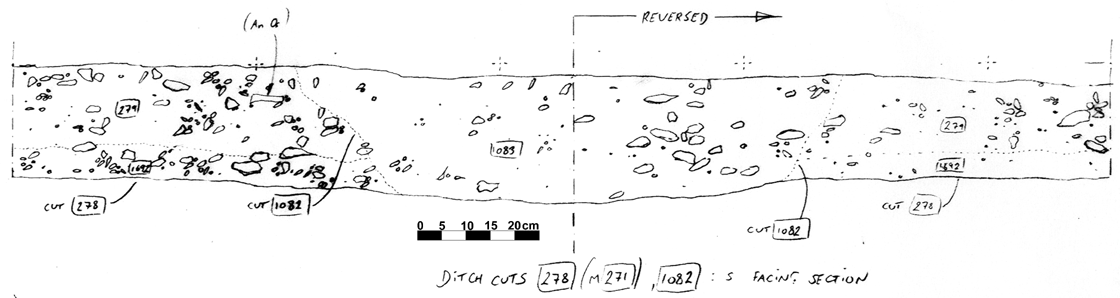

002CC01082 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01082  DITCH CUT GRID DEFINED  0 0  0 FLAT BASED U  CUT OF TERMINAL-DITCH SEG. N.most PART OF M1866: CLEARLY SEEN TO CUT E.-W. DITCH M271. TRUNCATED ABOVE. CUTS BEYOND S. EDGE OF M271.
002CC01083  DITCH FILL GRID DEFINED  0 0  0 FLAT BASED U  FILL OF SEG OF N.most PART OF M1866 WHERE CUTS M271: QUARTER SECTIONED TERMINAL.(SEE PLAN)NO FURTHER DETAILS UNLESS RECORDED & DUMPED BY T.A.


002CC01800 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01800  DITCH CUT LINEAR SEG.  100 72  28 USHAPED  CUT OF DITCH IN SEGMENT: SMOOTH-EVEN SIDED. TRUNCATED FROM ABOVE.
002CC01801  DITCH FILL GRID DEFINED  100 72  28 USHAPED  ONLY FILL OF DITCH SEGMENT. SMALL AMOUNTS SILT & MOD PEBBLES < 2 CM. TRUNCATED FROM ABOVE. BOX SECTIONED DUE TO BAD VISIBILITY.


002CC01843 Notes
KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01843  DITCH CUT LINEAR SEG.  100 40  21 FLAT BASED V  CUT OF DITCH IN SEGMENT: DITCH QUITE NARROW AT THIS POINT. EDGE IS STEEPER AT N. THAN AT S. TRUNCATED ABOVE: BOX SECTIONED.
002CC01844  DITCH FILL GRID DEFINED  100 40  21 FLAT BASED V  FILL OF SEGMENT OF R.B. DITCH. MOD CHALK PEBBLES < 3CM. ONLY FILL OBSERVED. BOX SECTIONED DUE TO LACK OF VISIBILITY. TRUNCATED ABOVE.



002CC01867 Notes


KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01867  DITCH CUT LINEAR SEG.  100 79  13 BOWL SHAPED  CUT FOR DITCH IN SEGMENT. SMOOTH V. GENTLY SLOPING SIDES: CLEARLY V. SEVERELY TRUNCATED FROM ABOVE.
002CC01868  DITCH FILL GRID DEFINED  100 79  13 BOWL SHAPED  FILL OF SEGMENT OF DITCH. V. SMALL AMOUNTS OF SILT: OCCA CHALK PEBBLES < 1 CM. V. SHALLOW AT THIS POINT. TRUNCATED FROM ABOVE.


002CC01869 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01869  DITCH CUT LINEAR SEG.  120 71  14 BOWL SHAPED  CUT OF DITCH IN SEGMENT. SMOOTH SIDED & SHALLOW AT THIS POINT.- SIMILAR TO OTHER SEGMENTS CUT THROUGH THIS STRETCH OF M 1866. TRUNCATED ABOVE.
002CC01870  DITCH FILL GRID DEFINED  120 71  14 BOWL SHAPED  FILL OF DITCH SEGMENT: ONLY FILL OBSERVED. OCCA CHALK PEBBLES < 2 CM. V. SHALLOW AT THIS POINT. TRUNCATED FROM ABOVE.


002CC01871 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01871  DITCH CUT LINEAR SEG.  0 0  0 No Entry  CUT OF DITCH IN SEGMENT.------NOT FULLY EXCAVATED. NO FURTHER DETAILS.
002CC01872  DITCH FILL No Entry  0 0  0 No Entry  FILL OF DITCH SEGMENT------NOT FULLY EXCAVATED. NO FURTHER DETAILS.

002CC01873 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC01873  DITCH CUT LINEAR SEG.  100 102  36 FLAT BASED U  CUT OF DITCH IN SEGMENT: Nr POINT WHERE DITCH TURNS N. ALMOST A DEEP PIT LIKE FEATURE (SEE PLAN). SMOOTH SIDED: FLATTISH BASE. TRUNCATED ABOVE.
002CC01874  DITCH FILL GRID DEFINED  100 102  36 BOWL SHAPED  FILL OF DITCH SEGMENT. SMALL AMOUNTS SILT: OCCA CHALK & FLINT PEBBLES < 3CM. LAYS Nr BULB SHAPED ELBOW WHERE DITCH TURNS 90 deg TO N. TRUNCATED ABOVE.



Objects By Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CC01801 AA EARLY SAXON  POTTERY SHERD ?ANGLIAN III 1
002CC01801 AB EARLY SAXON  POTTERY SHERDS ANGLIAN III 2
002CC01801 AC EARLY SAXON  POTTERY SHERD + ORGANIC  ANGLIAN I 1
002CC01801 AD EARLY SAXON  POTTERY SHERD ANGLIAN III 1
002CC01801 AE EARLY SAXON  POTTERY SHERDS SAME AS AD  ANGLIAN III 2
002CC01801 AF EARLY SAXON  POTTERY SHERDS SAME AS AD  ANGLIAN III 2
002CC01872 AA BRONZE AGE  FLINT ARROWHEAD UNFINISHED  B+T ARROW 1

Animal Bone by Context

KEY_ID  SPECIES ELEMENT  QUANT CHEW  BURN BUTCH  FBRK
002CC01083  Cattle M/T D  1 1  0 0  1
002CC01083  Cattle Mandible  1 1  0 0  1
002CC01801  Cattle Atlas  1 1  0 0  1
002CC01801  Cattle Humerus br  1 0  0 1  1
002CC01801  Cattle Pelvis  1 1  0 0  0
002CC01801  Cattle Femur fr  1 0  0 0  1
002CC01801  Cattle Tibia D  1 1  0 0  0
002CC01801  Cattle M/podial  1 1  0 0  0
002CC01801  Cattle LM3  1 0  0 0  1
