002CC01711

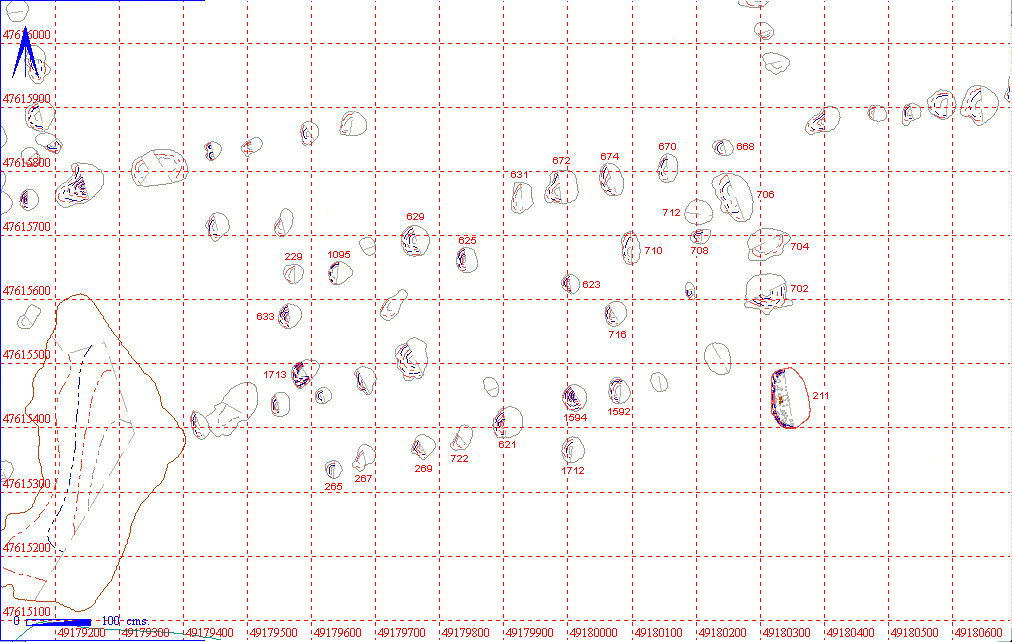

Post Hole Structure

Post-Hole Structure Details
Length 687 Width 279
Area  19.16 sq. m Ratio 2.5:1
Number of Posts 31 Deepest 49  002CC01594 Shallowest 14 002CC00704
Average Depth
 22
N Wall 8 Posts Average Depth 19
E Wall 3 Posts Average Depth 18.5
S Wall 9 Posts Average Depth 25
W Wall 2 Posts Average Depth 17
Interior Divisions: Eight internal posts possibly dividing structure into three parts.
Highest Elevation Value  5258 002CC00265
Lowest Elevation Value 5206 (x2) 002CC00668 and 002CC00674
Bearing  74
Plank\Post Post
Doorways Centrally opposing doorways in long walls. Two internal posts may have supported doors.
Repairs:
Structural Class
Material Culture Number of Objects 3  Number of Animal Bones 2
Environmental

Phasing

Discussion

A relatively narrow rectangular structure comprising 23 external and 8 internal post holes. It overlaps structure 002CC001715to the SW and is on the same alignment of ENE/WSW, one of these structures presumably replacing the other. The post holes are regularly shaped and spaced apart from three larger ones on the E side. The pit 002CC00211 sust to the south of the eastern end of the structure has no direct relationship, and may or may not be associated with the structure. The 8 internal posts may have divided the structure into three roughly equal parts; two post holes on the inside of each entrance may have held the doors but may also have supported an internal wall, partitioning off an area 2.50m wide. Many of the post holes, especially in the NE end, can be paired across the structure. Two centrally opposing doorways in the long walls are distinguishable. View of post hole (?door post) from the west The camera icon is a photograph of post hole 002CC625/626, situated just inside the entrance in the northern long wall.

All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME OBJECTS AN BONE DENSITY
002CC01711 002CC00229 002CC00230
002CC00265 002CC00266
002CC00267 002CC00268 1 1
002CC00269 002CC00270
002CC00621 002CC00622
002CC00623 002CC00624
002CC00625 002CC00626
002CC00629 002CC00630
002CC00631 002CC00632
002CC00633 002CC00634
002CC00668 002CC00669
002CC00670 002CC00671
002CC00672 002CC00673
002CC00674 002CC00675
002CC00702 002CC00703
002CC00704 002CC00705
002CC00706 002CC00707
002CC00708 002CC00709
002CC00710 002CC00711
002CC00712 002CC00713
002CC00714 002CC00715 2
002CC00716 002CC00717
002CC00718 002CC00719
002CC00722 002CC00723
002CC01094 002CC01095 1
002CC01592 002CC01593
002CC01594 002CC01595
002CC01713 002CC01714



Structural Details

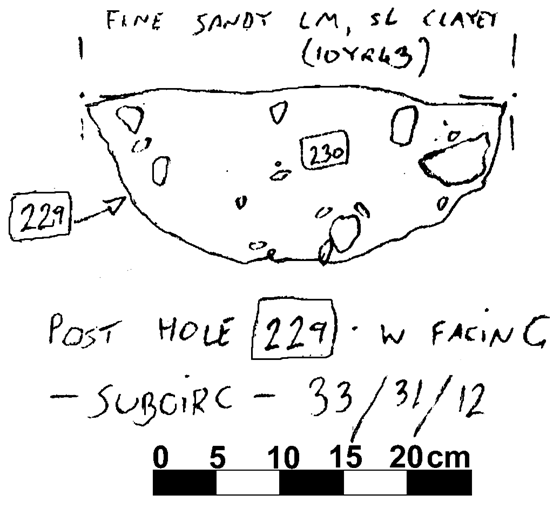

002CC00229 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00229 POST HOLE CUT SUB-CIRCULAR  33 31  12 USHAPED  P.H. E. OF GULLY 213. TRUNCATED ABOVE. REGULAR :U: SHAPE.
002CC00230 POST HOLE FILL SUB-CIRCULAR  33 31  12 USHAPED  OCCA CHALK < 4 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

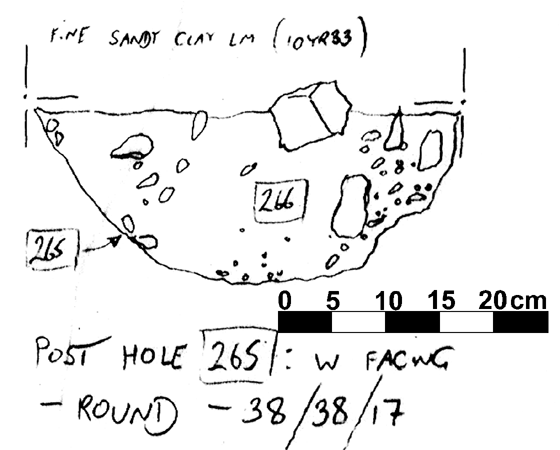

002CC00265 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00265 POST HOLE CUT ROUND  38 38  17 USHAPED  P.H. TRUNCATED ABOVE. REGULAR BASE & SIDES.
002CC00266 POST HOLE FILL ROUND  38 38  17 USHAPED  MOD CHALK < 7 CM. (MOSTLY SMALLER) THROUGHOUT FILL. TRUNCATED ABOVE.

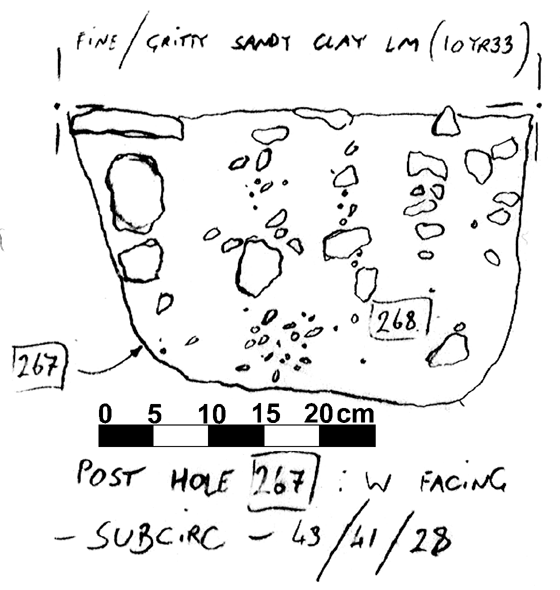

002CC00267 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00267 POST HOLE CUT OVATE  46 40  14 WIDE U  SHALLOW P.H. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00268 POST HOLE FILL OVATE  46 40  14 WIDE U  MOD/FREQ CHALK < 10CM. THROUGHOUT FILL. TRUNCATED ABOVE.

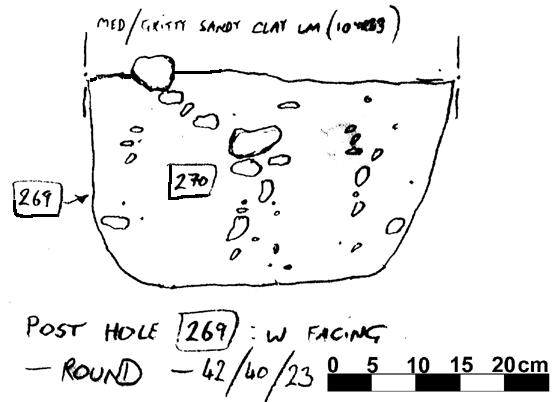

002CC00269 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00269 POST HOLE CUT ROUND  42 40  23 FLAT BASED U  P.H. SMOOTH REGULAR SIDES & BASE. TRUNCATED ABOVE.
002CC00270 POST HOLE FILL ROUND  42 40  23 FLAT BASED U  OCCA/MOD CHALK < 7 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

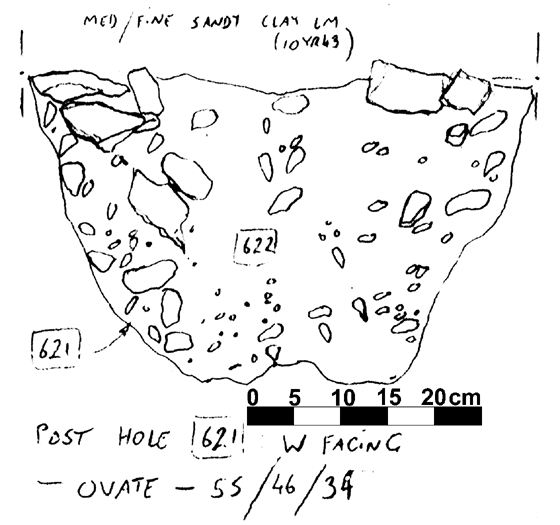

002CC00621 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00621 POST HOLE CUT OVATE  55 46  34 USHAPED  P.H. TO E. OF GULLY 213. TRUNCATED ABOVE. POSS A DOUBLE P.H. REGULAR SIDES & BASE.
002CC00622 POST HOLE FILL OVATE  55 46  34 USHAPED  FREQ CHALK < 9 CM CONCENTRATING MAINLY AROUND EDGES & IN CENTRE.-- POSS P. PIPES FOR DOUBLE P.H.? TRUNCATED ABOVE.

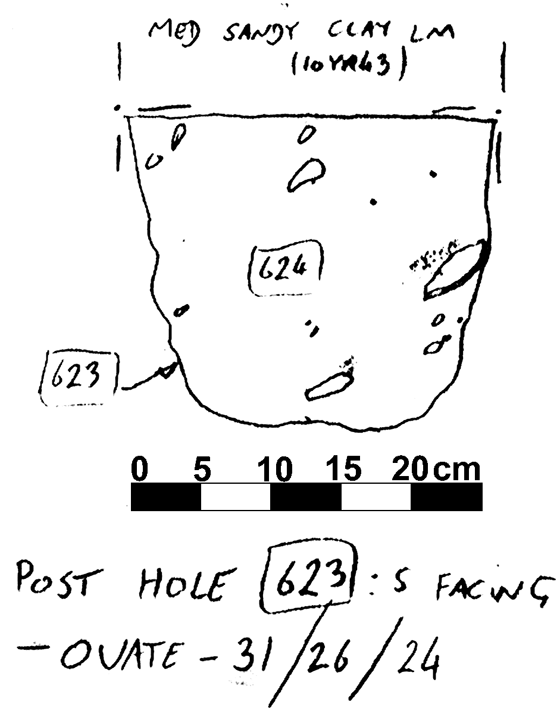

002CC00623 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00623 POST HOLE CUT OVATE  31 26  24 FLAT BASED U  P.H. TO E. OF GULLY 213. TRUNCATED ABOVE. SIDES & BASE SMOOTH & REGULAR.
002CC00624 POST HOLE FILL OVATE  31 26  24 FLAT BASED U  OCCA CHALK < 4 CM. TRUNCATED ABOVE.

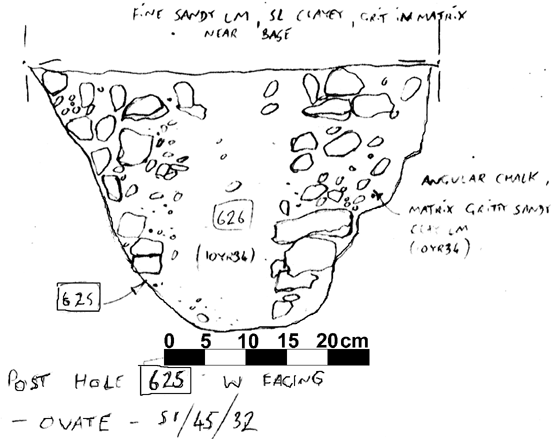

002CC00625 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00625 POST HOLE CUT OVATE  51 45  32 FLAT BASED V  LARGE P.H. WITH GOOD P.PIPE LAYING TO E. OF GULLEY 213. REGULAR SIDES & BASE. TRUNCATED ABOVE.
002CC00626 POST HOLE FILL OVATE  51 45  32 FLAT BASED V  FREQ CHALK < 10 CM: CONCENTRATED AROUND EDGES. IS A CLEAR POST PIPE VISIBLE IN CENTRE-RELATIVELY STONE FREE. TRUNCATED ABOVE.

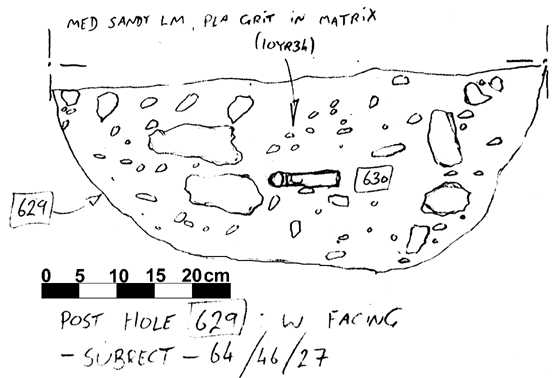

002CC00629 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00629 POST HOLE CUT SUB-RECTANGULAR  64 46  27 WIDE U  LARGE P.H. TO E. OF GULLY 213. TRUNCATED ABOVE. REGULAR SIDES: BASE SLOPES SLIGHTLY FROM N. DOWN TO S.
002CC00630 POST HOLE FILL SUB-RECTANGULAR  64 46  27 WIDE U  FREQ CHALK < 10 CM THROUGHOUT FILL. SOME PEA GRIT. TRUNCATED ABOVE.

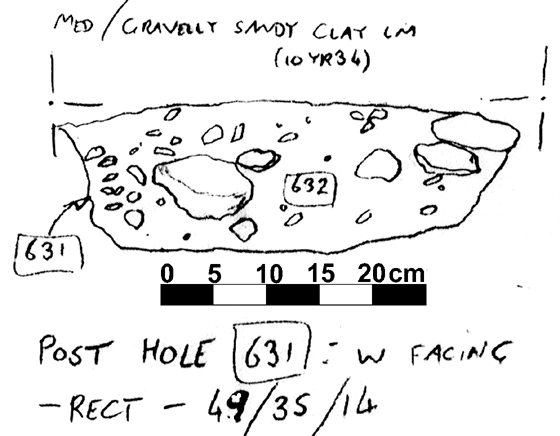

002CC00631 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00631 POST HOLE CUT SUB-RECTANGULAR  49 35  14 WIDE U  P.H. TO E. OF GULLY 213. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00632 POST HOLE FILL SUB-RECTANGULAR  49 35  14 WIDE U  FREQ CHALK < 11 CM (MOSTLY SMALLER) THROUGHOUT FILL. TRUNCATED ABOVE.

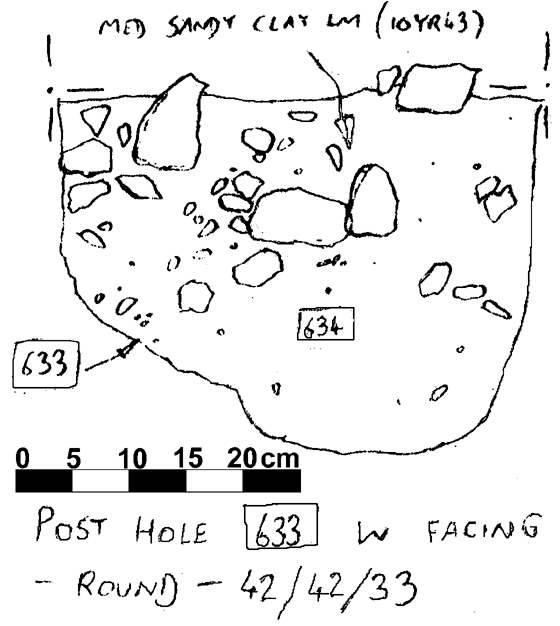

002CC00633 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00633 POST HOLE CUT ROUND  42 42  33 STEPPED U  P.H. TO E. OF GULLEY 213. REGULAR IN PROFILE EXCEPT THAT IS A STEP FROM N. SIDE DOWN TO BASE. TRUNCATED ABOVE.
002CC00634 POST HOLE FILL ROUND  42 42  33 STEPPED U  FREQ CHALK < 9 CM- MAINLY IN N. & UPPER PART OF FILL. TRUNCATED ABOVE.

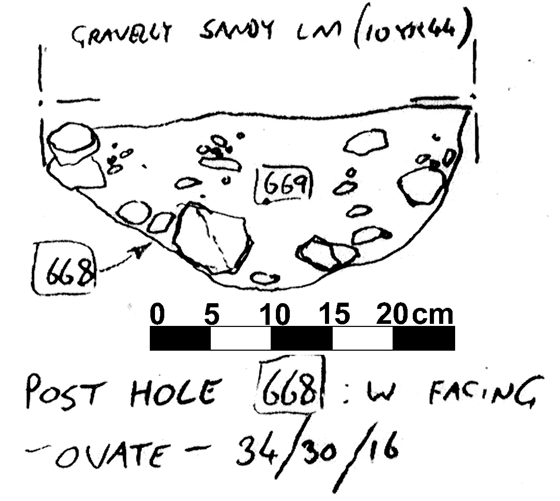

002CC00668 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00668 POST HOLE CUT OVATE  34 30  16 USHAPED  P.H. FORMING PART OF E-W LINE N. OF PIT 211. TRUNCATED ABOVE. V. SLIGHTLY :V: IN PROFILE.
002CC00669 POST HOLE FILL OVATE  34 30  16 USHAPED  FREQ CHALK < 6 CM THROUGHOUT FILL BUT CONCENTRATED MAINLY TOWARDS BASE. TRUNCATED ABOVE.

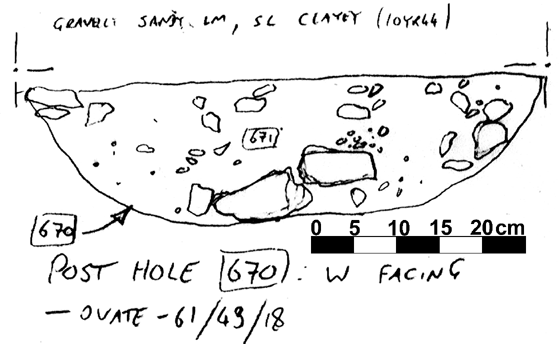

002CC00670 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00670 POST HOLE CUT OVATE  61 43  18 WIDE U  P.H. OF A LINE OF E-W P.H.s N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00671 POST HOLE FILL OVATE  61 43  18 WIDE U  MOD/FREQ CHALK < 10 CM THROUGHOUT FILL. TRUNCATED ABOVE.

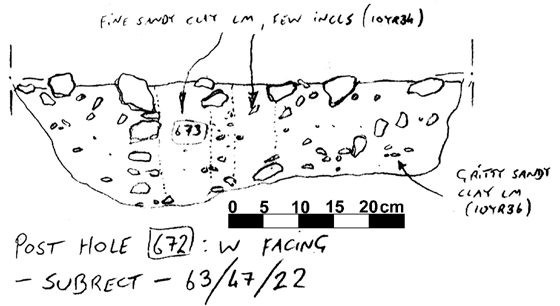

002CC00672 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00672 POST HOLE CUT SUB-RECTANGULAR  63 47  22 WIDE U  P.H. OF AN E-W LINE OF P.H.s. TRUNCATED ABOVE. BASE UNEVEN: S. EDGE STEEPER THAN N. A DOUBLE P.H. WITH 2 P. PIPES.
002CC00673 POST HOLE FILL SUB-RECTANGULAR  63 47  22 WIDE U  FREQ CHALK < 7 CM THROUGHOUT FILL SURROUNDING 2 V. CLEAR POST PIPES.--------THESE FINE SANDY CLAY LOAM: FEW INCLS: 10YR34. TRUNCATED ABOVE.

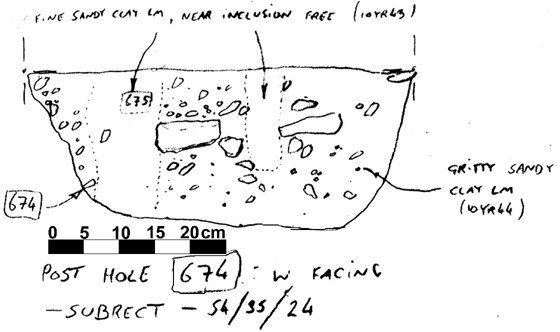

002CC00674 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00674 POST HOLE CUT SUB-RECTANGULAR  54 35  24 WIDE U  P.H. OF E-W LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE. CONTAINED 2 P. PIPES.
002CC00675 POST HOLE FILL OVATE  54 35  24 WIDE U  FREQ CHALK < 4 CM THROUGHOUT FILL SURROUNDING 2 POST PIPES. ---THESE A FINE SANDY CLAY LOAM: FEW INCLS: 10YR43. TRUNCATED ABOVE.

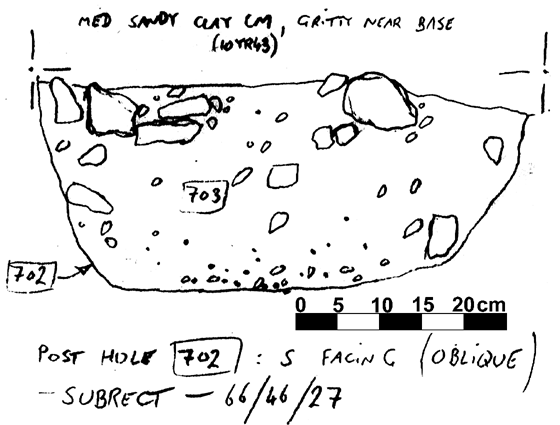

002CC00702 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00702 POST HOLE CUT SUB-RECTANGULAR  66 46  27 FLAT BASED U  P.H. TO E. OF GULLY 213. TRUNCATED ABOVE. LARGE. REGULAR SIDES & BASE.
002CC00703 POST HOLE FILL SUB-RECTANGULAR  66 46  27 FLAT BASED U  MOD/FREQ CHALK < 9 CM THROUGHOUT FILL-MOST OF LARGER CHALK IN UPPER PART OF FILL: MOST OF FINER IN LOWER PART OF FILL. TRUNCATED ABOVE.

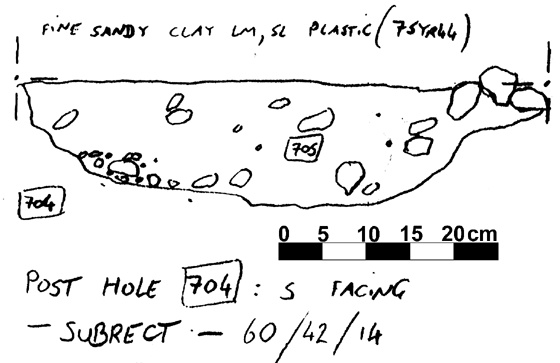

002CC00704 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00704 POST HOLE CUT SUB-RECTANGULAR  60 42  14 WIDE U  P.H. TO E. OF GULLY 213. LARGE BUT TRUNCATED. GENTLE SIDES: REGULAR BASE.
002CC00705 POST HOLE FILL SUB-RECTANGULAR  60 42  14 WIDE U  MOD/FREQ CHALK < 4CM THROUGHOUT FILL. TRUNCATED ABOVE.

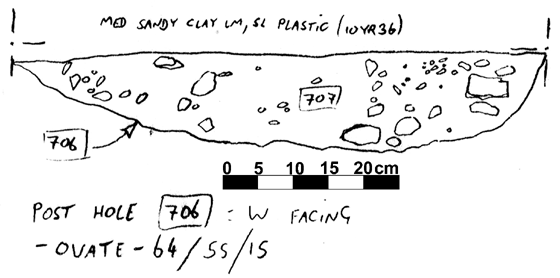

002CC00706 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00706 POST HOLE CUT OVATE  64 55  15 WIDE U  P.H. TO E. OF GULLY 213. TRUNCATED ABOVE. EDGES MERGE INTO BASE.
002CC00707 POST HOLE FILL OVATE  64 55  15 WIDE U  FREQ CHALK < 6 CM THROUGHOUT FILL BUT CONCENTRATING TOWARDS EDGES. TRUNCATED ABOVE.

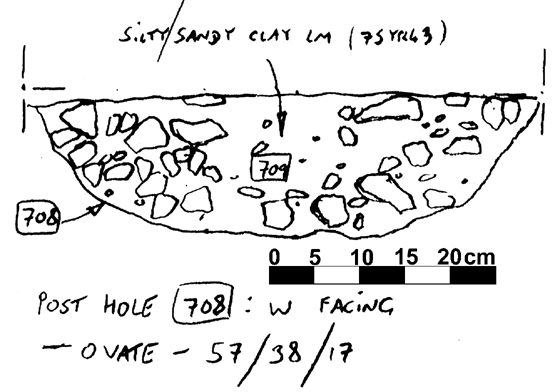

002CC00708 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00708 POST HOLE CUT OVATE  57 38  17 WIDE U  P.H. TO E. OF GULLY 213. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00709 POST HOLE FILL OVATE  57 38  17 WIDE U  FREQ CHALK < 7CM HEAVILLY CONCENTRATED AROUND EDGES & BASE. (POSS P. PACKING). TRUNCATED ABOVE.

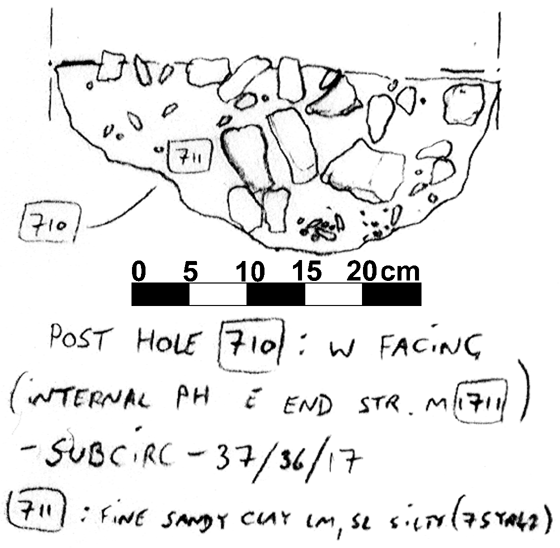

002CC00710 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00710 POST HOLE CUT SUB-CIRCULAR  37 36  17 STEPPED U  P.H. TO E. OF GULLY 213: INTERNAL P.H. OF BLDG M1711. TRUNCATED ABOVE. REGULAR BASE & EDGE EXCEPT FOR SLIGHT STEP ON N. EDGE.
002CC00711 POST HOLE FILL SUB-CIRCULAR  37 36  17 STEPPED U  FREQ CHALK < 8 CM TIGHTLY COMPACTED THROUGHOUT FILL. TRUNCATED ABOVE.


002CC00712 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00712 No Entry No entry  0 0  0 No entry  ISSUED IN ERROR.
002CC00713 No Entry No entry  0 0  0 No entry  ISSUED IN ERROR.

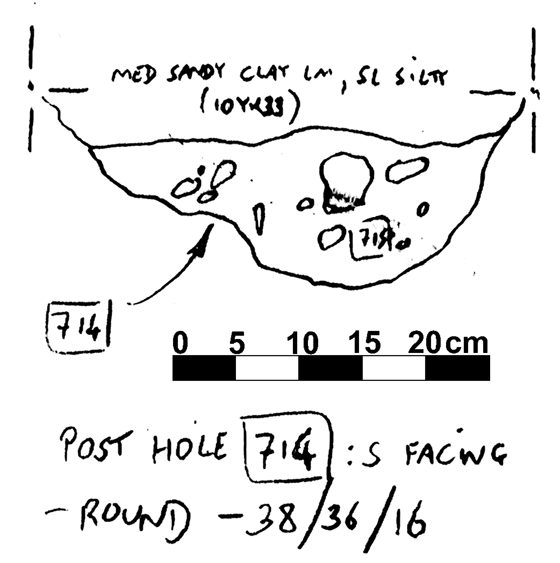

002CC00714 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00714 POST HOLE CUT ROUND  38 36  16 STEPPED U  P.H. OF BLDG M1711. TRUNCATED ABOVE.REGULAR EDGES & BASE EXCEPT FOR STEP AT W.
002CC00715 POST HOLE FILL ROUND  38 36  16 STEPPED U  MOD CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

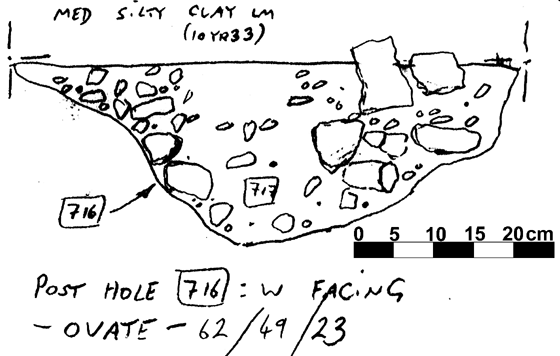

002CC00716 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00716 POST HOLE CUT OVATE  62 49  23 STEPPED U  P.H. OF BLDG M1711. TRUNCATED ABOVE. IRREGULAR PROFILE--SEE SECTION.
002CC00717 POST HOLE FILL OVATE  62 49  23 STEPPED U  FREQ CHALK < 12 CM (MOSTLY SMALLER) CONCENTRATING AROUND EDGES & BASE. TRUNCATED ABOVE.

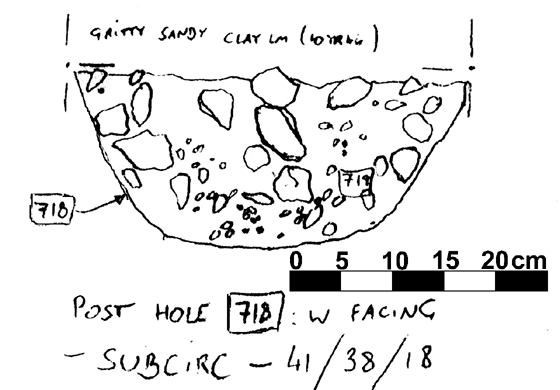

002CC00718 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00718 POST HOLE CUT SUB-CIRCULAR  41 38  18 USHAPED  P.H. OF BLDG M.1711. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00719 POST HOLE FILL SUB-CIRCULAR  41 38  18 USHAPED  FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

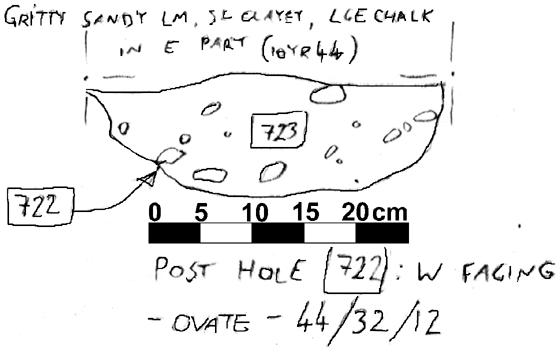

002CC00722 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00722 POST HOLE CUT OVATE  44 32  12 USHAPED  P.H. OF BLDG M.1711. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00723 POST HOLE FILL OVATE  44 32  12 USHAPED  MOD CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE. LARGEST CHALK IN E. PART OF FILL.

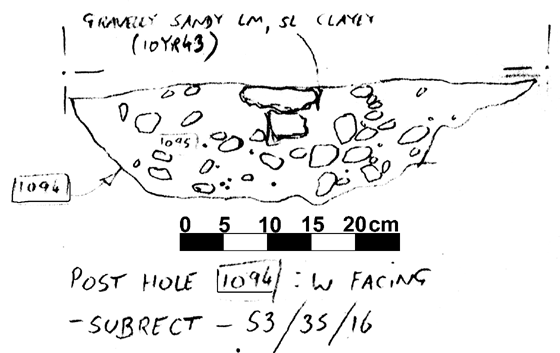

002CC01094 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01094 POST HOLE CUT SUB-RECTANGULAR  53 35  16 USHAPED  POST HOLE IN GROUP IMMEDIATELY TO E OF GULLY 213. NO FURTHER RECORD IN CONTEXT BOOK.
002CC01095 POST HOLE FILL SUB-RECTANGULAR  53 35  16 USHAPED  GRAVELLY SANDY LOAM FILL WITH CHALK INCLUSIONS APPROX. 40%. NO FINDS RECORDED.

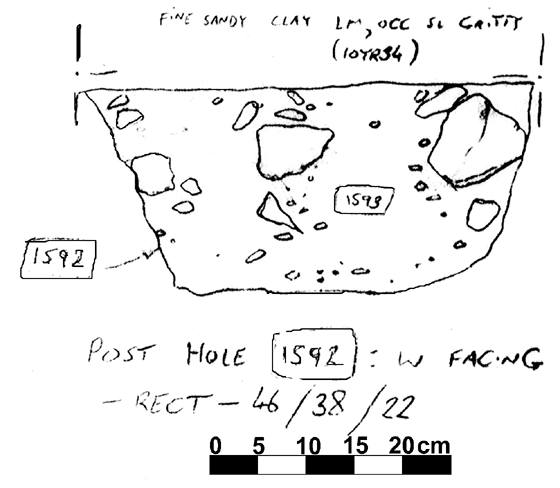

002CC01592 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01592 POST HOLE CUT RECTANGULAR  46 38  22 FLAT BASED U  P.H. OF BLDG M.1711. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CC01593 POST HOLE FILL RECTANGULAR  46 38  22 FLAT BASED U  FREQ CHALK < 12 CM CONCENTRATED MAINLY AGAINST EDGES & IN CENTRAL AREA. TRUNCATED ABOVE.

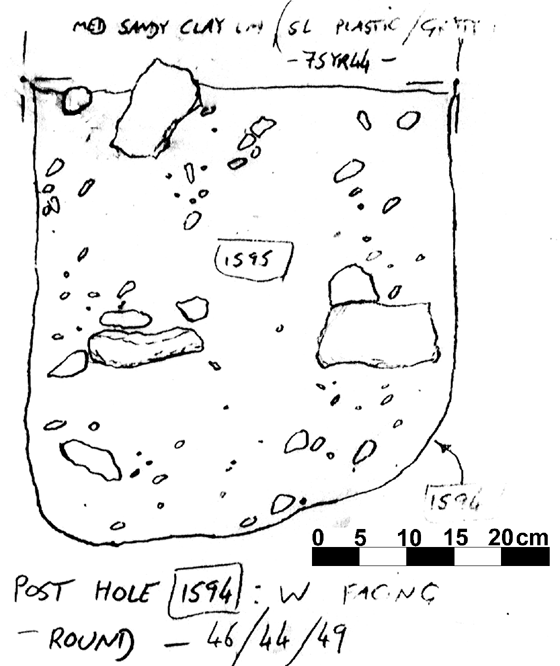

002CC01594 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01594 POST HOLE CUT OVATE  46 44  49 VERT.SIDE F.BASE  P.H. OF BLDG M.1711. TRUNCATED ABOVE. DEEP: VERTICAL EDGES: BASE SLOPES DOWN SLIGHTLY FROM S. TO N.
002CC01595 POST HOLE FILL OVATE  46 44 49 VERT.SIDE F.BASE  FREQ CHALK < 13 CM THROUGHOUT FILL: SL PLASTIC. TRUNCATED ABOVE.

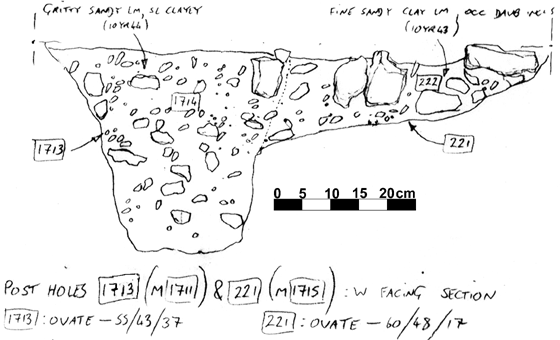

002CC01713 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01713 POST HOLE CUT OVATE  55 43  37 FLAT BASED U  P.H. OF BLDG M.1711. TRUNCATED ABOVE. REGULAR SIDES & BASE. CUTS EARLIER P.H. 221/222.
002CC01714 POST HOLE FILL OVATE  55 43  37 FLAT BASED U  FREQ CHALK 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.



Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CC00268 AA No Entry  STONE STONE RED CHALK 1
002CC00715 AA No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CC00715 AB No Entry  CHARCOAL CHARCOAL SAMPLE  1

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CC00268 Dog Phalanx I  1 0 0 0 0
002CC01095 Sheep/goat Ld 4 1 0 0 0 0
