002CA01040

Grubenhaus



Grubenhaus Details
Length 350 max Width 285  Depth 58 Ratio 1.2:1
Area  8.57 sq. m Volume
Number of Posts 0
Highest Elevation Value  5205
Lowest Elevation Value 5147
Bearing  76 degrees
Structural Class
Material Culture Number of Objects 71 Number of Animal Bones 36
Environmental

Phasing

Stratigraphic Matrix Diagram

Discussion

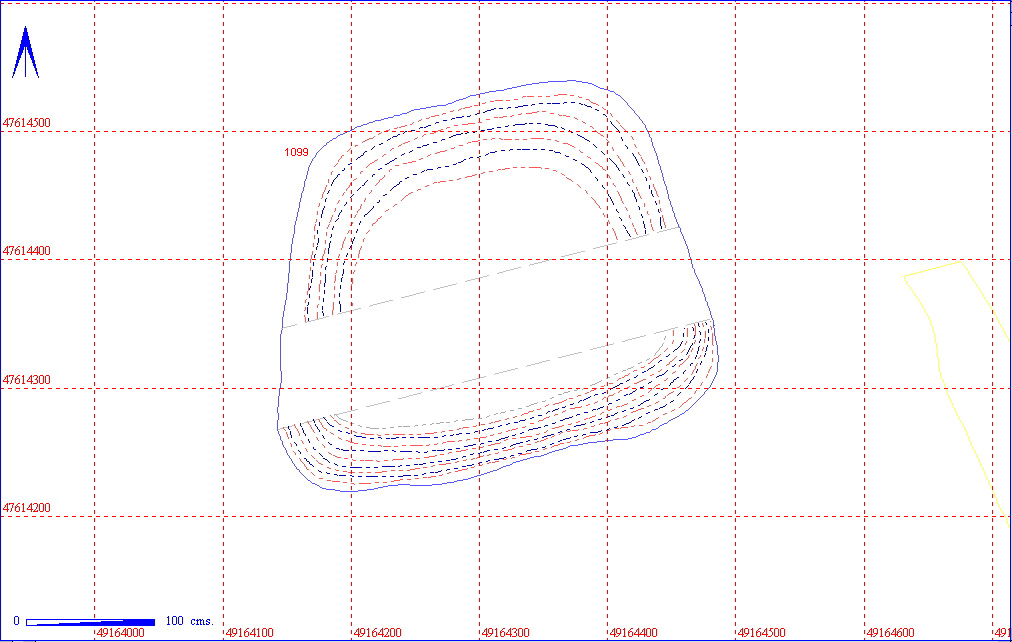

An irregularly shaped Grubenhaus in central 2CA to the west of furrows (Master 002CA01128.) Aligned approximately east/west, the structure was quite steep sided with a slightly concave base cut into sand natural. A trench was cut through the centre of the structure but failed to reveal any post holes. No sections were drawn.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002CA01040 1
002CA01099 002CA01041 25 26
002CA01091  24 6
002CA01098  7 5

Object Totals by Material

002CA01041 Object Totals by Material

002CA01041 Bronze 1
Charcoal 1
Flint 4
Pottery 19  of which Early Saxon 6  Iron Age 2 Medieval  3 No Entry 5  Prehistoric 1 Roman  10
Slag 1
Snail 1
Stone 8
Unfired Clay 4

002CA01091 Object Totals by Material

002CA01091 Flint 3
Pottery 9  of which Early Saxon 2  No Entry 3 Prehistoric  1 Roman 3
Stone 11
Worked Bone 1

002CA01098 Object Totals by Material

002CA01098 Pottery 1 Iron Age
Unfired Clay 6

Animal Bone Totals By Species

002CA01041  Animal Bone Totals By Species

002CA01041 Cattle 11
Red Deer 1
Sheep 1
Sheep/goat 13

002CA01091 Animal Bone Totals By Species

002CA01091 Cattle 1
Sheep/goat 5

002CA01098 Animal Bone Totals By Species

002CA01098 Cattle 2
Goat 1
Sheep 1
Sheep/goat 1



Structural Details

002CA01099 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CA01041 GRUB FILL SUB-RECTANGULAR  430 335  40 FLAT  UPPER FILL OF GRUB :SOME BURROWING THROUGHOUT:OCCA CHALK GRAVEL < 4CM. SOME ROOT DISTURBANCE.TRUNCATED TO S. & IN CENTRE. SOME COLOUR VARIATION.
002CA01091 GRUB FILL SUB-RECTANGULAR  327 68  30 FLAT  OCCA CHALK GRAVEL <4 CM THROUGHOUT FILL. ROOTED & BURROWED. EXISTS ONLY ON N. SIDE OF GRUB DUE TO TRENCH. LARGELY CONSISTS OF WINDBLOWN SAND.
002CA01098 GRUB FILL SUB-RECTANGULAR  278 47  22 CONCAVE  FEW INCLS-OCCA FINE GRAVEL < 2CM THROUGHOUT. MOSTLY OF WINDBLOWN SAND. BURROWED & ROOTED. NOT MANY FINDS. EXISTS ON N. SIDE OF TRENCH.
002CA01099 GRUB CUT SUB-RECTANGULAR  327 280  52 WIDE U  STEEPISH SIDED WITH SL CONCAVE BASE CUTTING INTO NATURAL SAND STRATA. CUT IN TWO BY TRENCH ALONG ITS LONG E.-W. AXIS. NO EV OF P.H.s.

Objects by Context

KEY_ID OB PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CA01040 AA No Entry  SLAG SLAG FRAGMENT  IRON SLAG  1
002CA01041 AA No Entry  BRONZE BELT FITTING  BRONZE 1
002CA01041 BF No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CA01041 AG PREHISTORIC  FLINT FLAKE  1
002CA01041 AI PREHISTORIC  FLINT FLAKE  1
002CA01041 AX PREHISTORIC  FLINT FLAKE  1
002CA01041 BI PREHISTORIC  FLINT FLAKE  1
002CA01041 AB EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CA01041 AS EARLY SAXON  POTTERY SHERD  +ORGANIC ANGLIAN I  1
002CA01041 BC EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CA01041 BD EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CA01041 BJ EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CA01041 BM EARLY SAXON  POTTERY SHERD  +ORGANIC ANGLIAN I  1
002CA01041 AL IRON AGE  POTTERY SHERD  IA  1
002CA01041 AT IRON AGE  POTTERY SHERD  ?IA  1
002CA01041 AF MEDIEVAL  POTTERY SHERD  MED  1
002CA01041 AH MEDIEVAL  POTTERY SHERD  MED  1
002CA01041 AW MEDIEVAL  POTTERY SHERD  GREEN GLAZED MED  1
002CA01041 AE No Entry  POTTERY SHERD  1
002CA01041 AK No Entry  POTTERY SHERD  1
002CA01041 AV No Entry  POTTERY SHERD  1
002CA01041 BK No Entry  POTTERY SHERD  1
002CA01041 BL No Entry  POTTERY SHERD  1
002CA01041 AO PREHISTORIC  POTTERY SHERD  1
002CA01041 AQ ROMAN  POTTERY SHERD  R-B  1
002CA01041 BE ROMAN  POTTERY SHERD  GREY WARE  1
002CA01041 BA No Entry  SLAG SLAG FRAGMENT  1
002CA01041 AD No Entry  SNAIL SNAIL SAMPLE  1
002CA01041 AC No Entry  STONE STONE  RED CHALK  1
002CA01041 AJ No Entry  STONE STONE  1
002CA01041 AM No Entry  STONE COAL FRAGMENT  1
002CA01041 AN No Entry  STONE STONE  1
002CA01041 AR No Entry  STONE STONE  1
002CA01041 AU No Entry  STONE STONE  1
002CA01041 AZ No Entry  STONE STONE  1
002CA01041 BG No Entry  STONE STONE  1
002CA01041 AP EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002CA01041 AY EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  2
002CA01041 BB EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002CA01041 BH EARLY SAXON  UNFIRED CLAY ?LOOMWEIGHT  UNFIRED CLAY 2
002CA01091 AM No Entry  FLINT FLAKE  LOCAL FLINT  1
002CA01091 AJ PREHISTORIC  FLINT FLAKE  1
002CA01091 AQ PREHISTORIC  FLINT FLINT CHIP  1
002CA01091 AF EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CA01091 AR EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CA01091 AB No Entry  POTTERY SHERD  1
002CA01091 AC No Entry  POTTERY SHERD  1
002CA01091 AK No Entry  POTTERY SHERD  1
002CA01091 AD PREHISTORIC  POTTERY SHERD  FTW  1
002CA01091 AL ROMAN  POTTERY SHERD  ROMAN  1
002CA01091 AO ROMAN  POTTERY SHERD  GREY WARE  1
002CA01091 AS ROMAN  POTTERY SHERD  ?HUNTCLIFF  1
002CA01091 AA No Entry  STONE STONE  SANDSTONE  1
002CA01091 AE No Entry  STONE STONE  SANDSTONE  1
002CA01091 AG No Entry  STONE STONE  1
002CA01091 AH No Entry  STONE STONE  1
002CA01091 AI No Entry  STONE STONE  1
002CA01091 AN No Entry  STONE STONE  SANDSTONE  1
002CA01091 AP No Entry  STONE STONE  RED CHALK  1
002CA01091 AT No Entry  STONE STONE  1
002CA01091 AU No Entry  STONE STONE  RED CHALK  1
002CA01091 AW No Entry  STONE STONE  SANDSTONE  1
002CA01091 AX No Entry  STONE CINDER  1
002CA01091 AV EARLY SAXON  WORKED BONE WORKED BONE  1
002CA01098 AB IRON AGE  POTTERY SHERD  FTW  1
002CA01098 AA EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002CA01098 AC EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  2
002CA01098 AD EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 2
002CA01098 AE EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 2
002CA01098 AF EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT 4
002CA01098 AG EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  3

Animal Bone By Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CA01041 Cattle Astragalus  1 1  0 0  0
002CA01041 Cattle Humerus P  1 1  0 0  0
002CA01041 Cattle Ld4  1 0  0 0  1
002CA01041 Cattle Mand fr  1 0  0 1  0
002CA01041 Cattle Patella  1 0  0 0  1
002CA01041 Cattle Phalanx 1  1 0  0 0  0
002CA01041 Cattle Phalanx 1  1 0  0 0  0
002CA01041 Cattle Phalanx 1  1 0  0 0  0
002CA01041 Cattle Phalanx 2  1 0  0 0  0
002CA01041 Cattle Phalanx 2  1 0  0 0  0
002CA01041 Red deer N.Cuboid  1 0  0 0  0
002CA01041 Sheep Radius C  1 0  0 0  1
002CA01041 Sheep/goat Femur D  1 0  0 1  1
002CA01041 Sheep/goat Femur D  1 0  0 0  0
002CA01041 Sheep/goat LM3  1 0  0 0  0
002CA01041 Sheep/goat LM3  1 0  0 0  0
002CA01041 Sheep/goat M/C P  1 1  0 0  0
002CA01041 Sheep/goat M/T P  1 0  0 0  0
002CA01041 Sheep/goat Mandible  1 0  0 0  1
002CA01041 Sheep/goat Mandible  1 0  0 0  0
002CA01041 Sheep/goat Phalanx 1  1 0  0 0  0
002CA01041 Sheep/goat Radius D  1 0  0 0  0
002CA01041 Sheep/goat Tibia br  1 1  0 0  0
002CA01041 Sheep/goat Tibia D  1 0  0 0  0
002CA01041 Sheep/goat Tibia P  1 0  0 0  0
002CA01091 Cattle Phalanx 2  1 0  0 0  0
002CA01091 Sheep/goat M/C C  1 0  0 0  0
002CA01091 Sheep/goat Mandible  1 0  0 0  1
002CA01091 Sheep/goat N.Cuboid  1 0  0 0  0
002CA01091 Sheep/goat Phalanx 1  1 0  0 0  0
002CA01091 Sheep/goat Phalanx 1  1 0  0 0  0
002CA01098 Cattle Astragalus  1 0  0 0  0
002CA01098 Cattle Calcaneum  1 1  0 0  0
002CA01098 Goat Phalanx 3  1 0  0 0  0
002CA01098 Sheep Radius P  1 0  0 0  1
002CA01098 Sheep/goat Pelvis  1 0  0 1  0
