002M 00502

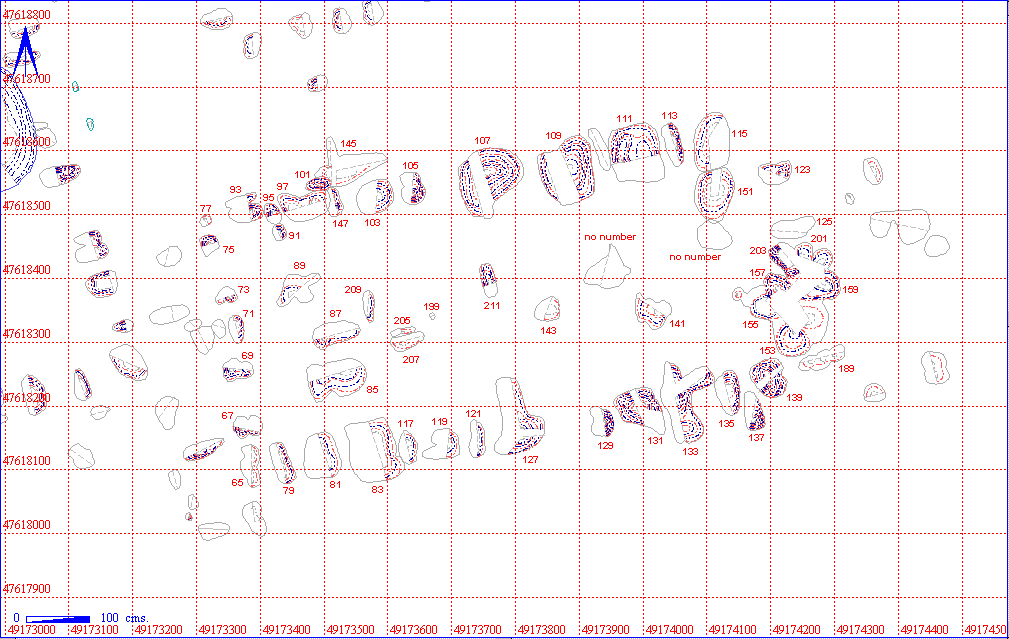

Post Hole Structure

Post-Hole Structure Details
Length 835 Width 340
Area  28.4sq. m Ratio 2.4:1
Number of Posts 55 Deepest 52 002M 00105 and 002M 00129 Shallowest 10 002M 00065
Average Depth
 29
North Wall 13 Posts Average Depth 31
East Wall 5 Posts Average Depth 28
South Wall 14 Posts Average Depth 32
West Wall 6 Posts Average Depth 24
Interior Divisions: Fourteen internal post holes. Four form partition on west side. Others in centre of structure of unknown function.
Highest Elevation Value  5070 002M 00111 and 002M 00113
Lowest Elevation Value 5056 002M 00097
Bearing  80 degrees
Plank\Post Post
Doorways Two centrally opposing doorways in the long walls.
Repairs: Evidence of repairs to east side of structure.
Structural Class
Material Culture Number of Objects 14 Number of Animal Bones 12
Environmental

Phasing

Discussion

A rectangular structure, aligned E/W with two doors centrally opposed in the long walls. It has at least one clear partition (SW) 1m in width and possibly a second (NE) of approximately the same width, unclear due to a number of internal post holes. The majority of the structure has double post holes in the walls with clear evidence of repair or rebuild on the north east short wall. This structure is of particular importance as it has evidence of post settings in at least three post holes (002M 00109, 002M 00111 and 002M 00131).

All of these post holes were reassigned area 2CB cut numbers when the whoile area was opened in 1986/1987. As the post holes had already been fully excavated, these extra cut numbers have not been included  in this catalogue entry, although they are included as being part of this structure in the Access context database.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
002M 00502 002M 00065 002M 00066
002M 00067 002M 00068
002M 00069 002M 00070
002M 00071 002M 00072
002M 00073 002M 00074
002M 00075 002M 00076
002M 00077 002M 00078
002M 00079 002M 00080
002M 00081 002M 00082
002M 00083 002M 00084 1
002M 00085 002M 00086
002M 00087 002M 00088 1
002M 00089 002M 00090
002M 00091 002M 00092
002M 00093 002M 00094
002M 00095 002M 00096
002M 00097 002M 00098
002M 00099 002M 00100 1
002M 00101 002M 00102
002M 00103 002M 00104 1
002M 00105 002M 00106
002M 00107 002M 00108 2 1
002M 00109 002M 00110 1
002M 00111 002M 00112 2 1
002M 00113 002M 00114 1
002M 00115 002M 00116 1
002M 00117 002M 00118
002M 00119 002M 00120
002M 00121 002M 00122 1
002M 00123 002M 00124 1 1
002M 00125 002M 00126
002M 00127 002M 00128
002M 00129 002M 00130 1
002M 00131 002M 00132 1
002M 00133 002M 00134 2
002M 00135 002M 00136 1
002M 00137 002M 00138 1
002M 00139 002M 00140 1
002M 00141 002M 00142 1
002M 00143 002M 00144
002M 00145 002M 00146
002M 00147 002M 00148
002M 00149 002M 00150
002M 00151 002M 00152 1 1
002M 00153 002M 00154
002M 00155 002M 00156
002M 00157 002M 00158
002M 00159 002M 00160
002M 00189 002M 00190

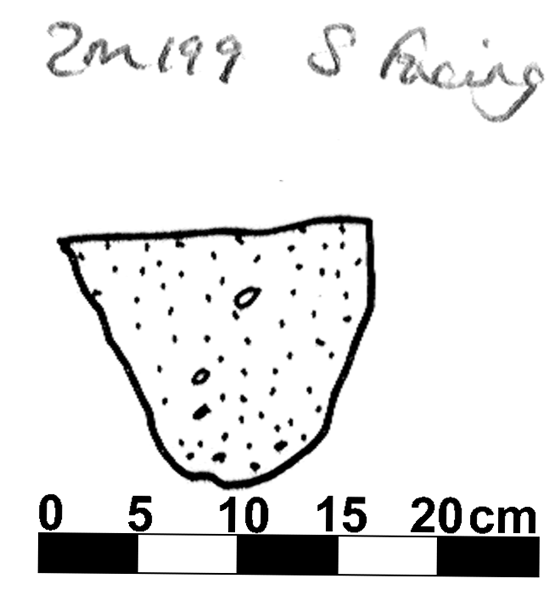

002M 00199 002M 00200
002M 00201 002M 00202
002M 00203 002M 00204
002M 00205 002M 00206
002M 00207 002M 00208
002M 00209 002M 00210

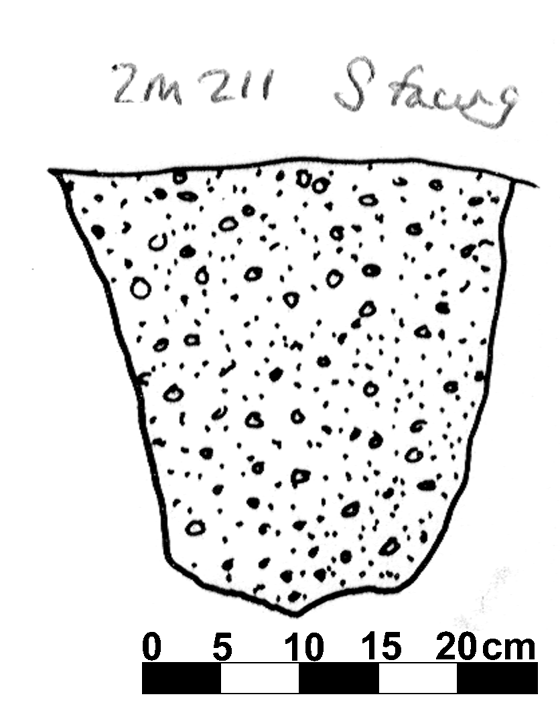

002M 00211 002M 00212

Structural Details

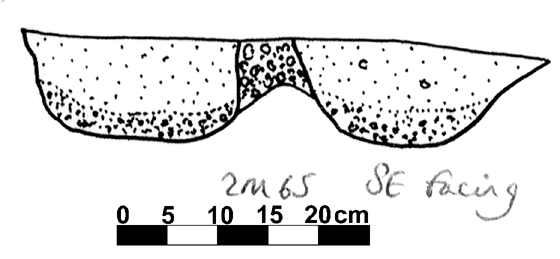

002M 00065 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00065 POST HOLE CUT FIGURE 8  52 38  10 WSHAPED  PAIR OF PH.s AT SW CORNER OF TFB 2M/M502. SECTIONED SW>NE NO INDICATION OF RELATIONSHIP DOUBLE POST SETTING?
002M 00066 POST HOLE FILL FIGURE 8  52 38  10 FLAT  APPARENTLY SINGLE FILL OF DOUBLE POST HOLE AT SW CORNER OF 2M/M502 CONTAINED SOME LARGE GRAVEL.

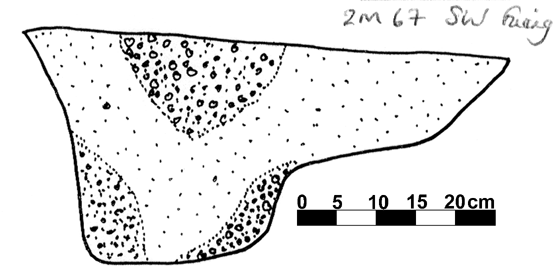

002M 00067 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00067 POST HOLE CUT 61 49  30 WSHAPED  DOUBLE POST SETTING W. LARGER OF PAIR ON W. W. CUT MAY BE SECONDARY TO E. HALF. PART OF W WALL OF 2M/M502.
002M 00068 POST HOLE FILL 61 49  30 FLAT  FILLS OF DOUBLE PH. W PH APPEARED TO CUT E PH. W FILL MATRIX W. MUCH LARGE GRAVEL: E FINE CLEAN MATRIX.

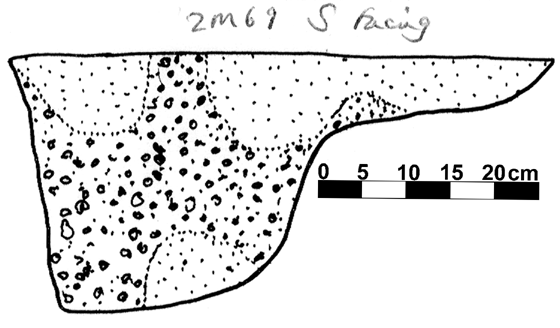

002M 00069 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00069 POST HOLE CUT FIGURE 8  61 52  29 WSHAPED  PAIR OF INTERCUTTING PH.s SECTIONED NNW>SSE. LARGER OF THE TWO TO W. 28 DEEP SMALLER ONLY 8 DEEP. PART OF W. WALL OF 2M/M502.
002M 00070 POST HOLE FILL FIGURE 8  61 52  29 FLAT  FILLS OF PAIR PH.s PART OF W. WALL OF 2M/M502. W. PH. APPEARS TO CUT E.PH. FILL TO SILTY MATRIX W LARGE GRAVEL. ON E CLEAN MATRIX.VERTICAL LINE OF GR.

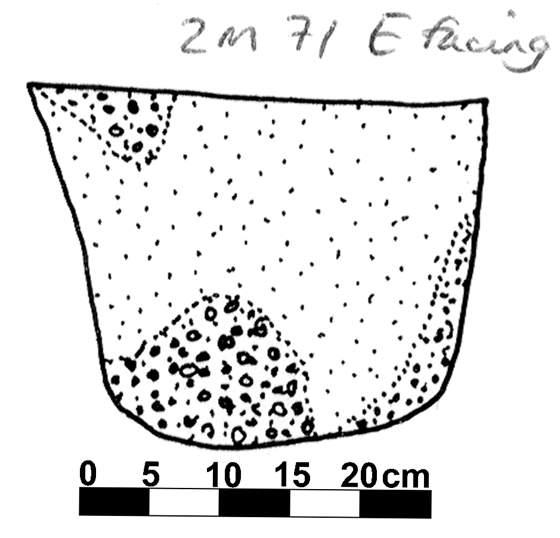

002M 00071 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00071 POST HOLE CUT ROUND  33 30  26 USHAPED  SINGLE PH. IN CENTRE OF W. WALL OF 2M/M502
002M 00072 POST HOLE FILL ROUND  33 30  26 FLAT  CLEAN MATRIX W. A V.LITTLE SMALL GRAVEL AND PEA GRIT AT THE BASE.

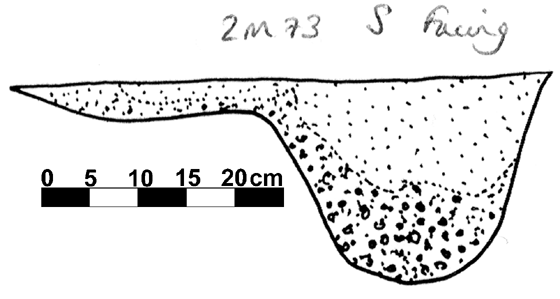

002M 00073 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00073 POST HOLE CUT OVATE  56 30  20 USHAPED  POSS PH.PAIR V SMALL + SHLLOW DEPRESSION ON W. SECTIONED W>E PART OF W.WALL OF TFB 2M/M502.
002M 00074 POST HOLE FILL OVATE  56 30  20 FLAT  CLEANY SILTY MATRIX W.A V.LITTLE SMALL GRAVEL.

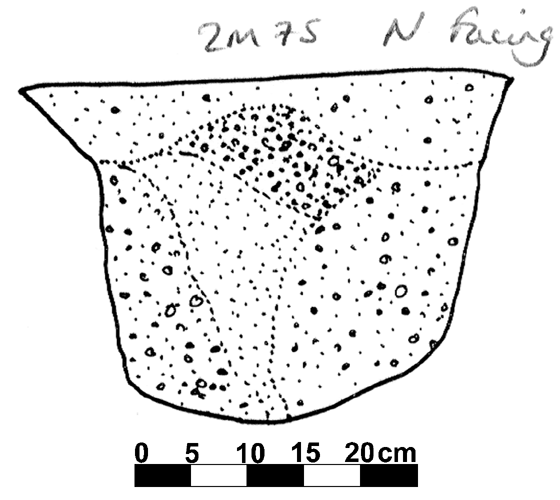

002M 00075 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00075 POST HOLE CUT OVATE  43 30  30 USHAPED  DEEP PH. PART OF W.WALL OF TFB 2M/M502 SECTIONED E>W SMALL IN PLAN BY COMPARISON W. OTHER PH.s IN THIS STRUCTURE.
002M 00076 POST HOLE FILL OVATE  43 30  30 FLAT  MATRIX W. SANDY SILT AT TOP BECOMING LIGHTER + MUCH MORE GRAVELLY AT BASE. FILL OF PH. IN W.WALL OF TFB 2M/M502.

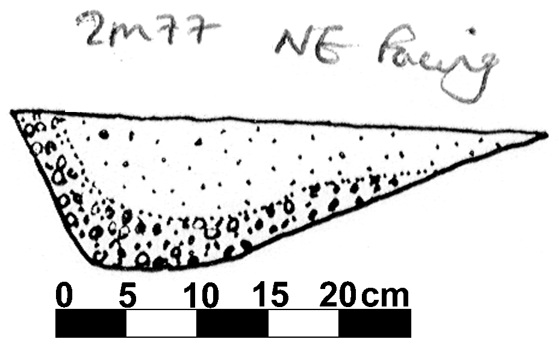

002M 00077 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00077 POST HOLE CUT ROUND  38 28  11 USHAPED  SMALL PH AT NW. CORNER OFTFB 2M/M502. FOR CORNER POST. SECTIONED SE>NW. PARTIALLY DISTURBED BY ANIMAL ON N.SIDE.
002M 00078 POST HOLE FILL ROUND  38 28  11 FLAT  SANDY MATRIX W SOME LARGE GRAVEL FILLING PH AT NW.CORNER OF TFB 2M/M502.

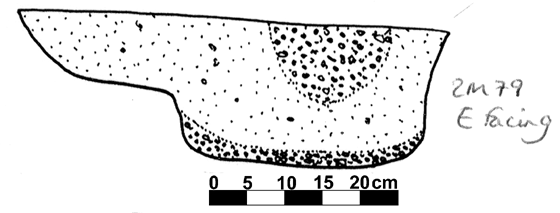

020M00079 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00079 POST HOLE CUT FIGURE 8  57 34  20 USHAPED  PH. PAIR AT W END OF S.WALL OF TFB 2M/M502. SECTIONED S>N. GRAVEL IN N.PH MAY INDICATE DOUBLE SETTING AS OPPOSED TO SINGLE REPLACED POST.
002M 00080 POST HOLE FILL FIGURE 8  57 34  20 FLAT  FILL OF DOUBLE PH. SANDY MATRIX W.A V.LITTLE SMALL GRAVEL. N.PH CONTAINS MORE GRAVELLY FILL IN CENTRE POSS. INDICATING THIS AS A DOUBLE SETTING.

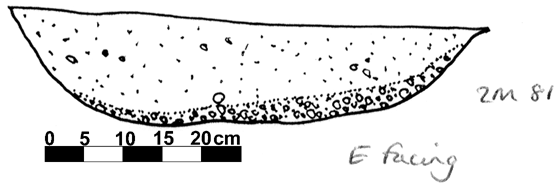

002M 00081 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00081 POST HOLE CUT SUB-RECTANGULAR  61 50  16 USHAPED  AXIS N>S SECTIONED N>S PART OF S.WALL OF TFB 2M/M502. SINGLE FILL ONLY? ALLOTHERS APPEARED TO BE DOUBLE SETTINGS.
002M 00082 POST HOLE FILL SUB-RECTANGULAR  61 50  16 FLAT  CLEAN SILTY MATRIX IN 2M81 W. A V.LITTLE GRAVEL AND PEAGRIT AT BOTTOM.

002M 00083 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00083 POST HOLE CUT FIGURE 8  89 65  23 USHAPED  DOUBLE PH. AXIS N>S SECTIONED N>S. PART OF S.WALL OF TFB 2M/M502.
002M 00084 POST HOLE FILL SUB-RECTANGULAR  89 65  23 FLAT  SILTY MATRIX FILLING DOUBLE PH. IN S.WALL OF TFB 2M/M502 S.SIDE CLEAN W.A LITTLE GRAVEL. N SIDE V.GRAVELLY. ?S.CUTS N. MORE LIKELY DOUBLE SETTING.

002M 00085 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00085 POST HOLE CUT FIGURE 8  90 40  24 WSHAPED  AXIS E>W SECTIONED E>W. PSS DOUBLE/TRIPLE PH. MUCH DEEPER E.END. PART OF N>S PARTITION WALL IN TFB 2M/M502. EITHER DOUBLE PH. OR SINGLE REPLACED ON W.
002M 00086 POST HOLE FILL FIGURE 8  90 41  24 FLAT  POST HOLE FILL.

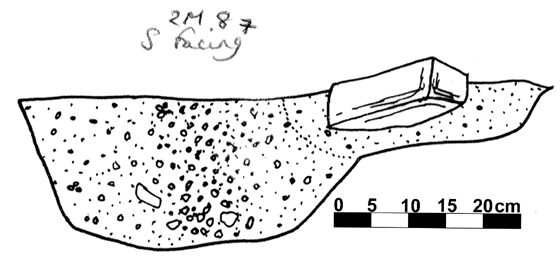

002M 00087 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00087 POST HOLE CUT OVATE  72 43  23 WSHAPED  PH. FORMING PART OF DEVIDING WALL OF 2M/M502. AXISDEEPER ON W.SIDE FILL CONTAINED PART OF FLAT QUERN STONE :POSS.ROMAN PERHAPS AS P.PACKING
002M 00088 POST HOLE FILL OVATE  72 43  23 FLAT  CLEAN SANDY MATRIX IN E W. GRAVELLY MATRIX IN W. PART QUERN STONE IN E FILL POSS PACKING BETWEEN POSS IN ?DOUBLE PH. ?TWO FILLS EXCAVATED AS ONE.

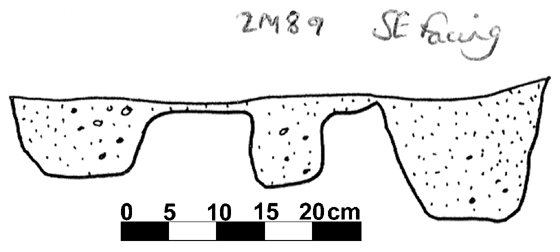

002M 00089 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00089 POST HOLE CUT OVATE  56 27  15 COMPLEX  AXIS + SECTION NE>SW INITIALLY DUG AS ONE FEATURE IN REALITY PROB 3 SMALL DEPRESSIONS IN NATURAL W VERY GRAVELLY FILL.
002M 00090 POST HOLE FILL COMPLEX  56 27  15 FLAT  SILTY MATRIX W LARGE QUANTITY OF NAT.GRAVEL. ?PH BUT APPEARS TO BE NATURAL DEPRESSIONS ?DISTURBED

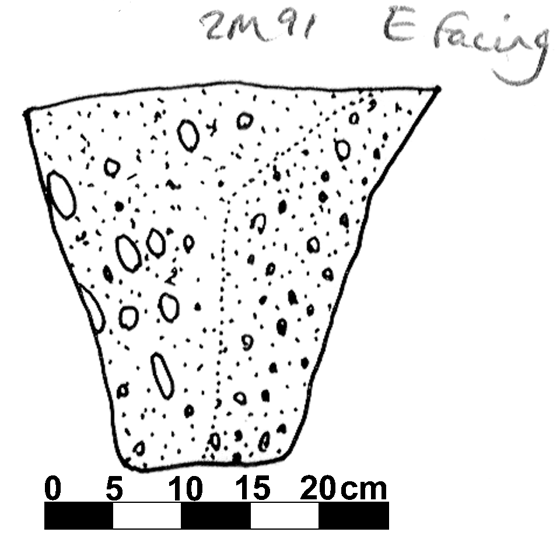

002M 00091 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00091 POST HOLE CUT SUB-CIRCULAR  28 22  28 USHAPED  PH. CONTIGUOUS W. 2M95 PART OF N.WALL TFB. 2M/M502W.END. POSITION INTERNAL TO WALL ?RELATED TO HEAVILY RECUT PH 2M145:2M97:2M99:101. ?INTERNAL FITTING
002M 00092 POST HOLE FILL SUB-CIRCULAR  28 22  28 FLAT  GRAVELLY MATRIX SECTIONED N>S IN PH. INTERNAL POSITION MAY IMPLY PH.FUNCTION NOT PART OF WALL BUT INTERNAL FITTING.

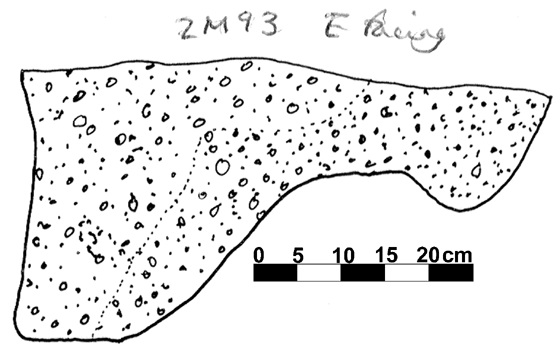

002M 00093 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00093 POST HOLE CUT FIGURE 8  60 38  31 WSHAPED  PH PAIR AT W.END N.WALL 2M/M502 AXIS N)S +SECTION SAME FILL APPEARS TO BE DOUBLE PH. AS OTHERS W TWOINDIVIDUAL CUTS.
002M 00094 POST HOLE FILL FIGURE 8  60 38  31 FLAT  SILTY MATRIX W A LITTLE GRAVEL. SAME MATRIX FILLS OTH CUTS OF THIS DOUBLE PH.

002M 00095 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00095 POST HOLE CUT SUB-RECTANGULAR  50 43  25 VERT.SIDE F.BASE  AXIS N>S SECTION E>W VERTICAL SIDES W SHALLOW TAIL TO E. BETWEEN 2M91 + 2M97 N.WALL 2M/M502. POSS. PART OF DOUBLE SETTING W 2M91 TO S. BUT UNLIKELEY
002M 00096 POST HOLE FILL SUB-RECTANGULAR  50 43  25 FLAT  SILTY MATRIX W SOME MEDIUM GRAVEL CONCENTRATED ON THE E SIDE.

002M 00097 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00097 POST HOLE CUT OVATE  42 35  23 VERT.SIDE F.BASE  AXIS NW>SE SECTION E>W. SHALLOW STEP ON SE. NO CLEAR RELATIONSHIP W 2M95 OR 2M99 ADJACENT. POSSIBLY CUT 2M99. PART OF N.WALL OF 2M/M502.
002M 00098 POST HOLE FILL OVATE  42 35  23 FLAT  MATRIX W A LITTLE SMALL + MEDIUM GRAVEL SINGLE FILL W SOME DARKER PATCHES.

002M 00099 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00099 POST HOLE CUT UNCLEAR  76 56  31 VERT.SIDE F.BASE  ONE OF COMPLEX ARRANGEMENT OF PH. CUTS IN N.WALL OF 2M/M502. OVERALL SHAPE UNCLEAR ON ACC. OF OTHER UTS. NO RELATIONSHIP W 2M97 APPEARED CUT BY 147
002M 00100 POST HOLE FILL UNCLEAR  76 56  31 FLAT  SILTY MATRIX W MEDIUM GRAVEL + PATCHES OF R/BR 10YR34 SANDY SOIL ?NATURAL OR RESULT OF ANIMAL ACTION 1 SHERD POT

002M 00101 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00101 POST HOLE CUT OVATE  49 0  39 VERT.SIDE F.BASE  DEEP CUT W POST PIPE ON S SHALLOWER TO N THEN DEEPENING FURTHER N. APPEARS TO CUT 2M99. PART OF A COMPLEX SEQUENCE OF PH.s INTHE N.WALL OF 2M/M502.
002M 00102 POST HOLE FILL OVATE  49 0  39 FLAT  FILL OF DOUBLE PH. SILTY MATRIX W GRAVELLY 10YR44 MATERIAL DEMARCATING TWO P.PIPES

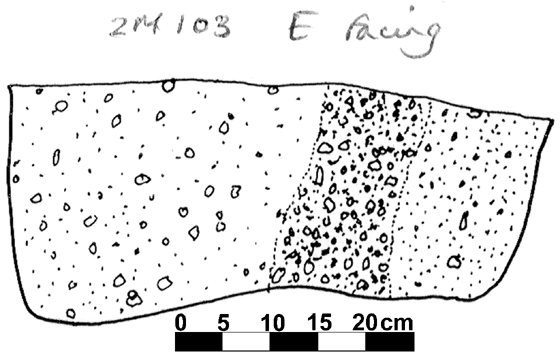

002M 00103 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00103 POST HOLE CUT OVATE  56 31  26 VERT.SIDE F.BASE  AXIS + SECTION NNE>SSW. ?DOUBLE PH. PART OF N.WALL OF 2M/M502 CENTRE.
002M 00104 POST HOLE FILL OVATE  56 31  26 FLAT  MATRIX DEVIDED INTO TWO FILLS. CLEAN SILTY ON THE N. SAME MATRIX BUT W SMALL GRAVEL ON S. ?DOUBLE PH

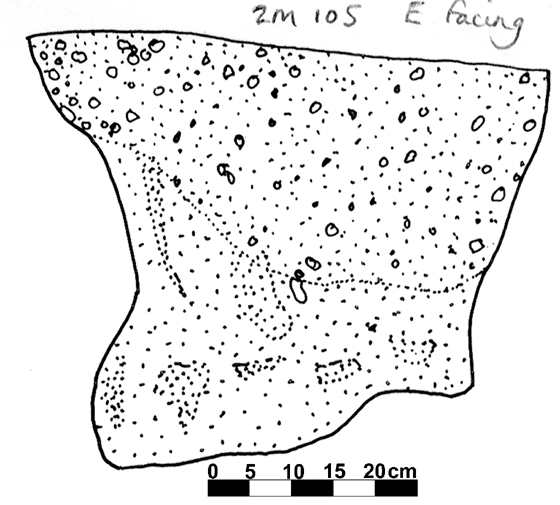

002M 00105 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00105 POST HOLE CUT FIGURE 8  62 50  52 WSHAPED  A PAIR OF INTERCUTTING OVATE PH.s FORMING A DOUBLE SETTING SECTIONED NE>SW W DEEPEST ON N SIDE. CENTRE OF N.WALL OF 2M/M502.
002M 00106 POST HOLE FILL FIGURE 8  62 50  52 FLAT  SANDY SILTY MATRIX W LARGE GRAVEL IN TWO CUTS FORMING A DOUBLE SETTING IN THE N.WALL OF 2M/M502 CENTRE. UNLIKE 2M107 ADJACENTCUTS APPEAR SEPARATE.

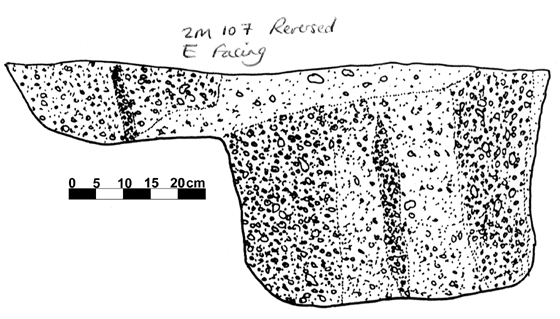

002M 00107 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00107 POST HOLE CUT SUB-RECTANGULAR  104 74  50 VERT.SIDE F.BASE  LARGEST OF ALL PH.S IN N.WALL OF 2M/M502. SECTIONED N>S INDICATING DOUBLE SETTING W GRAVELLY MATRIX BETWEEN POSTS ON SINGLE HOLE.
002M 00108 POST HOLE FILL SUB-RECTANGULAR  104 74  50 FLAT  MATRIX OF SILTY MATERIAL W MARKED LOAMY MATERIAL IN BAND AT CENTRE BETWEEN GRAVELLY MATERIAL ESP IN S.HALF.

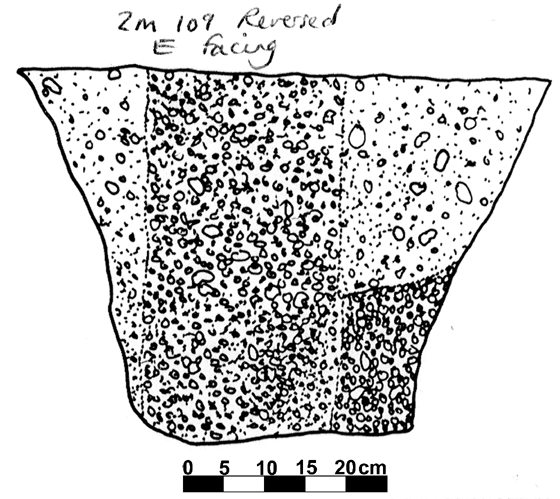

002M 00109 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00109 POST HOLE CUT COMPLEX  87 66  46 VERT.SIDE F.BASE  LARGE DEEP CUT FOR DOUBLEPH. IN N.WALL OF 2M/M502. TWO INTERCUTTING OVATE PH.s SECTIONED N>S V.SIMILAR TO 2M107:111 ADJACENT TO E. + W.
002M 00110 POST HOLE FILL COMPLEX  87 66  46 FLAT  CLEAN MATRIX W A LITTLE LARGE GRAVEL TO N. AND S. W VERY GRAVELLY MATRIX IN CENTRE. DOUBLE PH. WITH POSTS TO N. AND S. GRAVELIN BETWEEN POSTS.

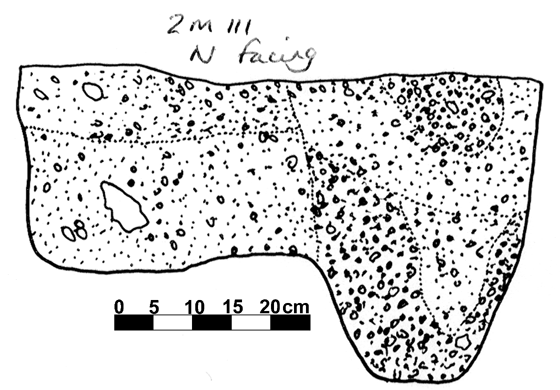

002M 00111 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00111 POST HOLE CUT FIGURE 8  72 68  41 WSHAPED  DOUBLE PH. E.END OF N.WALL 2M/M502 POSSIBLY RECUT BY SECOND DOUBLE PH. ON WSIDE WHICH WAS THE DEEPER. NO RELATIONSHIP OBSERVED BETWEEN E + W CUTS.
002M 00112 POST HOLE FILL FIGURE 8  72 68  41 FLAT  SILTY MATRIX W. LARGE GRAVEL AND SMALL GRAVEL AT THE BASE POT + BONE. REMOVED FROM N SIDE OF E>W SECTION PROB OBSCURING NAUTURE OF DOUBLE PH.??

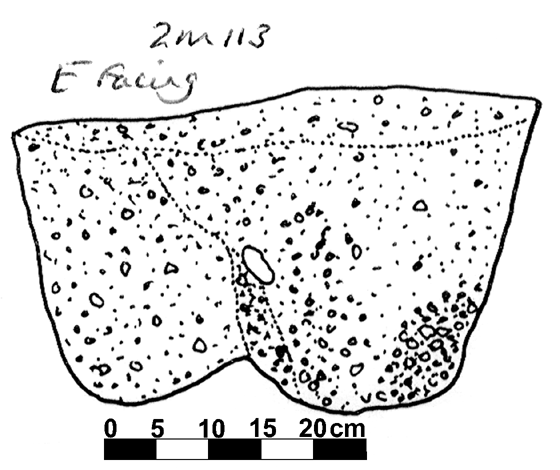

002M 00113 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00113 POST HOLE CUT SUB-RECTANGULAR  49 33  31 WSHAPED  AXIS + SECTION N>S DOUBLE PH AT E END N.WALL 2M/M52 SLIGHT RIDGE BETWEEN N.+S. CUTS
002M 00114 POST HOLE FILL SUB-RECTANGULAR  49 33  31 FLAT  TWO FILLS CLEAN SILTY MATRIX IN S. GRAVELLY AND MORE SANDY ON N. POT:BONE:+AE OBJ. ?DOUBLE PH.

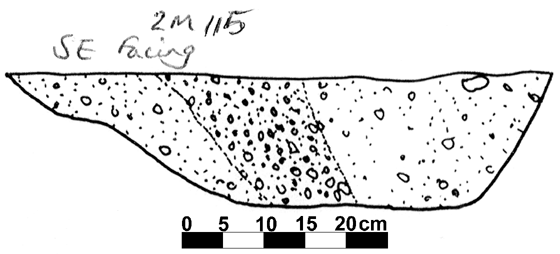

002M 00115 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00115 POST HOLE CUT SUB-RECTANGULAR  87 53  16 VERT.SIDE F.BASE  AXIS NNE>SSW SECTION NE>SW. SLOPING SIDE TO S. MOST EASTERLY PH. IN N.WALL 2M/M502.
002M 00116 POST HOLE FILL SUB-RECTANGULAR  87 53  16 FLAT  SILTY MATRIX W LARGE + SMALL GRAVEL CONCENTRATED IN S AND DEEPER PART HORN CORE.

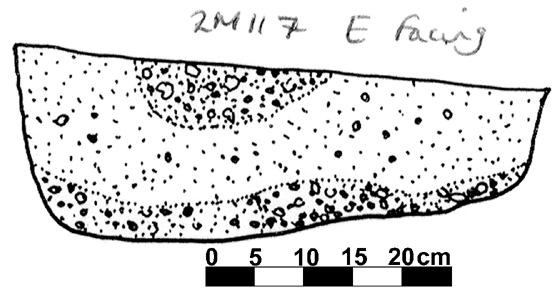

002M 00117 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00117 POST HOLE CUT OVATE  56 41  18 BOWL SHAPED  AXIS + SECTION N>S. PH. IN S.WALL 2M/M502 W.END.
002M 00118 POST HOLE FILL OVATE  56 41  18 FLAT  SILTY MATRIX W PEA GRIT AT GRIT CONCENTRATION OF GRAVEL ON N.SIDE. DOUBLE POST SETTING 3 FILLS OBSERVED WHEN SECTION CHECKED

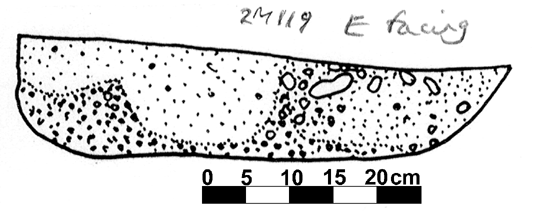

002M 00119 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00119 POST HOLE CUT SUB-RECTANGULAR  58 41  15 USHAPED  AXIS + SECTION N>S. ?DOUBLE PH. IN S.WALL W.END 2M/M502.
002M 00120 POST HOLE FILL SUB-RECTANGULAR  58 41  15 FLAT  UNIFORM SILTY MATRIX W PEA GRIT AT BASE.

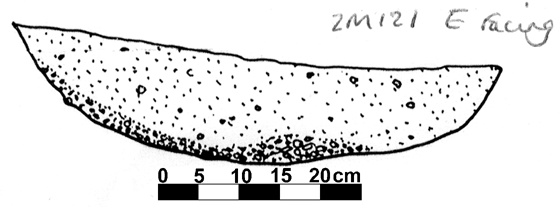

002M 00121 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00121 POST HOLE CUT SUB-RECTANGULAR  68 38  18 USHAPED  AXIS + SECTION N>S. EDGES SLOPE GENTLY TO ROUNDED BASE. ADJACENT TO DOORWAY PH IN S.SIDE 2M/M502.
002M 00122 POST HOLE FILL SUB-RECTANGULAR  68 38  15 FLAT  POST HOLE FILL

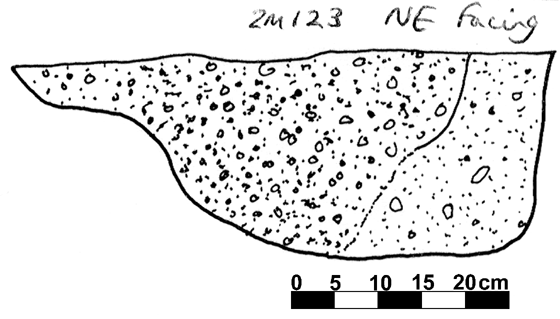

002M 00123 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00123 POST HOLE CUT SUB-RECTANGULAR  72 55  30 USHAPED  DOUBLE PH IN NE CORNER E.WALL OF 2M/M502. SECTIONED NW>SE W DEEPER CUT ON NW + NARROWER.
002M 00124 POST HOLE FILL SUB-RECTANGULAR  62 55  30 FLAT  MATRIX FILLING DOUBLE PH. MORE GRAVELLY IN NE PH. PEA GRIT AT BASE. NE CORNER 2M/M502

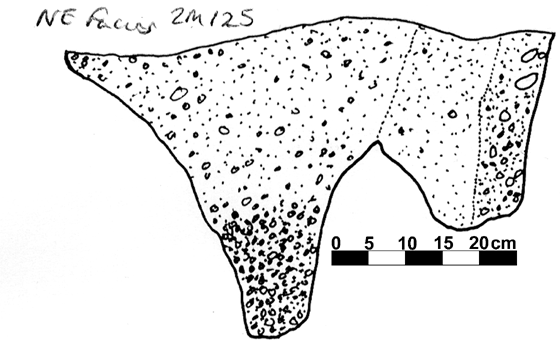

002M 00125 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00125 POST HOLE CUT FIGURE 8  70 51  43 WSHAPED  DOUBLE PH. SECTIONED WNW>ESE EASTERN SETTING DEEPEST. PART OF E.WALL 2M/M502
002M 00126 POST HOLE FILL FIGURE 8  70 51  43 FLAT  MATRIX W SOME GRAVEL AND PEA GRIT AT BASE.

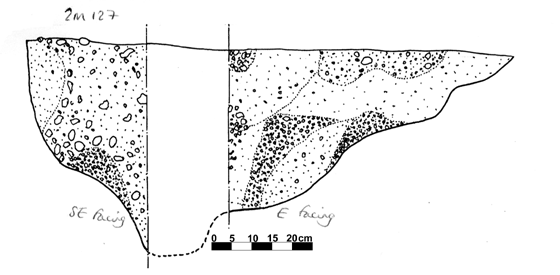

002M 00127 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00127 POST HOLE CUT COMPLEX  120 39  38 COMPLEX  PH FOR W.SIDE OF DOORWAY IN S.WALL 2M/M502. SHALLOW SLOT RUNS N. INSIDE STRUCTURE. TRIPARTATE FEATURE POSS DOUBLE PH. IN WALL W BUTRESSING ON INSIDE..
002M 00128 POST HOLE FILL COMPLEX  120 39  38 FLAT  MIXED MATRIX COMPRISING A NUMBER OF LAYERS 10YR36>10YR63. IN W.PH OF DOORWAY IN S.WALL 2M/M502. FIRST INTERPRETED AS A SEQUENCE OF DIFF. CUTS MULTI.PH

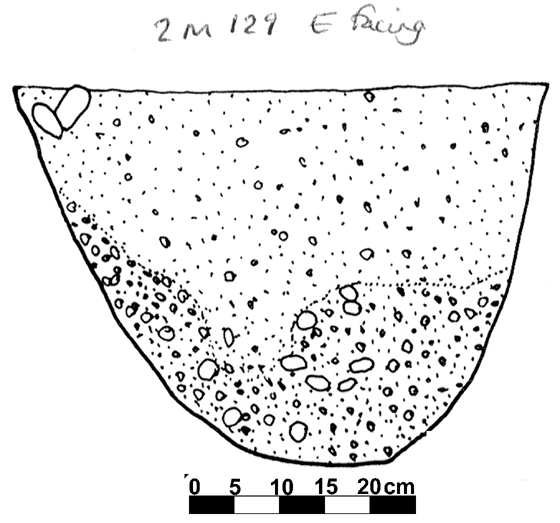

002M 00129 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00129 POST HOLE CUT SUB-RECTANGULAR  53 49  44 USHAPED  PH. E.SIDE DOORWAY IN S.WALL 2M/M502 AXIS + SECTION N>S ?DOUBLE PH.
002M 00130 POST HOLE FILL SUB-RECTANGULAR  53 49  52 FLAT  SILTY MATRIX W A LITTLE GRAVEL CONCENTRATED ON THE N.SIDE. ?DOUBLE PH.

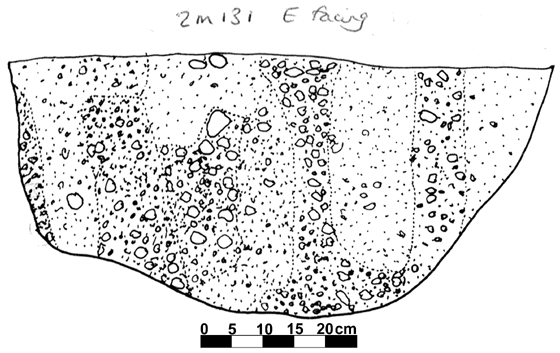

002M 00131 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00131 POST HOLE CUT SUB-RECTANGULAR  96 50  44 WSHAPED  DOUBLE PH AXIS N>S S.WALL E OF DOORWAY 2M/M502. TWO CUTS DEFINED AT DEPTH BUT ALMOST CERTAINLY SINGLE PHASE.
002M 00132 POST HOLE FILL FIGURE 8  96 50  44 FLAT  3 FILLS REPRESENTING PPIPE FILLS + PACKING IN DOUBLE PH S.WALL E.END 2M/M502 SUGGESTED AS 2 PHs S. CUTTING N. DOUBLE PH MORE LIKELY W GRAVELLY BAND BE

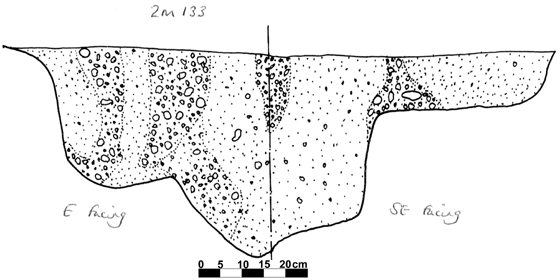

002M 00133 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00133 POST HOLE CUT COMPLEX  118 79  49 COMPLEX  3 PHs. DOUBLE PH ON S. W SMALLER PH TO NE. POSS. DOUBLE PH + INTERNAL FITTING OR ADDITIONAL BUTRESSING.
002M 00134 POST HOLE FILL 118 79  49 COMPLEX  GRAVELLY MATRIX FILLING DOUBLE PH AT E.END S.WALL 2M/M502

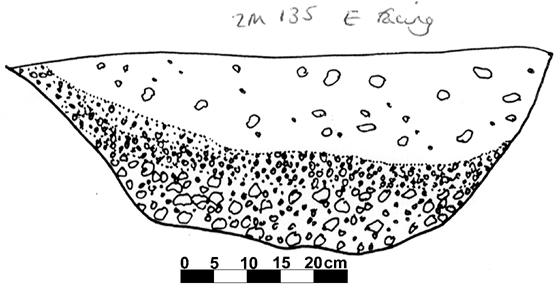

002M 00135 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00135 POST HOLE CUT OVATE  80 53  30 USHAPED  PH. AXIS + SECTION N>S WIDER TO S. E.END S.WALL 2M/M502.
002M 00136 POST HOLE FILL OVATE  80 53  30 FLAT  GRAVELLY MATRIX W PEA GRIT AT BASE.

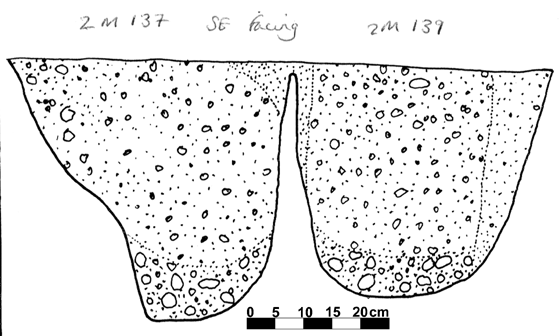

002M 00137 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00137 POST HOLE CUT SUB-CIRCULAR  41 42  46 USHAPED  SECTIONED SW>NE PH. AT E END S.WALL 2M/M502 POSS ASSOC. W.2M139. DISTURBED ON SW.SIDE.
002M 00138 POST HOLE FILL SUB-CIRCULAR  41 42  46 FLAT  SILTY MATRIX CONTAINING MUCH GRAVEL. PART S.WALL 2M/M502

002M 00139 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00139 POST HOLE CUT SUB-RECTANGULAR  71 56  41 USHAPED  DOUBLE PH. AT E.END S.WALL 2M/M502. SECTIONED NE>SW. SOUTHERN PH DEEPER W STEEPER SIDES. FIRST SEEN AS 2 PH.s S. CUTTING N. IN FACT PROB. DOUBLE PH.
002M 00140 POST HOLE FILL SUB-RECTANGULAR  71 56  41 FLAT  V.GRAVELLY MATRIX IN S.PHOF PAIR AT E.END OF S.WALL 2M/M502. N.PH CLEAN SILTY MATRIX 10YR33 W.A LITTLE GRAVEL. PEA GRIT AT BASE.

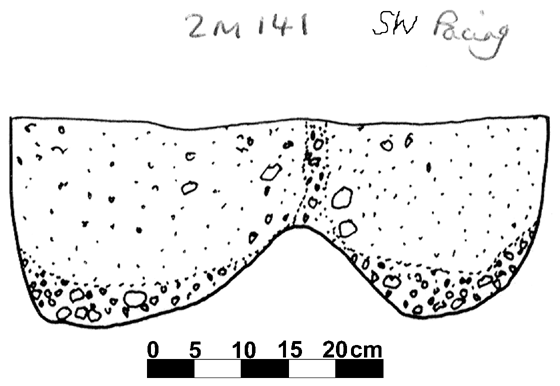

002M 00141 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00141 POST HOLE CUT FIGURE 8  55 49  21 VERT.SIDE F.BASE  DOUBLE PH. AXIS NW>SE IN CENTRE E.END 2M/M502. POSS. INTERNAL P.SETTING. 2 PH.s SEPARATED BY GRAVEL RIDGE.
002M 00142 POST HOLE FILL FIGURE 8  55 49  21 FLAT  CLEAN MATRIX W.A LITTLE GRAVEL LIGHTER THAN OTHER PH. FILLS. FILLING DOUBLE SETTING INTERNAL AND CENTRE 2M/M502.

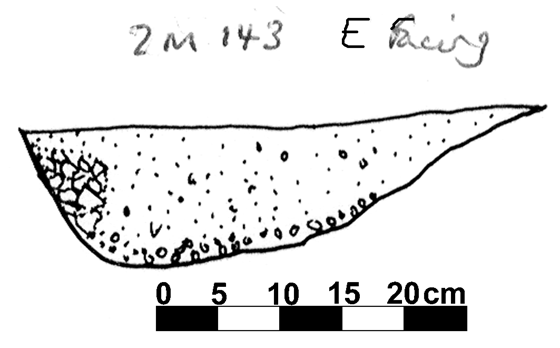

002M 00143 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00143 POST HOLE CUT OVATE  37 26  14 USHAPED  SMALL SHALLOW CUT AT CENTRE 2M/M502 CENTRAL TO DOORWAY. AXIS + SECTION NE>SW. CONT. 2 W.FLINTS.
002M 00144 POST HOLE FILL OVATE  37 26  14 FLAT  CLEAN MATRIX W. 2 FLINTS IN SW. PH. CENTRAL OPP. DOORWAY 2M/M502.

002M 00145 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00145 POST HOLE CUT ROUND  38 0  16 USHAPED  CIRC. CUT AT N.END OF COMPLEX OF INTERCUTTING PH.s IN N.WALL 2M/M502. SHALLOW SECTIONED NNE>SSW CUTS2M149 WHICH APPEARS TO PREDATE M502. ?DOUBLE PH.
002M 00146 POST HOLE FILL ROUND  38 0  16 FLAT  SILTY MATRIX W V.LITTLE GRAVEL AND LARGE NAT.FLNT. LUMP ?PACKING. NO. P.PIPE.

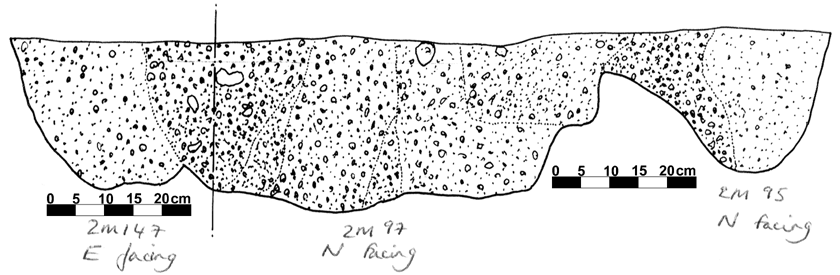

002M 00147 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00147 POST HOLE CUT SUB-RECTANGULAR  60 35  25 VERT.SIDE F.BASE  DOUBLE PH. 2 CIRCULAR CUTS AXIS + SECTION N>S. N.PH DEEPER THAN S. PART OF N.WALL 2M/M502. CUTS THROUGH 2M149:99 WHICH MAY PREDATE THE STRUCTURE.
002M 00148 POST HOLE FILL SUB-RECTANGULAR  60 35  25 FLAT  WELL DEFINED P.PIPE W CLEAN FILL IN N.PH. SURROUNDED BY GRAVELLY PACKING P.PIPE LESS CLEAR IN S.PH. THOUGH AGAIN CLEAN SILTY MATRIX. DOUBLE PH.

002M 00149 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00149 POST HOLE CUT OVATE  80 35  36 USHAPED  LARGE PH ?PIT MUCH CUT ABOUT BY 2M101:145:147. PRESUMABLY PREDATES STRUCTURE. POSSIBLY RELATED TO 2M99.

002M 00151 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00151 POST HOLE CUT OVATE  92 56  24 USHAPED  LARGE CUT IN NE CORNER OF 2M/M502 INTERNAL BUT ADJACENT TO 2M115. POSS ANIMAL DISTURBANCE AT SW.END NO CLEAR RELATIONSHIP TO2M115.
002M 00152 POST HOLE FILL OVATE  92 56  24 FLAT  CLEAN MATRIX W. MUCH ANIMAL BONE + SHERD POT. POSS RUBBISH PIT RATHER THAN PH.

002M 00153 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00153 POST HOLE CUT UNCLEAR  60 0  0 COMPLEX  ONE OF A COMPLEX OF CUTS IN E.WALL OF 2M/M502. S.CORNER. POSS. DOUBLE PH. RELATIONSHIPS UNCERTAIN SEE DETAIL PLAN + SECTIONS.
002M 00154 POST HOLE FILL UNCLEAR  60 0  0 FLAT  SILTY MATRIX W A LITTLE GRAVEL.

002M 00155 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00155 POST HOLE CUT UNCLEAR  60 0  0 USHAPED  PH. PARTIALLY CUT AWAY BY 2M157. PROB. WAS CIRCULAR W SHALLOW BOWL SHAPED DEPRESSION ON NW.EDGE. APPEARS CUT BY 157 UNCERTAIN RELATIONSHIP 2M153
002M 00156 POST HOLE FILL UNCLEAR  60 0  0 FLAT  MIXED MATRIX W LARGE AMOUNT LARGE LOOSE GRAVEL + CLEAN 10YR33 SANDY SILT ON NW.EDGE. E.WALL 2M/M502

002M 00157 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00157 POST HOLE CUT UNCLEAR  0 0  0 COMPLEX  ONE OF A GROUP OF PH. CUTS IN E.WALL 2M/M502 THIS ONE APPEARS CUT BY 2M155. SEE CONT.SHEET 2M153
002M 00158 POST HOLE FILL UNCLEAR  0 0  0 FLAT  SILTY MATRIX BECOMING LIGHTER 10YR44 ON S.SIDE OF SW>NE BAULK. PART OF COMPLEX OF CUTS IN E.WALL OF 2M/M502

002M 00159 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00159 POST HOLE CUT UNCLEAR  85 0  0 UNCLEAR  ONE OF COMPLEX OF CUTS IN E.WALL OF 2M/M502. EASTERNMOST CUT. CUTS 2M157. RELATIONSHIP WITH OTHER CUTS UNCLEAR.
002M 00160 POST HOLE FILL UNCLEAR  85 0  0 FLAT  MATRIX W LARGE AMOUNT OF LOOSE GRAVEL CLEAN SILTY MATERIAL ON SE.EDGE.

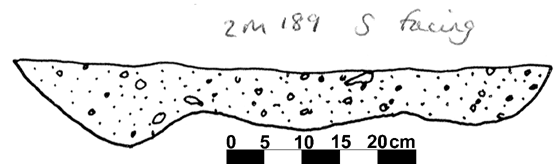

002M 00189 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00189 POST HOLE CUT AMORPHOUS  73 37  11 COMPLEX  GROUP OF 3 POSS. PH.s ALIGNED E>W AT THE SE.CORNER OF STRUCTURE 2M502. SEPARATED BY GRAVEL RIDGES UNIFORM FILL.
002M 00190 POST HOLE FILL 73 37  11 FLAT  SLIGHTLY SILTY MATRIX W.MUCH GRAVEL AND A FEW CHARCOAL FLECKS. MATRIX UNIFORM IN WHAT APPEAR TO BE 3 DISTINCT CUTS. NO RELATIONSHIP BETWEEN THEM.

002M 00199 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00199 POST HOLE CUT OVATE  17 10  0 USHAPED  V.SMALL PH. AT CENTRE 2M502 POSS. PART OF INTERNAL FIXTURE ?ANIMAL DISTURBANCE.
002M 00200 POST HOLE FILL OVATE  17 10  0 FLAT  V.SILTY CLEAN MATRIX W PEA-GRIT IN BASE. NO CHARCOAL

002M 00201 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00201 POST HOLE CUT OVATE  0 22  0 No entry  SHALLOW SCOOP ON NW.CORNER OF PH. COMPLEX AT SE.CORNER 2M/M502. RELATIONSHIP W 2M159+203 UNCERTAIN.
002M 00202 POST HOLE FILL OVATE  0 22  0 FLAT  LOOSE GRAVEL + PEA-GRIT ISILTY MATRIX WITH A CLEANER MATRIX AT THE SURFACE.

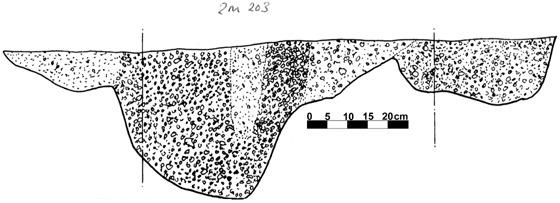

002M 00203 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00203 POST HOLE CUT No entry  0 25  0 No entry  SMALL CUT ON NW.EDGE OF PH COMPLEX AT SE.CORNER 2M/M502. RELATIONSHIP W 2M201:159 +157UNCERTAIN.
002M 00204 POST HOLE FILL OVATE  0 25  0 FLAT  HOMOGENEOUS MATRIX SIMILAR TO THAT OF 2M157.

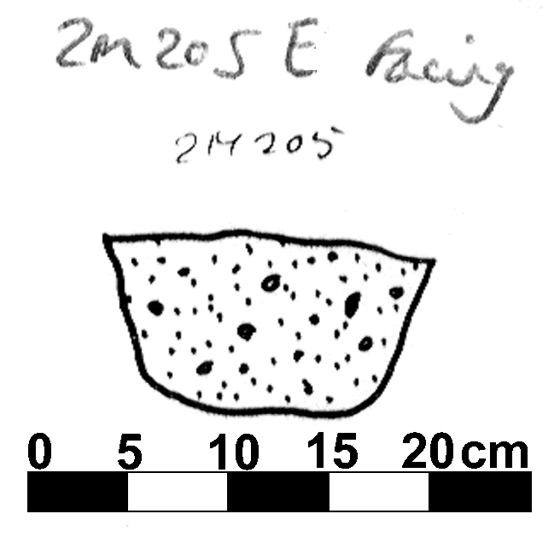

002M 00205 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00205 POST HOLE CUT SUB-RECTANGULAR  26 15  0 BOWL SHAPED  SMALL PH AT CENTRE W.END OF TFB 2M502. POSS. PART O AN INTERNAL FIXTURE OR ? LATER ACTIVITY.
002M 00206 POST HOLE FILL SUB-RECTANGULAR  26 15  0 FLAT  SILTY MATRIX W MUCH GRAVEL +PEA-GRIT. CHARCOAL ABSENT.

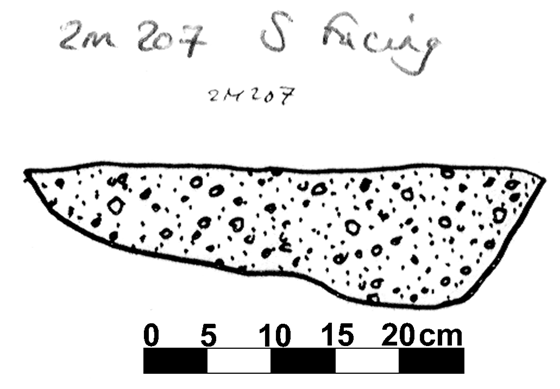

002M 00207 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00207 POST HOLE CUT FIGURE 8  40 27  0 WSHAPED  DOUBLE POST SETTING INSIDE 2M/M502 W.END. AXIS + SECTION E>W DEEPER ON E.
002M 00208 POST HOLE FILL FIGURE 8  40 27  0 FLAT  SLIGHTLY SILTY MATRIX W MUCH GRAVEL AT SURFACE LESS AT BASE. A FEW CHARCOAL FLECKS.

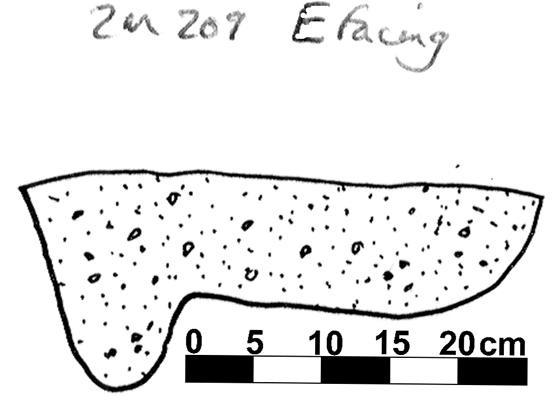

002M 00209 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00209 POST HOLE CUT FIGURE 8  37 20  0 WSHAPED  DOUBLE PH.SETTING AXIS + SECTION NE>SW. SW. END MUCH DEEPER THAN NE. LOC. INSIDE 2M/M502 W.END ADJACENT TO SUPPOSED INTERNAL IVIDING WALL.
002M 00210 POST HOLE FILL FIGURE 8  37 20  0 FLAT  SILTY MATRIX W MUCH GRAVEL PEA-GRIT AND CHARCOAL FLECKS FILLING SMALL PH. IN W.HALF OF 2M/M502.

002M 00211 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002M 00211 POST HOLE CUT SUB-RECTANGULAR  43 27  0 VERT.SIDE F.BASE  PH AT CENTRE OF 2M/M502: AXIS N>S POSS RELATED TO S.DOORWAY. ?INTERNAL STRUCTURAL SUPPORT.
002M 00212 POST HOLE FILL SUB-RECTANGULAR  43 27  0 FLAT  SLIGHTLY SILTY MATRIX W MUCH GRAVEL + PEA-GRIT + A FEW CHARCOAL FLECKS.

Object and Animal Bones by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002M 00084 AA No Entry  ANIMAL BONE BONE  2
002M 00087 AA No Entry  STONE QUERN (SANDST)  1
002M 00100 AA No Entry  POTTERY SHERD  A  1
002M 00104 AA No Entry  POTTERY SHERD  C  1
002M 00108 AA No Entry  POTTERY SHERDS  A  2
002M 00108 AC No Entry  SNAIL SNAIL-SHELL  1
002M 00108 AB No Entry  ANIMAL BONE BONE  2
002M 00110 AA No Entry  POTTERY SHERDS  C  2
002M 00112 AA No Entry  POTTERY SHERD  A  3
002M 00112 AB No Entry  BRONZE NAIL/PIN  DOME-HEADED 1
002M 00112 AC No Entry  ANIMAL BONE BONE  4
002M 00114 AA No Entry  ANIMAL BONE BONE  1
002M 00116 AA No Entry  ANIMAL BONE HORN-CORE/BONE  6
002M 00122 AA No Entry  ANIMAL BONE BONE  1
002M 00124 AA No Entry  POTTERY SHERD  C  1
002M 00124 AB No Entry  ANIMAL BONE BONE  1
002M 00129 AA No Entry  ANIMAL BONE TEETH/JAW  4
002M 00131 AA No Entry  ANIMAL BONE BONE  1
002M 00133 AA No Entry  POTTERY SHERD  A  1
002M 00133 AB No Entry  STONE PEBBLE  SILTSTONE  1
002M 00133 AC No Entry  CHARCOAL CHARCOAL SAMPLE  1
002M 00135 AA No Entry  ANIMAL BONE BONE  10
002M 00138 AA No Entry  POTTERY SHERD  C  1
002M 00140 AA No Entry  ANIMAL BONE BONE  3
002M 00142 AA No Entry  POTTERY SHERD  A  1
002M 00152 AA No Entry  POTTERY SHERD  C  1
002M 00152 AB No Entry  ANIMAL BONE BONE  2
