West Heslerton: Anglian Settlement: Structural CatalogueWest Heslerton: Anglian Settlement: Structural Catalogue

002DA00152

Grubenhaus

Grubenhaus Details
Length	308	Width	255	Depth	31	Ratio	1.2:1
Area	7.12 sq. m	Volume
Number of Posts	0
Highest Elevation Value	5258
Lowest Elevation Value	5227
Bearing	90 degrees
Structural Class
Material Culture	Number of Objects	26	Number of Animal Bones			174
Environmental

Phasing

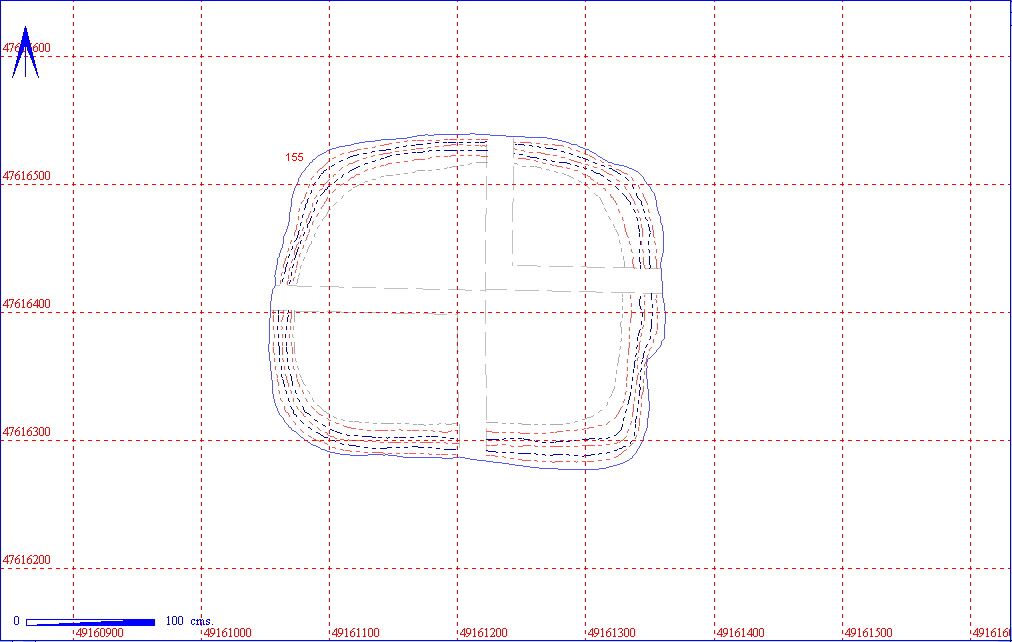

Stratigraphic Matrix Diagram

Discussion

A small, square Grubenhaus in the east of area 2DA to the north/west of similar structure 002DA00149. Aligned east/west, this structure contained a much higher concentration of animal bone than object finds.

All Contexts and Associated Finds Totals

MASTER	CUT	FILLS	VOLUME	OBJECTS	AN BONE	DENSITY
002DA00152				7	15
	002DA00155			3
		002DA00153		16	159

Object Totals by Material

002DA00152 Object Totals by Material

002DA00152	Charcoal	2
	Pottery	2	of which	No Entry	1	Roman	1
	Shale	1
	Unfired Clay	1
	Worked Bone	1

002DA00153 Object Totals by Material

002DA00153	Charcoal	5
	Flint	2
	Pottery	4	of which	Early Saxon	2	Medieval	2
	Stone	5

002DA00155 Object Totals by Material

002DA00155	Pottery	1	Roman
	Stone	1
	Worked Bone	1

Animal Bone Totals by Species

002DA00152 Animal Bone Totals by Species

002DA00152	Cattle	7
	Pig	2
	Sheep	1
	Sheep/goat	6

002DA00153 Animal Bone Totals by Species

002DA00153	Cattle	112
	Goat	2
	Horse	20
	Pig	12
	Sheep/goat	13

Structural Details

002DA00155 Section and Notes

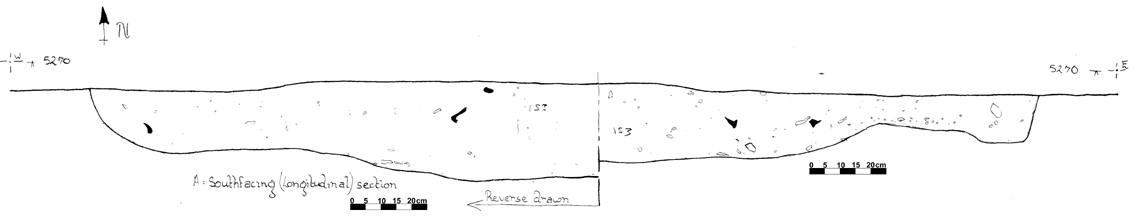

002DA00155 South Facing Section

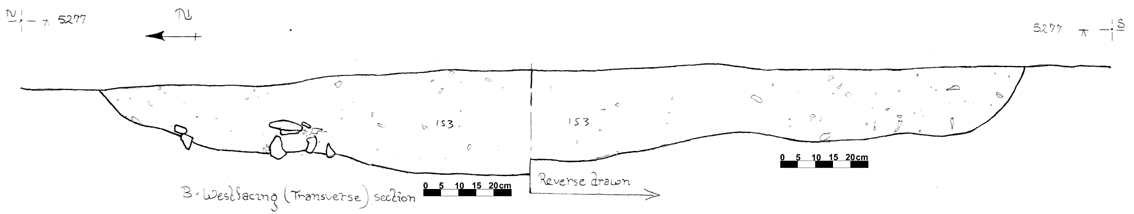

002DA00155 West Facing Section

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
002DA00153	GRUB FILL	SUB-RECTANGULAR	311	263	31	FLAT	DARK HUMIC FILL OF GRUB. OCCA CHALK FRAGS < 11 CM THROUGHOUT FILL. A FEW SMALL FLECKS CHARCOAL. BURROWED THOUGH LITTLE COLOUR VARIATION.
002DA00155	GRUB CUT	SUB-RECTANGULAR	311	263	31	WIDE U	CUTS INTO NAT OF SAND & GRAVEL. BURROWED THROUGHOUT-ESP BASE-HENCE UNDULATIONS ESP IN W. QUADS. SHALLOW THOUGH SIDES STEEP. SL TRUNCATED ABOVE.

Objects by Context

KEY_ID	OB	PERIOD	MATERIAL	TYPE	SUB_TYPE	CLASS	No
002DA00152	AA	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002DA00152	AC	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002DA00152	AB	No Entry	POTTERY	SHERD			1
002DA00152	AD	ROMAN	POTTERY	SHERD		GREY WARE	1
002DA00152	AE	No Entry	SHALE	SHALE FRAGMENT	?BANGLE		1
002DA00152	AG	EARLY SAXON	UNFIRED CLAY	UNFIRED CLAY			6
002DA00152	AF	EARLY SAXON	WORKED BONE	COMB FRAGMENT		COMPOSITE COMB	1
002DA00153	AL	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002DA00153	AM	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002DA00153	AN	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002DA00153	AO	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002DA00153	AX	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002DA00153	AZ	No Entry	FLINT	FLINT NODULE			1
002DA00153	AY	PREHISTORIC	FLINT	FLINT FRAGMENT			1
002DA00153	AR	EARLY SAXON	POTTERY	SHERD		?ANGLIAN I	1
002DA00153	AW	EARLY SAXON	POTTERY	SHERD		?ANGLIAN III	1
002DA00153	AQ	MEDIEVAL	POTTERY	SHERD		MED	1
002DA00153	AS	MEDIEVAL	POTTERY	SHERD		MED	1
002DA00153	AP	No Entry	STONE	STONE			1
002DA00153	AT	No Entry	STONE	STONE			1
002DA00153	AU	No Entry	STONE	COAL FRAGMENT			1
002DA00153	AV	No Entry	STONE	STONE		SANDSTONE	1
002DA00153	BA	No Entry	STONE	STONE		SANDSTONE BLOCK	1
002DA00155	AB	ROMAN	POTTERY	SHERD		R-B	1
002DA00155	AD	No Entry	STONE	STONE			1
002DA00155	AA	EARLY SAXON	WORKED BONE	PIN BEATER	BONE		1

Animal Bone By Context

KEY_ID	SPECIES	ELEMENT	QUANT	CHEW	BURN	BUTCH	FBRK
002DA00152	Cattle	Horncore	1	0	0	0	1
002DA00152	Cattle	Humerus D	1	1	0	1	1
002DA00152	Cattle	Humerus P	1	1	0	0	1
002DA00152	Cattle	Ld4	1	0	0	0	1
002DA00152	Cattle	Phalanx 3	1	0	0	0	0
002DA00152	Cattle	Ulna	1	1	0	0	1
002DA00152	Pig	Radius C	1	0	0	0	1
002DA00152	Pig	Ulna	1	1	0	0	1
002DA00152	Sheep	Horncore	1	0	0	1	0
002DA00152	Sheep/goat	Femur D	1	1	0	0	1
002DA00152	Sheep/goat	Ld4	1	0	0	0	0
002DA00152	Sheep/goat	M/T D	1	0	0	0	1
002DA00152	Sheep/goat	Mand fr	1	0	0	0	1
002DA00152	Sheep/goat	Mand fr	1	0	0	0	1
002DA00152	Sheep/goat	Occiput	1	0	0	0	0
002DA00153	Cattle	Atlas	1	0	0	0	1
002DA00153	Cattle	Calcaneum	1	0	0	0	1
002DA00153	Cattle	Femur fr	1	0	0	0	0
002DA00153	Cattle	Femur fr	1	0	0	0	1
002DA00153	Cattle	Femur P	1	0	0	0	1
002DA00153	Cattle	Femur P	1	0	0	0	1
002DA00153	Cattle	Femur P	1	0	0	0	1
002DA00153	Cattle	Horncore	1	0	0	0	1
002DA00153	Cattle	Humerus D	1	0	1	0	0
002DA00153	Cattle	Humerus D	1	0	0	0	1
002DA00153	Cattle	Humerus D	1	1	0	0	1
002DA00153	Cattle	Humerus D	1	1	0	0	1
002DA00153	Cattle	Humerus D	1	1	0	1	1
002DA00153	Cattle	Humerus D	1	0	0	0	1
002DA00153	Cattle	Humerus D	1	1	0	0	1
002DA00153	Cattle	Ld4	1	0	0	0	0
002DA00153	Cattle	LM3	1	0	0	0	1
002DA00153	Cattle	LM3	1	0	0	0	1
002DA00153	Cattle	LM3	1	0	0	0	0
002DA00153	Cattle	M/C D	1	0	0	0	1
002DA00153	Cattle	M/C D	1	0	0	0	1
002DA00153	Cattle	M/C D	1	1	0	0	1
002DA00153	Cattle	M/C D	1	0	0	0	0
002DA00153	Cattle	M/C P	1	0	0	0	1
002DA00153	Cattle	M/C P	1	1	0	0	1
002DA00153	Cattle	M/C P	1	0	0	0	1
002DA00153	Cattle	M/podial	1	0	0	0	1
002DA00153	Cattle	M/podial	1	0	0	0	1
002DA00153	Cattle	M/podial	1	0	0	0	0
002DA00153	Cattle	M/T D	1	0	0	1	0
002DA00153	Cattle	M/T D	1	0	0	0	0
002DA00153	Cattle	M/T D	1	1	0	1	1
002DA00153	Cattle	M/T D	1	0	0	0	0
002DA00153	Cattle	M/T D	1	0	0	0	1
002DA00153	Cattle	M/T D	1	0	0	0	0
002DA00153	Cattle	M/T fr	1	1	0	0	1
002DA00153	Cattle	M/T P	1	0	0	0	1
002DA00153	Cattle	M/T P	1	1	0	0	1
002DA00153	Cattle	M/T P	1	1	0	1	0
002DA00153	Cattle	M/T P	1	0	0	1	1
002DA00153	Cattle	M/T P	1	0	0	0	0
002DA00153	Cattle	M/T P	1	0	0	1	0
002DA00153	Cattle	M/T P	1	0	0	1	0
002DA00153	Cattle	Mand fr	1	0	0	0	1
002DA00153	Cattle	Mand fr	1	0	0	0	1
002DA00153	Cattle	Mand fr	1	1	0	1	1
002DA00153	Cattle	Mand fr	1	0	0	1	1
002DA00153	Cattle	Mand fr	1	1	0	1	1
002DA00153	Cattle	Mand fr	1	0	0	0	1
002DA00153	Cattle	Mand fr	1	1	0	0	1
002DA00153	Cattle	Mand fr	1	0	0	1	1
002DA00153	Cattle	Mand fr	1	0	0	0	1
002DA00153	Cattle	Mandible	1	0	0	0	1
002DA00153	Cattle	Mandible	1	0	0	0	1
002DA00153	Cattle	Mandible	1	0	0	0	1
002DA00153	Cattle	Mandible	1	0	0	0	1
002DA00153	Cattle	Mandible	1	0	0	0	1
002DA00153	Cattle	N.Cuboid	1	0	0	0	1
002DA00153	Cattle	N.Cuboid	1	0	0	1	1
002DA00153	Cattle	Occiput	1	0	0	0	1
002DA00153	Cattle	Occiput	1	1	0	0	1
002DA00153	Cattle	Patella	1	1	0	0	1
002DA00153	Cattle	Patella	1	1	0	0	1
002DA00153	Cattle	Pelvis	1	1	0	0	1
002DA00153	Cattle	Pelvis	1	1	0	0	1
002DA00153	Cattle	Pelvis	1	0	0	0	1
002DA00153	Cattle	Pelvis	1	0	0	0	1
002DA00153	Cattle	Pelvis	1	0	0	0	1
002DA00153	Cattle	Pelvis	1	0	0	0	1
002DA00153	Cattle	Pelvis	1	0	0	1	1
002DA00153	Cattle	Pelvis	1	0	0	0	1
002DA00153	Cattle	Pelvis	1	0	0	0	1
002DA00153	Cattle	Pelvis	1	1	0	0	1
002DA00153	Cattle	Phalanx 1	1	0	0	0	1
002DA00153	Cattle	Phalanx 1	1	1	0	0	1
002DA00153	Cattle	Phalanx 1	1	0	0	0	1
002DA00153	Cattle	Phalanx 1	1	0	0	0	1
002DA00153	Cattle	Phalanx 1	1	0	0	0	1
002DA00153	Cattle	Phalanx 1	1	0	0	0	1
002DA00153	Cattle	Phalanx 1	1	0	0	0	1
002DA00153	Cattle	Phalanx 2	1	0	0	0	1
002DA00153	Cattle	Phalanx 2	1	1	0	0	0
002DA00153	Cattle	Phalanx 2	1	0	0	0	0
002DA00153	Cattle	Phalanx 2	1	0	0	0	0
002DA00153	Cattle	Phalanx 2	1	0	0	0	1
002DA00153	Cattle	Phalanx 2	1	0	0	0	1
002DA00153	Cattle	Phalanx 2	1	0	0	0	1
002DA00153	Cattle	Phalanx 3	1	0	0	0	0
002DA00153	Cattle	Phalanx 3	1	1	0	0	0
002DA00153	Cattle	Radius D	1	0	0	0	0
002DA00153	Cattle	Radius fr	1	0	0	0	1
002DA00153	Cattle	Radius P	1	0	0	0	1
002DA00153	Cattle	Radius P	1	0	0	0	1
002DA00153	Cattle	Radius P	1	0	0	1	1
002DA00153	Cattle	Radius P	1	0	0	1	0
002DA00153	Cattle	Scapula	1	1	0	0	1
002DA00153	Cattle	Scapula	1	0	0	1	1
002DA00153	Cattle	Scapula	1	1	0	0	0
002DA00153	Cattle	Scapula	1	0	0	0	1
002DA00153	Cattle	Skull fr	1	0	0	0	1
002DA00153	Cattle	Skull fr	1	0	0	0	1
002DA00153	Cattle	Skull fr	1	0	0	0	1
002DA00153	Cattle	Skull fr	1	0	0	0	0
002DA00153	Cattle	Tibia D	1	1	0	0	1
002DA00153	Cattle	Tibia D	1	0	0	0	1
002DA00153	Cattle	Tibia D	1	0	0	0	1
002DA00153	Cattle	Tibia D	1	1	0	0	1
002DA00153	Cattle	Tibia D	1	1	0	0	0
002DA00153	Cattle	Ulna	1	1	0	0	1
002DA00153	Cattle	Ulna	1	0	0	0	1
002DA00153	Cattle	Ulna	1	1	0	0	1
002DA00153	Cattle	Ulna	1	1	0	0	0
002DA00153	Goat	Horncore	1	0	0	0	1
002DA00153	Goat	Horncore	1	1	0	0	1
002DA00153	Horse	Astragalus	1	1	0	1	1
002DA00153	Horse	Femur P	1	1	0	0	1
002DA00153	Horse	LM3	1	0	0	0	1
002DA00153	Horse	M/C P	1	0	0	0	1
002DA00153	Horse	M/T C	1	0	0	0	0
002DA00153	Horse	M/T P	1	0	0	1	0
002DA00153	Horse	M/T P	1	0	0	0	0
002DA00153	Horse	Mand fr	1	1	0	0	0
002DA00153	Horse	Mandible	1	0	0	0	1
002DA00153	Horse	Mandible	1	1	0	0	1
002DA00153	Horse	Pelvis	1	0	0	0	1
002DA00153	Horse	Pelvis	1	0	0	0	0
002DA00153	Horse	Phalanx 1	1	0	0	1	0
002DA00153	Horse	Radius P	1	1	0	0	0
002DA00153	Horse	Radius P	1	0	0	0	1
002DA00153	Horse	Skull fr	1	0	0	0	1
002DA00153	Horse	Tibia D	1	1	0	0	1
002DA00153	Horse	Tibia D	1	1	0	0	1
002DA00153	Horse	Tibia D	1	0	0	0	1
002DA00153	Horse	Ulna	1	1	0	0	1
002DA00153	Pig	L Canine	1	0	0	0	0
002DA00153	Pig	L Canine	1	0	0	0	1
002DA00153	Pig	L Canine	1	0	0	0	0
002DA00153	Pig	M/C D	1	0	1	0	0
002DA00153	Pig	M/T C	1	0	0	0	1
002DA00153	Pig	M/T C	1	0	0	0	0
002DA00153	Pig	Mandible	1	0	0	0	1
002DA00153	Pig	Mandible	1	0	0	0	0
002DA00153	Pig	Mandible	1	0	0	1	1
002DA00153	Pig	Mandible	1	0	0	0	1
002DA00153	Pig	Mandible	1	0	0	0	1
002DA00153	Pig	Radius P	1	1	0	0	0
002DA00153	Sheep/goat	LM3	1	0	0	0	0
002DA00153	Sheep/goat	LM3	1	0	0	0	0
002DA00153	Sheep/goat	M/C P	1	0	0	0	1
002DA00153	Sheep/goat	M/T D	1	0	0	0	0
002DA00153	Sheep/goat	M/T P	1	0	0	0	1
002DA00153	Sheep/goat	Mandible	1	0	0	0	0
002DA00153	Sheep/goat	Mandible	1	0	0	0	1
002DA00153	Sheep/goat	Mandible	1	0	0	0	1
002DA00153	Sheep/goat	Mandible	1	0	0	0	1
002DA00153	Sheep/goat	Mandible	1	0	0	0	1
002DA00153	Sheep/goat	Occiput	1	0	0	0	1
002DA00153	Sheep/goat	Pelvis	1	0	0	0	1
002DA00153	Sheep/goat	Tibia br	1	0	0	0	0
