002CC00814

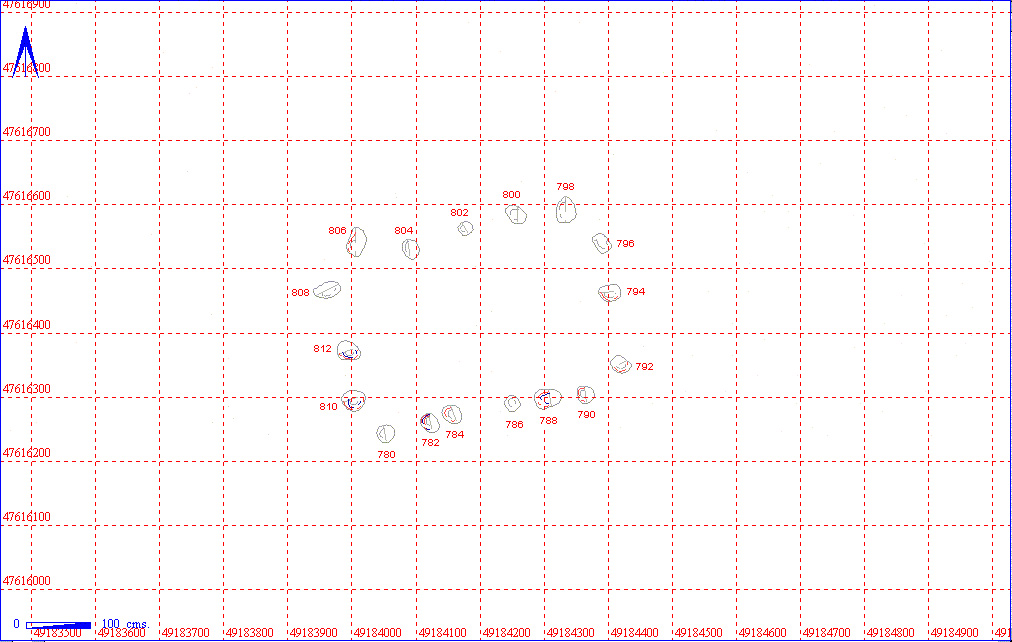

Post Hole Structure

Post-Hole Structure Details
Length 380 Width 230
Area  8.74 sq.m. Ratio 1.6:1
Number of Posts 17 Deepest 22
002CC00796
 Shallowest
6 (x2)
002CC00804
002CC00802
Average Depth
12
N Wall 4 Posts Average Depth 9
E Wall 4 Posts Average Depth 16
S Wall 5 Posts Average Depth 13
W Wall 4 Posts Average Depth 12
Interior Divisions No
Highest Elevation Value  5158 002CC00782
Lowest Elevation Value 5104 002CC00796
Bearing  76 degrees
Plank\Post Post
Doorways One doorway centrally situated in southern wall
Repairs: No repairs noted
Structural Class
Material Culture Number of Objects 0  Number of Animal Bones 0
Environmental

Discussion

A small, rectangular structure aligned ENE-WSW. Seventeen post-holes, all plough truncated, of uniform size and shape, 0.20m to 0.30m in diameter were excavated. Again it is clear that there are no corner posts. Although the clear traces of an entrance are not apparent, it seems likely, based on the position of the structure in relation to other structures and the evidence provided by similar sized structures on site that there was only one door, placed centrally in the long southern wall. No finds were recovered from this structure.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
002CC00814 002CC00780 002CC00781
002CC00782 002CC00783
002CC00784 002CC00785
002CC00786 002CC00787
002CC00788 002CC00789
002CC00790 002CC00791
002CC00792 002CC00793
002CC00794 002CC00795
002CC00796 002CC00797
002CC00798 002CC00799
002CC00800 002CC00801
002CC00802 002CC00803
002CC00804 002CC00805
002CC00806 002CC00807
002CC00808 002CC00809
002CC00810 002CC00811
002CC00812 002CC00813

Structural Details

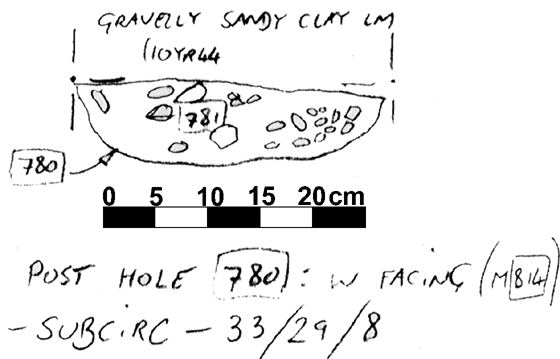

002CC00780 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00780 POST HOLE CUT SUB-CIRCULAR  33 29  8 FLAT BASED U  SHALLOW P.H. AT S.W. CORNER OF BLDG M814. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00781 POST HOLE FILL SUB-CIRCULAR  33 29  8 FLAT BASED U  MOD/FREQ CHALK <3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

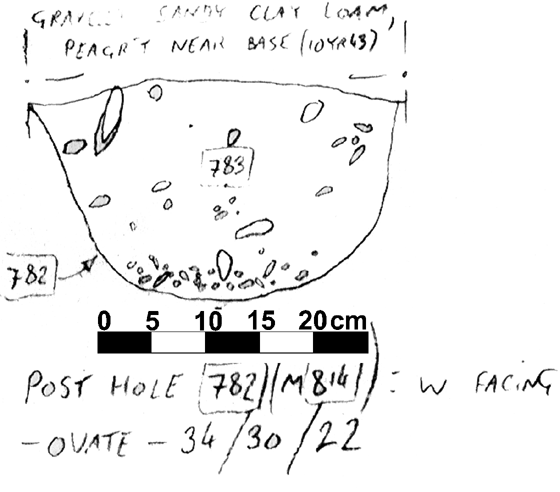

002CC00782 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00782 POST HOLE CUT OVATE  34 30  22 USHAPED  P.H. OF S. WALL OF BLDG M.814. TRUNCATED ABOVE. V. REGULAR SIDES & BASE.
002CC00783 POST HOLE FILL OVATE  34 30  22 USHAPED  OCCA CHALK < 4 CM THROUGHOUT FILL WITH CONCENTRATION OF SMALLER MATERIAL TOWARDS BASE. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

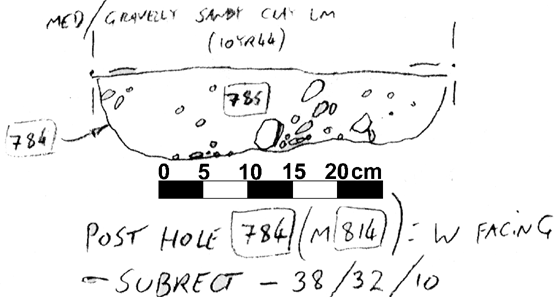

002CC00784 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00784 POST HOLE CUT SUB-RECTANGULAR  38 32  10 FLAT BASED U  P.H. OF S. WALL OF BLDG M.814. TRUNCATED ABOVE. SHALLOW.
002CC00785 POST HOLE FILL SUB-RECTANGULAR  38 32  10 FLAT BASED U  OCCA/MOD CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CC00786 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

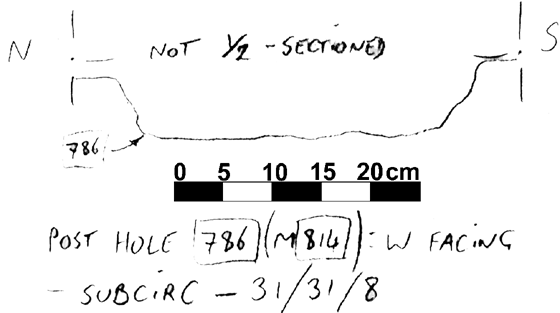

002CC00786 POST HOLE CUT SUB-CIRCULAR  31 31  8 FLAT BASED U  P.H. OF S. WALL OF BLDG M.814. SHALLOW--HEAVILY TRUNCATED ABOVE. STEEPISH SIDES: FLAT BASE.
002CC00787 POST HOLE FILL SUB-CIRCULAR  31 31  8 FLAT BASED U  NO FURTHER DETAILS AVAILABLE.

002CC00788 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

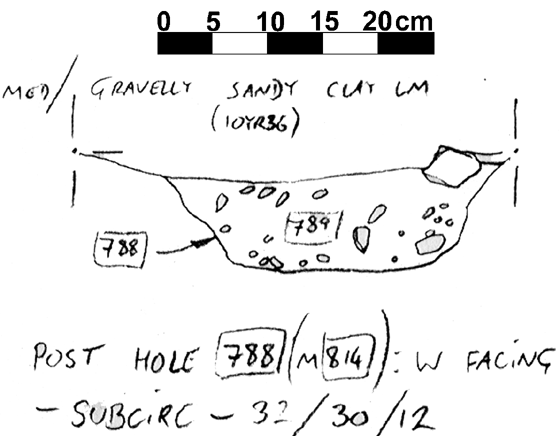

002CC00788 POST HOLE CUT SUB-CIRCULAR  32 30  12 FLAT BASED U  P.H. OF S. WALL OF BLDG M.814. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00789 POST HOLE FILL SUB-CIRCULAR  32 30  12 FLAT BASED U  OCCA/MOD CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

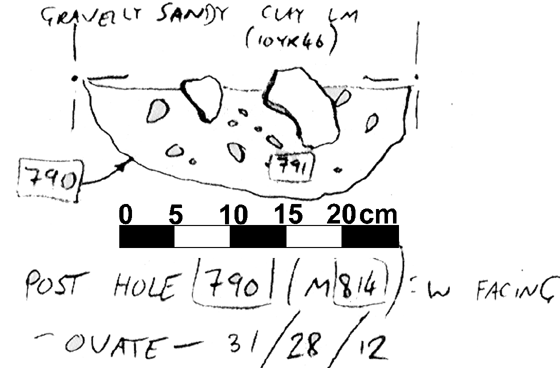

002CC00790 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00790 POST HOLE CUT  OVATE 31 28  12 USHAPED P.H. S.E. CORNER OF BLDG M.814. TRUNCATED ABOVE. SHALLOW: REGULAR SIDES & BASE.
002CC00791 POST HOLE FILL  OVATE 31 28  12 USHAPED MOD CHALK < 9 CM(MOSTLY SMALLER) THROUGHOUT FILL. TRUNCATED ABOVE.

002CC00792 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

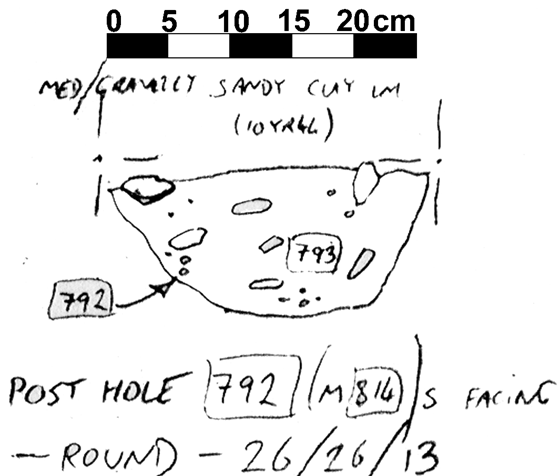

002CC00792 POST HOLE CUT  ROUND 26 26  13 USHAPED P.H. S.E. CORNER OF BLDG M.814. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CC00793 POST HOLE FILL  ROUND 26 26  13 USHAPED MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CC00794 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

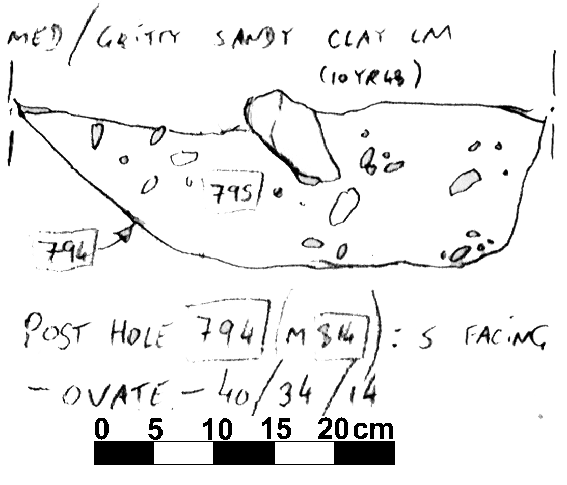

002CC00794 POST HOLE CUT OVATE  40 34  14 FLAT BASED U  P.H. OF E. WALL OF BLDG M.814. TRUNCATED ABOVE. FLAT BASE : E. EDGE Nr VERTICAL: W. EDGE SLOPES APPROX 45deg.
002CC00795 POST HOLE FILL OVATE  40 34  14 FLAT BASED U  MOD CHALK < 3 CM THROUGHOUT FILL ( A FEW LARGER). TRUNCATED ABOVE.

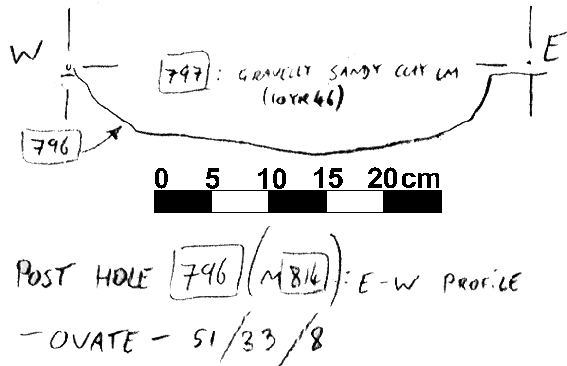

002CC00796 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00796 POST HOLE CUT OVATE  51 33  8 FLAT BASED U  P.H. OF E. WALL OF FRAMED BLDG M.814. V. SHALLOW--HEAVILY TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00797 POST HOLE FILL OVATE  51 33  8 FLAT BASED U  NO FURTHER DETAILS AVAILABLE.

002CC00798 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES

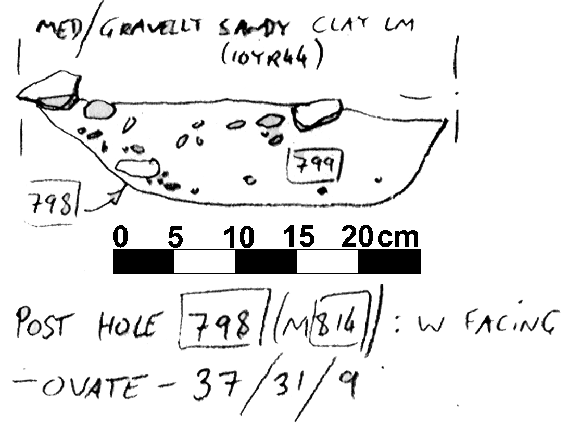

002CC00798 POST HOLE CUT OVATE  37 31  9 FLAT BASED U  P.H. AT N.E CORNER OF BLDG M.814. SHALLOW---TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00799 POST HOLE FILL OVATE  37 31  9 FLAT BASED U  MOD CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

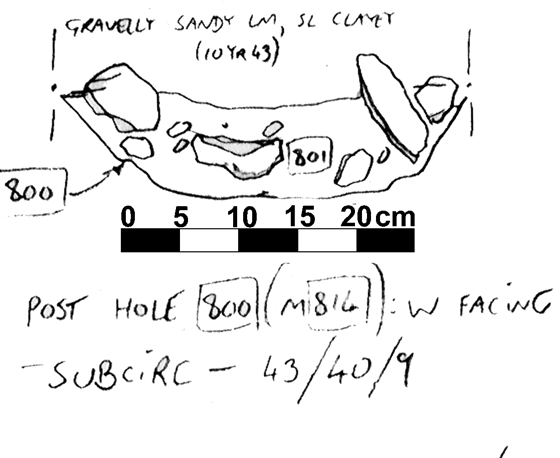

002CC00800 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00800 POST HOLE CUT SUB-CIRCULAR  43 40  9 FLAT BASED V  P.H. OF N. WALL OF BLDG M.814. V.SHALLOW--HEAVILY TRUNCATED ABOVE. REGULAR SIDES : WIDE BASE.
002CC00801 POST HOLE FILL SUB-CIRCULAR  43 40  9 FLAT BASED V  FREQ CHALK < 10 CM THROUGHOUT FILL. TRUNCATED ABOVE.

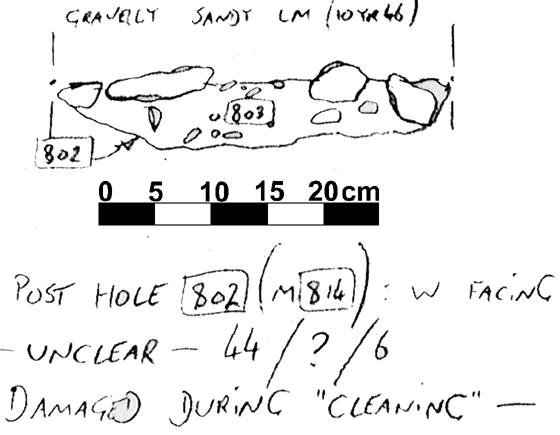

002CC00802 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00802 POST HOLE CUT ROUND  46 39  6 FLAT BASED U  P.H. N. WALL BLDG M.814. V. HEAVILY TRUNCATED ABOVE.
002CC00803 POST HOLE FILL ROUND  46 39  6 FLAT BASED U  FREQ CHALK < 10 CM THROUGHOUT FILL. V. HEAVILY TRUNCATED ABOVE.

002CC00804 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

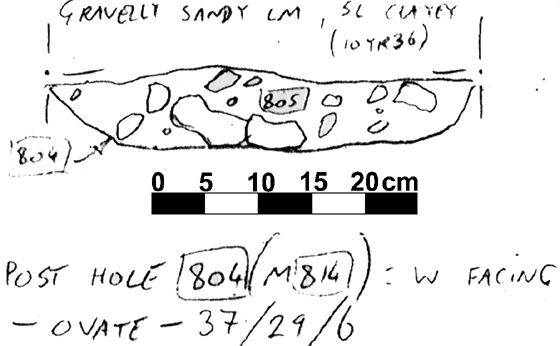

002CC00804 POST HOLE CUT OVATE  37 29  6 FLAT BASED U  P.H. N. WALL OF BLDG M.814. V. HEAVILY TRUNCATED ABOVE.
002CC00805 POST HOLE FILL OVATE  37 29  6 FLAT BASED U  FREQ CHALK < 8 CM THROUGHOUT FILL. V. HEAVILY TRUNCATED.

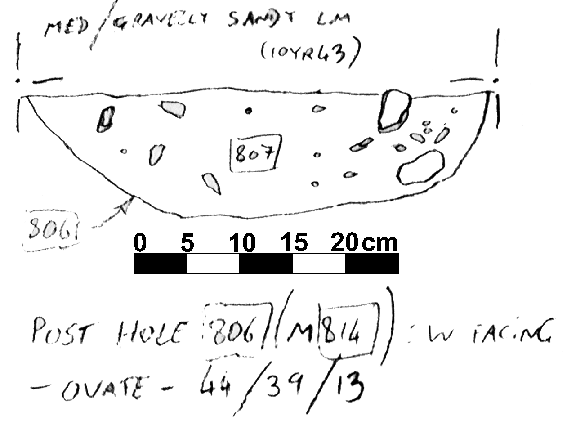

002CC00806 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00806 POST HOLE CUT OVATE  44 39  13 USHAPED  P.H. AT N.W. CORNER OF FRAMED BUILDING M.814. REGULAR EDGES & BASE BUT HEAVILY TRUNCATED ABOVE.
002CC00807 POST HOLE FILL OVATE  44 39  13 USHAPED  MOD CHALK < 4 CM. THROUGHOUT FILL. SHALLOW--TRUNCATED ABOVE.

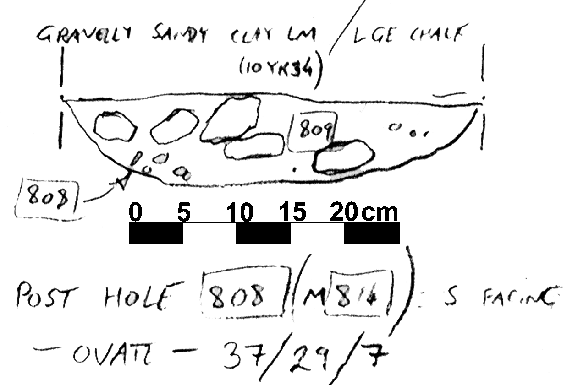

002CC00808 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00808 POST HOLE CUT OVATE  37 29  7 FLAT BASED U  P.H.OF W. WALL (N.W. CORNER) OF FRAMED BLDG M.814. SEVRELY TRUNCATED ABOVE. EDGES & BASE APPEAR REGULAR.
002CC00809 POST HOLE FILL OVATE  37 29  7 FLAT BASED U  FREQ LARGE CHALK < 6 CM THROUGHOUT FILL. V. HEAVILY TRUNCATED ABOVE.

002CC00810 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

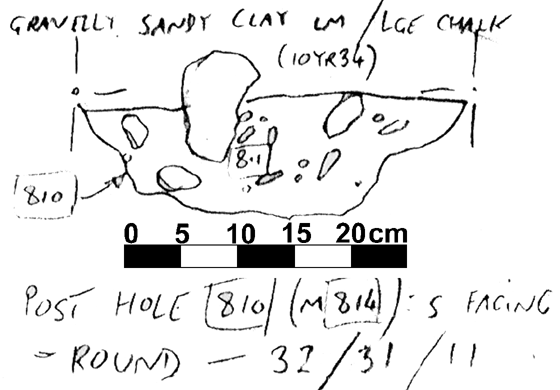

002CC00810 POST HOLE CUT ROUND  32 31  17 STEPPED U  P.H. OF W. WALL (S.W. CORNER) OF FRAMED BLDG M.814. PROFILE ROUGH EDGED & SLIGHTLY STEPPED. TRUNCATED ABOVE.
002CC00811 POST HOLE FILL ROUND  32 31  17 STEPPED U  FREQ CHALK-MOSTLY < 4 CM. SOME < 11 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

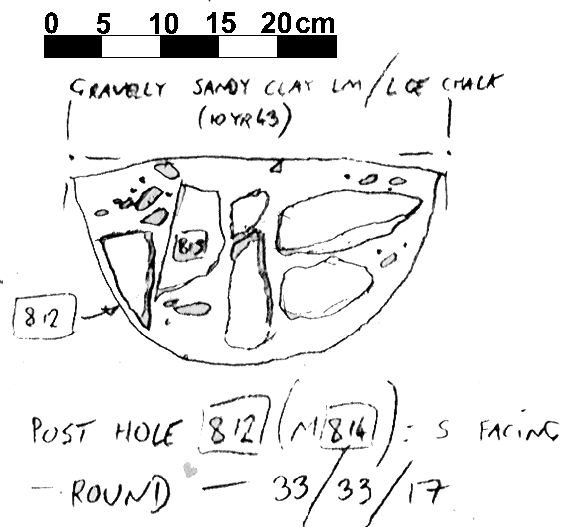

002CC00812 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00812 POST HOLE CUT ROUND  33 33  17 USHAPED  P.H. OF W. WALL OF BLDG M.814. REGULAR SIDES & BASE. TRUNCATED ABOVE.
002CC00813 POST HOLE FILL ROUND  33 33  17 USHAPED  FREQ CHALK < 13 CM TIGHTLY COMPACTED THROUGHOUT FILL. TRUNCATED ABOVE.
