002CC00489

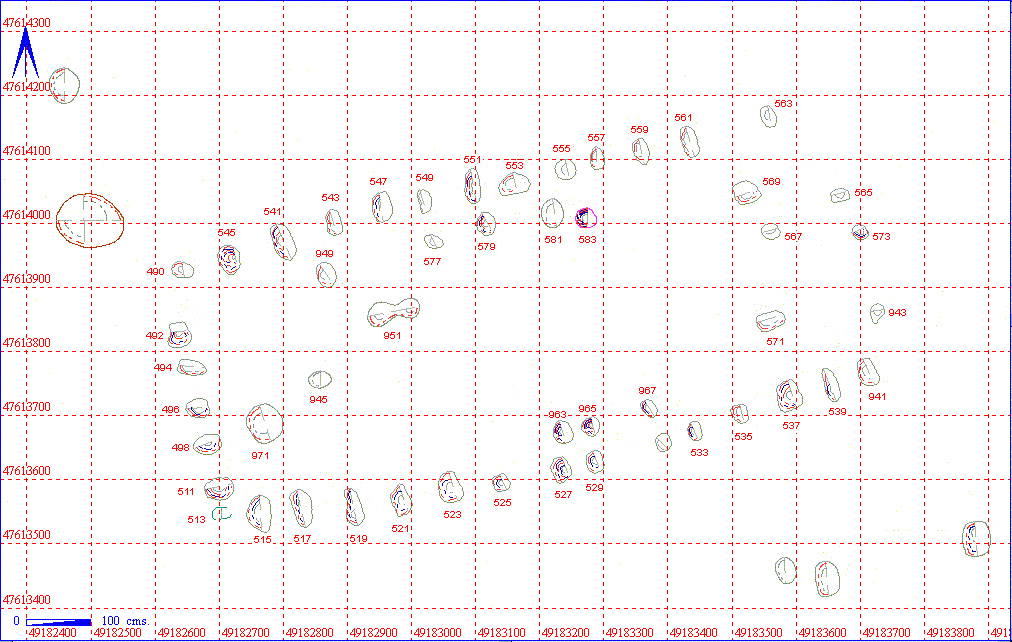

Post Hole Structure



Post-Hole Structure Details
Length 1020 Width 420
Area  42.84 sq m Ratio 2.4:1
Number of Posts 51 Deepest 32

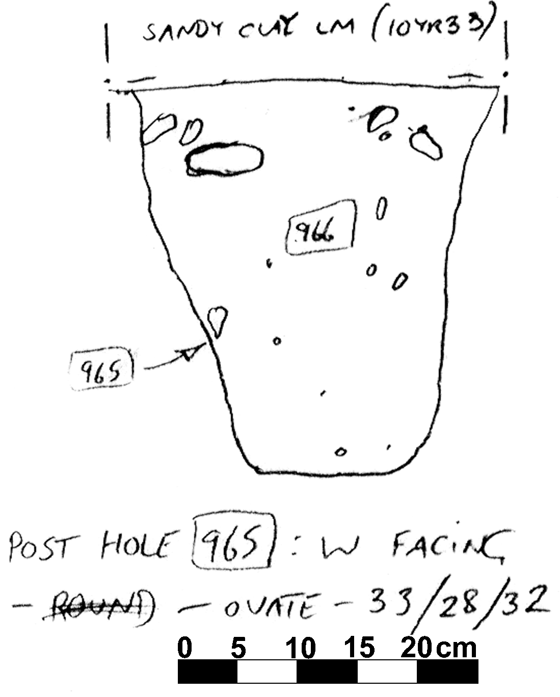

002CC00965
 Shallowest 6
002CC00555
Average Depth
 15.5
N Wall 13 Posts Average Depth 16
E Wall 3 Posts Average Depth 11
S Wall 14 Posts Average Depth 15
W Wall 5 Posts Average Depth 18
Interior Divisions: Three post holes at eastern end may indicate partition. Four other internal posts at south end of indeterminable function.
Highest Elevation Value  5323 002CC00511
Lowest Elevation Value 5255 002CC00573
Bearing  75 degrees
Plank\Post Post, possibly double post
Doorways 2 centrally opposing doorways situated in long walls
Repairs: Possible internal support
Structural Class
Material Culture Number of Objects 9  Number of Animal Bones 0
Environmental

Phasing

Discussion

A large structure aligned ENE-WSW with 35 external and 15 internal post-holes measuring from 0.15m to 0.55m in length, often elongated rather than round suggesting some may have contained double posts. The bowed shape of the structure may be accidental, this occurring only in the south-west corner of the southern wall, the northern wall being straight. It is interesting to note that the only two possible bow sided structures on site occur in close proximity and so may have been constructed at the same time. Some of the post-holes present may belong to a different phase that cannot be defined or the internal posts may be contemporary with this structure and used to consolidate the long walls. Many of the post-holes can be paired across the structure, especially in the south-west end. The doors appear to be opposed in the long walls, but their positioning off-centre in a building 10.20m long may indicate that the two rows of post-holes at the north-east end represent, not a partition, but a shortening of the original building to about 8.50m which would place the doors in the centre of the long walls. This may coincide with the replacement of the structure 002CC00019 and may have important implications for the developmental sequence of the site. Eleven of the post-holes can be paired across the structure, a pattern especially evident in the south-western end.

All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME OBJECTS AN BONE DENSITY
002CC00489 002CC00490 002CC00491
002CC00492 002CC00493
002CC00494 002CC00495
002CC00496 002CC00497
002CC00498 002CC00499
002CC00511 002CC00512
002CC00515 002CC00516 1
002CC00517 002CC00518
002CC00519 002CC00520
002CC00521 002CC00522
002CC00523 002CC00524
002CC00525 002CC00526
002CC00527 002CC00528
002CC00529 002CC00530
002CC00531 002CC00532
002CC00533 002CC00534
002CC00535 002CC00536
002CC00537 002CC00538
002CC00539 002CC00540
002CC00541 002CC00542
002CC00543 002CC00544 2
002CC00545 002CC00546
002CC00547 002CC00548 1
002CC00549 002CC00550 1
002CC00551 002CC00552
002CC00553 002CC00554
002CC00555 002CC00556
002CC00557 002CC00558
002CC00559 002CC00560
002CC00561 002CC00562
002CC00563 002CC00564
002CC00565 002CC00566
002CC00567 002CC00568
002CC00569 002CC00570
002CC00571 002CC00572
002CC00573 002CC00574
002CC00577 002CC00578
002CC00579 002CC00580
002CC00581 002CC00582
002CC00583 002CC00584
002CC00941 002CC00942

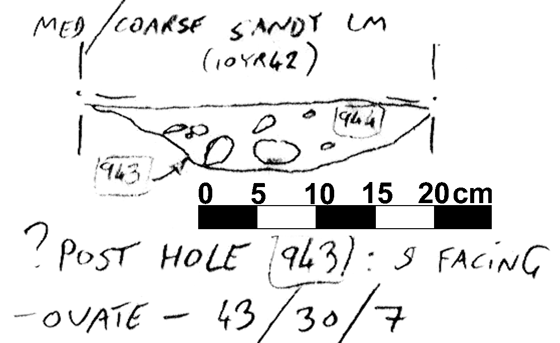

002CC00943 002CC00944

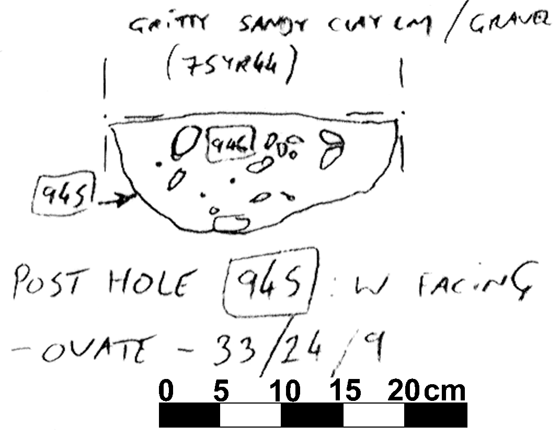

002CC00945 002CC00946 2

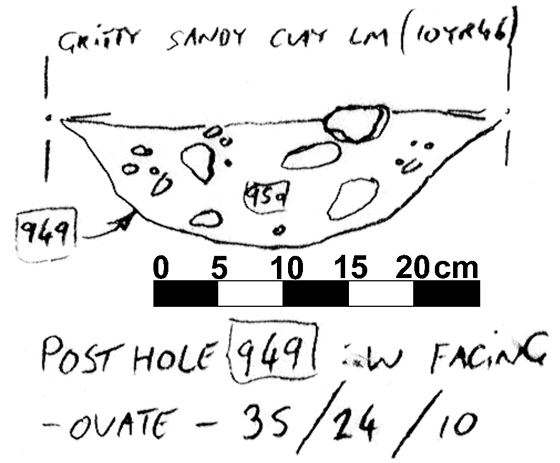

002CC00949 002CC00950
002CC00951 002CC00952
002CC00953 002CC00954
002CC00961 002CC00962

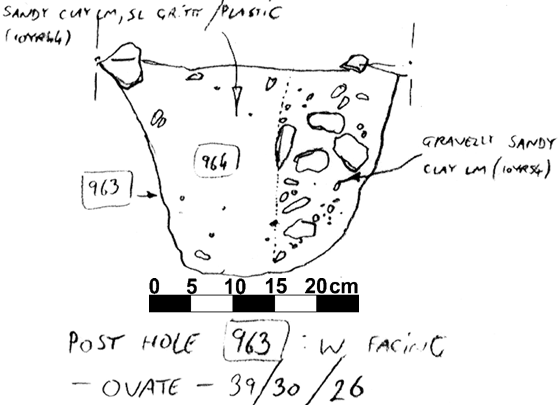

002CC00963 002CC00964
002CC00965 002CC00966
002CC00967 002CC00968

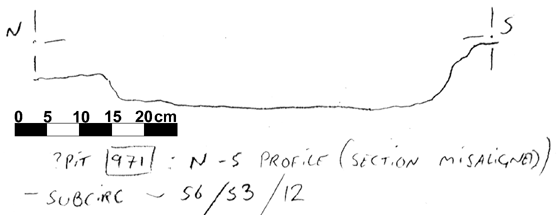

002CC00971 002CC00972
Solution Hole 002CC00513 002CC00514
Solution Hole 002CC00575 002CC00576 1
Solution Hole 002CC00583 002CC00584 1

Structural Details

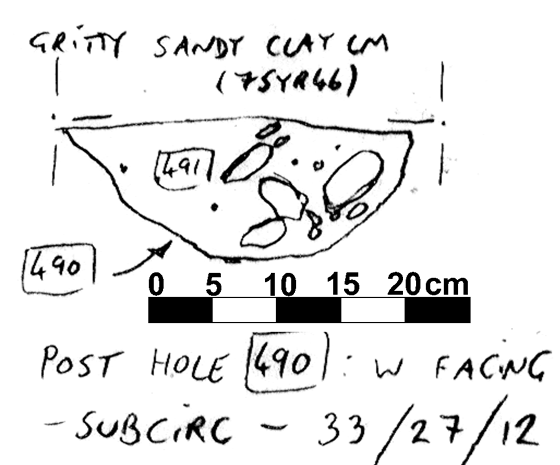

002CC00490 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00490 POST HOLE CUT SUB-CIRCULAR  33 27 12  BOWL SHAPED P.H. W. END BLDG M.489. TRUNCATED ABOVE. SHALLOW--EDGES & BASE MERGE.
002CC00491 POST HOLE FILL SUB-CIRCULAR  33 27 12  BOWL SHAPED MOD/FREQ CHALK < 6 CM.- MOSTLY IN S. PART OF FILL. TRUNCATED ABOVE.

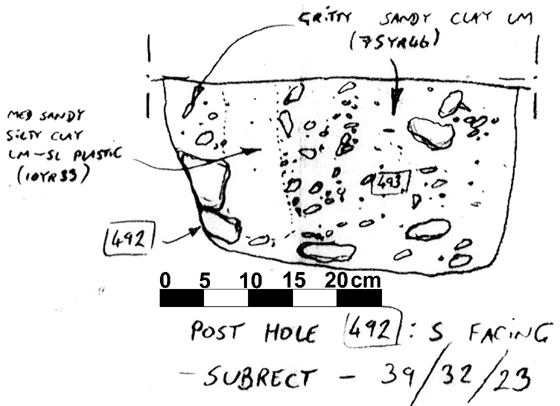

002CC00492 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00492 POST HOLE CUT SUB-RECTANGULAR  39 32 23  FLAT BASED U P.H. W. END BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE. HAS A CLEAR POST PIPE.
002CC00493 POST HOLE FILL SUB-RECTANGULAR  39 32 23  FLAT BASED U MOD/FREQ CHALK < 6 CM.--THROUGHOUT FILL EXCEPT Nr W. EDGE WHERE P.PIPE IN EVIDENCE=SANDY SILTY CL-10YR33. TRUNCATED ABOVE.

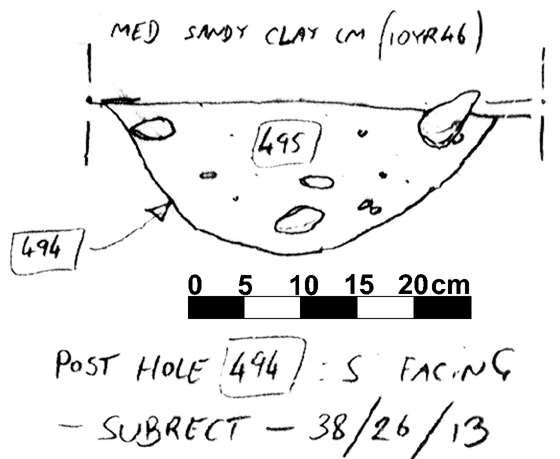

002CC00494 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00494 POST HOLE CUT SUB-RECTANGULAR  38 26 13  WIDE V P.H. W. END OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES--BASE CONCAVE.
002CC00495 POST HOLE FILL SUB-RECTANGULAR  38 26 13  WIDE V OCCA CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE

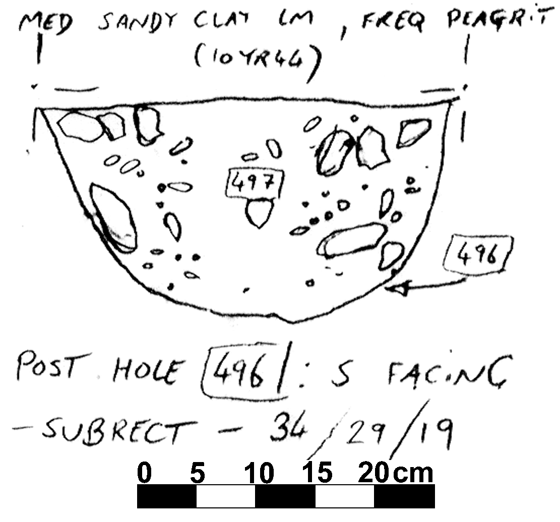

002CC00496 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00496 POST HOLE CUT SUB-RECTANGULAR  34 29 19  USHAPED P.H. W. END OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00497 POST HOLE FILL SUB-RECTANGULAR  34 29 19  USHAPED MOD/FREQ CHALK < 7 CM. -- MOSTLY AROUND EDGES ( POSS P. PIPE.) FREQ PEA GRIT. TRUNCATED ABOVE.

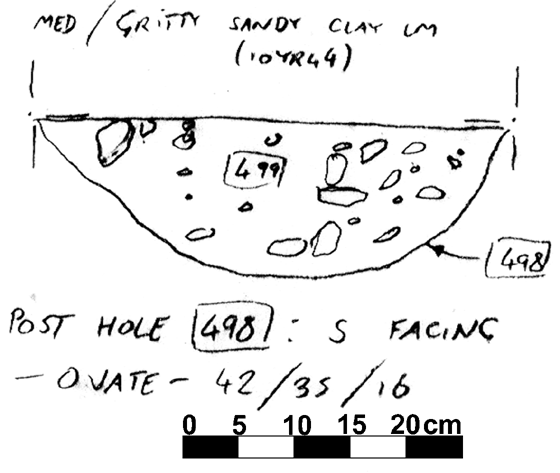

002CC00498 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00498 POST HOLE CUT OVATE  42 35  16 WIDE U  P.H. W. END BLDG M.489. TRUNCATED ABOVE. GENTLY SLOPING SIDES MERGE INTO BASE.
002CC00499 POST HOLE FILL OVATE  42 35  16 WIDE U  MOD CHALK < 4 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

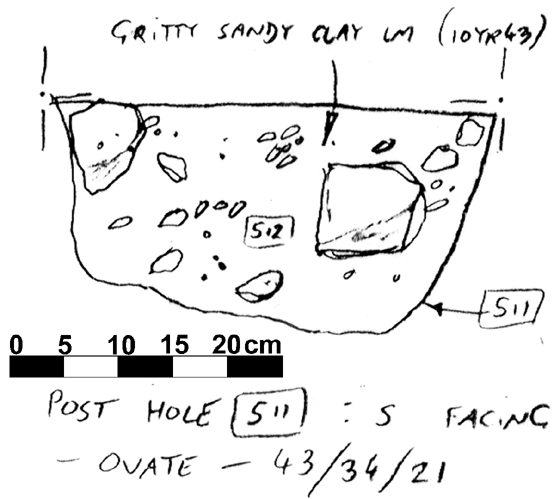

002CC00511 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00511 POST HOLE CUT OVATE  43 34  21 FLAT BASED U  P.H. W. SIDE OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00512 POST HOLE FILL OVATE  43 34  21 FLAT BASED U  MOD/FREQ CHALK <10 CM (MOSTLY SMALLER). THROUGHOUT FILL. TRUNCATED ABOVE.

002CC00513 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00513 SOLUTION HOLE ONCE THOUGHT TO BE A POST HOLE
002CC00514 SOLUTION HOLE ONCE THOUGHT TO BE A POST HOLE

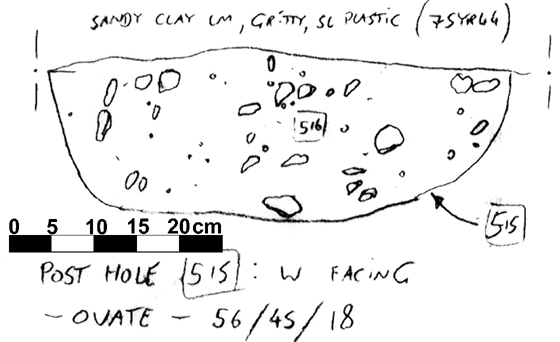

002CC00515 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00515 POST HOLE CUT OVATE  56 44  18 WIDE U  P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00516 POST HOLE FILL OVATE  56 44  18 WIDE U  MOD/FREQ CHALK < 4 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

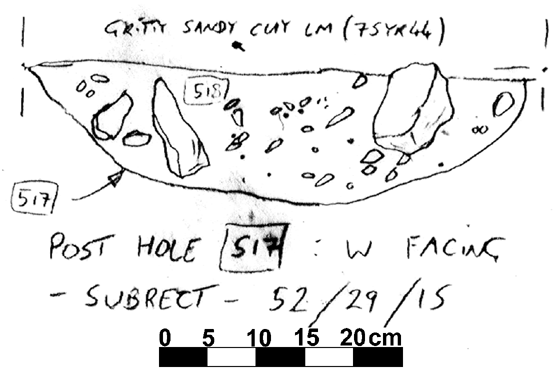

002CC00517 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00517 POST HOLE CUT SUB-RECTANGULAR  52 29 15  BOWL SHAPED P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. EDGES SLOPE GENTLY & MERGE INTO BASE.
002CC00518 POST HOLE FILL SUB-RECTANGULAR  52 29 15  BOWL SHAPED FREQ CHALK < 10 CM (MOSTLY SMALLER) THROUGHOUT FILL--FINER MATERIAL TOWARDS CENTRE. TRUNCATED ABOVE.

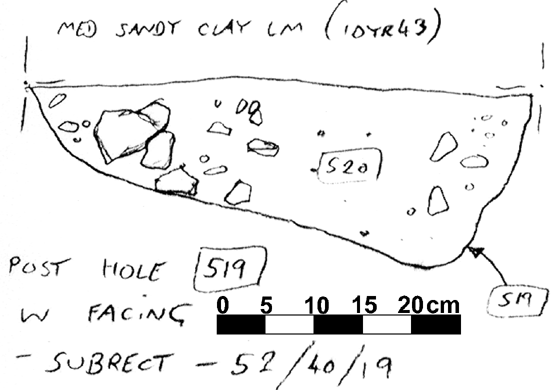

002CC00519 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00519 POST HOLE CUT SUB-RECTANGULAR  52 40 19  FLAT BASED U P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. BASE SLOPES FROM N. DOWN TO S.
002CC00520 POST HOLE FILL SUB-RECTANGULAR  52 40 19  FLAT BASED U OCCA/MOD CHALK < 7 CM. --MOSTLY Nr EDGES. TRUNCATED ABOVE.

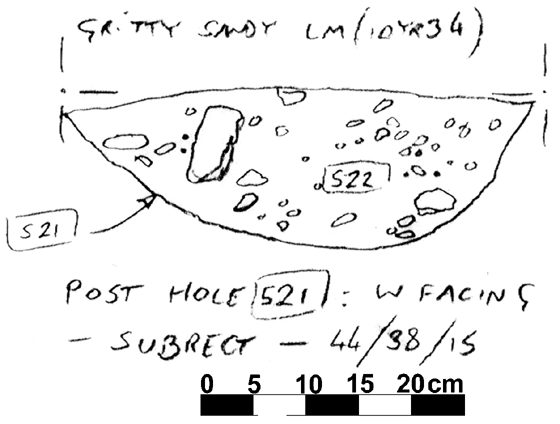

002CC00521 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00521 POST HOLE CUT SUB-RECTANGULAR  44 38 15  FLAT BASED U P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. EDGES SLOPE GENTLY & MERGE INTO BASE.
002CC00522 POST HOLE FILL SUB-RECTANGULAR  44 38 15  WIDE U FREQ CHALK <8 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

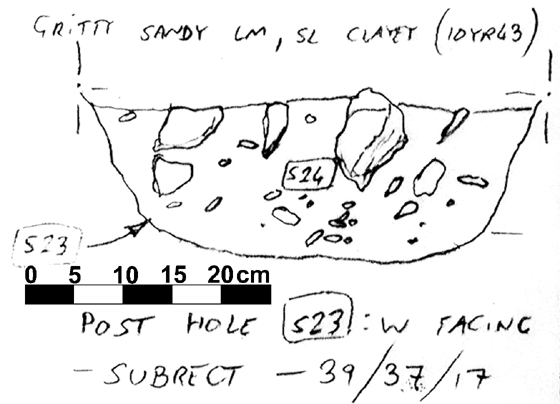

002CC00523 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00523 POST HOLE CUT SUB-RECTANGULAR  39 37 17  FLAT BASED U P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00524 POST HOLE FILL SUB-RECTANGULAR  39 37 17  FLAT BASED U FREQ CHALK < 10 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

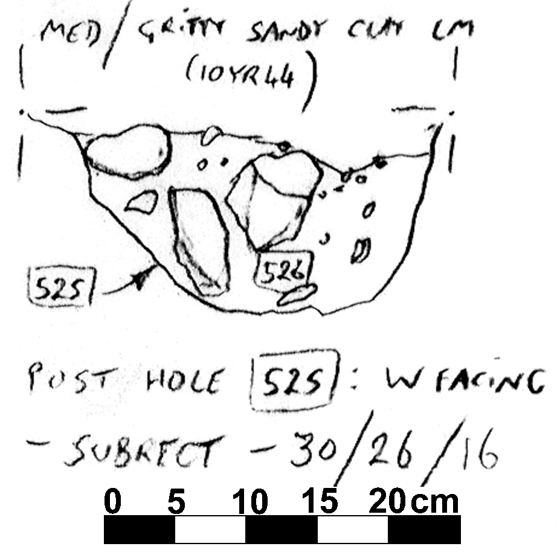

002CC00525 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00525 POST HOLE CUT SUB-RECTANGULAR  30 26 16  USHAPED P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. N. EDGE LESS STEEP THAN S. REGULAR BASE.
002CC00526 POST HOLE FILL SUB-RECTANGULAR  30 26 16  USHAPED FREQ CHALK < 8 CM THROUGHOUT FILL. TRUNCATED ABOVE.

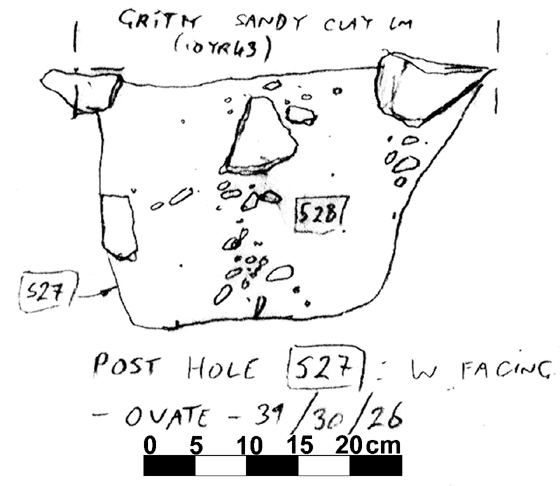

002CC00527 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00527 POST HOLE CUT OVATE  39 30  26 FLAT BASED U  P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. POSS A DOUBLE P.H. REGULAR SIDES & BASE
002CC00528 POST HOLE FILL OVATE  39 30  26 FLAT BASED U  MOD CHALK < 11 CM (MOSTLY SMALLER) CONCENTRATED MAINLY IN CENTRE & AROUND EDGES.--POSS A DOUBLE P.H.???? TRUNCATED ABOVE.

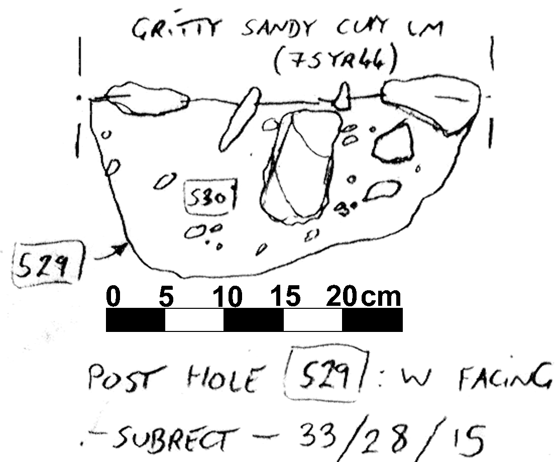

002CC00529 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00529 POST HOLE CUT SUB-RECTANGULAR  33 28 15  USHAPED P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES---BASE SLOPES FROM S. DOWN TO N.
002CC00530 POST HOLE FILL SUB-RECTANGULAR  33 28 15  USHAPED FREQ CHALK < 10 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

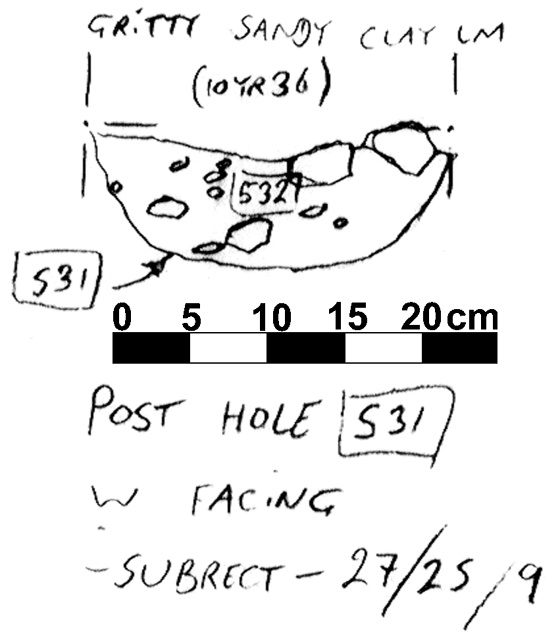

002CC00531 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00531 POST HOLE CUT SUB-RECTANGULAR  27 25 9  USHAPED P.H. S. SIDE OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00532 POST HOLE FILL SUB-RECTANGULAR  27 25 9  USHAPED MOD/FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

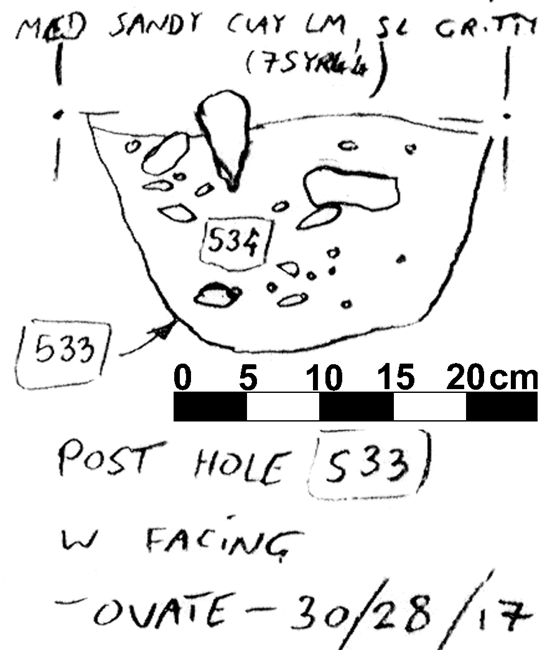

002CC00533 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00533 POST HOLE CUT OVATE  30 28  17 USHAPED  P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00534 POST HOLE FILL OVATE  30 28  17 USHAPED  MOD/FREQ CHALK < 8 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

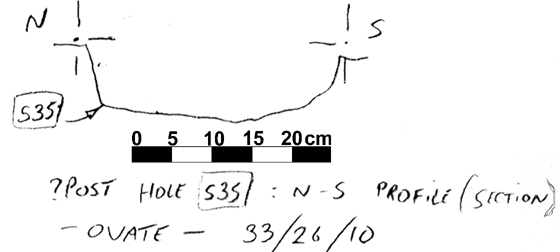

002CC00535 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00535 POST HOLE CUT OVATE  33 26  10 WIDE U  P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00536 POST HOLE FILL OVATE  33 26  10 WIDE U  FILL REMOVED PRIOR TO RECORDING.

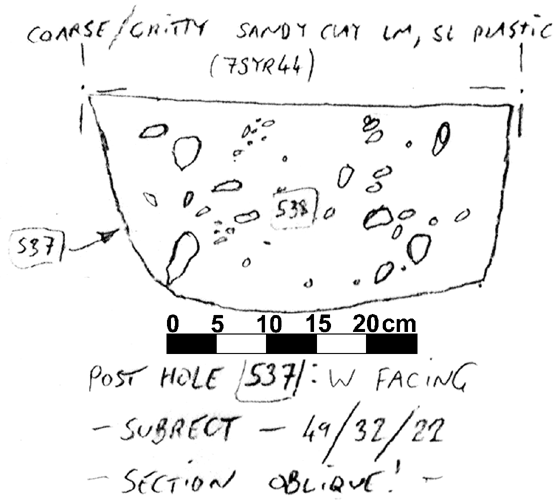

002CC00537 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00537 POST HOLE CUT SUB-RECTANGULAR 49 32 22  FLAT BASED U P.H. S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00538 POST HOLE FILL SUB-RECTANGULAR  49 32 22  FLAT BASED U SL PLASTIC: MOD CHALK < 5 CM. --CONCENTRATED SLIGHTLY MORE AROUND EDGES THAN IN CENTRE. TRUNCATED ABOVE.

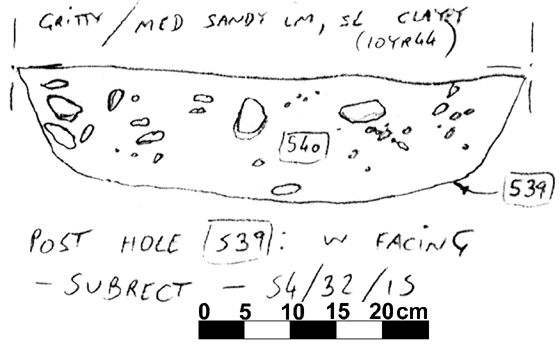

002CC00539 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00539 POST HOLE CUT SUB-RECTANGULAR  54 32 15  WIDE U P.H S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00540 POST HOLE FILL SUB-RECTANGULAR  54 32 15  WIDE U MOD/FREQ CHALK < 4CM. THROUGHOUT FILL. TRUNCATED ABOVE.

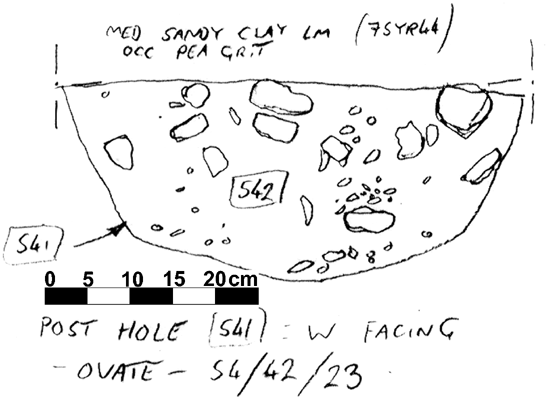

002CC00541 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00541 POST HOLE CUT OVATE  54 42  23 USHAPED  LARGE P.H. N. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00542 POST HOLE FILL OVATE  54 42  23 USHAPED  FREQ CHALK < 7 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

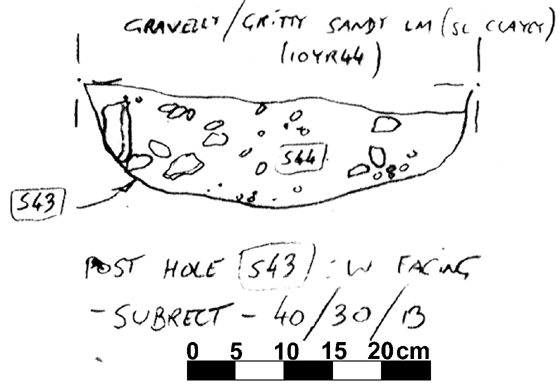

002CC00543 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00543 POST HOLE CUT SUB-RECTANGULAR  40 30 13  WIDE U P.H. N. SIDE M. 489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00544 POST HOLE FILL SUB-RECTANGULAR  40 30 13  WIDE U FREQ CHALK < 4 CM . THROUGHOUT FILL. TRUNCATED ABOVE.

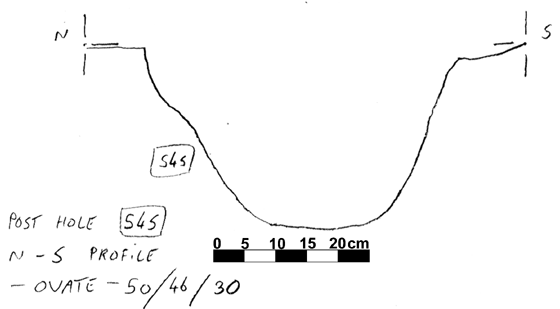

002CC00545 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00545 POST HOLE CUT OVATE  50 46  30 USHAPED  P.H. N. SIDE OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00546 POST HOLE FILL OVATE  50 46  30 USHAPED  FILL EXCAVATED PRIOR TO RECORDING.

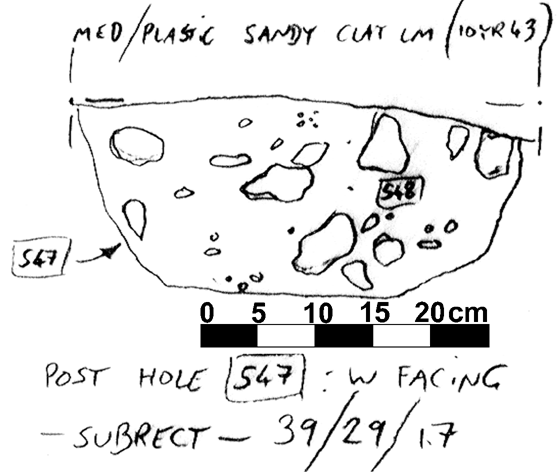

002CC004547 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00547 POST HOLE CUT SUB-RECTANGULAR  39 29 17  FLAT BASED U P.H. N. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00548 POST HOLE FILL SUB-RECTANGULAR  39 29 17  FLAT BASED U MOD/FREQ CHALK < 6 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

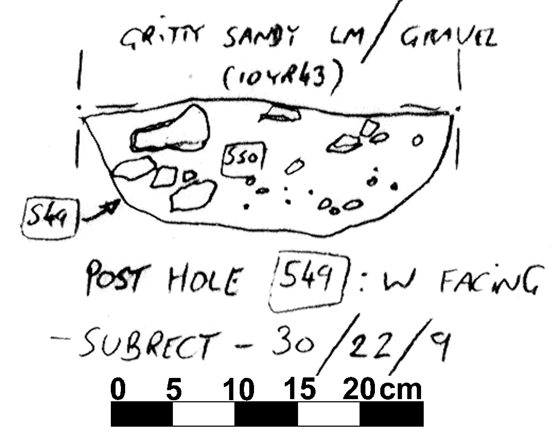

002CC00549 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00549 POST HOLE CUT SUB-RECTANGULAR  30 22 9  WIDE U P.H. N. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00550 POST HOLE FILL SUB-RECTANGULAR  30 22 9  WIDE U MOD/FREQ CHALK < 5 CM THROUGHOUT FILL. SOME GRAVEL. TRUNCATED ABOVE.

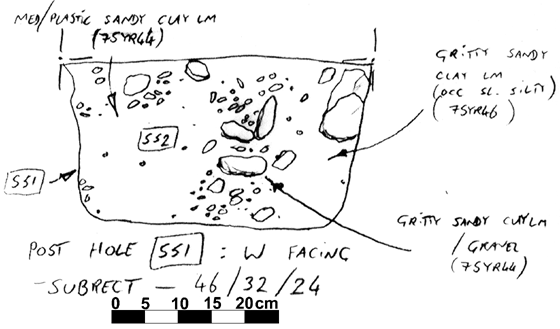

002CC00551 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00551 POST HOLE CUT SUB-RECTANGULAR  46 32 24  VERT.SIDE F.BASE P.H. N. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE. POSS A DOUBLE P.H.
002CC00552 POST HOLE FILL SUB-RECTANGULAR  46 32 24  VERT.SIDE F.BASE SOME VARIATION IN MATRIX & COLOUR (SEE SECTION). MOD/FREQ CHALK < 11 CM.----MOSTLY SMALLER: CONCENTRATED IN CENTRE & UPPER FILL. POSS 2 P. PIPES ?

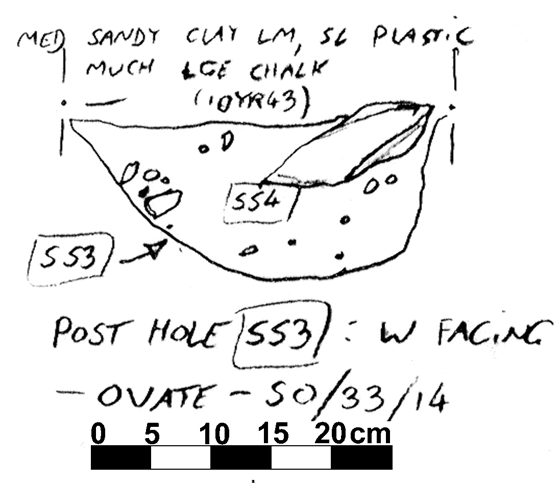

002CC00553 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00553 POST HOLE CUT OVATE  50 33  14 USHAPED  P.H. N. SIDE BLDG M.489. TRUNCATED ABOVE. S. EDGE Nr VERTICAL: N. EDGE LESS STEEP.
002CC00554 POST HOLE FILL OVATE  50 33  14 USHAPED  OCCA CHALK < 3 CM. (A FEW 13CM.) THROUGHOUT FILL. TRUNCATED ABOVE.

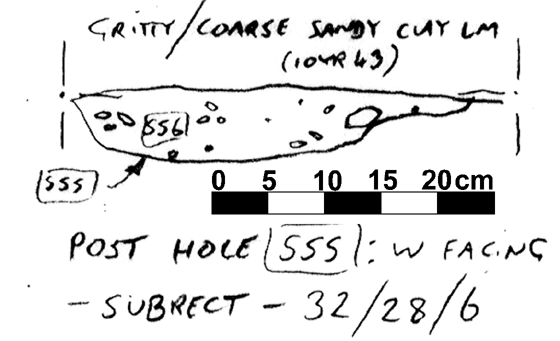

002CC00555 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00555 POST HOLE CUT SUB-RECTANGULAR  32 28 6  CONCAVE P.H. N. SIDE BLDG M.489. TRUNCATED ABOVE. EDGES GENTLE: BASE CONCAVE.
002CC00556 POST HOLE FILL SUB-RECTANGULAR  32 28 6  CONCAVE OCCA CHALK < 3 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

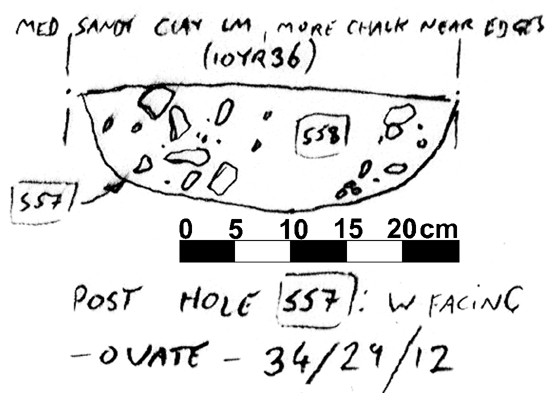

002CC00557 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00557 POST HOLE CUT OVATE  34 29  12 WIDE U  P.H.N. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00558 POST HOLE FILL OVATE  34 29  12 WIDE U  FREQ CHALK < 4 CM.-----CONCENTRATING MAINLY AROUND EDGES--POSS P.PIPE. TRUNCATED ABOVE.

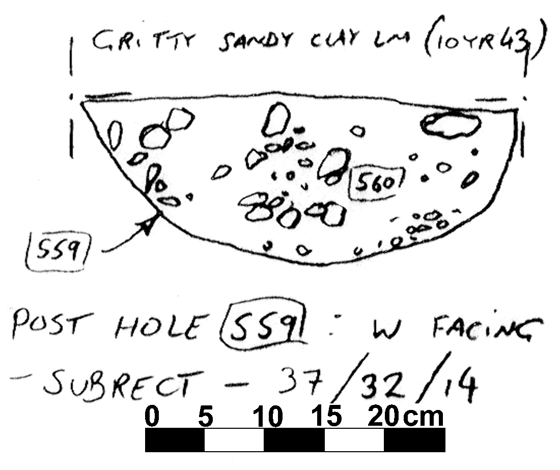

002CC00559 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00559 POST HOLE CUT SUB-RECTANGULAR  37 32 14  WIDE U P.H. N. SIDE M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00560 POST HOLE FILL SUB-RECTANGULAR  37 32 14  WIDE U FREQ CHALK < 4CM. THROUGHOUT FILL. TRUNCATED ABOVE.

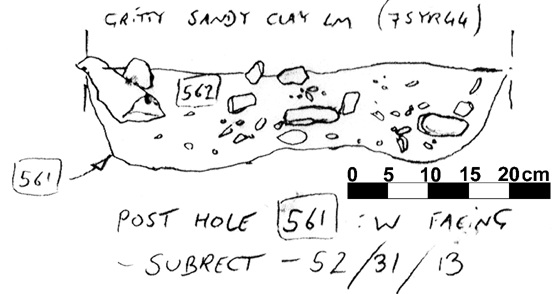

002CC00561 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00561 POST HOLE CUT SUB-RECTANGULAR  52 31 13  WSHAPED P.H. N. SIDE BLDG. M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00562 POST HOLE FILL SUB-RECTANGULAR  52 31 13  WSHAPED FREQ CHALK < 7 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

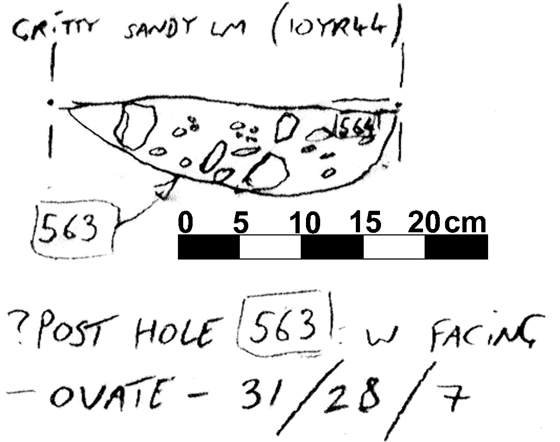

002CC00563 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00563 POST HOLE CUT OVATE  31 28 7  CONCAVE P.H. N. SIDE BLDG M.489. TRUNCATED ABOVE. V. SHALLOW: GENTLE EDGES.
002CC00564 POST HOLE FILL OVATE  31 28 7  CONCAVE FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

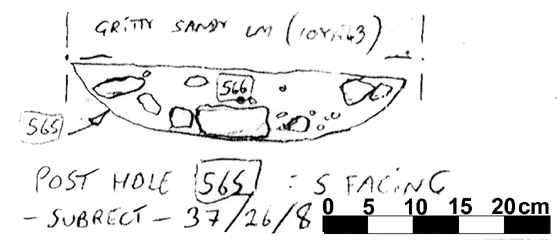

002CC00565 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00565 POST HOLE CUT SUB-RECTANGULAR  37 26 8  CONCAVE P.H.E. END BLDG M.489. TRUNCATED ABOVE. V. SHALLOW: EDGES MERGE INTO BASE.
002CC00566 POST HOLE FILL SUB-RECTANGULAR  37 26 8  CONCAVE FREQ CHALK < 8 CM THROUGHOUT FILL. TRUNCATED ABOVE.

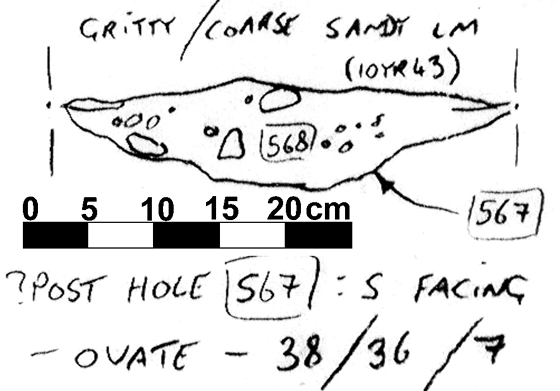

002CC00567 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00567 POST HOLE CUT OVATE  38 36  7 CONCAVE  P.H. E. END OF BLDG M.489. TRUNCATED ABOVE. EDGES V. GENTLE--MERGING INTO BASE.
002CC00568 POST HOLE FILL OVATE  38 36  7 CONCAVE  MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

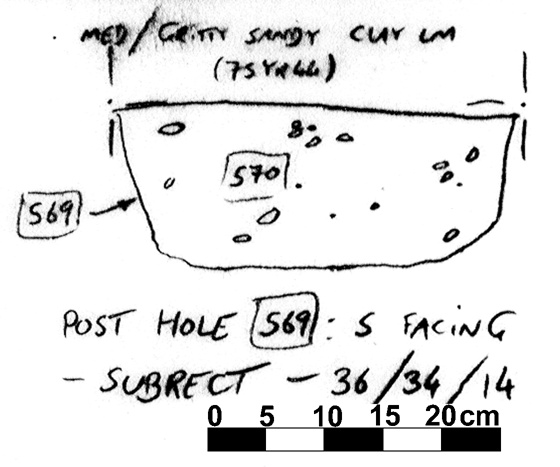

002CC00569 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00569 POST HOLE CUT SUB-RECTANGULAR  36 34 14  FLAT BASED U P.H. E.END OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00570 POST HOLE FILL SUB-RECTANGULAR  36 34 14  FLAT BASED U OCCA CHALK < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

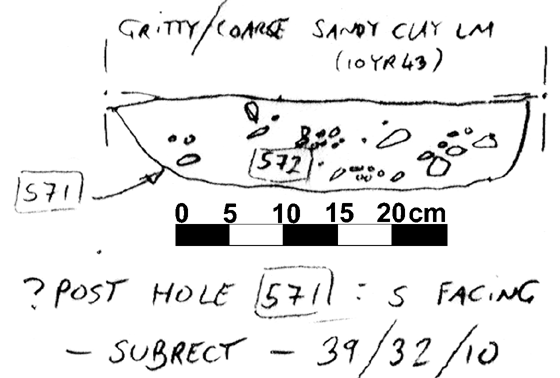

002CC00571 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00571 POST HOLE CUT SUB-RECTANGULAR  39 32 10  WIDE U P.H. E. END OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00572 POST HOLE FILL SUB-RECTANGULAR  39 32 10  WIDE U MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

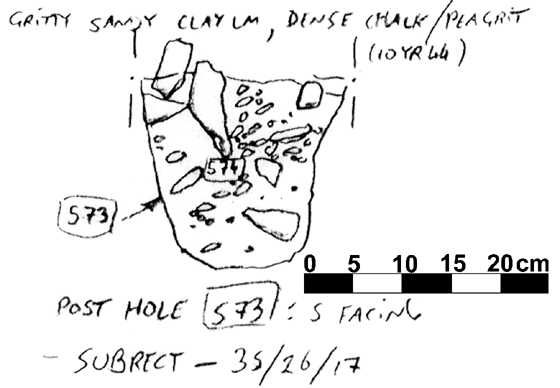

002CC00573 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00573 POST HOLE CUT SUB-RECTANGULAR  35 26 17  USHAPED P.H. E. END OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00574 POST HOLE FILL SUB-RECTANGULAR  35 26 17  USHAPED FREQ CHALK < 10 CM--MOSTLY SMALLER: THROUGHOUT FILL. TRUNCATED ABOVE. DENSE CHALK & PEA GRIT

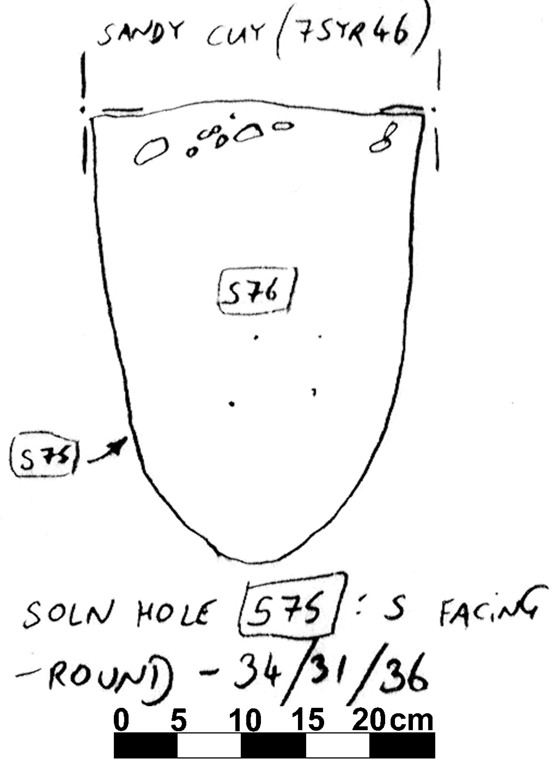

002CC00575 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00575 ?NAT CUT No entry  0 0  0 No entry  DUD(SOLN HOLE) ONCE THOUGHT TO BE A P.H.
002CC00576 ?NAT FILL No entry  0 0  0 No entry  DUD (SOLN HOLE) ONCE THOUGHT TO BE A P.H.

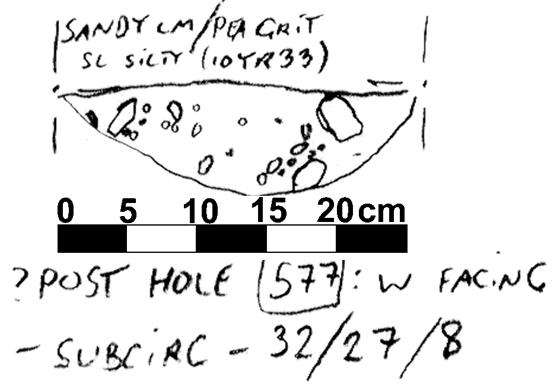

002CC00577 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00577 POST HOLE CUT SUB-CIRCULAR  32 27  8 WIDE U  INTERNAL P.H. IN BLDG M.489. TRUNCATED ABOVE. EDGES MERGE INTO BASE.
002CC00578 POST HOLE FILL SUB-CIRCULAR  32 27  8 WIDE U  MOD/FREQ CHALK THROUGHOUT FILL: SOME PEA GRIT. TRUNCATED ABOVE.

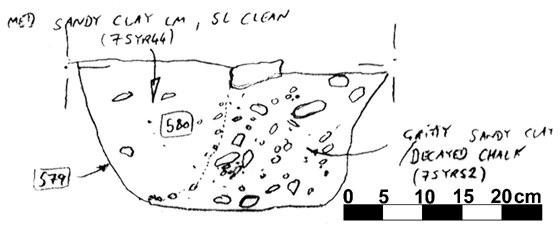

002CC00579 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00579 POST HOLE CUT ROUND  39 38  20 FLAT BASED U  P.H. (INTERNAL) IN BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE HAS A GOOD POST PIPE.
002CC00580 POST HOLE FILL ROUND  39 38  20 FLAT BASED U  SOME DECAYED CHALK.. TO N. IS A CLEAR P.PIPE-AGAINST EDGE.......SANDY CLAY LOAM--75YR44--THIS RELATIVELY CHALK FREE. (SEE SECTION).

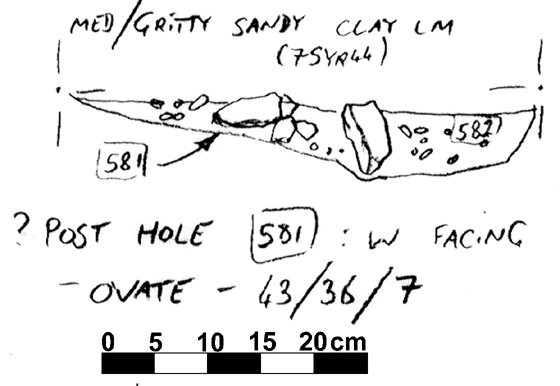

002CC00581 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00581 POST HOLE CUT OVATE  43 36  7 CONCAVE  HEAVILLY TRUNCATED INTERNAL P.H. OF BLDG M.489.EDGES MERGE INTO BASE.
002CC00582 POST HOLE FILL OVATE  43 36  7 CONCAVE  FREQ CHALK < 7 CM THROUGHOUT. HEAVILLY TRUNCATED ABOVE.

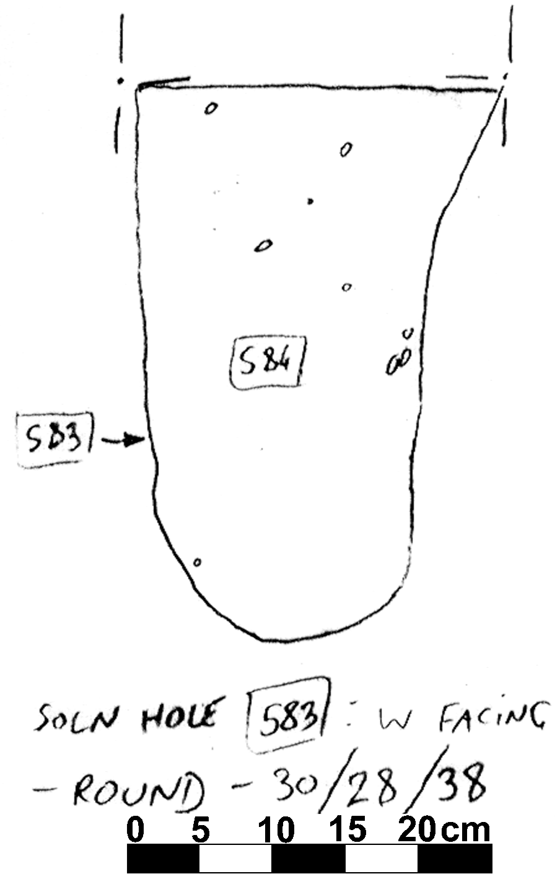

002CC00583 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00583 ?NAT CUT No entry  0 0  0 No entry  DUD. (SOLN HOLE) ONCE THOUGHT TO BE A P.H.
002CC00584 ?NAT FILL No entry  0 0  0 No entry  DUD. (SOLN HOLE) ONCE THOUGHT TO BE A P.H.

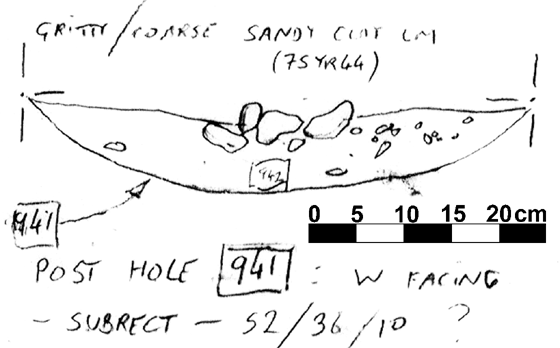

002CC00941 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00941 POST HOLE CUT SUB-RECTANGULAR  52 36 10  CONCAVE P.H. E. END OF BLDG M.489. V. SHALLOW - TRUNCATED ABOVE. EDGES MERGE INTO BASE.
002CC00942 POST HOLE FILL SUB-RECTANGULAR  52 36 10  CONCAVE OCCA CHALK < 6 CM CONCENTRATED MAINLY IN UPPER CENTRE OF FILL. V. SHALLOW---TRUNCATED ABOVE.

002CC00943 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00943 POST HOLE CUT OVATE  43 30  7 CONCAVE  P.H. E. END OF BLDG M.489. V. SHALLOW--HEAVILLY TRUNCATED ABOVE. ONLY BASE SURVIVES.
002CC00944 POST HOLE FILL OVATE  43 30  7 CONCAVE  MOD CHALK < 4 CM THROUGHOUT FILL. V. SHALLOW--HEAVILLY TRUNCATED ABOVE.

002CC00945 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00945 POST HOLE CUT OVATE  33 24  9 USHAPED  INTERNAL P.H. AT S. SIDE CENTRE OF BLDG M. 489. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CC00946 POST HOLE FILL OVATE  33 24  9 USHAPED  MOD/FREQ CHALK < 3 CM THROUGHOUT FILL. SOME GRAVEL. TRUNCATED ABOVE.

002CC00949 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00949 POST HOLE CUT OVATE  35 24  10 FLAT BASED U  INTERNAL P.H. ON N. SIDE OF BLDG M.489. TRUNCATED ABOVE. BASE SLIGHTLY CONCAVE: EDGES AT GENTLE ANGLE.
002CC00950 POST HOLE FILL OVATE  35 24  10 FLAT BASED U  FREQ CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

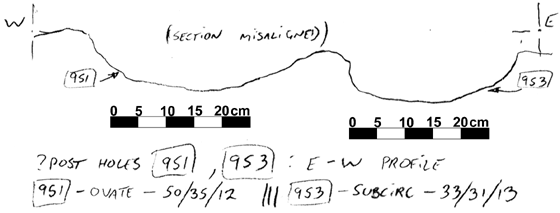

002CC00951 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00951 POST HOLE CUT OVATE  50 35  12 WIDE U  INTERNAL P.H. OF M.489. NOT INDICATED ON PLAN ! POSS A DUD.? TRUNCATED ABOVE.
002CC00952 POST HOLE FILL OVATE  50 35  12 WIDE U  NO FURTHER DETAILS AVAILABLE. NOT INDICATED ON PLAN---DUD ?

002CC00953 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00953 POST HOLE CUT SUB-CIRCULAR  33 31 13  WIDE U NO FURHTER DETAILS AVAILABLE.----NOT INDICATED ON PLAN.---POSS A DUD?????
002CC00954 POST HOLE FILL SUB-CIRCULAR  33 31 13  WIDE U NO FURHTER DETAILS AVAILABLE.----NOT INDICATED ON PLAN.---POSS A DUD?????

002CC00961 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00961 POST HOLE CUT SUB-CIRCULAR  33 31  6 CONCAVE  P.H. SAID TO BE INTERNAL TO M.489.----BUT NOT INDICATED ON PLAN!!!! POSS A DUD ? ONLY BASE SURVIVING.
002CC00962 POST HOLE FILL SUB-CIRCULAR  33 31  6 CONCAVE  FREQ CHALK < 3 CM THROUGHOUT FILL. V. SHALLOW HEAVILLY TRUNCATED ABOVE. NOT INDICATED ON PLAN-----POSS A DUD?

002CC00963 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00963 POST HOLE CUT OVATE  39 30  26 USHAPED  INTERNAL P.H. CENTRE OF S. SIDE BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE. CONTAINS A P. PIPE.
002CC00964 POST HOLE FILL OVATE  39 30  26 USHAPED  DESCRIPTION REFERS TO PROB P.PIPE.--RELATIVELY INCLUSION FREE. REST OF FILL = FREQ CHALK < 6 CM THROUGHOUT FILL: 10YR54. TRUNCATED ABOVE.

002CC00965 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00965 POST HOLE CUT OVATE  33 28  32 CYLINDRICAL  INTERNAL P.H. : CENTRE OF S. SIDE: OF BLDG M.489. TRUNCATED ABOVE. EDGES TAPER TOWARDS A BLUNT BASE.
002CC00966 POST HOLE FILL OVATE  33 28  32 CYLINDRICAL  OCCA CHALK < 6 CM THROUGHOUT FILL: FINER MATERIAL Nr BASE-COARSER TOWARD TOP OF FILL. TRUNCATED ABOVE.

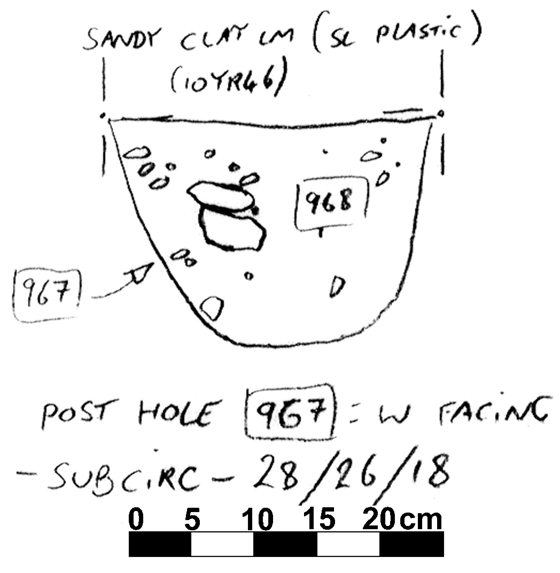

002CC00967 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00967 POST HOLE CUT SUB-CIRCULAR  28 26  18 USHAPED  INTERNAL P.H. ON S. SIDE OF BLDG M.489. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00968 POST HOLE FILL SUB-CIRCULAR  28 26  18 USHAPED  MOD CHALK < 6 CM (MOSTLY SMALLER) THROUGHOUT FILL: BUT CONCENTRATING TOWARDS UPPER. TRUNCATED ABOVE.

002CC00971 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00971 POST HOLE CUT SUB-CIRCULAR  56 53  12 VERT.SIDE F.BASE  SAID TO BE P.H. OF M.489 (INTERNAL) BUT NOT SHOWN ON PLAN---POSS A DUD ?? V. SHALLOW--HEAVILLY TRUNCATED.
002CC00972 POST HOLE FILL SUB-CIRCULAR  56 53  12 VERT.SIDE F.BASE  NO DETAILS OF FILL. SAID TO BE INTERNAL P.H. OF M.489---BUT NOT INDICATED ON PLAN.

Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CC00516 AA ROMAN  POTTERY SHERD ROMANO-BRITISH 1
002CC00544 AA POTTERY SHERD 1
002CC00544 AB POTTERY SHERDS 2
002CC00548 AA SLAG SLAG FRAGMENTS IRON SLAG 3
002CC00550 AA STONE STONE RED CHALK 1
002CC00576 AA STONE STONE NATURAL IRON 1
002CC00584 AA STONE STONE NATURAL IRON 1
002CC00945 AA EARLY SAXON  POTTERY SHERD ANGLIAN III 1
002CC00945 AB EARLY SAXON  POTTERY SHERD ANGLIAN III 1
