002CC01902
Post Hole Structure
| Post-Hole Structure
Details |
| Length |
1000 |
Width |
400 |
| Area |
40.00 sq. m |
Ratio |
2.5:1 |
| Number of Posts |
27 |
Deepest |
31 |
002CC01266 |
Shallowest |
3 |
002CC01256 |
Average Depth
|
12 |
| N Wall |
5 Posts |
Average Depth |
10 |
| E Wall |
Trench (probably with 3 post holes) |
Average Depth |
18 |
| S Wall |
2 Posts and Trench (probably with 5 post holes) |
Average Depth |
9 |
| W Wall |
5 Posts |
Average Depth |
11.5 |
| Interior Divisions: |
Many interior posts of indefinable function. |
| Highest Elevation Value |
5169 |
002CC01272 |
| Lowest Elevation Value |
5116 |
002CC01266 |
| Bearing |
97 |
|
| Plank\Post |
Post in Trench |
|
| Doorways |
One doorway apparent in south long wall. |
| Repairs: |
|
| Structural Class |
|
| Material Culture |
Number of Objects |
16 |
Number of Animal Bones |
16 |
| Environmental |
|
Phasing
Discussion

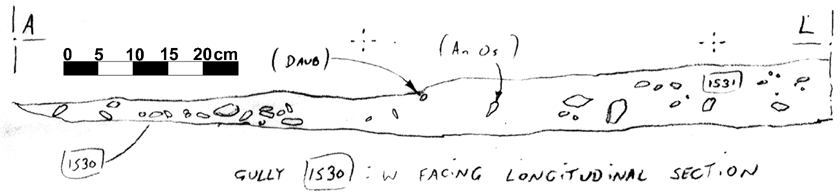

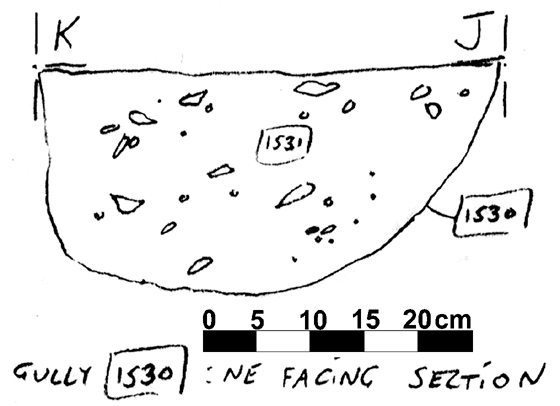

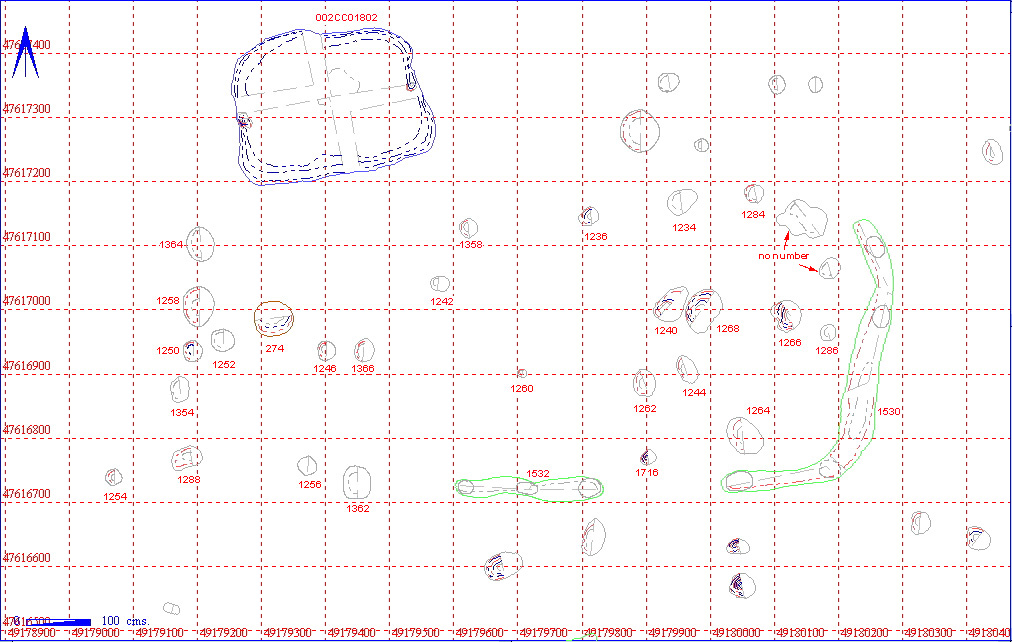

An unusual possible structure in the north of area 2CC and to the south
of Grubenhaus 002CC01802.
Numerous post holes and two shallow gullies form this structure which appears
to be aligned east/west. The west wall is more clearly defined than the
east which is confused by the presence of the gullies on the east and south.
These gullies may have a structural function or may be the remnants of
drip gullies, but this was not obvious during the excavation phase.
All Contexts and Associated Finds Totals
Object Totals by Material
002CC00275 Object Totals by Material
| 002CC00275 |
Pottery |
1 |
Early Saxon |
|
Flint |
1 |
|
|
Slag |
1 |
|
|
Stone |
1 |
|
002CC01267 Object Totals by Material
002CC01269 Object Totals by Material
002CC01531 Object Totals by Material
| 002CC01531 |
Pottery |
6 |
of which |
Roman |
1 |
Early Saxon |
4 |
No Entry |
1 |
|
Stone |
2 |
|
|
|
|
|
|
|
|
Shell |
1 |
|
|
|
|
|
|
|
002CC01533 Object Totals by Material
Animal Bone Totals By Species
002CC00275 Animal Bone Totals By
Species
002CC01241 Animal Bone Totals By
Species
002CC01269 Animal Bone Totals By
Species
002CC01355 Animal Bone Totals By
Species
002CC01531 Animal Bone Totals By
Species
Structural Details

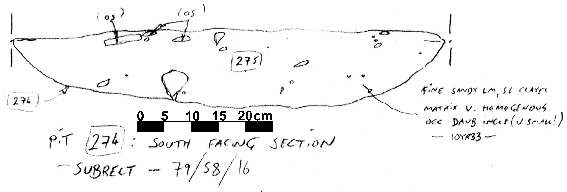

002CC00274 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC00274 |
PIT CUT |
SUB-RECTANGULAR |
79 |
58 |
16 |
FLAT BASED U |
CUT OF PIT. V. SHALLOW-POSS TRUNCATED TO A CONSIDERABLE
EXTENT. SMOOTH SIDES & FLATTISH BASE. |
| 002CC00275 |
PIT FILL |
SUB-RECTANGULAR |
79 |
58 |
16 |
FLAT BASED U |
FILL OF PIT. SMALL AMOUNTS CLAY: A FEW SMALL
FRAGS OF DAUB. TRUNCATED ABOVE. |

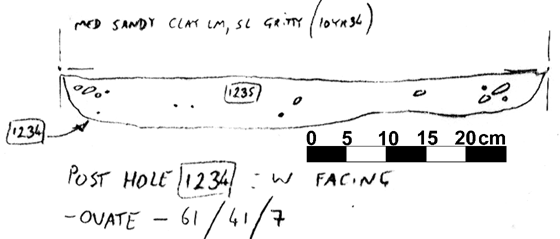

002CC01234 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01234 |
POST HOLE CUT |
OVATE |
61 |
41 |
7 |
CONCAVE |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
HEAVILY TRUNCATED ABOVE.--ONLY BASE SURVIVING. |
| 002CC01235 |
POST HOLE FILL |
OVATE |
61 |
41 |
7 |
CONCAVE |
VIRTUALLY NO INCLS. V. SHALLOW---HEAVILLY TRUNCATED
ABOVE. |

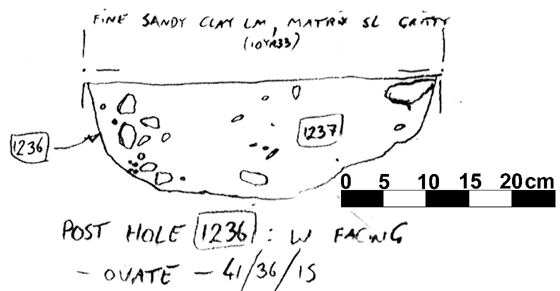

002CC01236 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01236 |
POST HOLE CUT |
OVATE |
41 |
36 |
15 |
USHAPED |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
TRUNCATED ABOVE. REGULAR SIDES & BASE. |
| 002CC01237 |
POST HOLE FILL |
OVATE |
41 |
36 |
15 |
USHAPED |
MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED
ABOVE. |

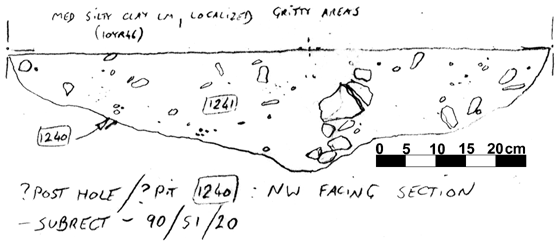

002CC01240 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01240 |
POST HOLE CUT |
SUB-RECTANGULAR |
90 |
51 |
20 |
WIDE V |
P.H.? OF BLDG TO N. & E. OF GRUB M.1802.
DUE TO SIZE POSS A PIT --NOT A P.H. ? TRUNCATED ABOVE. REGULAR SIDES: SLIGHT
DIMPLE IN LOWER CENTRE. |
| 002CC01241 |
POST HOLE FILL |
SUB-RECTANGULAR |
90 |
51 |
20 |
WIDE V |
MOD/FREQ CHALK < 8 CM. THROUGHOUT FILL. GRITTY
AREAS WITHIN FILL. TRUNCATED ABOVE. |

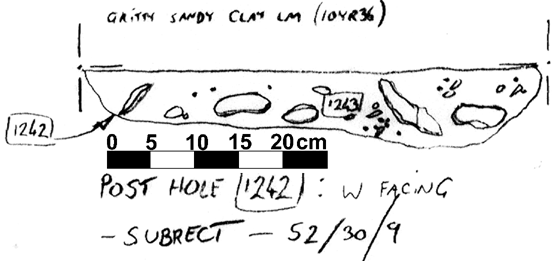

002CC01242 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01242 |
POST HOLE CUT |
SUB-RECTANGULAR |
52 |
30 |
9 |
FLAT BASED U |
P.H. OF BLDG TO N. & E. OF GRUB M. 1802.
V. SHALLOW TRUNCATED ABOVE. ONLY BASE & LOWER EDGES SURVIVING. |
| 002CC01243 |
POST HOLE FILL |
SUB-RECTANGULAR |
52 |
30 |
9 |
FLAT BASED U |
FREQ CHALK < 9 CM THROUGHOUT FILL. V. SHALLOW---TRUNCATED
ABOVE. |
002CC01244 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

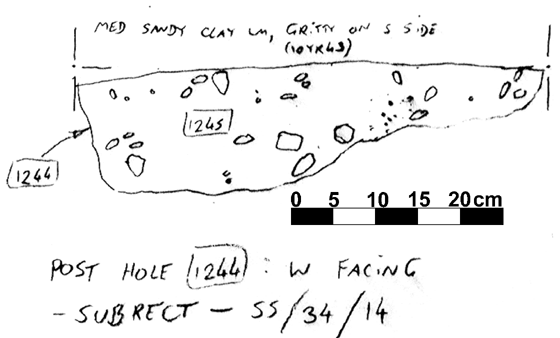

| 002CC01244 |
POST HOLE CUT |
SUB-RECTANGULAR |
55 |
34 |
14 |
STEPPED U |
P.H. OF BLDG TO N. & E. OF GRUB M. 1802.
TRUNCATED ABOVE. STEP FROM BASE TO S. EDGE. |
| 002CC01245 |
POST HOLE FILL |
SUB-RECTANGULAR |
55 |
34 |
14 |
STEPPED U |
FILL GRITTY ON N. SIDE. MOD/FREQ CHALK <
3 CM THROUGHOUT FILL. TRUNCATED ABOVE. |
002CC01246 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

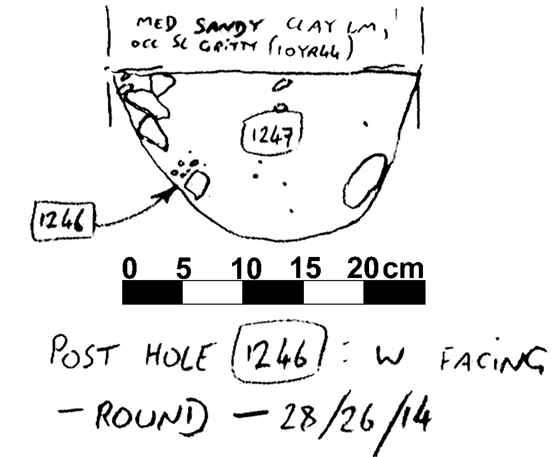

| 002CC01246 |
POST HOLE CUT |
ROUND |
28 |
26 |
14 |
USHAPED |
P.H. OF BLDG TO N. & E. OF GRUB M. 1802.
TRUNCATED ABOVE. REGULAR SIDES & BASE. |
| 002CC01247 |
POST HOLE FILL |
ROUND |
28 |
26 |
14 |
USHAPED |
SL GRITTY. MOD CHALK < 4 CM MOSTLY TOWARDS
EDGES. TRUNCATED ABOVE. |

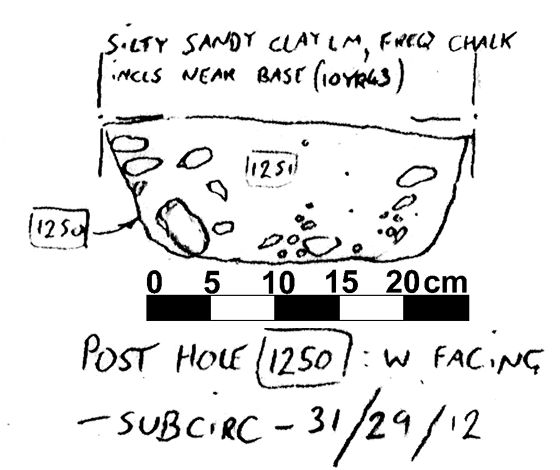

002CC01250 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01250 |
POST HOLE CUT |
SUB-CIRCULAR |
31 |
29 |
12 |
FLAT BASED U |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
TRUNCATED ABOVE. REGULAR SIDES & BASE. |
| 002CC01251 |
POST HOLE FILL |
SUB-CIRCULAR |
31 |
29 |
12 |
FLAT BASED U |
FREQ CHALK < 5 CM CONCENTRATING TOWARDS BASE.
TRUNCATED ABOVE. |

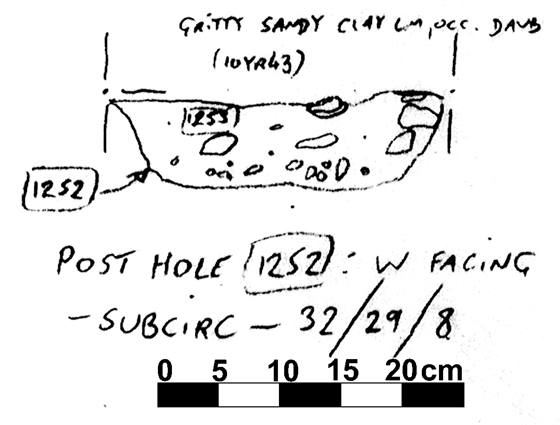

002CC01252 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01252 |
POST HOLE CUT |
SUB-CIRCULAR |
24 |
21 |
8 |
FLAT BASED U |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
TRUNCATED ABOVE . REGULAR SIDES & BASE. |
| 002CC01253 |
POST HOLE FILL |
SUB-CIRCULAR |
24 |
21 |
8 |
FLAT BASED U |
FREQ CHALK < 3 CM THROUGHOUT FILL. TRUNCATED
ABOVE. SOME DAUB. |

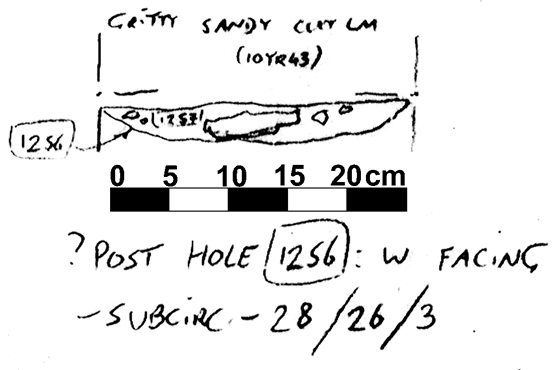

002CC01256 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01256 |
POST HOLE CUT |
SUB-CIRCULAR |
28 |
26 |
3 |
CONCAVE |
P.H.? OF BLDG TO N. & E. OF GRUB M.1802.
MASSIVELY TRUNCATED ABOVE. ONLY LOWEST PART OF BASE SURVIVING. |
| 002CC01257 |
POST HOLE FILL |
SUB-CIRCULAR |
28 |
26 |
3 |
CONCAVE |
SOME CHALK. EXTREMELY SHALLOW---MASSIVELY TRUNCATED
ABOVE. |

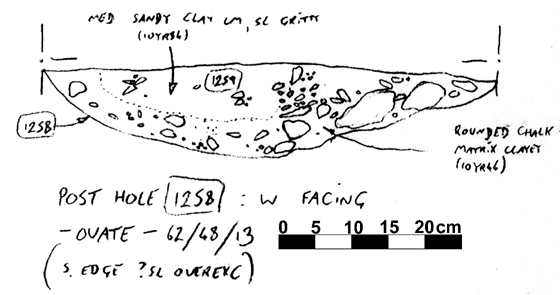

002CC01258 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01258 |
POST HOLE CUT |
OVATE |
20 |
18 |
13 |
CONCAVE |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING. S. EDGE SL OVER-EXCAVATED. |
| 002CC01259 |
POST HOLE FILL |
OVATE |
20 |
18 |
13 |
CONCAVE |
FREQ CHALK < 9 CM. --TOWARDS BASE CHALK IS
ROUNDED : WITH PEA GRIT & MORE CLAYEY--ALSO 10YR46 (PROB ANOTHER CONTEXT).
TRUNCATED ABOVE. |

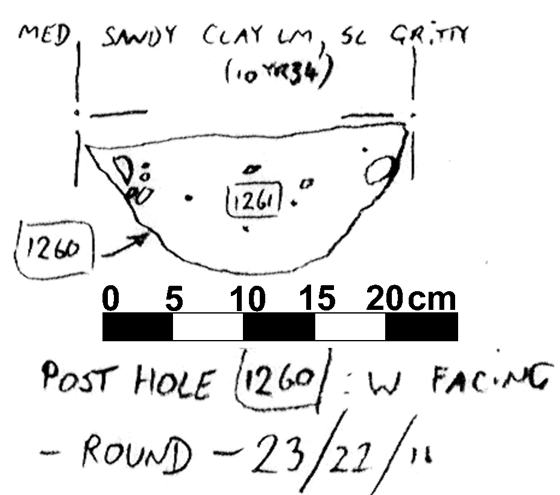

002CC01260 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01260 |
POST HOLE CUT |
ROUND |
23 |
22 |
11 |
USHAPED |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
TRUNCATED ABOVE. SMALL: REGULAR SIDES & BASE. |
| 002CC01261 |
POST HOLE FILL |
ROUND |
23 |
22 |
11 |
USHAPED |
OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED
ABOVE. |
002CC01262 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

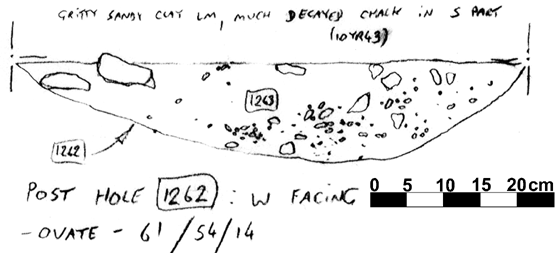

| 002CC01262 |
POST HOLE CUT |
OVATE |
61 |
54 |
14 |
CONCAVE |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
TRUNCATED ABOVE. EDGES MERGE INTO BASE. |
| 002CC01263 |
POST HOLE FILL |
OVATE |
61 |
54 |
14 |
CONCAVE |
FREQ CHALK < 8 CM: CONCENTRATED ESP IN S.
PART OF FILL. TRUNCATED ABOVE. |
002CC01264 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

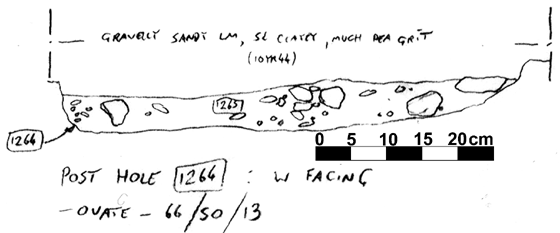

| 002CC01264 |
POST HOLE CUT |
OVATE |
66 |
50 |
13 |
CONCAVE |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
SHALLOW--TRUNCATED ABOVE. LITTLE MORE THAN BASE SURVIVING. |
| 002CC01265 |
POST HOLE FILL |
OVATE |
66 |
50 |
13 |
CONCAVE |
FREQ CHALK < 6 CM THROUGHOUT FILL. SHALLOW--TRUNCATED
ABOVE. MUCH PEA GRIT. |
002CC01266 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

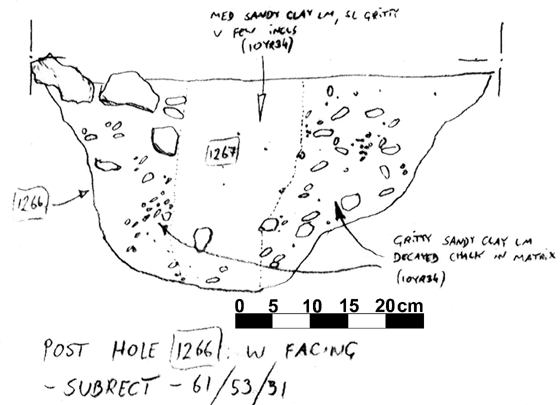

| 002CC01266 |
POST HOLE CUT |
SUB-RECTANGULAR |
61 |
53 |
31 |
STEPPED U |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
HAS A P. PIPE. TRUNCATED ABOVE. REGULAR SIDES & BASE. |
| 002CC01267 |
POST HOLE FILL |
SUB-RECTANGULAR |
61 |
53 |
31 |
STEPPED U |
FREQ DECAYED CHALK . HAS A POST PIPE--A SANDY:
CLAY LOAM: SL GRITTY: & WITH V. FEW INCLS--- IN CENTRE OF FILL. TRUNCATED
ABOVE. |

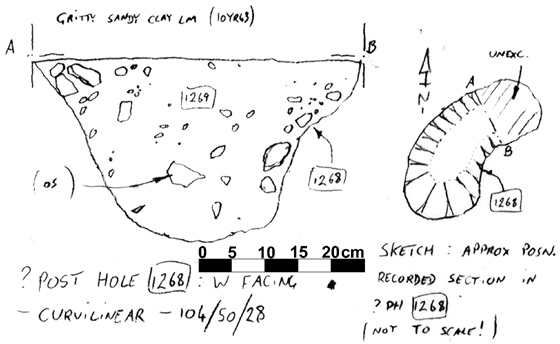

002CC01268 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01268 |
POST HOLE CUT |
CURVILINEAR |
104 |
50 |
28 |
STEPPED U |
POSS P.H. OF BLDG TO N. & E. OF GRUB M.1802.
UNUSUAL PLAN SHAPE: REGULAR PROFILE. TOO LARGE FOR A P.H.? |
| 002CC01269 |
POST HOLE FILL |
CURVILINEAR |
104 |
50 |
28 |
STEPPED U |
MOD/FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED
ABOVE. |

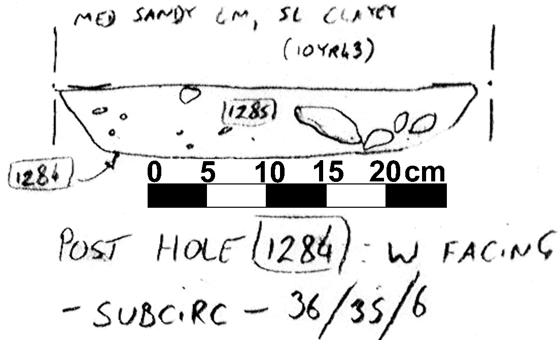

002CC01284 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01284 |
POST HOLE CUT |
SUB-CIRCULAR |
36 |
35 |
6 |
FLAT BASED U |
P.H. OF BLDG TO N. & E. OF GRUB M. 1802.
TRUNCATED ABOVE. REGULAR SIDES & BASE. |
| 002CC01285 |
POST HOLE FILL |
SUB-CIRCULAR |
36 |
35 |
6 |
FLAT BASED U |
MOD CHALK < 5 CM THROUGHOUT FILL. TRUNCATED
ABOVE. |

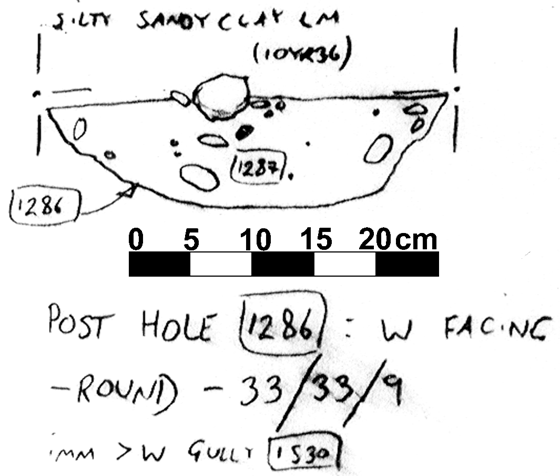

002CC01286 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01286 |
POST HOLE CUT |
ROUND |
33 |
33 |
9 |
USHAPED |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
TRUNCATED ABOVE. REGULAR BASE: LITTLE OF EDGES SURVIVING. |
| 002CC01287 |
POST HOLE FILL |
ROUND |
33 |
33 |
9 |
USHAPED |
MOD/FREQ CHALK < 5 CM. THROUGHOUT FILL. TRUNCATED
ABOVE. |

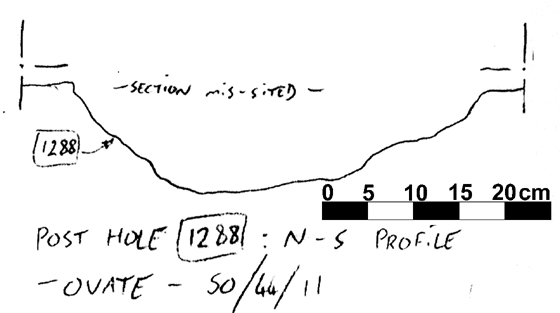

002CC01288 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01288 |
POST HOLE CUT |
OVATE |
32 |
44 |
11 |
CONCAVE |
P.H. OF BLDG TO N. & E. OF GRUB M.1802.
HEAVILY TRUNCATED ABOVE. LITTLE MORE THAN BASE SURVIVING. |
| 002CC01289 |
POST HOLE FILL |
OVATE |
32 |
44 |
11 |
CONCAVE |
NO FURTHER DETAILS AVAILABLE. |

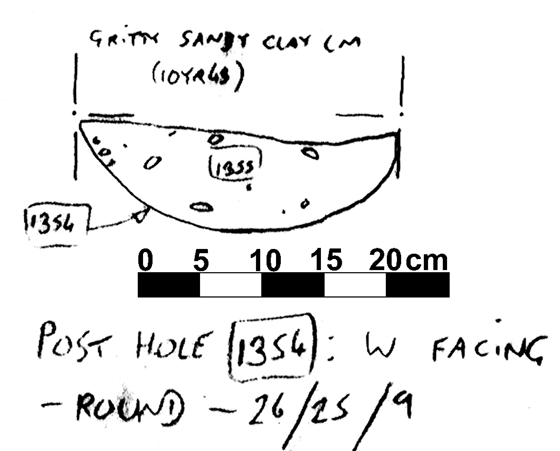

002CC01354 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01354 |
POST HOLE CUT |
ROUND |
26 |
25 |
9 |
USHAPED |
P.H. Nr M.1433. TRUNCATED ABOVE.--LITTLE MORE
THAN BASE SURVIVING. |
| 002CC01355 |
POST HOLE FILL |
ROUND |
26 |
25 |
9 |
USHAPED |
OCCA CHALK < 2 CM THROUGHOUT FILL. TRUNCATED
ABOVE. |
002CC01358 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01358 |
POST HOLE CUT |
OVATE |
62 |
48 |
13 |
CONCAVE |
LARGE P.H.? Nr BLDG M.1433. TRUNCATED ABOVE.
LITTLE MORE THAN BASE SURVIVING. |
| 002CC01359 |
POST HOLE FILL |
OVATE |
62 |
48 |
13 |
CONCAVE |
FREQ CHALK < 10 CM THROUGHOUT FILL. LOWER
PART OF FILL-CHALK ROUNDED:PEA GRIT:&10YR46. TRUNCATED ABOVE. |
002CC01362 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

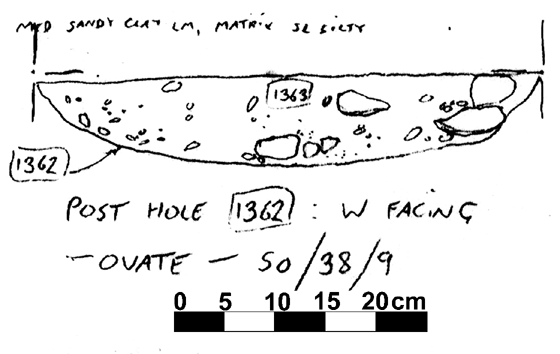

| 002CC01362 |
POST HOLE CUT |
OVATE |
50 |
38 |
9 |
CONCAVE |
P.H. Nr BLDG M.1433. TRUNCATED ABOVE--LITTLE
MORE THAN BASE SURVIVING. |
| 002CC01363 |
POST HOLE FILL |
OVATE |
50 |
38 |
9 |
CONCAVE |
FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED
ABOVE. |
002CC01364 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01364 |
POST HOLE CUT |
OVATE |
66 |
50 |
13 |
CONCAVE |
P.H.? Nr M.1433. V. SHALLOW - TRUNCATED ABOVE
- LITTLE MORE THAN BASE SURVIVING. |
| 002CC01365 |
POST HOLE FILL |
OVATE |
66 |
50 |
13 |
CONCAVE |
FREQ CHALK < 8 CM THROUGHOUT FILL. MUCH PEA
GRIT. SHALLOW-TRUNCATED ABOVE. |

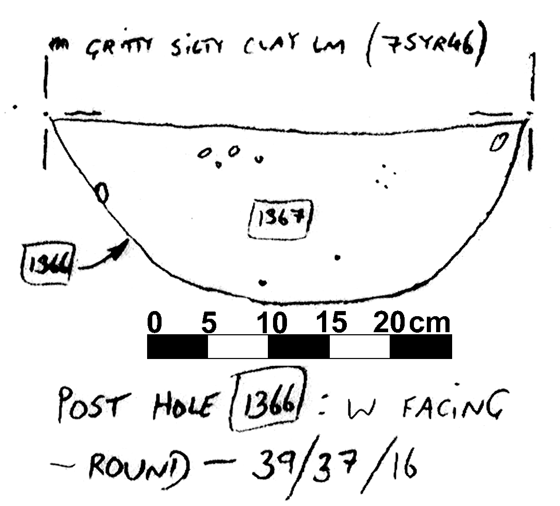

002CC01366 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01366 |
POST HOLE CUT |
ROUND |
35 |
30 |
16 |
USHAPED |
P.H. TO S. OF GRUB M.1802. TRUNCATED ABOVE.
REGULAR EDGES & BASE. |
| 002CC01367 |
POST HOLE FILL |
ROUND |
35 |
30 |
16 |
USHAPED |
V. FEW INCLS: OCCA CHALK < 2 CM. TRUNCATED
ABOVE. |
002CC01530 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

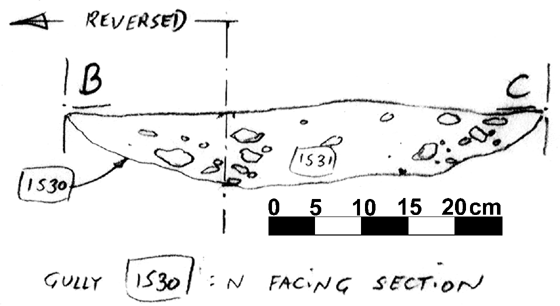

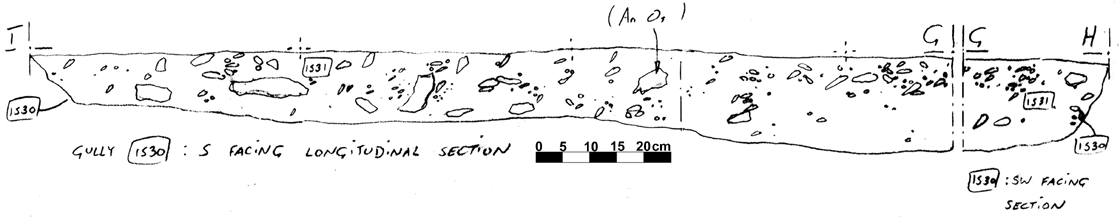

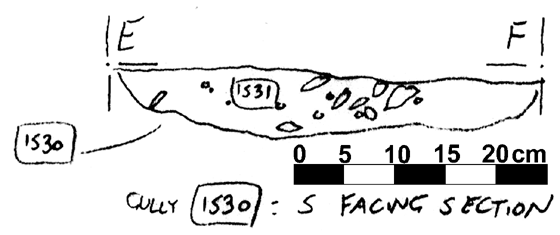

| 002CC01530 |
GULLY CUT |
CURVILINEAR |
625 |
62 |
21 |
FLAT BASED U |
CUT OF GULLEY-PROB RELATED TO SIMILAR TO W.
EDGES SLOPE GENTLY WHICH REINFORCES ARGUMENT FOR TRUNCATION. EXCAVATED
IN SEGMENTS. |
| 002CC01531 |
GULLY FILL |
CURVILINEAR |
625 |
62 |
21 |
FLAT BASED U |
FILL OF GULLEY: FREQ SMALL ROUNDED CHALK-BUT
SOME < 12 CM. SOME VARIATION IN FILL E.G. FEWER INCLUSIONS IN PLACES.
TRUNCATED ABOVE. |
002CC01532 Section and Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |

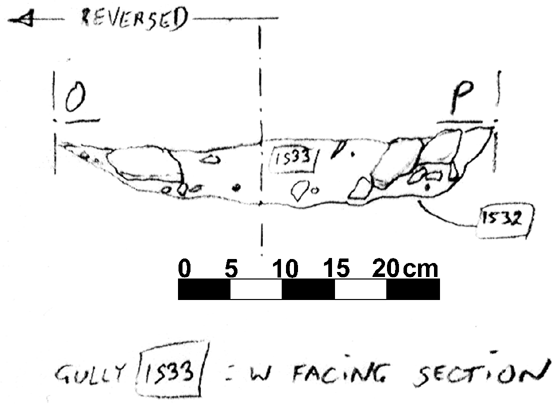

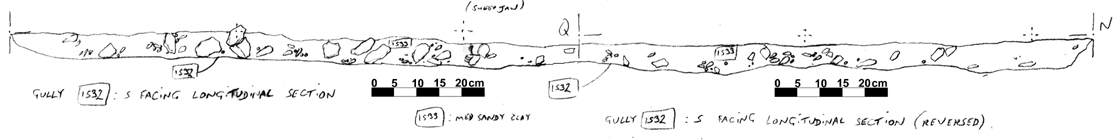

| 002CC01532 |
GULLY CUT |
LINEAR |
227 |
42 |
6 |
FLAT BASED U |
HEAVILY TRUNCATED CUT OF GULLEY PROB RELATED
TO SIMILAR FEATURE TO E. V. SHALLOW. GENTLE SIDES. |
| 002CC01533 |
GULLY FILL |
LINEAR |
227 |
42 |
6 |
FLAT BASED U |
FILL OF GULLEY TRUNCATED FROM ABOVE. SMALL GRITTY
INCLUSIONS < 1 CM THROUGHOUT. RELATED TO SIMILAR FEATURE TO W. |
002CC01716 Notes
| KEY_ID |
TYPE |
SHAPE |
L |
B |
D |
PROFILE |
NOTES |
| 002CC01716 |
POST HOLE CUT |
No entry |
30 |
27 |
14 |
No entry |
DRAWING NOT FOUND--HENCE NO FURTHER DETAILS.
SAID TO BE IMM N. OF GULLEY 1533. |
| 002CC01717 |
POST HOLE FILL |
No entry |
30 |
27 |
14 |
No entry |
DRAWING NOT FOUND--HENCE NO FURTHER DETAILS. |
Objects By Context
| KEY_ID |
OBJ |
PERIOD |
MATERIAL |
TYPE |
SUB_TYPE |
CLASS |
No |
| 002CC00275 |
AA |
No Entry |
SLAG |
SLAG FRAGMENT |
|
|
1 |
| 002CC00275 |
AB |
EARLY SAXON |
POTTERY |
SHERD |
|
ANGLIAN III |
1 |
| 002CC00275 |
AC |
No Entry |
STONE |
STONE |
|
RED CHALK |
1 |
| 002CC00275 |
AD |
PREHISTORIC |
FLINT |
FLAKE |
|
|
1 |
| 002CC01267 |
AA |
PREHISTORIC |
FLINT |
FLAKE |
|
|
1 |
| 002CC01269 |
AA |
No Entry |
CHARCOAL |
CHARCOAL SAMPLE |
|
|
1 |
| 002CC01531 |
AA |
No Entry |
STONE |
STONE |
|
|
1 |
| 002CC01531 |
AB |
ROMAN |
POTTERY |
SHERD |
|
R-B |
1 |
| 002CC01531 |
AC |
No Entry |
SHELL |
SHELL |
|
LIMPET |
1 |
| 002CC01531 |
AD |
EARLY SAXON |
POTTERY |
SHERD |
|
ANGLIAN III |
1 |
| 002CC01531 |
AE |
EARLY SAXON |
POTTERY |
SHERD |
|
ANGLIAN III |
1 |
| 002CC01531 |
AF |
EARLY SAXON |
POTTERY |
SHERD |
|
ANGLIAN III |
1 |
| 002CC01531 |
AG |
No Entry |
STONE |
STONE |
|
RED CHALK |
1 |
| 002CC01531 |
AH |
EARLY SAXON |
POTTERY |
SHERD |
|
ANGLIAN III |
1 |
| 002CC01531 |
AI |
No Entry |
POTTERY |
SHERD |
|
|
1 |
| 002CC01533 |
AA |
No Entry |
SHELL |
SHELL |
|
LIMPET |
1 |
Animal Bone by Context
| KEY_ID |
SPECIES |
ELEMENT |
QUANT |
CHEW |
BURN |
BUTCH |
FBRK |
| 002CC00275 |
Cattle |
Scapula |
1 |
1 |
0 |
0 |
1 |
| 002CC00275 |
Cattle |
MC/D |
1 |
1 |
0 |
0 |
1 |
| 002CC00275 |
Sheep/goat |
MT/P |
1 |
1 |
0 |
0 |
1 |
| 002CC00275 |
Sheep/goat |
Mandible |
1 |
0 |
0 |
0 |
0 |
| 002CC01241 |
Sheep/goat |
MC/P |
1 |
1 |
0 |
0 |
1 |
| 002CC01269 |
Sheep/goat |
Humerous br |
1 |
1 |
0 |
0 |
1 |
| 002CC01355 |
Dog |
Femur P |
1 |
0 |
0 |
0 |
1 |
| 002CC01531 |
Cattle |
MT/P |
1 |
1 |
0 |
0 |
1 |
| 002CC01531 |
Cattle |
N. Cuboid |
1 |
0 |
0 |
1 |
1 |
| 002CC01531 |
Cattle |
Femur fr |
1 |
1 |
0 |
0 |
0 |
| 002CC01531 |
Sheep/goat |
Mandible |
1 |
0 |
0 |
0 |
1 |
| 002CC01531 |
Sheep/goat |
Tibia D |
1 |
0 |
0 |
0 |
0 |
| 002CC01531 |
Sheep/goat |
Mand Fr |
1 |
0 |
0 |
0 |
1 |
| 002CC01531 |
Sheep/goat |
Ld 4 |
1 |
0 |
0 |
0 |
1 |
| 002CC01531 |
Sheep/goat |
Mandible |
1 |
0 |
0 |
0 |
1 |
| 002CC01531 |
Red deer |
Antler |
1 |
0 |
0 |
0 |
0 |
