002CC01901

Post Hole Structure


Post-Hole Structure Details
Length  448 Width 337
Area  14.09 sq. m Ratio 1.33:1
Number of Posts  20 Deepest 47  002CC00207 Shallowest  7 002CB00193
Average Depth
 16
North Wall  4 Posts Average Depth  20
East Wall  3 Post Average Depth  11.5
South Wall  6 Posts Average Depth  15
West Wall  5 Posts Average Depth  16
Interior Divisions:  Probably 2 posts forming a pair with the door posts, although they also fall within structure 2CC M116.
Highest Elevation Value  5361 002CC00155
Lowest Elevation Value  5313 002CC00203
Bearing  75 degrees
Plank\Post  Post
Doorways Difficult to define, though one doorway may well be situated in the southern wall, with two double post holes.
Repairs:  No repairs noted
Structural Class
Material Culture  Number of Objects 2  Number of Animal Bones 2
Environmental

Phasing

Discussion

Overlaps with structure 002CC00116 and is on the same alignment, ENE-WSW. The maximum length of this structure is 6.60m which may be the original length based on what is known about other structures on site. The two structures appear to be similar in size and shape, and is particularly important as this could indicate a replacement structure, serving the same function. The entrance may be centrally located in the southern wall, and although a number of internal post-holes could belong to either structure, it is more likely that they relate to this structure.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CC01901 002CC00149  002CC00150 1
002CC00151  002CC00152
002CC00153  002CC00154
002CC00155  002CC00156
002CC00157  002CC00158
002CC00161  002CC00162
002CC00163  002CC00164
002CC00165  002CC00166
002CC00181  002CC00182
002CC00189  002CC00190 1
002CC00191  002CC00192 1
002CC00193  002CC00194 1
002CC00203  002CC00204
002CC00205  002CC00206
002CC00207  002CC00208
002CC00209  002CC00210
002CC00384  002CC00385
002CC00412  002CC00413
002CC00448  002CC00449
002CC00463  002CC00464

Structural Details

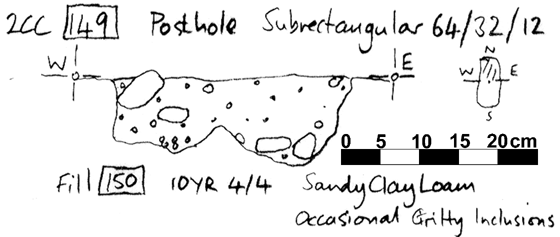

002CC00149 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00149  POST HOLE CUT SUB-RECTANGULAR  64 32 12  WSHAPED CUT OF P.H. CENTRE S. OF BLDG. TRUNCATED ABOVE.
002CC00150  POST HOLE FILL SUB-RECTANGULAR  64 32 12  WSHAPED OCCA-MOD CHALK < 4 CM. OCCA GRITTY INCLS. TRUNCATED ABOVE.

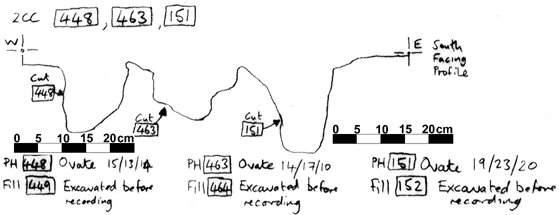

002CC00151 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00151  POST HOLE CUT OVATE  23 19  20 FLAT BASED V  P.H. CENTRE SOUTH OF BLDG M.116. TRUNCATED ABOVE.
002CC00152  POST HOLE FILL OVATE  23 19  20 FLAT BASED V  FILL REMOVED PRIOR TO RECORDING.

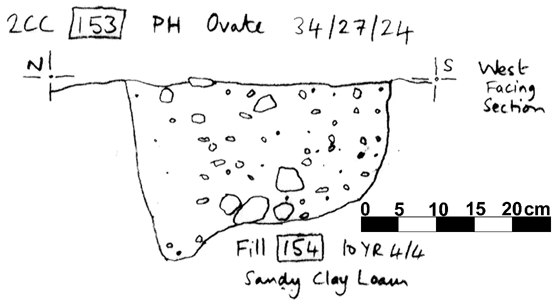

002CC00153 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00153  POST HOLE CUT OVATE  33 32  14 VERT.SIDE C.BASE  P.H. S. SIDE BLDG M.116. TRUNCATED ABOVE. BASE DIPS DOWN TO N.
002CC00154  POST HOLE FILL OVATE  33 32  14 VERT.SIDE C.BASE  MOD CHALK < 4 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

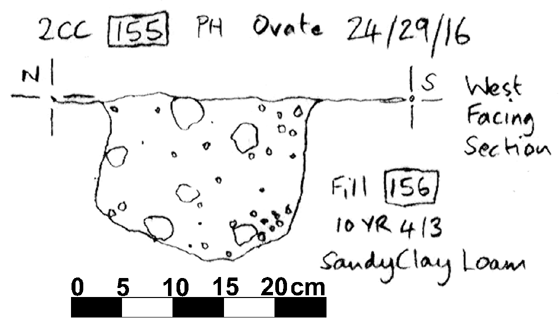

002CC00155 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00155  POST HOLE CUT OVATE  29 24  16 VERT.SIDE C.BASE  P.H. S. SIDE BLDG M.116. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00156  POST HOLE FILL OVATE  29 24  16 VERT.SIDE C.BASE  OCCA-MOD CHALK < 3 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

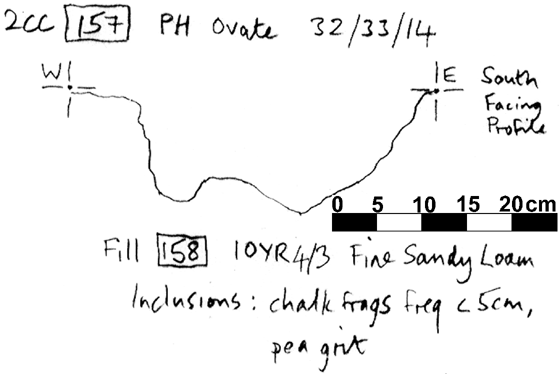

002CC00157 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00157  POST HOLE CUT OVATE  33 32  14 WSHAPED  P.H. S. SIDE BLDG M.116. TRUNCATED ABOVE. CENTRAL RIDGE IN BASE: E. EDGE LESS STEEP THAN W.
002CC00158  POST HOLE FILL OVATE  33 32  14 WSHAPED  FREQ CHALK FRAGS < 5 CM. PEA GRIT. TRUNCATED ABOVE.

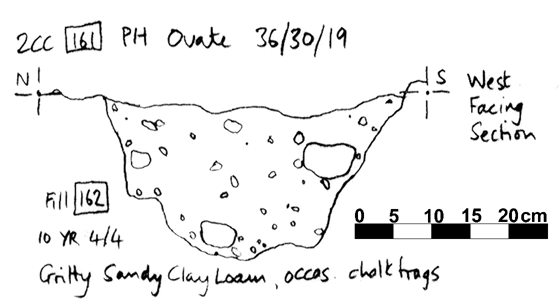

002CC00161 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00161  POST HOLE CUT OVATE  36 30  19 USHAPED  P.H. S. CENTRE OF BLDG M.116. TRUNCATED ABOVE. EDGES & BASE ROUGH.
002CC00162  POST HOLE FILL OVATE  36 30  19 USHAPED  OCCA CHALK FRAGS < 5 CM. THROUGHOUT FILL . TRUNCATED ABOVE.

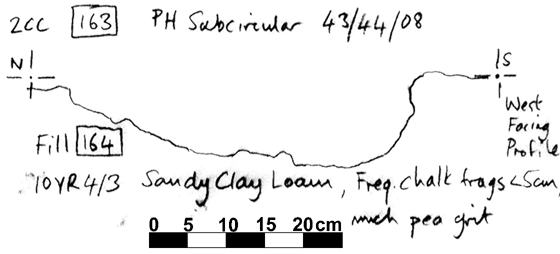

002CC00163 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00163  POST HOLE CUT SUB-CIRCULAR  44 42 8  CONCAVE P.H. S. CENTRE BLDG M.116. TRUNCATED ABOVE. EDGES & BASE MERGE TOGETHER.
002CC00164  POST HOLE FILL SUB-CIRCULAR  44 42 8  CONCAVE FREQ CHALK FRAGS < 5 CM. FREQ PEA GRIT. TRUNCATED ABOVE.


002CC00165 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00165  ?NAT CUT No entry  0 0  0 No entry  CUT OF SOLUTION HOLE: ONCE CONSIDERED TO BE A P.H.
002CC00166  ?NAT FILL No entry  0 0  0 No entry  SOLUTION HOLE - ONCE CONSIDERED A P.H. (FILL OF )..

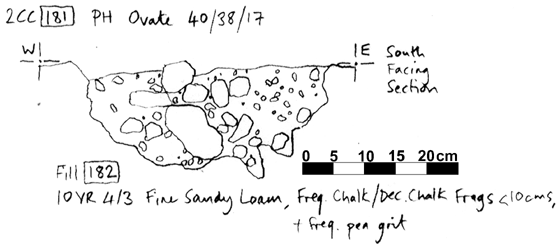

002CC00181 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00181  POST HOLE CUT OVATE  40 38  17 USHAPED  P.H. TO W. OF M.116. TRUNCATED ABOVE. ROUGH BASE & EDGES.
002CC00182  POST HOLE FILL OVATE  40 38  17 USHAPED  FREQ CHALK DECAYED CHALK FRAGS < 10CM. FREQ PEA GRIT. TRUNCATED ABOVE.

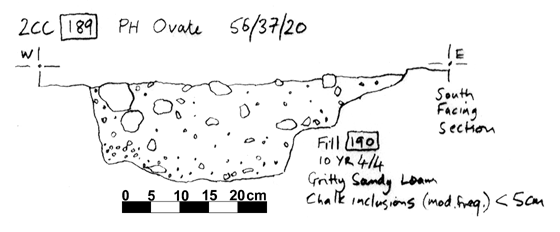

002CC00189 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00189  POST HOLE CUT OVATE  56 37  20 COMPLEX  P.H. TO W. OF M.116. TRUNCATED ABOVE. UNUSUAL STEPS IN PROFILE AT E. EDGE. BASE SLIGHTLY UNDULATES.
002CC00190  POST HOLE FILL OVATE  56 37  20 COMPLEX  MOD-FREQ CHALK < 5CM. ESP CONCENTRATED IN UPPER PART OF FILL. TRUNCATED ABOVE.

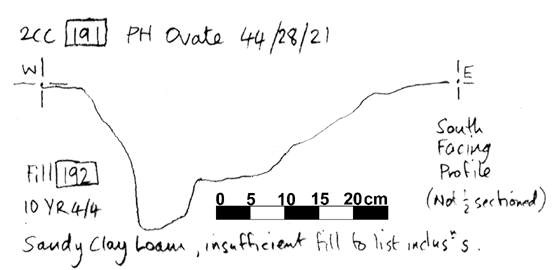

002CC00191 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00191  POST HOLE CUT OVATE  44 28  21 IRREGULAR P.H. TO W. OF M.116. TRUNCATED ABOVE. STEPPED PROFILE.
002CC00192  POST HOLE FILL OVATE  44 28  21 IRREGULAR CHALK FRAGS & GRITTY INCLUSIONS. TRUNCATED ABOVE.

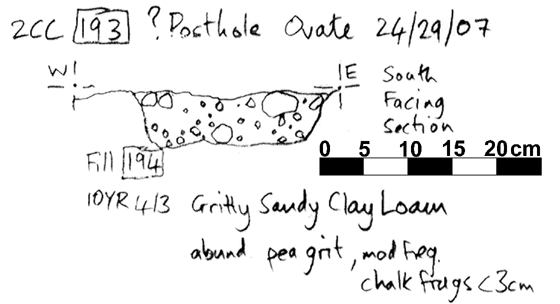

002CC00193 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00193  POST HOLE CUT OVATE  29 24  7 FLAT BASED U  P.H. TO W. OF M.116. TRUNCATED ABOVE. V.SHALLOW: REGULAR BASE & SIDES.
002CC00194  POST HOLE FILL OVATE  29 24  7 FLAT BASED U  MOD CHALK FRAGS < 3 CM. FREQ PEA GRIT. V. SHALLOW-TRUNCATED ABOVE.

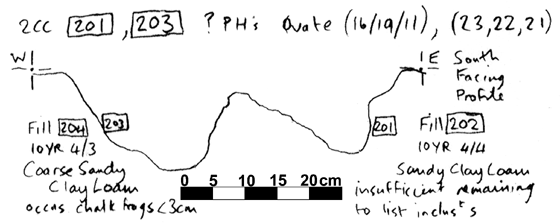

002CC00203 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00203  POST HOLE CUT OVATE  19 16  11 VSHAPED  P.H. TO N. OF M.116. TRUNCATED ABOVE. IRREGULAR STEPPED PROFILE.
002CC00204  POST HOLE FILL OVATE  19 16  11 VSHAPED  OCCA CHALK FRAGS < 3 CM. TRUNCATED ABOVE.

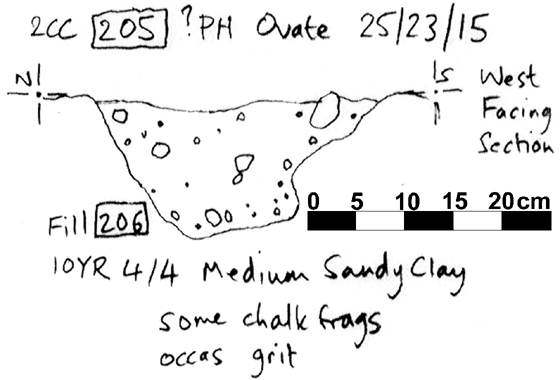

002CC00205 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00205  POST HOLE CUT OVATE  25 23  15 FLAT BASED V  P.H. TO N. OF M.116. TRUNCATED ABOVE. S. EDGE HAS A STEP MID WAY BETWEEN BASE & SURFACE.-- OTHERWISE REGULAR.
002CC00206  POST HOLE FILL OVATE  25 23  15 FLAT BASED V  OCCA-MOD CHALK FRAGS < 3CM. THROUGHOUT FILL. OCCA PEA GRIT. TRUNCATED ABOVE.

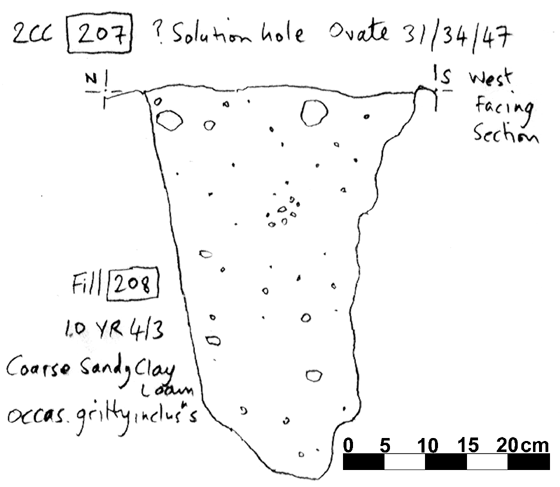

002CC00207 Section and Notes


KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00207  POST HOLE CUT OVATE  34 31  47 CYLINDRICAL  POSS P.H. (MAY BE A SOLUTION HOLE) TO N. OF BLDG M.116. TRUNCATED ABOVE. Nr VERTICAL SIDES: BASE TAPERS TO A POINT.
002CC00208  POST HOLE FILL OVATE  34 31  47 CYLINDRICAL  OCCA GRITTY INCLUSIONS.-----BUT VIRTUALLY NO CHALK !!!! POSS A SOLUTION HOLE. TRUNCATED ABOVE.

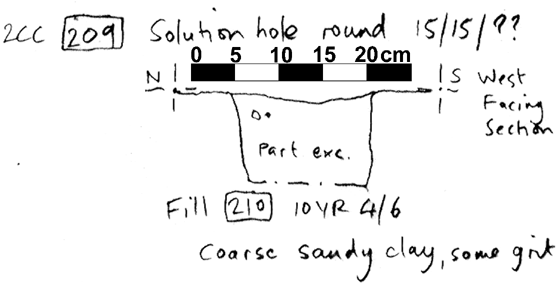

002CC00209 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00209  ?NAT CUT No entry  0 0  0 No entry  SOLUTION HOLE-----ONCE THOUGHT TO BE A P.H.
002CC00210  ?NAT FILL No entry  0 0  0 No entry  FILL OF SOLUTION HOLE-----ONCE THOUGHT TO BE A P.H.

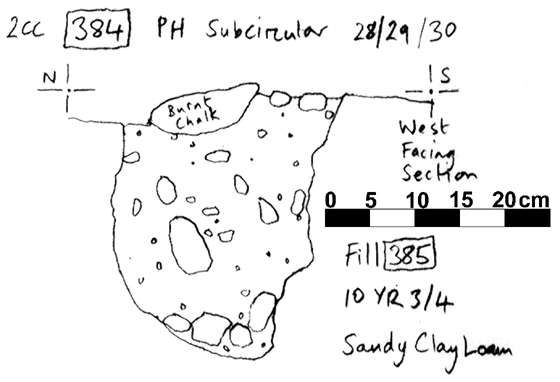

002CC00384 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00384  POST HOLE CUT SUB-CIRCULAR  29 28 30  CYLINDRICAL P.H. IN BUILDING M.116. EDGES Nr VERTICAL: BASE SLOPES DOWN N. TO S. TRUNCATED ABOVE.
002CC00385  POST HOLE FILL SUB-CIRCULAR  29 28 30  CYLINDRICAL MOD/FREQ CHALK 7 CM. THROUGHOUT FILL----SOME BURNT. TRUNCATED ABOVE.

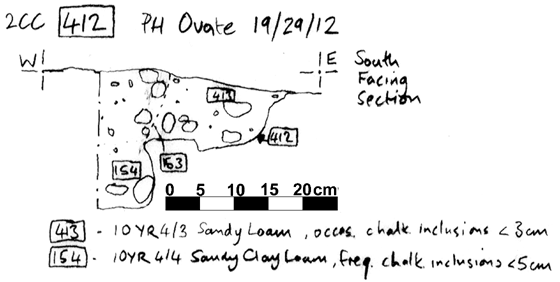

002CC00412 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00412  POST HOLE CUT OVATE  29 19  12 COMPLEX  P.H. TO E. OF M.116. TRUNCATED ABOVE & PARTIALLY CUT AWAY TO W. BY LATER P.H.
002CC00413  POST HOLE FILL OVATE  29 19  12 COMPLEX  FREQ CHALK < 5 CM. THROUGHOUT FILL. TRUNCATED ABOVE & PARTIALLY CUT AWAY TO W. BY LATER P.H.: CUT 153.


002CC00448 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00448  POST HOLE CUT OVATE  15 13  14 USHAPED  P.H. IN BLDG M.116. SLIGHTLY CONICAL IN PROFILE. TRUNCATED ABOVE.
002CC00449  POST HOLE FILL OVATE  15 13  14 USHAPED  EXCAVATED PRIOR TO RECORDING!!!!!!!


002CC00463 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CC00463  POST HOLE CUT OVATE  17 14  10 USHAPED  INTERNAL P.H. M.116. TRUNCATED ABOVE. STEPPED PROFILE.
002CC00464  POST HOLE FILL OVATE  17 14  10 USHAPED  EXCAVATED PRIOR TO RECORDING.

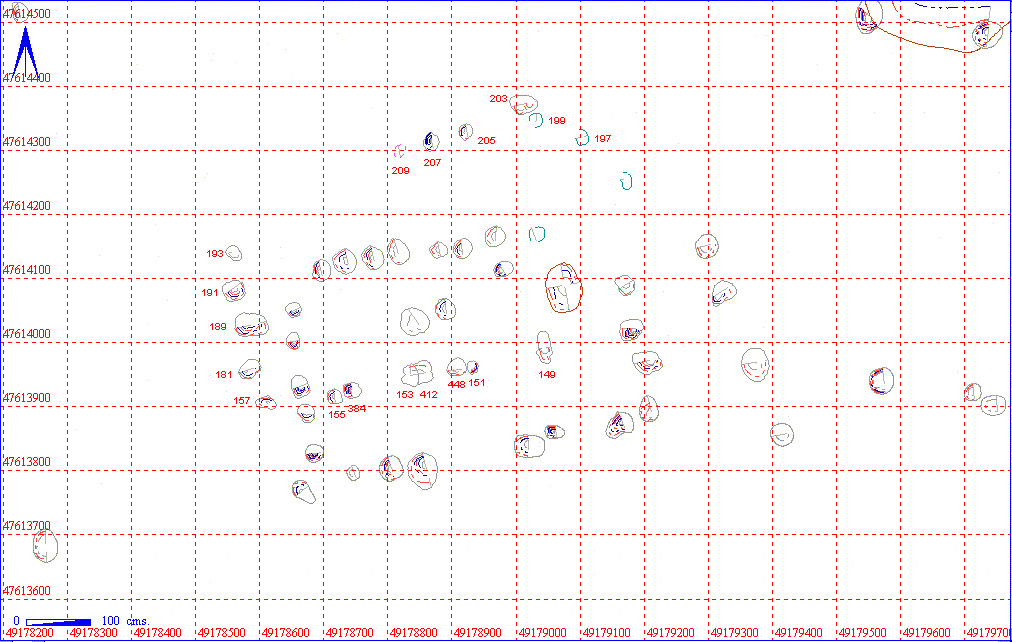

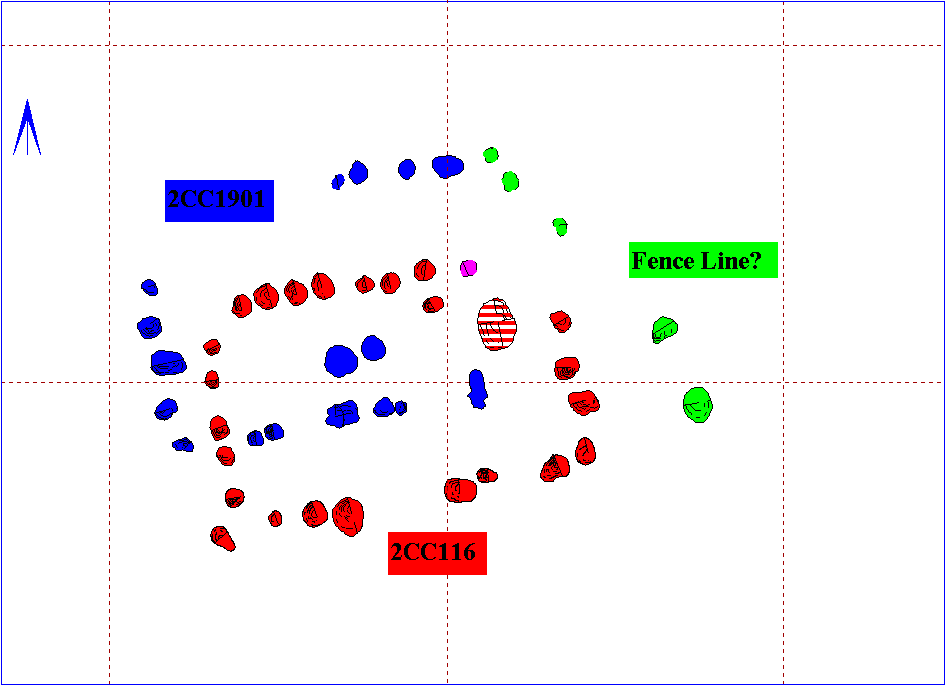

Plan showing separate post holes of structure 2CC116 and 2CC1901

Note magenta post hole could belong to either structure.

Objects by Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CC00150 AA  STONE STONE  1
002CC00192 AA  No Entry POTTERY SHERD  1

Animal Bone by Context

KEY_ID  SPECIES ELEMENT  QUANT CHEW  BURN BUTCH  FBRK
002CC00190 Sheep/Goat  Tibia D 1  0 0  0 1
002CC00194 Cattle  Radius P 1  0 0  1 1
