002CC01710

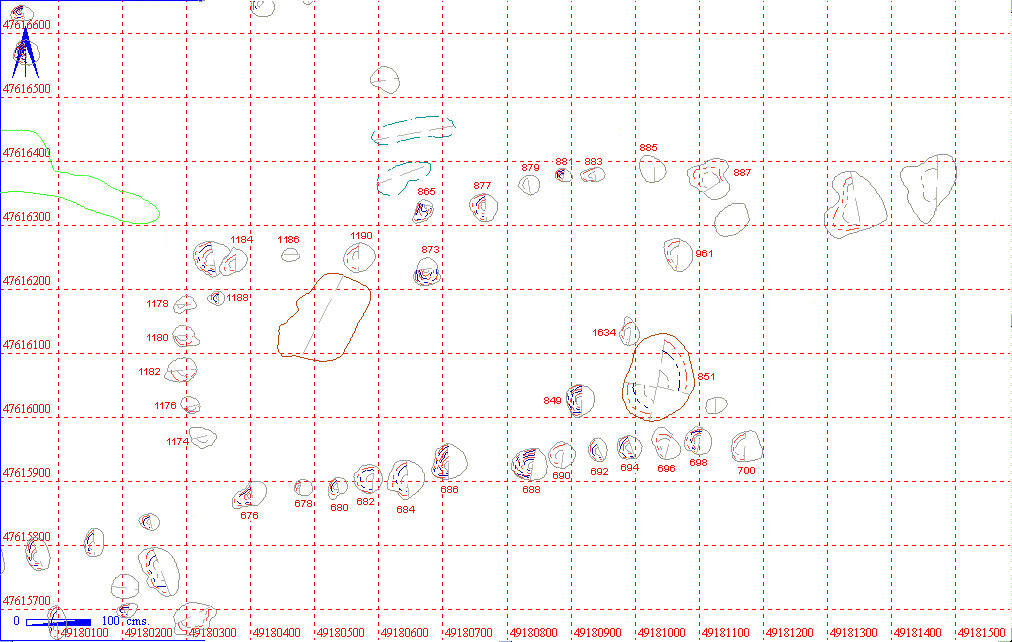

Post Hole Structure

Post-Hole Structure Details
Length 830 Width 366
Area  30.4 sq. m Ratio 2.3:1
Number of Posts 36 Deepest 39  002CC00688 Shallowest 7 002CC01178
Average Depth
 17
N Wall 10 Posts Average Depth 17
E Wall 2 Posts Average Depth 14
S Wall 13 Posts Average Depth 20
W Wall 5 Posts Average Depth 10
Interior Divisions: Two large shallow pits within structure. Six internal post holes of unknown function..
Highest Elevation Value  5219 002CC00680 and 002CC00682
Lowest Elevation Value 5161 002CC00877 and 002CC00881
Bearing  80
Plank\Post Post
Doorways Two centrally opposed doorways apparent in the long walls.
Repairs:
Structural Class
Material Culture Number of Objects 7  Number of Animal Bones 2
Environmental

Phasing

Discussion

A post hole structure central in area 2CC associated with pit 002CC00851 and a shallow scoop in the north west. Few post holes were distinguishable on the east side.


All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME OBJECTS AN BONE DENSITY
002CC01710 002CC00676 002CC00677 1
002CC00678 002CC00679
002CC00680 002CC00681
002CC00682 002CC00683
002CC00684 002CC00685 2
002CC00686 002CC00687 1
002CC00688 002CC00689 1
002CC00690 002CC00691
002CC00692 002CC00693 1
002CC00694 002CC00695
002CC00696 002CC00697 2
002CC00698 002CC00699
002CC00700 002CC00701
002CC00849 002CC00850
002CC00851 002CC00852 1
002CC00869 002CC00870
002CC00873 002CC00874
002CC00877 002CC00878
002CC00879 002CC00880
002CC00881 002CC00882
002CC00883 002CC00884
002CC00885 002CC00886
002CC00887 002CC00888
002CC01174 002CC01175
002CC01176 002CC01177
002CC01178 002CC01179
002CC01180 002CC01181
002CC01182 002CC01183
002CC01184 002CC01185
002CC01186 002CC01187
002CC01188 002CC01189
002CC01190 002CC01191
002CC01192 002CC01193
002CC01634 002CC01635

Structural Details

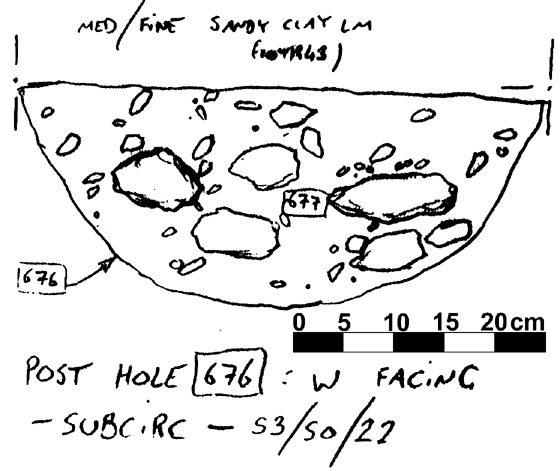

002CC00676 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00676 POST HOLE CUT SUB-CIRCULAR  53 50  22 USHAPED  P.H. IN LINE OF E-W P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00677 POST HOLE FILL SUB-CIRCULAR  53 50  22 USHAPED  FREQ CHALK < 11 CM THROUGHOUT FILL. TRUNCATED ABOVE.

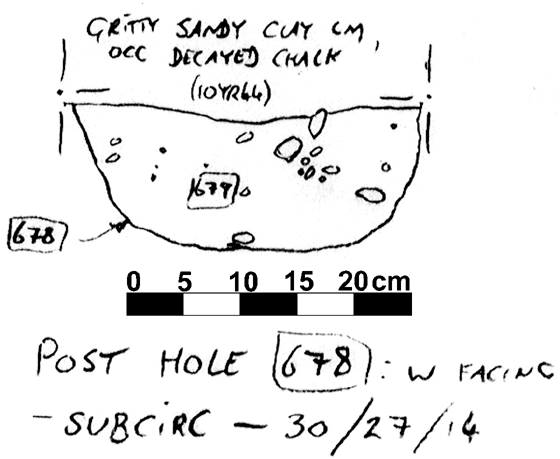

002CC00678 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00678 POST HOLE CUT SUB-CIRCULAR  30 27  13 FLAT BASED U  P.H. OF E-W LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00679 POST HOLE FILL SUB-CIRCULAR  30 27  14 FLAT BASED U  OCCA CHALK < 3CM THROUGHOUT FILL. TRUNCATED ABOVE. OCCA DECAYED CHALK.

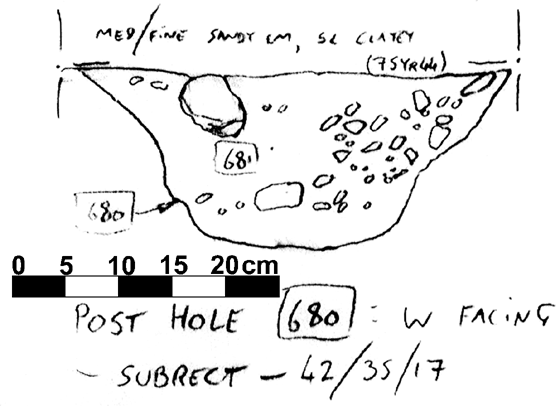

002CC00680 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00680 POST HOLE CUT SUB-RECTANGULAR  42 35  17 V+SLOT  P.H. OF A LINE OF E-W P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. UNUSUAL PROFILE--SEE SECTION.
002CC00681 POST HOLE FILL SUB-RECTANGULAR  42 35  17 U+SLOT  MOD/FREQ CHALK < 6 CM (MOSTLY SMALLER)--FINER MATERIAL TO S. PART OF FILL. TRUNCATED ABOVE.

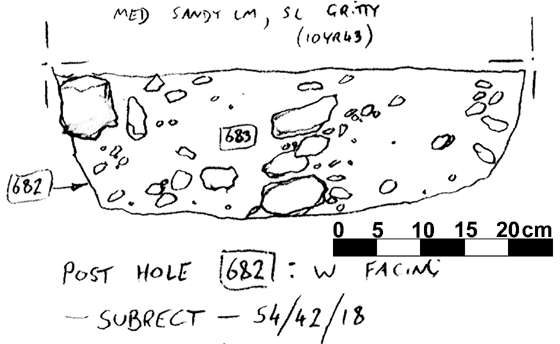

002CC00682 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00682 POST HOLE CUT SUB-RECTANGULAR  54 42  18 WIDE U  P.H. OF A LINE OF E-W P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE. CONTAINS 2 PROBABLE P.PIPES.
002CC00683 POST HOLE FILL SUB-RECTANGULAR  54 42  18 WIDE U  FREQ CHALK < 8 CM CONCENTRATED AROUND EDGES & CENTRE. POSS 2 POST PIPES. TRUNCATED ABOVE.

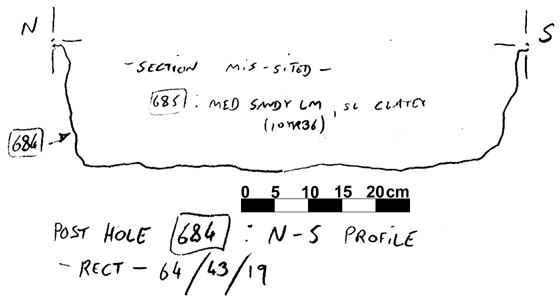

002CC00684 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00684 POST HOLE CUT RECTANGULAR  64 43  19 VERT.SIDE F.BASE  P.H. OF LINE OF E-W P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00685 POST HOLE FILL RECTANGULAR  64 43  19 VERT.SIDE F.BASE  NO FURTHER DETAILS.

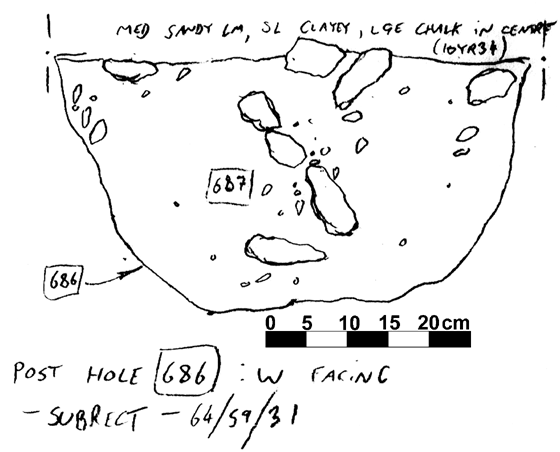

002CC00686 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00686 POST HOLE CUT SUB-RECTANGULAR  64 59  31 USHAPED  P.H. IN E-W LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES: BASE FLATTISH.
002CC00687 POST HOLE FILL SUB-RECTANGULAR  64 59  31 USHAPED  MOD/FREQ LARGE CHALK <11CM CONCENTRATED MAINLY IN CENTRE OF FILL. TRUNCATED ABOVE.

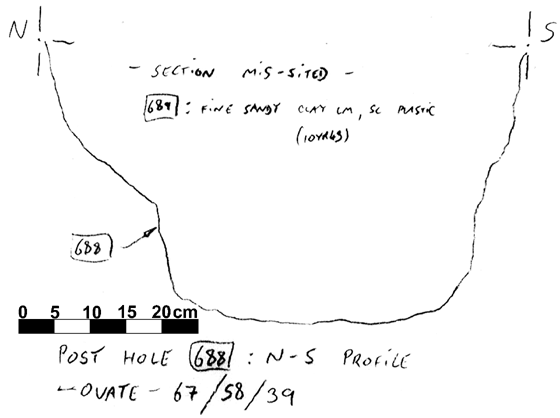

002CC00688 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00688 POST HOLE CUT OVATE  67 58  39 STEPPED U  P.H. IN E-W LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. N. EDGE STEPS DOWN TO BASE.
002CC00689 POST HOLE FILL OVATE  67 58  39 STEPPED U  NO FURTHER DETAILS AVAILABLE.

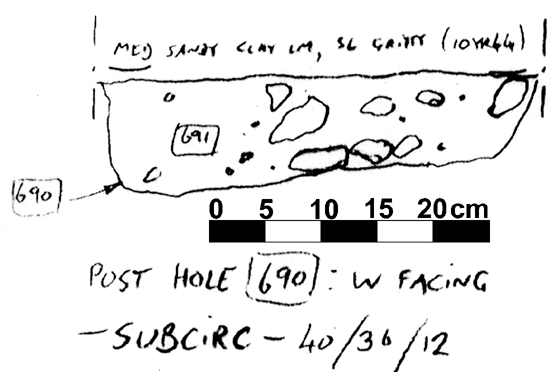

002CC00690 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00690 POST HOLE CUT SUB-CIRCULAR  40 36  12 VERT.SIDE F.BASE  P.H. IN E-W. LINE OF P.Hs. TRUNCATED ABOVE. S. EDGE NOT QUITE VERTICAL: BASE SLOPES SLIGHTLY S. DOWN TO N.
002CC00691 POST HOLE FILL SUB-CIRCULAR  40 36  12 VERT.SIDE F.BASE  FREQ CHALK <6 CM THROUGHOUT FILL. TRUNCATED ABOVE-V. SHALLOW.

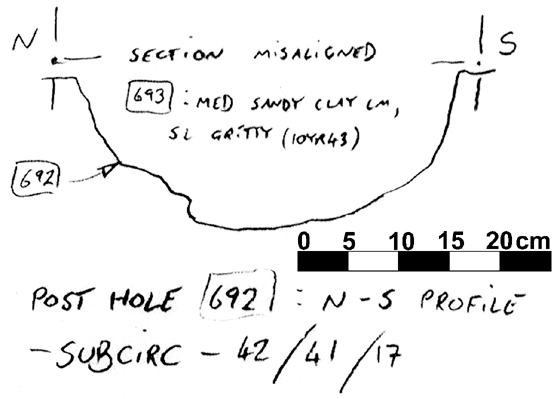

002CC00692 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00692 POST HOLE CUT SUB-CIRCULAR  42 41  17 USHAPED  P.H. IN E-W LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE THOUGH SLIGHTLY STEPPED AT N.
002CC00693 POST HOLE FILL SUB-CIRCULAR  42 41  17 USHAPED  NO FURTHER DETAILS AVAILABLE.

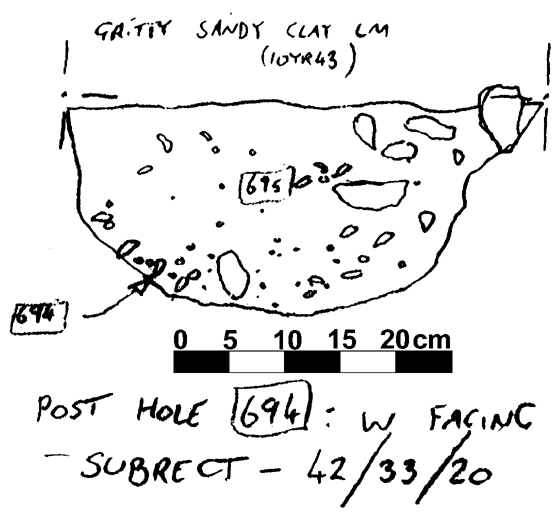

002CC00694 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00694 POST HOLE CUT SUB-RECTANGULAR  42 33  20 USHAPED  P.H. IN E-W. LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00695 POST HOLE FILL SUB-RECTANGULAR  42 33  20 USHAPED  FREQ CHALK < 6CM (MOSTLYSMALLER) CONCENTRATED ON S. SIDE & LOWER PART OF FILL. TRUNCATED ABOVE.

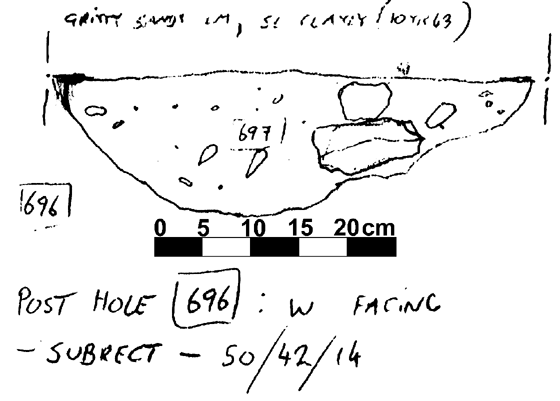

002CC00696 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00696 POST HOLE CUT SUB-RECTANGULAR  50 42  14 STEPPED U  P.H. IN E-W. LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. EDGES MERGE INTO BASE: SLIGHTLY STEPPED ON S. SIDE.
002CC00697 POST HOLE FILL SUB-RECTANGULAR  50 42  14 STEPPED U  MOD CHALK MOSTLY @ 2-3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

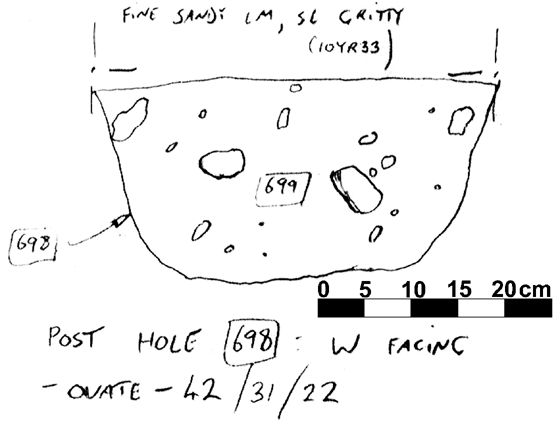

002CC00698 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00698 POST HOLE CUT OVATE  42 31  22 FLAT BASED U  P.H. IN E-W. LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00699 POST HOLE FILL OVATE  42 31  22 FLAT BASED U  MOD CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.


002CC00700 Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00700 POST HOLE CUT OVATE  52 46  12 FLAT BASED U  P.H. IN E-W LINE OF P.H.s TO N. OF PIT 211. TRUNCATED ABOVE. REGULAR BASE: SIDES RELATIVELY GENTLE.
002CC00701 POST HOLE FILL OVATE  52 46  12 FLAT BASED U  FREQ CHALK < 6 CM THROUGHOUT FILL BUT CONCENTRATED MAINLY IN LOWER PART OF FILL. TRUNCATED ABOVE.

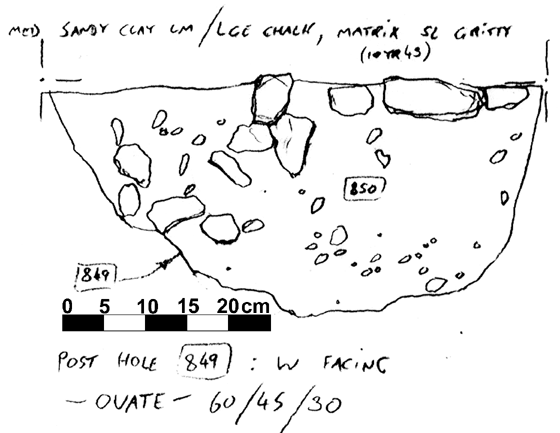

002CC00849 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00849 POST HOLE CUT No entry  60 45  30 No entry  P.H. SAID TO BE E. OF PIT 247. NO FURTHER DETAILS YET LOCATED.
002CC00850 POST HOLE FILL No entry  60 45  30 No entry  NO FURTHER DETAILS YET LOCATED.

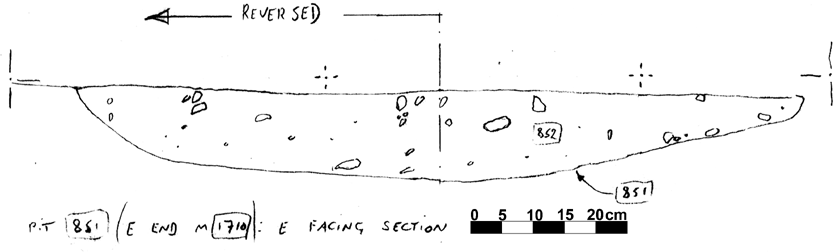

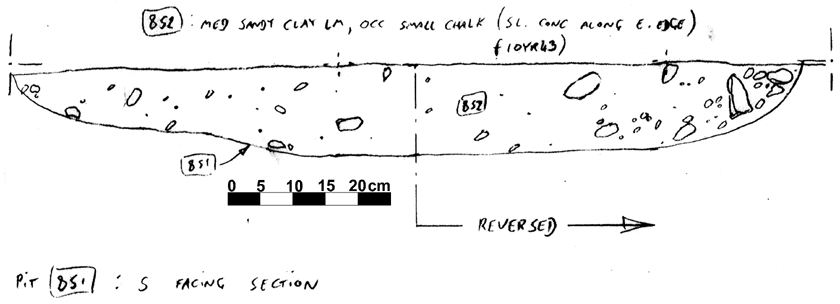

002CC00851 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00851 PIT CUT SUB-CIRCULAR  126 121  16 CONCAVE  CUT OF PIT: FLATTISH & GENTLY SLOPING SIDES: VERY SHALLOW - POSS TRUNCATED TO A CONSIDERABLE EXTENT.
002CC00852 PIT FILL SUB-CIRCULAR  126 121  16 CONCAVE  FILL OF SHALLOW PIT. OCCA SMALL CHALK INCLUSIONS. TRUNCATED ABOVE.

002CC00869 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00869 No Entry No entry  0 0  0 No entry  DUD.----ONCE THOUGHT TO BE A P.H.-----
002CC00870 No Entry No entry  0 0  0 No entry  DUD.----ONCE THOUGHT TO BE A P.H.-----

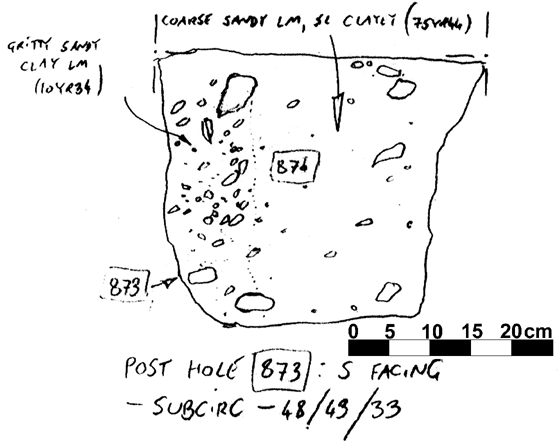

002CC00873 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00873 POST HOLE CUT SUB-CIRCULAR  48 43  33 VERT.SIDE F.BASE  P.H. WITH PROB P. PIPE. IN A N-S. LINE OF P.H.s TO E. OF PIT 247. REGULAR SIDES & BASE. TRUNCATED ABOVE.
002CC00874 POST HOLE FILL SUB-CIRCULAR  48 43  33 VERT.SIDE F.BASE  FREQ SMALL CHALK < 5 CM. E. PART OF FILL PROB REPRESENTS A POST PIPE-------LESS STONE & 75YR44. -- SEE SECTION. TRUNCATED ABOVE.

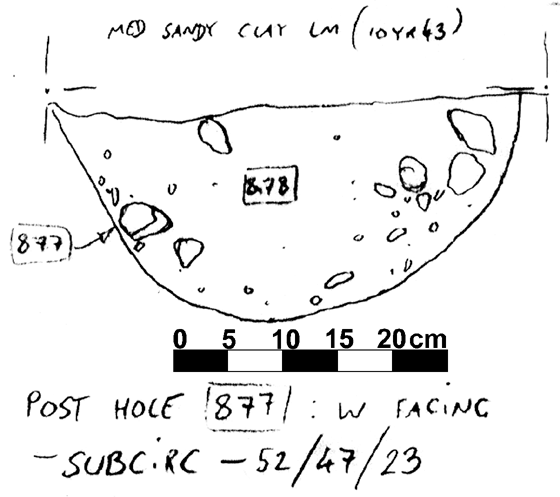

002CC00877 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00877 POST HOLE CUT SUB-CIRCULAR  52 47  23 USHAPED  P.H. IN E-W. LINE OF P.H.s TO E. OF PIT 247. REGULAR SIDES & BASE. TRUNCATED ABOVE.
002CC00878 POST HOLE FILL SUB-CIRCULAR  52 47  23 USHAPED  MOD CHALK < 6 CM THROUGHOUT FILL: BUT CONCENTRATING MAINLY AROUND EDGES & BASE. TRUNCATED ABOVE.

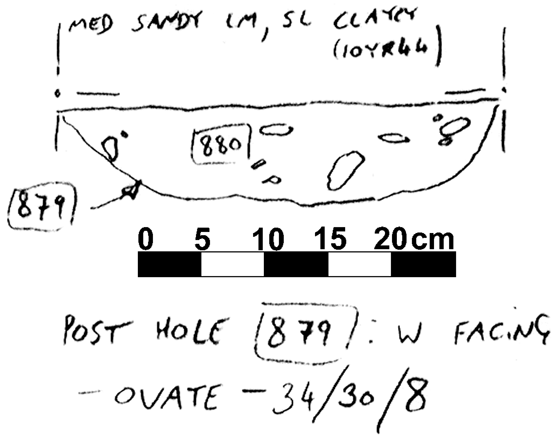

002CC00879 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00879 POST HOLE CUT OVATE  34 30  8 FLAT BASED U  P.H. IN E-W. LINE OF P.H.s TO E. OF PIT 247. V. SHALLOW---HEAVILLY TRUNCATED ABOVE. REGULAR BASE: GENTLY SLOPING EDGES.
002CC00880 POST HOLE FILL OVATE  34 30  8 FLAT BASED U  OCCA CHALK < 4 CM THROUGHOUT FILL. SHALLOW--TRUNCATED ABOVE.

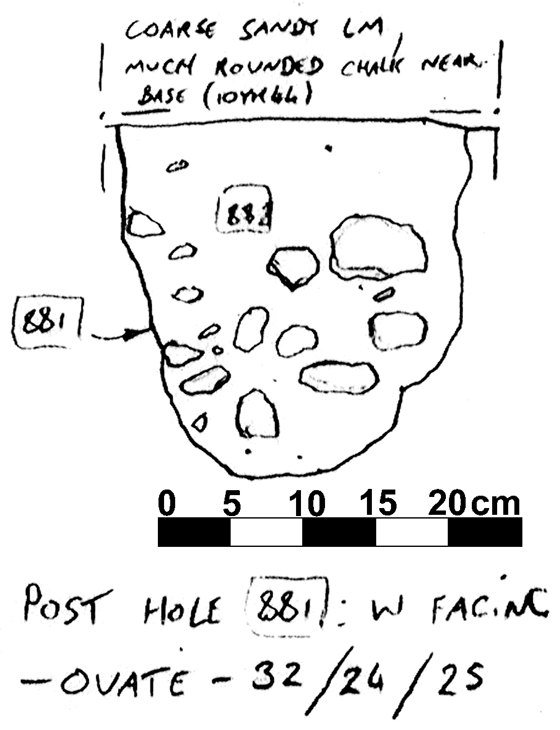

002CC00881 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00881 POST HOLE CUT OVATE  32 24  25 USHAPED  P.H. OF E-W. LINE OF P.H.s TO E. OF PIT 247. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC00882 POST HOLE FILL OVATE  32 24  25 USHAPED  FREQ ROUNDED CHALK < 7 CM. CONCENTRATED MAINLY IN LOWER PART OF FILL. TRUNCATED ABOVE.

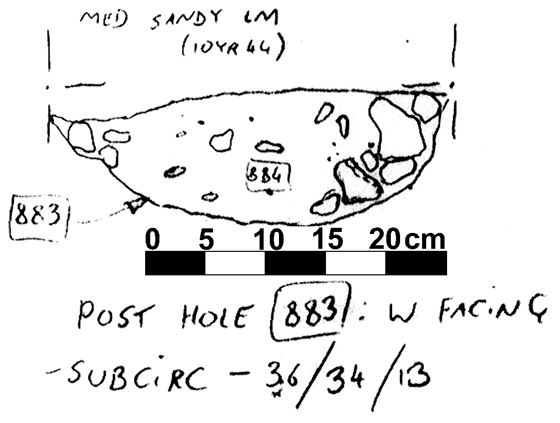

002CC00883 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00883 POST HOLE CUT SUB-CIRCULAR  36 34  13 USHAPED  P.H. IN AN E-W. LINE OF P.H.s TO E. OF PIT 247. TRUNCATED ABOVE. SHALLOW: GENTLE SIDES-ESP ON N. CONCAVE BASE.
002CC00884 POST HOLE FILL SUB-CIRCULAR  36 34  13 USHAPED  MOD CHALK < 5 CM: CONCENTRATED ESP AT S. EDGE. TRUNCATED ABOVE.

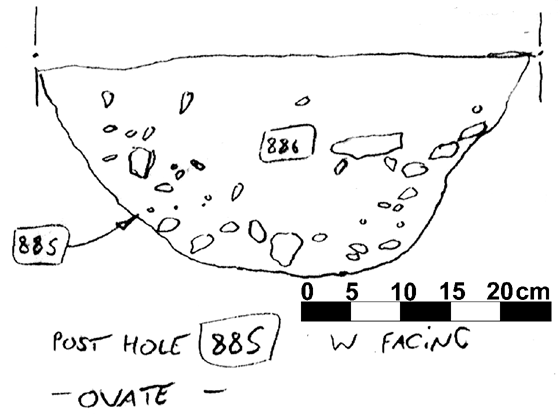

002CC00885 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00885 POST HOLE CUT OVATE  0 0  0 FLAT BASED V  NO DETAILS RECORDED ON SECTION DRAWING !!!! PROB APPROX 45.40.21 P.H. IN LINE OF E-W. P.H.s TO E. OF PIT 247. TRUNCATED ABOVE.
002CC00886 POST HOLE FILL OVATE  0 0  0 FLAT BASED V  NO DETAILS RECORDED ON SECTION DRAWING !!!! PROB APPROX 45.40.21

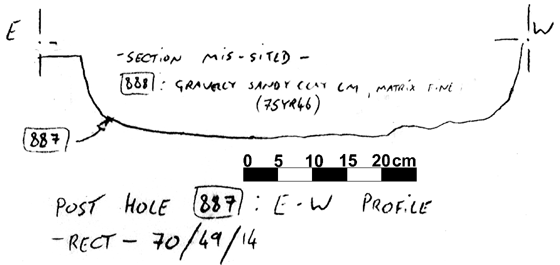

002CC00887 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC00887 POST HOLE CUT RECTANGULAR  70 49  14 WIDE U  P.H. OF E-W. LINE TO E. OF PIT 247. TRUNCATED ABOVE-V.SHALLOW BUT LARGE---POSS NOT A P.H.--TRUNCATED PIT?
002CC00888 POST HOLE FILL RECTANGULAR  70 49  14 WIDE U  NO FURTHER DETAILS RECORDED. TRUNCATED ABOVE.

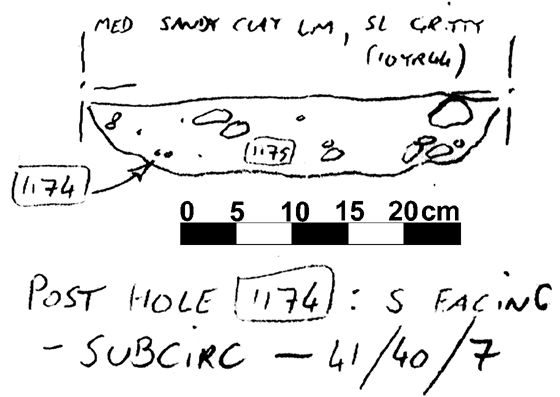

002CC01174 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01174 POST HOLE CUT SUB-CIRCULAR  14 40  7 FLAT BASED U  P.H. OF BLDG M.1710. LITTLE MORE THAN BASE SURVIVES--HEAVILY TRUNCATED ABOVE.
002CC01175 POST HOLE FILL SUB-CIRCULAR  14 40  7 FLAT BASED U  OCCA/MOD CHALK < 3 CM THROUGHOUT FILL. V. SHALLOW--HEAVILY TRUNCATED ABOVE.

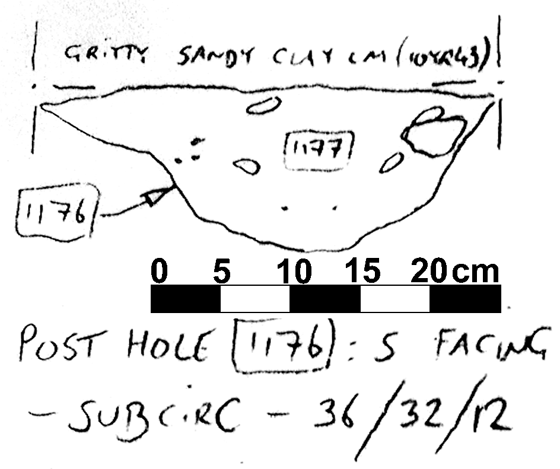

002CC01176 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01176 POST HOLE CUT SUB-CIRCULAR  36 32  12 STEPPED U  P.H. OF BLDG M.1710. TRUNCATED ABOVE. STEP FROM BASE UP TO W. EDGE.
002CC01177 POST HOLE FILL SUB-CIRCULAR  36 32  12 STEPPED U  OCCA CHALK < 3 CM. THROUGHOUT FILL. TRUNCATED ABOVE.

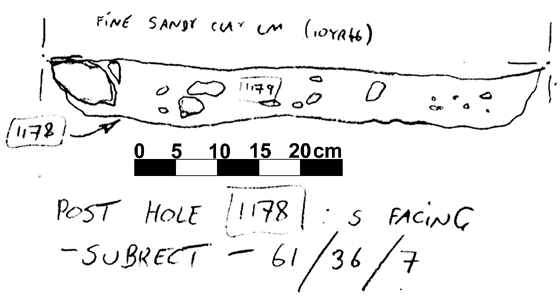

002CC01178 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01178 POST HOLE CUT SUB-RECTANGULAR  61 36  7 CONCAVE  P.H. OF BLDG M. 1710. V. SHALLOW--HEAVILLY TRUNCATED ABOVE. --LITTLE MORE THAN BASE SURVIVING.
002CC01179 POST HOLE FILL SUB-RECTANGULAR  61 36  7 CONCAVE  MOD CHALK < 8 CM THROUGHOUT FILL. V. SHALLOW: TRUNCATED ABOVE.

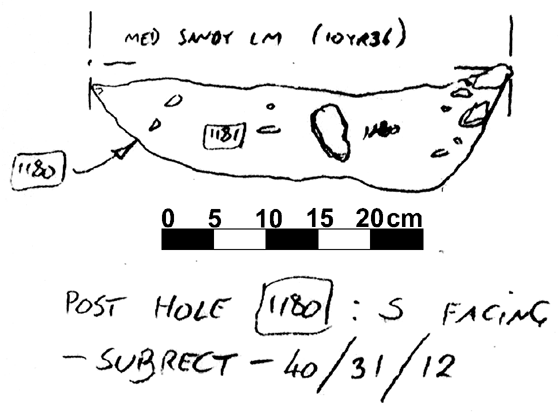

002CC01180 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01180 POST HOLE CUT SUB-RECTANGULAR  40 31  12 FLAT BASED U  P.H. OF BLDG M.1710. REGULAR SIDES & BASE BUT HEAVILLY TRUNCATED.
002CC01181 POST HOLE FILL SUB-RECTANGULAR  40 31  12 FLAT BASED U  MOD CHALK < 5 CM THROUGHOUT FILL. V. SHALLOW--HEAVILLY TRUNCATED ABOVE.

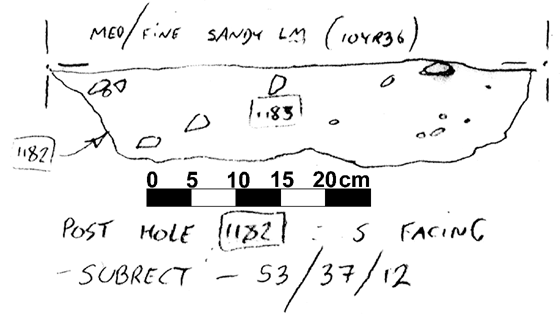

002CC01182 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01182 POST HOLE CUT SUB-RECTANGULAR  53 37  12 FLAT BASED U  P.H. OF BLDG M.1710. V. SHALLOW--HEAVILLY TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CC01183 POST HOLE FILL SUB-RECTANGULAR  53 37  12 FLAT BASED U  OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

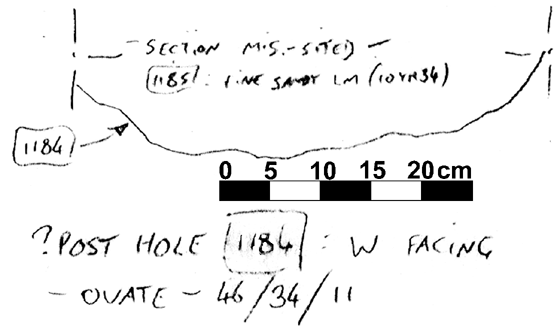

002CC01184 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01184 POST HOLE CUT OVATE  46 34  11 CONCAVE  P.H. OF BLDG M.1710. V. SHALLOW--HEAVILLY TRUNCATED ABOVE. PROB LITTLE MORE THAN BASE SURVIVING.
002CC01185 POST HOLE FILL OVATE  46 34  11 CONCAVE  NO FURTHER DETAILS.

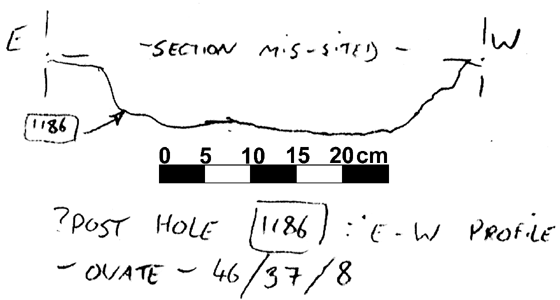

002CC01186 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01186 POST HOLE CUT OVATE  46 37  8 CONCAVE  P.H. OF BLDG M.1710. V. SHALLOW--TRUNCATED ABOVE.---LITTLE MORE THAN BASE SURVIVING.
002CC01187 POST HOLE FILL OVATE  46 37  8 CONCAVE  NO FURTHER DETAILS.

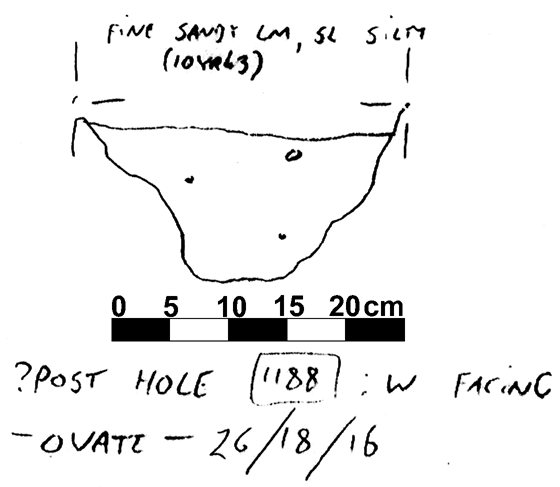

002CC01188 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01188 POST HOLE CUT OVATE  26 18  16 FLAT BASED V  P.H. OF BLDG M.1710. TRUNCATED ABOVE. EDGES & BASE UNEVEN BUT REGULAR.
002CC01189 POST HOLE FILL OVATE  26 18  16 FLAT BASED V  VIRTUALLY NO INCLS. TRUNCATED ABOVE.

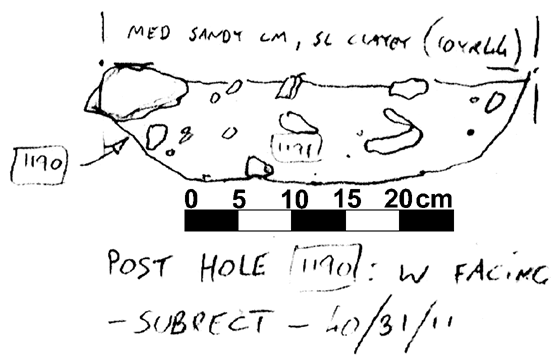

002CC01190 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01190 POST HOLE CUT SUB-RECTANGULAR  40 31  11 FLAT BASED U  P.H. OF BLDG M.1710. TRUNCATED ABOVE. REGULAR BASE: LITTLE OF EDGES SURVIVING.
002CC01191 POST HOLE FILL SUB-RECTANGULAR  40 31  11 FLAT BASED U  FREQ CHALK < 7 CM THROUGHOUT FILL. SHALLOW---TRUNCATED ABOVE.

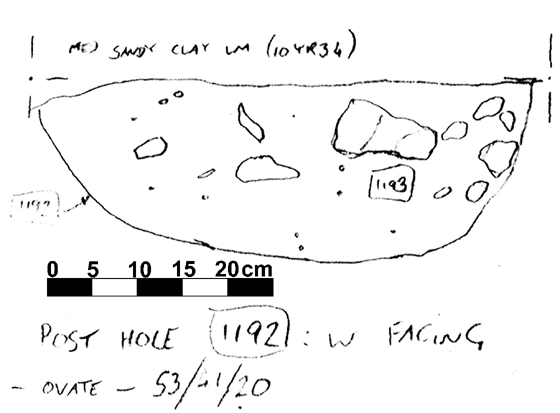

002CC01192 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01192 POST HOLE CUT OVATE  53 41  20 FLAT BASED U  P.H. OF BLDG M.1710. TRUNCATED ABOVE. REGULAR SIDES & BASE--N. EDGE LESS STEEP THAN S.
002CC01193 POST HOLE FILL OVATE  53 41  20 FLAT BASED U  MOD CHALK < 12 CM (MOSTLY SMALLER) THROUGHOUT FILL. TRUNCATED ABOVE.

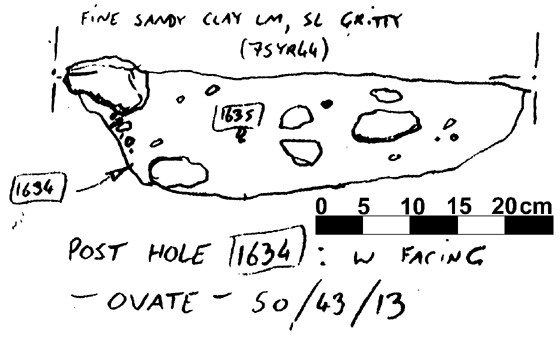

002CC01634 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01634 POST HOLE CUT OVATE  50 43  13 FLAT BASED U  P.H. OF M.1710. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01635 POST HOLE FILL OVATE  50 43  13 FLAT BASED U  MOD/FREQ CHALK < 8 CM THROUGHOUT FILL. TRUNCATEDABOVE.




Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CC00677 AA No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CC00687 AA No Entry  MINERAL FOSSIL BELEMNITE 1
002CC00687 AB No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CC00689 AA No Entry  STONE STONE RED CHALK 1
002CC00695 AA No Entry  STONE STONE RED CHALK 1
002CC00699 AA No Entry  STONE STONE 1
002CC00699 AB No Entry  STONE STONE RED CHALK 1
002CC00852 AA Prehistoric  FLINT FLAKE 1

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CC00689 Sheep/goat M/C C 1 1 0 0 1
002CC00852 Cattle N. Cuboid  1 1 0 0 0
