002CC01679

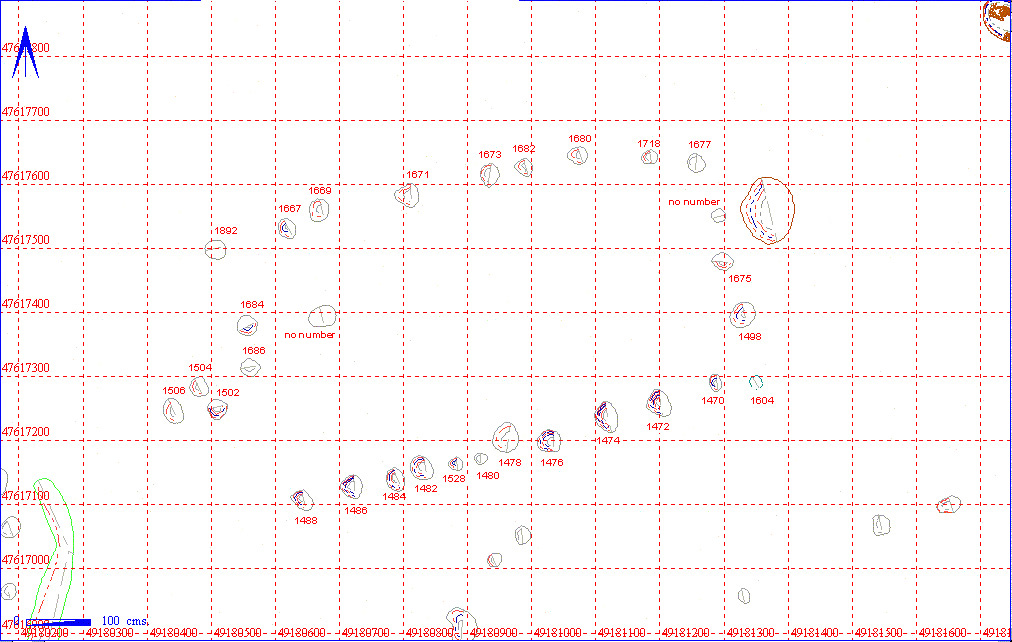

Post Hole Structure

Post-Hole Structure Details
Length 720 Width 370
Area  26.64 sq.m. Ratio 2:1
Number of Posts 30 Deepest 34
002CC01472
 Shallowest
5
002CC01483
Average Depth
16
N Wall 7 Posts Average Depth 13
E Wall 5 Posts Average Depth 13
S Wall 10 Posts Average Depth 21
W Wall 4 Posts Average Depth 12
Interior Divisions: Possible 1 post central western end
Highest Elevation Value  5144 002CC01484
Lowest Elevation Value 5078 002CC01718
Bearing  71 degrees
Plank\Post Post
Doorways Uncertain, though they may be centrally opposed in long walls.
Repairs:
Structural Class
Material Culture Number of Objects 3  Number of Animal Bones 0
Environmental

Phasing

Discussion

A large, rectangular structure in the northern-most part of the area, aligned ENE/WSW. The position of the doors is uncertain, most likely there were two entrances centrally opposed in the long walls. One internal post-hole may have formed the support of the internal wall of a partition, this seems likely as the width of the partition, 1.00m, would be typical of partitions elsewhere on the site. The post holes of the southern wall are far more substantial than those in the northern wall. It is possible that this structure also had an open west end (see also 002CC01433). The function of a group of three post holes to the west is unknown.

All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME OBJECTS AN BONE DENSITY
002CC01679 002CC01470 002CC01471
002CC01472 002CC01473 1
002CC01474 002CC01475
002CC01476 002CC01477
002CC01478 002CC01479
002CC01480 002CC01481
002CC01482 002CC01483
002CC01484 002CC01485
002CC01486 002CC01487
002CC01488 002CC01489
002CC01498 002CC01499
002CC01502 002CC01503
002CC01504 002CC01505
002CC01506 002CC01507
002CC01528 002CC01529
002CC01667 002CC01668
002CC01669 002CC01670
002CC01671 002CC01672
002CC01673 002CC01674
002CC01675 002CC01676 1
002CC01677 002CC01678
002CC01680 002CC01681
002CC01682 002CC01683
002CC01684 002CC01685 1
002CC01686 002CC01687
002CC01688 002CC01689
002CC01718 002CC01719
002CC01892 002CC01893



Structural Details

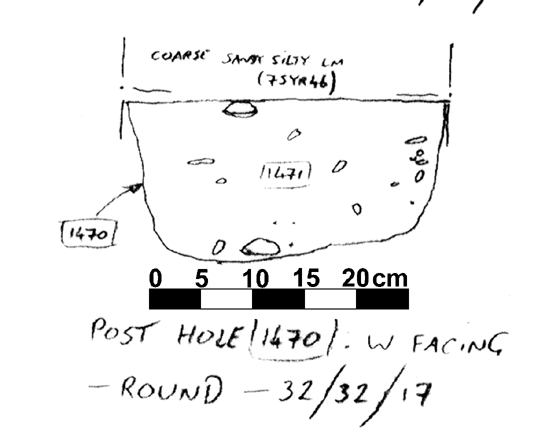

002CC01470 Section and Notes

KEY_ID TYPE SHAPE  L B  D PROFILE  NOTES
002CC01470 POST HOLE CUT ROUND  32 32  17 FLAT BASED U  P.H ON N. SIDE BLDG M.1679. TRUNCATED ABOVE. SMALL. REGULAR SIDES & BASE.
002CC01471 POST HOLE FILL ROUND  32 32  17 FLAT BASED U  P.H. ON S. SIDE OF BLDG M.1679. MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

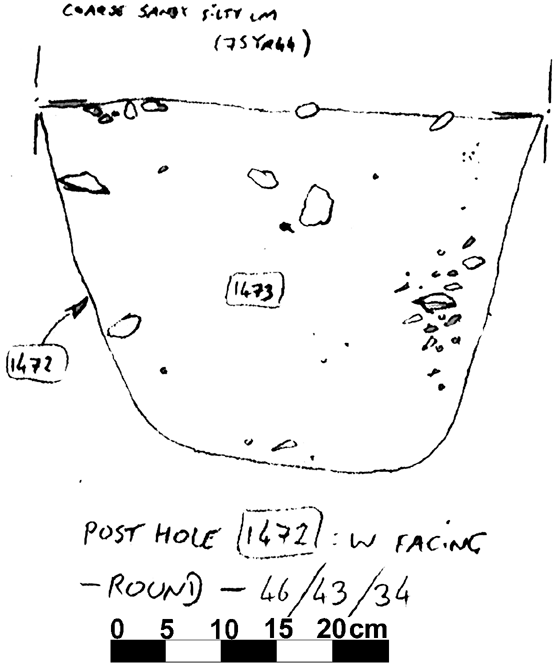

002CC01472 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01472 POST HOLE CUT ROUND  46 43  34 FLAT BASED U  P.H. OF BLDG M.1679.--ON S. SIDE. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01473 POST HOLE FILL ROUND  46 43  34 FLAT BASED U  OCCA CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

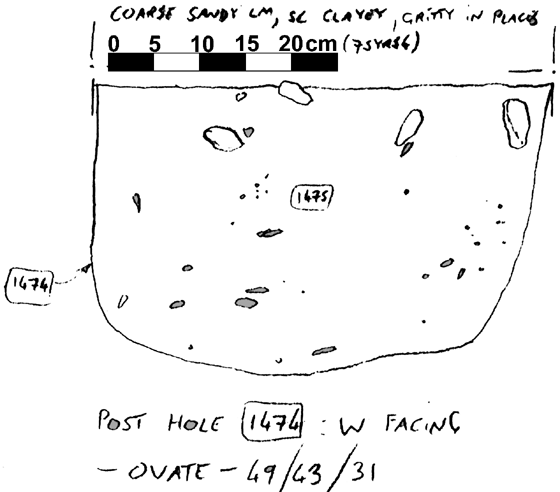

002CC01474 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01474 POST HOLE CUT OVATE  49 43  31 FLAT BASED U  P.H. ON S. SIDE BLDG M.1679. LARGE: TRUNCATED ABOVE: REGULAR SIDES & BASE.
002CC01475 POST HOLE FILL OVATE  49 43  31 FLAT BASED U  OCCA CHALK THROUGHOUT FILL: < 4 CM.: LARGEST TENDING TOWARDS UPPER PART OF FILL. TRUNCATED ABOVE.

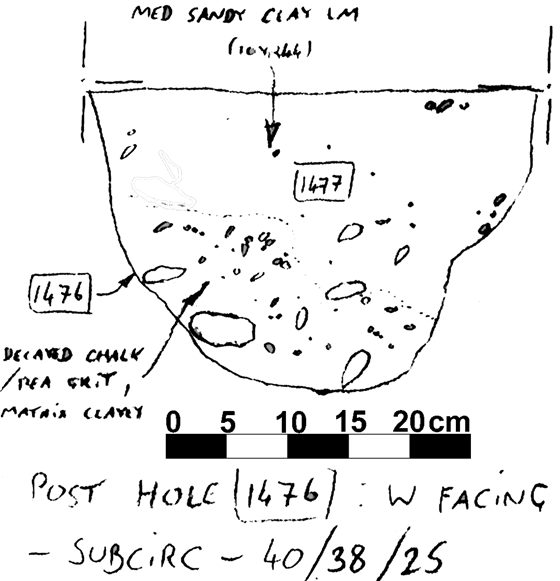

002CC01476 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01476 POST HOLE CUT SUB-CIRCULAR  40 38  25 STEPPED U  P.H. ON S. SIDE BLDG M.1679. TRUNCATED ABOVE. REGULAR BASE WITH SLIGHT STEPS TO EDGES.
002CC01477 POST HOLE FILL SUB-CIRCULAR  40 38  25 STEPPED U  OCCA/MOD CHALK < 6 CM. THROUGHOUT FILL: MORE TOWARDS BASE. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

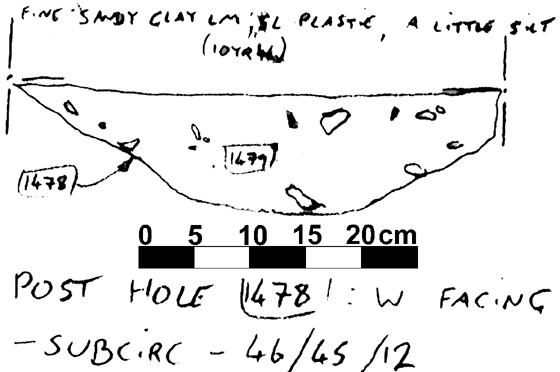

002CC01478 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01478 POST HOLE CUT SUB-CIRCULAR  46 45  12 STEPPED U  P.H. ON S. SIDE BLDG M.1679. TRUNCATED ABOVE: SHALLOW WITH STEPPED EDGES & CONCAVE BASE.
002CC01479 POST HOLE FILL SUB-CIRCULAR  46 45  12 STEPPED U  SL SILTY: OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE. SHALLOW.

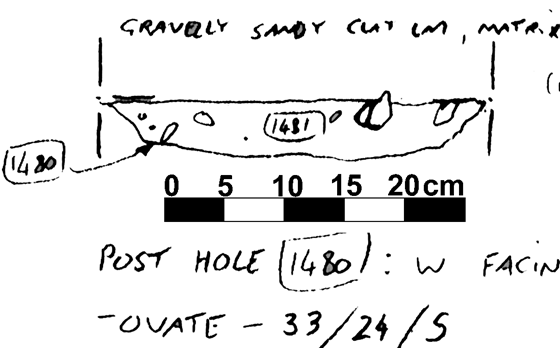

002CC01480 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01480 POST HOLE CUT OVATE  33 24  5 CONCAVE  P.H. Nr M. 1679 ? V. SHALLOW: TRUNCATED ABOVE.
002CC01481 POST HOLE FILL OVATE  33 24  5 CONCAVE  V. SHALLOW: HEAVILLY TRUNCATEDABOVE. SL SILTY: MOD CHALK < 3 CM THROUGHOUT FILL.

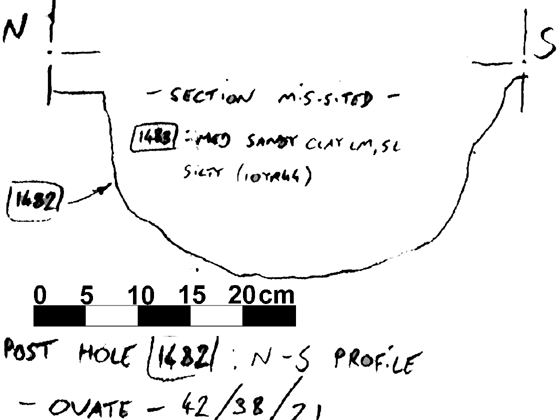

002CC01482 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01482 POST HOLE CUT OVATE  42 38  21 USHAPED  P.H. ON S. SIDE BLDG M.1679. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CC01483 POST HOLE FILL OVATE  42 38  21 USHAPED  SL SILTY---NO FURTHER DETAILS.

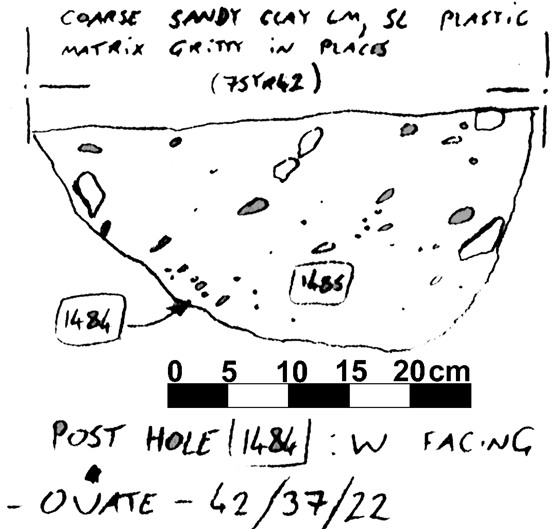

002CC01484 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01484 POST HOLE CUT OVATE  42 37  22 USHAPED  P.H. ON S. SIDE BLDG M.1679. TRUNCATED ABOVE. REGULAR BASE: S. EDGE STEEPER THAN N.
002CC01485 POST HOLE FILL OVATE  42 37  22 USHAPED  MOD CHALK < 4 CM THROUGHOUT FILL. SL GRITTY. TRUNCATED ABOVE.

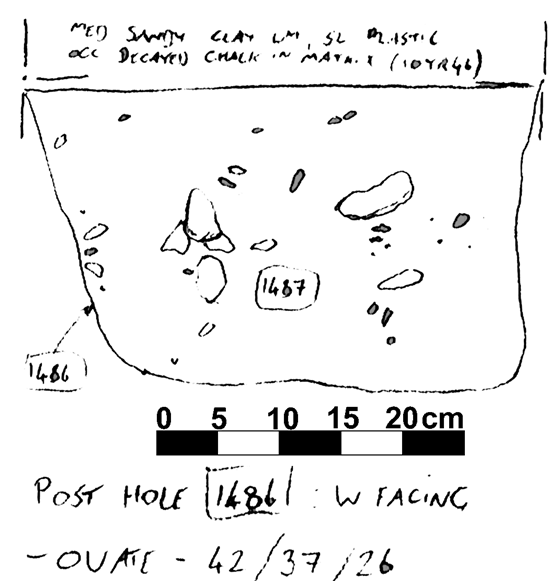

002CC01486 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01486 POST HOLE CUT OVATE  42 37  26 VERT.SIDE F.BASE  P.H. ON S. SIDE BLDG M.1679. TRUNCATED ABOVE. FLAT BASE: SIDES Nr VERTICAL.
002CC01487 POST HOLE FILL OVATE  42 37  26 VERT.SIDE F.BASE  MOD CHALK (SOME DECAYED) < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

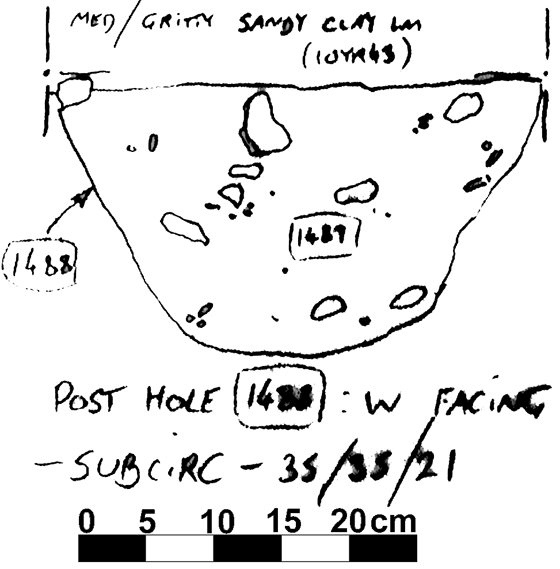

002CC01488 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01488 POST HOLE CUT SUB-CIRCULAR  35 35  21 USHAPED  P.H. AT S.W. CORNER OF BLDG M.1679. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01489 POST HOLE FILL SUB-CIRCULAR  35 35  21 USHAPED  MOD/FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

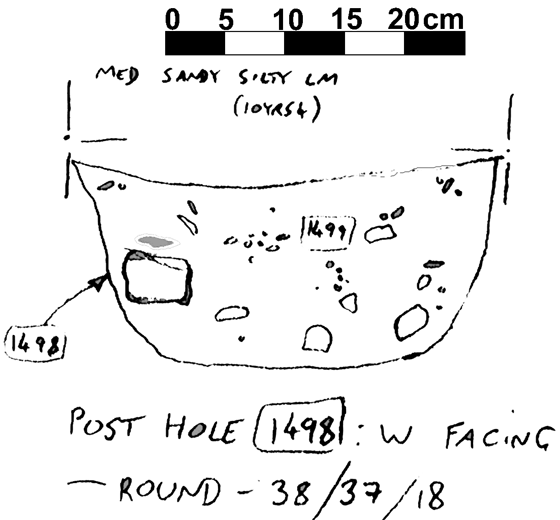

002CC01498 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01498 POST HOLE CUT ROUND  38 37  18 FLAT BASED U  LARGE P.H. AT E. END OF BLDG M.1679. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01499 POST HOLE FILL ROUND  38 37  18 FLAT BASED U  FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE.

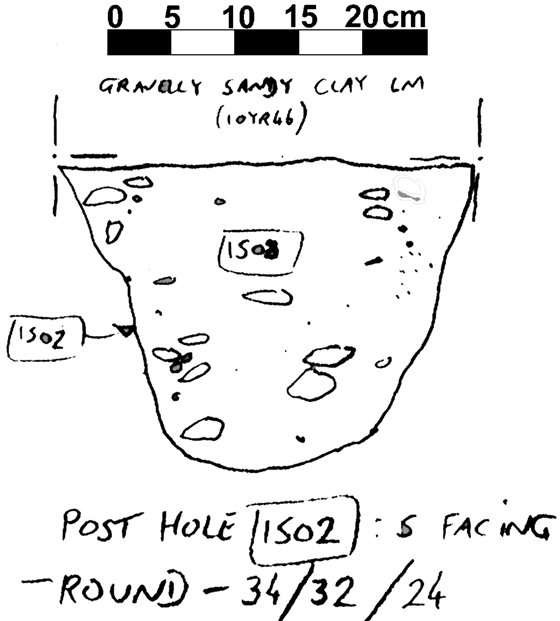

002CC01502 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01502 POST HOLE CUT ROUND  34 32  24 USHAPED  P.H AT W. END OF BLDG M.1679. TRUNCATED ABOVE. REGULAR BASE: EDGES V. SLIGHTLY STEPPED.
002CC01503 POST HOLE FILL ROUND  34 32  24 USHAPED  MOD/FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

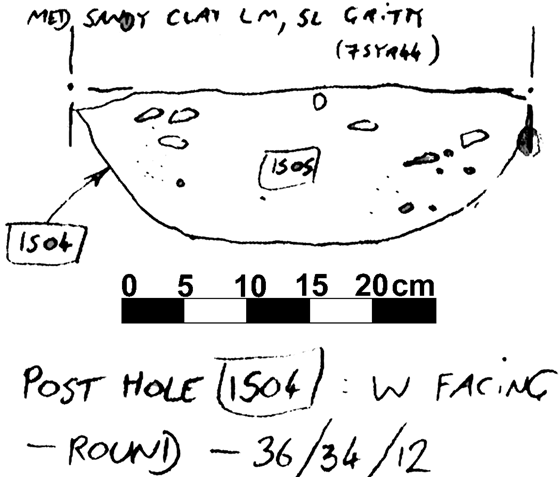

002CC01504 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01504 POST HOLE CUT ROUND  36 34  12 USHAPED  P.H. AT W. END OF BLDG M.1679. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CC01505 POST HOLE FILL ROUND  36 34  12 USHAPED  OCCA CHALK < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

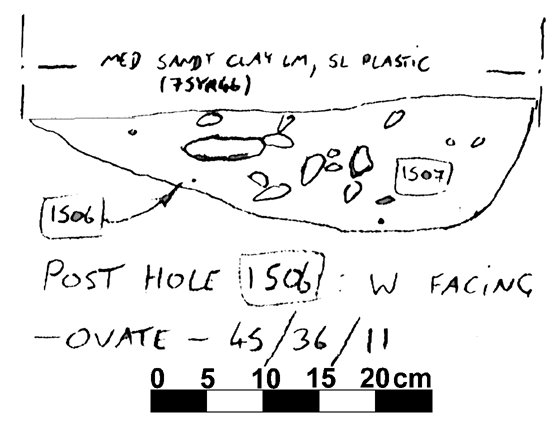

002CC01506 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01506 POST HOLE CUT OVATE  45 36  11 CONCAVE  P.H. AT W. END OF BLDG M.1679. SHALLOW--TRUNCATED ABOVE. N. EDGE DOES NOT SURVIVE: BASE SLOPES DOWN FROM N. TO S.
002CC01507 POST HOLE FILL OVATE  45 36  11 CONCAVE  MOD/FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

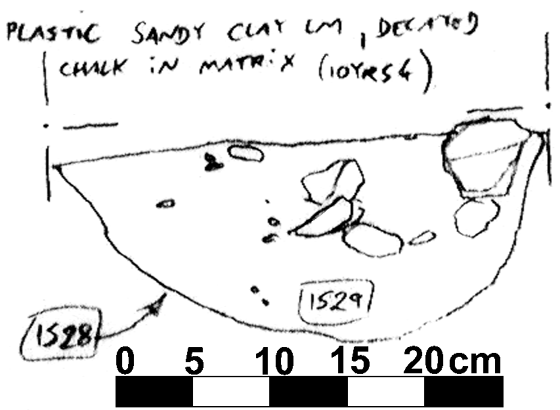

002CC01528 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01528 POST HOLE CUT SUB-CIRCULAR  32 29  15 USHAPED  P.H. ON S. SIDE BLDG M.1679. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01529 POST HOLE FILL SUB-CIRCULAR  32 29  15 USHAPED  MOD/FREQ CHALK < 7 CM THROUGHOUT FILL. --SOME DECAYED. TRUNCATED ABOVE.

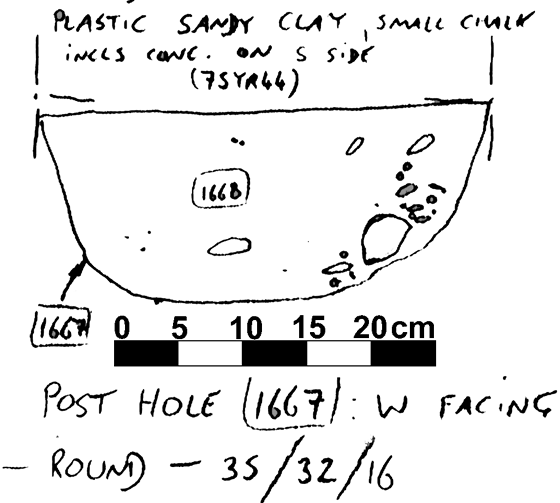

002CC01667 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01667 POST HOLE CUT ROUND  35 32  16 USHAPED  P.H. ON N. SIDE OF BLDG M.1679. TRUNCATED ABOVE . REGULAR SIDES & BASE.
002CC01668 POST HOLE FILL ROUND  35 32  16 USHAPED  OCCA CHALK < 4 CM NEARLY ALL ON S. SIDE OF FILL. TRUNCATED ABOVE.

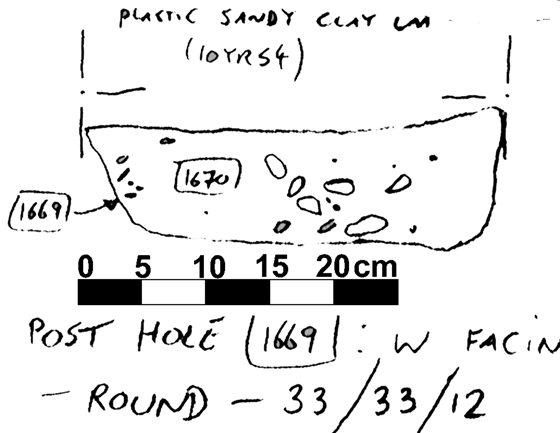

002CC01669 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01668 POST HOLE FILL ROUND  35 32  16 USHAPED  OCCA CHALK < 4 CM NEARLY ALL ON S. SIDE OF FILL. TRUNCATED ABOVE.
002CC01669 POST HOLE CUT ROUND  33 33  12 FLAT BASED U  P.H. ON N. SIDE OF BLDG M.1679. TRUNCATED ABOVE: QUITE SHALLOW. REGULAR SIDES & BASE.

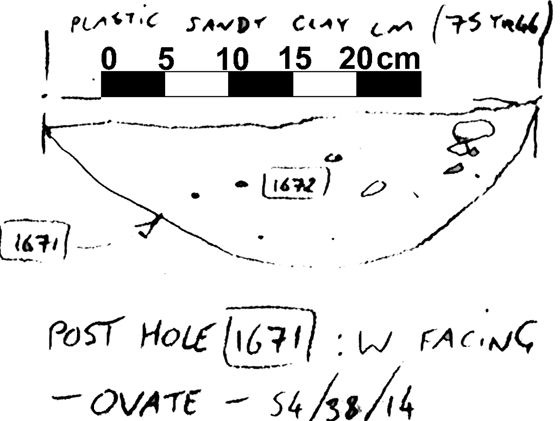

002CC01671 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01671 POST HOLE CUT OVATE  54 38  14 USHAPED  P.H. ON N. SIDE OF BLDG M.1679. EDGES MERGE INTO BASE--CLEARLY TRUNCATED ABOVE.
002CC01672 POST HOLE FILL OVATE  54 38  14 USHAPED  FILL LOOKS V. INCL FREE: A FEW PEBBLE INCLS < 2-3 CM. TRUNCATEDABOVE.

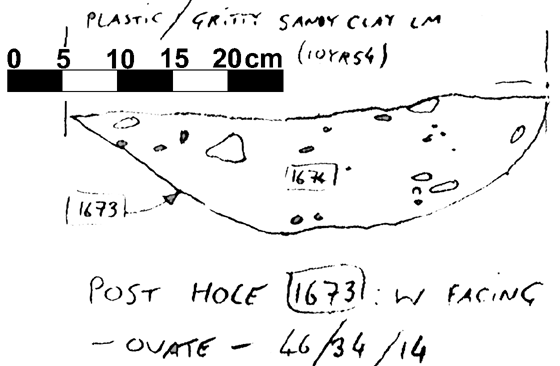

002CC01673 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01673 POST HOLE CUT OVATE  46 34  14 USHAPED  P.H. ON N. SIDE OF BLDG M.1679. TRUNCATED ABOVE: EDGES MERGE INTO BASE--SHALLOWISH.
002CC01674 POST HOLE FILL OVATE  46 34  14 USHAPED  OCCA CHALK < 4 CM THROUGHOUT FILL.: SL PLASTIC. TRUNCATED ABOVE.

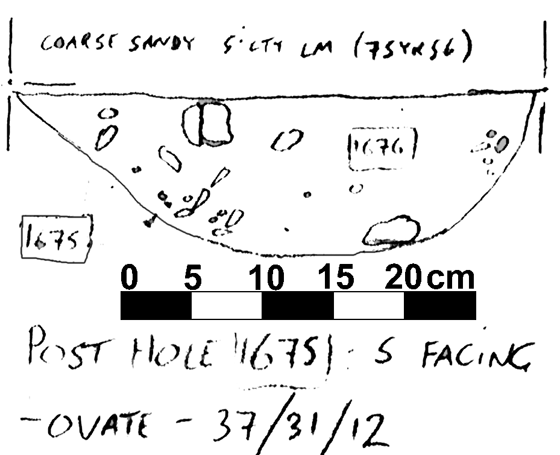

002CC01675 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01675 POST HOLE CUT OVATE  37 31  12 USHAPED  P.H. AT E. END OF BLDG M.1679. TRUNCATED ABOVE. GENTLY SLOPING EDGES MERGE INTO BASE.
002CC01676 POST HOLE FILL OVATE  37 31  12 USHAPED  MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

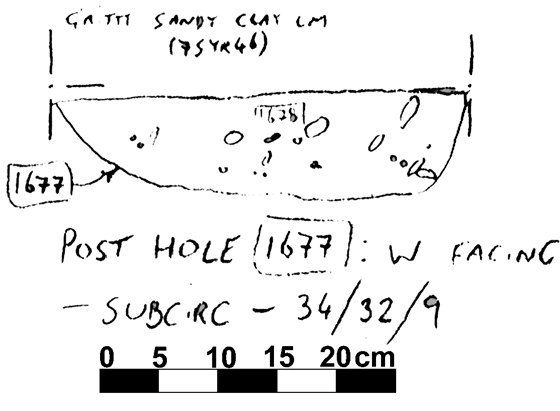

002CC01677 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01677 POST HOLE CUT SUB-CIRCULAR  34 32  9 FLAT BASED U  P.H. AT N.E. CORNER OF BLDG M.1679. TRUNCATED ABOVE. REGULAR BASE. N. EDGE LESS STEEP THAN S.
002CC01678 POST HOLE FILL SUB-CIRCULAR  34 32  9 FLAT BASED U  OCCA CHALK < 3 CM THROUGHOUT FILL. SHALLOWISH--TRUNCATED ABOVE.

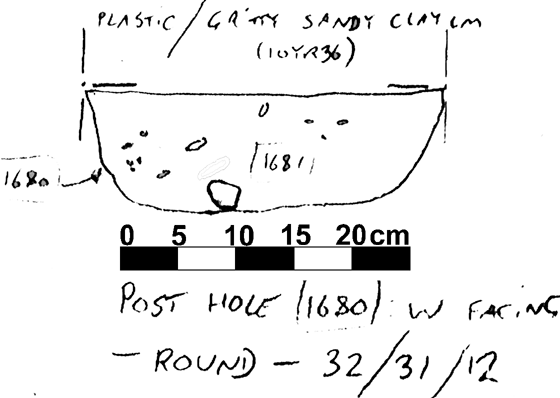

002CC01680 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01680 POST HOLE CUT ROUND  32 31  12 FLAT BASED U  P.H. ON N. SIDE BLDG M.1679. TRUNCATED ABOVE: REGULAR EDGES & BASE.
002CC01681 POST HOLE FILL ROUND  32 31  12 FLAT BASED U  SL PLASTIC: OCCA STONE < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

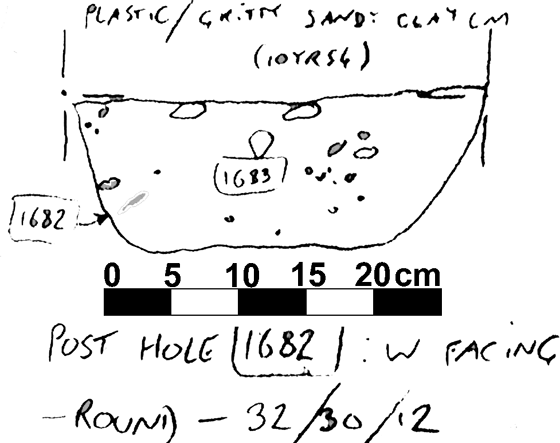

002CC01682 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01682 POST HOLE CUT ROUND  32 30  12 FLAT BASED U  P.H. ON N. SIDE OF BLDG M.1679. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01683 POST HOLE FILL ROUND  32 30  12 FLAT BASED U  SL PLASTIC. OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

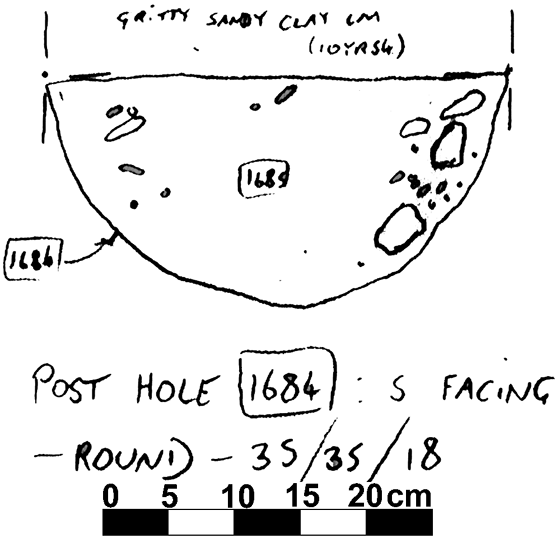

002CC01684 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01684 POST HOLE CUT ROUND  35 35  18 USHAPED  P.H. AT W. END OF BLDG M.1679. TRUNCATED ABOVE: REGULAR SIDES & BASE.
002CC01685 POST HOLE FILL ROUND  35 35  18 USHAPED  OCCA CHALK : CONCENTRATED MOSTLY AGAINST E. EDGE. TRUNCATED ABOVE.

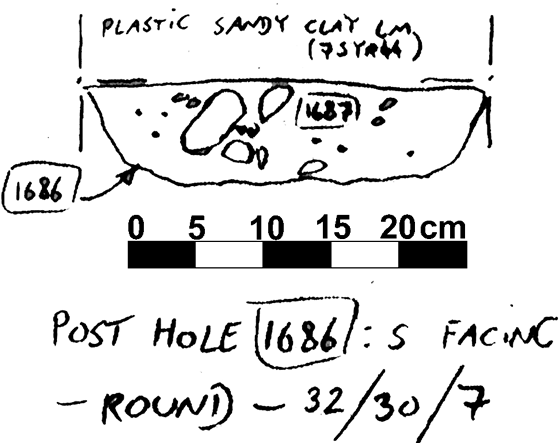

002CC01686 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01686 POST HOLE CUT ROUND  32 30  7 FLAT BASED U  P.H. AT W. END OF BLDG M.1679. TRUNCATED ABOVE--SHALLOW. REGULAR SIDES & BASE.
002CC01687 POST HOLE FILL ROUND  32 30  7 FLAT BASED U  MOD/FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CC01688 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01688 POST HOLE CUT SUB-RECTANGULAR  34 26  17 USHAPED  P.H. AT S.W. CORNER OF BLDG M.1679. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CC01689 POST HOLE FILL SUB-RECTANGULAR  34 26  17 USHAPED  OCCA/MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

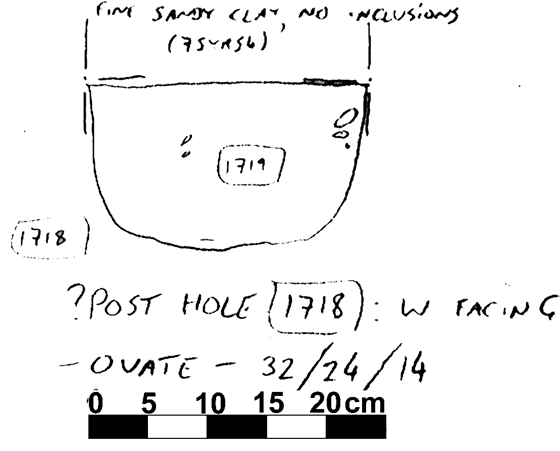

002CC01718 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01718 POST HOLE CUT OVATE  32 24  14 USHAPED  VIRTUALLY NO INCLS. POSS EVEN A SOLN HOLE. REGULAR SIDES & BASE: TRUNCATED ABOVE.
002CC01719 POST HOLE FILL OVATE  32 24  14 USHAPED  VIRTUALLY NO INCLS. POSS EVEN A SOLN HOLE.

002CC01892 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CC01892 POST HOLE CUT ROUND  34 34 13 USHAPED  NUMBER ISSUED TO NW CORNER POST IN STRUCTURE M1679. ISSUED IN 1997 AFTER THE DISCOVERY THAT THE NUMBER HAD BEEN ISSUED TO TWO FEATURES. NO FINDS.
002CC01893 POST HOLE FILL ROUND  34 34 13 USHAPED  NUMBER ISSUED TO NW CORNER POST IN STRUCTURE M1679. ISSUED IN 1997 AFTER THE DISCOVERY THAT THE NUMBER HAD BEEN ISSUED TO TWO FEATURES. NO FINDS.

Objects By Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
002CC01685 AA No Entry CHARCOAL  CHARCOAL SAMPLE 1
002CC01473 AA No Entry POTTERY  SHERD 1
002CC01676 AA No Entry POTTERY  SHERD 1
