002CB07033

Post Hole Structure



Post-Hole Structure Details
Length  Unknown Width 335
Area  Unknown Ratio Unknown
Number of Posts  9 excavated Deepest  31 002CB02113 Shallowest 8 002CB02117
Average Depth
 17
North Wall  Unknown Average Depth  13 (four excavated)
East Wall  Unknown Average Depth  Unknown
South Wall  Unknown Average Depth  16.5 (two excavated)
West Wall  3 Posts Average Depth  23
Interior Divisions:
Highest Elevation Value  5256 002CB02117
Lowest Elevation Value  5224 002CB02111 and 2CB02115
Bearing  72 degrees
Plank\Post  Post
Doorways Unknown.
Repairs:
Structural Class
Material Culture  Number of Objects 1  Number of Animal Bones 0
Environmental

Phasing

Discussion

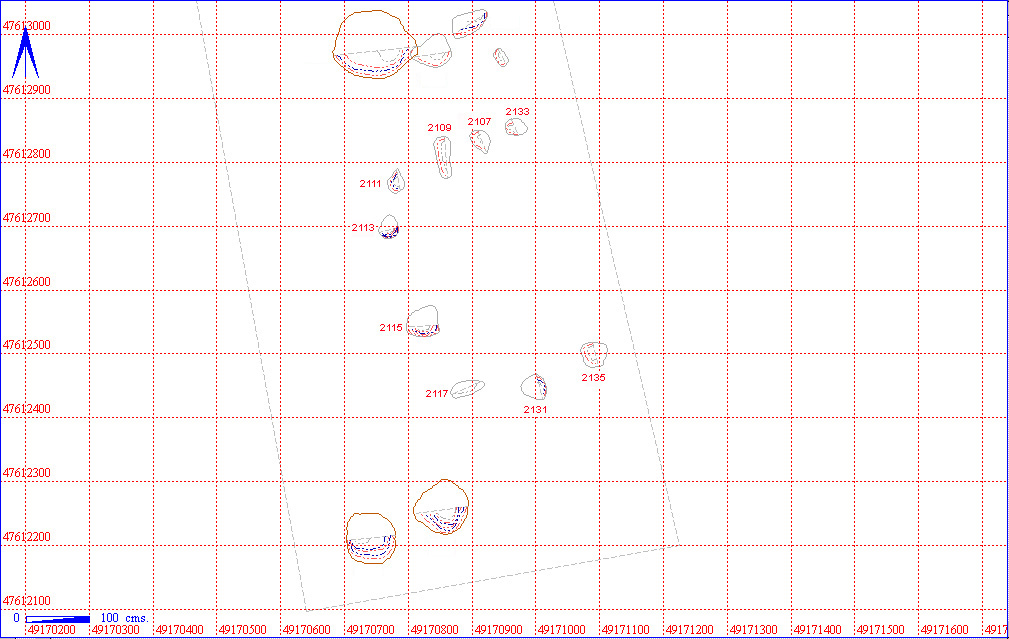

A possible structure partially excavated by trench on the eastern side of the area. The two post holes on the eastern side nearest the side of the trench (2CB02133 and 2CB02135) in context record as possible duds. The structure revealed was aligned NE/SW and was presumably rectangular in shape. Typically, no corner post-holes were detected during excavation. The post-holes measured from 0.20m to 0.40m in diameter.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CB07033 002CB02107  002CB02108
002CB02109  002CB02110
002CB02111  002CB02112
002CB02113  002CB02114
002CB02115  002CB02116
002CB02117  002CB02118
002CB02131  002CB02132 1
002CB02133  002CB02134
002CB02135  002CB02136

Structural Details

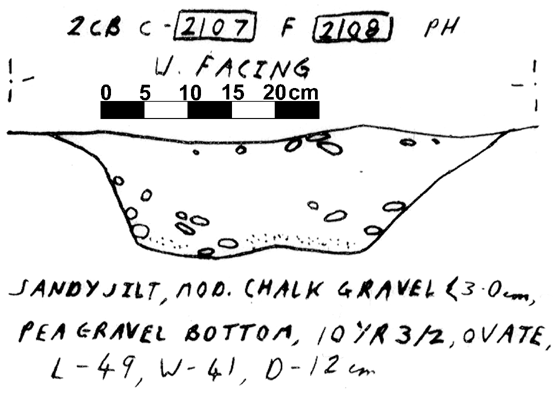

002CB02107 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02107  POST HOLE CUT OVATE  49 41  12 FLAT BASED U  P.H. IN BOX TO N. OF GRUB M1324. TRUNCATED ABOVE. UNDULATING BASE/
002CB02108  POST HOLE FILL OVATE  49 41  12 FLAT BASED U  MOD CHALK GRAVEL < 3 CM THROUGHOUT FILL. PEA GRIT Nr BASE. TRUNCATED ABOVE.

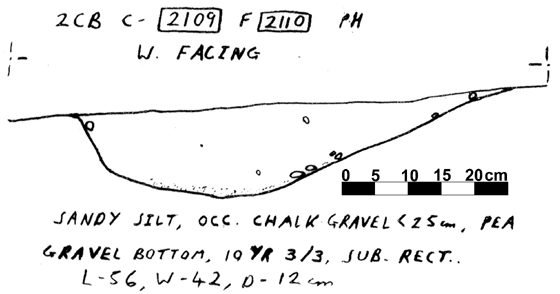

002CB02109 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02109  POST HOLE CUT SUB-RECTANGULAR  56 42  12 CONCAVE  P.H. IN BOX 10 M TO N. OF GRUB M1324. TRUNCATED ABOVE. REGULAR BASE: STEEP N. EDGE: V. GENTLE S. EDGE.
002CB02110  POST HOLE FILL SUB-RECTANGULAR  56 42  12 CONCAVE  OCCA CHALK GRAVEL < 2 CM THROUGHOUT: PEA GRIT Nr BASE. TRUNCATED ABOVE.

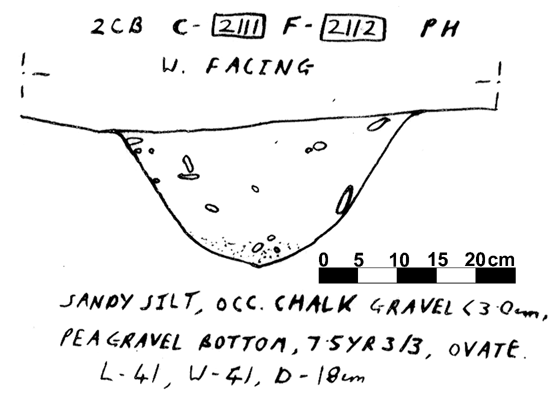

002CB02111 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02111  POST HOLE CUT OVATE  41 41  18 USHAPED  P.H. IN BOX 10 M TO N. OF GRUB M1324. TRUNCATED ABOVE. REGULAR PLAN/PROFILE.
002CB02112  POST HOLE FILL OVATE  41 41  18 USHAPED  OCCA CHALK GRAVEL < 3 CM THROUGHOUT FILL. PEA GRIT AT BASE. TRUNCATED ABOVE.

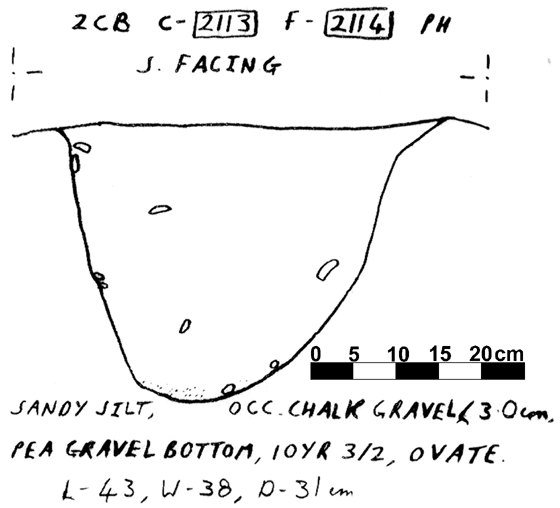

002CB02113 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02113  POST HOLE CUT OVATE  43 38  31 USHAPED  P.H. IN BOX 10m TO N. OF GRUB M1324. TRUNCATED ABOVE. REGULAR PLAN/PROFILE.
002CB02114  POST HOLE FILL OVATE  43 38  31 USHAPED  OCCA CHALK GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE. PEA GRIT AT BASE.

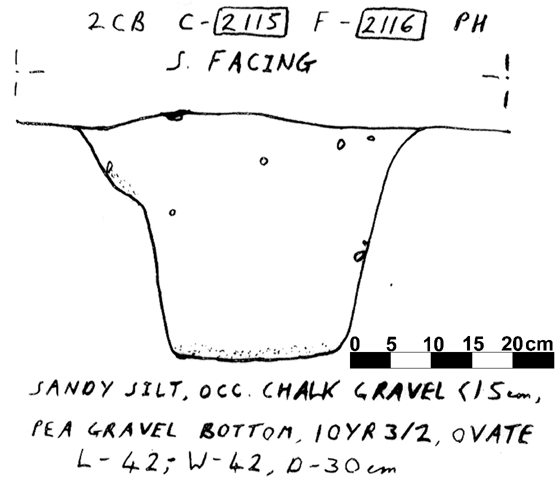

002CB02115 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02115  POST HOLE CUT OVATE  42 42  30 VERT.SIDE F.BASE  P.H. IN BOX 10m TO N. OF GRUB M1324. TRUNCATED ABOVE. REGULAR PLAN: EDGES SPLAY OUTWARD Nr SURFACE - OTHERWISE PROFILE REGULAR.
002CB02116  POST HOLE FILL OVATE  42 42  30 VERT.SIDE F.BASE  OCCA CHALK GRAVEL < 1.5 CM. PEA GRIT AT BASE. TRUNCATED ABOVE.

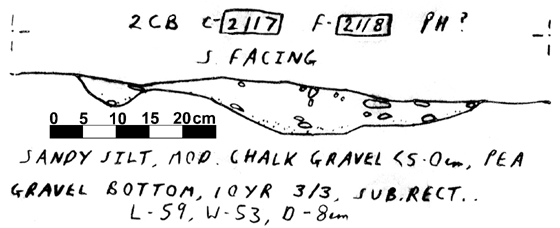

002CB02117 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02117  POST HOLE CUT SUB-RECTANGULAR  59 53  8 CONCAVE  P.H. IN BOX 10m TO N. OF GRUB M1324. TRUNCATED ABOVE. REGULAR PLAN: NO EDGES SURVIVING-BASE UNDULATES.
002CB02118  POST HOLE FILL SUB-RECTANGULAR  59 53  8 CONCAVE  MOD GRAVEL < 5 CM THROUGHOUT FILL. PEA GRIT Nr BASE. TRUNCATED ABOVE--V. SHALLOW.

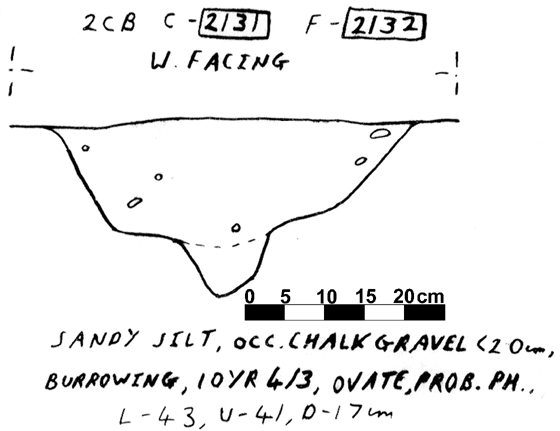

002CB02131 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02131  POST HOLE CUT OVATE  43 41  17 USHAPED  P.H. IN BOX 10m TO N. OF GRUB M1324. TRUNCATED ABOVE. REGULAR PLAN/PROFILE.
002CB02132  POST HOLE FILL OVATE  43 41  17 USHAPED  OCCA CHALK GRAVEL < 2 CM THROUGHOUT FILL. BURROWING IN EVIDENCE AT BASE.

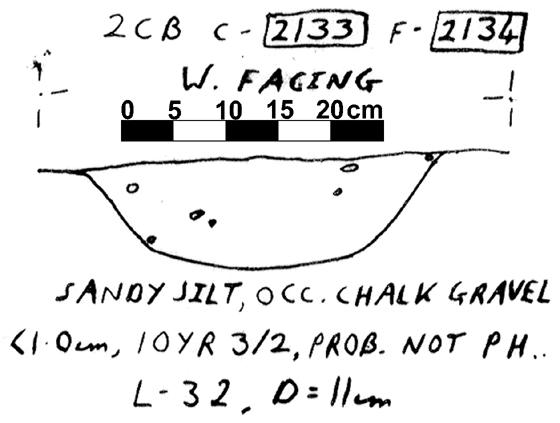

002CB02133 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02133  POST HOLE CUT No entry  32 0  11 USHAPED  P.H. IN BOX TO W. OF SPOIL HEAP. TRUNCATED ABOVE. REGULAR PROFILE.----POSS NOT A P.H.
002CB02134  POST HOLE FILL No entry  32 0  11 USHAPED  OCCA CHALK GRAVEL < 1 CM THROUGHOUT FILL. TRUNCATED ABOVE. POSS NOT A P.H.

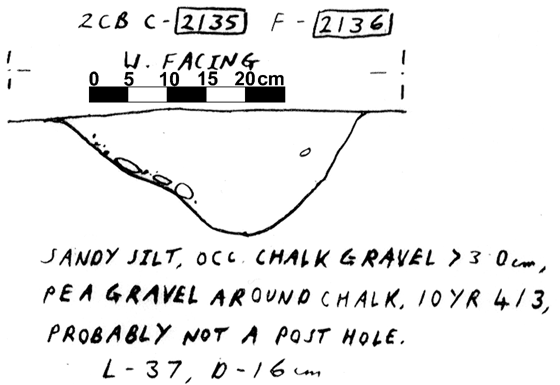

002CB02135 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02135  POST HOLE CUT No entry  37 0  16 VSHAPED  P.H. IN BOX TO W. OF SPOIL HEAP. TRUNCATED ABOVE--REGULAR PROFILE. POSS NOT A P.H.
002CB02136  POST HOLE FILL No entry  37 0  16 VSHAPED  OCCA CHALK GRAVEL < 3 CM -- AGAINST N. EDGE. PEA GRIT. TRUNCATED ABOVE----------PROB NOT A P.H.

Objects by Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CB01232 AA No Entry  SNAIL SNAIL SAMPLE 1
