002CB02582

Grubenhaus



Grubenhaus Details
Length 391 Width 330  Depth 32  Ratio 1.2:1
Area  10.57 sq m Volume
Number of Posts  3
Highest Elevation Value  5113
Lowest Elevation Value  5081
Bearing  77.6 degrees
Structural Class
Material Culture  Number of Objects 62 Number of Animal Bones 52
Environmental


Phasing

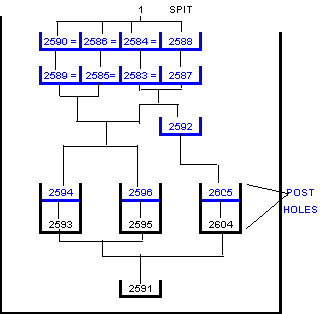

Stratigraphic Matrix Diagram

Discussion

This Grubenhaus is possibly the result of two separate events, with the position of a third post hole indicating a possible repair, or more likely a rebuilding of the Grubenhaus on a slightly different alignment.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002CB02582  002CB02591 002CB002583 26  17 + 9
002CB002584  15  14
002CB002585  0 2
002CB002586  0 0
002CB002587  6  0
002CB002588  6  0
002CB002589  5  5
002CB002590  4  5
002CB002592  0 0
POST HOLE 002CB002593  002CB002594 0  0
POST HOLE 002CB002595  002CB002596 0  0
POST HOLE 002CB002604  002CB002605 0  0

Object Totals by Material

002CB002583 Object Totals by Material

002CB02583 Bronze  1
Pottery  17 of which Saxon  9 Roman 7  Not Assigned 1
Slag  1
Stone 5
Unfired Clay 1
Worked Bone  1

002CB002584 Object Totals by Material

002CB02584 Amber 1
Charcoal  1
Flint  1
Pottery  7 of which Saxon  4 Roman 2  Neolithic 1
Stone  2
Unfired Clay 1
Worked Bone  2

002CB002587 Object Totals by Material

002CB02587 Pottery  4 of which Saxon  2 Roman 1  Not Assigned 1
Stone  1

002CB002588 Object Totals by Material

002CB02588 Pottery  4 of which Bronze Age  1 Not Assigned  3
Stone  2

002CB002589 Object Totals by Material

002CB02589 Pottery  4 of which Saxon  3 Not Assigned  1
Unfired Clay 1

002CB002590 Object Totals by Material

002CB02590 Pottery  2 of which Saxon  1 Roman 1
Stone  2

Animal Bone Totals by Species

002CB02582 Animal Bone Totals by Species (Assigned to Master Number only)

002CB002582 Cattle  5
002CB002582 Sheep  1
002CB002582 Dog  3


002CB002583 Animal Bone Totals by Species

002CB002583 Cattle  7
002CB002583 Sheep/Goat  10

002CB002584 Animal Bone Totals by Species

002CB002584 Cattle  7
002CB002584 Horse  2
002CB002584 Sheep  1
002CB002584 Sheep/Goat  4

002CB002585 Animal Bone Totals by Species

002CB002585 Cattle  1
002CB002585 Sheep/Goat  1

002CB002589 Animal Bone Totals by Species

002CB002589 Cattle  3
002CB002589 Sheep  3
002CB002589 Sheep/Goat  3

002CB002590 Animal Bone Totals by Species

002CB002590 Cattle  2
002CB002590 Pig  1
002CB002590 Sheep/Goat  2

Structural Details

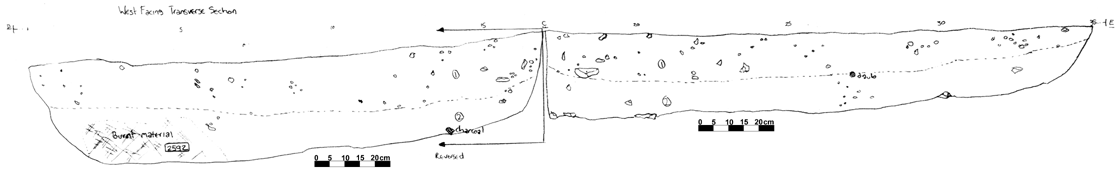

002CB02582 West Facing Section

Context Notes

KEY_ID TYPE SHAPE L  B D PROFILE  NOTES
002CB02583 GRUB FILL  COMPLEX 389 348  15 WIDE U LOWER FILL IN N.E. QUADRANT OF GRUB. CONTAINED THE HIGHEST QUANTITY OF ANIMAL BONE AND OBJECTS.
002CB02584 GRUB FILL  COMPLEX 389 348  20 WIDE U 2584=1 QUAD OF GRUB. ALL FINDS KEPT BY CONTEXT ONLY . =N.E. QUAD. MOD STONE CONTENT <4CM
002CB02585 GRUB FILL  COMPLEX 386 343  15 WIDE U = S.E. QUAD LOWER FILL. ALL FINDS KEPT BY CONTEXT ONLY . OCCA CHARCOAL & DAUB INCLUSIONS.
002CB02586 GRUB FILL  COMPLEX 389 348  20 WIDE U =UPPER FILL IN S.E. QUAD OF GRUB . FINDS KEPT BY CONTEXT ONLY. MOD STONE CONTENT < 4CM.
002CB02587 GRUB FILL  COMPLEX 386 343  15 WIDE U =S.W. QUAD LOWER FILL OF GRUB : ALL FINDS KEPT BY CONTEXT ONLY. OCCA CHARCOAL & DAUB INCLUSIONS.
002CB02588 GRUB FILL  COMPLEX 389 348  20 WIDE U =N.W. QUAD OF GRUB: ALL FINDS KEPT BY QUAD ONLY: MOD STONE CONTENT < 4CM.
002CB02589 GRUB FILL  COMPLEX 386 343  15 WIDE U = N.W.QUADS LOWER FILL: FINDS KEPT BY CONTEXT ONLY. OCCA CHARCOAL % DAUB INCLUSIONS.
002CB02590 GRUB FILL  COMPLEX 398 348  20 WIDE U 2590 = UPPER FILL OF N.W. QUAD OF GRUB. FINDS KEPT BY CONTEXT ONLY. MOD STONE CONTENT < 4CM.
002CB02591 GRUB CUT  COMPLEX 389 349  32 WIDE U CUT FOR GRUB Nr BURIED SOIL/GRAVEL INTERFACE. ODD SHAPE-NEARLY TRIANGULAR: MAY POSSIBLY BE THAT IS MORE THAN 1 FEATURE/RECUT ETC. CLEARLY TRUNCATED TOP.
002CB02592 GRUB FILL  OVATE 53 45  15 IRREGULAR LAYER OF BURNT STAINED MATERIAL BENEATH GRUBS MAIN LOWER FILL: LAYS IN N.W. AREA OF GRUB. NOT A MASS OF CHARCOAL-& NO BURNT STONE.
002CB02593 POST HOLE CUT  OVATE 30 20  0 U-SHAPED CUT FOR P.H. (POSSIBLE) IN GRUB. LAYS IN S.E. EDGE-NOT AT BASE OF EDGE SLOPE- V. DUBIOUS! (P.K.C. DEFINED). NO FURTHER RECORD AVAILABLE.
002CB02594 POST HOLE FILL  OVATE 30 20  0 U-SHAPED FILL OF POSSIBLE P.H. NO FURTHER RECORD AVAILABLE.
002CB02595 POST HOLE CUT  OVATE 37 32  0 U-SHAPED CUT FOR P.H. E. END OF GRUB: AGAINST E. EDGE BUT SLIGHTLY TO N. NO FURTHER DETAILS RECORDED.
002CB02596 POST HOLE FILL  OVATE 37 32  0 U-SHAPED FILL OF P.H. E. END OF GRUB. NO FURTER DETAILS RECORDED.

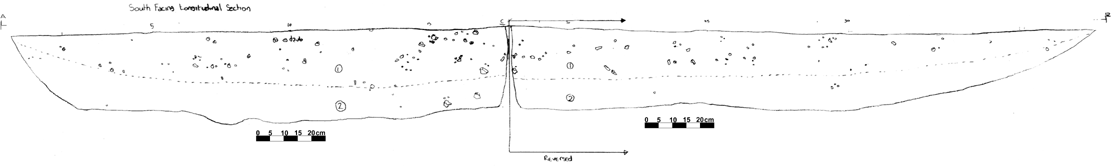

002CB02582 South facing Section

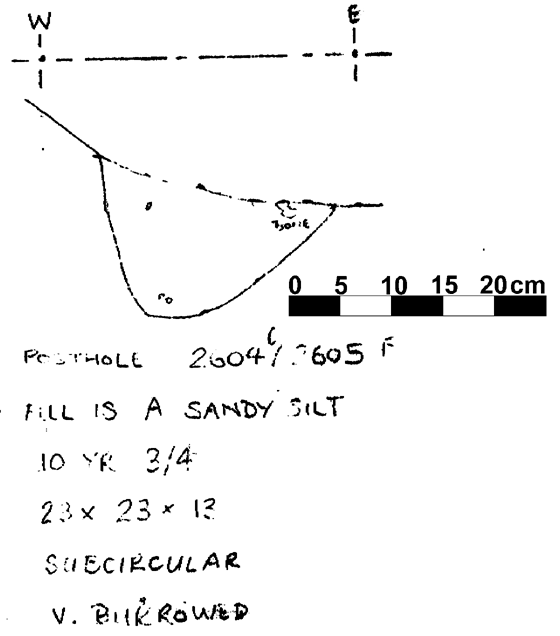

002CB02604 South Facing Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02604  POST HOLE CUT OVATE  23 23  13 V-SHAPED CUT FOR P.H. LAYS AT BASE OF SLOPE CENTRALLY AT W. END OF GRUB. EDGES APPARENTLY BURROWED: COMPARATIVELY SMALL & SHALLOW.
002CB02605  POST HOLE FILL OVATE  23 23  13 V-SHAPED FILL OF P.H. W. END OF GRUB. V. FEW INCLUSIONS BUT BURROWED.

Objects by Context

KEY_ID  OBJ PERIOD  MATERIAL TYPE  SUB_TYPE CLASS  No
002CB02583  AV No Entry  BRONZE COIN  1
002CB02583  AC ROMAN  POTTERY SHERD  R-B  1
002CB02583  AD ROMAN  POTTERY SHERD  HUNTCLIFF  1
002CB02583  AE ROMAN  POTTERY SHERD  R-B  1
002CB02583  AF ROMAN  POTTERY SHERD  R-B  1
002CB02583  AH ROMAN  POTTERY SHERD  R-B  1
002CB02583  AJ EARLY SAXON  POTTERY SHERDS  ANGLIAN I  3
002CB02583  AK ROMAN  POTTERY SHERD  GREY WARE  1
002CB02583  AM EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02583  AN EARLY SAXON  POTTERY SHERDS  ANGLIAN III  2
002CB02583  AO EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02583  AP ROMAN  POTTERY SHERD  R-B  1
002CB02583  AQ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02583  AR EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB02583  AS EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02583  AT EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002CB02583  AU EARLY SAXON  POTTERY SHERDS  ?ANGLIAN III  2
002CB02583  AZ No Entry  POTTERY SHERD  1
002CB02583  AI No Entry  SLAG SLAG FRAGMENT  IRON SLAG  1
002CB02583  AA No Entry  STONE STONE  1
002CB02583  AB No Entry  STONE STONE  SANDSTONE  1
002CB02583  AG No Entry  STONE STONE  SANDSTONE  1
002CB02583  AL No Entry  STONE STONE  SANDSTONE  1
002CB02583  BA No Entry  STONE STONE  1
002CB02583  AX EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  2
002CB02583  AW EARLY SAXON  WORKED BONE COMB FRAGMENT  SIDE PLATE COMPOSITE COMB  1
002CB02584  AL EARLY SAXON  AMBER AMBER BEAD  D3  1
002CB02584  AO No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB02584  AI PREHISTORIC  FLINT FLAKE  1
002CB02584  AB EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02584  AE EARLY SAXON  POTTERY SHERD  ?ANGLIAN V  1
002CB02584  AF EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB02584  AG NEOLITHIC  POTTERY SHERD  ?NEOLITHIC  1
002CB02584  AH EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB02584  AJ ROMAN  POTTERY SHERD  R-B  1
002CB02584  AM ROMAN  POTTERY SHERD  R-B  1
002CB02584  AC No Entry  STONE STONE  2
002CB02584  AD No Entry  STONE STONE  1
002CB02584  AA EARLY SAXON  UNFIRED CLAY LOOMWEIGHT  UNFIRED CLAY 1
002CB02584  AK EARLY SAXON  WORKED BONE PART COMB  SINGLE SIDED COMPOSITE COMB  1
002CB02584  AN EARLY SAXON  WORKED BONE COMB FRAGMENTS  COMPOSITE COMB  2
002CB02587  AA EARLY SAXON  POTTERY SHERD  ?ANGLIAN I  1
002CB02587  AB EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02587  AC No Entry  POTTERY SHERD  1
002CB02587  AD ROMAN  POTTERY SHERDS  R-B  3
002CB02587  AE No Entry  STONE STONE  1
002CB02588  AA BRONZE AGE  POTTERY SHERD  ?BRONZE AGE  1
002CB02588  AB No Entry  POTTERY SHERDS  4
002CB02588  AD No Entry  POTTERY SHERD  1
002CB02588  AF No Entry  POTTERY SHERD  1
002CB02588  AC No Entry  STONE STONE  1
002CB02588  AE No Entry  STONE STONE  2
002CB02589  AA No Entry  POTTERY SHERD  1
002CB02589  AC EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02589  AD EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02589  AE EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02589  AB EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT  1
002CB02590  AA ROMAN  POTTERY SHERDS  ?R-B  2
002CB02590  AD EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB02590  AB No Entry  STONE STONE  1
002CB02590  AC No Entry  STONE STONE  SANDSTONE  1

Animal Bone by Context

KEY_ID  SPECIES ELEMENT  QUANT CHEW  BURN BUTCH  FBRK
002CB02583  Cattle Calcaneum  1 1  0 0  1
002CB02583  Cattle M/T P  1 0  0 1  0
002CB02583  Cattle Pelvis  1 1  0 0  1
002CB02583  Cattle Phalanx 2  1 0  0 1  0
002CB02583  Cattle Phalanx 2  1 0  0 0  0
002CB02583  Cattle Phalanx 3  1 1  0 0  1
002CB02583  Cattle Tibia P  1 0  0 2  0
002CB02583  Sheep/goat Femur br  1 0  0 1  0
002CB02583  Sheep/goat M/C fr  1 1  0 0  0
002CB02583  Sheep/goat M/T C  1 1  0 0  1
002CB02583  Sheep/goat M/T D  1 1  0 0  1
002CB02583  Sheep/goat Mand fr  1 0  0 0  1
002CB02583  Sheep/goat Mandible  1 0  0 0  1
002CB02583  Sheep/goat Radius br  1 1  0 0  1
002CB02583  Sheep/goat Radius P  1 0  0 0  1
002CB02583  Sheep/goat Skull fr  1 0  0 0  1
002CB02583  Sheep/goat Tibia P  1 0  0 0  1
002CB02584  Cattle Astragalus  1 0  0 0  0
002CB02584  Cattle Atlas  1 1  0 1  1
002CB02584  Cattle Femur fr  1 0  0 1  0
002CB02584  Cattle Mandible  1 1  0 0  0
002CB02584  Cattle Phalanx 1  1 0  0 0  1
002CB02584  Cattle Phalanx 2  1 1  0 0  1
002CB02584  Cattle Scapula  1 1  0 0  1
002CB02584  Horse Mand fr  1 0  0 0  1
002CB02584  Horse Pelvis  1 1  0 0  1
002CB02584  Sheep Horncore  1 0  0 1  1
002CB02584  Sheep/goat LM3  1 0  0 0  1
002CB02584  Sheep/goat M/C P  1 0  0 0  1
002CB02584  Sheep/goat Occiput  1 0  0 0  1
002CB02584  Sheep/goat Radius fr  1 0  0 0  0
002CB02585  Cattle Calcaneum  1 1  0 0  0
002CB02585  Sheep/goat M/C D  1 0  0 0  1
002CB02589  Cattle M/C P  1 1  0 0  0
002CB02589  Cattle Phalanx 1  1 0  0 0  0
002CB02589  Cattle Phalanx 2  1 0  0 0  0
002CB02589  Sheep Femur P  1 0  0 0  1
002CB02589  Sheep/goat Ulna  1 0  0 0  0
002CB02590  Cattle Phalanx 1  1 0  0 0  1
002CB02590  Cattle Phalanx 1  1 0  0 0  0
002CB02590  Pig M/T C  1 0  0 0  1
002CB02590  Sheep/goat Astragalus  1 0  0 1  0
002CB02590  Sheep/goat M/T P  1 0  1 1  0
002CBM2582  Cattle LM3  1 0  0 0  0
002CBM2582  Cattle M/C P  1 0  0 0  1
002CBM2582  Cattle M/T P  1 0  0 0  1
002CBM2582  Cattle Pelvis  1 0  0 1  1
002CBM2582  Cattle Phalanx 2  1 0  0 0  0
002CBM2582  Dog Humerus D  1 1  0 0  1
002CBM2582  Dog Mand fr  1 0  0 0  1
002CBM2582  Dog Mandible  1 0  0 0  1
002CBM2582  Sheep Phalanx 2  1 0  0 0  0
