002CB02485

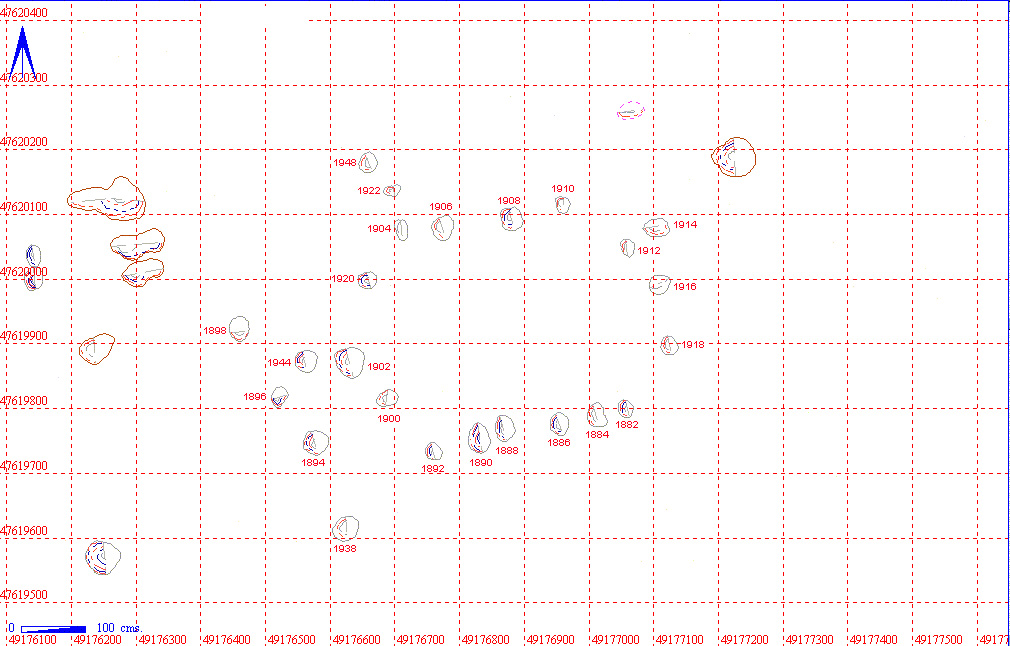

Post Hole Structure



Post-Hole Structure Details
Length 415 Width 280
Area  11.62sq. m Ratio 1.5:1
Number of Posts 17 Deepest 25  002CB01890 Shallowest 8 002CB01916
Average Depth
 14.1
North Wall 4 Posts Average Depth 11.7
East Wall 4 Posts Average Depth 10.7
South Wall 6 Posts Average Depth 16.6
West Wall 3 Posts Average Depth 14.3
Interior Divisions: None.
Highest Elevation Value  5000 002CB01914 and 2CB01916 and 2CB01918
Lowest Elevation Value 4975 002CB01890
Bearing  77.5 degrees
Plank\Post Post
Doorways Either two centrally opposing doorways in long walls or one doorway in west wall..
Repairs:
Structural Class
Material Culture Number of Objects 0  Number of Animal Bones 2
Environmental

Phasing

Discussion

A small, rectangular structure aligned NE/SW with doors either centrally opposing in the long walls or a single doorway in the west short wall. No corner post-holes were apparent at the time of excavation. Structure may be related to a line of post holes to the west

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
002CB02485 002CB01882 002CB01883
002CB01884 002CB01885
002CB01886 002CB01887
002CB01888 002CB01889
002CB01890 002CB01891
002CB01892 002CB01893
002CB01894 002CB01895
002CB01896 002CB01897
002CB01898 002CB01899
002CB01900 002CB01901
002CB01902 002CB01903 2
002CB01904 002CB01905
002CB01906 002CB01907
002CB01908 002CB01909
002CB01910 002CB01911
002CB01912 002CB01913
002CB01914 002CB01915
002CB01916 002CB01917
002CB01918 002CB01919
002CB01920 002CB01921
002CB01922 002CB01923
002CB01938 002CB01939
002CB01944 002CB01945
002CB01948 002CB01949

Structural Details

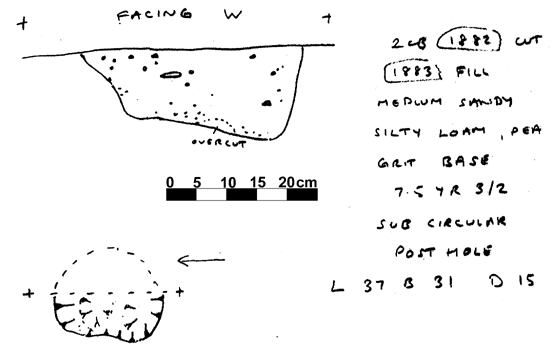

002CB01882 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01882 POST HOLE CUT SUB-CIRCULAR  37 31  15 FLAT BASED U  P.H ON S. SIDE OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN: BASE SLOPES FROM N. DOWN TO S.
002CB01883 POST HOLE FILL SUB-CIRCULAR  37 31  15 FLAT BASED U  OCCA FINE CHALK GRAVEL THROUGHOUT FILL. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

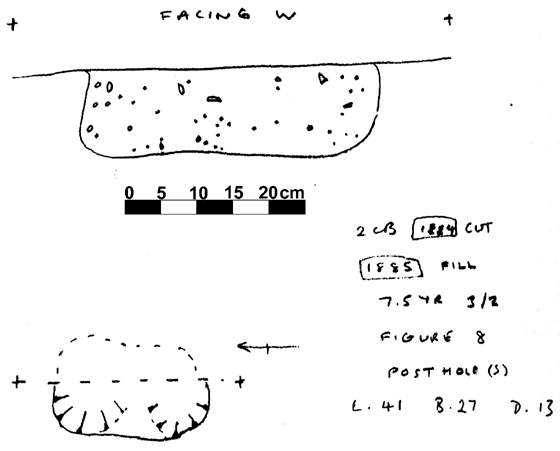

002CB01884 Section and Notes


KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01884 POST HOLE CUT FIGURE 8  41 27  13 FLAT BASED U  P.H. ON S. SIDE OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN & PROFILE--APPEARS TO BE A DOUBLE P.H.
002CB01885 POST HOLE FILL FIGURE 8  41 27  13 FLAT BASED U  FINE GRAVEL THROUGHOUT FILL. TRUNCATED ABOVE.

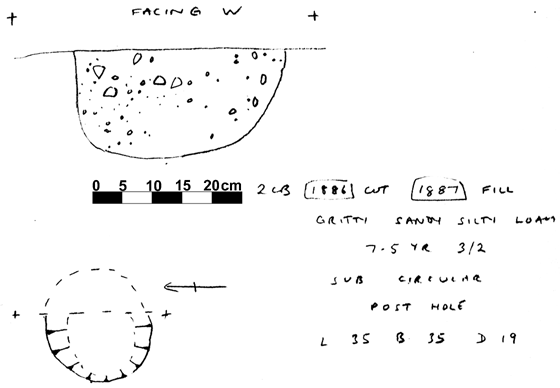

002CB01886 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01886 POST HOLE CUT SUB-CIRCULAR  35 35  19 USHAPED  P.H. ON S. SIDE OF BLDG M2485. TRUNCATED ABOVE. REGULAR PROFILE/PLAN.
002CB01887 POST HOLE FILL SUB-CIRCULAR  35 35  19 USHAPED  MOD/FREQ CHALK GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

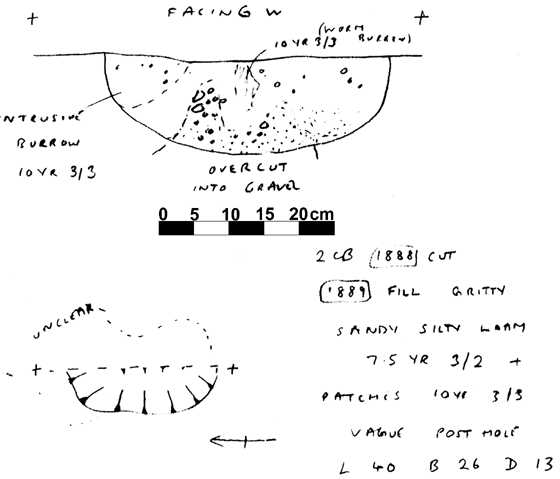

002CB01888 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01888 POST HOLE CUT FIGURE 8  40 26  13 USHAPED  SOME OF EDGES UNCLEAR. EV OF BURROWING-HENCE COLOUR VARIATION TO 10YR33. TRUNCATED ABOVE & OVERCUT Nr BASE. SEE SECTION.
002CB01889 POST HOLE FILL FIGURE 8  40 26  13 USHAPED  SOME OF EDGES UNCLEAR. EV OF BURROWING-HENCE COLOUR VARIATION TO 10YR33. TRUNCATED ABOVE & OVERCUT Nr BASE. OCCA FINE GRAVEL THROUGHOUT.

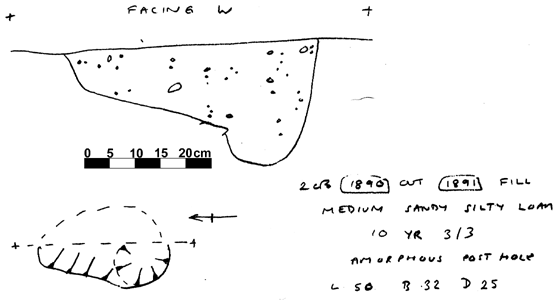

002CB01890 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01890 POST HOLE CUT COMPLEX  50 32  25 STEPPED U  P.H. OF S. SIDE OF BLDG M2485. TRUNCATED ABOVE. DRWG GIVES IMPRESSION OF A :U: SHAPE P.H. WITH A CUT TO N. - POSS RELATES TO DEMISE OF POST.SEE SECTI
002CB01891 POST HOLE FILL COMPLEX  50 32  25 STEPPED U  OCCA GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

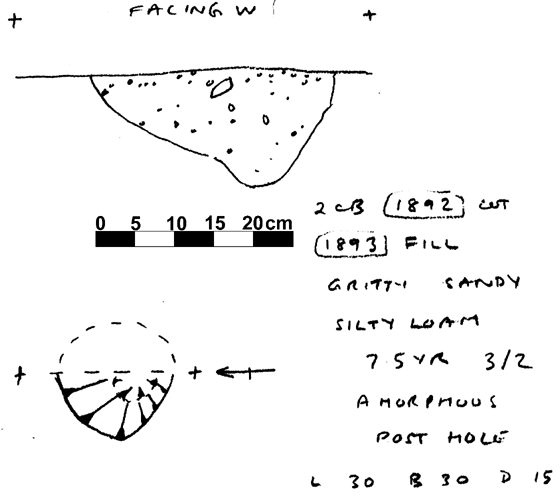

002CB01892 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01892 POST HOLE CUT OVATE  30 30  15 VSHAPED  P.H. ON S. SIDE OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN: STEP IN N. EDGE.
002CB01893 POST HOLE FILL OVATE  30 30  15 VSHAPED  MOD GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

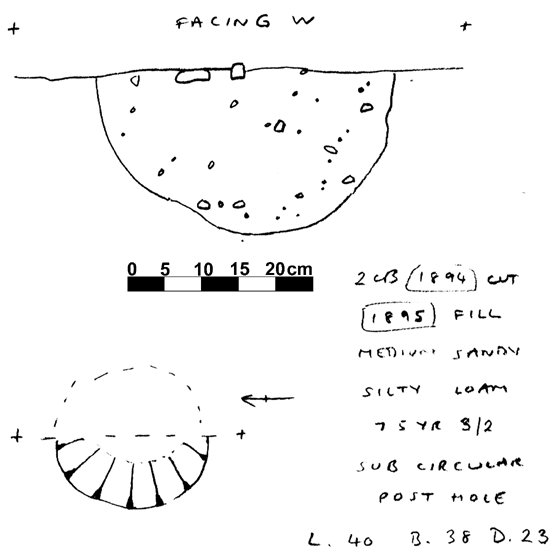

002CB01894 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01894 POST HOLE CUT SUB-CIRCULAR  40 38  23 USHAPED  P.H. TO W. OF THE BLDG M2485--APPEARS TO BE ASSOCIATED WITH IT. TRUNCATED ABOVE: REGULAR PLAN/PROFILE.
002CB01895 POST HOLE FILL SUB-CIRCULAR  40 38  23 USHAPED  OCCA/MOD GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

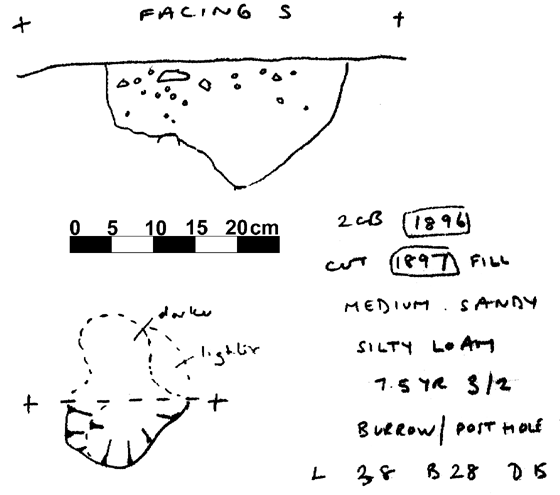

002CB01896 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01896 POST HOLE CUT COMPLEX  38 28  15 STEPPED U  TRUNCATED ABOVE----------POSS NOT A P.H.--COULD BE BURROW. IRREGULAR PLAN/PROFILE. TO W. OF BLDG M2485-BUT PROB ASSOCIATED WITH IT.
002CB01897 POST HOLE FILL COMPLEX  38 28  15 STEPPED U  MOD GRAVEL < 3 CM THROUGHOUT UPPER PART OF FILL. TRUNCATED ABOVE----------POSS NOT A P.H.--COULD BE BURROW.

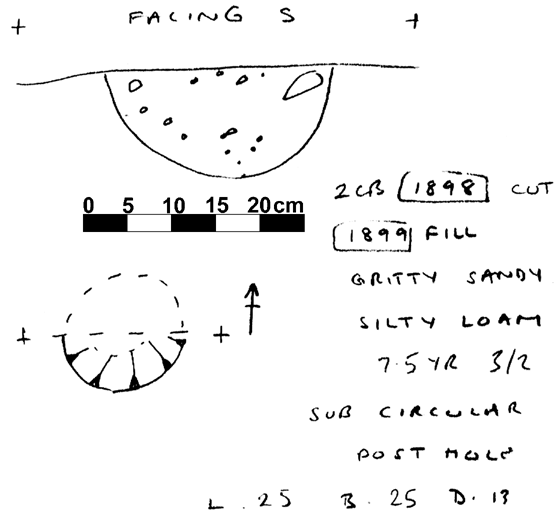

002CB01898 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01898 POST HOLE CUT SUB-CIRCULAR  25 25  13 USHAPED  P.H. TO W. OF BLDG M2485-BUT PROB ASSOCIATED WITH IT. TRUNCATED ABOVE REGULAR PLAN/PROFILE.
002CB01899 POST HOLE FILL SUB-CIRCULAR  25 25  13 USHAPED  OCCA GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

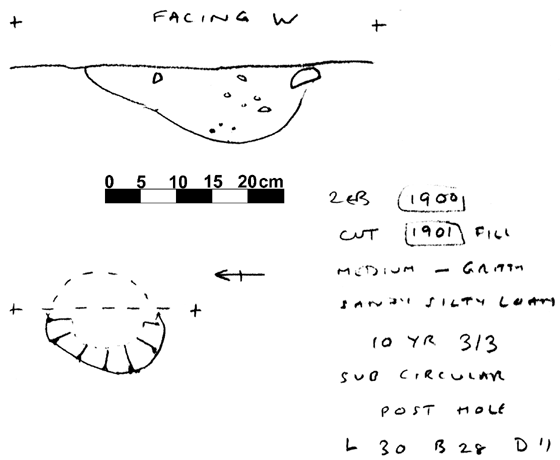

002CB01900 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01900 POST HOLE CUT SUB-CIRCULAR  30 28  11 VSHAPED  P.H. OF W. WALL OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN: GENTLE SIDES: CONCAVE BASE.
002CB01901 POST HOLE FILL SUB-CIRCULAR  30 28  11 VSHAPED  OCCA GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

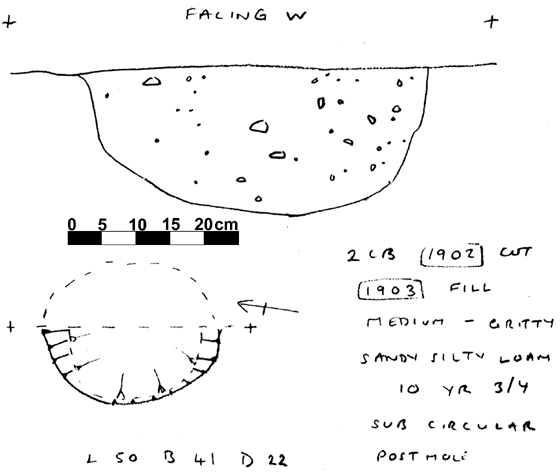

002CB01902 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01902 POST HOLE CUT SUB-CIRCULAR  50 41  22 USHAPED  P.H. OF W. WALL OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN / PROFILE.
002CB01903 POST HOLE FILL SUB-CIRCULAR  50 41  22 USHAPED  OCCA/MOD GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATEDABOVE.

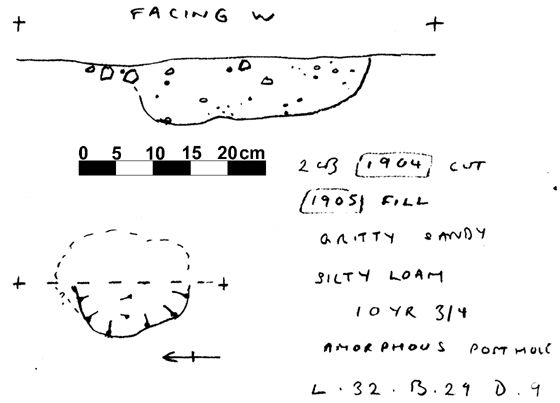

002CB01904 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01904 POST HOLE CUT COMPLEX  32 29  9 FLAT BASED U  P.H. OF N. WALL OF BLDG M2485. TRUNCATED ABOVE. REGULAR PROFILE: SL UNUSUAL PLAN FORM.
002CB01905 POST HOLE FILL COMPLEX  32 29  9 FLAT BASED U  MOD GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

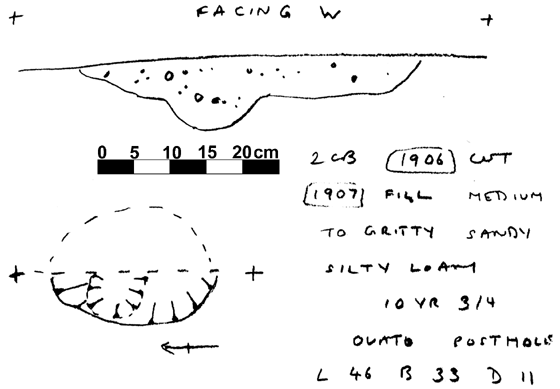

002CB01906 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01906 POST HOLE CUT OVATE  46 33  11 STEPPED U  P.H. OF N. WALL OF BLDG M2485. TRUNCATED ABOVE-SHALLOW: REGULAR PLAN: BROAD STEP FROM SURFACE TO BASE.
002CB01907 POST HOLE FILL OVATE  46 33  11 STEPPED U  OCCA GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

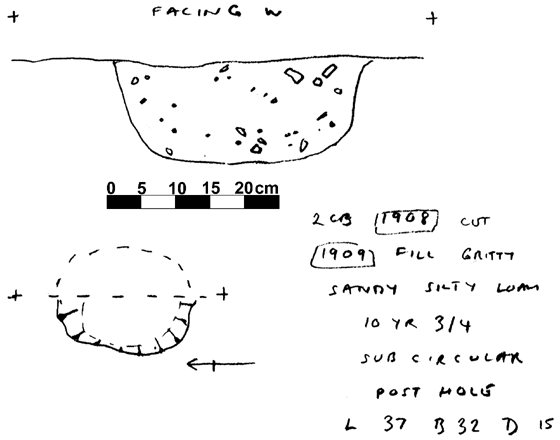

002CB01908 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01908 POST HOLE CUT SUB-CIRCULAR  37 32  15 FLAT BASED U  P.H. OF N. WALL OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN/PROFILE.
002CB01909 POST HOLE FILL SUB-CIRCULAR  37 32  15 FLAT BASED U  MOD GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

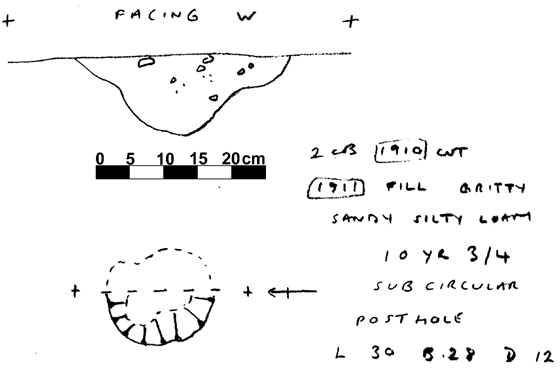

002CB01910 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01910 POST HOLE CUT SUB-CIRCULAR  30 28  12 STEPPED U  P.H. OF N. WALL OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN/PROFILE.
002CB01911 POST HOLE FILL SUB-CIRCULAR  30 28  12 STEPPED U  OCCA CHALK GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

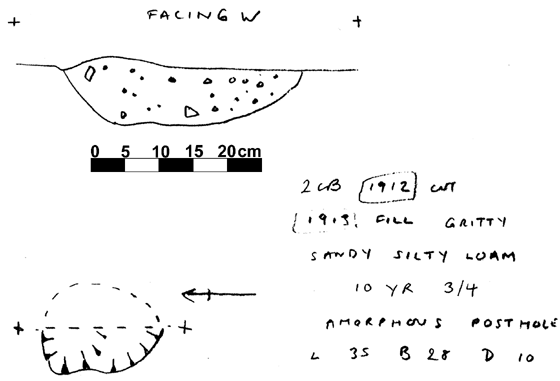

002CB01912 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01912 POST HOLE CUT SUB-RECTANGULAR  35 28  10 FLAT BASED U  P.H. OF E. WALL OF BLDG M2485. TRUNCATED ABOVE-SHALLOW: REGULAR PROFILE: PLAN SL MIS SHAPED.
002CB01913 POST HOLE FILL SUB-RECTANGULAR  35 28  10 FLAT BASED U  MOD GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

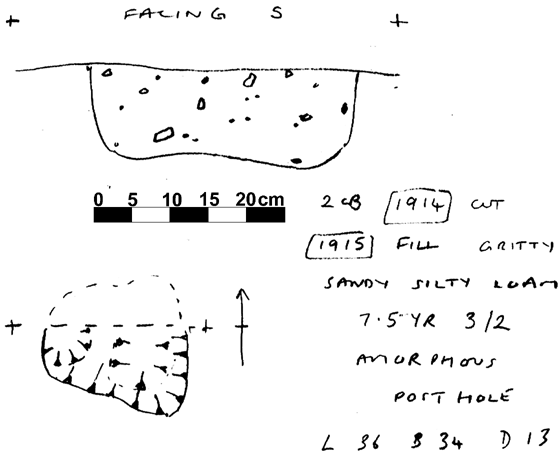

002CB01914 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01914 POST HOLE CUT COMPLEX  36 34  13 FLAT BASED U  P.H.JUST TO E. OF BLDG M2485-BUT PROB ASSOCIATED WITH IT. TRUNCATED ABOVE. SL UNUSUAL PLAN: PROFILE REGULAR--POSS A DOUBLE P.H.
002CB01915 POST HOLE FILL COMPLEX  36 34  13 FLAT BASED U  MOD GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

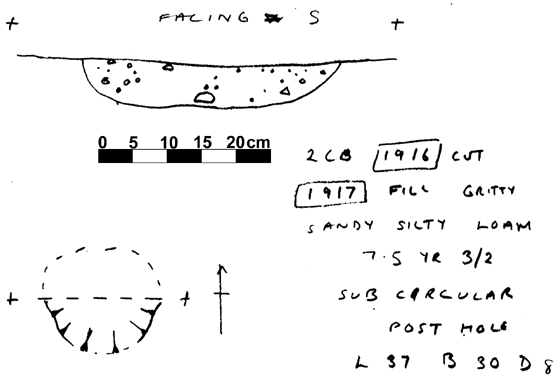

002CB01916 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01916 POST HOLE CUT SUB-CIRCULAR  37 30  8 FLAT BASED U  POST HOLE IN STRUCTURE M2425. TRUNCATED. CUT INTO CHALK NATURAL. NO FURTHER RECORD IN CONTEXT BOOK.
002CB01917 POST HOLE FILL SUB-CIRCULAR  37 30  8 FLAT BASED U  MOD GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

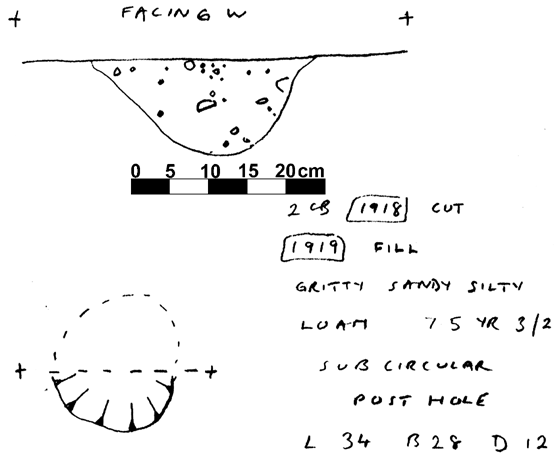

002CB01918 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01918 POST HOLE CUT SUB-CIRCULAR  34 28  12 USHAPED  P.H. OF E. WALL OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN: GENTLE SIDES: CONCAVE BASE.
002CB01919 POST HOLE FILL SUB-CIRCULAR  34 28  12 USHAPED  MOD GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

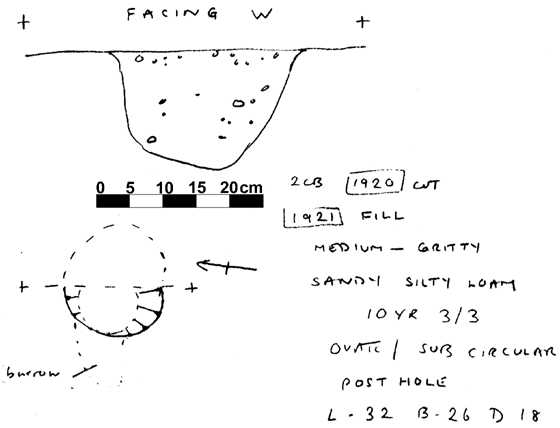

002CB01920 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01920 POST HOLE CUT SUB-CIRCULAR  32 26  18 USHAPED  P.H. OF N. WALL OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN & PROFILE. SOME EV OF BURROWING AT W. EDGE.
002CB01921 POST HOLE FILL SUB-CIRCULAR  32 26  18 USHAPED  OCCA GRAVEL < 1.5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

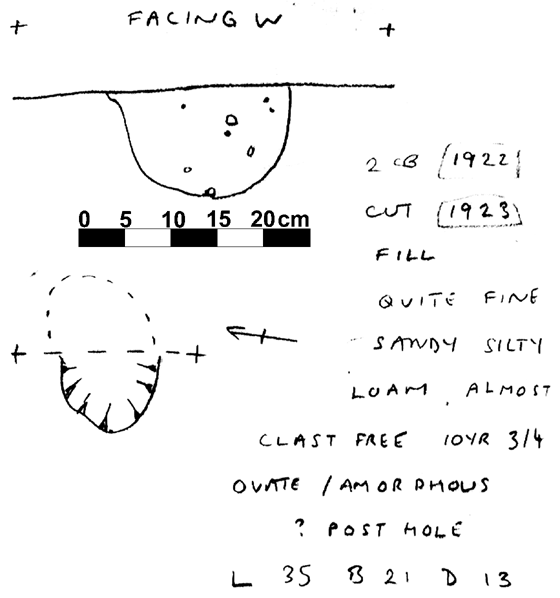

002CB01922 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01922 POST HOLE CUT COMPLEX  35 21  13 USHAPED  P.H.JUST TO N. OF BLDG M2485-BUT PROB ASSOCIATED WITH IT. TRUNCATED ABOVE. UNUSUAL PLANFORM: REGULAR PROFILE.
002CB01923 POST HOLE FILL COMPLEX  35 21  13 USHAPED  OCCA GRAVEL < 1 CM THROUGHOUT FILL. TRUNCATED ABOVE.

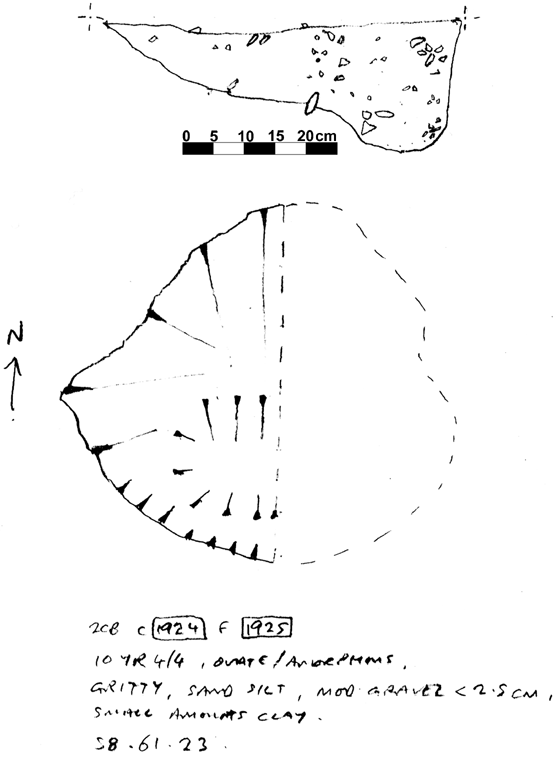

002CB01924 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01924 PIT CUT COMPLEX  61 58  23 STEPPED U  POSS PIT TO E. OF BLDG M2485. TRUNCATED ABOVE. STEEP S. EDGE: LONG GENTLY SLOPING STEP FROM BASE TO N. EDGE.---MAY BE ASSOCIATED WITH ADJACENT BLDG.
002CB01925 PIT FILL COMPLEX  61 58  23 STEPPED U  SMALL AMOUNTS OF CLAY. MOD GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

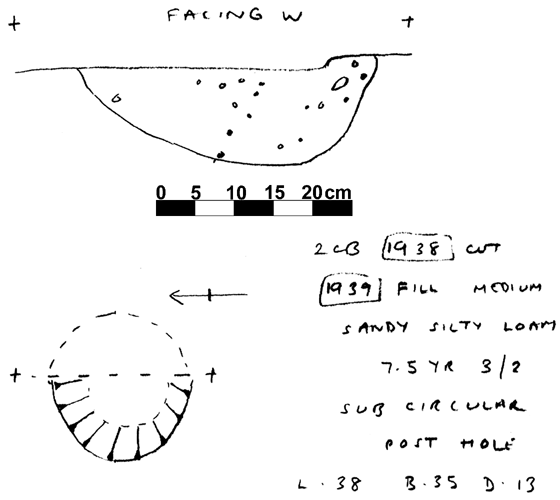

002CB01938 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01938 POST HOLE CUT SUB-CIRCULAR  38 35  13 USHAPED  P.H. TO S.E. OF BLDG M2485. TRUNCATED ABOVE. REGULAR PLAN/PROFILE.
002CB01939 POST HOLE FILL SUB-CIRCULAR  38 35  13 USHAPED  OCCA GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB01944 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01944 POST HOLE CUT SUB-CIRCULAR  35 30  24 USHAPED  P.H. AT W. OF BLDG M2485. TRUNCATED ABOVE. REGULAR PROFILE/PLAN. THOUGH IS JUST OUTSIDE OF BLDG MAY WELL BE RELATED.
002CB01945 POST HOLE FILL SUB-CIRCULAR  35 30  24 USHAPED  MOD GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

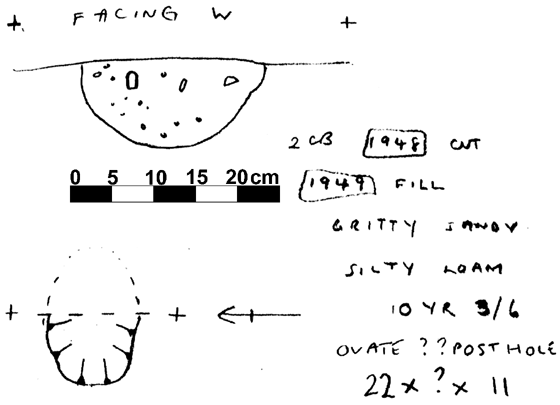

002CB01948 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
002CB01948 POST HOLE CUT OVATE  22 0  11 USHAPED  P.H. TO N. OF BLDG M2485---MAY WELL BE RELATED. TRUNCATED ABOVE. REGULAR PROFILE: EDGES SL UNCERTAIN---POSS NOT EVEN A P.H.?
002CB01949 POST HOLE FILL OVATE  22 0  11 USHAPED  OCCA CHALK < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
002CB01903 Sheep/goat Mandible 1 1 0 0 1
002CB01903 Cattle Sacrum  1 1 0 1 1
