002CB00228

Post Hole Structure



Post-Hole Structure Details
Length  447 Width 445
Area  19.9sq. m Ratio 1:1
Number of Posts  9 Deepest 21  002CB00138 Shallowest  10 002CB00134 and 002CB00202
Average Depth
 15
North Wall  3 Posts Average Depth  15
East Wall  1 Posts Average Depth  17
South Wall  3 Posts Average Depth  12
West Wall  1 Posts Average Depth  21
Interior Divisions:  One internal post hole in centre of structure of unknown function.
Highest Elevation Value  5282 002CB00200
Lowest Elevation Value  5230 002CB00142
Bearing  73 degrees
Plank\Post  Post
Doorways Unknown.
Repairs:
Structural Class
Material Culture  Number of Objects 0  Number of Animal Bones 0
Environmental

Phasing

Discussion

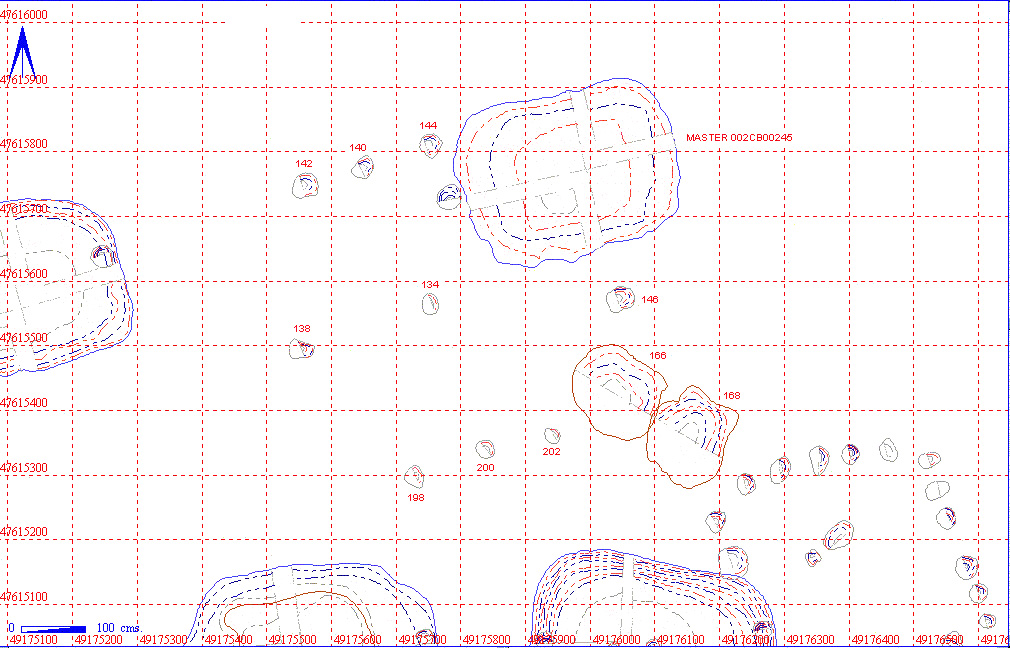

A small, square structure associated with a small Grubenhaus (002CB00245) on the north-east side, the relationship between the two unknown. Nine post-holes were recovered 0.30m to 0.40m in diameter with one internal post; a central post probably used as a roof support. No corner posts were evident in this structure which was aligned NE/SW. Two pits (002CB00166 and 002CB00168) were distinguishable on the south side of the structure but no relationship was established. No finds were recovered from the post holes.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CB00228 002CB00134  002CB00135
002CB00138  002CB00139
002CB00140  002CB00141
002CB00142  002CB00143
002CB00144  002CB00145
002CB00146  002CB00147
002CB00198  002CB00199
002CB00200  002CB00201
002CB00202  002CB00203

Structural Details

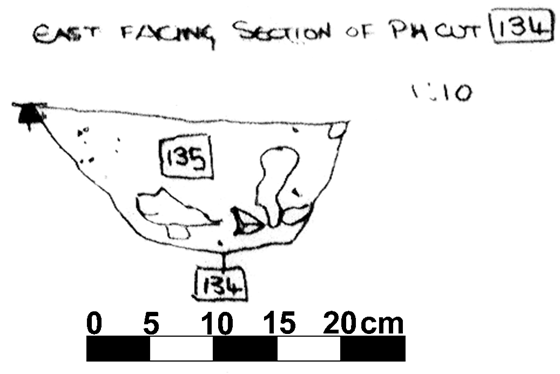

002CB00134 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00134  POST HOLE CUT SUB-CIRCULAR  27 21  10 ROUND BASED  ONE OF 3 PHS FORMING THE N SIDE OF A SMALL BUILDING JUST W OF GRUB 25.CUT INTO CHALK WITH A STEPPED S SIDE AND A VERTICAL N SIDE.
002CB00135  POST HOLE FILL SUB-CIRCULAR  27 21  10 ROUND BASED  FILL OF PH 134 HAS STICKYTEXTURE WITH LARGE ANGULAR CHLK AND CHARCOAL,AN. BONE. PROBABLY ASSOCIATED WITH 5 OTHER PHS WHICH FORM SMALL RECT. BUILDING.

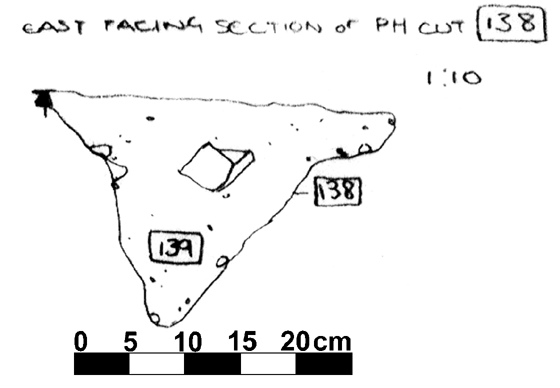

002CB00138 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00138  POST HOLE CUT SUB-CIRCULAR  34 31  20 VSHAPED  POST HOLE CUT INTO CHALK WHICH MAY BE PART OF THE SOUTH SIDE OF A SMALL RECTANGULAR BUILDING JUST W OF GRUB 25.IT HAS STEEP SIDES WITH NARROW BASE.
002CB00139  POST HOLE FILL SUB-CIRCULAR  34 31  20 VSHAPED  FILL OF PH 138 CONTAINED FRAGS OF ANIMAL BONE AND SOME LARGE ANGULAR CHALK STONES,WITH SOME PEA GRITNEAR THE SIDES AND BOTTOM.PART OF M 228.

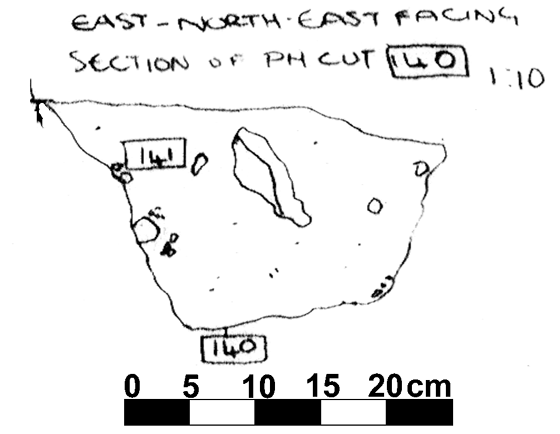

002CB00140 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00140  POST HOLE CUT OVATE  36 28  17 USHAPED  ONE OF THREE POST HOLES FORMING THE N SIDE OF A SMALL RECTANGULAR BUILDING JUST W OF GRUB 25.MADE UPOF LARGE ANGULAR CHALK STONES AT THE TOP & BOTTOM.
002CB00141  POST HOLE FILL OVATE  36 28  17 USHAPED  FILL OF PH 140 WAS SANDY IN TEXTURE WITH SEVERAL LARGE CHALK STONES AND PEAGRIT NEAR THE SIDES AND BOTTOM OF THE CUT.

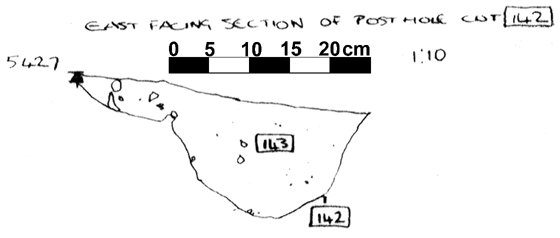

002CB00142 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00142  POST HOLE CUT OVATE  35 25  15 WIDE U  CUT OF POSS PH OF SMALL SQUARE BUILDING W OF GRUB 25.CUT INTO ANGULAR CHALK STONES:PARTIALLY ROTTED:WITH PEA GRIT AT THE BOTTOM.NO FINDS.
002CB00143  POST HOLE FILL OVATE  35 25  15 FLAT  FILL OF POSS PH OF SMALL SQUARE BUILDING TO W OF GRUB 25.NO FINDS AND SOME GRAVEL INCLS.

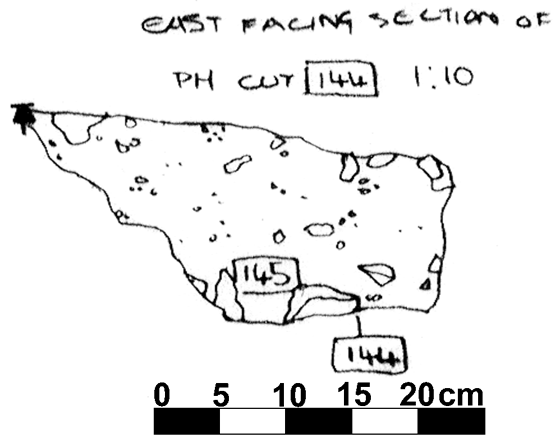

002CB00144 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00144  POST HOLE CUT OVATE  35 30  17 WIDE U  ONE OF 3 PHS FORMING THE N SIDE OF A SMALL BUILDING JUST W OF GRUB 25.CUT INTO CHALK WITH A STEPPED S SIDE AND A VERTICAL N SIDE.
002CB00145  POST HOLE FILL OVATE  35 30  17 WIDE U  A SANDY LOAM WITH SEVERALANGULAR CHALK STONES AND PEA GRIT NEAR THE SIDES AND BOTTOM OF THE CUT.

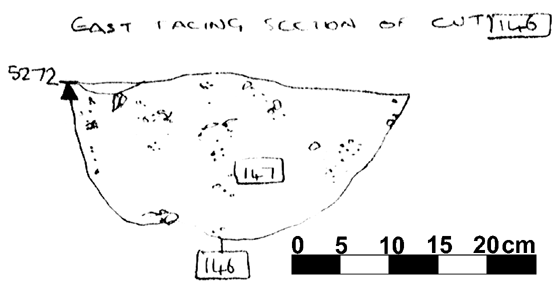

002CB00146 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00146  POST HOLE CUT ROUND  40 40  20 WIDE U  THIS POST HOLE,CUT INTO CHALK, IS ON THE S SIDE OFGRUB 25 AND MAY BE ASSOCIATED WITH IT.IT IS A WIDESHALLOW CUT WITH A SLIGHTLY NARROWER BASE.
002CB00147  POST HOLE FILL ROUND  40 40  20 WIDE U  THIS FILL WAS SANDY AND GRITTY IN TEXTURE WITH SMALL ABRADED CHALK AND SOMELARGER 2-5CM ANGULAR CHALK.THERE WAS LOTS OF PEA GRIT NEAR SIDES & BOTTOM.

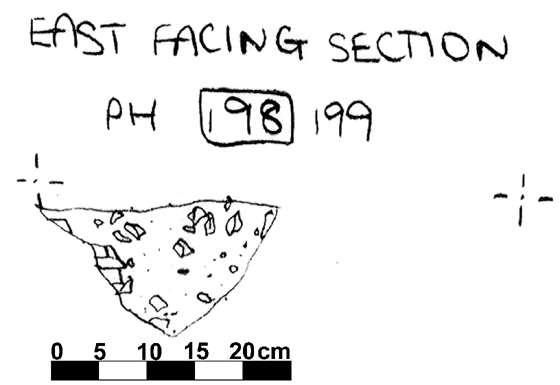

002CB00198 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00198  POST HOLE CUT ROUND  35 32  12 VSHAPED  CUT OF POSS PH TO N OF GRUB 27.(PROB NOT RELATED)SIDES OF ABRADED CHALK FRAGS)SMALL SHELF PRESENT AT TOP OF S SIDE.
002CB00199  POST HOLE FILL ROUND  35 32  12 FLAT  FILL OF POSS PH TO N OF GRUB 27.LOAM FORMS MAJORITY OF FILL.NUMEROUS ABRADED CHALK FRAGS THROUGHOUT AND PEA GRIT TOWARDS BASE.NO TRACE OF POST PIPE .

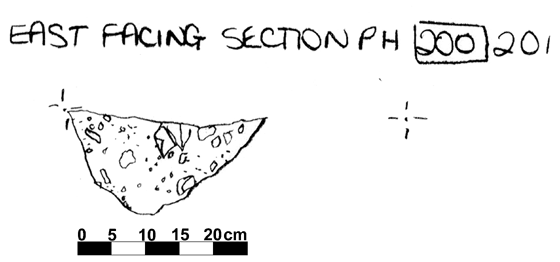

002CB00200 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00200  POST HOLE CUT ROUND  30 30  13 VSHAPED  CUT OF POSS PH TO N OF GRUB 27.SIDES OF ANGULAR CHALK FRAGS.IS PART OF A LINE OF THREE POSS PH:S.SLIGHTLY DEEPER THAN OTHER TWO(198 AND 202).
002CB00201  POST HOLE FILL ROUND  30 30  13 FLAT  FILL OF POSS PH TO N OF GRUB 27.(PROB NOT ASSOCIATED)LOAM FORMS GREATER PART OF FILL.ANGULAR CHALK FRAGS (1-5cms)THROUGHOUT.NO FINDS OR POST PIPE SEEN

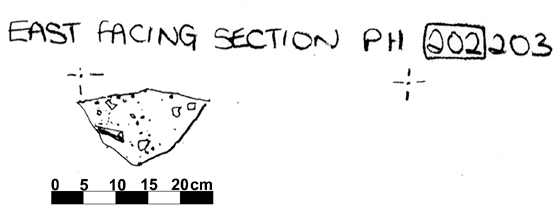

002CB00202 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00202  POST HOLE CUT OVATE  28 25  10 VSHAPED  CUT OF POSS PH IN GROUP OF 3 TO N OF GRUB 27.SIDES OF ANGULAR CHALK FRAGS WHICH MEET AT BASE FORMING A V SHAPE.NO FINDS OR CHARCOAL.
002CB00203  POST HOLE FILL ROUND  28 25  10 FLAT  FILL OF POSS PH TO N OF GRUB 27(PROB NOT ASSOCIATED)E MOST OF GROUP OF THREE.LOAM FORMS MAJORITY OF FILL.ANGULAR:ABRADED CHALK FRAGS THROUGHOUT.
