002CB01980

Post Hole Structure

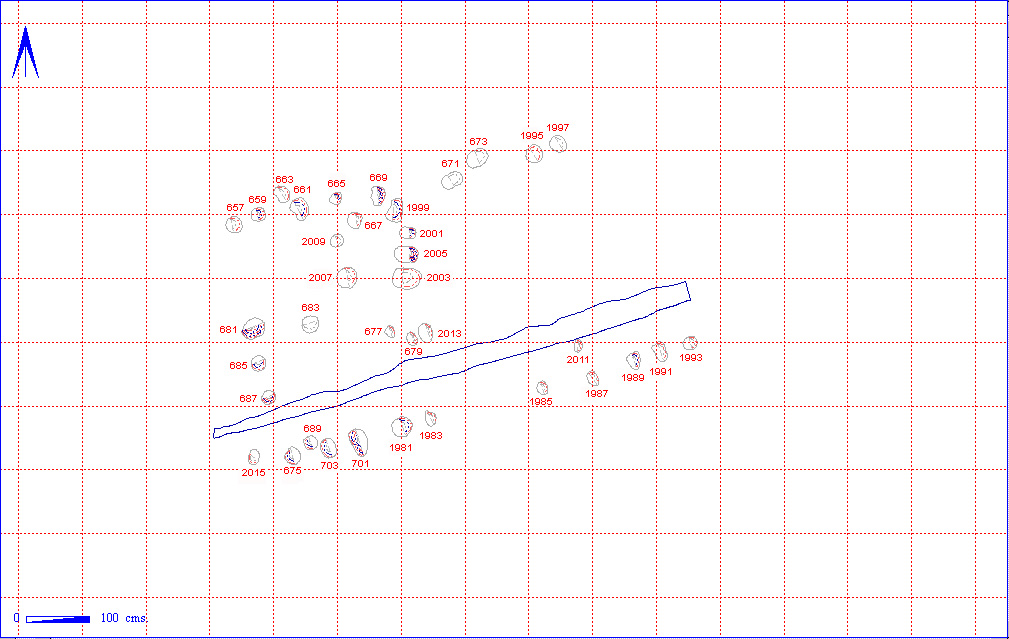

Post-Hole Structure Details
Length  630 Width 340
Area  21.4sq. m Ratio 1.8:1
Number of Posts  37 Deepest 34  002CB00681 Shallowest  6 002CB01997
Average Depth
 16
North Wall  9 Posts Average Depth  13
East Wall  Unknown Average Depth  Unknown
South Wall  12 Posts Average Depth  16
West Wall  3 Posts Average Depth  25
Interior Divisions:  Eleven internal post holes, the majority of unknown function. Probable partition on west side with area of 7.2sq m (340 x 213).
Highest Elevation Value  5524 002CB00681 and 002CB00685
Lowest Elevation Value  5490 002CB00681
Bearing  74 degrees
Plank\Post  Post
Doorways Two centrally opposing doorways in long walls.
Repairs:
Structural Class
Material Culture  Number of Objects 4  Number of Animal Bones 0
Environmental

Phasing

Discussion

The post-holes in this area were excavated under two different master numbers in the field (2CB1980 and 2CB2080) as it was believed two different structures were present. It now seems more likely that only one structure was there with an alignment of NE/SW, the north-east side of which was partially destroyed during machining. The probable length of the structure is likely to be around 6.00-7.00m, based on evidence of other structures and the likelihood of the two doors present being central in the long walls. The structure may also have had a partition approximately 2.00m in width although this is difficult to determine due to the number of internal posts in the area. One interpretation of these post holes as two structures (002CB01980 and 002CB02080) can be found at the end of the document.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CB01980 002CB00657  002CB00658
002CB00659  002CB00660
002CB00661  002CB00662
002CB00663  002CB00664
002CB00665  002CB00666
002CB00667  002CB00668 1
002CB00669  002CB00670
002CB00671  002CB00672
002CB00673  002CB00674
002CB00675  002CB00676
002CB00677  002CB00678
002CB00679  002CB00680
002CB00681  002CB00682
002CB00683  002CB00684
002CB00685  002CB00686
002CB00687  002CB00688
002CB00689  002CB00690
002CB00701  002CB00702
002CB00703  002CB00704
002CB01981  002CB01982 1
002CB01983  002CB01984
002CB01985  002CB01986
002CB01987  002CB01988
002CB01989  002CB01990
002CB01991  002CB01992
002CB01993  002CB01994
002CB01995  002CB01996
002CB01997  002CB01998
002CB01999  002CB02000
002CB02001  002CB02002
002CB02003  002CB02004
002CB02005  002CB02006
002CB02007  002CB02008
002CB02009  002CB02010
002CB02011  002CB02012
002CB02013  002CB02014
002CB02015  002CB02016 2

Structural Details

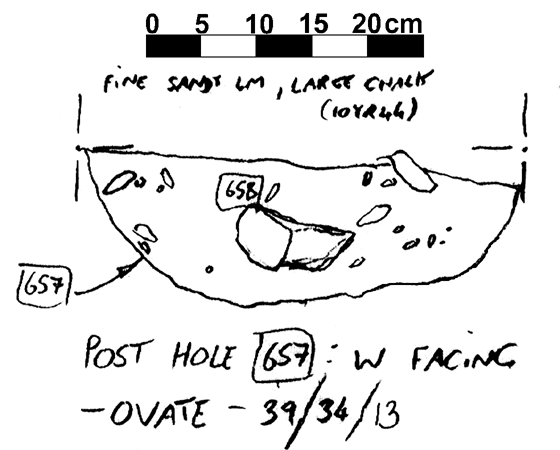

002CB00657 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00657  POST HOLE CUT OVATE  39 34  13 USHAPED  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00658  POST HOLE FILL OVATE  39 34  13 USHAPED  MOD/FREQ CHALK < 9 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB00659 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00659  POST HOLE CUT No entry  52 29  17 No entry  LARGELY DESTROYED DURING CLEANING/EXCAVATION. NO FURTHER RECORD.
002CB00660  POST HOLE FILL No entry  52 29  17 No entry  LARGELY DESTROYED DURING CLEANING/EXCAVATION. NO FURTHER RECORD.

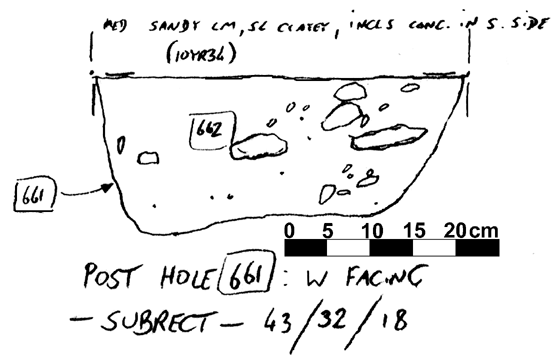

002CB00661 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00661  POST HOLE CUT SUB-RECTANGULAR  43 32  18 FLAT BASED U  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES: SL UNDULATING BASE.
002CB00662  POST HOLE FILL SUB-RECTANGULAR  43 32  18 FLAT BASED U  MOD CHALK < 8 CM CONCENTRATED ON S. SIDE.

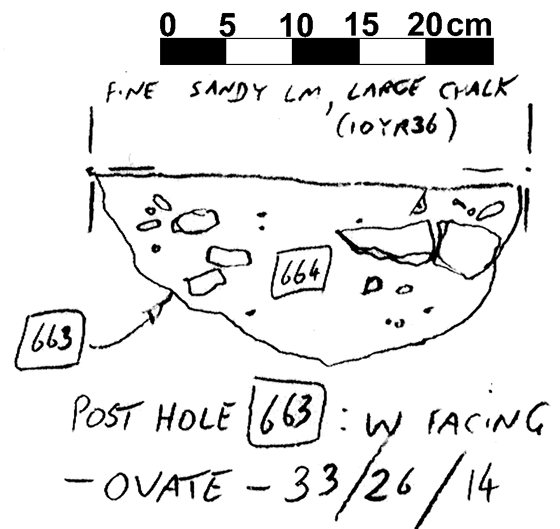

002CB00663 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00663  POST HOLE CUT OVATE  33 26  14 USHAPED  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00664  POST HOLE FILL OVATE  33 26  14 USHAPED  FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE.

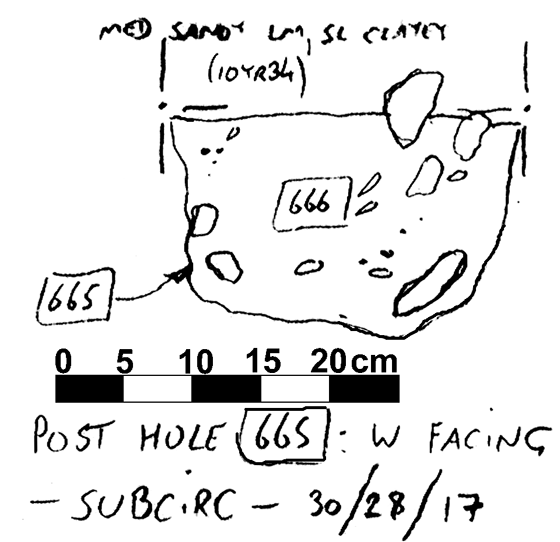

002CB00665 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00665  POST HOLE CUT SUB-CIRCULAR  30 28  17 USHAPED  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES: FLATTISH BASE.
002CB00666  POST HOLE FILL SUB-CIRCULAR  30 28  17 USHAPED  MOD/FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

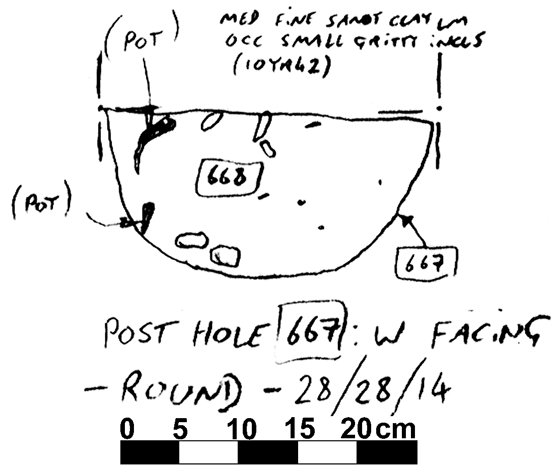

002CB00667 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00667  POST HOLE CUT No entry  28 28  14 No entry  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. V. REGULAR SIDES & BASE.
002CB00668  POST HOLE FILL No entry  28 28  14 No entry  OCCA SMALL GRITTY INCLS THROUGHOUT FILL. OCCA CHALK < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

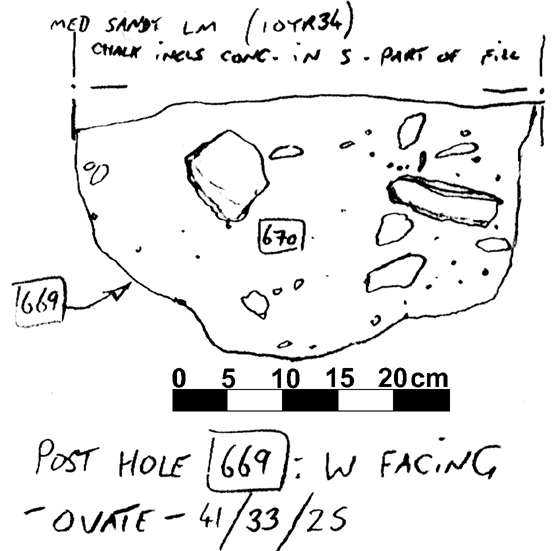

002CB00669 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00669  POST HOLE CUT OVATE  41 33  25 STEPPED U  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. S. EDGE Nr VERTICAL: STEP FROM BASE TO N. EDGE.
002CB00670  POST HOLE FILL OVATE  41 33  25 STEPPED U  FREQ CHALK < 9 CM CONCENTRATED esp IN S. PART OF FILL. TRUNCATED ABOVE.

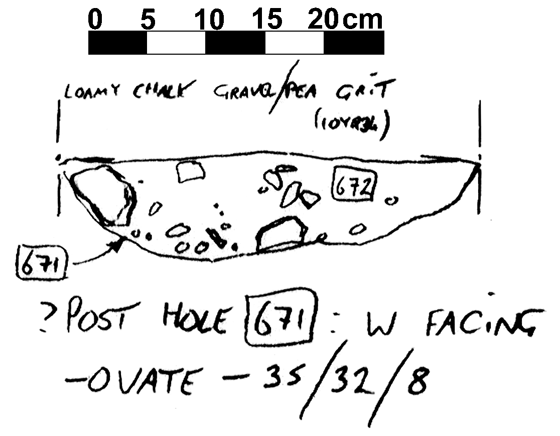

002CB00671 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00671  POST HOLE CUT OVATE  35 32  8 FLAT BASED U  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CB00672  POST HOLE FILL OVATE  35 32  8 FLAT BASED U  FILL DESCRIBED AS: LOAMY CHALK GRAVEL?PEA GRIT. FREQ CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

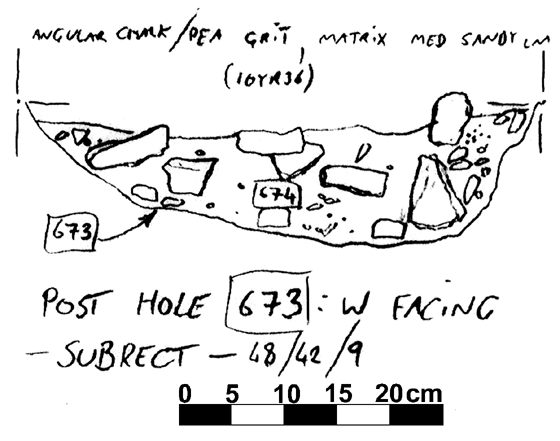

002CB00673 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00673  POST HOLE CUT SUB-RECTANGULAR  48 42  9 CONCAVE  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE--SHALLOW: LITTLE MORE THAN BASE SURVIVING.
002CB00674  POST HOLE FILL SUB-RECTANGULAR  48 42  9 CONCAVE  FREQ COMPACTED ANGULAR CHALK < 8 CM THROUGHOUT FILL. PEA GRIT. TRUNCATED ABOVE.

002CB00675 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00675  POST HOLE CUT SUB-RECTANGULAR  30 26  19 FLAT BASED U  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR PROFILE--EDGES Nr VERTICAL.
002CB00676  POST HOLE FILL SUB-RECTANGULAR  30 26  19 FLAT BASED U  OCCA FINE CHALK < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

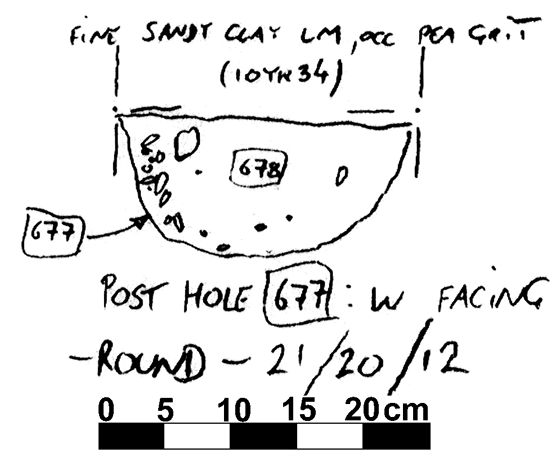

002CB00677 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00677  POST HOLE CUT ROUND  21 20  12 USHAPED  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00678  POST HOLE FILL ROUND  21 20  12 USHAPED  OCCA PEA GRIT: OCCA CHALK < 2 CM - MOSTLY Nr BASE & N. EDGE. TRUNCATED ABOVE.

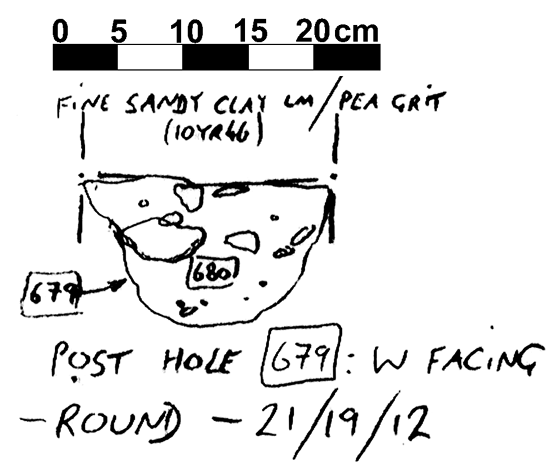

002CB00679 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00679  POST HOLE CUT ROUND  21 19  12 USHAPED  P.H. IN AREA TO IMM E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR PROFILE-EXCEPT FOR SLIGHT STEP ON N. EDGE.
002CB00680  POST HOLE FILL ROUND  21 19  12 USHAPED  PEA GRIT. MOD CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

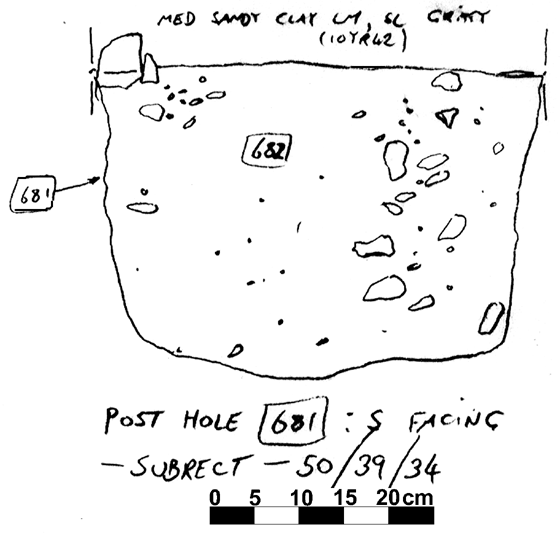

002CB00681 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00681  POST HOLE CUT SUB-RECTANGULAR  50 39  34 VERT.SIDE F.BASE  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00682  POST HOLE FILL SUB-RECTANGULAR  50 39  34 VERT.SIDE F.BASE  MOD CHALK < 4 CM THROUGHOUT FILL: BUT CONCENTRATING MAINLY TOWARDS EDGES.

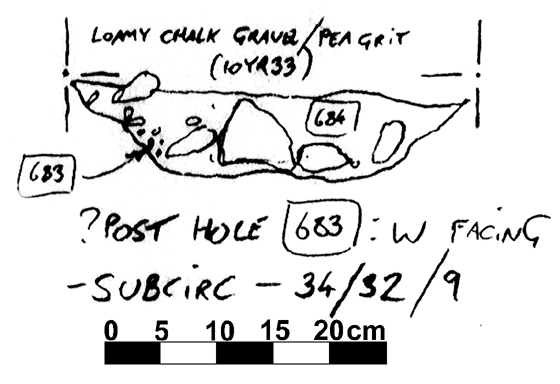

002CB00683 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00683  POST HOLE CUT SUB-CIRCULAR  34 32  9 CONCAVE  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CB00684  POST HOLE FILL SUB-CIRCULAR  34 32  9 CONCAVE  FILL DESCRIBED AS : LOAMY CHALK GRAVEL. PEA GRIT. FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE.

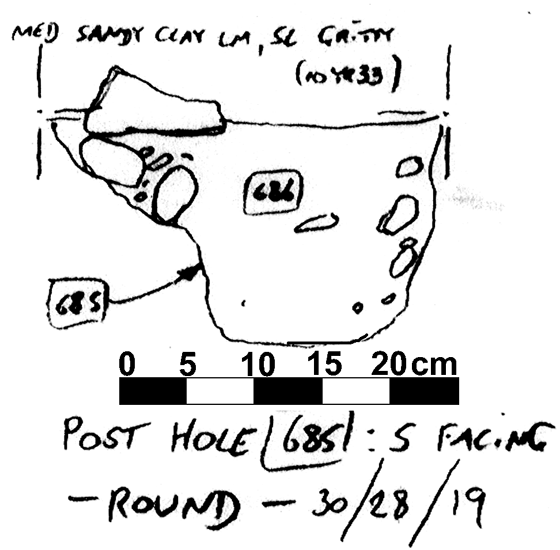

002CB00685 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00685  POST HOLE CUT ROUND  30 28  19 STEPPED U  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. STEP ON W. EDGE ONLY.
002CB00686  POST HOLE FILL ROUND  30 28  19 STEPPED U  MOD/FREQ CHALK < 9 CM --CONCENTRATED AROUND EDGES. TRUNCATED ABOVE.

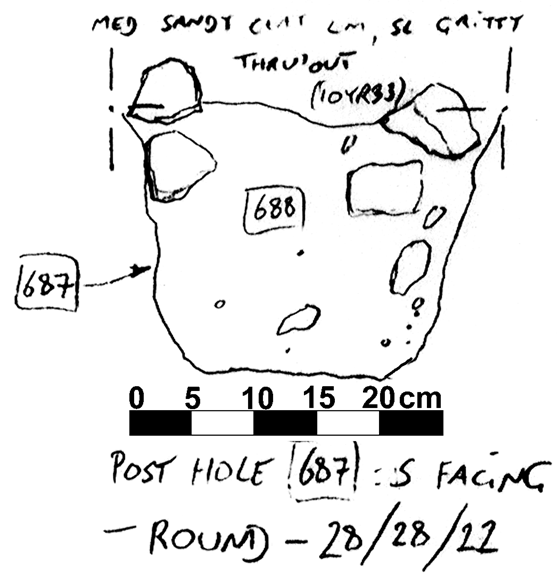

002CB00687 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00687  POST HOLE CUT ROUND  28 28  22 VERT.SIDE F.BASE  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. EDGES Nr VERTICAL: BASE FLAT.
002CB00688  POST HOLE FILL ROUND  28 28  22 VERT.SIDE F.BASE  GRITTY THROUGHOUT FILL. MOD CHALK < 7 CM CONCENTRATED AROUND EDGES. TRUNCATED ABOVE.

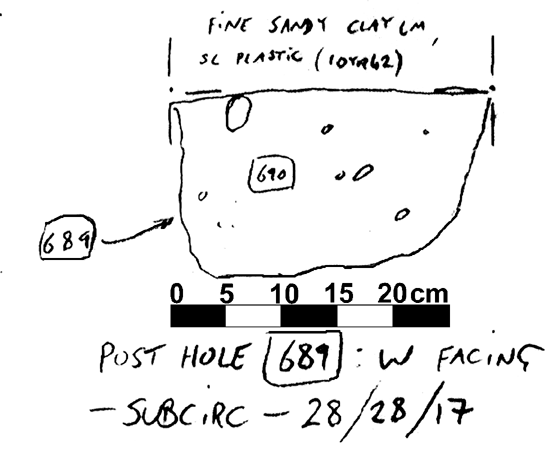

002CB00689 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00689  POST HOLE CUT SUB-CIRCULAR  28 28  17 FLAT BASED U  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR STEEPISH SIDES: FLAT BASE.
002CB00690  POST HOLE FILL SUB-CIRCULAR  28 28  17 FLAT BASED U  OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

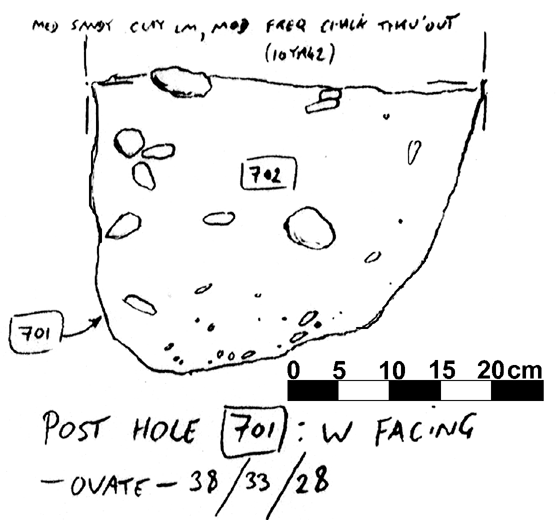

002CB00701 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00701  POST HOLE CUT OVATE  38 33  28 USHAPED  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00702  POST HOLE FILL OVATE  38 33  28 USHAPED  MOD/FREQ CHALK < 5 CM THROUGHOUT FILL. SOME FINER INCLS TOWARDS BASE. TRUNCATED ABOVE.

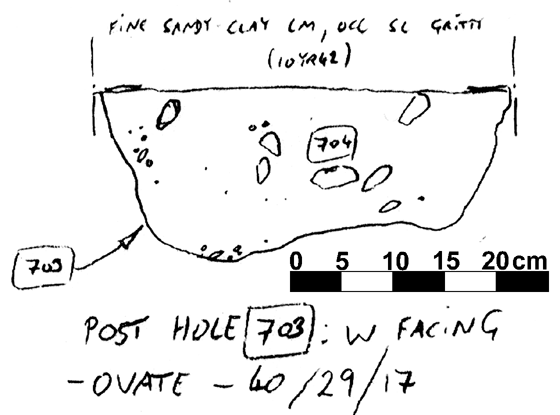

002CB00703 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00703  POST HOLE CUT OVATE  40 29  17 FLAT BASED U  P.H. IN AREA TO E. OF ELSAN PIT. TRUNCATED ABOVE. REGULAR SIDES: SL UNDULATING BASE.
002CB00704  POST HOLE FILL OVATE  40 29  17 FLAT BASED U  OCCA/MOD CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

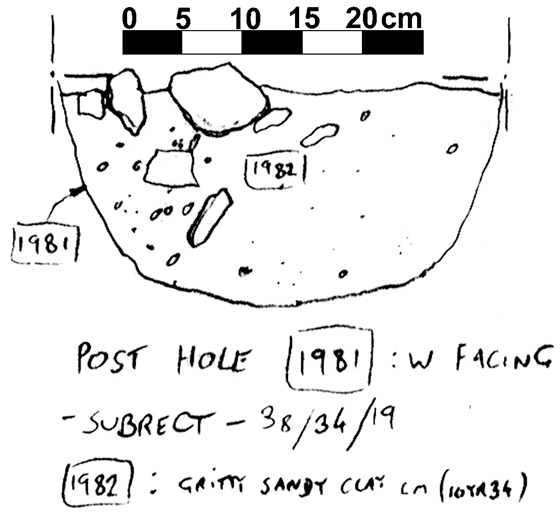

002CB01981 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01981  POST HOLE CUT SUB-RECTANGULAR  38 34  19 USHAPED  P.H. OF BLDG M1980. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01982  POST HOLE FILL SUB-RECTANGULAR  38 34  19 USHAPED  FREQ CHALK < 8 CM CONCENTRATED IN N. 1/3 OF FILL. TRUNCATED ABOVE.

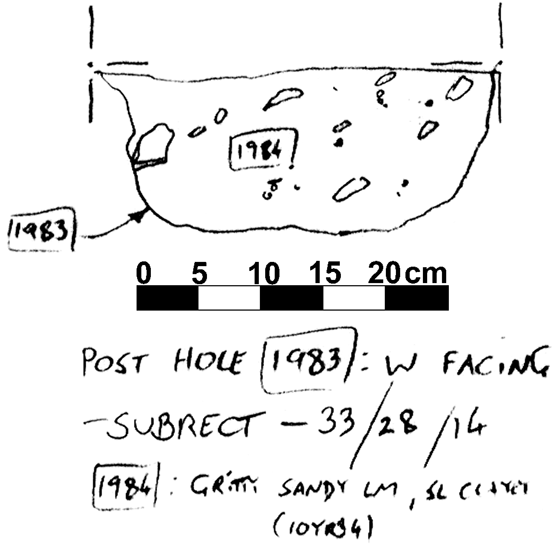

002CB01983 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01983  POST HOLE CUT SUB-RECTANGULAR  33 28  14 FLAT BASED U  P.H. OF BLDG M1980. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01984  POST HOLE FILL SUB-RECTANGULAR  33 28  14 FLAT BASED U  SL CLAYEY. MOD CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

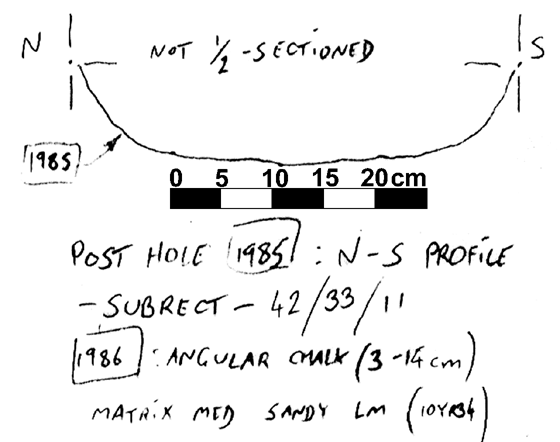

002CB01985 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01985  POST HOLE CUT SUB-RECTANGULAR  42 33  11 FLAT BASED U  P.H. OF BLDG M1980. TRUNCATED ABOVE--SHALLOW. REGULAR PROFILE.
002CB01986  POST HOLE FILL SUB-RECTANGULAR  42 33  11 FLAT BASED U  ANGULAR CHALK < 14 CM. TRUNCATED ABOVE-SHALLOW.

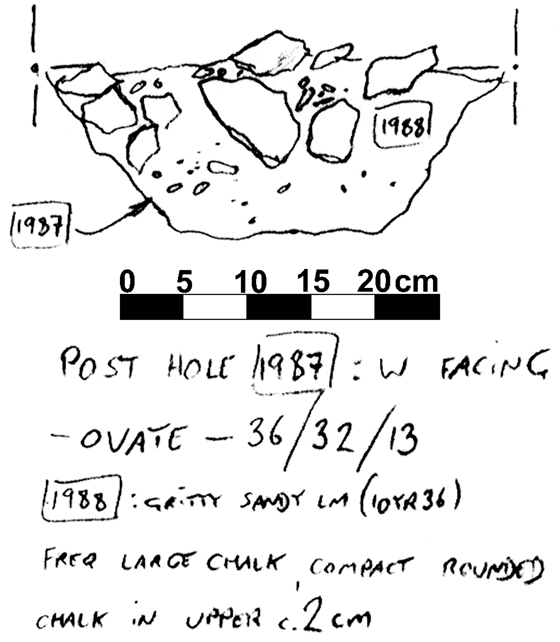

002CB01987 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01987  POST HOLE CUT OVATE  36 32  13 FLAT BASED V  P.H. OF BLDG M1980. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01988  POST HOLE FILL OVATE  36 32  13 FLAT BASED V  FREQ LARGE COMPACTED CHALK 11 CM: SOME OF SMALLER ROUNDED IN UPPER 2 CM. CLEANER TOWARDS BASE.

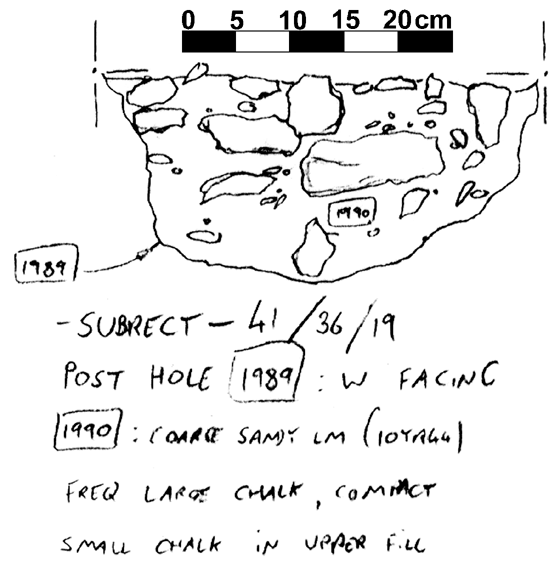

002CB01989 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01989  POST HOLE CUT SUB-RECTANGULAR  41 36  19 USHAPED  P.H. OF BLDG M1980. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01990  POST HOLE FILL SUB-RECTANGULAR  41 36  19 USHAPED  FREQ CHALK < 13 CM-COMPACT: CONCENTRATING MORE IN UPPER PARTS OF FILL. TRUNCATED ABOVE.

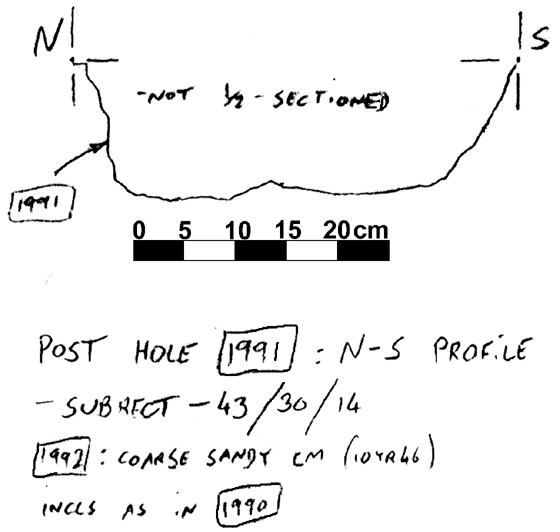

002CB01991 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01991  POST HOLE CUT SUB-RECTANGULAR  43 30  14 FLAT BASED U  P.H. OF S. WALL OF BLDG M1980. TRUNCATED ABOVE. Nr REGULAR PROFILE---BASE UNDULATES SLIGHTLY.
002CB01992  POST HOLE FILL SUB-RECTANGULAR  43 30  14 FLAT BASED U  FREQ LARGE COMPACT CHALK CONCENTRATED IN UPPER PART OF FILL. TRUNCATED ABOVE.

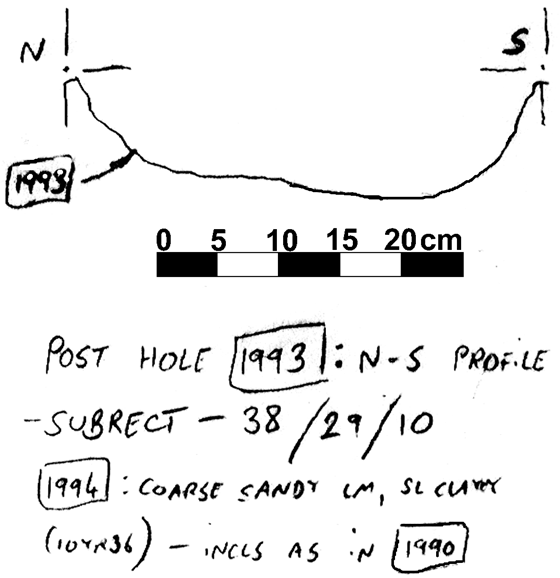

002CB01993 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01993  POST HOLE CUT SUB-RECTANGULAR  38 29  10 FLAT BASED U  P.H. OF S. WALL OF BLDG M1980. TRUNCATED ABOVE. REGULAR SIDES: BASE SLOPES SL.
002CB01994  POST HOLE FILL SUB-RECTANGULAR  38 29  10 FLAT BASED U  FREQ LARGE CHALK CONCENTRATED IN UPPER PART OF FILL. TRUNCATED ABOVE.

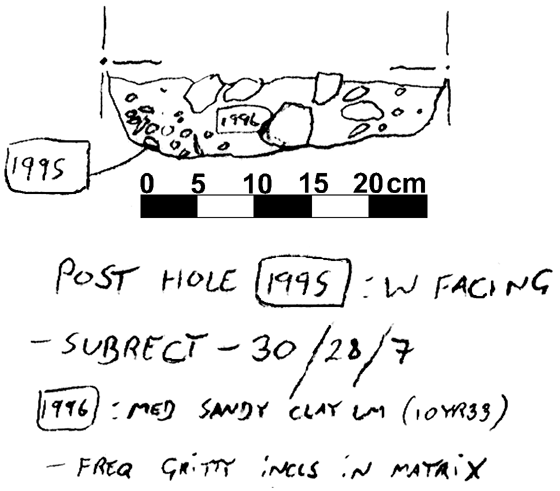

002CB01995 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01995  POST HOLE CUT OVATE  33 28  8 STEPPED U  P.H. OF N. WALL OF BLDG M1980. TRUNCATED ABOVE. REGULAR PLAN: LONG GENTLE STEP FROM BASE TO S. EDGE.
002CB01996  POST HOLE FILL OVATE  33 28  8 STEPPED U  MOD/FREQ CHALK < 5 CM THROUGHOUT FILL. PEA GRIT ABUNDANT. TRUNCATED ABOVE.

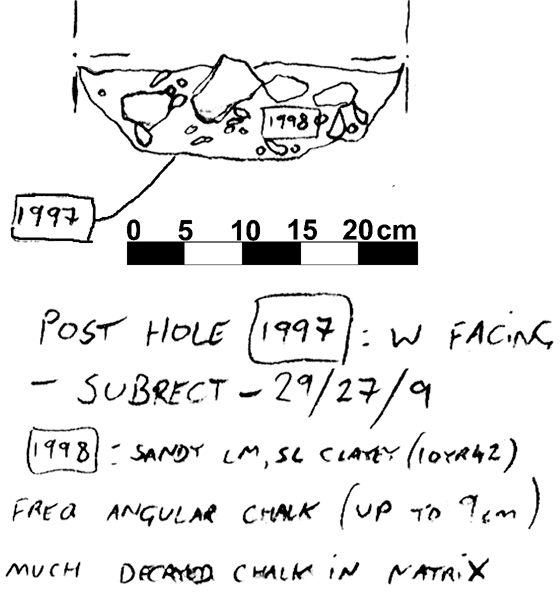

002CB01997 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01997  POST HOLE CUT OVATE  33 29  6 CONCAVE  P.H. OF N. WALL OF BLDG M1980. REGULAR PLAN: TRUNCATED ABOVE--LITTLE MORE THAN BASE SURVIVING.
002CB01998  POST HOLE FILL OVATE  33 29  6 CONCAVE  MOD/FREQ ANGULAR CHALK FRAGS < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

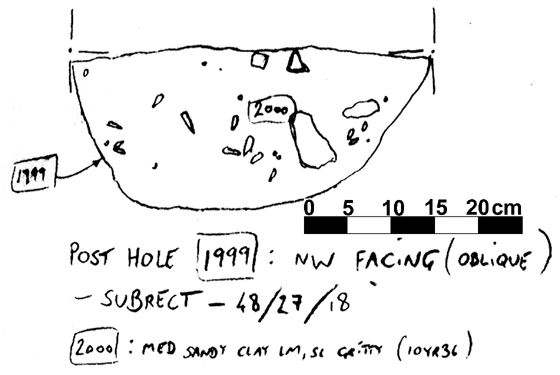

002CB01999 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01999  POST HOLE CUT SUB-RECTANGULAR  48 27  18 USHAPED  P.H.--INTERNAL OF BLDG M1980. TRUNCATED ABOVE. REGULAR PROFILE.
002CB02000  POST HOLE FILL SUB-RECTANGULAR  48 27  18 USHAPED  OCCA/MOD CHALK < 6 CM--MOSTLY MUCH SMALLER THROUGHOUT FILL. TRUNCATED ABOVE.

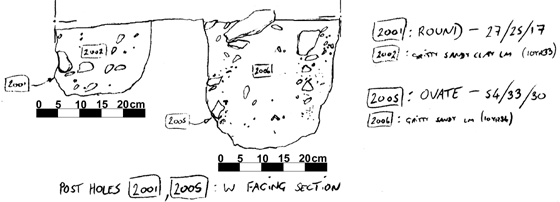

002CB02001 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02001  POST HOLE CUT ROUND  27 25  17 VERT.SIDE F.BASE  P.H. ---INTERNAL OF BLDG M1980. TRUNCATED ABOVE: BASE FLAT: EDGES Nr VERTICAL.
002CB02002  POST HOLE FILL ROUND  27 25  17 VERT.SIDE F.BASE  MOD CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

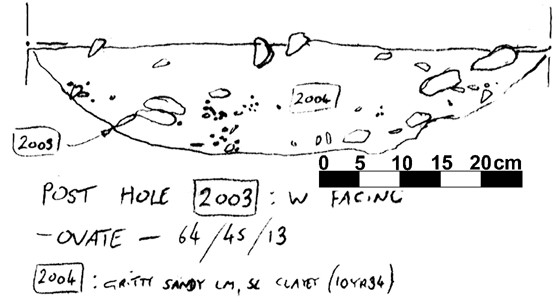

002CB02003 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02003  POST HOLE CUT OVATE  64 45  13 CONCAVE  P.H. WITHIN BLDG M1980. TRUNCATED ABOVE-SHALLOW-LITTLE MORE THAN BASE SURVIVING.
002CB02004  POST HOLE FILL OVATE  64 45  13 CONCAVE  SL CLAYEY. FREQ CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB02005 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02005  POST HOLE CUT OVATE  54 33  30 USHAPED  P.H. WITHIN M1980. TRUNCATED ABOVE. REGULAR PROFILE. TRUNCATED ABOVE--THOUGH DEEP.
002CB02006  POST HOLE FILL OVATE  54 33  30 USHAPED  FREQ CHALK < 5 CM (A FEW LARGER) CONCENTRATING MOSTLY TOWARDS EDGES.--------POSS P. PIPE IN CENTRE ? TRUNCATED ABOVE.

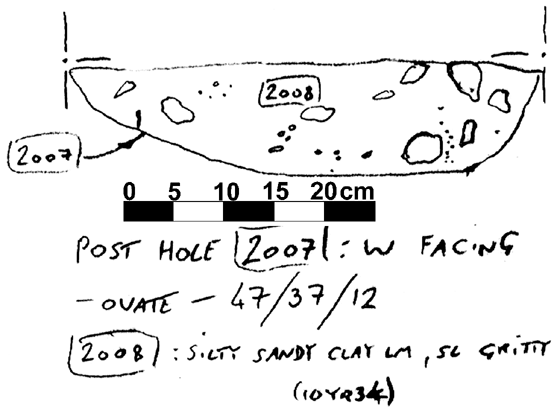

002CB02007 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02007  POST HOLE CUT OVATE  47 37  12 WIDE U  P.H. WITHIN BLDG M1980. TRUNCATED ABOVE-SHALLOW-LITTLE MORE THAN BASE SURVIVING.
002CB02008  POST HOLE FILL OVATE  47 37  12 WIDE U  SL GRITTY. MOD/FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

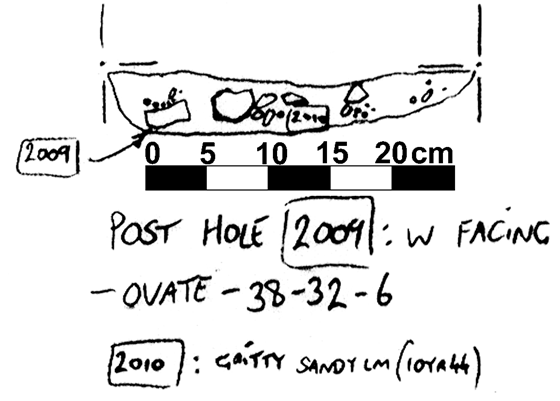

002CB02009 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02009  POST HOLE CUT OVATE  38 32  6 CONCAVE  P.H. WITHIN BLDG M1980. TRUNCATED ABOVE-V. SHALLOW-LITTLE MORE THAN BASE SURVIVING.
002CB02010  POST HOLE FILL OVATE  38 32  6 CONCAVE  FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE-SHALLOW.

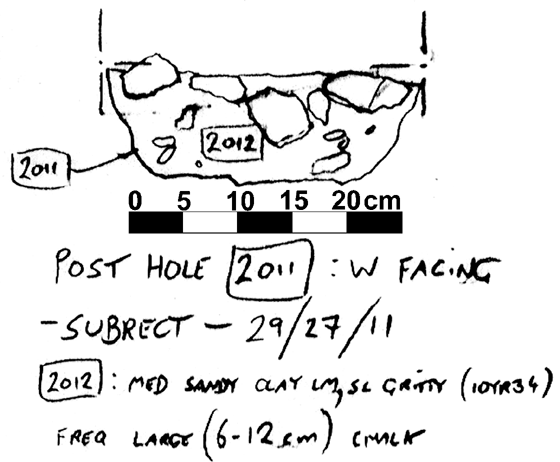

002CB02011 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02011  POST HOLE CUT SUB-RECTANGULAR  29 27  11 FLAT BASED U  P.H. WITHIN BLDG M1980. TRUNCATED ABOVE. REGULAR PROFILE.
002CB02012  POST HOLE FILL SUB-RECTANGULAR  29 27  11 FLAT BASED U  SL GRITTY. FREQ CHALK < 8 CM THROUGHOUT FILL. TRUNCATED ABOVE.

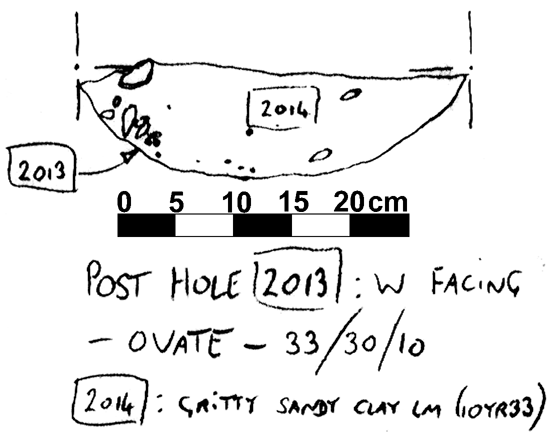

002CB02013 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02013  POST HOLE CUT OVATE  33 30  10 USHAPED  P.H WITHIN BLDG M1980. TRUNCATED ABOVE-SHALLOW. PROFILE APPEARS REGULAR.
002CB02014  POST HOLE FILL OVATE  33 30  10 USHAPED  OCCA FINE CHALK < 3 CM CONCENTRATED MOSTLY TOWARDS BASE. TRUNCATED ABOVE.

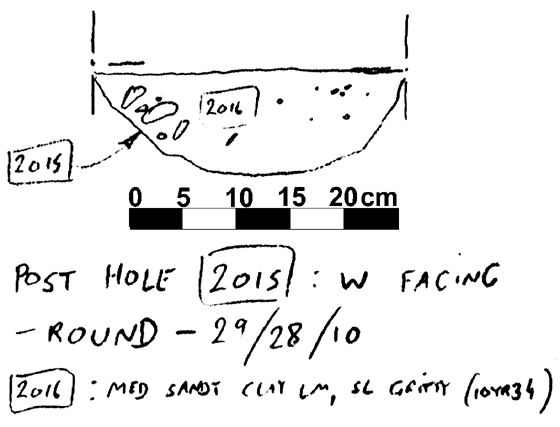

002CB02015 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02015  POST HOLE CUT ROUND  29 28  10 USHAPED  P.H. Nr S.W. CORNER OF M1980. TRUNCATED ABOVE-SHALLOW: PROFILE APPEARS REGULAR.
002CB02016  POST HOLE FILL ROUND  29 28  10 USHAPED  SL GRITTY. OCCA FINE CHALK < 3 CM CONCENTRATING TOWARDS EDGES. TRUNCATED ABOVE.

Objects by Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CB00668 AA EARLY SAXON  POTTERY SHERD ANGLIAN IV 1
002CB01982 AA EARLY SAXON  IRON IRON KNIFE 1
002CB02016 AA PREHISTORIC  FLINT FLAKE CORE PREP  1
002CB02016 AB No Entry  POTTERY SHERD 1

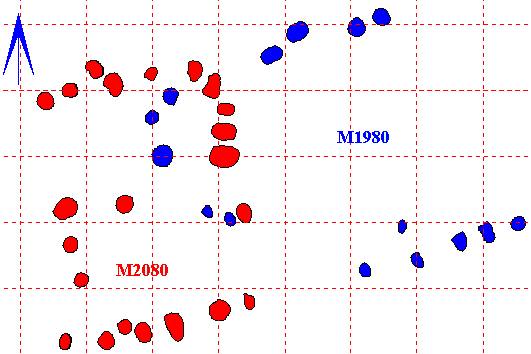

Interpretation
