002CB00192

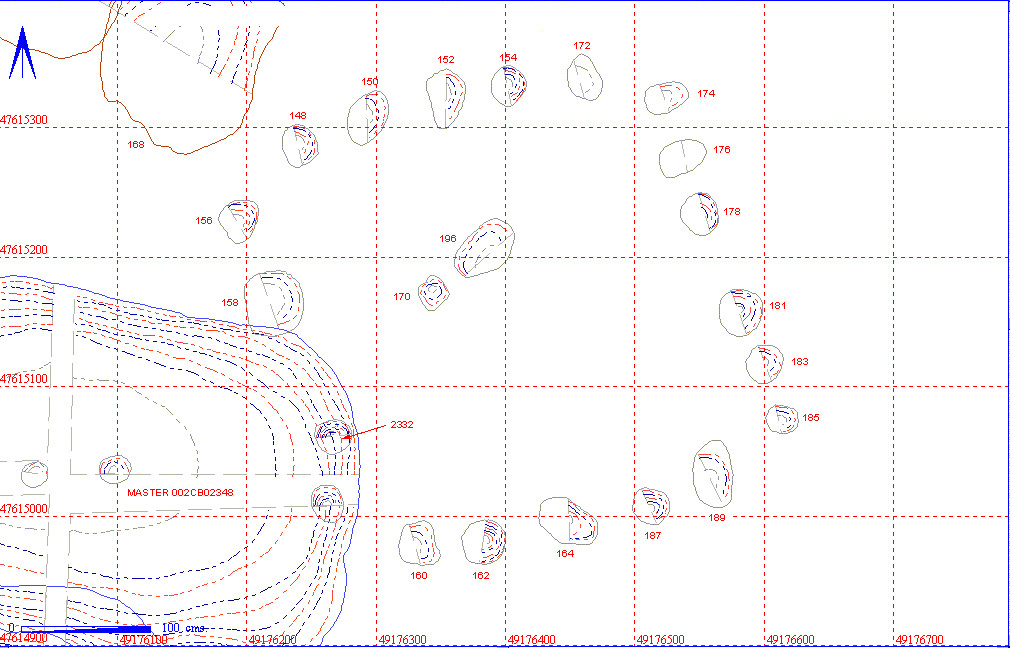

Post Hole Structure



Post-Hole Structure Details
Length  304 Width 304
Area  9.24sq. m Ratio 1:1
Number of Posts  21 Deepest 31  002CB00162 Shallowest  4 002CB00176
Average Depth
 17
North Wall  6 Posts Average Depth  16
East Wall  6 Posts Average Depth  16
South Wall  5 Posts Average Depth  23
West Wall  3 Posts Average Depth  17
Interior Divisions:  Two internal post holes in centre of structure of unknown function.
Highest Elevation Value  5316 002CB00187
Lowest Elevation Value  5240 002CB00172
Bearing  80 degrees
Plank\Post  Post
Doorways Unknown. Possibly one in east wall.
Repairs:
Structural Class
Material Culture  Number of Objects 1  Number of Animal Bones 0
Environmental

Phasing

Discussion

A small, square structure that possibly replaces the small Grubenhaus 002CB02348 to the south-west. Twenty-one post-holes were recovered which is unusual for a relatively small structure, of 0.20m to 0.40m diameter. The structure has one doorway centrally located in the north-east wall and is aligned NE/SW like the majority of buildings in this area. It has two internal post-holes one of which is aligned both ways across the structure and may have been used for roof support. The structure had no obvious corner posts.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CB00192 002CB00148  002CB00149
002CB00150  002CB00151
002CB00152  002CB00153
002CB00154  002CB00155
002CB00156  002CB00157
002CB00158  002CB00159 1
002CB00160  002CB00161
002CB00162  002CB00163
002CB00164  002CB00165
002CB00170  002CB00171
002CB00172  002CB00173
002CB00174  002CB00175
002CB00176  002CB00177
002CB00178  002CB00179
002CB00181  002CB00182
002CB00183  002CB00184
002CB00185  002CB00186
002CB00187  002CB00188
002CB00189  002CB00190
002CB00196  002CB00197
002CB02333 002CB02332

Structural Details

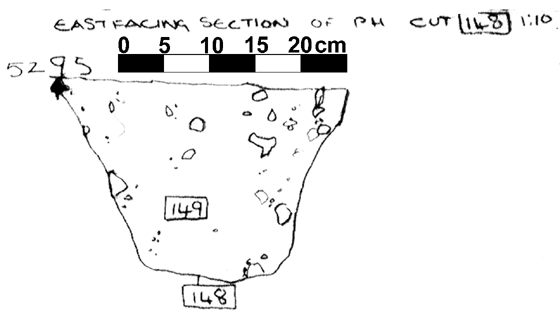

002CB00148 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00148  POST HOLE CUT SUB-CIRCULAR  38 28  23 WIDE U  A CORNER PH IN THE N SIDEOF A SMALL RECTANGULAR BUILDING EAST OF GRUB 31.CUT INTO CHALK WITH ANGULARCHALK SIDES AND A SLIGHTLY CONCAVE BASE.
002CB00149  POST HOLE FILL SUB-CIRCULAR  38 28  23 WIDE U  A SOMEWHAY STICKY,CLAYEY FILL WITH ANGULAR CHALK STONES AND A FEW ABRADED ONES.THE BASE IS SLIGHTLY CONCAVE.

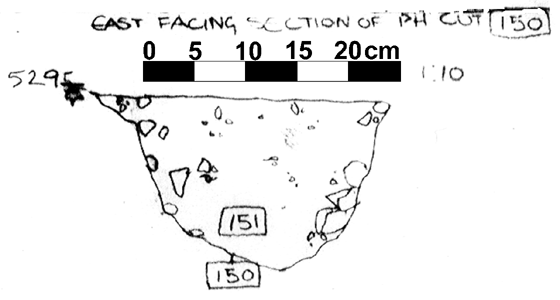

002CB00150 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00150  POST HOLE CUT SUB-CIRCULAR  30 25  15 WIDE V  ONE OF 5 POST HOLES MAKING UP THE N SIDE OF A SMALL BUILDING JUST TO THE E OF GRUB 31.CUT INTO CHALKWITH ANGULAR CHALK STONESMAKING UP THE SIDES &BASE
002CB00151  POST HOLE FILL SUB-CIRCULAR  30 25  15 WIDE V  THIS FILL CONTAINED ONE FRAG OF ANIMAL BONE NEAR THE TOP AND LARGE ANGULAR CHALK STONES 2-5CM SIZE AND ABRADED CHALK NEAR THEBOTTOM.

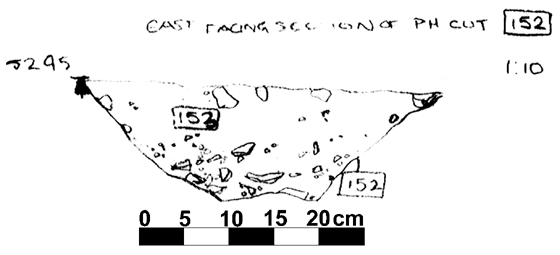

002CB00152 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00152  POST HOLE CUT SUB-CIRCULAR  40 35  17 WIDE V  POST HOLE IN THE LINE OF 5 RUNNING E-W FORMING THEN SIDE OF SMALL BUILDING.A SHALLOW CUT WITH LARGE ANGULAR CHALK STONES ON THE SIDES,ABRADED CLK BASE
002CB00153  POST HOLE FILL SUB-CIRCULAR  40 35  17 WIDE V  THIS FILL WAS SLIGHTLY STICKY WITH LARGE ANGULAR CHALK STONES AND PEA GRIT AND SMALL ABRADED CHALK CLOSE TO THE BASE OF THE CUT.

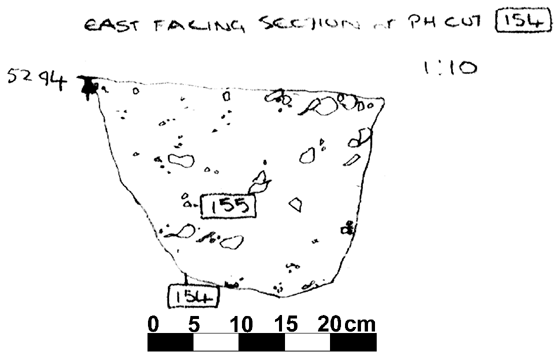

002CB00154 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00154  POST HOLE CUT ROUND  35 32  25 WIDE U  ONE OF 5 PHS ON THE N SIDE OF SMALL BLDING JUST E OF GRUB31.THE WALLS ARE STEEP AND NARROW WITH DEPTH.ANGULAR CHLK WALLS AND ABRADED CLK BASE.
002CB00155  POST HOLE FILL ROUND  35 32  25 WIDE U  THIS FILL WAS SOMEWHAT GRITTY WITH 2-5CM ANGULAR CHLK STONES AND PEA GRIT NEAR THE BASE OF THE CUT.

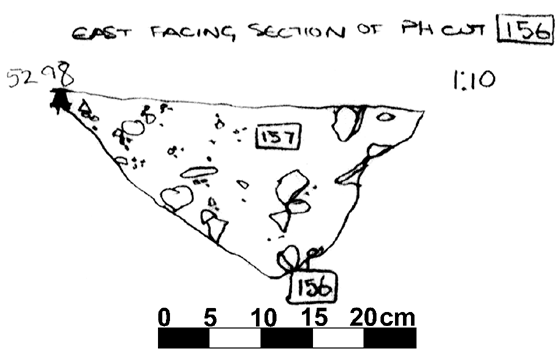

002CB00156 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00156  POST HOLE CUT OVATE  40 38  20 VSHAPED  CUT OF POSS PH IN W SIDE OF BUILDING M192.SIDES AND BASE OF 2-10cms ABRADED CHALK FRAGS.S SIDE SLOPES MORE GENTLY THAN OTHERS.CONCAVE BASE.
002CB00157  POST HOLE FILL OVATE  40 38  20 FLAT  FILL OF POSS PH IN W SIDE OF BUILDING M192.ABRADED CHALK FRAGS(2-7cms)THROUGHOUT.PEA GRIT AT SIDES AND BASE.NO TRACE OF POST PIPE AND NO FINDS.

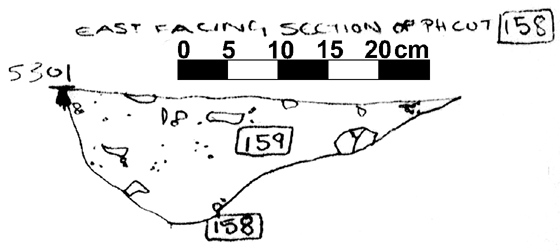

002CB00158 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00158  POST HOLE CUT OVATE  42 38  15 COMPLEX  CUT OF POSS PH ON W SIDE OF BUILDING M192.S SDE IS STEEP AT TOP THEN SLOPES GENTLY TO BOTTOM.N SIDE SLOPES GENTLY AND IS STEEPED.BASE IS CONCAVE.
002CB00159  POST HOLE FILL OVATE  42 38  15 FLAT  FILL OF POSS PH IN W SIDE OF BUILDING M192.ABRADED CHALK FRAGS(c2-5cms)THROUGHOUT.PEA GRIT NEAR SIDES AND BASE.NO FINDS OR TRACE OF POST PIPE.

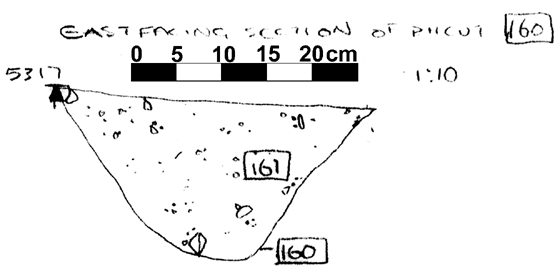

002CB00160 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00160  POST HOLE CUT OVATE  38 30  18 VSHAPED  CUT OF POSS PH IN S SIDE OF BUILDING M192.SHALLOW:WITH STEEP SIDES ON N+E AND GENTLY SLOPING ON S.SIDES OF ABRADED CHALK FRAGS.
002CB00161  POST HOLE FILL OVATE  38 30  18 FLAT  FILL OF POSS PH IN S SIDE OF BUILDING M192.ANGULAR CHALK FRAGS(c2.5cms)AND PEA GRIT PRESENT TOWARDS BOTTOM OF FILL.NO FINDS OR TRACE OF POST PIPE.

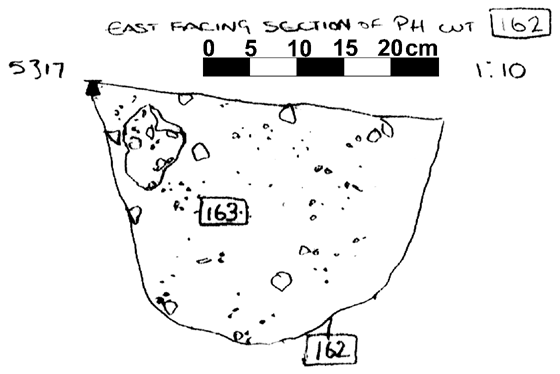

002CB00162 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00162  POST HOLE CUT OVATE  42 26  31 USHAPED  CUT OF POSS PH IN S SIDE OF BUILDING M192.STEEP:ALMOST VERTICAL SIDES OF ABRADED CHALK FRAGS:NARROWING TO A SMALL CONCAVE BASE.
002CB00163  POST HOLE FILL OVATE  42 26  31 FLAT  FILL OF POSS PH IN SSIDE OF BUILDING M192.ABRADED AND ANGULAR CHALK FRAGS THROUGHOUT THE FILL:AND PEA GRIT NEAR SIDES AND BASE.NO FINDS OR POST PIPE.

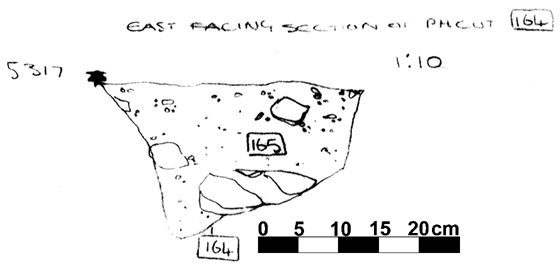

002CB00164 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00164  POST HOLE CUT OVATE  35 32  21 COMPLEX  CUT OF POSS PH IN S SIDE OF BUILDING M192.SIDES OF ANGULAR AND ROTTED CHALK FRAGS.BASE IS NARROWER THAN TOP AND DEEPER AT S SIDE.
002CB00165  POST HOLE FILL OVATE  35 32  21 FLAT  FILL OF POSS PH IN S SIDE OF BUILDING M192.ANGULAR CHALK FRAGS(c2.5cms)AND PEA GRIT PRESENT IN LOWER PART OF FILL.NO TRACE OF POST PIPE.NO FINDS.

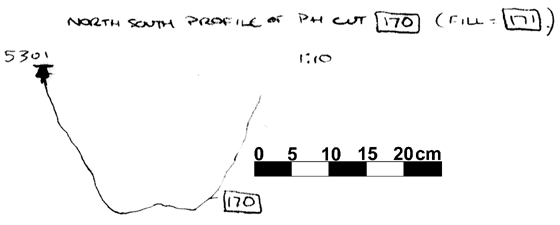

002CB00170 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00170  POST HOLE CUT ROUND  29 25  17 USHAPED  CUT OF POSS PH-W MOST OF 2 IN CENTRE OF BUILDING M192.STEEP SIDES OF ANGULAR CHALK FRAGS.SLIGHTLY NARROWER CONCAVE CHALK BASE.
002CB00171  POST HOLE FILL ROUND  29 25  17 FLAT  FILL OF POSS PH IN CENTRE OF BUILDING M192.ANGULAR CHALK FRAGS(2-5cms)AND PEA GRIT AT BASE AND SIDES.NO SECTION AS WAS COMPLETELY REMOVED IN EXCAVATIO

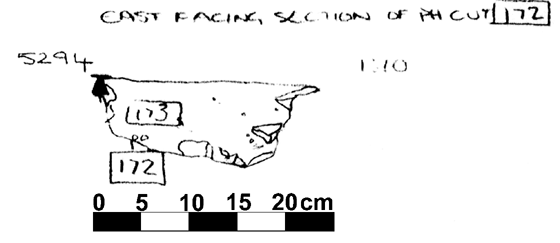

002CB00172 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00172  POST HOLE CUT OVATE  33 31  7 WIDE U  CUT OF POSS PH ON N SIDE OF BUILDING M192.CUT IN CHALK WITH AN ABRADED CHALK BASE:SOMEWHAT IRREGULAR.SIDES GENTLY SLOPED AND CUT IS QUITE SHALLOW.
002CB00173  POST HOLE FILL OVATE  33 31  7 FLAT  FILL OF POSS PH IN N SIDE OF BUILDING M192.DECAYED CHALK FRAGS AND SOME PIECES OF NAT FLINT THROUGHOUT FILL.NO FINDS OR TRACE OF POST PIPE.

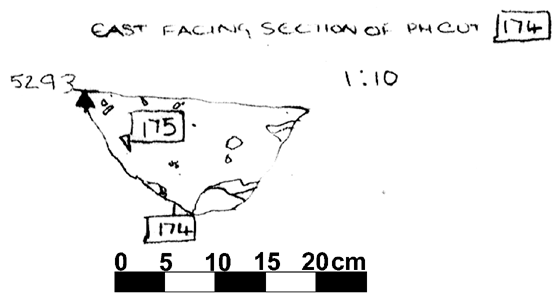

002CB00174 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00174  POST HOLE CUT ROUND  32 32  11 FLAT BASED V  CUT OF POSS PH IN E SIDE OF BUILDING M192.SHALLOW:WITH NARROW CONCAVE BASE.CHALK FRAGS OF 5-7cms COMPOSE THE CUT.NO FINDS.
002CB00175  POST HOLE FILL ROUND  32 32  11 FLAT  FILL OF POSS PH IN E SIDE OF BUILDING M192.2-5cms CHALK FRAGS FOUND THROUGHOUT.PEA GRIT NEAR SIDES AND BOTTOM.NO FINDS OR TRACE OF POST PIPE.

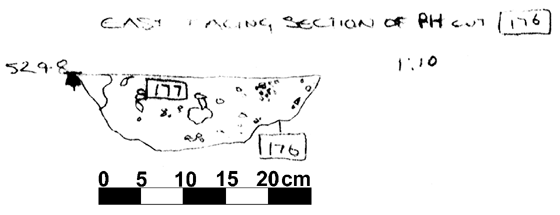

002CB00176 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00176  POST HOLE CUT OVATE  38 28  4 WIDE U  CUT OF POSS PH IN E SIDE OF POSS BUILDING M192.SIDES OF ANGULAR AND ABRADED CHALK FRAGS WITH SOME ROTTED PIECES.NARROWS WITH DEPTH TO CONCAVE BASE.
002CB00177  POST HOLE FILL OVATE  38 28  4 FLAT  FILL OF POSS PH IN E SIDE OF BUILDING M192.c2cms ABRADED CHALK FRAGS FOUND THROUGHOUT THE FILL.NO FINDS OR TRACE OF POST PIPE.

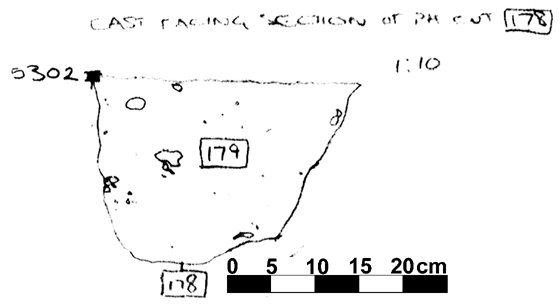

002CB00178 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00178  POST HOLE CUT OVATE  35 32  23 USHAPED  CUT OF POSS PH IN E SIDE OF BUILDING M192.POSS N SUPPORT OF DOOR FRAME.WIDTH NARROWS SLIGHTLY WITH DEPTH.SIDES OF ABRADED AND ANGULAR CHALK FRAGS.
002CB00179  POST HOLE FILL OVATE  35 32  23 FLAT  FILL OF POSS PH IN E SIDE OF BUILDING M192.HAS LARGE(UP TO 5cms)CHALK FRAGS THROUGHOUT THE FILL.NO FINDS OR TRACE OF POST PIPE.

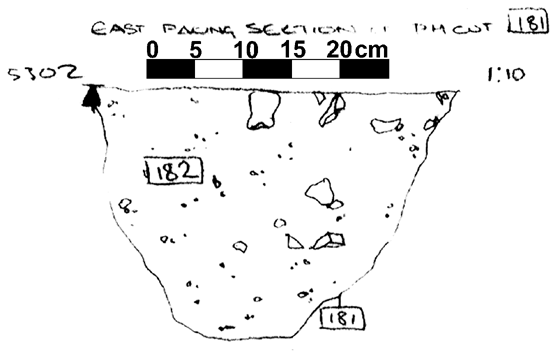

002CB00181 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00181  POST HOLE CUT OVATE  36 31  25 FLAT BASED V  CUT OF POSS PH IN E SIDE OF BUILDING.MAY HAVE HELD S SIDE OF DOOR FRAME.(GAP BETWEEN 181+178 IS LARGER THAN BT OTHERS)DEEPER THAN OTHERS.
002CB00182  POST HOLE FILL OVATE  36 31  25 FLAT  FILL OF POSS PH IN E SIDE OF BUILDING M192.SMALL LENSES OF REDDISH ?ROTTED CHALK OR ?DAUB:AND CHALK FRAGS THROUGHOUT.PEA GRIT AT BOTTOM.

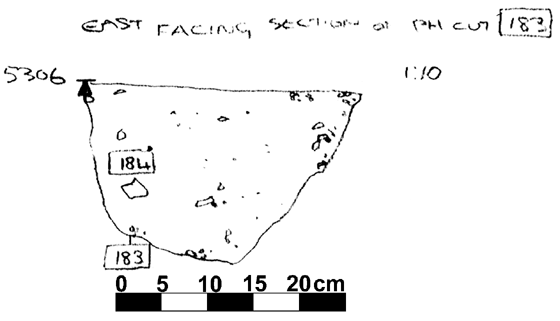

002CB00183 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00183  POST HOLE CUT OVATE  34 27  19 FLAT BASED V  CUT OF POSS PH IN E SIDE OF BUILDING M192.SIDES ALMOST VERTICAL :NARROWING TOWARDS A SLIGHTLY CONCAVE BASE.SIDES OF ABRADED CHALK FRAGS.
002CB00184  POST HOLE FILL OVATE  34 27  19 FLAT  FILL OF POSS PH ON E SIDE OF POSS BUILDING M192.SMALL LENSES OF REDDISH MATERIAL(? ROTTED CHALK OR ?DAUB)AND 2.5cms CHALK INCLS THROUGHOUT.NO POST PIP

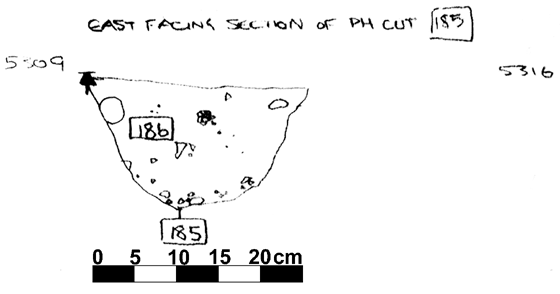

002CB00185 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00185  POST HOLE CUT OVATE  43 25  15 FLAT BASED V  CUT OF POSS PH IN E SIDE OF BUILDING M192.SIDES OF ABRADED CHALK FRAGS AND ROTTED CHALK.NARROWS WITH DEPTH TO A CONCAVE BASE.
002CB00186  POST HOLE FILL OVATE  43 25  15 FLAT  FILL OF POSS PH IN E SIDE OF BUILDING M192.SMALL LENSES OF REDDISH MATERIAL (?ROTTED CHALK OR ?DAUB)THROUGHOUT.PEA GRIT NEAR SIDES AND BASE.

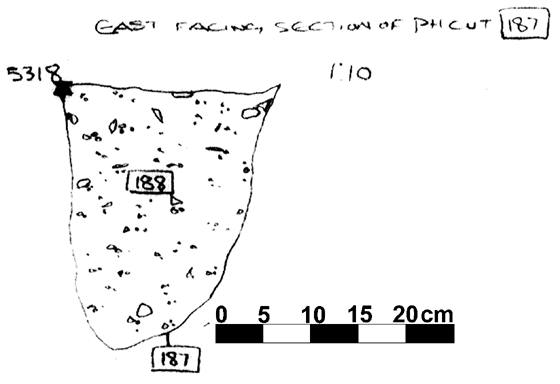

002CB00187 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00187  POST HOLE CUT OVATE  33 27  29 USHAPED  CUT OF POSS PH IN S SIDE OF BUILDING M192.DEEP POST HOLE WITH STEEP SIDES NARROWING SLIGHTLY TOWARDS BASE.SIDES OF ANGULAR:ABRADED CHALK;BASE OF ROTTE
002CB00188  POST HOLE FILL OVATE  33 27  29 FLAT  FILL OF POSS PH IN S SIDE OF BUILDING M192.SOME LARGE: ANGULAR CHALK FRAGS AND QUITE BIG LUMPS OF CHARCOAL TOWARDS TOP OF FILL:PEA GRIT AT SIDES+BASE.

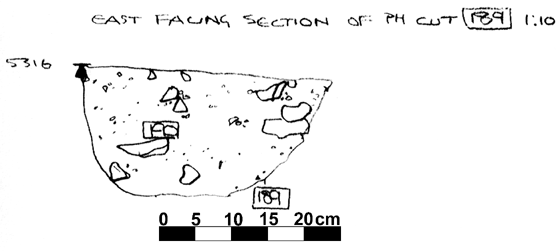

002CB00189 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00189  POST HOLE CUT OVATE  37 35  17 FLAT BASED V  CUT OF POSS PH ON S SIDE OF BUILDING M192.SIDES OF ANGULAR AND ROTTED:LARGE CHALK FRAGS.SMALLER ABRADED FRAGS AT BASE.UNDERCUTS TO S.
002CB00190  POST HOLE FILL OVATE  37 35  17 FLAT  FILL OF POSS PH IN S SIDE OF BUILDING M192.ANGULAR CHALK FRAGS(2-5cms_THROUGHOUT BUT NO PEA GRIT.CHARCOAL AND DAUB IN TOP PART OF FILL.NO POST PIPE.

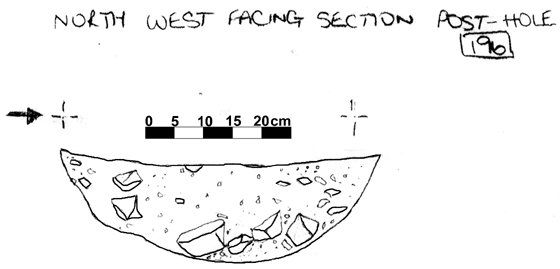

002CB00196 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00196  POST HOLE CUT OVATE  50 42  19 BOWL-SHAPED  CUT OF POSS PH IN CENTRE OF SQUARE BUILDING TO EAST OF GRUB 31. STEEP SIDES AND NARROWER BASE.
002CB00197  POST HOLE FILL OVATE  50 42  19 BOWL-SHAPED  STONES (2.5 CM) AND PEA GRIT NEAR BOTTOM. BONE FOUND AT TOP OF FILL.

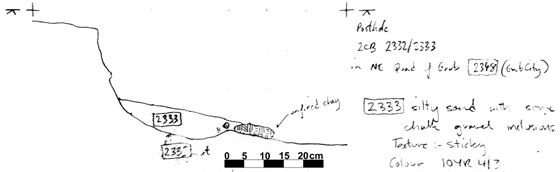

002CB02332 North Facing Section

KEY_ID TYPE SHAPE L  B D PROFILE  NOTES
002CB02332 POST HOLE CUT  OVATE 29 28  35 FLAT BASED U CUT OF P.H. POSSIBLY ASSOCIATED WITH A BUILDING/FENCE LINE OBSERVED IN ADJACENT CHALK IN 1987.
002CB02333 POST HOLE FILL  OVATE 29 28  35 FLAT BASED U POSSIBLY PART OF A BUILDING/FENCE LINE OBSERVED ON ADJACENT CHALK IN 1987. NOT RECOGNIZED UNTIL REMOVAL OF 1831 BEGAN.

 Objects by Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CB00159 AA No Entry  POTTERY SHERD 1
