002CB01530

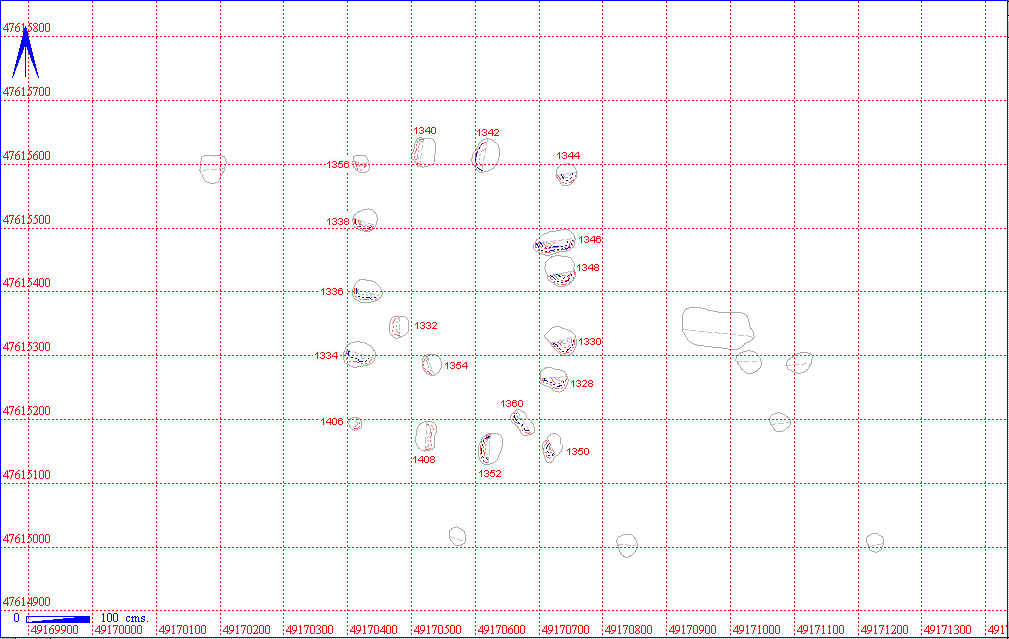

Post Hole Structure



Post-Hole Structure Details
Length  401 Width 252
Area  10.1sq. m Ratio 1.6:1
Number of Posts  18 Deepest 30  002CB01346 Shallowest  11 002CB01356 and 002CB01406
Average Depth
 18
North Wall  2 Posts Average Depth  15
East Wall  6 Posts Average Depth  23
South Wall  3 Posts Average Depth  18
West Wall  5 Posts Average Depth  15
Interior Divisions:  Two internal post holes in south of structure possibly forming patition.
Highest Elevation Value  5150 All
Lowest Elevation Value  5120 002CB01346
Bearing  3 degrees
Plank\Post  Post
Doorways Probably one in east long wall.
Repairs:
Structural Class
Material Culture  Number of Objects 0  Number of Animal Bones 0
Environmental

Phasing

Discussion

A small, rectangular structure with post-holes varying from 0.10m to 0.60m in diameter. The structure appears to have only one entrance, this lies centrally in the east long wall, the alignment of the structure being north/south. It may have a partition 0.80m wide at the south end. The corner post-holes of the east long wall appear to be fairly substantial, unlike those of the west wall, one of which is missing.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE  DENSITY
002CB01530 002CB01328  002CB01329
002CB01330  002CB01331
002CB01332  002CB01333
002CB01334  002CB01335
002CB01336  002CB01337
002CB01338  002CB01339
002CB01340  002CB01341
002CB01342  002CB01343
002CB01344  002CB01345
002CB01346  002CB01347
002CB01348  002CB01349
002CB01350  002CB01351
002CB01352  002CB01353
002CB01354  002CB01355
002CB01356  002CB01357
002CB01360  002CB01361
002CB01406  002CB01407
002CB01408  002CB01409


Structural Details

002CB01328 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01328  POST HOLE CUT SUB-RECTANGULAR  49 34  20 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE. REGULAR E. EDGE: W. EDGE SLOPES GENTLY TO BASE.
002CB01329  POST HOLE FILL SUB-RECTANGULAR  49 34  20 USHAPED  OCCA CHALK GRAVEL < 2 CM THROUGHOUT FILL. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01330 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01330  POST HOLE CUT SUB-RECTANGULAR  49 42  21 USHAPED  P.H. OF BLDG M.1530. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01331  POST HOLE FILL SUB-RECTANGULAR  49 42  21 USHAPED  MOD CHALK < 2 CM THROUGHOUT FILL. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01332 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01332  POST HOLE CUT SUB-RECTANGULAR  32 32  10 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE-SHALLOW-LITTLE MORE THAB BASE SURVIVING.
002CB01333  POST HOLE FILL SUB-RECTANGULAR  32 32  10 USHAPED  OCCA CHALK GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE-SHALLOW.

002CB01334 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01334  POST HOLE CUT SUB-RECTANGULAR  58 31  15 FLAT BASED U  P.H. OF BLDG M1530. TRUNCATED ABOVE: SHALLOW BUT REGULAR PROFILE.
002CB01335  POST HOLE FILL SUB-RECTANGULAR  58 31  15 FLAT BASED U  OCCA CHALK GRAVEL < 1 CM THROUGHOUT FILL. SOME PEA GRIT TOWARDS BASE. CLEAN FILL. TRUNCATED ABOVE.

002CB01336 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01336  POST HOLE CUT SUB-RECTANGULAR  52 35  19 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01337  POST HOLE FILL SUB-RECTANGULAR  52 35  19 USHAPED  OCCA CHALK GRAVEL: MOSTLY < 2 CM THROUGHOUT FILL. SOME PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01338 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01338  POST HOLE CUT OVATE  41 33  20 USHAPED  P.H. OF BLDG M1530 TRUNCATED ABOVE. REGULAR PROFILE.
002CB01339  POST HOLE FILL OVATE  41 33  20 USHAPED  MOD CHALK GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB01340 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01340  POST HOLE CUT SUB-RECTANGULAR  48 35  14 FLAT BASED U  P.H. OF BLDG M1530. TRUNCATED ABOVE-SHALLOW. FLAT BASE: STEEP N. EDGE: GENTLE S. EDGE.
002CB01341  POST HOLE FILL SUB-RECTANGULAR  48 35  14 FLAT BASED U  OCCA CHALK GRAVEL < 3 CM esp IN LOWER PART OF FILL. TRUNCATED ABOVE.

002CB01342 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01342  POST HOLE CUT SUB-RECTANGULAR  56 43  16 FLAT BASED U  P.H. OF BLDG M1530. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01343  POST HOLE FILL SUB-RECTANGULAR  56 43  16 FLAT BASED U  OCCA CHALK GRAVEL < 3 CM esp IN LOWER PART OF FILL. SOME PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01344 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01344  POST HOLE CUT SUB-RECTANGULAR  38 36  18 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE. Nr REGULAR PROFILE.
002CB01345  POST HOLE FILL SUB-RECTANGULAR  38 36  18 USHAPED  MOD CHALK GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB01346 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01346  POST HOLE CUT SUB-RECTANGULAR  65 39  30 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE. ALMOST :U: PROFILE: BUT EDGES GENTLE.
002CB01347  POST HOLE FILL SUB-RECTANGULAR  65 39  30 USHAPED  MOD/FREQ CHALK GRAVEL < 3 CM THROUGHOUT FILL. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01348 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01348  POST HOLE CUT OVATE  49 44  27 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01349  POST HOLE FILL OVATE  49 44  27 USHAPED  MOD CHALK GRAVEL < 2 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB01350 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01350  POST HOLE CUT OVATE  45 32  21 FLAT BASED U  P.H. OF BLDG M1530. TRUNCATED ABOVE. REGULAR SIDES: BASE SL CONCAVE.
002CB01351  POST HOLE FILL OVATE  45 32  21 FLAT BASED U  MOD CHALK GRAVEL < 2 CM THROUGHOUT FILL. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01352 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01352  POST HOLE CUT SUB-RECTANGULAR  51 37  24 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE. N. EDGE STEEPER THAN S.
002CB01353  POST HOLE FILL SUB-RECTANGULAR  51 37  24 USHAPED  MOD CHALK GRAVEL < 2 CM THROUGHOUT FILL. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01354 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01354  POST HOLE CUT OVATE  35 35  14 USHAPED  P.H. OF BLDG M1530 . TRUNCATED ABOVE. REGULAR PROFILE-THOUGH EDGES V. GENTLE.
002CB01355  POST HOLE FILL OVATE  35 35  14 USHAPED  OCCA/MOD CHALK GRAVEL < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB01356 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01356  POST HOLE CUT OVATE  27 20  11 FLAT  P.H. OF BLDG M1530. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01357  POST HOLE FILL OVATE  27 20  11 FLAT  FREQ CHALK GRAVEL < 3 CM. TRUNCATED ABOVE.

002CB01360 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01360  POST HOLE CUT UNCLEAR  50 35  17 STEPPED U  P.H. OF BLDG M1530. TRUNCATED ABOVE. STEP FROM BASE TO N. EDGE.
002CB01361  POST HOLE FILL UNCLEAR  50 35  17 STEPPED U  MOD/FREQ CHALK GRAVEL <4 CM. PEA GRIT TOWARDS BASE. TRUNCATED ABOVE.

002CB01406 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01406  POST HOLE CUT SUB-CIRCULAR  28 23  11 USHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE. REGULAR PROFILE.
002CB01407  POST HOLE FILL SUB-CIRCULAR  28 23  11 USHAPED  MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

002CB01408 Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB01408  POST HOLE CUT FIGURE 8  45 23  13 WSHAPED  P.H. OF BLDG M1530. TRUNCATED ABOVE---IS IN FACT A DOUBLE P.H.
002CB01409  POST HOLE FILL FIGURE 8  45 23  13 WSHAPED  FILL DESCRIBED AS : LOAMY CHALK GRAVEL. TRUNCATED ABOVE.
