002CB01296

Grubenhaus



Grubenhaus Details
Length 396 Width 298  Depth 29 Ratio  1.33:1
Area  10.2 sq. m Volume
Number of Posts  1
Highest Elevation Value  5184
Lowest Elevation Value  5155
Bearing  88.59 degrees
Structural Class
Material Culture  Number of Objects 111 Number of Animal Bones 116
Environmental


Phasing

Stratigraphic Matrix Diagram

Discussion

Only the post hole at the western side of the Grubenhaus was issued with a context number during excavation. The excavators felt that the two features visible on the eastern side were only depressions and thus no further record exists.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
002CB01296 002CB01294  002CB01295 14  12 + 2
002CB02082  17  25
002CB02083  16  25
002CB02084  4  4
002CB02324  6  7
002CB02325  6  3
002CB02326  9  8
002CB02328  9  6
002CB02329  6  3
002CB02330  13  14
002CB02331  11  7
POST HOLE 002CB02349  002CB02350 0


Object Totals by Material

002CB01295 Object Totals by Material

002CB01295 Charcoal
Fired Clay
Pottery  6 of which Saxon  5 Roman
Stone  4
Unfired Clay


002CB02082 Object Totals by Material

002CB02082 Charcoal
Fired Clay
Iron 1
Pottery  11 of which Saxon  10 Roman
Stone  4


002CB02083 Object Totals by Material

002CB02083 Flint 1
Pottery  9 of which Saxon  8 Unassigned
Slag 2
Stone  4
Unfired Clay


002CB02084 Object Totals by Material

002CB02084 Pottery of which Saxon Roman 1
Stone  1


002CB02324 Object Totals by Material

002CB02324 Charcoal
Pottery  3 of which Saxon  3
Seed 1
Stone  6


002CB02325 Object Totals by Material

002CB02325 Charcoal
Pottery  4 of which Saxon  4
Stone  1


002CB02326 Object Totals by Material

002CB02326 Charcoal
Coprolite
Fired Clay
Pottery  3 of which Saxon  3
Stone  2
Unfired Clay


002CB02328 Object Totals by Material

002CB02328 Charcoal
Pottery  5 of which Saxon  4 Roman
Stone  1
Unfired Clay


002CB02329 Object Totals by Material

002CB02329 Pottery of which Saxon
Stone  3


002CB02330 Object Totals by Material

002CB02330 Charcoal
Glass 1
Pottery  4 of which Saxon  4
Stone  3
Worked Bone


002CB02331 Object Totals by Material

002CB02331 Flint 1
Pottery  7 of which Saxon  7
Stone  3

Animal Bone Totals by Species

002CB01295 Animal Bone Totals by Species

002CB01295 Cattle  9
Horse
Sheep/Goat 2

002CB02082 Animal Bone Totals by Species

002CB02082 Cattle  15
Pig 1
Sheep
Sheep/Goat 7

002CB02083 Animal Bone Totals by Species

002CB02083 Cattle  16
Pig 2
Sheep
Sheep/Goat 5

002CB02084 Animal Bone Totals by Species

002CB02084 Cattle  2
Pig 1
Sheep/Goat 1

002CB02324 Animal Bone Totals by Species

002CB02324 Cattle  2
Horse
Sheep/Goat 1

002CB02325 Animal Bone Totals by Species

002CB02325 Cattle  2
Sheep/Goat 1

002CB02326 Animal Bone Totals by Species

002CB02326 Cattle  6
Sheep/Goat 2

002CB02328 Animal Bone Totals by Species

002CB02328 Cattle  6

002CB02329 Animal Bone Totals by Species

002CB02329 Cattle  2
Sheep/Goat 1

002CB02330 Animal Bone Totals by Species

002CB02330 Cattle  6
Horse
Pig 4
Sheep/Goat 3

002CB02331 Animal Bone Totals by Species

002CB02331 Cattle  5
Sheep/Goat 2

002CBM1296 Animal Bone Totals by Species (Recorded under Master number only)

002CBM1296 Cattle  2

Structural Details

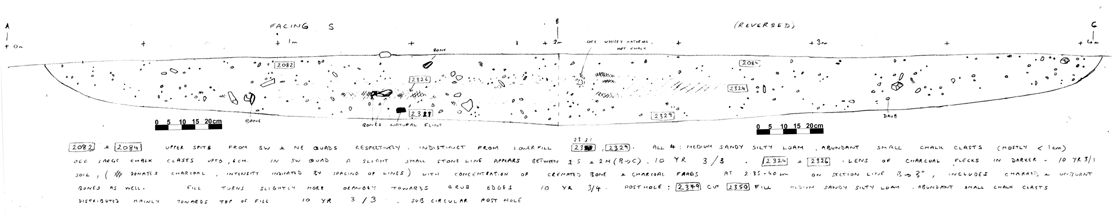

002CB01296 South Facing Section


KEY_ID TYPE SHAPE L B D  PROFILE NOTES
002CB01294 GRUB CUT  SUB-RECTANGULAR 386  298 29 CONCAVE  CUT FOR GRUB. V. SHALLOW - PROBABLY RELATES TO TRUNCATION. NOT REGULARLY SUB RECTANGULAR- SOMEWHAT AMORPHOUS WITH ROUNDED CORNERS. ONLY 1 P.H.AT.W.
002CB01295 GRUB FILL  GRID DEFINED 186  142 20 IRREGULAR  1295 = ONE QUADRANT OF GRUB: FINDS KEPT BY QUAD ONLY. MOD CHALK PEBBLES < 5cm.
002CB02082 GRUB FILL  GRID DEFINED 186  147 20 IRREGULAR  S.W. QUADRANT OF UPPER FILL: FINDS KEPT BY QUAD ONLY. MOD CHALK PEBBLES < 5cm.
002CB02083 GRUB FILL  GRID DEFINED 172  133 20 IRREGULAR  N.W. QUAD OF GRUB: FINDS KEPT BY QUAD ONLY. MOD CHALK PEBBLES < 5cm.
002CB02084 GRUB FILL  GRID DEFINED 200  149 20 IRREGULAR  N.E. QUAD OF GRUB: FINDS KEPT BY QUAD ONLY. MOD CHALK PEBBLES < 5cm.
002CB02324 GRUB FILL  GRID DEFINED 63  59 IRREGULAR N.E. QUAD OF GRUB: FINDS KEPT BY QUAD ONLY. V. HIGH CHARCOAL CONTENT < 30% OF CONTEXT: DOES NOT TOUCH EDGE OF GRUB. BECOMES ORANGEY Nr EDGE-10YR34.
002CB02325 GRUB FILL  GRID DEFINED 105  59 IRREGULAR S.E. QUAD OF GRUB: FINDS KEPT BY QUAD ONLY. V. HIGH CHARCOAL CONTENT < 30% OF CONTEXT - DOES NOT TOUCH EDGE OF GRUB. ORANGEY NR EDGE- 10YR34.
002CB02326 GRUB FILL  GRID DEFINED 89  59 IRREGULAR S.W. QUAD OF GRUB: FINDS KEPT BY QUAD ONLY. V. HIGH CHARCOAL CONTENT < 30% OF CONTEXT. DOES NOT TOUCH EDGE OF GRUB. ORANGEY NR EDGE-10YR34.
002CB02328 GRUB FILL  GRID DEFINED 169  106 9 IRREGULAR  S.E.QUAD OF GRUB: FINDS KEPT BY QUADRANT. PRIMARY FILL. FREQ SMALL CHALK PEBBLES.
002CB02329 GRUB FILL  GRID DEFINED 180  126 7 IRREGULAR  N.E.QUAD OF GRUB: FINDS KEPT BY QUAD ONLY. PRIMARY FILL OF GRUB. FREQ SMALL CHALK PEBBLES.
002CB02330 GRUB FILL  GRID DEFINED 146  118 7 IRREGULAR  N.W. QUAD OF GRUB: FINDS KEPT BY QUAD ONLY. PRIMARY FILL OF GRUB. FREQ SMALL CHALK PEBBLES.
002CB02331 GRUB FILL  GRID DEFINED 170  109 8 IRREGULAR  S.W. QUAD OF GRUB: FINDS KEPT BY QUAD. PRIMARY FILL OF GRUB. FREQ SMALL CHALK PEBBLES.

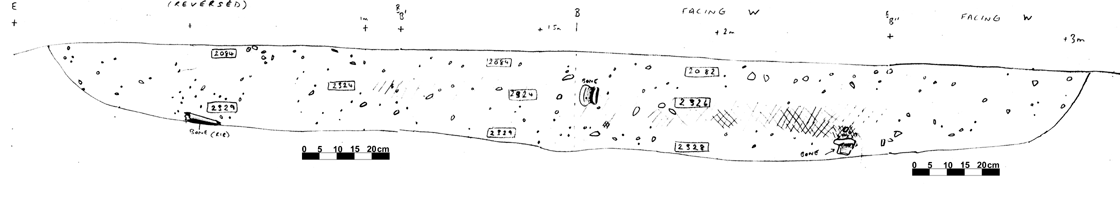

002CB01296 West Facing Section

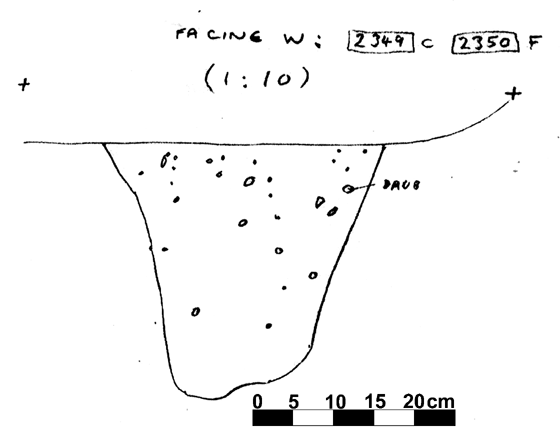

002CB02349 West Facing Section

KEY_ID TYPE SHAPE L B D  PROFILE NOTES
002CB02349 POST HOLE CUT  SUB-CIRCULAR 40 35  31 VERT.SIDE V.BASE CUT FOR P.H. W. END OF GRUB.
002CB02350 POST HOLE FILL  SUB-CIRCULAR 40 35  31 VERT.SIDE V.BASE FILL OF P.H. W. END OF GRUB. FREQ SMALL CHALK PEBBLES - ESP TOWARDS TOP OF CONTEXT.

Objects by Context

KEY_ID  OBJ PERIOD  MATERIAL TYPE  SUB_TYPE CLASS  No
002CB01295  AJ No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB01295  AN No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB01295  AI EARLY SAXON  FIRED CLAY FIRED CLAY  1
002CB01295  AB ROMAN  POTTERY SHERD  R-B  1
002CB01295  AE EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB01295  AF EARLY SAXON  POTTERY SHERDS  ANGLIAN III  5
002CB01295  AK EARLY SAXON  POTTERY SHERDS  ANGLIAN III  11
002CB01295  AL EARLY SAXON  POTTERY SHERD  ?ANGLIAN V  1
002CB01295  AM EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB01295  AA No Entry  STONE STONE  SANDSTONE  1
002CB01295  AD No Entry  STONE STONE  5
002CB01295  AG No Entry  STONE STONE  SANDSTONE  1
002CB01295  AH No Entry  STONE STONE  1
002CB01295  AC EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002CB02082  AM No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB02082  AO EARLY SAXON  FIRED CLAY FIRED CLAY  1
002CB02082  AB ROMAN  POTTERY SHERD  R-B  1
002CB02082  AD EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB02082  AE EARLY SAXON  POTTERY SHERD  ANGLIAN II  1
002CB02082  AF EARLY SAXON  POTTERY SHERD  STAMPED ANGLIAN III  1
002CB02082  AG EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB02082  AH EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002CB02082  AI EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002CB02082  AJ EARLY SAXON  POTTERY SHERDS  ANGLIAN I  3
002CB02082  AK EARLY SAXON  POTTERY STONE  ANGLIAN IV  1
002CB02082  AN EARLY SAXON  POTTERY SHERDS  ANGLIAN III  2
002CB02082  AQ EARLY SAXON  POTTERY SHERD  GTW  1
002CB02082  AA No Entry  STONE STONE  HAEMATITE  1
002CB02082  AC No Entry  STONE STONE  14
002CB02082  AL No Entry  STONE STONE  1
002CB02082  AP No Entry  STONE STONE  1
002CB02083  AA PREHISTORIC  FLINT FLAKE  CORE PREP 1
002CB02083  AC EARLY SAXON  POTTERY SHERD  ANGLIAN IV  1
002CB02083  AD EARLY SAXON  POTTERY SHERDS  ANGLIAN IV  2
002CB02083  AE EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02083  AH EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02083  AI EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB02083  AJ EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02083  AM EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02083  AN No Entry  POTTERY SHERD  1
002CB02083  AP EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02083  AF No Entry  SLAG SLAG FRAGMENT  IRON SLAG  1
002CB02083  AG No Entry  STONE STONE  1
002CB02083  AK No Entry  STONE STONE  SANDSTONE  2
002CB02083  AL No Entry  STONE STONE  SANDSTONE  1
002CB02083  AO No Entry  STONE STONE  1
002CB02083  AB No Entry  WORKED STONE STONE  ?WHETSTONE  1
002CB02084  AB ROMAN  POTTERY SHERD  GREY WARE  1
002CB02084  AC EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02084  AD EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02084  AA No Entry  STONE STONE  1
002CB02324  AD No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB02324  AA EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB02324  AB EARLY SAXON  POTTERY SHERD  ANGLIAN I  1
002CB02324  AE EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB02324  AC No Entry  SEED SEEDS  CARBONIZED 2
002CB02324  AF No Entry  STONE STONE  1
002CB02325  AC No Entry  CHARCOAL CHARCOAL SAMPLE  TWIGS 1
002CB02325  AA EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02325  AD EARLY SAXON  POTTERY SHERD  ?ANGLIAN III  1
002CB02325  AE EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02325  AF EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02325  AB No Entry  STONE STONE  SANDSTONE  1
002CB02326  AB No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB02326  AA EARLY SAXON  COPROLITE COPROLITE  5
002CB02326  AG EARLY SAXON  FIRED CLAY FIRED CLAY  ?LOOMWEIGHT FR ?LOOMWEIGHT  1
002CB02326  AC EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02326  AE EARLY SAXON  POTTERY SHERDS  ANGLIAN IV  2
002CB02326  AH EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB02326  AF No Entry  STONE STONE  1
002CB02326  AI No Entry  STONE STONE  6
002CB02326  AD EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  4
002CB02328  AC No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB02328  AA EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02328  AB EARLY SAXON  POTTERY SHERDS  ANGLIAN III  2
002CB02328  AD ROMAN  POTTERY SHERD  ?ROMAN  1
002CB02328  AF EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02328  AG EARLY SAXON  POTTERY SHERDS  ANGLIAN III  11
002CB02328  AI No Entry  STONE STONE  1
002CB02328  AE EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  1
002CB02328  AH EARLY SAXON  UNFIRED CLAY UNFIRED CLAY  ?LOOMWEIGHT  3
002CB02329  AA EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02329  AB EARLY SAXON  POTTERY SHERDS  ANGLIAN  2
002CB02329  AD EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02329  AC No Entry  STONE COAL FRAGMENT  1
002CB02329  AE No Entry  STONE STONE  1
002CB02329  AF No Entry  STONE STONE  SANDSTONE  1
002CB02330  AC No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB02330  AD No Entry  CHARCOAL CHARCOAL SAMPLE  1
002CB02330  AA EARLY SAXON  GLASS BEAD  ROUND RED GLASS BEAD  1
002CB02330  AG EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02330  AH EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02330  AJ EARLY SAXON  POTTERY SHERDS  ANGLIAN  10
002CB02330  AK EARLY SAXON  POTTERY SHERD  +ORGANIC ANGLIAN IV  1
002CB02330  AE No Entry  STONE STONE  1
002CB02330  AI No Entry  STONE STONE  1
002CB02330  AL No Entry  STONE STONE  SANDSTONE  1
002CB02330  AB EARLY SAXON  WORKED BONE SPINDLE WHORL  WKD.ANTLER SPINDLE WHORL  1
002CB02330  AF EARLY SAXON  WORKED BONE BOAR TUSK  PERFORATED AMULET  1
002CB02330  AM EARLY SAXON  WORKED BONE BOAR TUSK  PERFORATED TUSK AMULET  1
002CB02331  AC PREHISTORIC  FLINT FLAKE  CORE REJUV 1
002CB02331  AA EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02331  AB EARLY SAXON  POTTERY SHERD  ANGLIAN V  1
002CB02331  AD EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02331  AE EARLY SAXON  POTTERY SHERD  ANGLIAN III  1
002CB02331  AF EARLY SAXON  POTTERY SHERDS  ANGLIAN III  2
002CB02331  AG EARLY SAXON  POTTERY SHERDS  ANGLIAN IV  4
002CB02331  AH EARLY SAXON  POTTERY SHERDS  ANGLIAN III  3
002CB02331  AI No Entry  STONE STONE  1
002CB02331  AJ No Entry  STONE STONE  SANDSTONE  1
002CB02331  AK No Entry  STONE STONE  ?POT BOILER  1

Animal Bone by Context

KEY_ID  SPECIES ELEMENT  QUANT CHEW  BURN BUTCH  FBRK
002CB01295  Cattle Astragalus  1 1 1
002CB01295  Cattle Axis  1 1 1
002CB01295  Cattle M/C D  1 1 1
002CB01295  Cattle M/C P  1 1 1
002CB01295  Cattle Mandible  1 0 1
002CB01295  Cattle Phalanx 1  1 0 1
002CB01295  Cattle Phalanx 2  1 0 0
002CB01295  Cattle Radius D  1 0 1
002CB01295  Cattle Radius P  1 0 1
002CB01295  Horse Radius P  1 1 1
002CB01295  Sheep/goat Mand fr  1 1 1
002CB01295  Sheep/goat Scapula  1 0 1
002CB02082  Cattle Axis  1 0 0
002CB02082  Cattle Calcaneum  1 0 0
002CB02082  Cattle Humerus D  1 0 1
002CB02082  Cattle Humerus fr  1 0 0
002CB02082  Cattle Mand fr  1 0 0
002CB02082  Cattle Mandible  1 0 1
002CB02082  Cattle Mandible  1 0 1
002CB02082  Cattle Mandible  1 0 1
002CB02082  Cattle Mandible  1 0 0
002CB02082  Cattle Phalanx 3  1 0 0
002CB02082  Cattle Phalanx 3  1 0 0
002CB02082  Cattle Radius D  1 0 1
002CB02082  Cattle Scapula  1 0 1
002CB02082  Cattle Skull fr  1 0 1
002CB02082  Cattle Tibia P  1 0 0
002CB02082  Pig Skull fr  1 0 0
002CB02082  Sheep Horncore  1 0 0
002CB02082  Sheep Phalanx 3  1 0 0
002CB02082  Sheep/goat Ld4  1 0 1
002CB02082  Sheep/goat M/T br  1 0 0
002CB02082  Sheep/goat Mand fr  1 0 1
002CB02082  Sheep/goat Mandible  1 0 0
002CB02082  Sheep/goat Mandible  1 0 0
002CB02082  Sheep/goat Mandible  1 0 1
002CB02082  Sheep/goat Mandible  1 0 1
002CB02083  Cattle Astragalus  1 0 1
002CB02083  Cattle Atlas  1 0 1
002CB02083  Cattle Atlas  1 0 1
002CB02083  Cattle Calcaneum  1 0 1
002CB02083  Cattle Femur D  1 0 0
002CB02083  Cattle Humerus D  1 0 1
002CB02083  Cattle M/C C  1 0 1
002CB02083  Cattle Mand fr  1 0 0
002CB02083  Cattle Mand fr  1 0 0
002CB02083  Cattle Phalanx 1  1 0 0
002CB02083  Cattle Phalanx 1  1 0 1
002CB02083  Cattle Phalanx 2  1 0 0
002CB02083  Cattle Phalanx 3  1 0 1
002CB02083  Cattle Radius P  1 0 1
002CB02083  Cattle Tibia D  1 0 0
002CB02083  Cattle Tibia P  1 0 0
002CB02083  Pig Scapula  1 0 1
002CB02083  Pig Tibia C  1 0 0
002CB02083  Sheep Humerus D  1 0 1
002CB02083  Sheep Phalanx 1  1 0 0
002CB02083  Sheep/goat LM3  1 0 0
002CB02083  Sheep/goat M/C C  1 0 1
002CB02083  Sheep/goat Radius br  1 0 0
002CB02083  Sheep/goat Skull fr  1 0 0
002CB02083  Sheep/goat Tibia D  1 0 0
002CB02084  Cattle M/C P  1 0 0
002CB02084  Cattle Radius C  1 0 0
002CB02084  Pig Phalanx 3  1 0 0
002CB02084  Sheep/goat Phalanx 1  1 0 0
002CB02324  Cattle Femur D  1 0 1
002CB02324  Cattle M/podial  1 0 0
002CB02324  Horse M/podial  1 1 1
002CB02324  Horse Phalanx 1  1 1 1
002CB02324  Horse Phalanx 2  1 1 1
002CB02324  Horse Phalanx 3  1 1 1
002CB02324  Sheep/goat Skull fr  1 0 0
002CB02325  Cattle Hyoid  1 0 0
002CB02325  Cattle Phalanx 1  1 0 1
002CB02325  Sheep/goat Skull fr  1 0 0
002CB02326  Cattle Femur P  1 1 1
002CB02326  Cattle Horncore  1 0 0
002CB02326  Cattle Humerus D  1 0 0
002CB02326  Cattle M/C br  1 0 1
002CB02326  Cattle M/T D  1 0 1
002CB02326  Cattle Phalanx 2  1 0 1
002CB02326  Sheep/goat Mand fr  1 0 0
002CB02326  Sheep/goat Tibia D  1 0 1
002CB02328  Cattle Femur fr  1 0 1
002CB02328  Cattle LM3  1 0 0
002CB02328  Cattle Mandible  1 0 0
002CB02328  Cattle Mandible  1 0 1
002CB02328  Cattle Phalanx 1  1 0 0
002CB02328  Cattle Phalanx 1  1 0 0
002CB02329  Cattle M/C P  1 0 1
002CB02329  Cattle Radius P  1 0 0
002CB02329  Sheep/goat Hyoid  1 0 0
002CB02330  Cattle Astragalus  1 0 0
002CB02330  Cattle Atlas  1 0 1
002CB02330  Cattle Phalanx 1  1 0 0
002CB02330  Cattle Radius br  1 0 1
002CB02330  Cattle Skull fr  1 0 0
002CB02330  Cattle Tibia P  1 0 1
002CB02330  Horse Astragalus  1 0 0
002CB02330  Pig Fibula  1 0 1
002CB02330  Pig L Canine  1 0 0
002CB02330  Pig Skull fr  1 0 1
002CB02330  Pig Tibia C  1 0 1
002CB02330  Sheep/goat Mand fr  1 0 1
002CB02330  Sheep/goat Mandible  1 0 1
002CB02330  Sheep/goat Pelvis  1 0 1
002CB02331  Cattle Humerus C  1 0 0
002CB02331  Cattle Phalanx 1  1 0 1
002CB02331  Cattle Phalanx 1  1 0 0
002CB02331  Cattle Phalanx 1  1 0 0
002CB02331  Cattle Phalanx 2  1 0 1
002CB02331  Sheep/goat Mand fr  1 0 0
002CB02331  Sheep/goat Radius br  1 0 0
002CBM1296  Cattle M/T P  1 0 0
002CBM1296  Cattle Radius P  1 0 1
