002CB00100

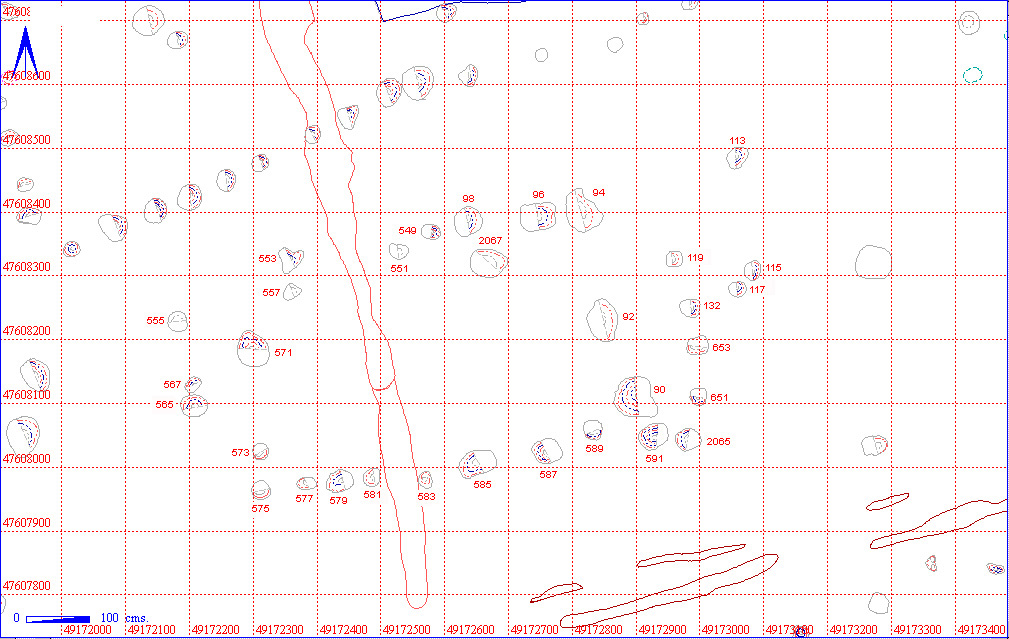

Post Hole Structure


Post-Hole Structure Details
Length  752 Width 340
Area  25.56 sq. m Ratio 2.2:1
Number of Posts  28 Deepest 27  002CC00591 Shallowest  8 002CC00551 and 002CB00553 and 002CB00555
Average Depth
 14
N Wall  7 Posts Average Depth  12
E Wall  4 Posts Average Depth  14
S Wall  10 Posts Average Depth  17
W Wall  2 Posts Average Depth  17
Interior Divisions:  Two internal post holes possibly forming partition in north eastern part of structure approx. 90cm in width.
Highest Elevation Value  5511 002CC00090
Lowest Elevation Value  5430 002CC00565
Bearing  77 degrees
Plank\Post  Post
Doorways One central in south long wall. Doorway in north long wall unclear.
Repairs:
Structural Class
Material Culture  Number of Objects 4  Number of Animal Bones 2
Environmental

Phasing

Discussion

A rectangular structure of NE/SW alignment. Some of the post holes were relatively large, up to 0.50m in diameter, especially on the east side of the structure. It may have had a partition of approximately 1.00m in width on the north side, but this is uncertain. The western side of the structure is not clear in plan, the dimensions recorded are of the largest possible structure.


All Contexts and Associated Finds Totals

MASTER CUT  FILL VOLUME  OBJECTS AN BONE  DENSITY
002CB00100 002CB00090  002CB00091 1
002CB00094  002CB00095
002CB00096  002CB00097
002CB00098  002CB00099
002CB00113  002CB00114
002CB00115  002CB00116
002CB00117  002CB00118
002CB00119  002CB00120
002CB00131  002CB00132
002CB00549  002CB00550
002CB00551  002CB00552
002CB00553  002CB00554
002CB00555  002CB00556
002CB00557  002CB00558
002CB00565  002CB00566
002CB00567  002CB00568
002CB00571  002CB00572
002CB00573  002CB00574 1
002CB00575  002CB00576
002CB00577  002CB00578
002CB00579  002CB00580
002CB00581  002CB00582 1
002CB00583  002CB00584
002CB00585  002CB00586
002CB00587  002CB00588
002CB00589  002CB00590 3
002CB00591  002CB00592
002CB00651  002CB00652
002CB00653  002CB00654
002CB00655  002CB00656
002CB02065  002CB02066
002CB02067  002CB02068


Structural Details

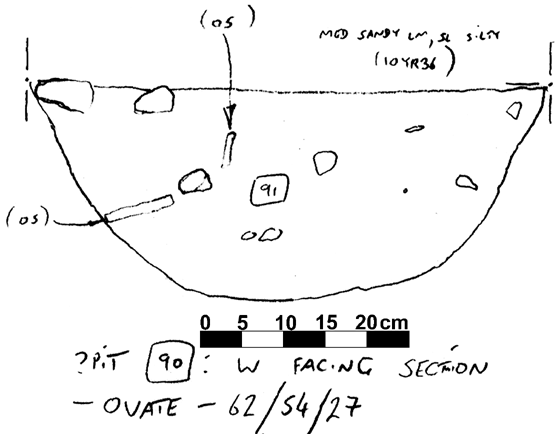

002CB00090 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00090  PIT CUT OVATE  62 54  27 USHAPED  POSS PIT--TOO LARGE TO BE A P.H.??. TRUNCATEDABOVE. REGULAR SIDES & BASE.
002CB00091  PIT FILL OVATE  62 54  27 USHAPED  OCCA CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE. PROB TOO LARGE TO BE A P.H.

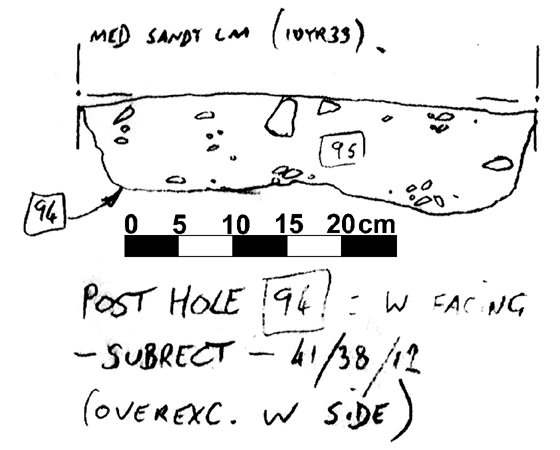

002CB00094 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00094  POST HOLE CUT SUB-RECTANGULAR  41 38  12 FLAT BASED U  P.H. OF BLDG M.100. SHALLOW-TRUNCATED ABOVE. REGULAR SIDES: BASE SL UNEVEN.
002CB00095  POST HOLE FILL SUB-RECTANGULAR  41 38  12 FLAT BASED U  OCCA/MOD CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE-QUITE SHALLOW.

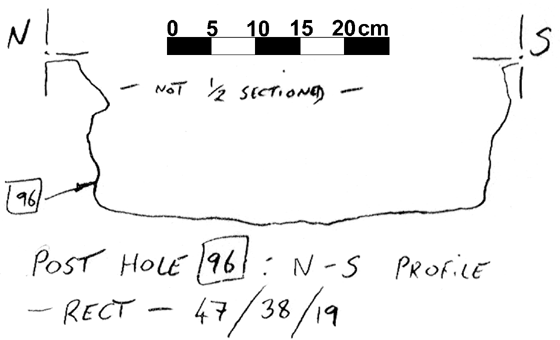

002CB00096 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00096  POST HOLE CUT RECTANGULAR  47 38  19 FLAT BASED U  P.H. N. SIDE BLDG M.100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00097  POST HOLE FILL RECTANGULAR  47 38  19 FLAT BASED U  NOT SECTIONED--NO FURTHER DETAILS.

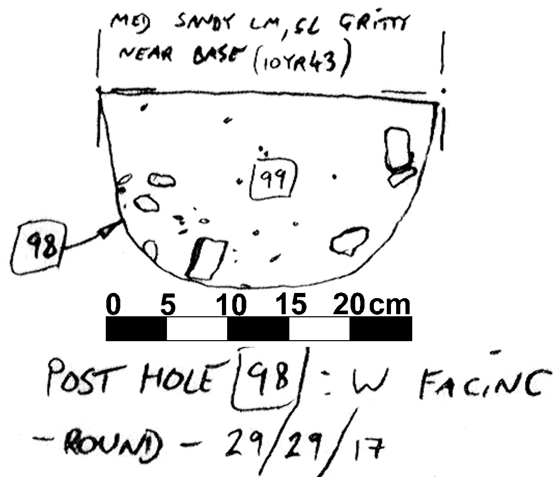

002CB00098 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00098  POST HOLE CUT ROUND  29 29  17 USHAPED  P.H. N. SIDE BLDG M.100. TRUNCATED ABOVE. REGULAR EDGES & BASE.
002CB00099  POST HOLE FILL ROUND  29 29  17 USHAPED  GRITTY TOWARDS BASE. OCCA/MOD CHALK < 4 CM--MAINLY TOWARDS BASE. TRUNCATED ABOVE.

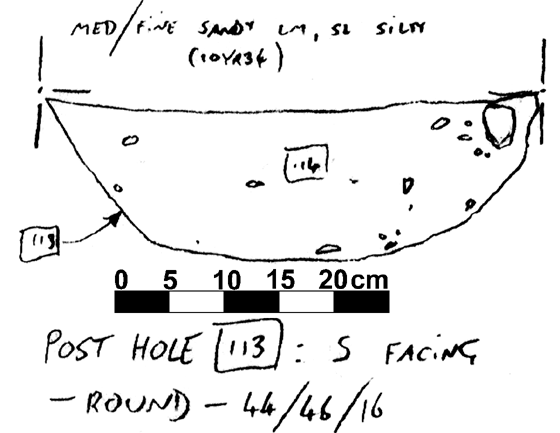

002CB00113 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00113  POST HOLE CUT ROUND  46 44  16 USHAPED  SAID TO BE OF M.100.---NOT FOUND ON PLAN !!!! TRUNCATED ABOVE. SHALLOWISH--BUT BASE & EDGES APPEAR REGULAR.
002CB00114  POST HOLE FILL ROUND  46 44  16 USHAPED  SAID TO BE OF M.100----NOT FOUND ON PLAN!!!! OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

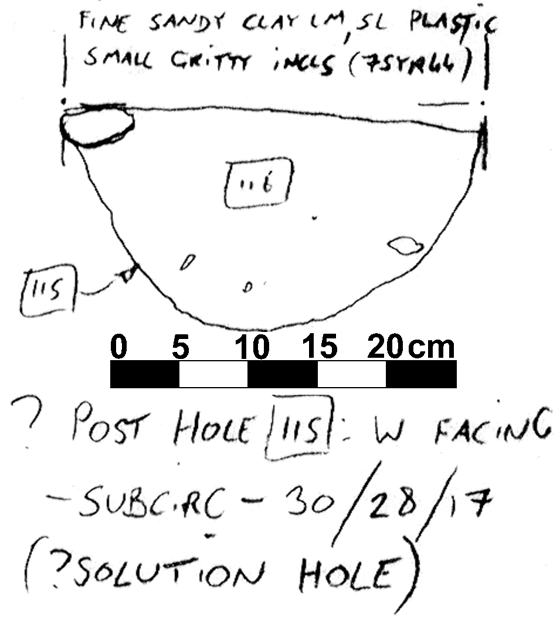

002CB00115 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00115  POST HOLE CUT SUB-CIRCULAR  30 28  17 USHAPED  SAID TO BE OF M.100 -NOT FOUND ON PLAN. NO INCLS --MAY IN FACT BE A SOLN HOLE. REGULAR SIDES & BASE.
002CB00116  POST HOLE FILL SUB-CIRCULAR  30 28  17 USHAPED  SAID TO BE OF M.100 -NOT FOUND ON PLAN. NO INCLS --MAY IN FACT BE A SOLN HOLE.

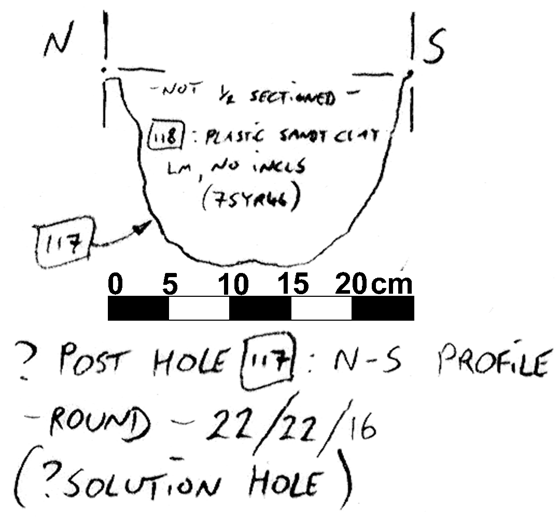

002CB00117 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00117  POST HOLE CUT ROUND  22 22  16 USHAPED  SAID TO BE OF M.100 --BUT NOT FOUND ON PLAN. NO INCLS.--MAY IN FACT BE A SOLN HOLE. REGULAR SIDES & BASE.
002CB00118  POST HOLE FILL ROUND  22 22  16 USHAPED  SAID TO BE OF M.100 --BUT NOT FOUND ON PLAN. NO INCLS.--MAY IN FACT BE A SOLN HOLE.

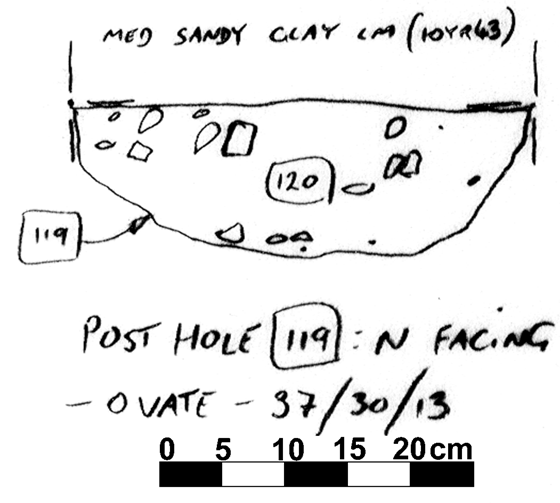

002CB00119 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00119  POST HOLE CUT OVATE  37 30  13 USHAPED  P.H. AT E. END OF BLDG M.100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00120  POST HOLE FILL OVATE  37 30  13 USHAPED  MOD CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

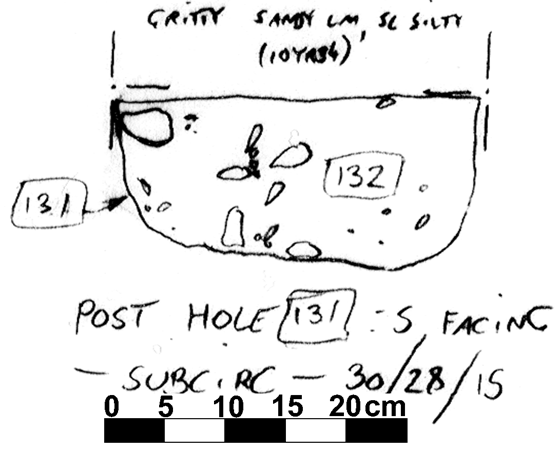

002CB00131 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00131  POST HOLE CUT SUB-CIRCULAR  30 28  15 FLAT BASED U  P.H. IN S. EXTENSION OF 2CB. TRUNCATED ABOVE: REGULAR SIDES & BASE .
002CB00132  POST HOLE FILL SUB-CIRCULAR  30 28  15 FLAT BASED U  MOD CHALK < 5 CM THROUGHOUT FILL. TRUNCATED ABOVE.

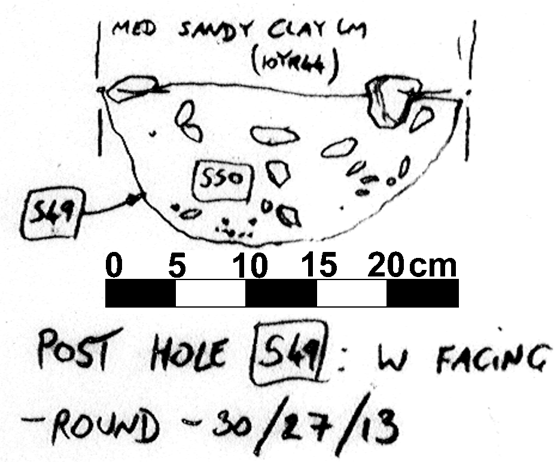

002CB00549 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00549  POST HOLE CUT ROUND  30 27  13 USHAPED  P.H. OF N. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00550  POST HOLE FILL ROUND  30 27  13 USHAPED  MOD/FREQ CHALK < 4 CM THROUGHOUT FILL: TRUNCATED ABOVE.

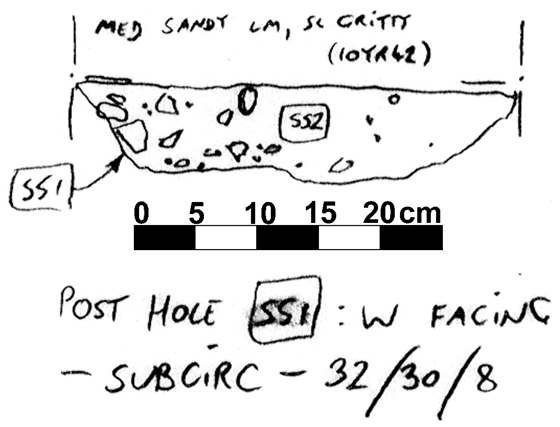

002CB00551 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00551  POST HOLE CUT SUB-CIRCULAR  32 30  8 FLAT BASED U  P.H. OF N. WALL OF BLDG M100. TRUNCATED ABOVE--SHALLOW: GENTLE SIDES: SL UNDULATING BASE.
002CB00552  POST HOLE FILL SUB-CIRCULAR  32 30  8 FLAT BASED U  MOD CHALK < 3 CM CONCENTRATED esp IN N. 1/2 OF FILL. TRUNCATED ABOVE.

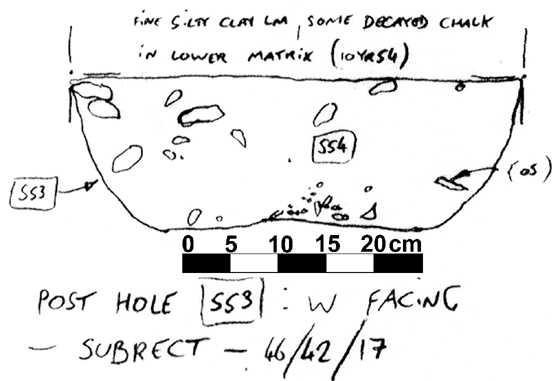

002CB00553 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00553  POST HOLE CUT SUB-RECTANGULAR  46 42  17 FLAT BASED U  P.H. OF N. WALL OF BLDG M.100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00554  POST HOLE FILL SUB-RECTANGULAR  46 42  17 FLAT BASED U  MOD CHALK (SOME DECAYED) < 4 CM THROUGHOUT FILL--FINER TOWARDS BASE: COARSER TOWARDS SURFACE. TRUNCATED ABOVE.

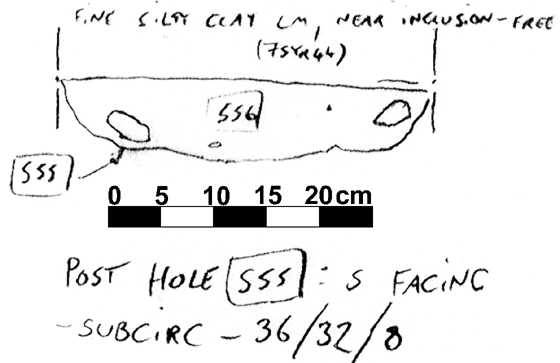

002CB00555 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00555  POST HOLE CUT SUB-CIRCULAR  36 32  8 FLAT BASED U  P.H. TO W. OF BLDG M100. TRUNCATED ABOVE--SHALLOW. REGULAR SIDES: SL UNDULATING BASE.
002CB00556  POST HOLE FILL SUB-CIRCULAR  36 32  8 FLAT BASED U  OCCA CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

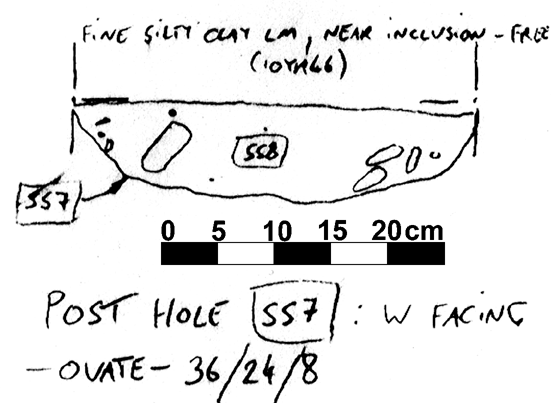

002CB00557 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00557  POST HOLE CUT OVATE  36 24  8 FLAT BASED U  P.H. AT N.W. CORNER OF BLDG M.100. TRUNCATED ABOVE---SHALLOW: GENTLE SIDES: REGULAR BASE.
002CB00558  POST HOLE FILL OVATE  36 24  8 FLAT BASED U  V. FEW INCLS-----OCCA CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

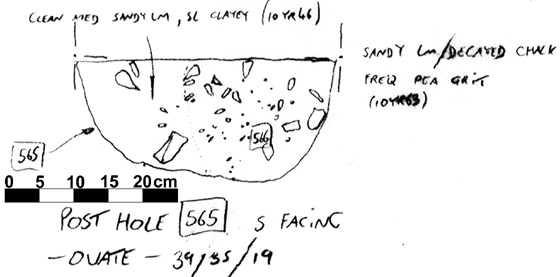

002CB00565 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00565  POST HOLE CUT OVATE  39 35  19 USHAPED  P.H. JUST TO W. OF BLDG M100. TRUNCATED ABOVE: REGULAR SIDES & BASE: HAS 2 CLEAR FILLS.
002CB00566  POST HOLE FILL OVATE  39 35  19 USHAPED  SL GRITTY: OCCA CHALK < 5 CM THROUGHOUT.------E. 1/2 OF FILL = SANDY LOAM: FREQ CHALK (SOME DECAYED) < 4 CM THROUGHOUT: PEA GRIT: 10YR46.--SEE SECTION

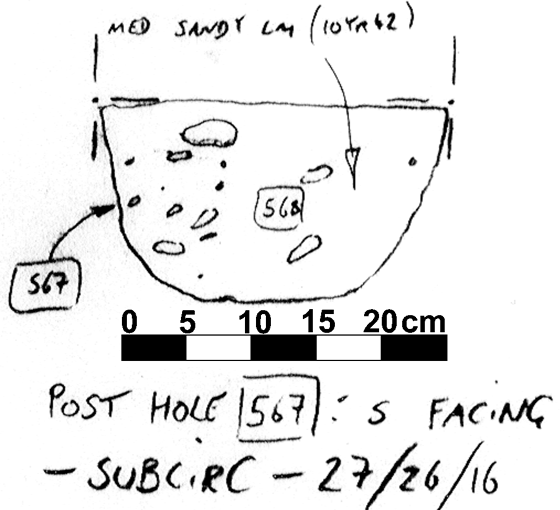

002CB00567 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00567  POST HOLE CUT SUB-CIRCULAR  27 26  16 USHAPED  P.H. TO W. OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00568  POST HOLE FILL SUB-CIRCULAR  27 26  16 USHAPED  MOD CHALK < 4 CM THROUGHOUT FILL: BUT SEEMING TO CONCENTRATE IN W. 1/2 OF FILL. TRUNCATED ABOVE.

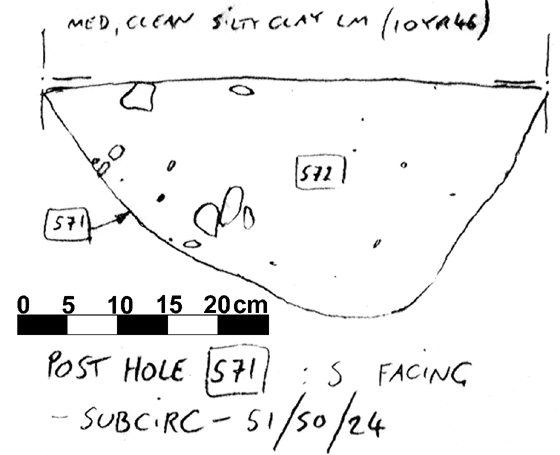

002CB00571 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00571  POST HOLE CUT SUB-CIRCULAR  51 50  24 VSHAPED  P.H. AT W. END OF BLDG M100. TRUNCATED ABOVE: E.EDGE STEEPER THAN W.
002CB00572  POST HOLE FILL SUB-CIRCULAR  51 50  24 VSHAPED  OCCA CHALK < 5 CM THROUGHT FILL . TRUNCATED ABOVE.

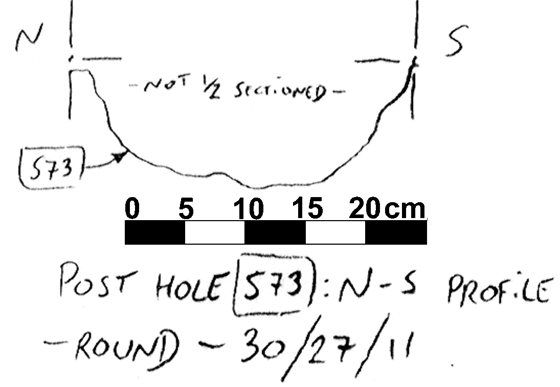

002CB00573 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00573  POST HOLE CUT ROUND  30 27  11 USHAPED  P.H. OF W. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00574  POST HOLE FILL ROUND  30 27  11 USHAPED  NO FURTHER DETAILS --NOT SECTIONED.

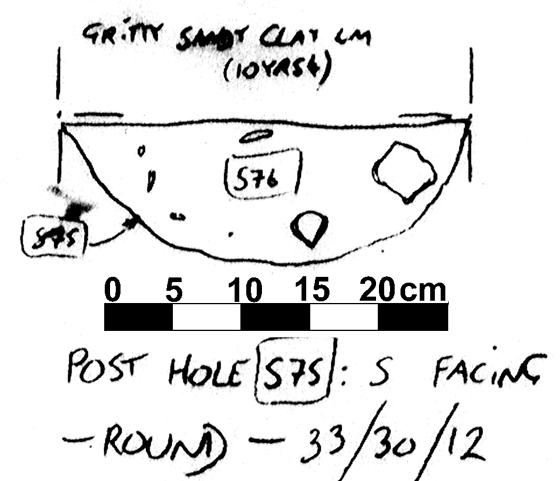

002CB00575 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00575  POST HOLE CUT ROUND  33 30  12 USHAPED  P.H. AT S.W. CORNER OF BLDG M100. TRUNCATED ABOVE: REGULAR SIDES & BASE.
002CB00576  POST HOLE FILL ROUND  33 30  12 USHAPED  OCCA CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

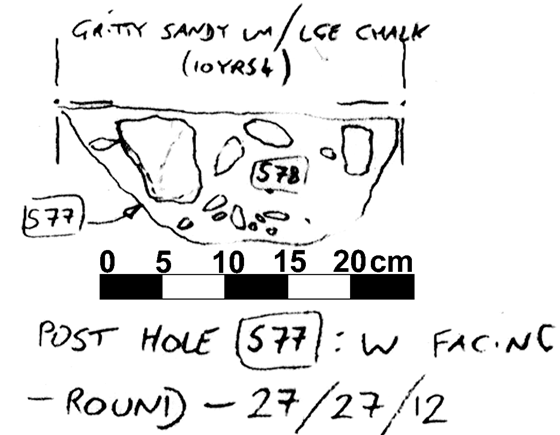

002CB00577 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00577  POST HOLE CUT ROUND  27 27  12 USHAPED  P.H. OF S. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES: FLATTISH BASE. TRUNCATED ABOVE.
002CB00578  POST HOLE FILL ROUND  27 27  12 USHAPED  FREQ CHALK (SOME < 11 CM) THROUGHOUT FILL. TRUNCATED ABOVE.

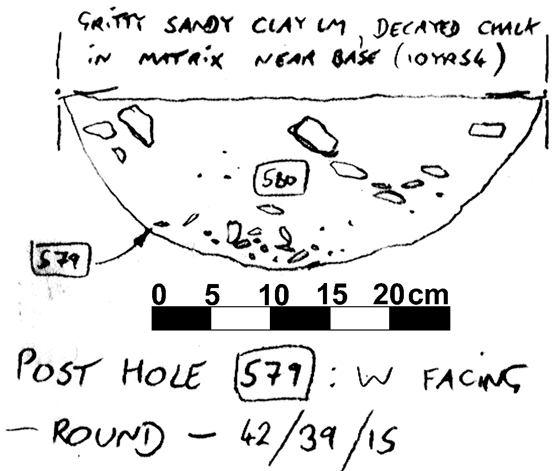

002CB00579 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00579  POST HOLE CUT ROUND  42 39  15 USHAPED  P.H. OF S. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00580  POST HOLE FILL ROUND  42 39  15 USHAPED  MOD CHALK (SOME Nr BASE DECAYED) < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

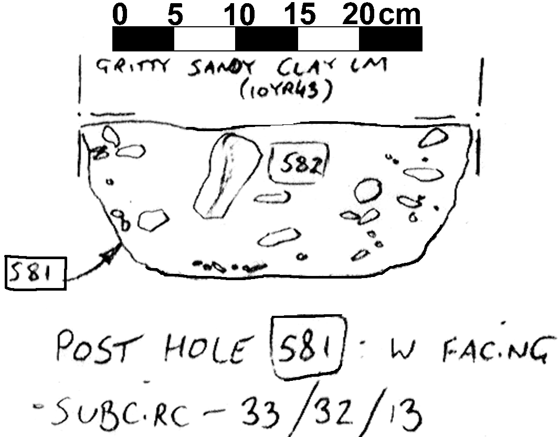

002CB00581 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00581  POST HOLE CUT SUB-CIRCULAR  33 32  13 FLAT BASED U  P.H. OF S. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00582  POST HOLE FILL SUB-CIRCULAR  33 32  13 FLAT BASED U  FREQ CHALK < 8 CM THROUGHOUT FILL. TRUNCATED ABOVE.

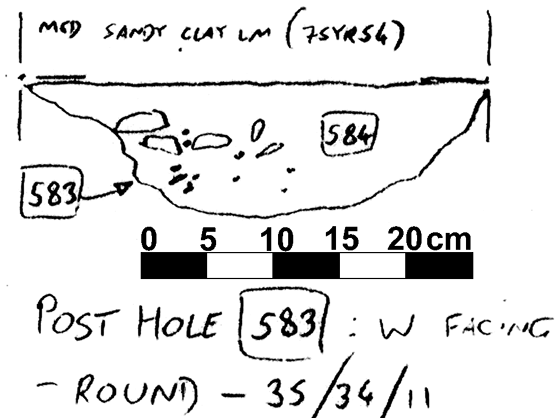

002CB00583 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00583  POST HOLE CUT ROUND  35 34  11 USHAPED  P.H. OF S. WALL OF BLDG M100. TRUNCATED ABOVE--SHALLOW. REGULAR SIDES & BASE EXCEPT FOR SLIGHT STEP ON N. EDGE.
002CB00584  POST HOLE FILL ROUND  35 34  11 USHAPED  OCCA/MOD CHALK < 3 CM CONCENTRATED MOSTLY IN CENTRAL & N. PART OF FILL. TRUNCATED ABOVE.

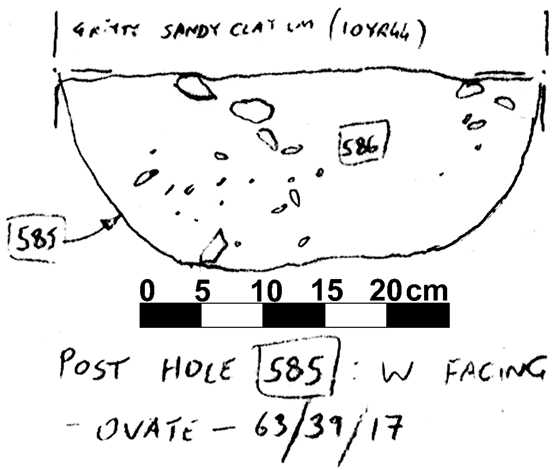

002CB00585 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00585  POST HOLE CUT OVATE  63 39  17 USHAPED  P.H. OF S. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES: FLATTISH BASE.
002CB00586  POST HOLE FILL OVATE  63 39  17 USHAPED  OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

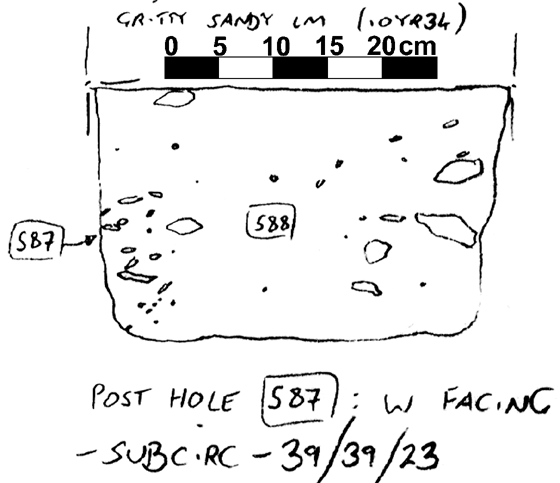

002CB00587 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00587  POST HOLE CUT SUB-CIRCULAR  39 39  23 VERT.SIDE F.BASE  P.H. OF S. WALL OF BLDG M100. TRUNCATED ABOVE. V. REGULAR SIDES & BASE.
002CB00588  POST HOLE FILL SUB-CIRCULAR  39 39  23 VERT.SIDE F.BASE  OCCA CHALK < 5 CM THROUGHOUT FILL: BUT MOSTLY TOWARDS SIDES. TRUNCATED ABOVE.

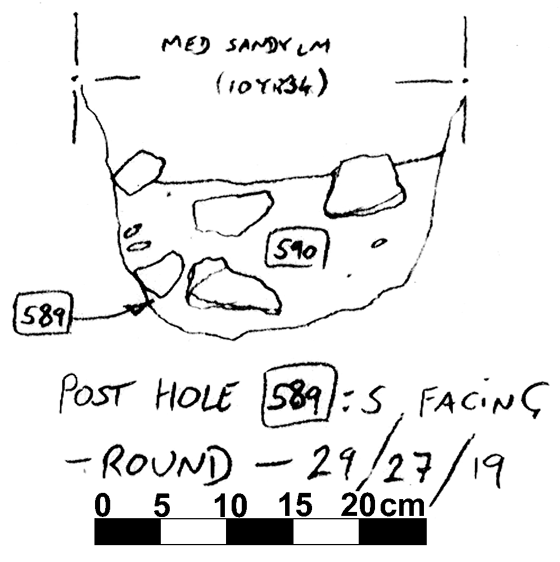

002CB00589 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00589  POST HOLE CUT ROUND  29 27  19 USHAPED  P.H. OF S. WALL OF BLDG M100. TRUNCATED ABOVE. UNEVEN BUT REGULAR SIDES & BASE.
002CB00590  POST HOLE FILL ROUND  29 27  19 USHAPED  FREQ CHALK < 6 CM THROUGHOUT FILL. TRUNCATED ABOVE.

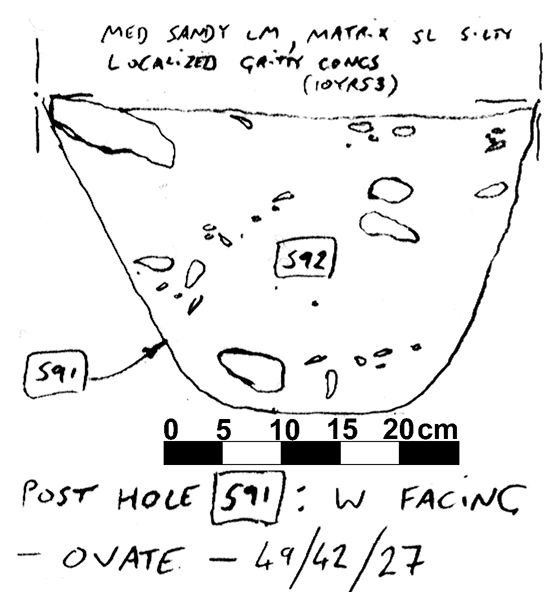

002CB00591 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00591  POST HOLE CUT OVATE  49 42  27 FLAT BASED V  P.H. AT S.E. CORNER OF BLDG M.M100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00592  POST HOLE FILL OVATE  49 42  27 FLAT BASED V  LOCALIZED GRITTY CONCS: MOD CHALK <12 CM (MOSTLY SMALLER) THROUGHOUT FILL. TRUNCATED ABOVE.

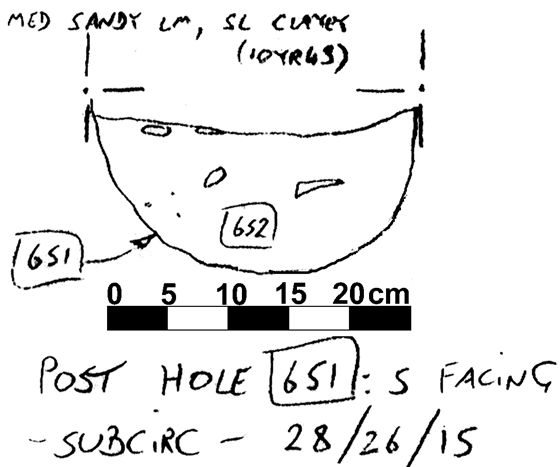

002CB00651 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00651  POST HOLE CUT SUB-CIRCULAR  28 26  15 USHAPED  P.H. OF E. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES & BASE.
002CB00652  POST HOLE FILL SUB-CIRCULAR  28 26  15 USHAPED  OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

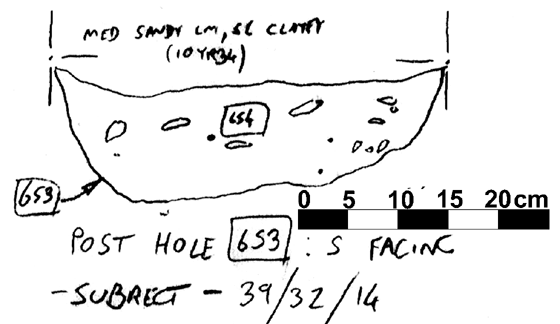

002CB00653 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00653  POST HOLE CUT SUB-RECTANGULAR  39 32  14 FLAT BASED U  P.H. OF E. WALL OF BLDG M100. TRUNCATED ABOVE. REGULAR SIDES: BASE SLOPES FROM E. DOWN TO W.
002CB00654  POST HOLE FILL SUB-RECTANGULAR  39 32  14 FLAT BASED U  OCCA CHALK < 3 CM THROUGHOUT FILL. TRUNCATED ABOVE.

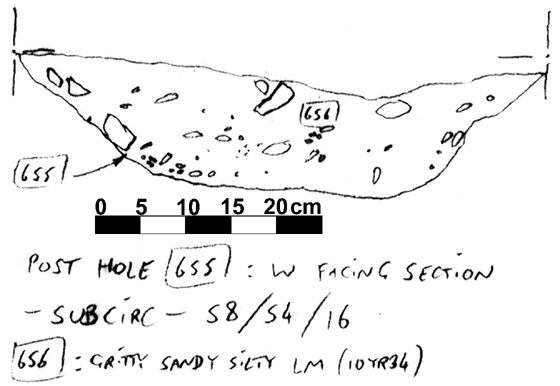

002CB00655 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB00655  POST HOLE CUT SUB-CIRCULAR  58 54  16 FLAT BASED U  LARGE INTERNAL P.H.? OF BLDG M100. TRUNCATED ABOVE. GENTLE SIDES: FLATTISH BASE.
002CB00656  POST HOLE FILL SUB-CIRCULAR  58 54  16 FLAT BASED U  FREQ CHALK < 4 CM THROUGHOUT FILL. TRUNCATED ABOVE.

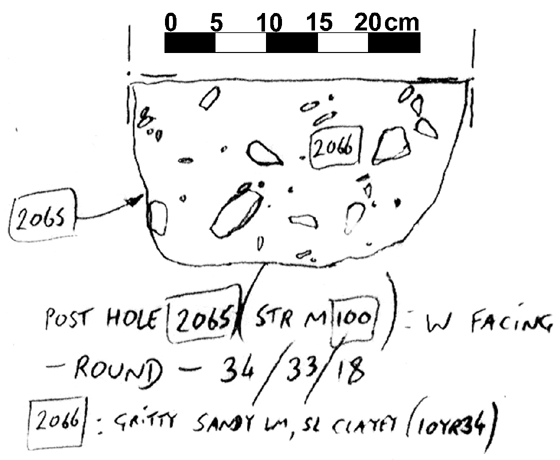

002CB02065 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02065  POST HOLE CUT ROUND  34 33  18 FLAT BASED U  P.H. OF BLDG M100. TRUNCATED ABOVE. V. REGULAR PROFILE.
002CB02066  POST HOLE FILL ROUND  34 33  18 FLAT BASED U  SL CLAYEY. FREQ CHALK < 7 CM THROUGHOUT FILL. TRUNCATED ABOVE.

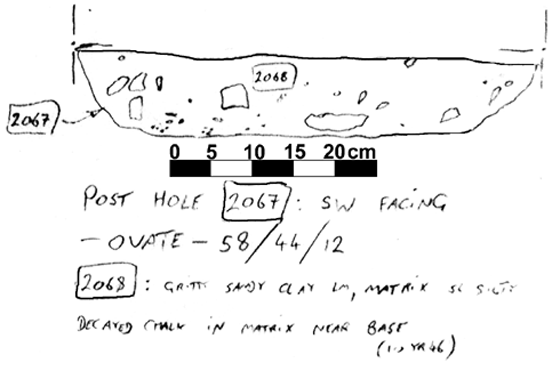

002CB02067 Section and Notes

KEY_ID  TYPE SHAPE  L B  D PROFILE  NOTES
002CB02067  POST HOLE CUT OVATE  58 44  12 WIDE U  P.H. OF BLDG M100. TRUNCATED ABOVE-SHALLOW-PROFILE APPEARS REGULAR.
002CB02068  POST HOLE FILL OVATE  58 44  12 WIDE U  SL SILTY. FREQ CHALK < 8 CM THROUGHOUT FILL: Nr BASE SOME OF CHALK DECAYED. TRUNCATED ABOVE.


Objects By Context

KEY_ID OBJ PERIOD MATERIAL  TYPE SUB_TYPE  CLASS No
002CB00573 AA No Entry  POTTERY SHERD  1
002CB00590 AA PREHISTORIC  POTTERY SHERD 1
002CB00590 AB EARLY SAXON  POTTERY SHERD ?ANGLIAN III 1
002CB00590 AC ROMAN  POTTERY SHERD ?R-B 1

Animal Bone by Context

KEY_ID  SPECIES ELEMENT  QUANT CHEW  BURN BUTCH  FBRK
002CB00090 Sheep/goat Ld 4 1 0 0 0 1
002CB00582 Cattle LM 3  1 0 0 0 1
