West Heslerton: Anglian Settlement: Structural CatalogueWest Heslerton: Anglian Settlement: Structural Catalogue

002CA00762

Gubenhaus

Grubenhaus Details
Length	250	Width	203	Depth	10	Ratio	1.23:1
Area	4.71 sq. m	Volume
Number of Posts	1
Highest Elevation Value	5360
Lowest Elevation Value	5350
Bearing	104 degrees
Structural Class
Material Culture	Number of Objects	25	Number of Animal Bones			1
Environmental

Phasing

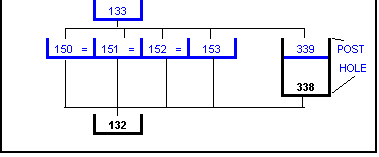

Stratigraphic Matrix Diagram

Discussion

A shallow, badly truncated feature believed to be a Grubenhaus. It cuts through slots 002CA00327 and master 002CA00342 to the north but its relationship with pit alignment 002CA00165 was not established. This structure is similar to Grubenhaus 002CA00763 to the north. The feature contained few finds, but five out of the eight sherds of pottery recovered are of Medieval date.

All Contexts and Associated Finds Totals

MASTER	CUT	FILLS	VOLUME	OBJECTS	AN BONE	DENSITY
002CA00762	002CA00132	002CA00133
		002CA00150		13
		002CA00151		5
		002CA00152		3	1
		002CA00153		4
POST HOLE	002CA00338	002CA00339

Object Totals by Material

002CA00150 Object Totals by Material

002CA00150	Charcoal	2
	Daub	1
	Flint	1
	Mineral	1
	Pottery	3	of which	Medieval	2	No Entry	1
	Stone	5

002CA00151 Object Totals by Material

002CA00151	Flint	1
	Pottery	2	of which	Medieval	1	No Entry	1
	Stone	2

002CA00153 Object Totals by Material

002CA00153	Charcoal	1
	Daub	1
	Slag	1
	Stone	1

Structural Details

002CA00132 Section and Notes

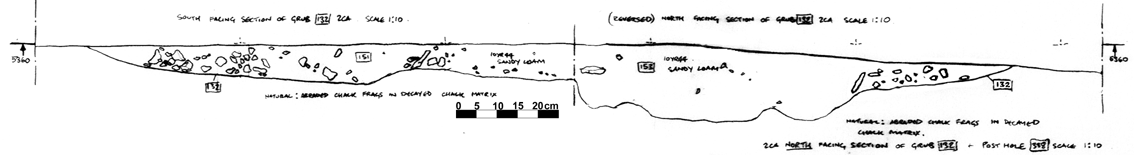

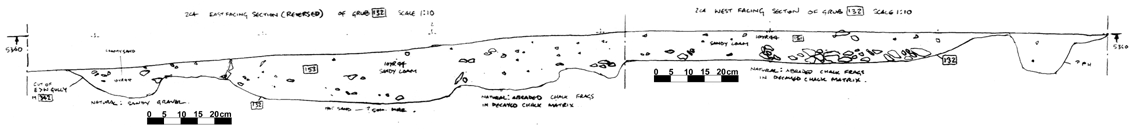

002CA00132 East Facing Section

002CA00132 South Facing Section

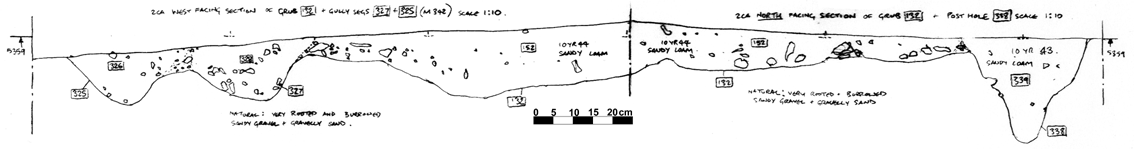

002CA00132 West Facing Section

KEY_ID TYPE SHAPE L B D PROFILE NOTES

002CA00132 GRUB CUT OVATE 260 209 10 FLAT BASED U MASSIVELY TRUNCATED GRUB ON E EDGE CHALK GNOLL:W PART 2CA.IRREG BASE OF MOTTLED SAND:DECAYED CHALK:SIDES MOSTLY DESTROYED.IMM S OF SIMILAR GRUB 134.

002CA00133 GRUB FILL OVATE 260 209 10 FLAT 1st CLEAN TRUNCATED GRUB:E EDGE CHALK KNOLL W PART 2CA.TOPSOIL THROUGHOUT(MACHINE DAMAGE).FINDS IN SMALL QTY.INCLUSIONS OF ABRADED CHALK 1-6cm.

002CA00150 GRUB FILL SUB-RECTANGULAR 114 83 9 FLAT SOLE FILL SE QUAD TRUNCATED GRUB IN CHALK:W SIDE AREA.FEW FINDS.FLOATATION SAMPLE TAKEN AT RANDOM.SOME MACHINE DISTURBANCE:TOPSOIL INCLS IN MATRIX.

002CA00151 GRUB FILL SUB-RECTANGULAR 110 105 5 FLAT SOLE FILL SW QUADRANT V TRUNCATED GRUB:CHALK KNOLL W SIDE 2CA.MACHINE DAMAGED.OCC POT:BONE:CHARCOAL.

002CA00152 GRUB FILL SUB-RECTANGULAR 100 90 10 FLAT SOLE FILL:NW QUADRANT TRUNCATED GRUB ON CHALK KNOLL:W PART 2CA.MACHINE DAMAGED.OCC BONE:POT:CHARCOAL.

002CA00153 GRUB FILL SUB-RECTANGULAR 125 82 10 FLAT SOLE FILL NE QUADRANT BADLY DAMAGED GRUB ON CHALK KNOLL:W SIDE 2CA.FEW FINDS.MACHINE TRACK ACROSS W SIDE.

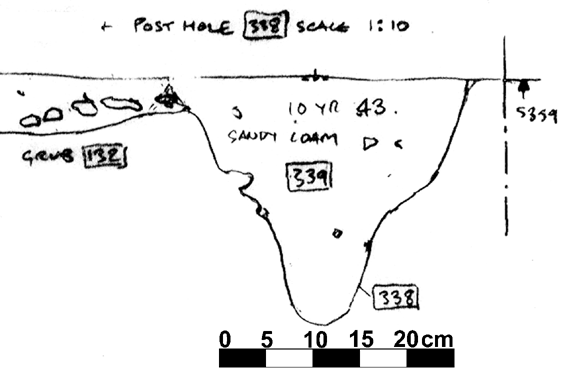

002CA00338 Section and Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES

002CA00338 POST HOLE CUT ROUND 30 30 23 NARROW V CUT OF POST HOLE IN NW QUAD OF GRUB 132:W SIDE 2CA.STRADDLES EDGE OF GRUB CUT.CUT INTO NAT SANDY GRAVEL.SIDES SLOPE SHARPLY TO A POINT AT BASE.

002CA00339 POST HOLE FILL ROUND 30 30 23 FLAT SOLE FILL OF POST HOLE IN NW QUAD OF GRUB 132.V FEW V SMALL CHALK INCLS.SINGLE FIND:7cm FRAG BUTCHERED An Os FOUND 10cm DOWN.

Objects by Context

KEY_ID	OB	PERIOD	MATERIAL	TYPE	SUB_TYPE	CLASS	No
002CA00150	AE	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002CA00150	AO	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002CA00150	AP	EARLY SAXON	DAUB	DAUB FRAGMENTS		BURNT DAUB	6
002CA00150	AF	PREHISTORIC	FLINT	FLINT CHIP			1
002CA00150	AG	No Entry	MINERAL	FOSSILS		BELEMNITES	2
002CA00150	AA	MEDIEVAL	POTTERY	SHERD	GLAZED(WORN)	MED	1
002CA00150	AM	MEDIEVAL	POTTERY	SHERD	GREEN GLAZED	MED	1
002CA00150	AK	No Entry	POTTERY	SHERD			1
002CA00150	AB	No Entry	STONE	STONE		SANDSTONE	1
002CA00150	AC	No Entry	STONE	STONE		SANDSTONE	1
002CA00150	AD	No Entry	STONE	COKE FRAGMENT			1
002CA00150	AL	No Entry	STONE	COAL FRAGMENT			1
002CA00150	AN	No Entry	STONE	COKE FRAGMENT			1
002CA00151	AB	PREHISTORIC	FLINT	FLAKE	?FROM H/STONE		1
002CA00151	AA	MEDIEVAL	POTTERY	SHERD	BROWN GLAZED	MED	1
002CA00151	AD	No Entry	POTTERY	SHERD			1
002CA00151	AC	No Entry	STONE	STONE		SANDSTONE	1
002CA00151	AE	No Entry	STONE	COKE FRAGMENT			1
002CA00152	AA	MEDIEVAL	POTTERY	SHERD		MED	1
002CA00152	AG	MEDIEVAL	POTTERY	SHERD		MED	1
002CA00152	AF	No Entry	POTTERY	SHERD			1
002CA00153	AA	No Entry	CHARCOAL	CHARCOAL SAMPLE			1
002CA00153	AB	EARLY SAXON	DAUB	DAUB FRAGMENTS			3
002CA00153	AC	No Entry	SLAG	SLAG FRAGMENT		IRON SLAG	1
002CA00153	AD	No Entry	STONE	COAL FRAGMENT			1

Animal Bone By Context

KEY_ID	SPECIES	ELEMENT	QUANT	CHEW	BURN	BUTCH	FBRK
002CA00152	Pig	M/T P	1	0	0	0	0

KEY_ID	TYPE	SHAPE	L	B	D	PROFILE	NOTES
002CA00132	GRUB CUT	OVATE	260	209	10	FLAT BASED U	MASSIVELY TRUNCATED GRUB ON E EDGE CHALK GNOLL:W PART 2CA.IRREG BASE OF MOTTLED SAND:DECAYED CHALK:SIDES MOSTLY DESTROYED.IMM S OF SIMILAR GRUB 134.
002CA00133	GRUB FILL	OVATE	260	209	10	FLAT	1st CLEAN TRUNCATED GRUB:E EDGE CHALK KNOLL W PART 2CA.TOPSOIL THROUGHOUT(MACHINE DAMAGE).FINDS IN SMALL QTY.INCLUSIONS OF ABRADED CHALK 1-6cm.
002CA00150	GRUB FILL	SUB-RECTANGULAR	114	83	9	FLAT	SOLE FILL SE QUAD TRUNCATED GRUB IN CHALK:W SIDE AREA.FEW FINDS.FLOATATION SAMPLE TAKEN AT RANDOM.SOME MACHINE DISTURBANCE:TOPSOIL INCLS IN MATRIX.
002CA00151	GRUB FILL	SUB-RECTANGULAR	110	105	5	FLAT	SOLE FILL SW QUADRANT V TRUNCATED GRUB:CHALK KNOLL W SIDE 2CA.MACHINE DAMAGED.OCC POT:BONE:CHARCOAL.
002CA00152	GRUB FILL	SUB-RECTANGULAR	100	90	10	FLAT	SOLE FILL:NW QUADRANT TRUNCATED GRUB ON CHALK KNOLL:W PART 2CA.MACHINE DAMAGED.OCC BONE:POT:CHARCOAL.
002CA00153	GRUB FILL	SUB-RECTANGULAR	125	82	10	FLAT	SOLE FILL NE QUADRANT BADLY DAMAGED GRUB ON CHALK KNOLL:W SIDE 2CA.FEW FINDS.MACHINE TRACK ACROSS W SIDE.
