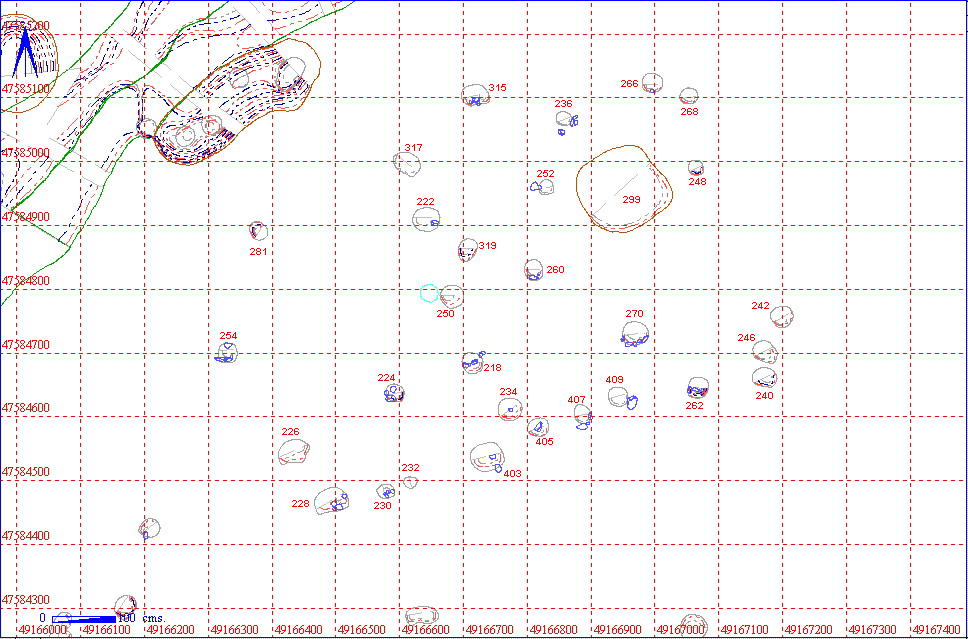

012AD07073

Post Hole Structure



Post-Hole Structure Details
Length 790 Width  440
Area   34.76 sq. m Ratio 1.8:1
Number of Posts 29 Deepest 30 012AD00262 Shallowest 3 012AD00232
Average Depth
 13
North Wall  5 Posts Average Depth 13
East Wall  4 Posts Average Depth 17
South Wall  9 Posts Average Depth 12
West Wall  2 Posts Average Depth 8.5
Interior Divisions: Nine internal post holes including a line of five down the centre of the structure, possibly dividing it into two.
Highest Elevation Value  6628  012AD00240
Lowest Elevation Value 6559  012AD00281
Bearing   71 degrees
Plank\Post Post
Doorways Unclear, possibly two opposing in the long walls.
Repairs:
Structural Class
Material Culture Number of Objects  10 Number of Animal Bones 0
Environmental

Phasing


Discussion

A large, NE/SW aligned post hole structure in the north of area 12AD. A small depression in the east side (012AD00299) was excavated although this is probably a natural feature. A north/south line of five post holes down the centre of the structure probably divided the interior into two roughly equal halves. The majority of the fills contained chalk post packing, seventeen of the twenty-nine post holes with remaining surface post packing. The position of the entrances is not clear, one is possible in the centre of the south long wall, immediately to the west of the internal line of posts.

All Contexts and Associated Finds Totals

MASTER CUT FILL VOLUME OBJECTS AN BONE DENSITY
012AD07073
012AD00218
012AD00217
    1

012AD00222
012AD00221


012AD00224
012AD00223


012AD00226
012AD00225


012AD00228
012AD00227


012AD00230
012AD00229


012AD00232
012AD00231


012AD00234
012AD00233


012AD00236
012AD00235


012AD00240
012AD00239


012AD00242
012AD00241


012AD00246
012AD00245


012AD00248
012AD00247


012AD00250
012AD00249


012AD00252
012AD00251


012AD00254
012AD00253
    3

012AD00260
012AD00259
    2

012AD00262
012AD00261


012AD00266
012AD00265


012AD00268
012AD00267


012AD00270
012AD00269
    1

012AD00281
012AD00280
    2

012AD00315
012AD00314


012AD00317
012AD00316


012AD00319
012AD00318


012AD00403
012AD00402


012AD00405
012AD00404


012AD00407
012AD00406


012AD00409
012AD00408
    1

Object Totals by Material

012AD00217 Object Totals by Material

012AD00217 Charcoal 1

012AD00253 Object Totals by Material

012AD00253 Daub 1
  Pottery 1 of which 4th Century 1 Roman 1

012AD00260 Object Totals by Material

012AD00260 Iron 1
  Slag 1

012AD00270 Object Totals by Material

012AD00270 Iron 1

012AD00280 Object Totals by Material

012AD00280 Pottery 2 4th Century

012AD00408 Object Totals by Material

012AD00408 Stone 1

Structural Details

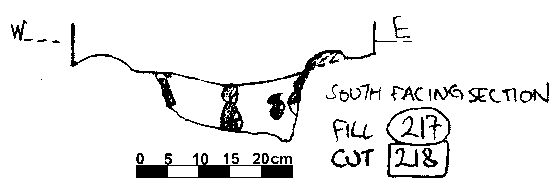

012AD00218 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00217 POST HOLE FILL SUB-CIRCULAR
26
23
12
 WIDE V FILL OF POSTHOLE. NO DAUB FLECKING. NO FINDS EXCEPT CHARCOAL. CHARCOAL FLECKING. 10% CHALK INCLUSIONS.
012AD00218 POST HOLE CUT SUB-CIRCULAR
26
23
12
 WIDE V CUT OF POSTHOLE INTO SOLID CHALK. PLOUGH TRUNCATED. E SIDE OR PROFILE ALMOST VERTICAL W SIDE SHALLOW GRADIENT TO V BASE.

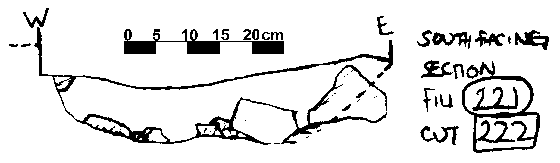

012AD00222 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00221 POST HOLE FILL ROUND
24
30
5
 FLAT BASED U FILL OF POSTHOLE. SOME CHARCOAL BUT NO DAUB FLECKING. 15% CHALK INCLUSIONS 1-5CMS. NO FINDS.
012AD00222 POST HOLE CUT ROUND
24
30
5
 FLAT BASED U CUT OF POSTHOLE. CUT INTO SOLID CHALK. PLOUGH TRUNCATED. VERY SHALLOW.

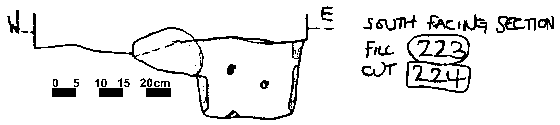

012AD00224 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00223 POST HOLE FILL OVATE
21
31
16
 VERT.SIDE U.BASE FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 5% CHALK INCLUSIONS.
012AD00224 POST HOLE CUT OVATE
21
31
16
 VERT.SIDE U.BASE CUT OF POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED. VERTICAL SIDES.

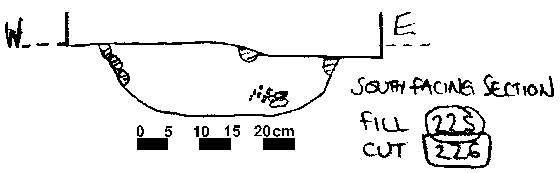

012AD00226 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00225 POST HOLE FILL OVATE
39
30
8
 FLAT BASED U FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 5% CHALK INCLUSIONS.
012AD00226 POST HOLE CUT OVATE
39
30
8
 FLAT BASED U CUT OF POSTHOLE. CUT INTO CHALK. OVERCUT ON E SIDE. ON SURFACE LOOKED LIKE A DOUBLE POSTHOLE BUT TURNED OUT AS SINGLE. PLOUGH TRUNCATED.FAIRLY SHALLOW

012AD00228 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00227 POST HOLE FILL FIGURE 8
57
39
10
 UNDULATING DOUBLE POSTHOLE .NO FINDS NO DAUB OR CHARCOAL FLECKING.LESS THAN 5% CHALK INCLUSIONS 1CM OR KESS IN DIAMETER.
012AD00228 POST HOLE CUT FIGURE 8
57
39
10
 UNDULATING DOUBLE POSTHOLE WITH UNDULATING BASE.CUT INTO SOLID CHALK.PLOUGH TRUNCATED.

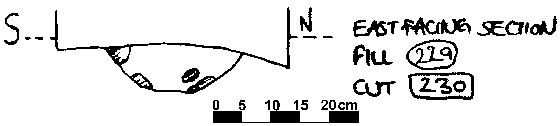

012AD00230 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00229 POST HOLE FILL ROUND
18
24
7
 FLAT BASED U FILL OF SHALLOW POSTHOLE.NO DAUB OR CHARCOAL FLECKING.NO FINDS.LESS THAN 5% CHALK INCLUSIONS
012AD00230 POST HOLE CUT ROUND
18
24
7
 FLAT BASED U POSTHOLE CUT INTO SOLID CHALK.PLOUGH TRUNCATED.

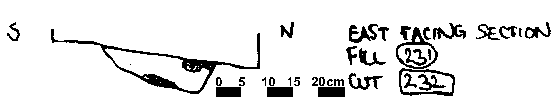

012AD00232 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00231 POST HOLE FILL ROUND
16
18
3
 WIDE U FILL OF SHALLOW POSTHOLE.NO DAUB OR CHARCOAL FLECKING.LESS THAN 5% CHALK INCLUSIONS.
012AD00232 POST HOLE CUT ROUND
16
18
3
 WIDE U SHALLOW POSTHOLE CUT INTO SOLID CHALK.PLOUGH TRUNCATED.

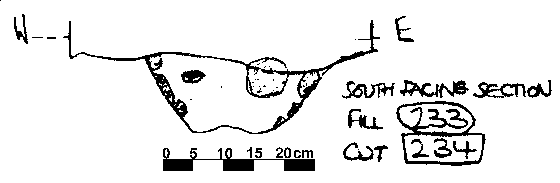

012AD00234 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00233 POST HOLE FILL ROUND
30
30
10
 WIDE U FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. LESS THAN 10% CHALK INCLUSIONS. 1 STONE 6CMS.
012AD00234 POST HOLE CUT ROUND
30
30
10
 WIDE U CUT OF POSTHOLE INTO SOLID CHALK. PLOUGH TRUNCATED.

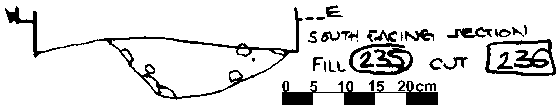

012AD00236 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00235 POST HOLE FILL ROUND
26
25
10
 WIDE V FILL OF POSTHOLE. NO FINDS. NO DAUB OR CHARCOAL FLECKING. 5% CHALK INCLUSIONS.
012AD00236 POST HOLE CUT ROUND
26
25
10
 WIDE V CUT OF POSTHOLE. V SHAPED PROFILE STEEPER GRADIENT ON W SIDE. CUT INTO SOLID CHALK. PLOUGH TRUNCATED.

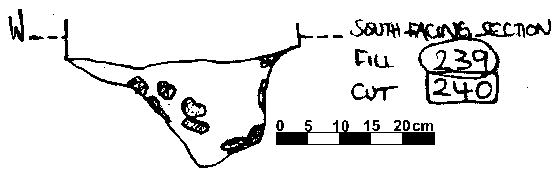

012AD00240 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00239 POST HOLE FILL ROUND
29
30
16
 V-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 10% CHALK INCLUSIONS 1-5CMS.
012AD00240 POST HOLE CUT ROUND
29
30
16
 V-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. V PROFILE WITH STEEPER GRADIENT ON E SIDE. PLOUGH TRUNCATED.

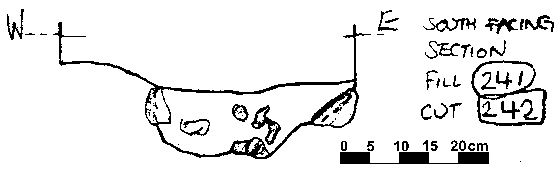

012AD00242 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00241 POST HOLE FILL ROUND
35
34
12
 U-SHAPED FILL OF POSTHOLE.NO DAUB OR CHARCOAL FLECKING. 4 FRAGMENTS OF ANIMAL BONE.15% CHALK INCLUSIONS.
012AD00242 POST HOLE CUT ROUND
35
34
12
 U-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. PROFILE BOWL SHAPED BUT STEEPER GRADIENT ON W EDGE. PLOUGH TRUNCATED.

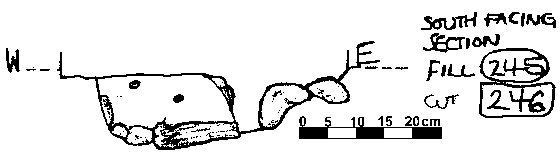

012AD00246 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00245 POST HOLE FILL FIGURE 8
45
38
13
 UNDULATING FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 5% CHALK INCLUSIONS.
012AD00246 POST HOLE CUT FIGURE 8
45
38
13
 UNDULATING CUT OF POSTHOLE. POSSIBLE DOUBLE POSTHOLE. E SIDE LESS CONVINCING AND SHALLOWER. CUT INTO CHALK. TRUNCATED BY PLOUGH.

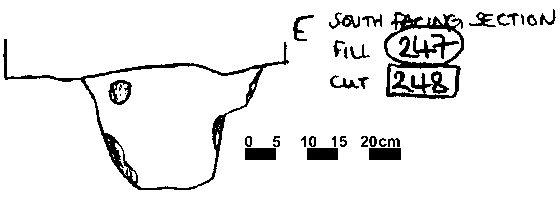

012AD00248 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00247 POST HOLE FILL ROUND
24
23
18
 VERT.SIDE F.BASE FILL OF POSTHOLE. CHARCOAL AND DAUB FLECKING AT BASE. NO FINDS. 5% CHALK INCLUSIONS.
012AD00248 POST HOLE CUT ROUND
24
23
18
 VERT.SIDE F.BASE CUT OF POSTHOLE. STRAIGHT SIDED AND FLAT BASE. CUT INTO CHALK AND PLOUGH TRUNCATED.

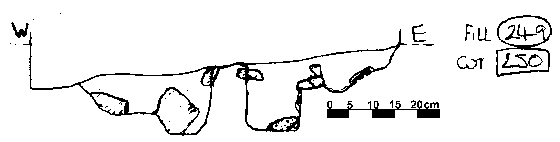

012AD00250 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00249 POST HOLE FILL FIGURE 8
67
46
13
 UNDULATING DOUBLE POSTHOLE WITH UNDULATING PROFILE.SOME CHARCOAL FLECKING.NO DAUB FLECKING.ONE PIECE OF BONE.5% CHALK INCLUSIONS
012AD00250 POST HOLE CUT FIGURE 8
67
46
13
 UNDULATING CUT OF DOUBLE POSTHOLE INTO SOLID CHALK.UNDULATING BASE.

012AD00252 Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00251 POST HOLE FILL ROUND
23
23
7
 V-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 5% CHALK INCLUSIONS.
012AD00252 POST HOLE CUT ROUND
23
23
7
 V-SHAPED CUT OF POSTHOLE. V SHAPED PROFILE. FAIRLY SHALLOW. CUT INTO SOLID CHALK. PLOUGH TRUNCATED.

012AD00254 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00253 POST HOLE FILL ROUND
30
30
9
 U-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 10% CHALK INCLUSIONS 5-15CMS.
012AD00254 POST HOLE CUT ROUND
30
30
9
 U-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. FAIRLY SHALLOW. PLOUGH TRUNCATED.

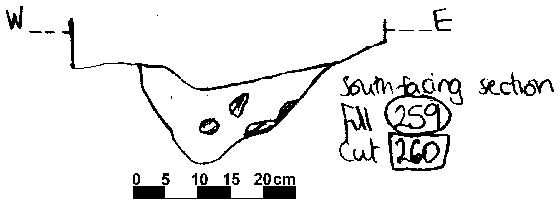

012AD00260 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00259 POST HOLE FILL SUB-CIRCULAR
29
25
14
 V-SHAPED FILL OF POSTHOLE.NO DAUB OR CHARCOAL FLECKING. 10% CHALK INCLUSIONS 1-5CMS. 1 PIECE ANIMAL TOOTH
012AD00260 POST HOLE CUT SUB-CIRCULAR
29
25
14
 V-SHAPED CUT OF POSTHOLE. SMALL STEP ON E SIDE OF V PROFILE. CUT INTO SOLID CHALK. PLOUGH TRUNCATED.

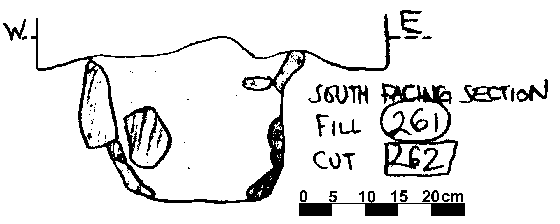

012AD00262 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00261 POST HOLE FILL ROUND
24
25
30
 VERT.SIDE U.BASE FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 10% CHALK INCLUSIONS.
012AD00262 POST HOLE CUT ROUND
24
25
30
 VERT.SIDE U.BASE CUT OF POSTHOLE. POST PACKING AROUND EDGES. CUT INTO CHALK. DEEPER THAN SURROUNDING POSTHOLES. PLOUGH TRUNCATED.

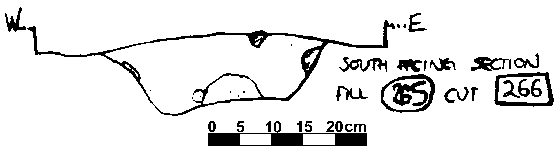

012AD00266 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00265 POST HOLE FILL OVATE
31
27
12
 FLAT BASED U FILL OF POSTHOLE. DAUB FLECKING. NO CHARCOAL. TWO PIECES OF BONE. LESS THAN 5% CHALK INCLUSIONS.
012AD00266 POST HOLE CUT OVATE
31
27
12
 FLAT BASED U CUT OF POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED.

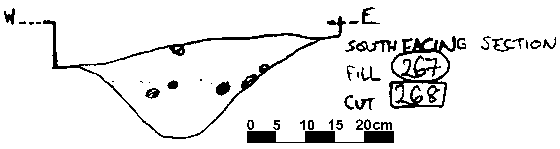

012AD00268 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00267 POST HOLE FILL ROUND
27
24
16
 V-SHAPED FILL OF POSTHOLE. NO CHARCOAL OR DAUB FLECKING. NO FINDS. 10% CHALK INCLUSIONS.
012AD00268 POST HOLE CUT ROUND
27
24
16
 V-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. V SHAPED PROFILE. PLOUGH TRUNCATED.

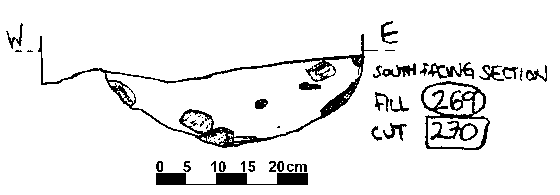

012AD00270 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00269 POST HOLE FILL OVATE
40
35
12
 U-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. LESS THAN 5% CHALK INCLUSIONS.
012AD00270 POST HOLE CUT OVATE
40
35
12
 U-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED. POST PACKING ON SOUTH SIDE.

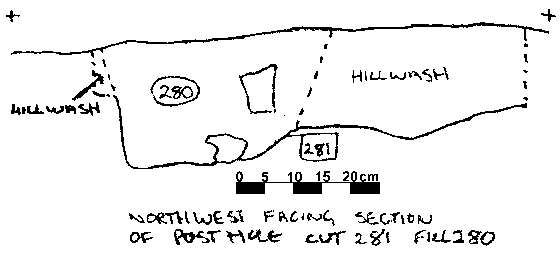

012AD00281 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00280 POST HOLE FILL ROUND
44
38
21
 U-SHAPED POSTHOLE FILL. NO FINDS. NO DAUB OR CHARCOAL INCLUSIONS. < 5% CHALK INCLUSIONS.
012AD00281 POST HOLE CUT ROUND
44
38
21
 U-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. ORIGINALLY THOUGHT TO BE A DITCH BUT OBSCURED BY HILLWASH.

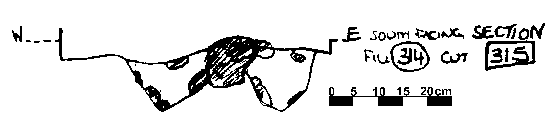

012AD00315 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00314 POST HOLE FILL FIGURE 8
44
30
14
 UNDULATING FILL OF DOUBLE POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 5% CHALK INCLUSIONS.
012AD00315 POST HOLE CUT FIGURE 8
44
30
14
 UNDULATING CUT OF DOUBLE POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED.

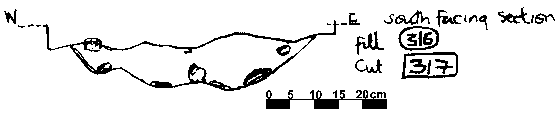

012AD00317 Section and Notes



  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00316 POST HOLE FILL OVATE
50
30
9
 UNDULATING FILL OF DOUBLE POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. LESS THAN 5% CHALK INCLUSIONS.
012AD00317 POST HOLE CUT OVATE
50
30
9
 UNDULATING CUT OF DOUBLE POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED. CUT OF THE INDIVIDUAL POSTS NOT AS OBVIOUS AS OTHERS IN THE AREA.

012AD00299 Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00298 No Entry AMORPHOUS       No Entry GIVEN IN ERROR. LOOKED LIKE A PIT ON SURFACE. TURNED OUT TO BE A DEPRESSION FILLED WITH HILLWASH.
012AD00299 No Entry AMORPHOUS       No Entry GIVEN IN ERROR. LOOKED LIKE A PIT ON SURFACE. TURNED OUT TO BE A DEPRESSION FILLED WITH HILLWASH.

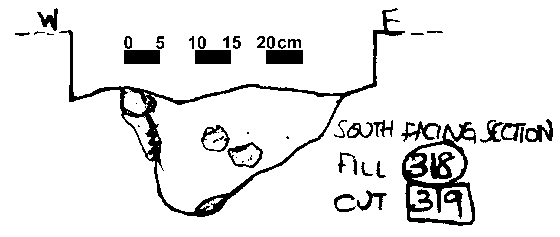

012AD00319 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00318 POST HOLE FILL OVATE
26
35
19
 V-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 5% CHALK INCLUSIONS.
012AD00319 POST HOLE CUT OVATE
26
35
19
 V-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED. V SHAPED PROFILE WITH VERTICAL W EDGE.

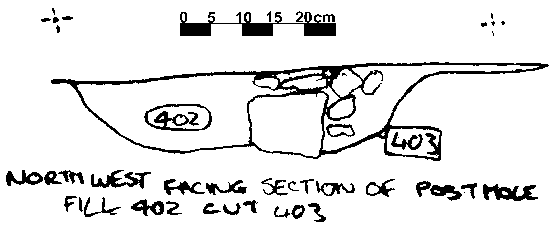

012AD00403 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00402 POST HOLE FILL OVATE
52
42
13
 U-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. 30% CHALK INCLUSIONS 1-15CMS. POST PACKING IN E SIDE.
012AD00403 POST HOLE CUT OVATE
52
42
13
 U-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED.

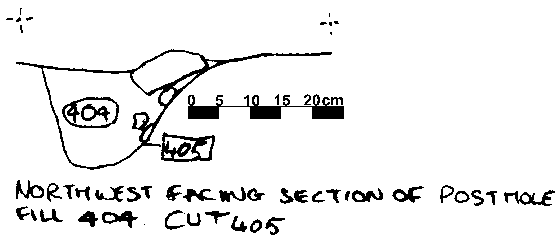

012AD00405 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00404 POST HOLE FILL ROUND
29
29
16
 U-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. LESS THAN 5% CHALK INCLUSIONS.
012AD00405 POST HOLE CUT ROUND
29
29
16
 U-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED. STEEP SIDED U PROFILE.

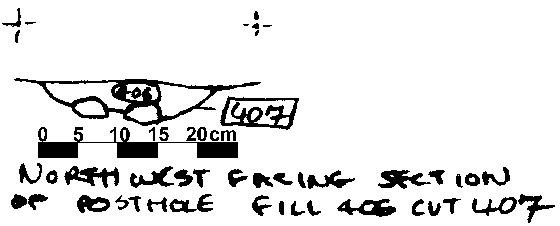

012AD00407 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00406 POST HOLE FILL ROUND
26
28
5
 U-SHAPED FILL OF POSTHOLE. NO DAUB OR CHARCOAL FLECKING. NO FINDS. VERY SHALLOW BUT IN LINE WITH SOME OTHER POSTHOLES.
012AD00407 POST HOLE CUT ROUND
26
28
5
 U-SHAPED CUT OF POSTHOLE. CUT INTO CHALK. PLOUGH TRUNCATED. VERY SHALLOW BUT IN LINE WITH SOME OTHER POSTHOLES.

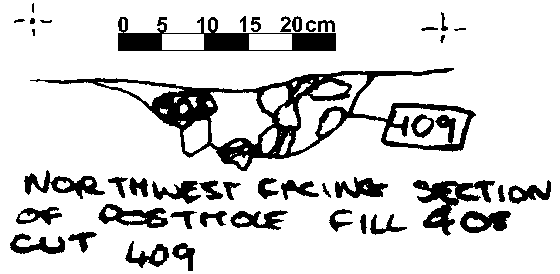

012AD00409 Section and Notes

  KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD00408 POST HOLE FILL OVATE
36
28
10
 UNDULATING FILL OF POSTHOLE.NO DAUB OR CHARCOAL FLECKING. NO FINDS. FULLY EXCAVTED BUT IN LINE WITH OTHER POSTHOLES.
012AD00409 POST HOLE CUT OVATE
36
28
10
 UNDULATING CUT OF POSTHOLE. FULLY EXCAVTED NO HALF SECTION. IN E-W LINE WITH OTHER POSTHOLES. CUT INTO CHALK. PLOUGH TRUNCATED.

Objects By Context

KEY_ID OBJ PERIOD 1 PERIOD 2 MATERIAL TYPE SUB_TYPE CLASS No
012AD00217 AA     CHARCOAL CHARCOAL SAMPLE
1
012AD00253 AC ROMAN ANGLIAN DAUB DAUB
1
012AD00253 AB 4TH CENTURY   POTTERY SHERD   ROMANO-BRITISH
1
012AD00253 AA ROMAN   POTTERY SHERD
1
012AD00260 AA     IRON IRON NAIL?
1
012AD00260 AB ROMAN ANGLIAN SLAG SLAG
1
012AD00270 AA     IRON IRON NAIL?
1
012AD00280 AA 4TH CENTURY   POTTERY SHERD   ROMANO-BRITISH
1
012AD00280 AB 4TH CENTURY   POTTERY SHERD   ROMANO-BRITISH
1
012AD00408 AA     STONE PEBBLE
1
