012AD07043

?Grubenhaus



Grubenhaus Details
Length 525? Width 330 Depth 20 Ratio 1.6:1
Area  14.01 sq. m Volume
Number of Posts 0
Highest Elevation Value  7020
Lowest Elevation Value 7000
Bearing   168 degrees
Structural Class
Material Culture Number of Objects 51 Number of Animal Bones 58
Environmental

Phasing

Stratigraphic Matrix Diagram

Discussion

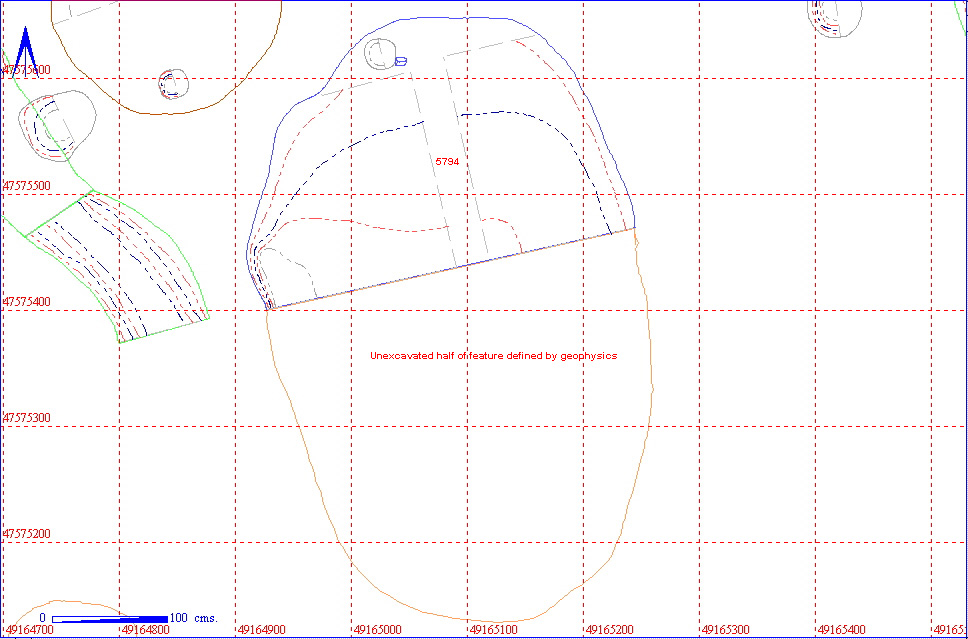

 A small possible Grubenhaus in the south of area 12AD, aligned north/south. Only the north half of the structure was excavated as this was the southern limit of excavation in area 12AD. The south half has been postulated due to geophysics evidence showing a north/south aligned feature of this size. A small post hole (012AD05818) was cut into the north end of the Grubenhaus. This post hole belongs to master 012AD07079 and forms part of the south wall of a possible post hole structure.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
 012AD07043
012AD05794
012AD05793
    51 58

Object Totals by Material

012AD05793 Object Totals by Period and Material

KEY_ID PERIOD TYPE
No
012AD05793 ANGLIAN POTTERY  1
  ROMAN POTTERY
50

012AD05793 Animal Bones by Species

KEY_ID SPECIES No
012AD05793 Cattle
23
  cf. Domestic duck
1
  Domestic fowl
1
  Pig
8
  Sheep
8
  Sheep/Goat
16

Structural Details

012AD05794 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AD05793 LAYER SUB-RECTANGULAR
360
180
20
 U-SHAPED FILL OF UNIDENTIFIED FEATURE. DIMENSIONS ARE OF EXCAVATED HALF. -5% CHALK IN SILTY REDDY-BROWNFILL WITH C/COAL & DAUB INCLS. CONT. POT BONE & S/STONE.
012AD05794 UNDEFINED CUT SUB-RECTANGULAR
360
180
20
 U-SHAPED CUT OF UNIDENTIFIED FEATURE. DIMENSIONS ARE OF EXCAVATED HALF. NATURAL H/WASH UNDERLYING 5793 MORE THAN A DISTINCT CUT. V.ELUSIVE EDGE ONE WEST SIDE.

Objects by Context

KEY_ID OBJ PERIOD 1 PERIOD 2 MATERIAL TYPE SUB_TYPE CLASS No
012AD05793 BQ ANGLIAN   POTTERY SHERD   ANGLIAN III
1
012AD05793 AA ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AB ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AC ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AD ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AE ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AF ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AG ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AH ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AI ROMAN   POTTERY SHERD   HUNTCLIFF
1
012AD05793 AJ ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AK ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AL ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AM ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AN ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AO ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AP ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AQ ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AR ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AS ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AT ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AU ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AV ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AW ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AX ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AY ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 AZ ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BA ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BB ROMAN   POTTERY SHERD
1
012AD05793 BC ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BD ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BE ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BF ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BG ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BH ROMAN   POTTERY SHERD
1
012AD05793 BI ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BJ ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BK ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BL ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BM ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BN ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BO ROMAN   POTTERY SHERD   GREY WARE
1
012AD05793 BP ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BR ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BS ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BT ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BU ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BV ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BW ROMAN   POTTERY SHERD   ROMANO-BRITISH
1
012AD05793 BX ROMAN   POTTERY SHERD   GREY WARE
1
012AD05793 BY ROMAN   POTTERY SHERD   ROMANO-BRITISH
1

Animal Bone by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
012AD05793 Cattle Astragalus 2 0 0 0 0
012AD05793 Cattle Calcaneum 2 0 0 0 0
012AD05793 Cattle LM3 2 0 0 0 0
012AD05793 Cattle M/C P 1 0 0 0 0
012AD05793 Cattle M/T C 1 0 0 1 0
012AD05793 Cattle M/T P 1 0 0 0 0
012AD05793 Cattle Mand fr 1 0 0 0 0
012AD05793 Cattle Mandible 1 0 0 0 1
012AD05793 Cattle Mandible 1 0 0 0 1
012AD05793 Cattle N.Cuboid 1 0 0 0 0
012AD05793 Cattle N.Cuboid 1 0 0 1 0
012AD05793 Cattle Patella 1 0 0 0 0
012AD05793 Cattle Pelvis fr 1 0 0 1 0
012AD05793 Cattle Phalanx 1 1 0 0 0 0
012AD05793 Cattle Phalanx 1 1 0 0 0 0
012AD05793 Cattle Phalanx 2 1 0 1 0 0
012AD05793 Cattle Phalanx 3 1 0 0 0 1
012AD05793 Cattle Radius D 1 0 0 0 0
012AD05793 Cattle Radius P 2 0 0 0 0
012AD05793 Cattle Skull fr 1 0 0 0 1
012AD05793 Cattle Tibia D 1 0 0 0 0
012AD05793 Cattle Ulna 1 0 0 0 0
012AD05793 Cattle Ulna 1 1 0 0 0
012AD05793 cf. Domestic duck Ulna 1 0 0 0 0
012AD05793 Domestic fowl Tibia D 1 0 0 0 0
012AD05793 Pig Astragalus 2 0 0 1 0
012AD05793 Pig Calcaneum 1 0 0 0 0
012AD05793 Pig Humerus D 1 0 0 1 0
012AD05793 Pig M/T P 1 0 0 0 0
012AD05793 Pig Mand fr 1 0 0 0 0
012AD05793 Pig Mandible 1 0 0 0 0
012AD05793 Pig Scapula 1 0 0 0 1
012AD05793 Pig Tibia P 1 0 0 1 0
012AD05793 Sheep Humerus D 1 0 0 0 0
012AD05793 Sheep M/C P 1 1 0 0 0
012AD05793 Sheep M/T br 1 0 0 0 1
012AD05793 Sheep M/T D 1 0 0 0 1
012AD05793 Sheep Phalanx 3 1 0 0 0 0
012AD05793 Sheep Radius D 1 0 0 0 0
012AD05793 Sheep Radius P 2 0 0 1 1
012AD05793 Sheep Tibia D 1 0 0 0 1
012AD05793 Sheep/Goat Atlas 1 0 0 0 0
012AD05793 Sheep/Goat Atlas 1 0 0 0 1
012AD05793 Sheep/Goat Femur D 1 0 0 0 0
012AD05793 Sheep/Goat Humerus C 1 0 0 0 0
012AD05793 Sheep/Goat Humerus D 1 0 0 1 1
012AD05793 Sheep/Goat Ld4 1 0 0 0 0
012AD05793 Sheep/Goat LM3 1 0 0 0 0
012AD05793 Sheep/Goat M/T P 1 1 0 0 0
012AD05793 Sheep/Goat Mand fr 3 0 0 0 0
012AD05793 Sheep/Goat Mandible 1 0 0 0 1
012AD05793 Sheep/Goat Occiput 1 0 0 0 0
012AD05793 Sheep/Goat Pelvis fr 1 0 0 0 0
012AD05793 Sheep/Goat Radius br 1 0 0 0 0
012AD05793 Sheep/Goat Radius D 2 0 0 0 1
012AD05793 Sheep/Goat Radius P 1 0 0 0 0
012AD05793 Sheep/Goat Tibia br 1 0 0 0 0
