012AC09505

Grubenhaus



Grubenhaus Details
Length 320 Width 234 Depth 20 Ratio 1.4:1
Area  6.58 sq. m Volume
Number of Posts 2
Highest Elevation Value  6877
Lowest Elevation Value 6857
Bearing   81 degrees
Structural Class
Material Culture Number of Objects 9 Number of Animal Bones 39
Environmental

Phasing

Stratigraphic Matrix Diagram

Discussion

 A small, badly plough truncated Grubenhaus in the south of area 12AC, immediately to the north of structure 012AC09506. The structure survived to a maximum depth of 20cm, and was cut into the natural chalk with an uneven base. One post hole in either end was recovered; the west side post hole (012AC00300) was visible through the fill of the hollow indicating that the post probably rotted in situ. The Grubenhaus contained very few finds.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
012AC09505
012AC00043
012AC00042
   9 38

012AC00261
012AC00260
     1

012AC00300
012AC00299


Object Totals by Material

012AC00042 Object Totals by Material

012AC00042 Daub 4
  Iron 1
  Stone 1
  Utilized Stone 3

012AC00042 Animal Bone Totals by Species

KEY_ID SPECIES No
012AC00042 Cattle
15

 Domestic fowl
1

 Domestic goose
2

 Horse
1

 Pig
1

 Sheep
8

 Sheep/Goat
10

012AC00260 Animal Bone Totals by Species

KEY_ID SPECIES No
012AC00260 Cattle
1

Structural Details

012AC00043 Section and Notes

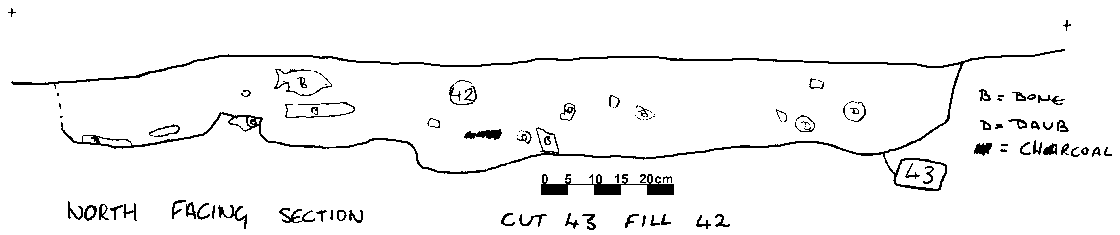

012AC00043 North Facing Section

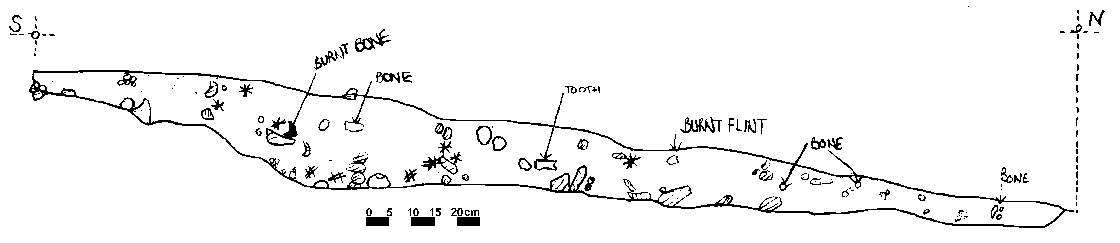

012AC00043 East Facing Section

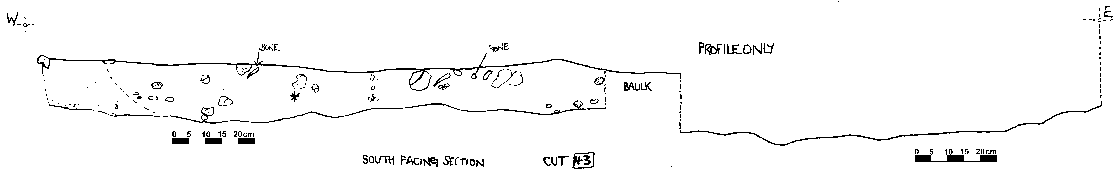

012AC00043 South Facing Section



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00042 GRUB FILL SUB-RECTANGULAR
330
240
20
 U-SHAPED SHALLOW GRUB. CESS STAINING ON BASE. EAST GABLE POST HOLE 261. WEST PH 300.
012AC00043 GRUB CUT SUB-RECTANGULAR
330
240
20
 U-SHAPED SHALLOW GRUB. UNEVEN CHALK BASE. ALIGNED E-W 70CM N OF GRUB 273. GABLE POSTS 261 & 300

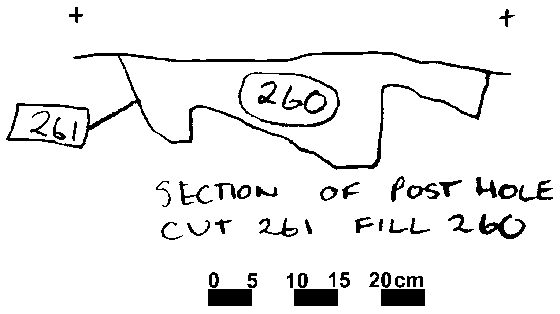

012AC00261 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00260 POST HOLE FILL SUB-CIRCULAR
45
45
8
 U-SHAPED POST HOLE FILL OF GRUB 43 (EAST GABLE POST). DAUB FLECKING. NO POST PIPE VISIBLE. 42 REMOVED & REL. LOST WITH 260
012AC00261 POST HOLE CUT SUB-CIRCULAR
45
45
8
 U-SHAPED EAST GABLE POST OF GRUB 43

012AC00300 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00299 POST HOLE FILL SUB-CIRCULAR
20
18
23
 U-SHAPED POST HOLE FILL IN GRUB 43. VISIBLE IN SECTION
012AC00300 POST HOLE CUT SUB-CIRCULAR
20
18
23
 U-SHAPED POST HOLE VISIBLE IN GRUB SECTION (W GABLE POST). SUGGESTS THE POST DECOMPOSED IN SITU AFTER MATERIAL ACCUMULATED WITHIN THE PIT

Objects by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
012AC00042 AD Unassigned DAUB DAUB
1
012AC00042 AE Unassigned DAUB DAUB
1
012AC00042 AF Unassigned DAUB DAUB
1
012AC00042 AI Unassigned DAUB DAUB
1
012AC00042 AB   IRON IRON ?NAIL
1
012AC00042 AH   STONE STONE   RED CHALK
1
012AC00042 AA ANGLIAN UTILISED STONE LAVA NIEDERMENDIG
32
012AC00042 AC ANGLIAN UTILISED STONE LAVA NIEDERMENDIG
1
012AC00042 AG ANGLIAN UTILISED STONE LAVA NIEDERMENDIG
1

Animal Bones by Context

KEY_ID SPECIES ELEMENT QUANT CHEW BURN BUTCH FBRK
012AC00042 Cattle Astragalus 1 0 0 0 1
012AC00042 Cattle Calcaneum 1 0 0 0 0
012AC00042 Cattle Calcaneum 1 1 0 0 0
012AC00042 Cattle Femur D 1 0 0 0 0
012AC00042 Cattle M/C C 1 0 0 1 0
012AC00042 Cattle M/T D 1 0 0 0 0
012AC00042 Cattle Mandible 1 0 0 0 0
012AC00042 Cattle Mandible 1 0 0 0 1
012AC00042 Cattle Patella 1 0 0 0 0
012AC00042 Cattle Phalanx 1 1 0 0 0 0
012AC00042 Cattle Phalanx 3 1 0 0 0 0
012AC00042 Cattle Radius br 1 0 0 0 0
012AC00042 Cattle Scapula 1 0 0 0 0
012AC00042 Cattle Skull fr 1 0 0 0 0
012AC00042 Cattle Tibia D 1 0 0 0 0
012AC00042 Domestic fowl Tarsom/t 1 0 0 1 0
012AC00042 Domestic goose Scapula 1 0 0 0 0
012AC00042 Domestic goose Ulna 1 0 0 0 0
012AC00042 Horse LM3 1 0 0 0 0
012AC00042 Pig Humerus fr 1 0 0 0 0
012AC00042 Sheep Horncore 1 0 0 1 0
012AC00042 Sheep Humerus D 1 0 0 0 0
012AC00042 Sheep M/C P 1 0 0 0 0
012AC00042 Sheep M/C P 1 0 0 0 0
012AC00042 Sheep M/T C 1 0 0 1 0
012AC00042 Sheep M/T P 1 1 0 0 1
012AC00042 Sheep Phalanx 1 1 0 0 0 0
012AC00042 Sheep Tibia D 1 0 0 0 0
012AC00042 Sheep/Goat Femur P 1 0 0 0 0
012AC00042 Sheep/Goat Humerus br 1 1 0 0 0
012AC00042 Sheep/Goat Pelvis fr 1 0 0 1 0
012AC00042 Sheep/Goat Radius br 1 0 0 1 0
012AC00042 Sheep/Goat Radius C 1 0 0 0 0
012AC00042 Sheep/Goat Scapula 1 0 0 0 0
012AC00042 Sheep/Goat Scapula 1 0 0 0 1
012AC00042 Sheep/Goat Skull fr 1 0 0 0 0
012AC00042 Sheep/Goat Tibia P 1 0 0 0 1
012AC00042 Sheep/Goat Ulna 1 0 0 0 0
012AC00260 Cattle Humerus D 1 1 0 0 0
