012AC09504

Post Hole Structure



Post-Hole Structure Details
Length 740 Width  325
Area  24.05 sq. m Ratio 2.3:1
Number of Posts 26 Deepest 34 012AC00277 Shallowest 9 012AC00281 and 012AC00294
Average Depth
 18
North Wall  4 Posts Average Depth 23.5
East Wall  4 Posts Average Depth 17
South Wall  7 Posts Average Depth 15.5
West Wall  4 Posts Average Depth 19
Interior Divisions: Line of four internal posts just west of centre, may indicate partition wall.
Highest Elevation Value  6807  012AC00224
Lowest Elevation Value 6725  012AC00277
Bearing  98 degrees
Plank\Post Post
Doorways Not clear, probably two central in long walls.
Repairs:
Structural Class
Material Culture Number of Objects  4 Number of Animal Bones  0
Environmental

Phasing

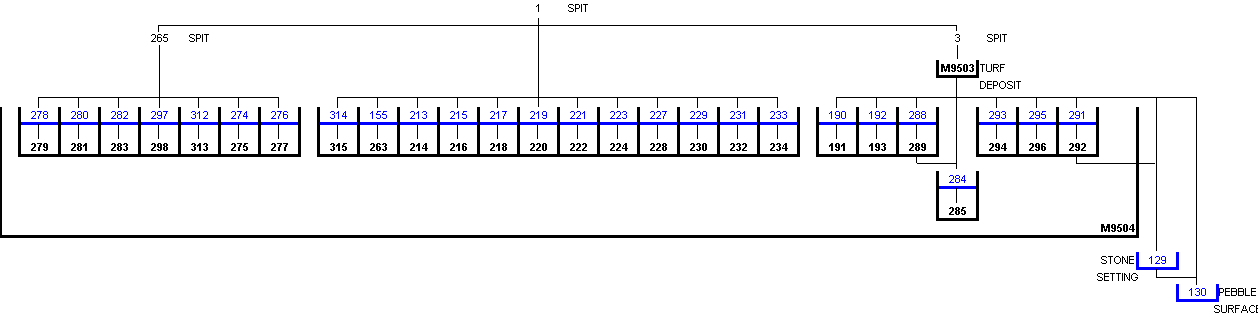

Stratigraphic Matrix Diagram

Discussion

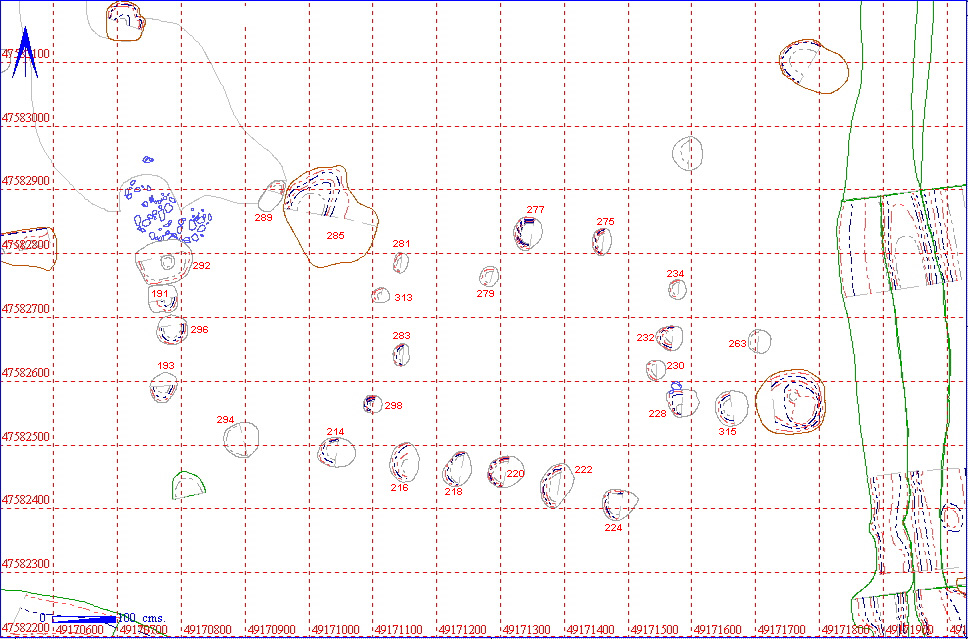

An east/west aligned post hole structure in the south of area 12AC. The east side post holes were recovered after a layer of turf material (master 012AC09503) was removed. The north/west corner of the structure cut through pebble surface 012AC00130 and stone setting 012AC00129. The pit present on the north wall (012AC00285) is likely to be a series of post hole re-cuts with the latest cut 012AC00289 on the west side. Two post holes on the outside of the east wall (012AC00263 and 012AC00315) may have formed a small annex or lean-to. The pit 012AC00258 to the east may also have been associated with this structure. The structure has a line of four small internal post holes off-centre in the west side; possibly indicating the presence of a partition wall.

All Contexts and Associated Finds Totals

MASTER CUT FILLS VOLUME OBJECTS AN BONE DENSITY
012AC09504
012AC00191
012AC00190


012AC00193
012AC00192
   1

012AC00214
012AC00213


012AC00216
012AC00215
   1

012AC00218
012AC00217


012AC00220
012AC00219


012AC00222
012AC00221


012AC00224
012AC00223


012AC00228
012AC00227


012AC00230
012AC00229


012AC00232
012AC00231


012AC00234
012AC00233


012AC00263
012AC00155


012AC00275
012AC00274


012AC00277
012AC00276


012AC00279
012AC00278


012AC00281
012AC00280


012AC00283
012AC00282


012AC00285
012AC00284


012AC00289
012AC00288


012AC00292
012AC00291


012AC00294
012AC00293
   1

012AC00296
012AC00295


012AC00298
012AC00297


012AC00313
012AC00312


012AC00315
012AC00314
   1

Structural Details

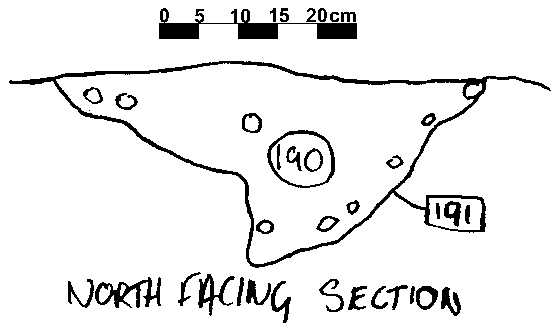

012AC00191 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00190 POST HOLE FILL SUB-CIRCULAR
51
48
22
 U-SHAPED FREQUENT SMALL DAUB FRAGS. ON SURFACE
012AC00191 POST HOLE CUT SUB-CIRCULAR
51
48
22
 U-SHAPED POSTHOLE IN LINE WITH 193

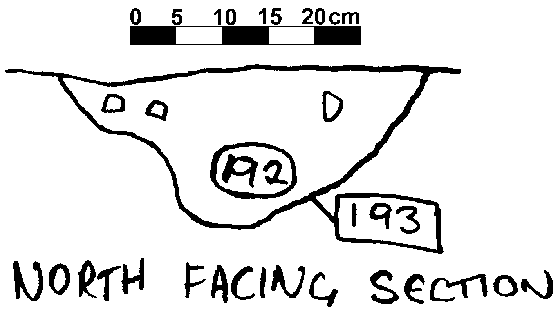

012AC00193 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00192 POST HOLE FILL SUB-CIRCULAR
58
37
18
 U-SHAPED NO POST PACKING
012AC00193 POST HOLE CUT SUB-CIRCULAR
58
37
18
 U-SHAPED POST HOLE IN LINE & 130CM SOUTH OF PH 190 (C TO C)

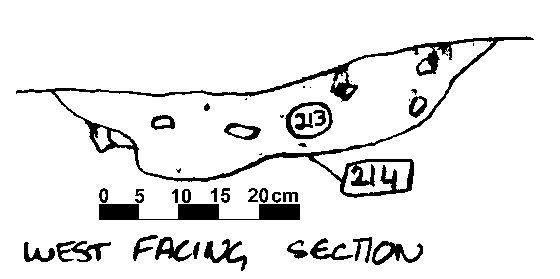

012AC00214 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00213 POST HOLE FILL SUB-CIRCULAR
52
52
10
 U-SHAPED POST HOLE FILL. NO POST PACKING
012AC00214 POST HOLE CUT SUB-CIRCULAR
52
52
10
 U-SHAPED POST HOLE IN LINE OF SIX

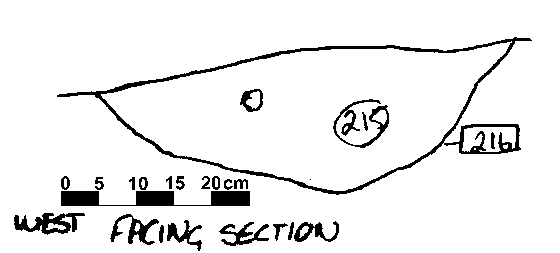

012AC00216 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00215 POST HOLE FILL SUB-CIRCULAR
53
44
18
 U-SHAPED POST HOLE FILL
012AC00216 POST HOLE CUT SUB-CIRCULAR
53
44
18
 U-SHAPED POST HOLE IN LINE BETWEEN PH'S 214 & 218. PROBABLE DOUBLE PH

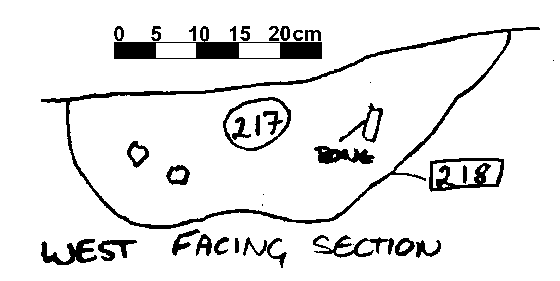

012AC00218 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00217 POST HOLE FILL SUB-CIRCULAR
45
44
18
 U-SHAPED NO POST PACKING OR POST PIPE DEFINED. CHALK FRAGS. <4CM IN SIZE. LOCATED BETWEEN PH'S 215 & 219. PROBABLE DOUBLE POST HOLE.
012AC00218 POST HOLE CUT SUB-CIRCULAR
45
44
18
 U-SHAPED POST HOLE - ONE OF A LINE OF SIX

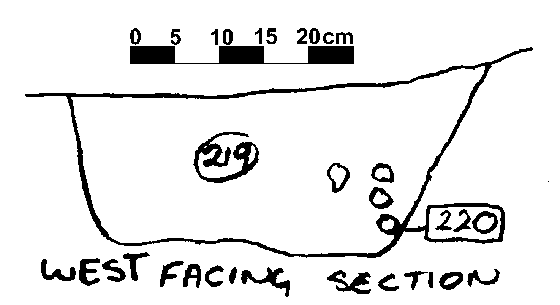

012AC00220 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00219 POST HOLE FILL SUB-CIRCULAR
50
45
20
 U-SHAPED POST HOLE FILL
012AC00220 POST HOLE CUT SUB-CIRCULAR
50
45
20
 U-SHAPED POST HOLE LOCATED IN A LINE OF SIX

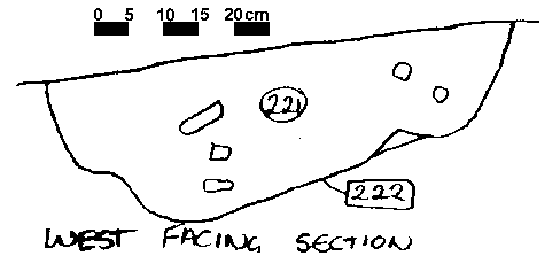

012AC00222 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00221 POST HOLE FILL SUB-RECTANGULAR
64
50
23
 U-SHAPED POSSIBLE DOUBLE POST HOLE
012AC00222 POST HOLE CUT SUB-RECTANGULAR
64
50
23
 U-SHAPED POST HOLE IN LINE OF SIX

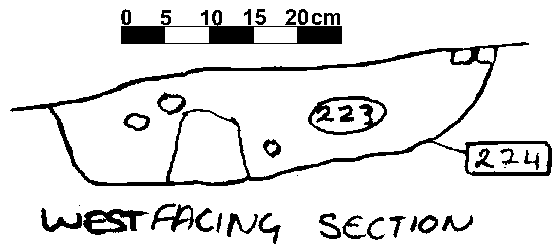

012AC00224 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00223 POST HOLE FILL SUB-CIRCULAR
56
50
11
 U-SHAPED POST HOLE FILL
012AC00224 POST HOLE CUT SUB-CIRCULAR
56
50
11
 U-SHAPED POST HOLE AT E END OF A LINE OF SIX

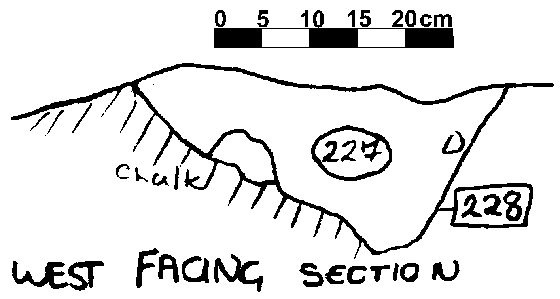

012AC00228 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00227 POST HOLE FILL SUB-CIRCULAR
45
45
12
 U-SHAPED POSSIBLE POST PACKING ON NORTH SIDE - ANGULAR CHALK BLOCKS 10CM IN SIZE. ONE IN A N-S LINE OF FIVE. CHALK FRAGS <6CM IN SIZE
012AC00228 POST HOLE CUT SUB-CIRCULAR
45
45
15
 U-SHAPED SOUTHERN MOST POST HOLE IN N-S LINE OF FIVE

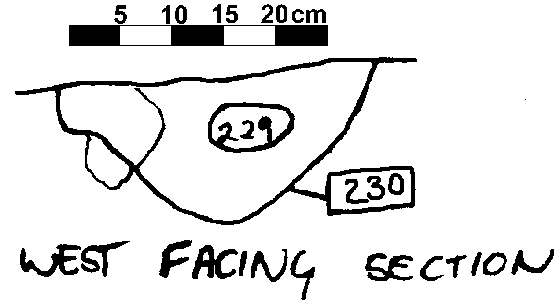

012AC00230 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00229 POST HOLE FILL SUB-CIRCULAR
30
25
12
 U-SHAPED ANGULAR CHALK BLOCK OF POST PACKING ON N SIDE 13CM IN SIZE.
012AC00230 POST HOLE CUT SUB-CIRCULAR
30
25
 V+SLOT POST HOLE IN N-S LINE BETWEEN 228 & 232

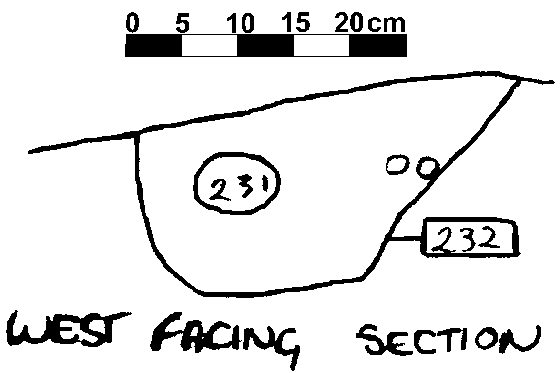

012AC00232 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00231 POST HOLE FILL SUB-CIRCULAR
35
34
17
 U-SHAPED NO POST PACKING
012AC00232 POST HOLE CUT SUB-CIRCULAR
35
34
17
 U-SHAPED POST HOLE LOCATED IN N-S LINE BETWEEN 230 & 234

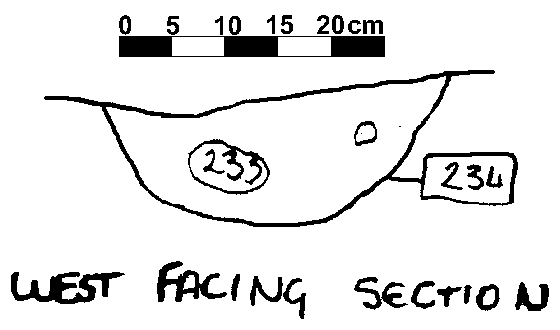

012AC00234 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00233 POST HOLE FILL SUB-CIRCULAR
35
33
12
 U-SHAPED NO POST PACKING
012AC00234 POST HOLE CUT SUB-CIRCULAR
35
33
12
 U-SHAPED POST HOLE IN N-S LINE 95CM N OF 232

012AC00263 Notes

KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00155 POST HOLE FILL SUB-CIRCULAR
35
30
9
 U-SHAPED POST HOLE FILL. NO POST PACKING OR POST PIPE APPARENT. CHARCOAL FLECKING. CHALK FRAGS <3CM IN SIZE
012AC00263 POST HOLE CUT SUB-CIRCULAR
35
30
9
 U-SHAPED POST HOLE MAY RELATE TO STRUCTURE 9504

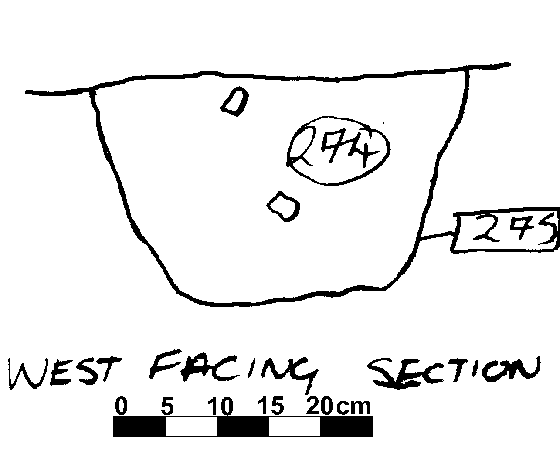

012AC00275 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00274 POST HOLE FILL SUB-CIRCULAR
38
31
22
 U-SHAPED NO POST PIPE OR PACKING APPARENT. CHALK FRAGS <4CM IN SIZE
012AC00275 POST HOLE CUT SUB-CIRCULAR
38
31
22
 U-SHAPED POST HOLE IN E-W LINE - NORTH SIDE OF PH STRUCTURE 9004

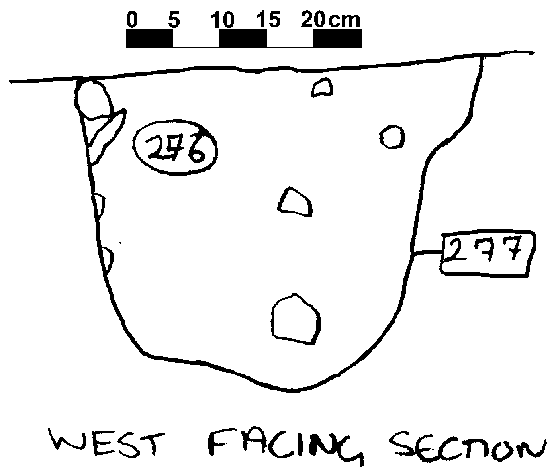

012AC00277 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00276 POST HOLE FILL SUB-CIRCULAR
36
35
34
 U-SHAPED NO POST PACKING OR PIPE VISIBLE. FLECKS OF CHARCOAL. CHALK FRAGS <6CM IN SIZE
012AC00277 POST HOLE CUT SUB-CIRCULAR
36
35
34
 U-SHAPED POST HOLE IN E-W LINE OF STRUCTURE 9004 (NORTH SIDE)

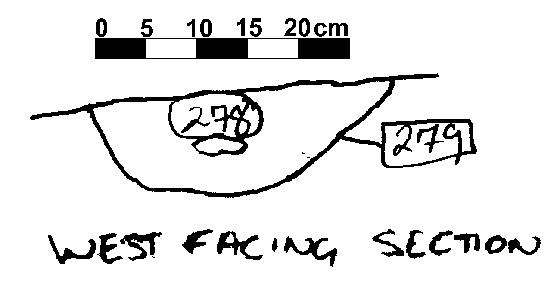

012AC00279 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00278 POST HOLE FILL SUB-CIRCULAR
34
30
11
 U-SHAPED POST HOLE BUT NO POST PACKING OR PIPE APPARENT. CHALK FRAGS <3CM IN SIZE
012AC00279 POST HOLE CUT SUB-CIRCULAR
34
30
11
 U-SHAPED POST HOLE PROBABLY RELATES TO STRUCTURE 9004

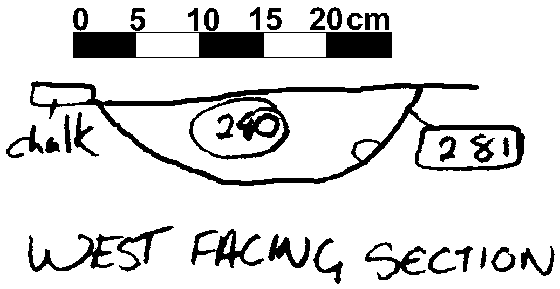

012AC00281 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00280 POST HOLE FILL SUB-CIRCULAR
30
27
9
 U-SHAPED POST HOLE WITH NO POST PIPE OR PACKING APPARENT. A FEW CHALK FRAGS <3CM IN SIZE
012AC00281 POST HOLE CUT SUB-CIRCULAR
30
27
9
 U-SHAPED POST HOLE RELATES TO STRUCTURE 9004 (INTERNAL PH)

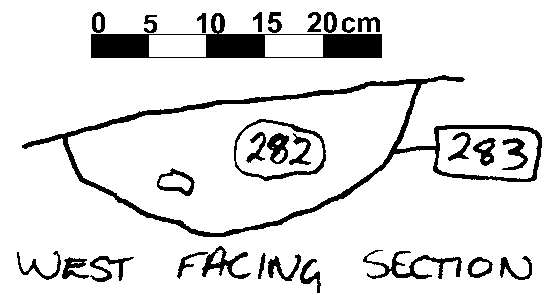

012AC00283 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00282 POST HOLE FILL SUB-CIRCULAR
30
30
15
 U-SHAPED POST HOLE FOLL
012AC00283 POST HOLE CUT SUB-CIRCULAR
30
30
15
 U-SHAPED POST HOLE PROBABLY RELATING TO STRUCTURE 9004 (INTERNALLY)

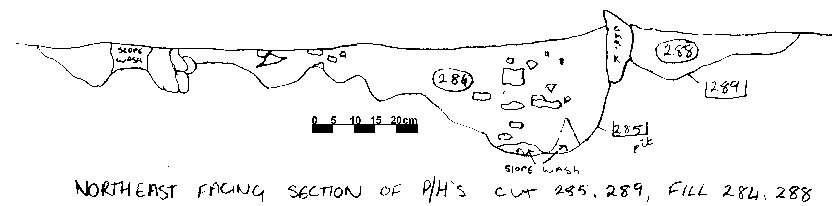

012AC00285 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00284 PIT FILL OVATE
160
140
22
 U-SHAPED PIT FILL CONTAINING ANGULAR CHALK FRAGS <6CM IN SIZE
012AC00285 PIT CUT OVATE
160
140
22
 V-SHAPED PIT

012AC00289 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00288 POST HOLE FILL SUB-CIRCULAR
60
43
16
 U-SHAPED POST HOLE PACKING OF ANGULAR CHALK BLOCKS 17CM IN SIZE
012AC00289 POST HOLE CUT SUB-CIRCULAR
60
43
16
 U-SHAPED POST HOLE IN E-W LINE OF STRUCTURE 9004 (NORTH WALL). PROBABLY REPRESENTS LATEST RECUT OF 285

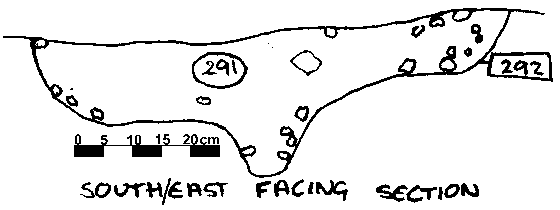

012AC00292 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00291 POST HOLE FILL SUB-RECTANGULAR
85
60
23
 U-SHAPED POST HOLE PIT WITH CIRCULAR POST PIPE 20CM IN DIA. A FEW CHALK FRAGS <6CM IN SIZE.
012AC00292 POST HOLE CUT SUB-RECTANGULAR
85
60
23
 U-SHAPED POST HOLE IN N-S LINE OF STRUCTURE (WEST SIDE)

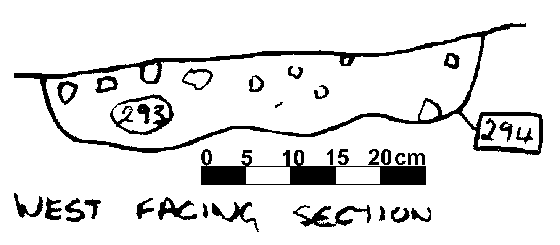

012AC00294 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00293 POST HOLE FILL SUB-CIRCULAR
50
50
9
 U-SHAPED POST HOLE
012AC00294 POST HOLE CUT SUB-CIRCULAR
50
50
9
 U-SHAPED POST HOLE IN E-W LINE OF PH STRUCTURE 9004 (SOUTH WALL)

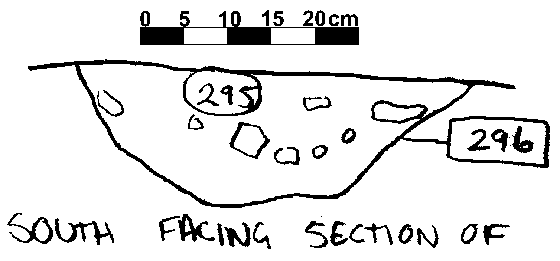

012AC00296 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00295 POST HOLE FILL SUB-CIRCULAR
45
40
13
 U-SHAPED POST HOLE CONTAINING CHALK FRAGS <4CM IN SIZE. NO POST PACKING OR POST PIPE APPARENT
012AC00296 POST HOLE CUT SUB-CIRCULAR
45
40
13
 U-SHAPED POST HOLE IN N-S LINE OF PH STRUCTURE 9004

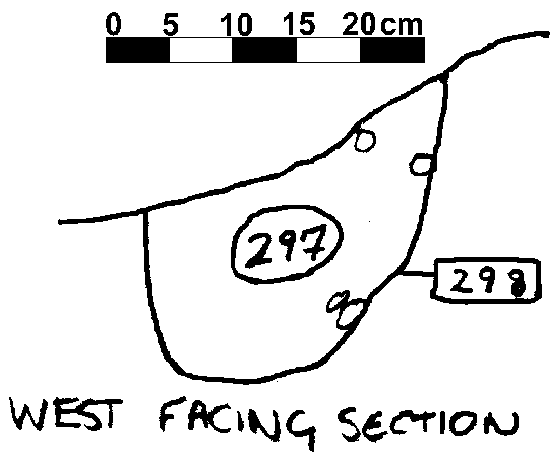

012AC00298 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00297 POST HOLE FILL SUB-CIRCULAR
28
26
25
 U-SHAPED POST HOLE WITH NO POST PACKING OR PIPE APPARENT. CHALK FRAGS <3CM IN SIZE.
012AC00298 POST HOLE CUT SUB-CIRCULAR
28
26
25
 U-SHAPED POST HOLE POSSIBLY INTERNAL/STRUCTURAL TO STRUCTURE 9004

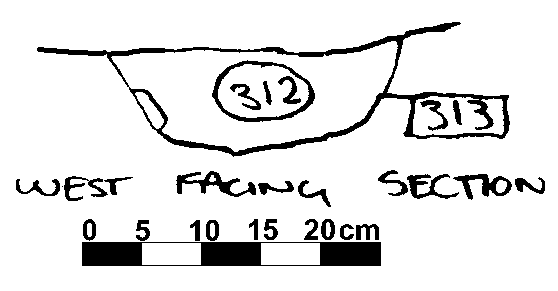

012AC00313 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00312 POST HOLE FILL SUB-CIRCULAR
27
24
10
 U-SHAPED CHALK FRAGS <5CM IN SIZE
012AC00313 POST HOLE CUT SUB-CIRCULAR
27
24
10
 U-SHAPED POST HOLE POSSIBLY INTERNAL TO PH STRUCTURE ALIGNED E-W (9505)

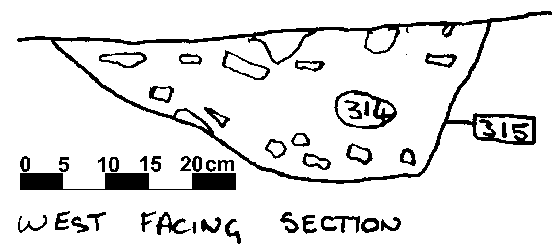

012AC00315 Section and Notes



KEY_ID TYPE SHAPE L B D PROFILE NOTES
012AC00314 POST HOLE FILL SUB-CIRCULAR
45
40
15
 U-SHAPED NO POST PIPE OR PACKING APPARENT. CHALK FRAGS <6CM IN SIZE. FLECKS OF CHARCOAL
012AC00315 POST HOLE CUT SUB-CIRCULAR
45
40
15
 U-SHAPED POST HOLE POSSIBLY RELATING TO STRUCTURE 9504

Objects by Context

KEY_ID OBJ PERIOD MATERIAL TYPE SUB_TYPE CLASS No
012AC00192 AA   POTTERY SHERD
1
012AC00216 AA PREHISTORIC FLINT FLAKE
1
012AC00293 AA ?ANGLIAN UNFIRED CLAY UNFIRED CLAY
5
012AC00315 AA ROMAN POTTERY SHERD
1
